2,620 Sq Ft Modern H-Shaped Single-Story House Plan with 4 Bedrooms, 5 Bathrooms and Carport

Plan
24770C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2620
Total Heated ft²
5 + 0
Baths + 1/2 Baths
4 + 0
Beds + Home Office
2
Cars (Carport)
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans
Main Floor

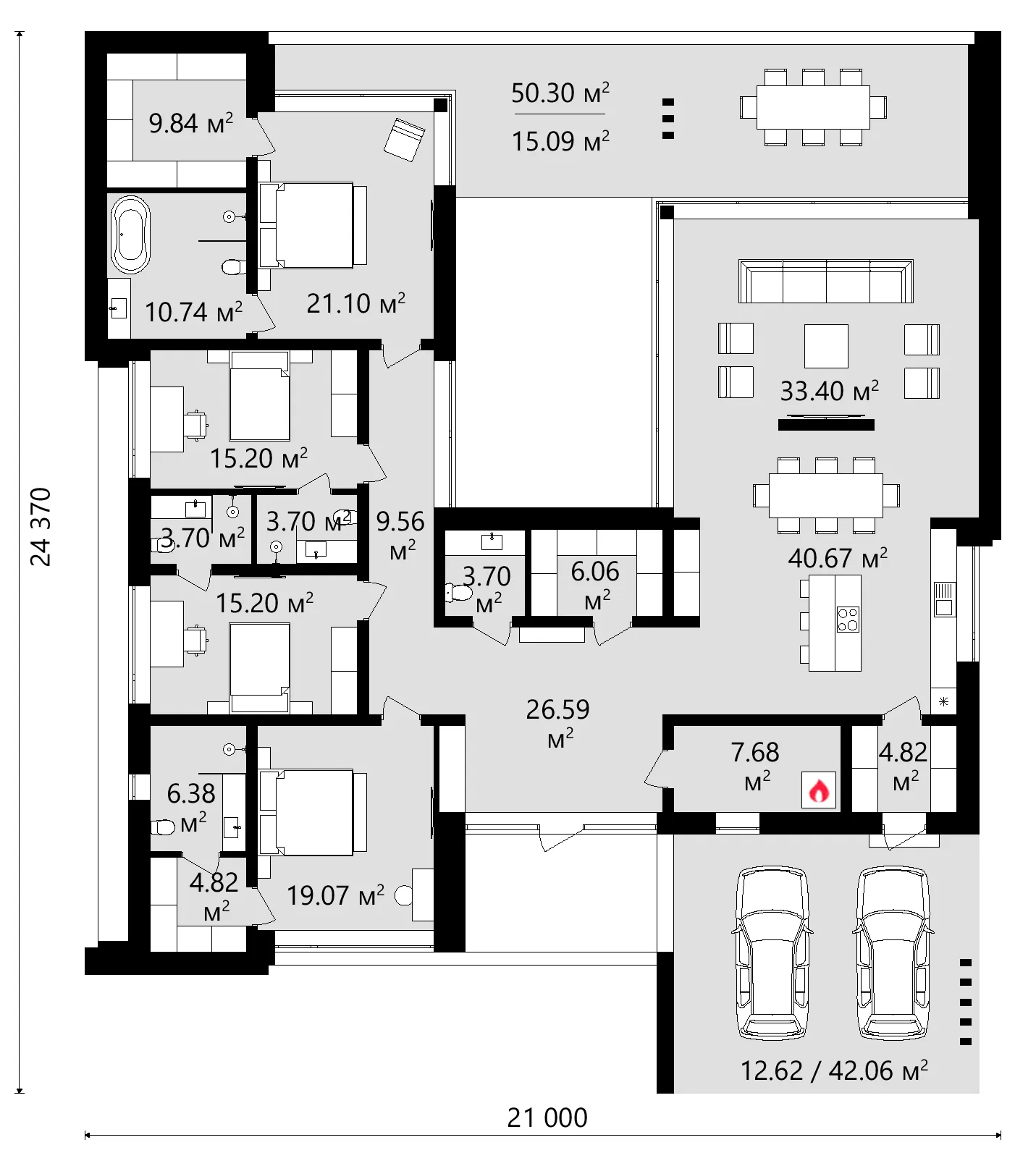

Main Floor 13 – 2,620 Sq Ft Modern Single-Story House Plan with 4 Bedrooms and Carport – 24770C
Full Specs & Features
Area
Total Heated: 2620.37 ft²
Dimensions
Depth: 74'3" ft
Width: 64'0" ft
Garage
Cars: 2
Carport
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Wood
Stucco
Rooms
Full bathrooms: 5
Bedrooms: 4
Utility room
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast Nook
Island
Interior Features
Main Floor Master
2 Master Suites
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Courtyard
Covered Rear Porch
Corner Window
Panoramic Windows
Window Walls
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
Modern
Roof
Roof Area: 4226.45 ft²
Flat

The house design concept 24770C, available for purchase as a digital house design concept, describes a modern H-shaped single-story single family home with Total Heated 2,620 Sq Ft, 4 bedrooms, 5 bathrooms and a carport, designed for 4-6 people. The wood and stucco exterior and the flat roof give the house clean lines, while the two wings of the H-shape frame a private courtyard.

The open floor plan joins the large great room with the large kitchen, so cooking, meals and conversation share one space. An island adds prep and serving surface, the breakfast nook holds quick everyday meals, and the walk-in pantry keeps supplies out of sight. Large windows, window walls, floor-to-ceiling and panoramic windows and a corner window fill the day zone with daylight and open it to the courtyard and the covered rear porch.

All bedrooms are on one level and clustered together, so parents stay close to the children at night. Two primary suites, one with a walk-in closet, give two couples or guests equal comfort and privacy, and five bathrooms remove the morning queue. A utility room keeps household tasks away from the living areas.

The covered rear porch extends living outdoors in any weather, and the carport shelters two cars without the bulk of a closed garage. The house is 64'0" wide and 74'3" deep. The foundation is designed on strip footings, with a slab or a concrete block foundation as options, and the exterior walls are of aerated concrete blocks, with ceramic hollow blocks or sand-lime blocks as alternatives. In figures: Total Heated 2,620 Sq Ft, 4 bedrooms, 5 bathrooms and a 2-car carport.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
US$1109
