2,162 Sq Ft Traditional 2-Story House Plan with 3 Bedrooms, 2 Bathrooms and 2-Car Garage
Opis techniczny

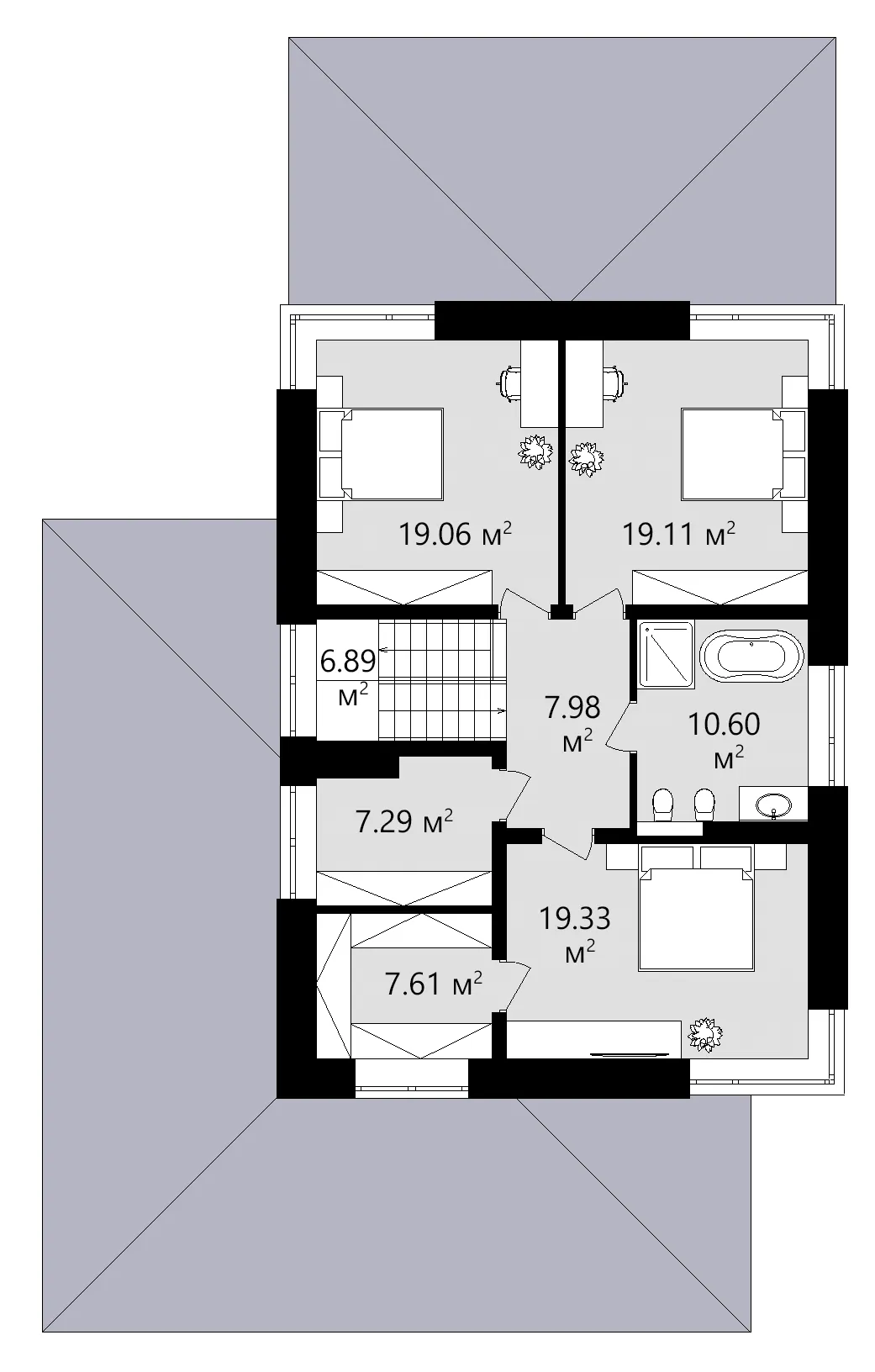

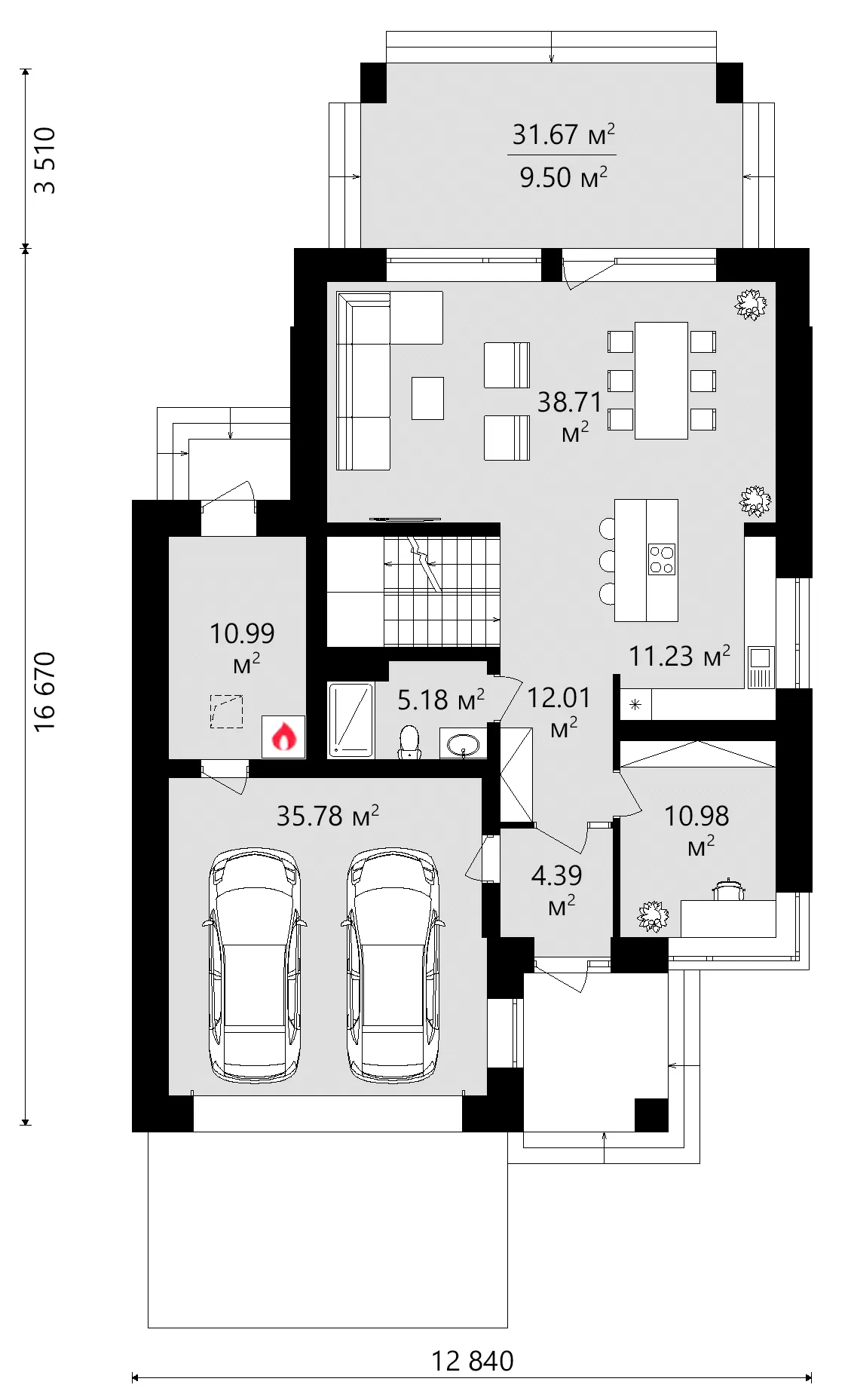

Rzuty kondygnacji
Rzut więźby dachowej

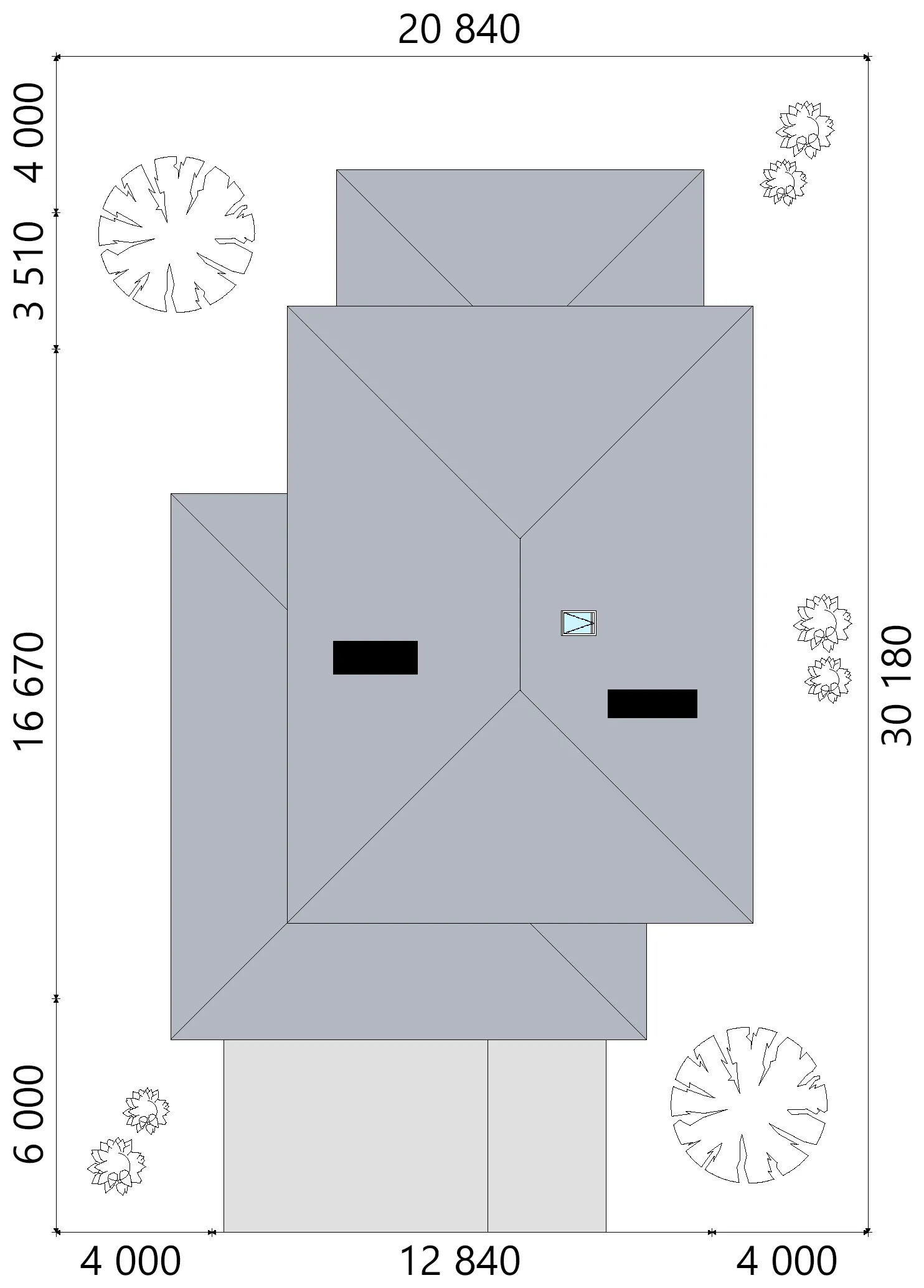

Rzut dachu
Przekroje

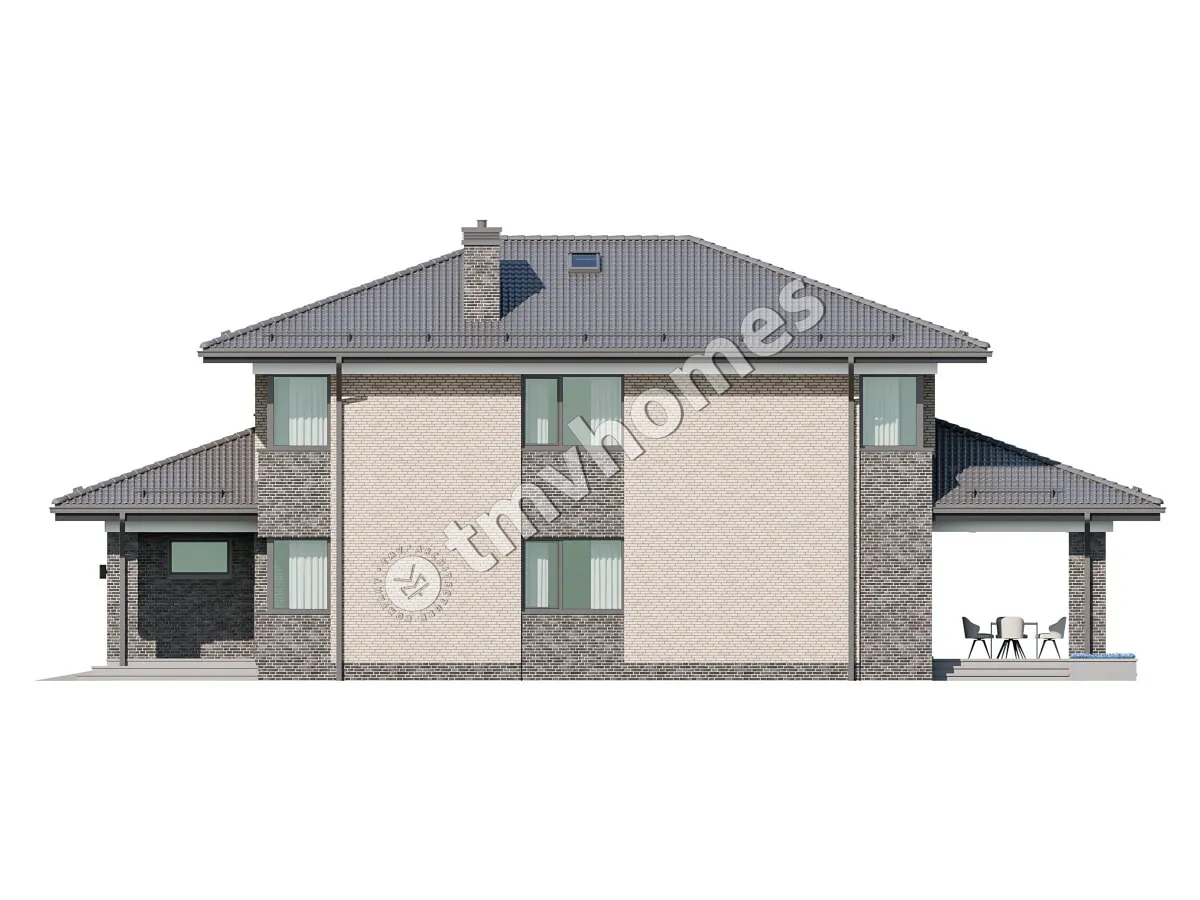

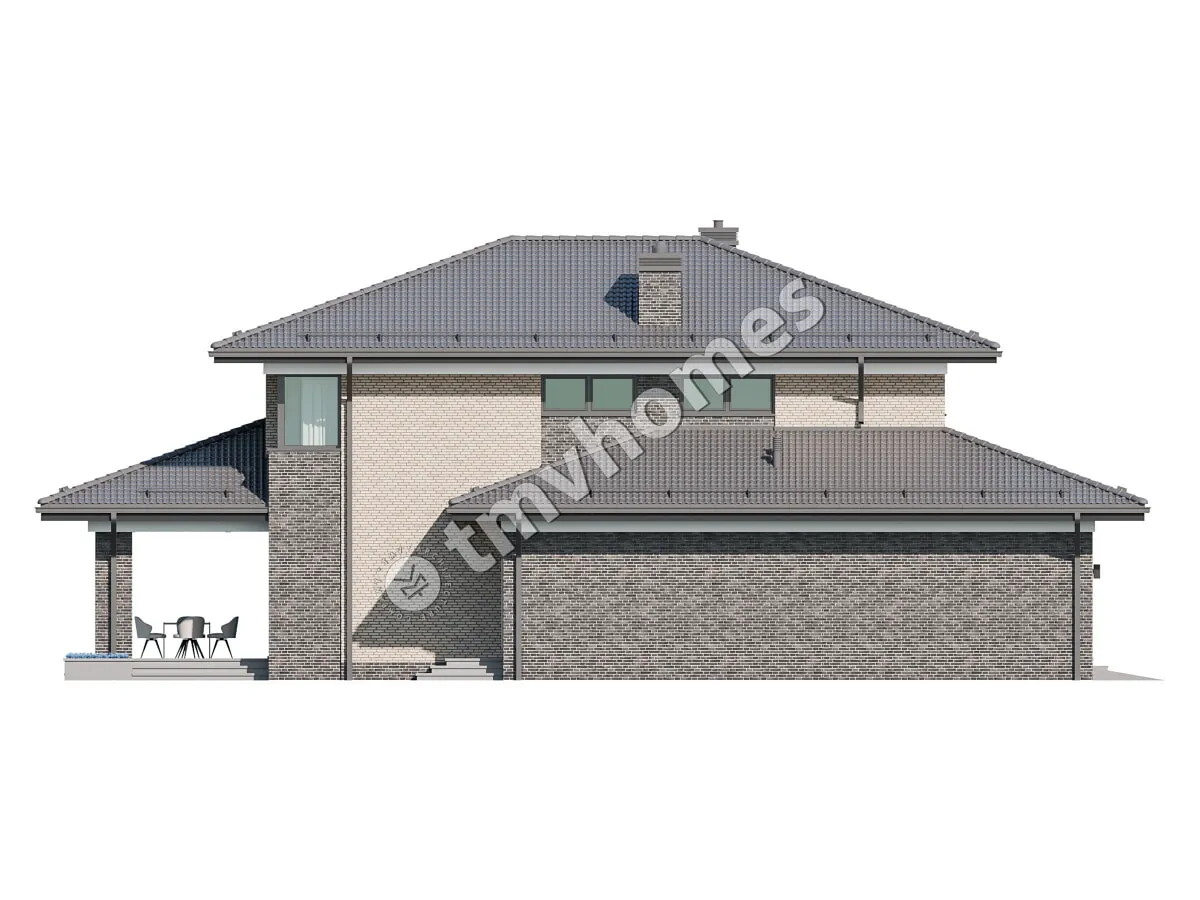

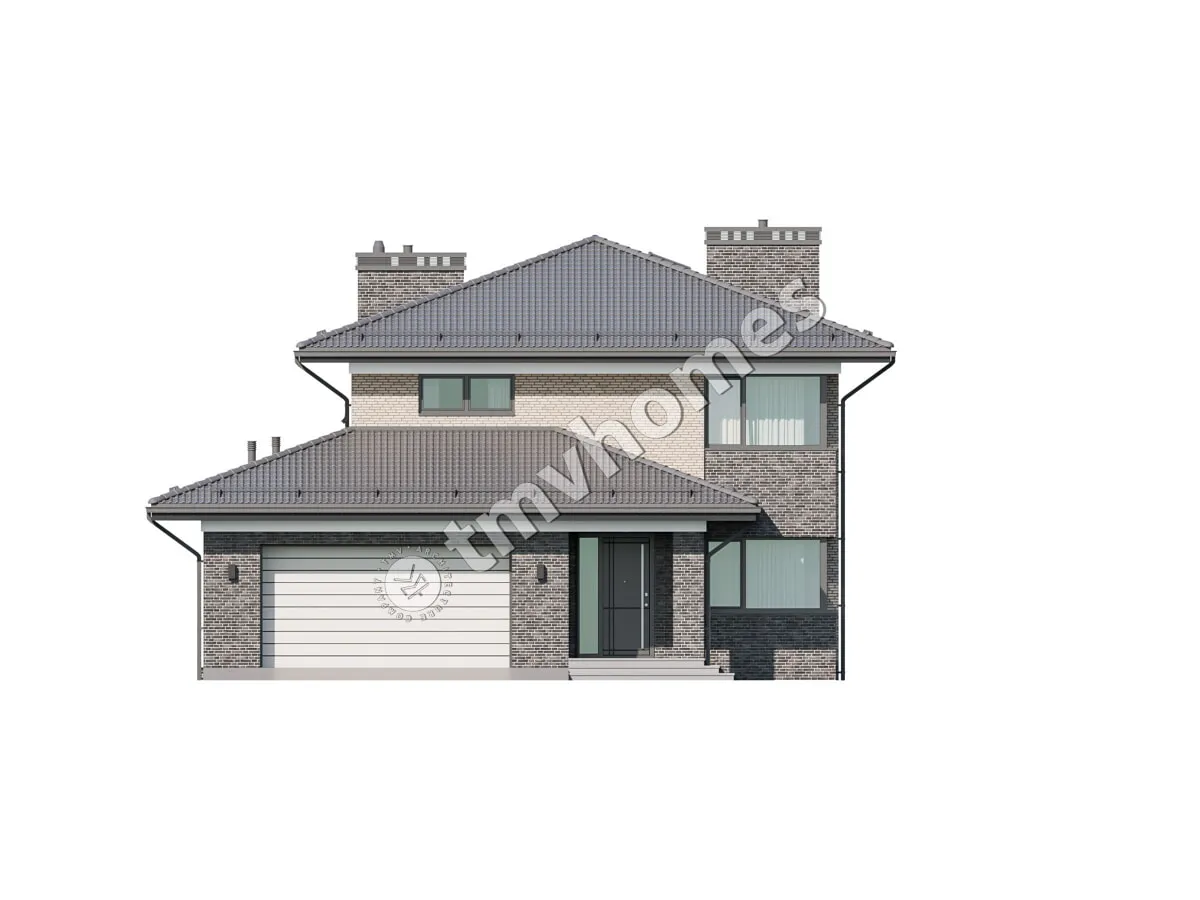

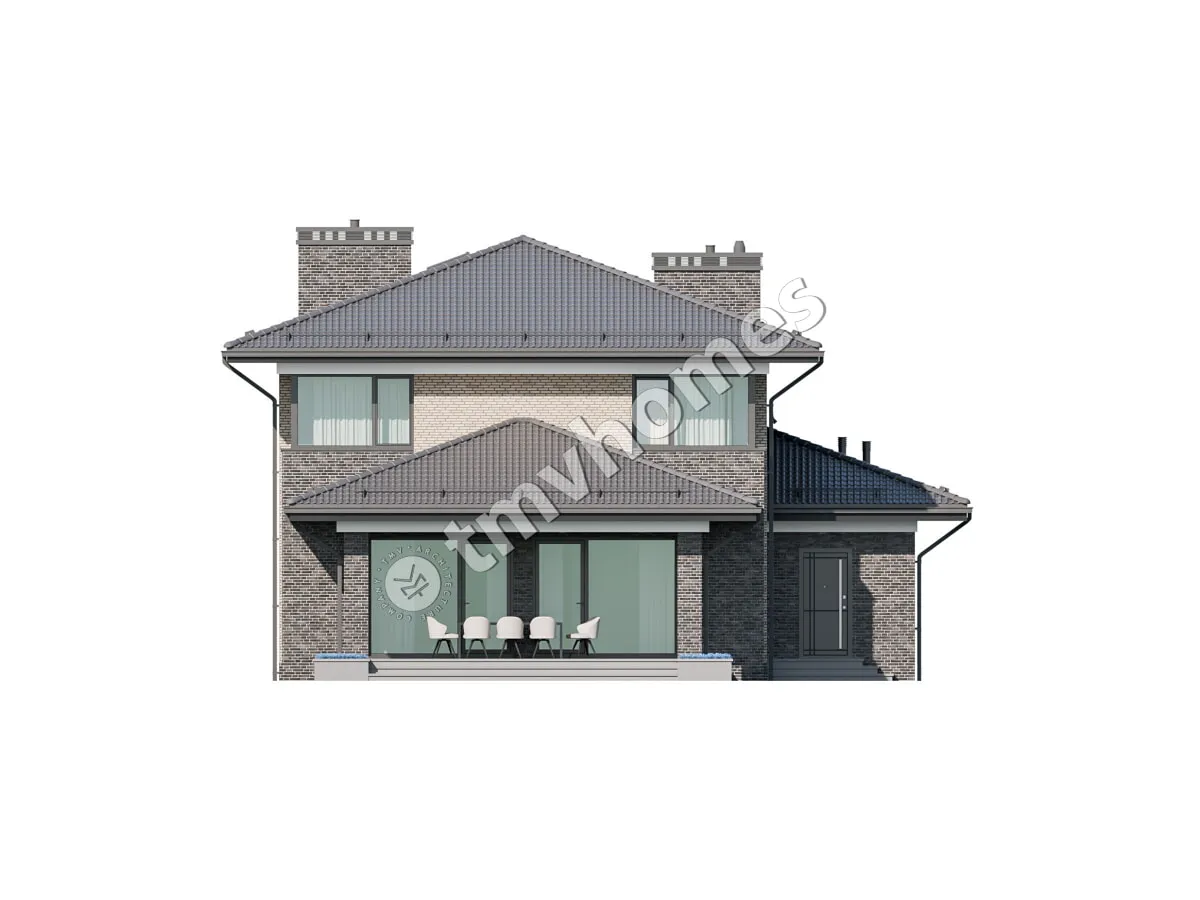

Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.
House design concept 26109C, available for purchase in digital form, is a Traditional 2-story single-family home with Total Heated 2,162 Sq Ft, designed for a household of 3-4 people. Stone/brick veneer gives the exterior walls a durable finish, and the hip & valley roof with a 5/12 (22°) pitch sheds rain and snow on every side.
An entry receives guests and keeps outdoor clutter away from the living spaces. The open floor plan joins the large great room with the kitchen and the breakfast nook, so the family stays together while cooking. The kitchen island adds work surface, and the breakfast bar serves quick meals. A home office on the ground floor gives a quiet place for remote work or study, and a corner window brings in daylight from two directions.
The bedrooms are clustered on the second floor, which keeps the night zone quiet and the children close to their parents. The primary bedroom has a walk-in closet that keeps clothing organized. Two full bathrooms serve the family, and the utility room keeps laundry and household equipment out of sight.
The covered rear porch provides a sheltered spot for outdoor meals. The 2-car garage has a front entry for a direct drive from the street. Strip footings are the main foundation, with a slab or a concrete block foundation as options; the walls are aerated concrete, with clay hollow block or sand-lime block as alternatives. The house is 39'1" wide and 61'5" deep, which makes it easy to check the fit on a lot. In figures: Total Heated 2,162 Sq Ft, 3 bedrooms, 2 bathrooms and a 2-car garage.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
Advanced Drafting & Design Co. Mooresville US$ 10,811
My Home Floor Plans Rosemead US$ 1,450
Plan & Simple LLC Austin US$ 4,325
