1,198 Sq Ft Small Greek Revival Single-Story House Plan with 3 Bedrooms and 1.5 Bathrooms
Opis techniczny
Rzuty kondygnacji
Rzut więźby dachowej

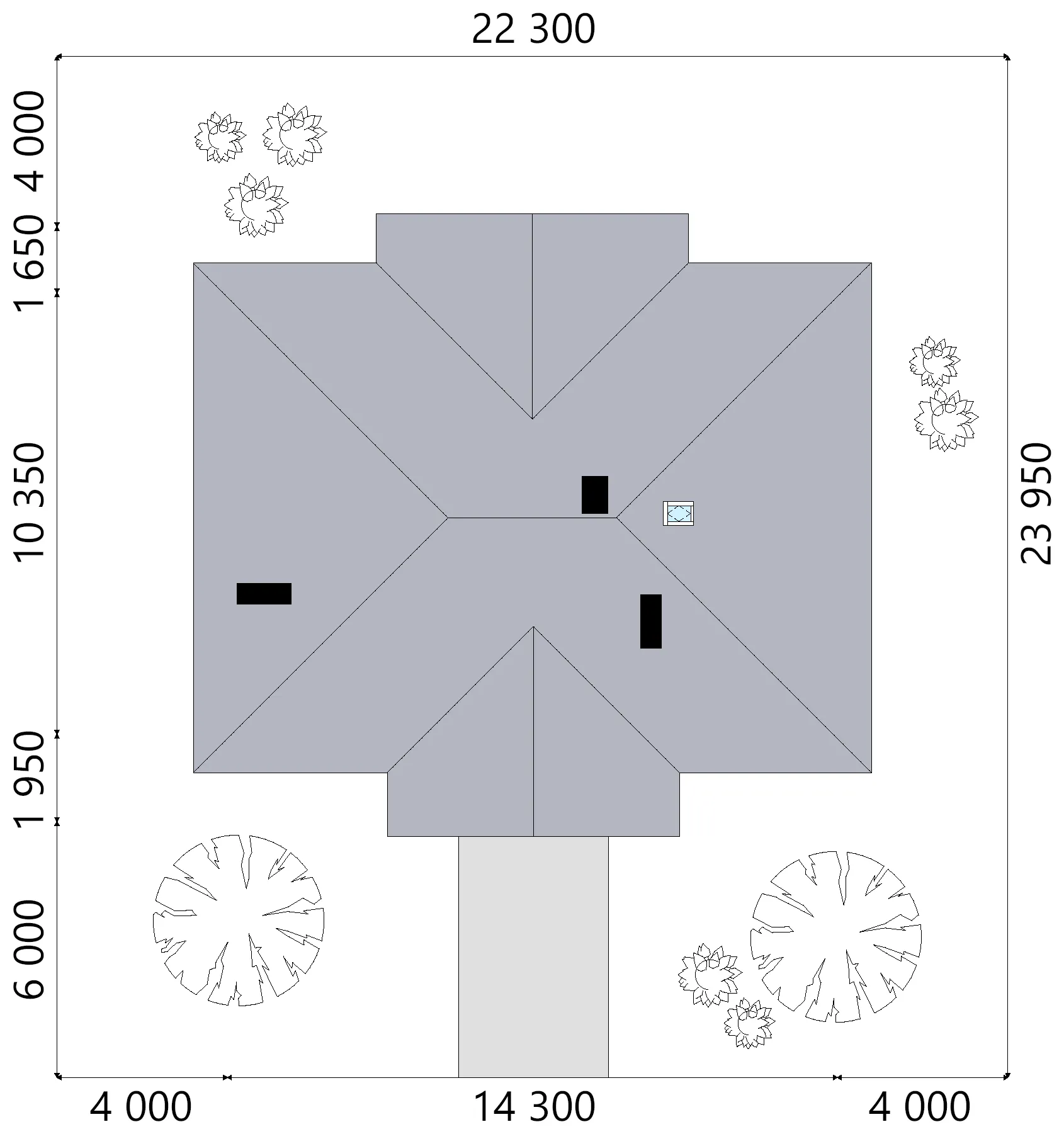

Rzut dachu
Przekroje

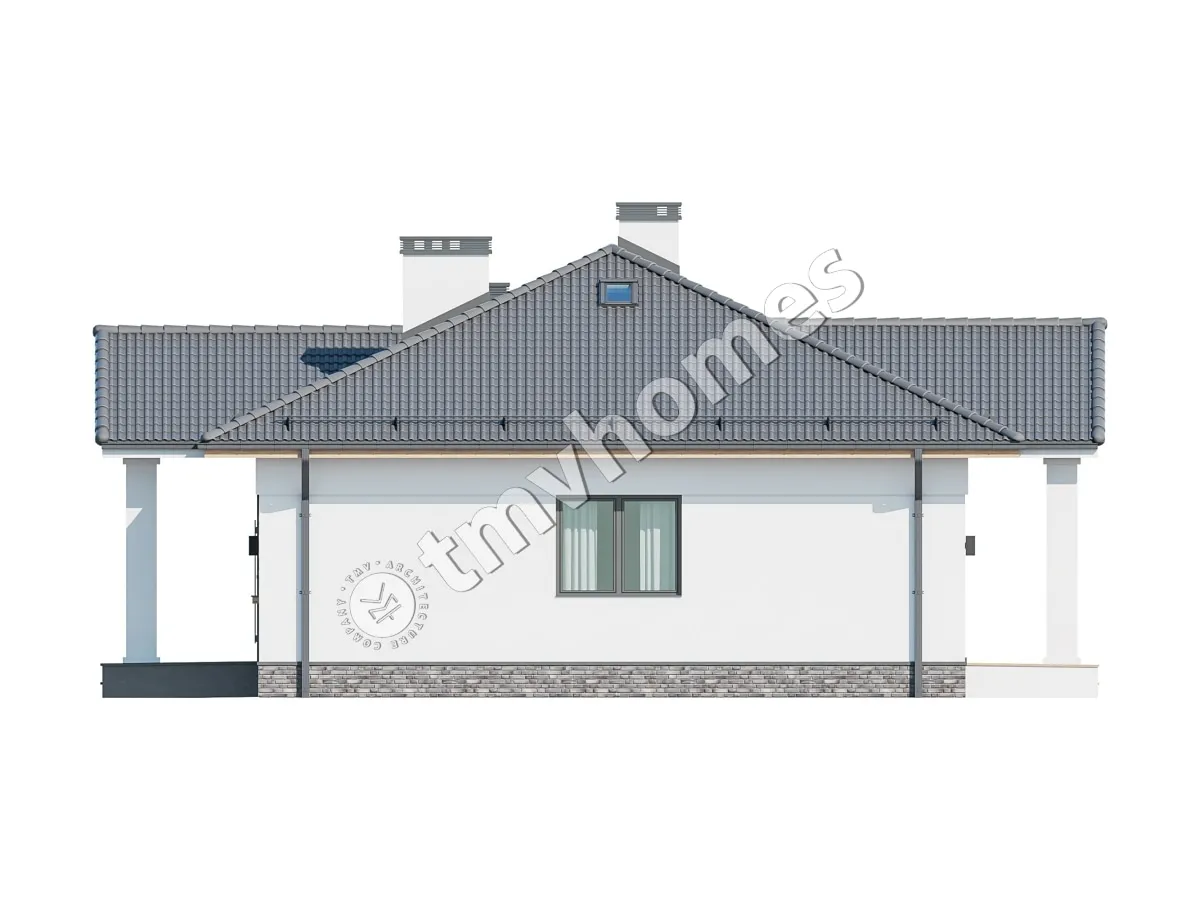

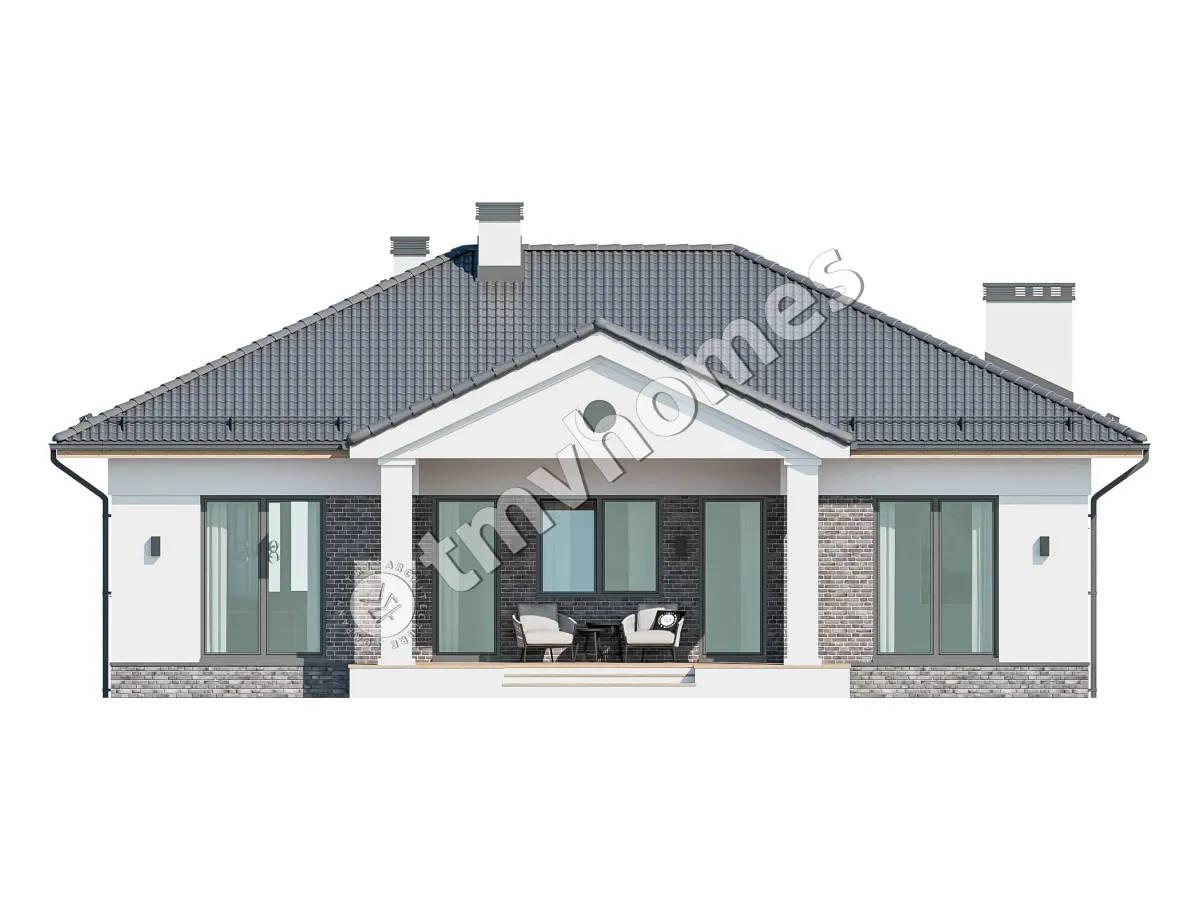

Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

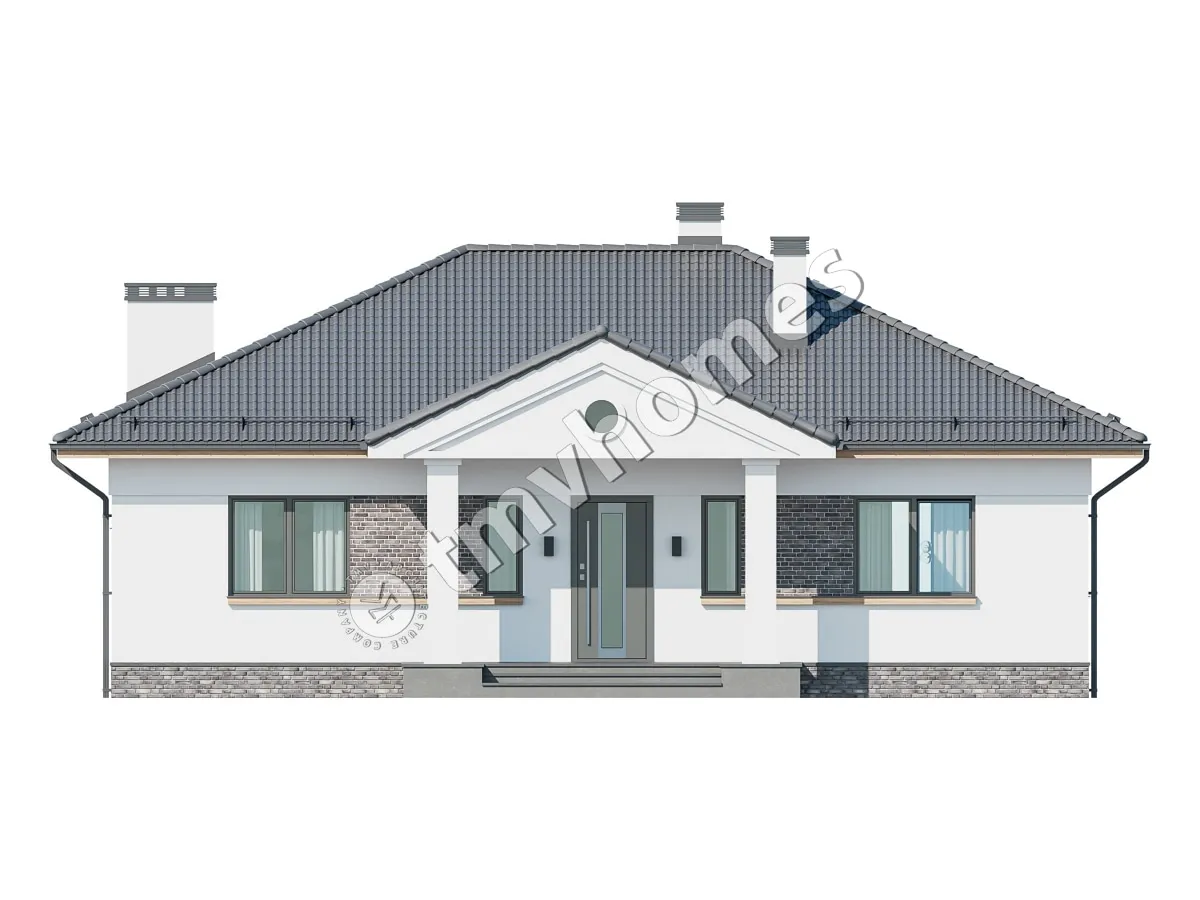

Design 26199C is a small Greek Revival single-story home with total heated 1,198 Sq Ft, 3 bedrooms and 1.5 bathrooms, available for purchase as a digital house design concept. The single-family layout is sized for 3-4 people and measures 43'6" wide by 42'5" deep. A hip-and-valley roof sheds rain and snow evenly on every side, while stone/brick veneer and stucco give the facade its classical character.

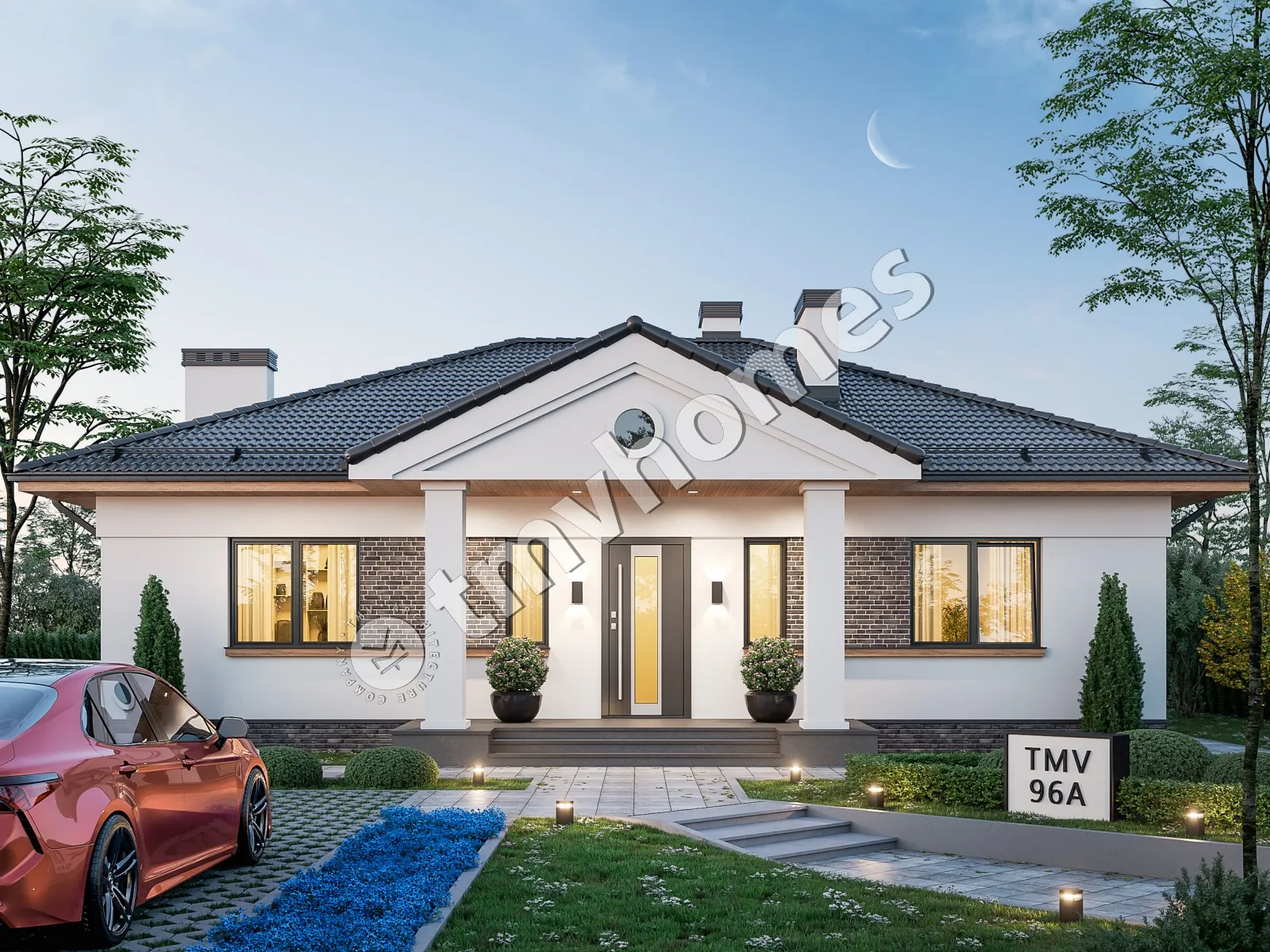

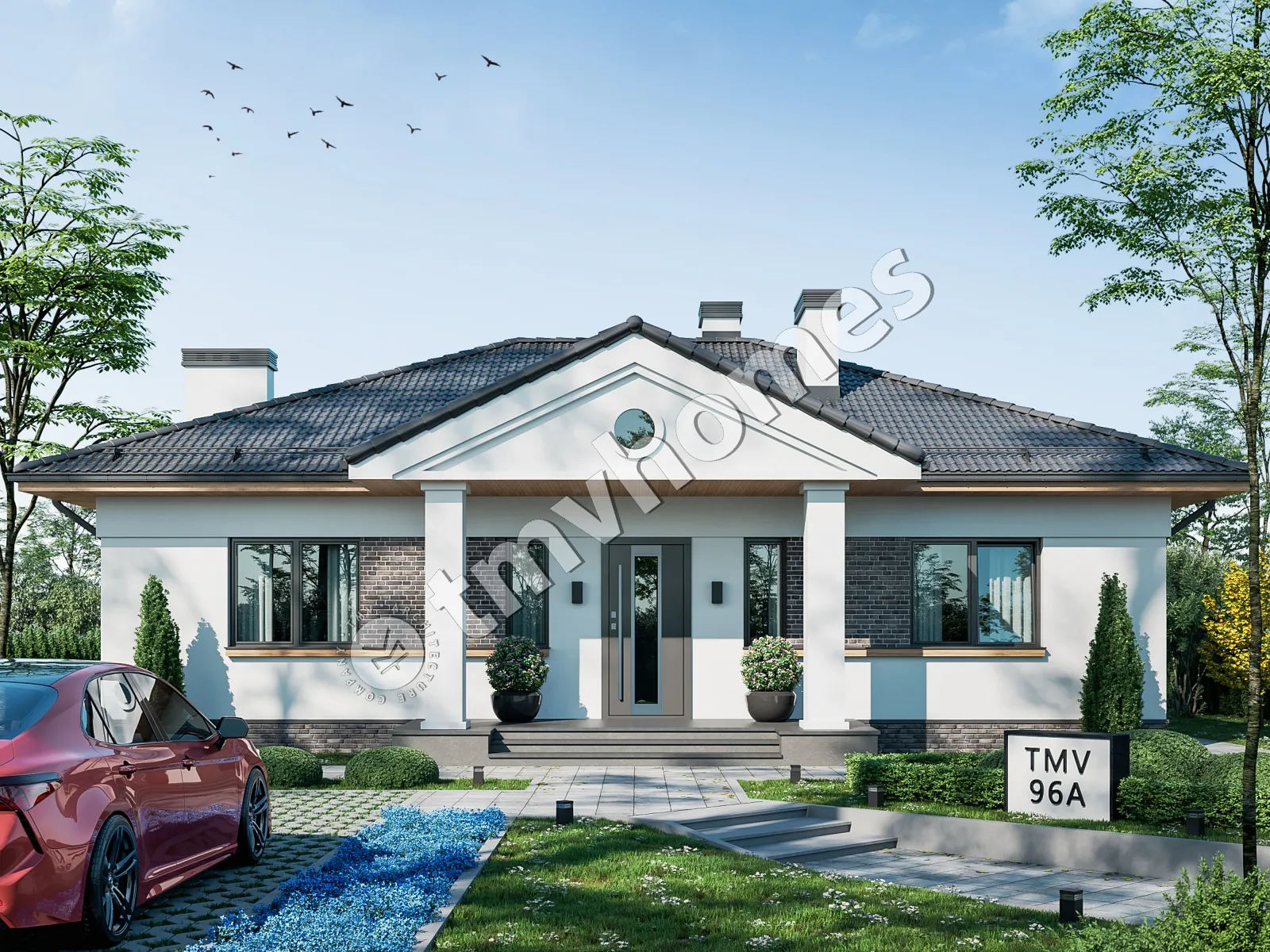

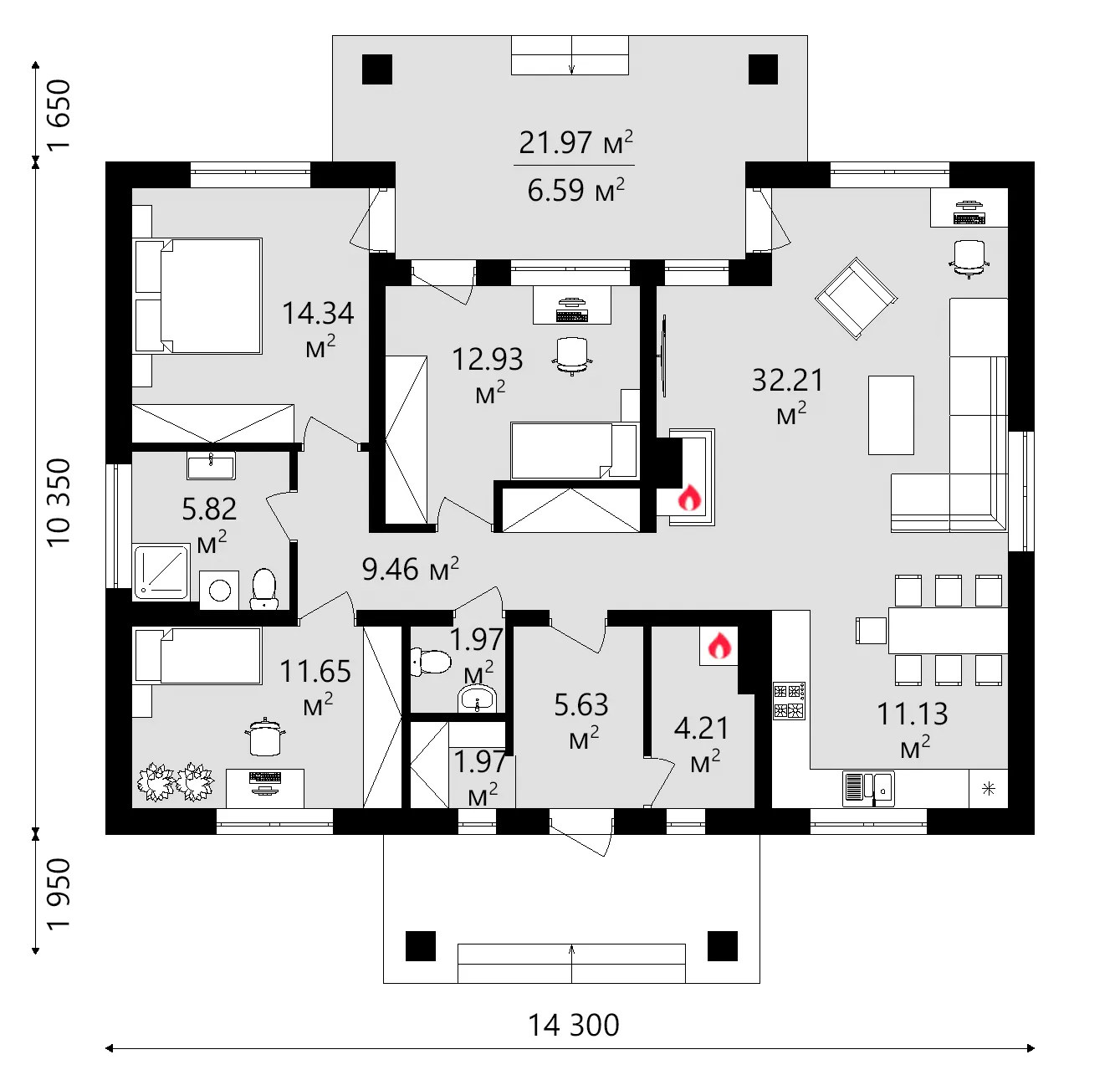

A portico marks the entry, which keeps coats and shoes away from the living space. The open floor plan joins the kitchen, the breakfast nook and the large family room, so whoever cooks stays part of the conversation. A fireplace in the family room gives the home a natural gathering point on cold evenings, and large and floor-to-ceiling windows bring daylight deep into the interior.
The bedrooms, including the main floor master, are clustered together on one level, so the whole family lives without stairs. The full bathroom is backed up by a half bath that eases the morning rush, and the utility room keeps household equipment and chores out of the living areas.

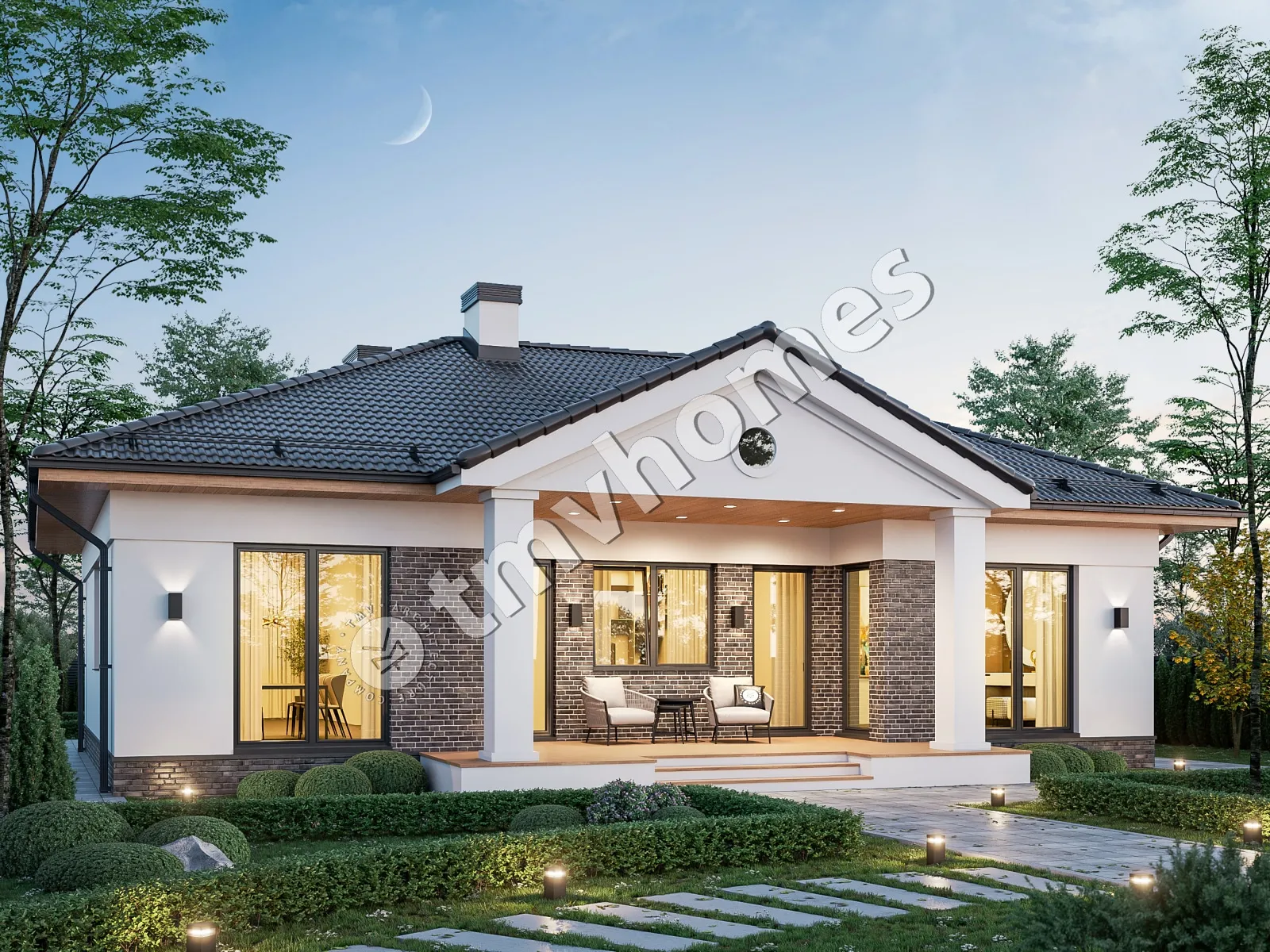

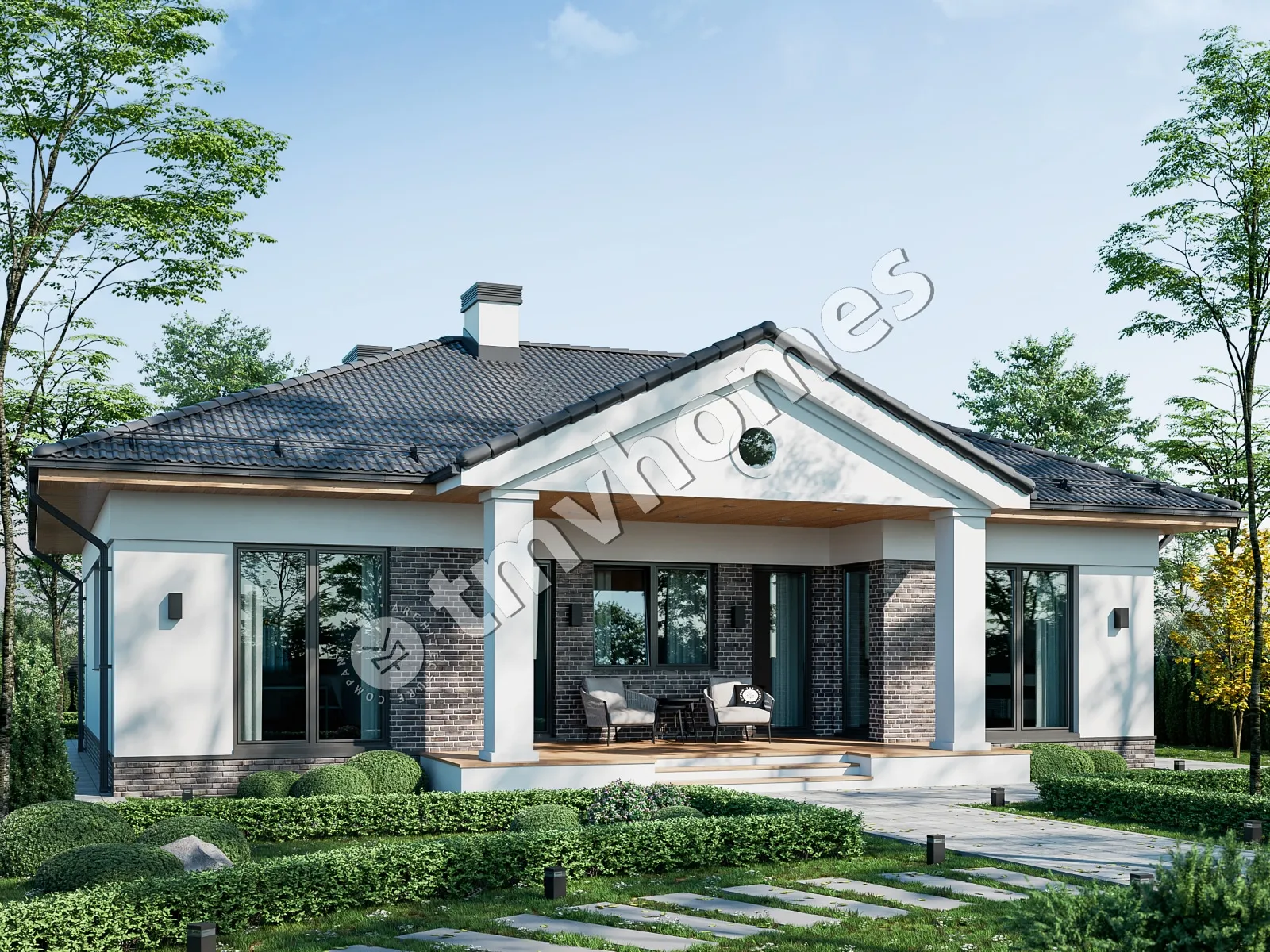

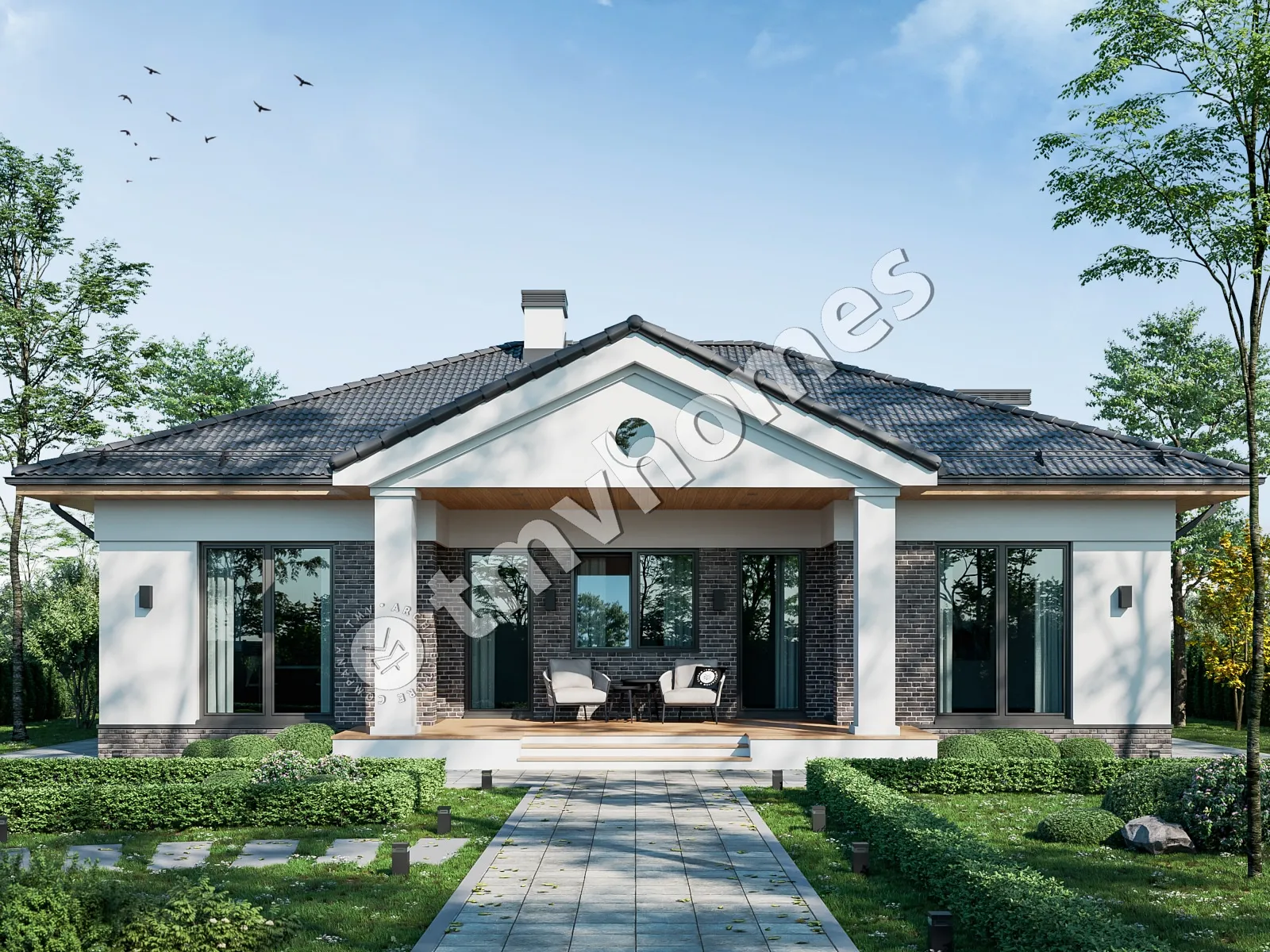

A covered front porch shelters visitors at the door, and a covered rear porch extends daily life outdoors in any weather. The standard foundation is strip footings, with a slab or a block foundation as options to match the soil. The exterior walls are designed in aerated concrete (AAC), with clay hollow block or sand-lime block as alternatives. Key figures: total heated 1,198 Sq Ft, 3 bedrooms and 1.5 bathrooms.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
