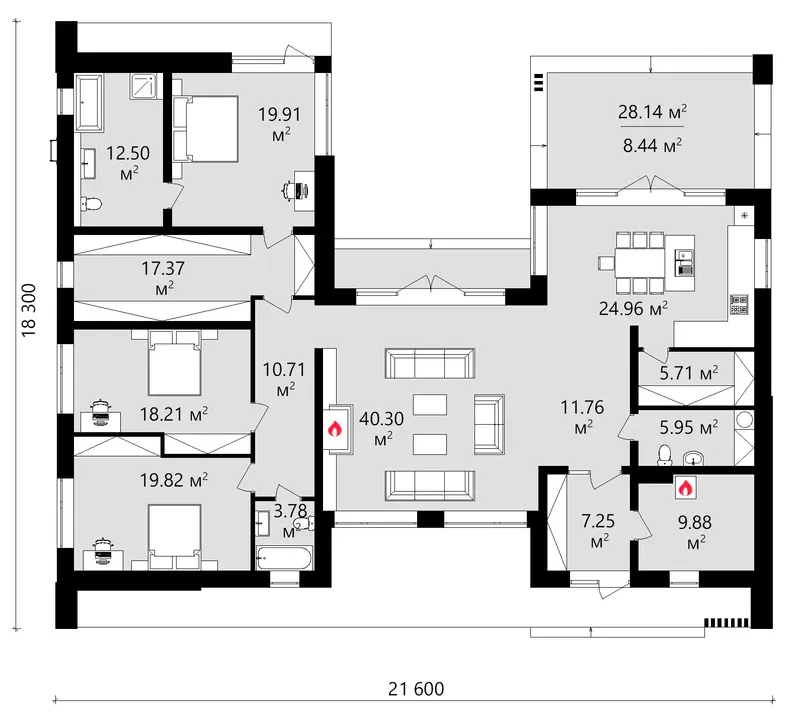

Rzuty kondygnacji
Rzut więźby dachowej
Rzut dachu
Przekroje

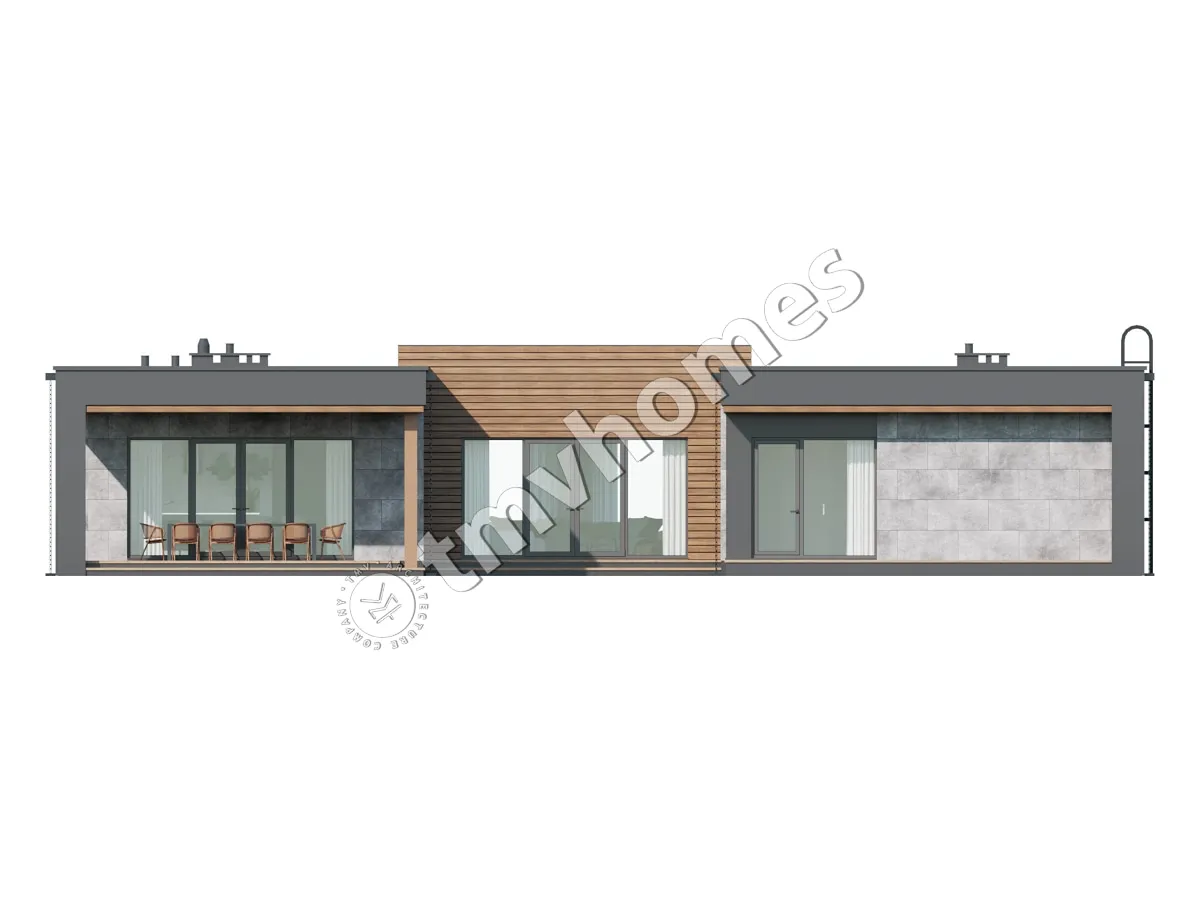

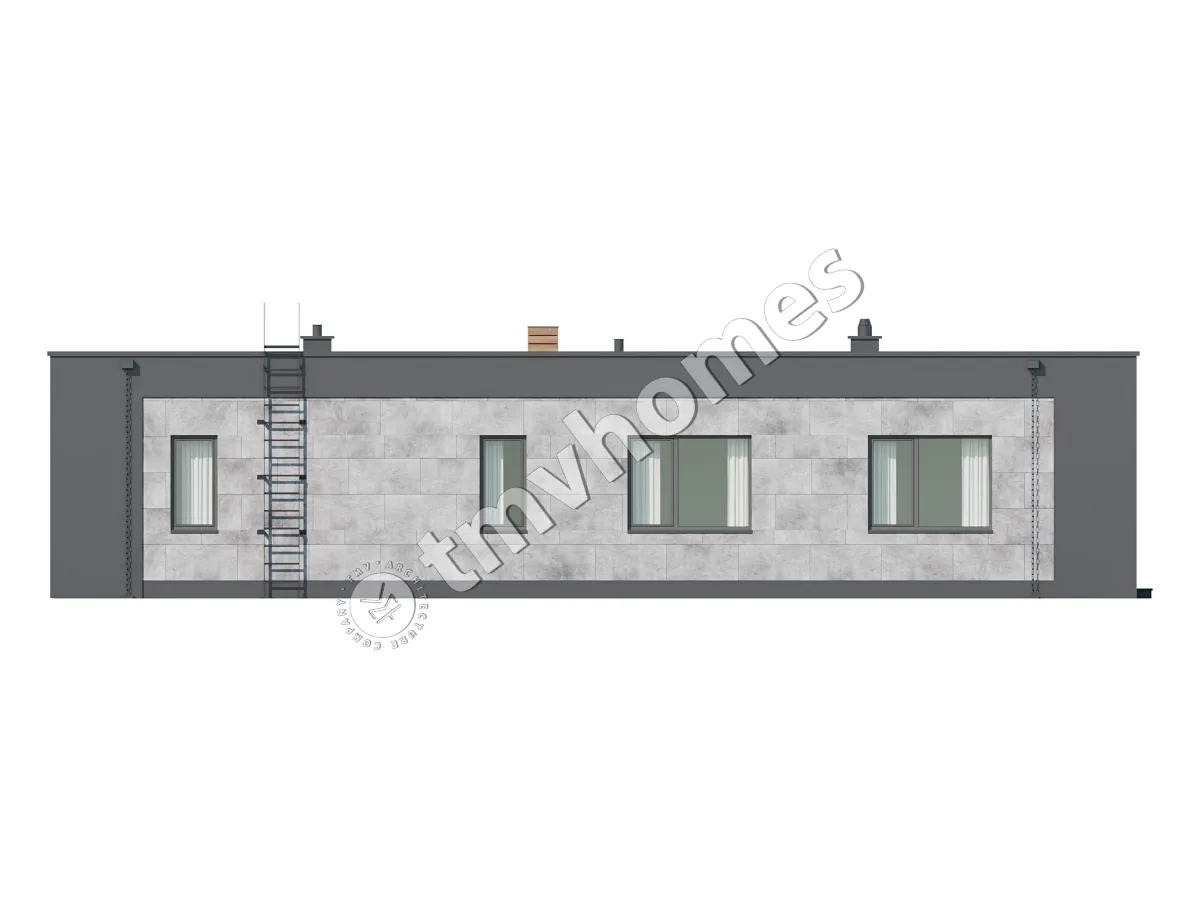

Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.
House design concept 28123C is a modern U-shaped 3-story single-family home with Total Heated 2,331 Sq Ft, 3 bedrooms, 3 bathrooms and a flat roof. The family house is laid out for 3-4 people, and the flat roof gives it the clean, low silhouette of a modern home.
An entry receives guests and keeps outdoor clothing away from the living space. The open floor plan joins the large great room and the large kitchen, so the cook stays part of the conversation. A fireplace warms the great room, the island adds work and serving space, the breakfast nook handles quick daily meals, and the walk-in pantry keeps supplies out of sight. Floor-to-ceiling windows, large windows and a corner window bring daylight deep into the living areas.
The primary suite sits on the main floor for step-free access, and its walk-in closet keeps clothing organized. The bedrooms are clustered together, which keeps the family close at night. Three full bathrooms ease the morning rush, and the utility room separates household equipment from the living spaces.
A covered rear porch extends daily life outdoors in any weather. The main foundation is strip footings, with a slab or a block foundation as options; the exterior walls are built of aerated concrete, with ceramic hollow block or silicate block as alternatives. Wood, stucco and flexible ceramic give the facades varied textures. With a width of 65'8" and a depth of 55'8", the house needs a wide lot. In figures: Total Heated 2,331 Sq Ft, 3 bedrooms and 3 bathrooms.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
