1,854 Sq Ft Narrow Lot 1.5-Story Barndominium Plan with 4 Bedrooms and 3 Bathrooms

Plan
41187C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
1854
Total Heated ft²
3 + 0
Baths + 1/2 Baths
4 + 0
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans
Main Floor

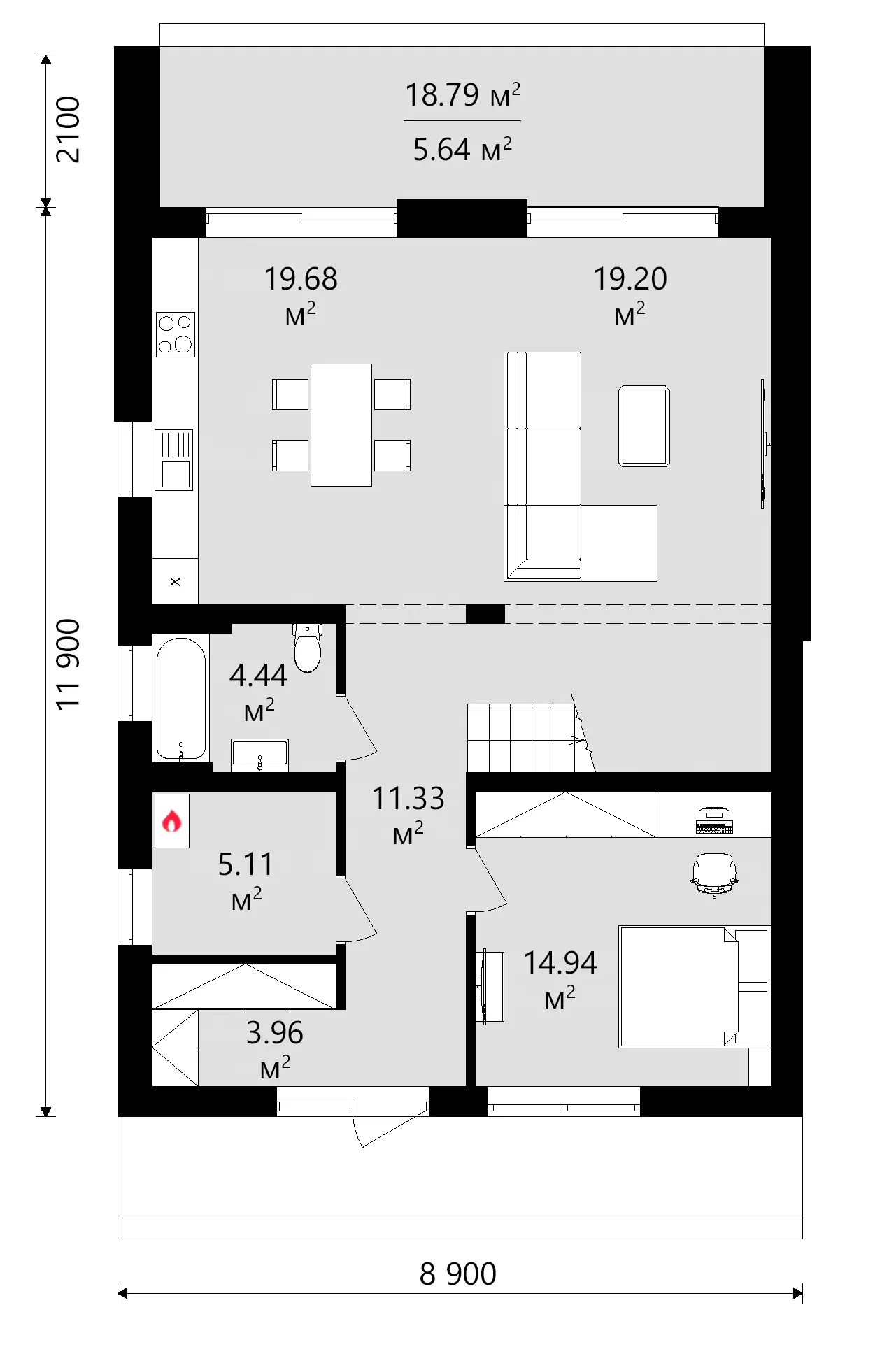

Main Floor 8 – 1,854 Sq Ft 1.5-Story Barndominium Plan with 4 Bedrooms and 3 Bathrooms – 41187C
Second Floor

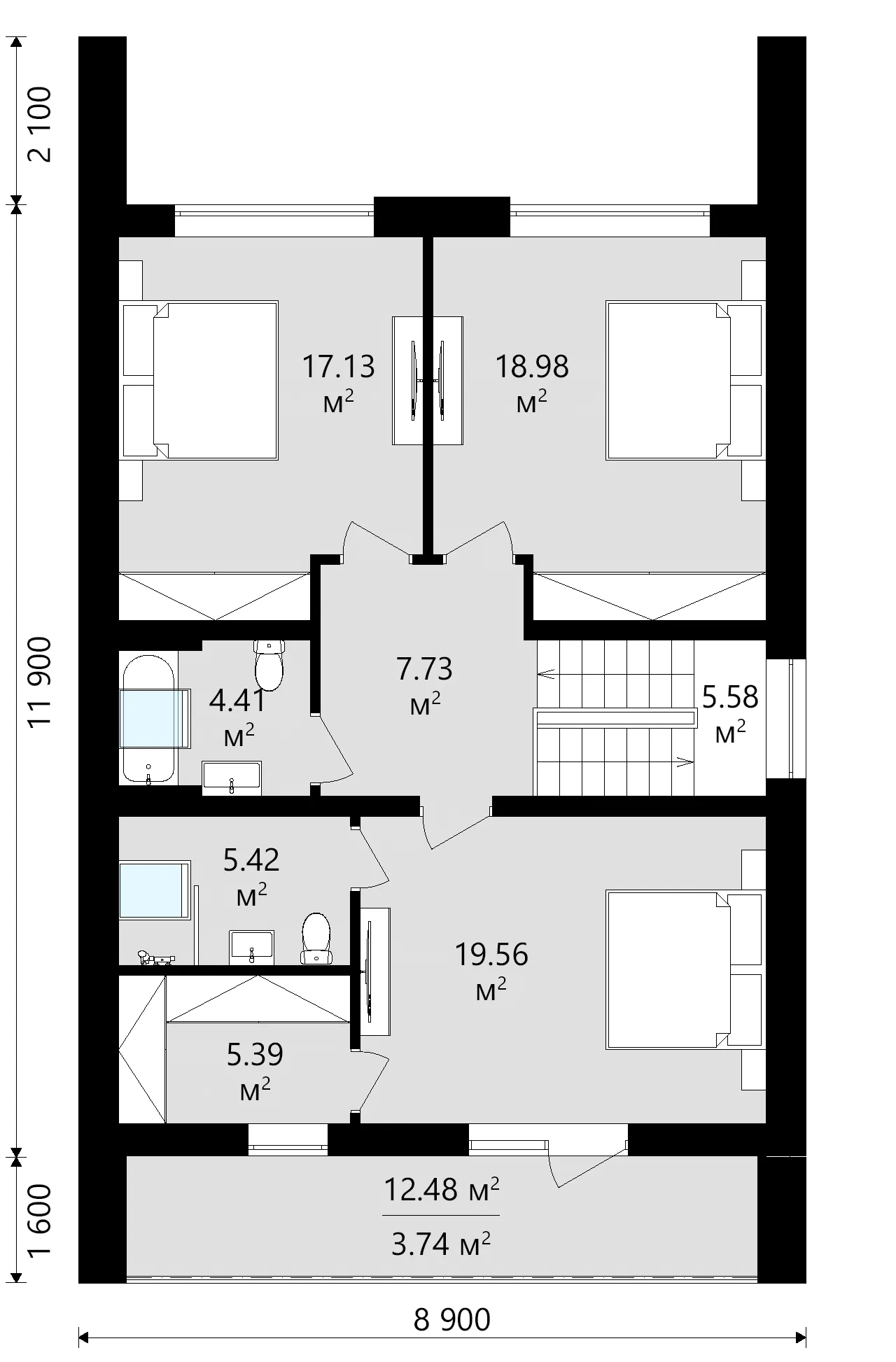

Second Floor 11 – 1,854 Sq Ft 1.5-Story Barndominium Plan with 4 Bedrooms and 3 Bathrooms – 41187C
Full Specs & Features
Area
Total Heated: 1853.98 ft²
Dimensions
Depth: 47'5" ft
Width: 27'1" ft
Height: 25'4" ft
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Wood
Stucco
Metal Panels
Rooms
Full bathrooms: 3
Bedrooms: 4
Utility room
Walk In Closet
Kitchen and Dining
Breakfast Nook
Interior Features
Second Floor Master
Split Bedrooms
Clustered Bedrooms
Open Floor Plan
Large Kitchen (>130 ft²)
Exterior Features
Balcony
Deck
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Barn
Contemporary
European
Modern
Scandinavian
Roof
Roof Area: 1717.06 ft²
Gable
Skylight
Ridge perpendicular to street
Roof Pitch: 7/12 (30°)

House design concept 41187C is a 1.5-story single-family Barndominium designed for a narrow lot, with Total Heated 1,854 Sq Ft. Four bedrooms and three full bathrooms suit a household of 4-6 people, giving each person a room of their own and easing the morning rush. The gable roof with a 7/12 (30°) pitch keeps the upper half story usable, and skylights bring daylight into it.

The open floor plan joins the great room and kitchen into one shared space, so whoever cooks stays part of the conversation. The large kitchen leaves room for two people to work at once, and the breakfast nook handles quick everyday meals. Large windows, including floor-to-ceiling glazing, fill the day zone with natural light.

The primary suite with its walk-in closet sits upstairs, and the split bedroom layout sets it apart from the other bedrooms for quiet. The remaining bedrooms are clustered together, keeping the children's rooms close to one another. A utility room gathers laundry and household chores in one place.

A deck extends living outdoors, and a balcony adds a private spot for fresh air upstairs. Wood, stucco and metal panels on the facade give the house its barn character. At 27'1" wide and 47'5" deep, with the ridge perpendicular to the street, the house fits a narrow lot. It stands on strip footings, with a slab or concrete block foundation as options; the exterior walls are aerated concrete, with clay block or sand-lime block as alternatives. In figures: Total Heated 1,854 Sq Ft, 4 bedrooms and 3 bathrooms.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
