2-Story House Plan 1903 ft²: 3 Beds, 3 Baths, Open Floor Plan, without Garage
Opis techniczny
Rzuty kondygnacji
Rzut więźby dachowej
Rzut dachu
Przekroje
Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

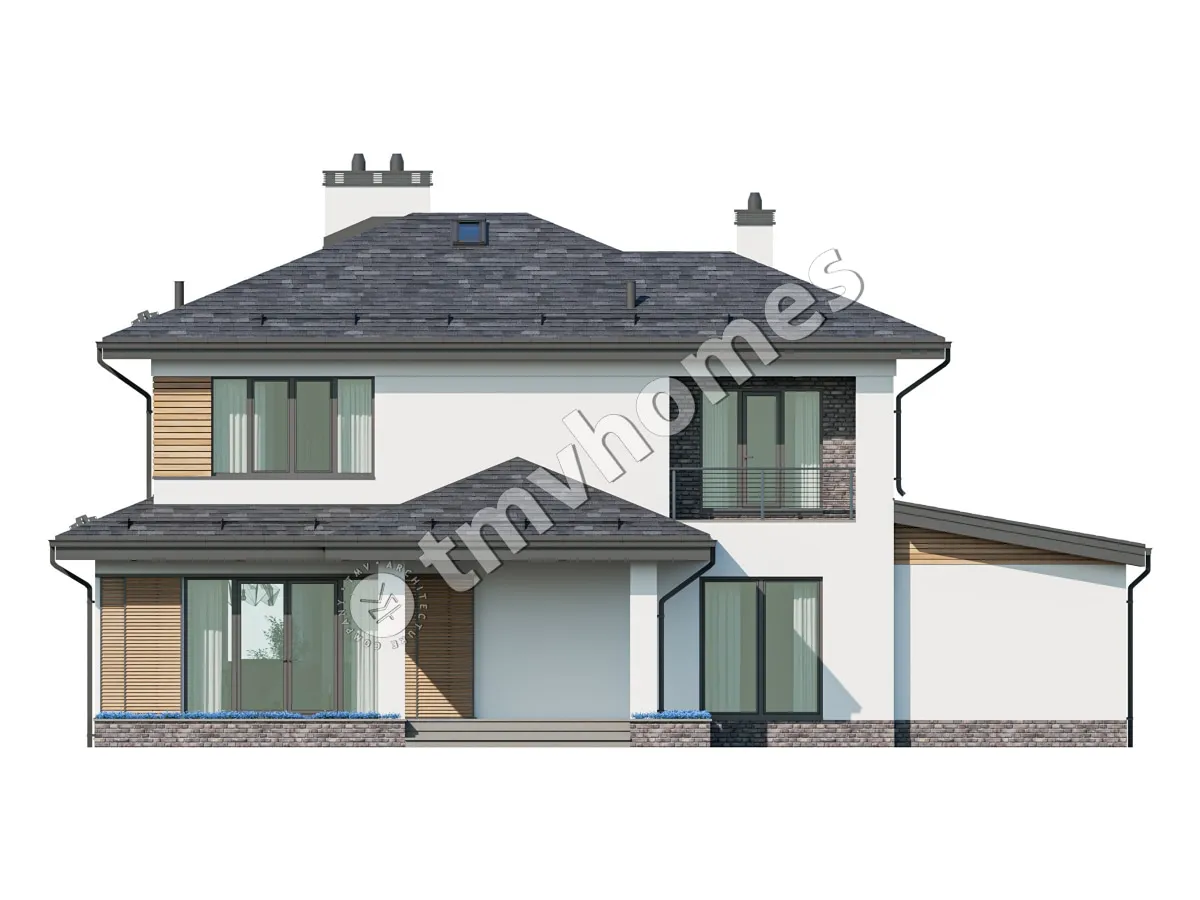

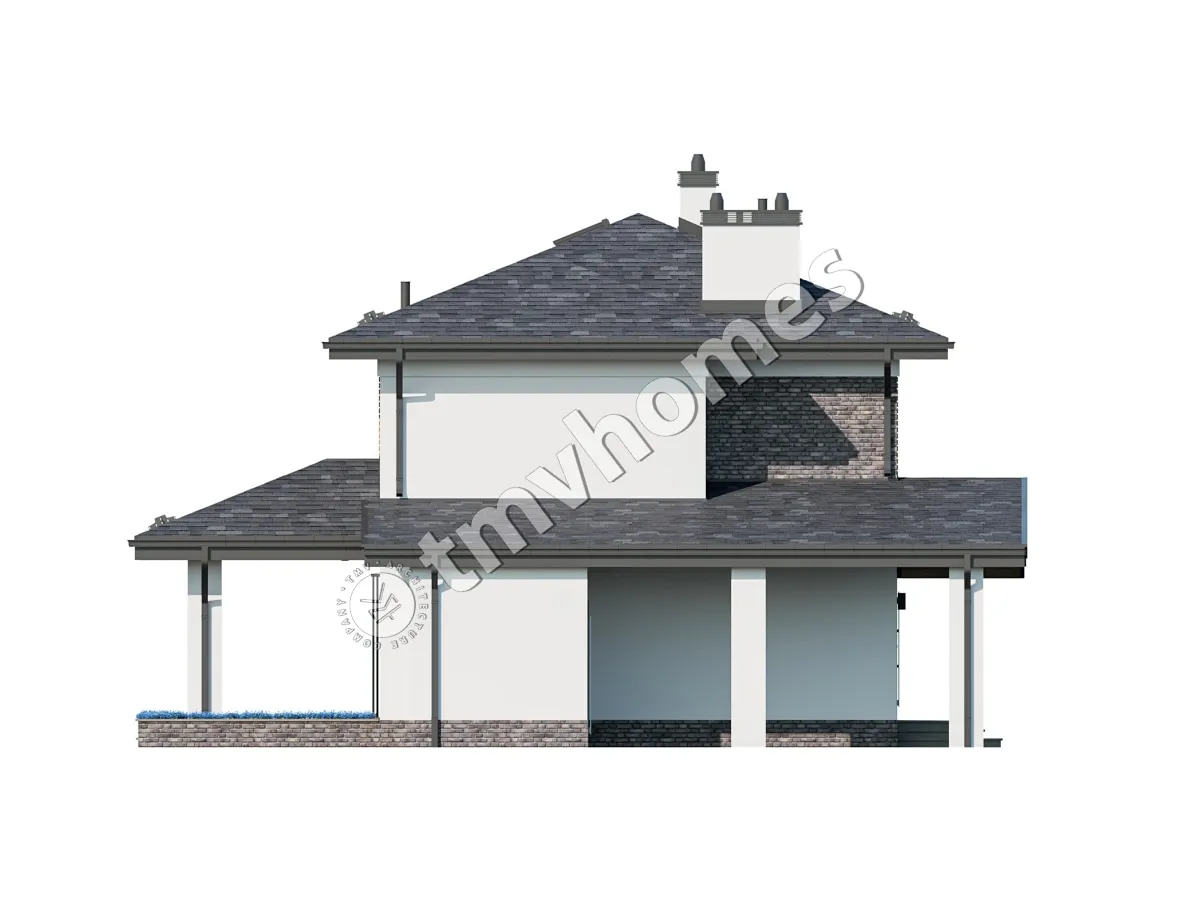

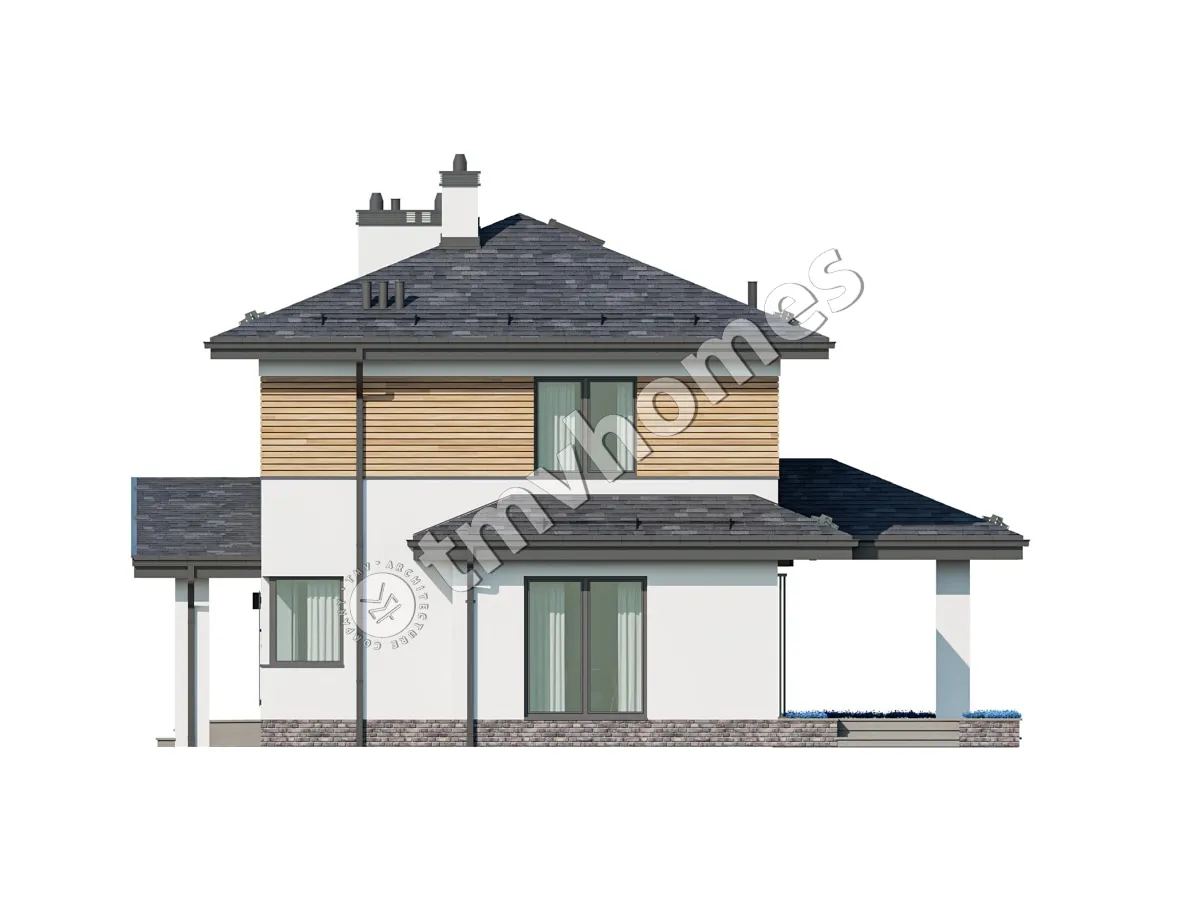

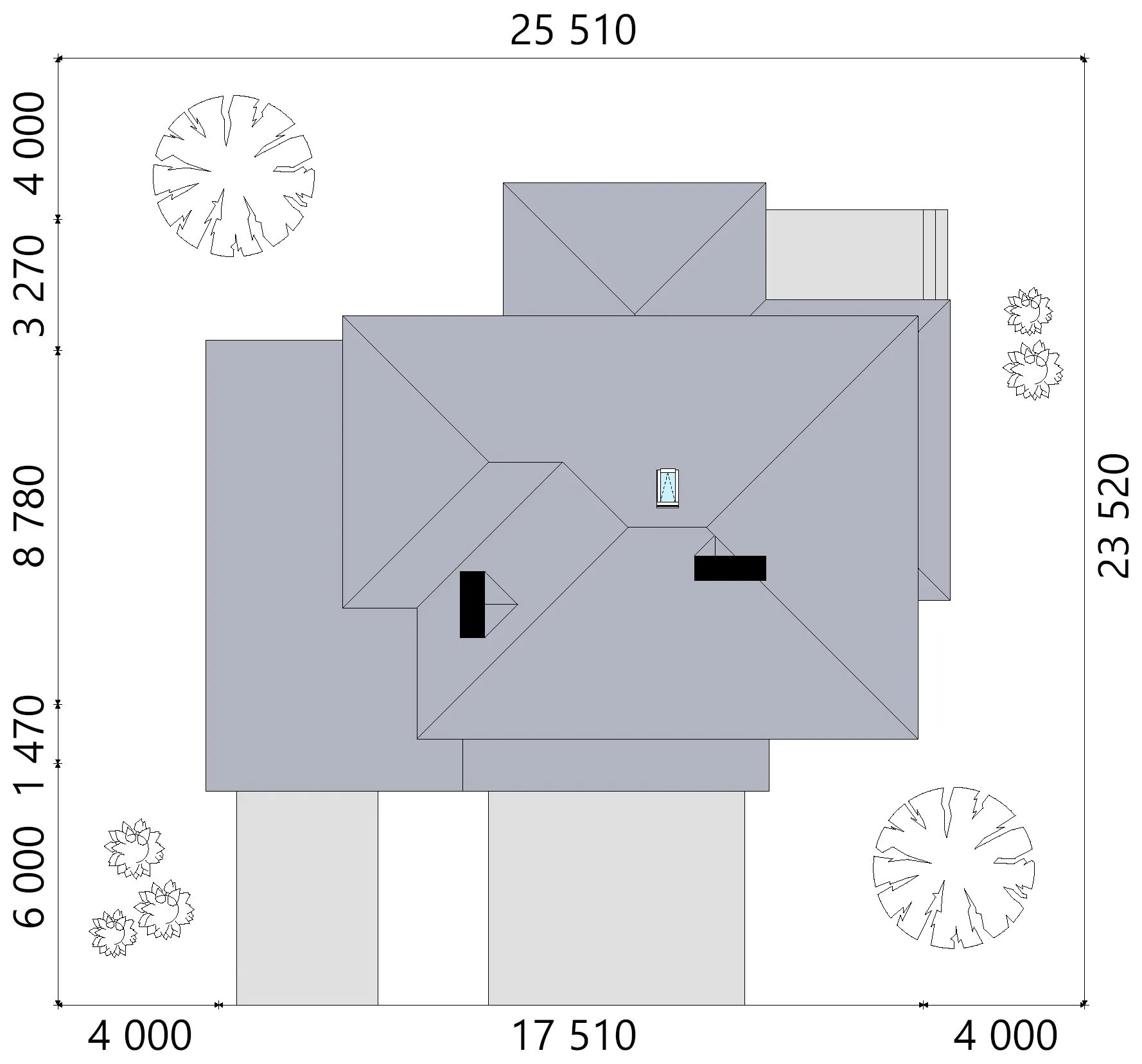

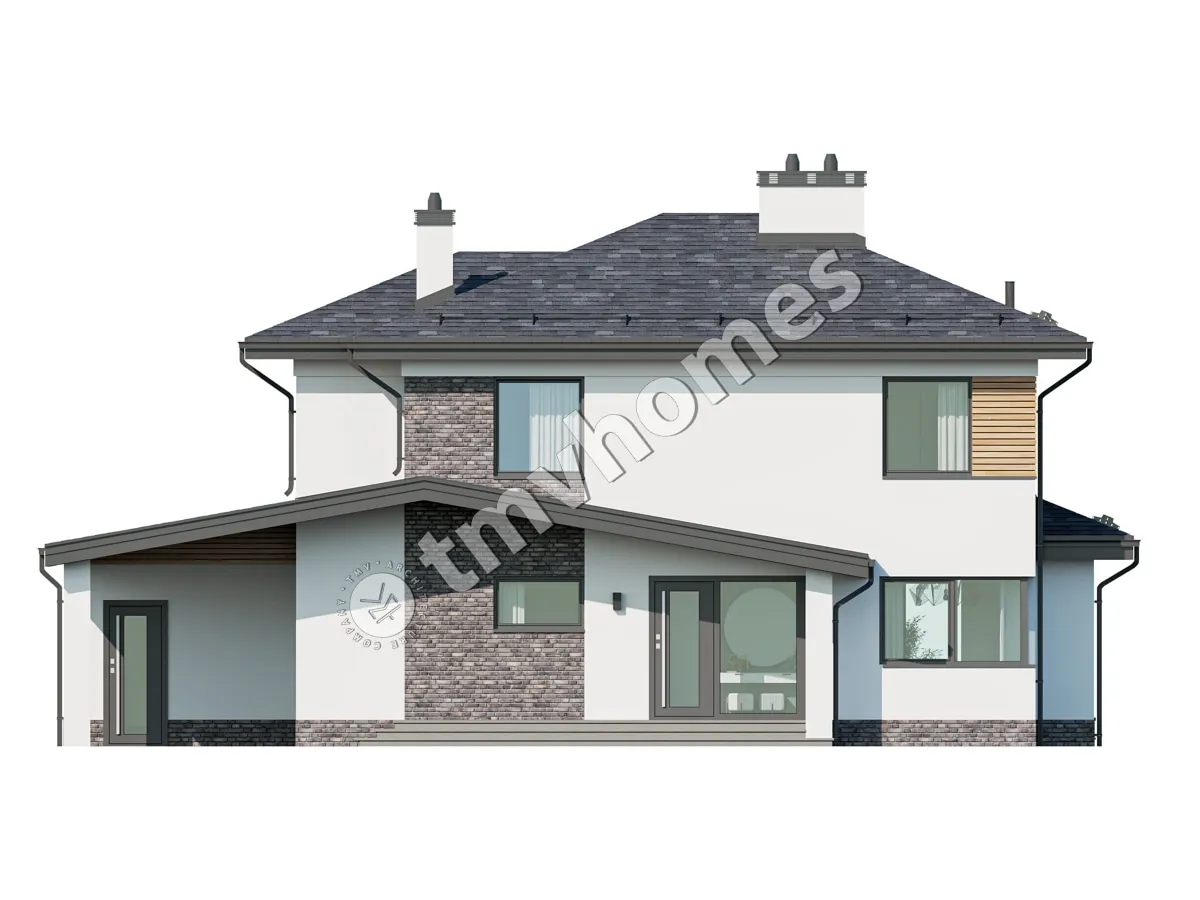

Plan 44407C is a 3-bedroom 3-story house plan that blends contemporary lines with European proportions and modern detailing. It offers 1903 ft² of living space under a hip and valley roof with a 5/12 pitch. Stucco and wood share the facades, and large windows, some of them floor-to-ceiling, let daylight reach deep into the rooms. This single-family home measures 53'4" wide and 41'2" deep, with a height of 27'6", and its rooms are spread over three levels without a basement.

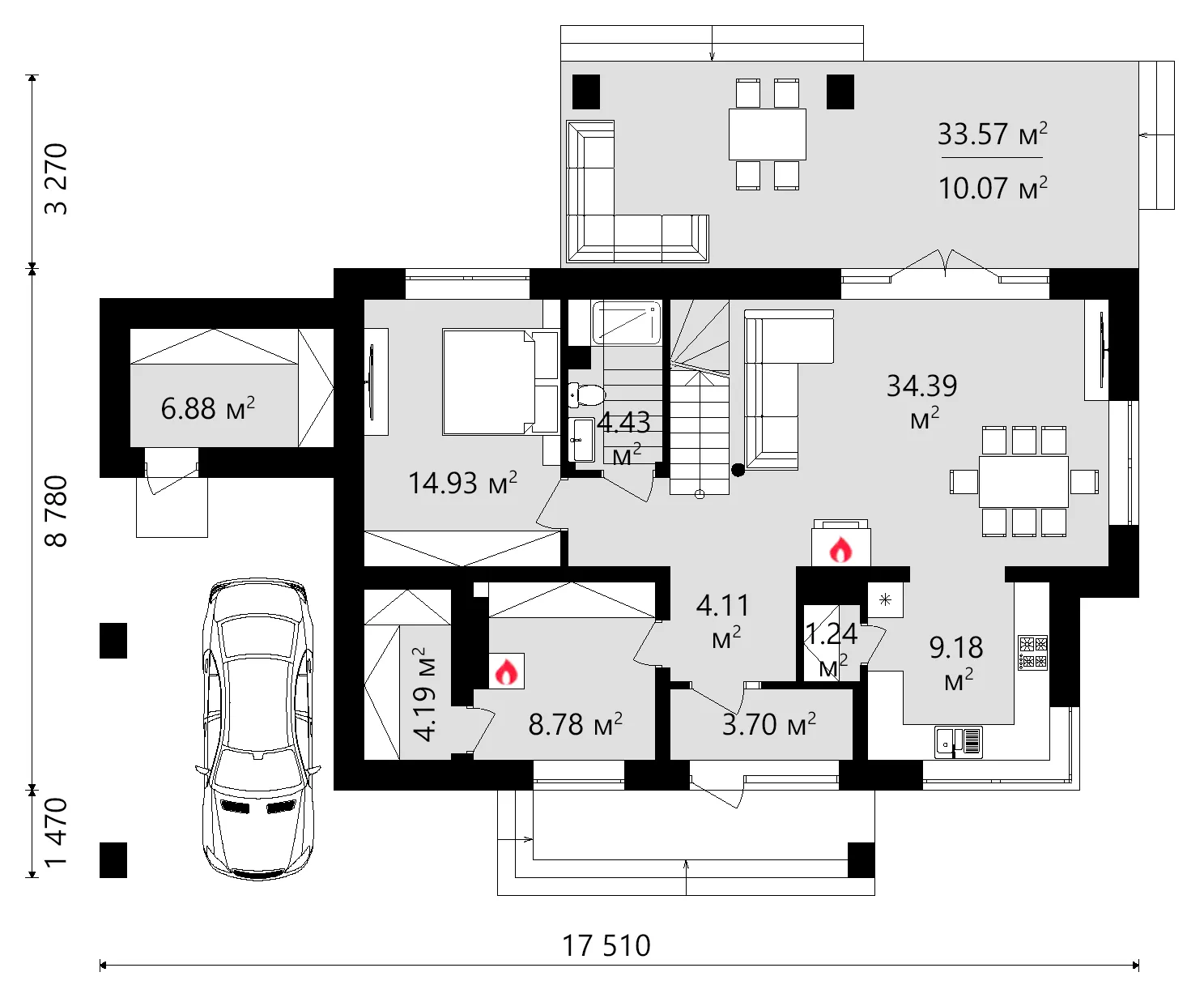

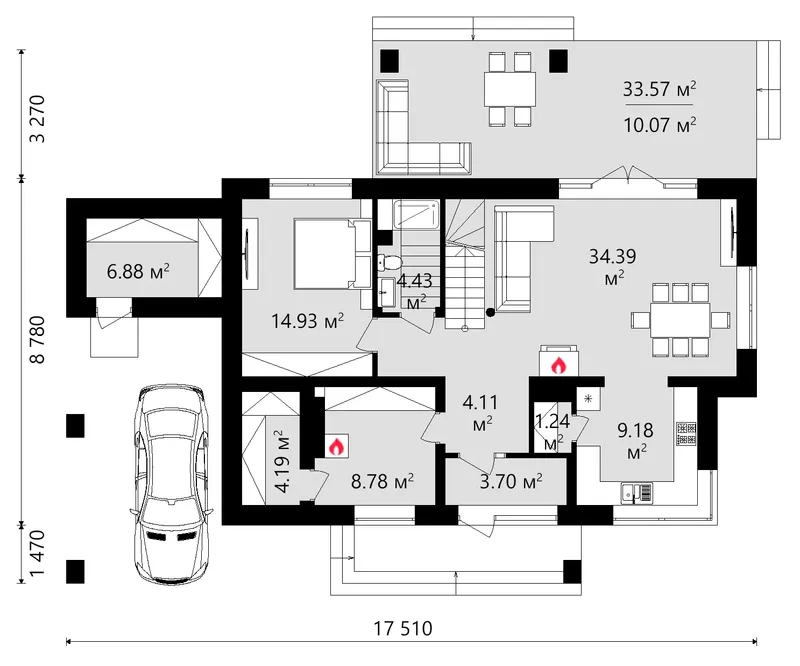

The front door opens into a proper entry that keeps coats and shoes out of the living area. Beyond it, an open floor plan joins the kitchen with a large family room, where a fireplace gives the space a natural center on winter evenings. The kitchen works hard for its size. A walk-in pantry holds groceries and small appliances out of sight, and the breakfast nook sits beside a corner window, a bright spot for weekday breakfasts and homework. Because the kitchen, nook and family room flow together, whoever is cooking stays part of the conversation.

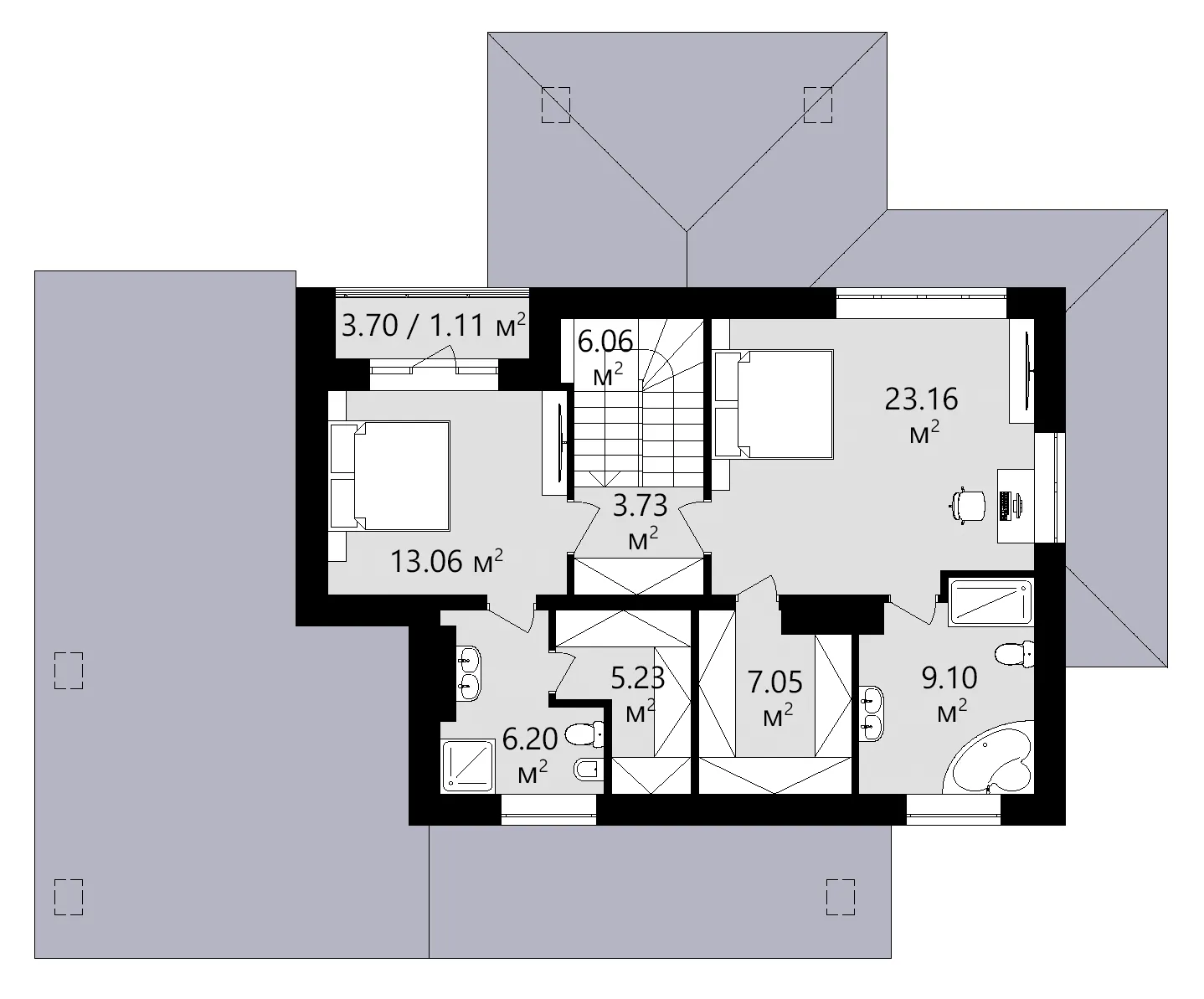

The bedrooms are clustered together for a quiet, private sleeping zone, and the master suite is on the second floor, with its own walk-in closet. Three full bathrooms and no half baths mean every bathroom has full fixtures, which helps on busy mornings and when guests stay over. A utility room and a separate storage room keep laundry, cleaning supplies and seasonal items organized, so the main rooms stay uncluttered.
The house stands on strip footings and is also available with a slab or a concrete block foundation. The exterior walls are framed in autoclaved aerated concrete, and clay block or sand-lime block framing is available on request. A one-car carport shelters the family vehicle, and a covered rear porch extends the living space outdoors for summer dinners in the shade. Upstairs, a balcony adds a private place for fresh air. With its fireplace, open layout and generous glazing, this modern house plan suits a family that wants clean design and comfortable everyday living.
