Renderings 2 – 3,273 Sq Ft Traditional 2-Story House Plan with 3 Bedrooms and 1-Car Garage – 56808R

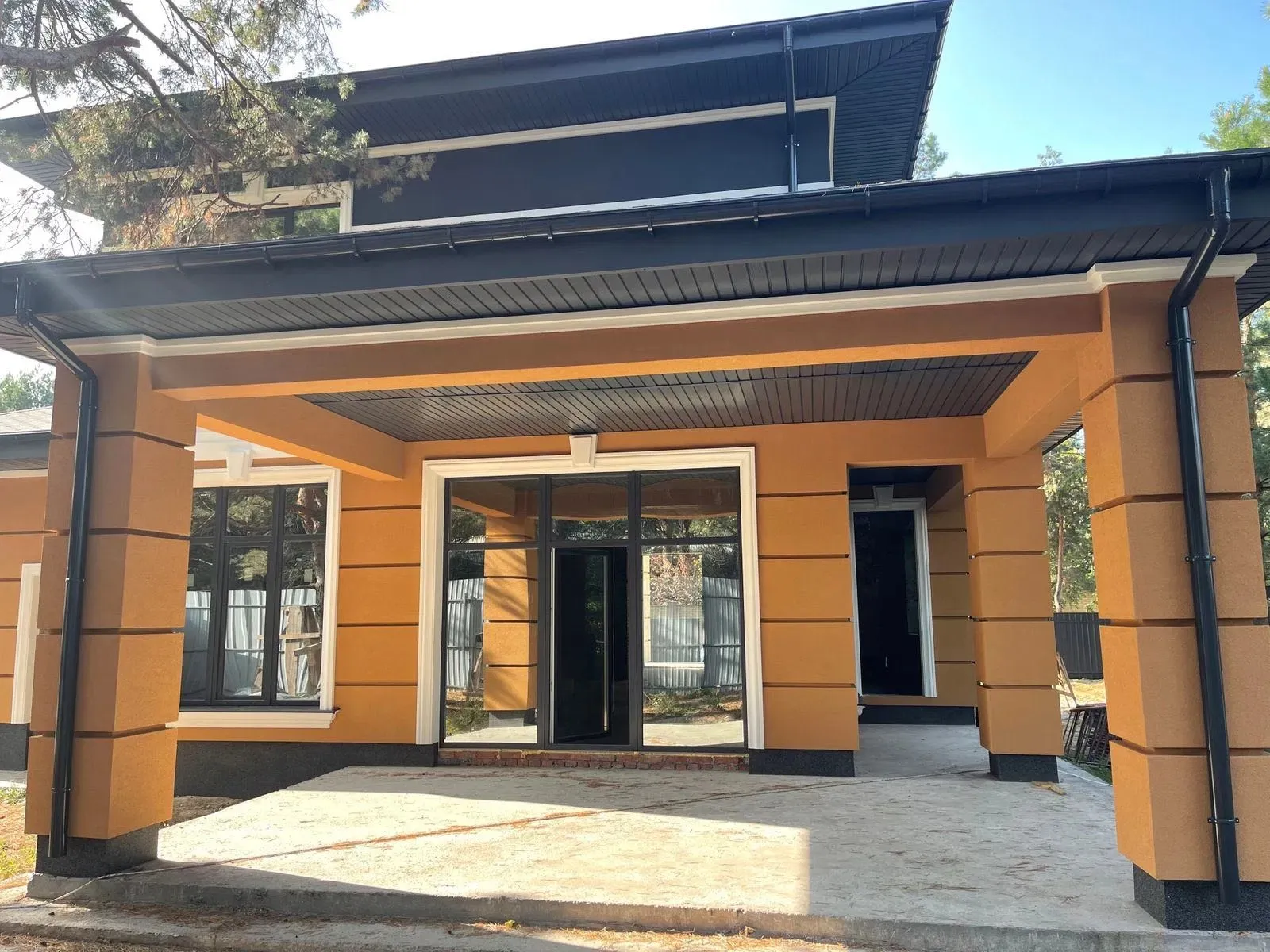

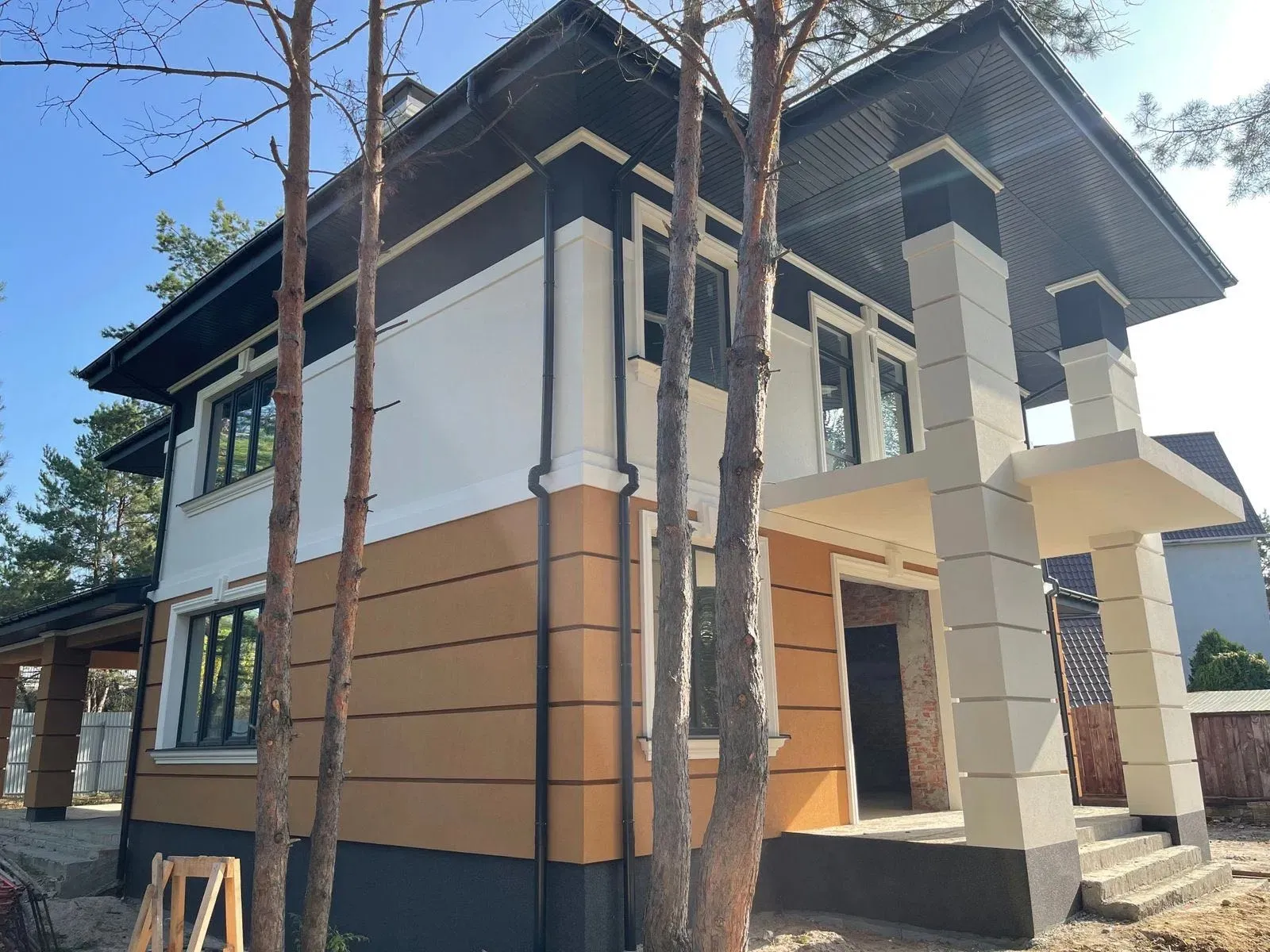

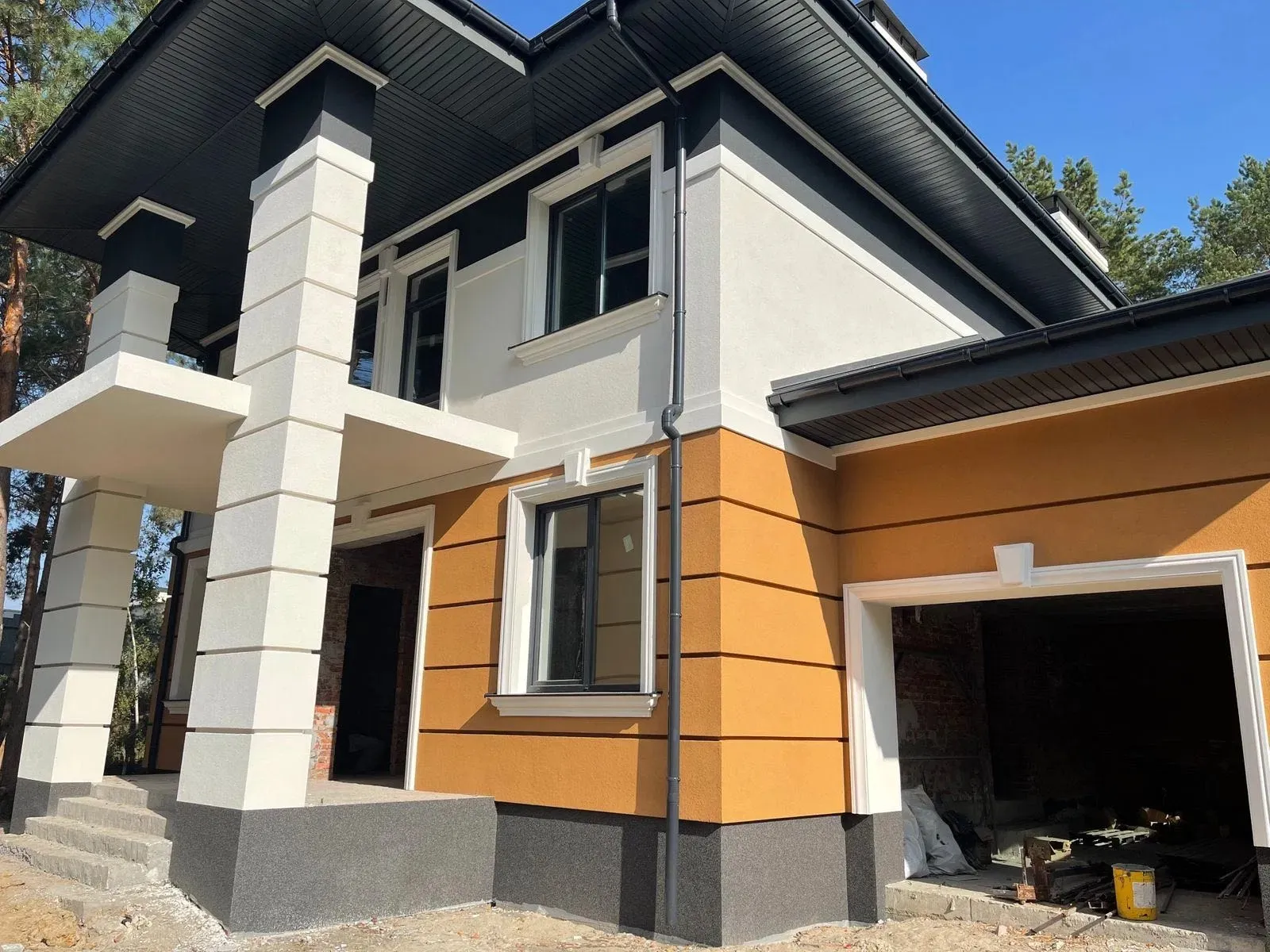

Renderings 3 – 3,273 Sq Ft Traditional 2-Story House Plan with 3 Bedrooms and 1-Car Garage – 56808R Renderings 4 – 3,273 Sq Ft Traditional 2-Story House Plan with 3 Bedrooms and 1-Car Garage – 56808R
13
Construction documents are prepared for the following countries:

3,273 Sq Ft Traditional 2-Story House Plan with 3 Bedrooms, 3 Bathrooms and 1-Car Garage

Plan
56808R
Complete
Signed & Sealed
DC Available
Key Specs
3273
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
1
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans
Main Floor

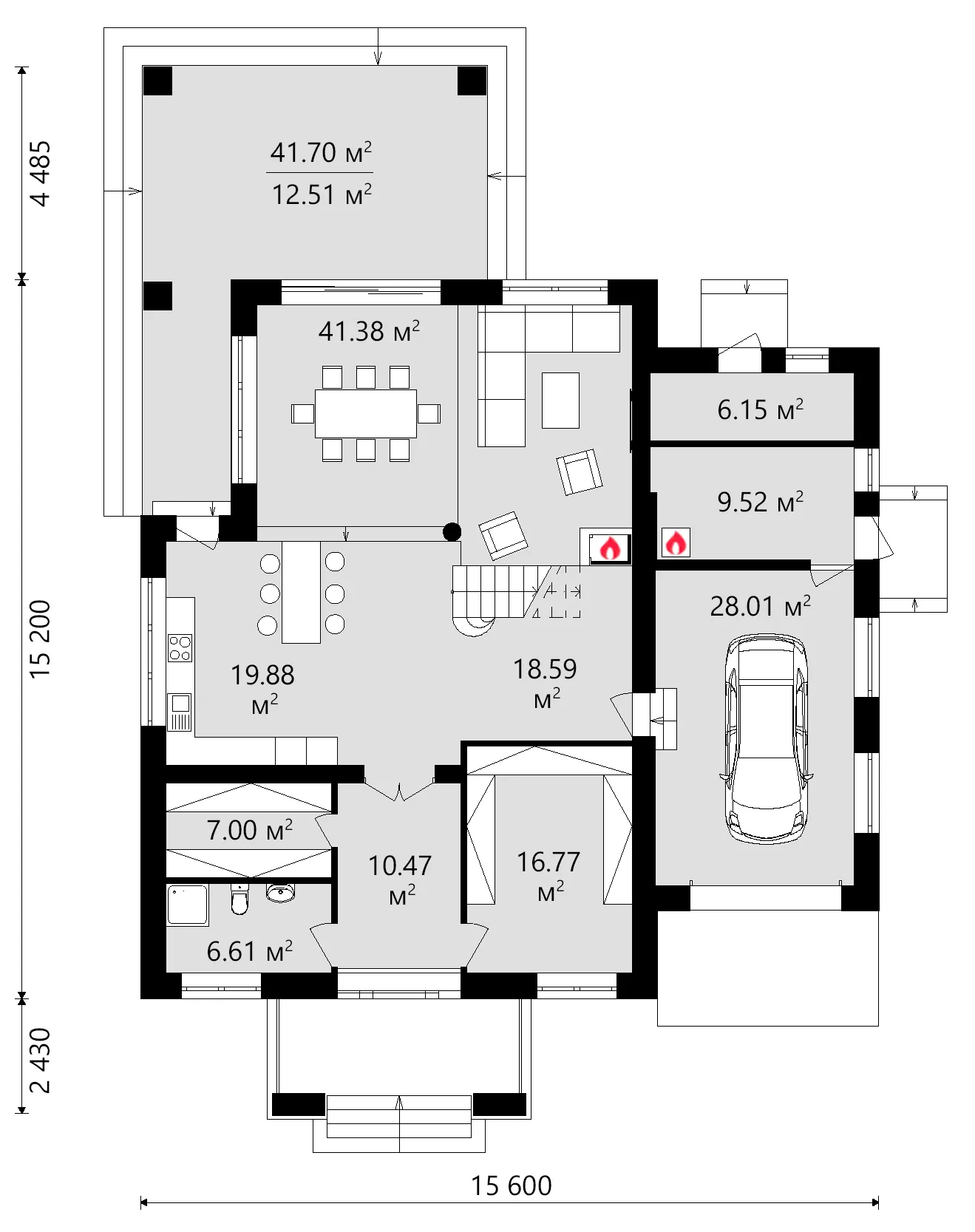

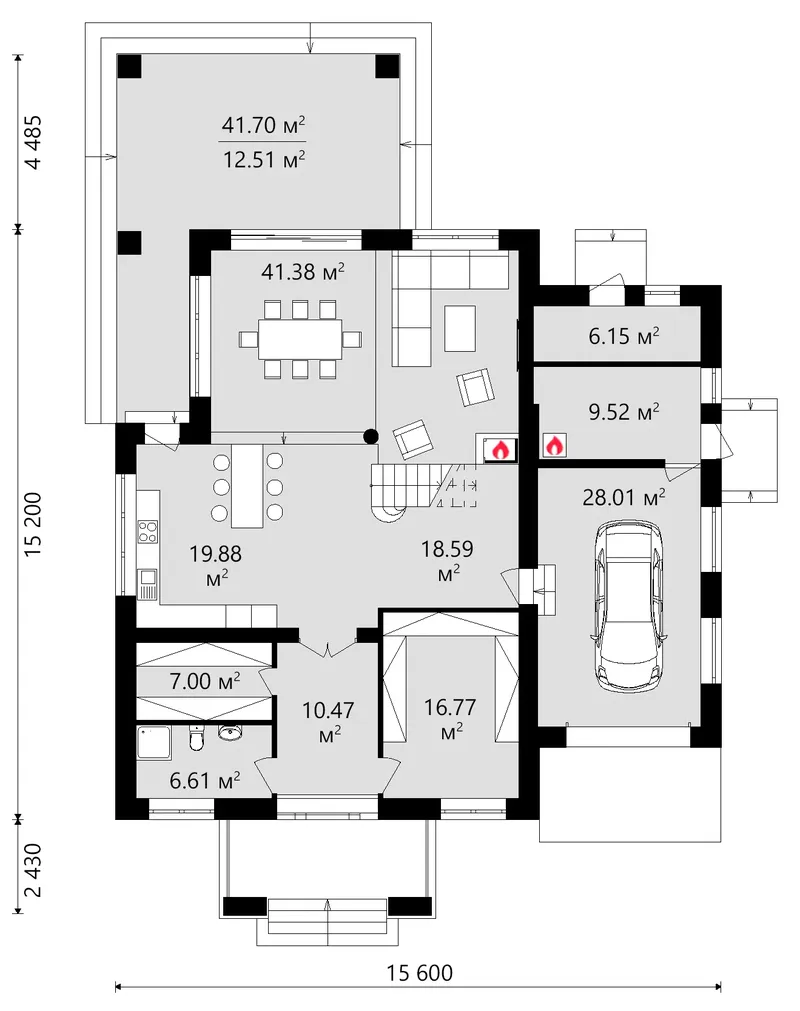

Main Floor 18 – 3,273 Sq Ft Traditional 2-Story House Plan with 3 Bedrooms and 1-Car Garage – 56808R

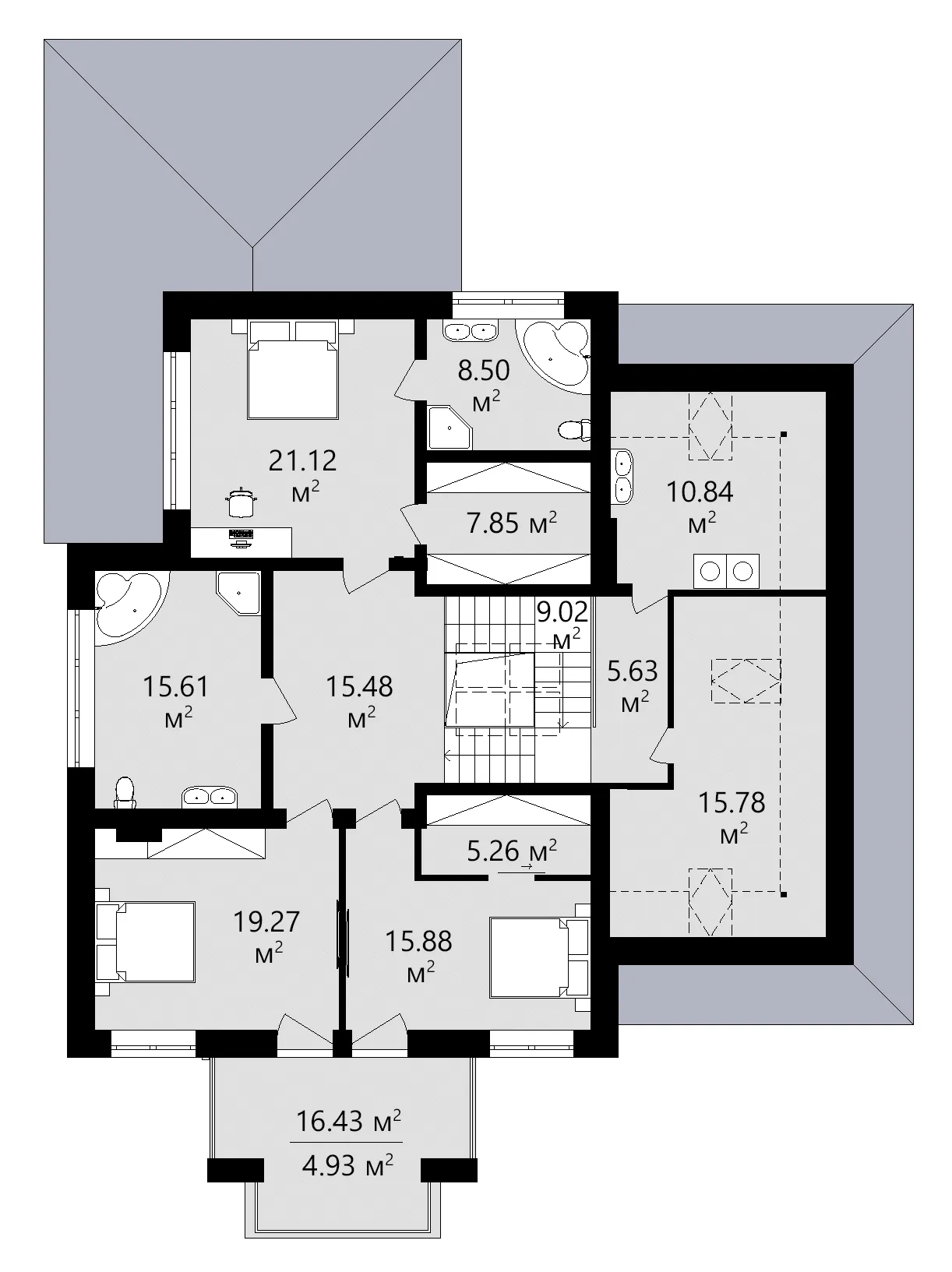

Second Floor
Second Floor 19 – 3,273 Sq Ft Traditional 2-Story House Plan with 3 Bedrooms and 1-Car Garage – 56808R
Full Specs & Features
Area
Total Unheated: 301.5 ft²
Total Heated: 3272.77 ft²
Dimensions
Depth: 67'4" ft
Width: 47'6" ft
Height: 31'7" ft
Garage
Area: 301 ft²
Cars: 1
Attached
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stucco
Panels
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Bonus/Flex Room
Laundry
Entry
Storage
Walk In Closet
Kitchen and Dining
Breakfast bar
Breakfast Nook
Interior Features
Laundry Second Floor
Fireplace in Family Room
Second Floor Master
Split Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Balcony
Stacked Porches
Covered Rear Porch
Portico
Architectural Style
Classical
European
Neoclassical
Traditional

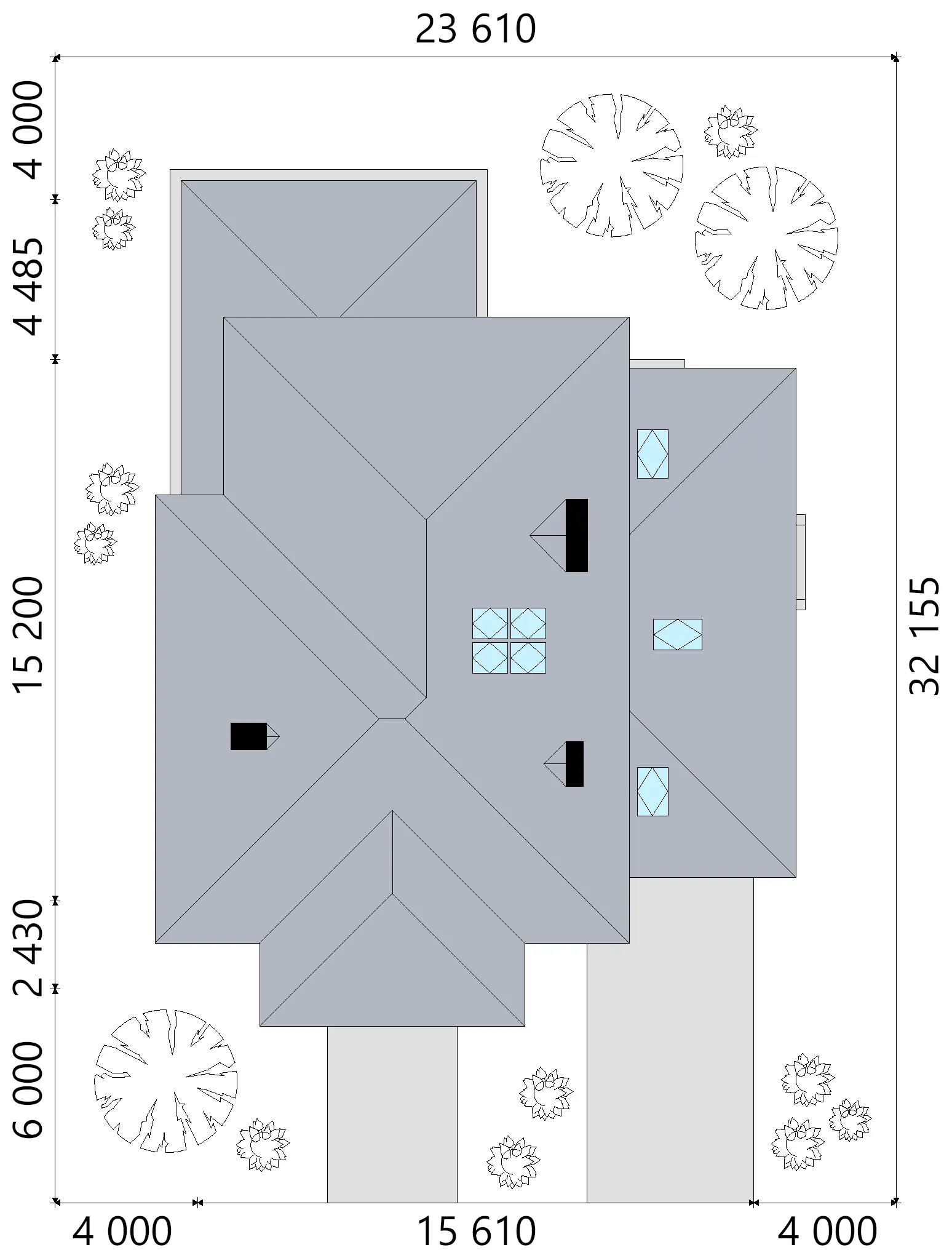

Roof
Roof Area: 5031.05 ft²
Hip
Roof Pitch: 5/12 (22°)

The 56808R digital house design concept describes a Traditional 2-story single-family home with Total Heated 3,273 Sq Ft, 3 bedrooms, 3 bathrooms and an attached 1-car garage. A hip roof with a 5/12 (22°) pitch keeps the silhouette low and sheds rain on all four sides. The layout is sized for a household of 3-4 people.

A portico shelters the entry, which opens into an open floor plan centered on a large family room with a fireplace. The large kitchen keeps the cook in view of the family: a breakfast bar serves quick meals, and the breakfast nook gives everyday dining its own spot. A bonus/flex room adapts to a home office, guest room or playroom.

The primary bedroom sits on the second floor with a walk-in closet that keeps clothes out of the sleeping area. Split bedrooms place it away from the other two bedrooms, giving parents and children more privacy. Three full bathrooms ease the morning rush, the second-floor laundry stands close to the bedrooms, and the storage and utility rooms keep household items out of the living spaces.

Stacked porches and a balcony open both levels to the outdoors, while the covered rear porch offers a shaded place for meals outside. The attached front-entry garage keeps the car out of the weather and the driveway short. The plan uses strip footings, with a slab or block foundation as options, and aerated concrete walls, with ceramic hollow block or sand-lime block as alternatives; stucco and panels finish the facade. The footprint is 47'6" wide and 67'4" deep. In figures: Total Heated 3,273 Sq Ft, 3 bedrooms, 3 bathrooms and a 1-car garage.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
