Concept
Construction documents are prepared for the following countries:

2,409 Sq Ft Modern U-Shaped Single-Story House Plan with 3 Bedrooms, 3 Bathrooms and Carport

Plan
65455C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2409
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
2
Cars (Carport)
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

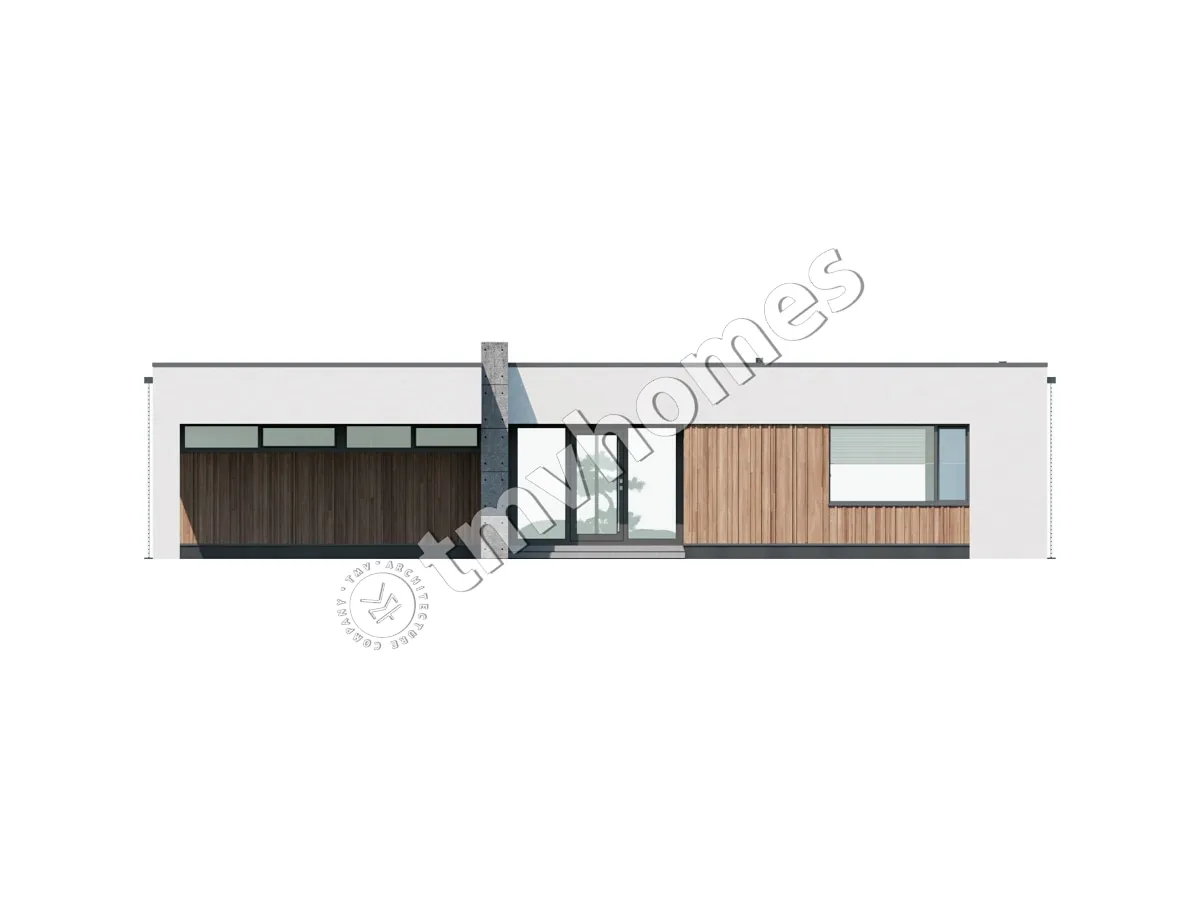

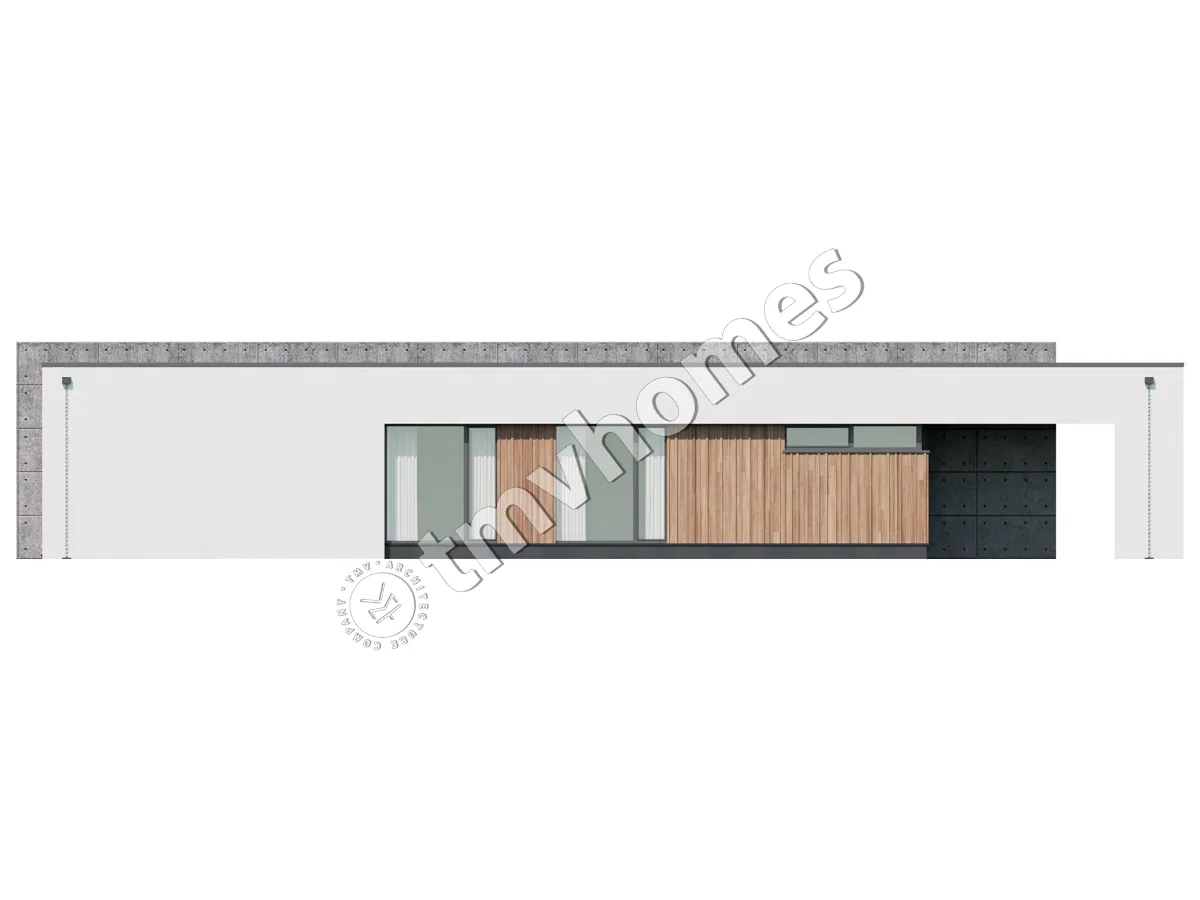

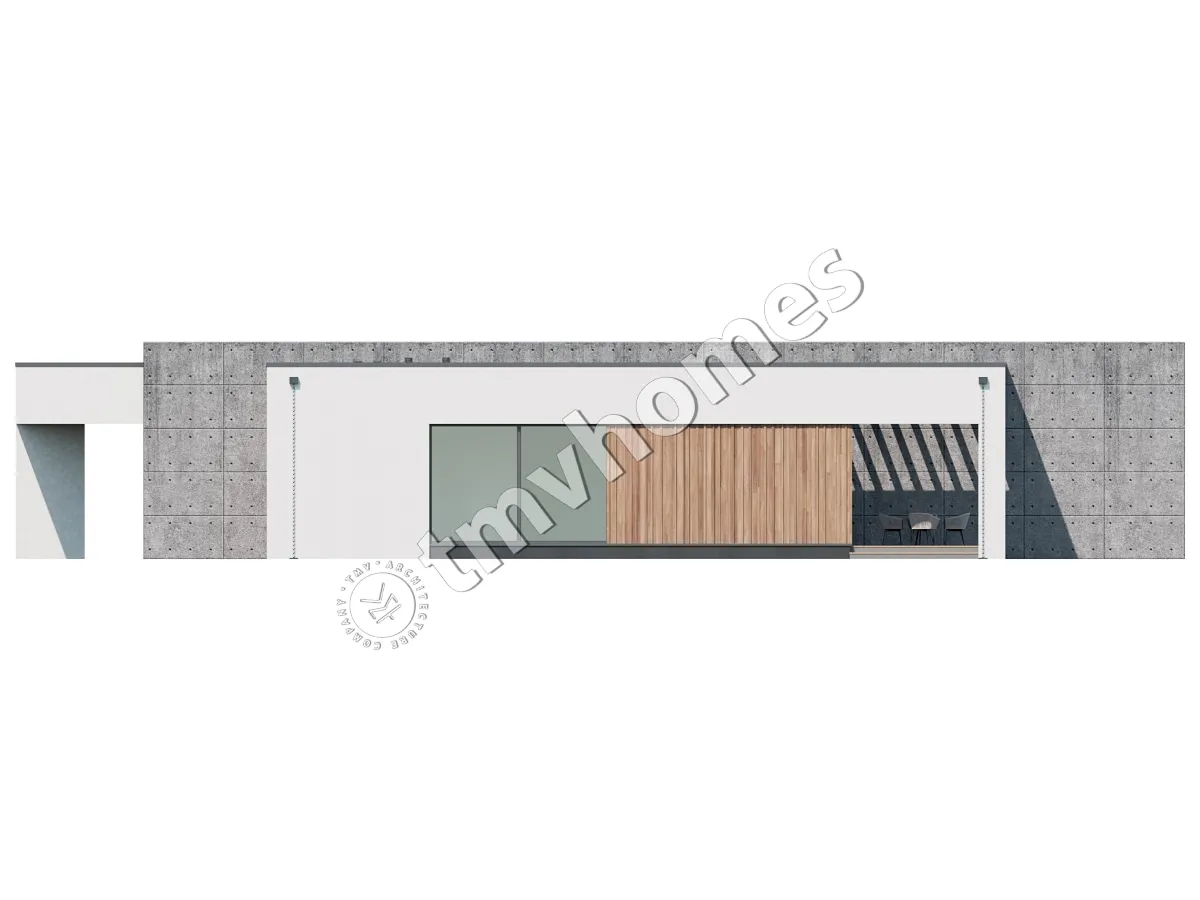

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

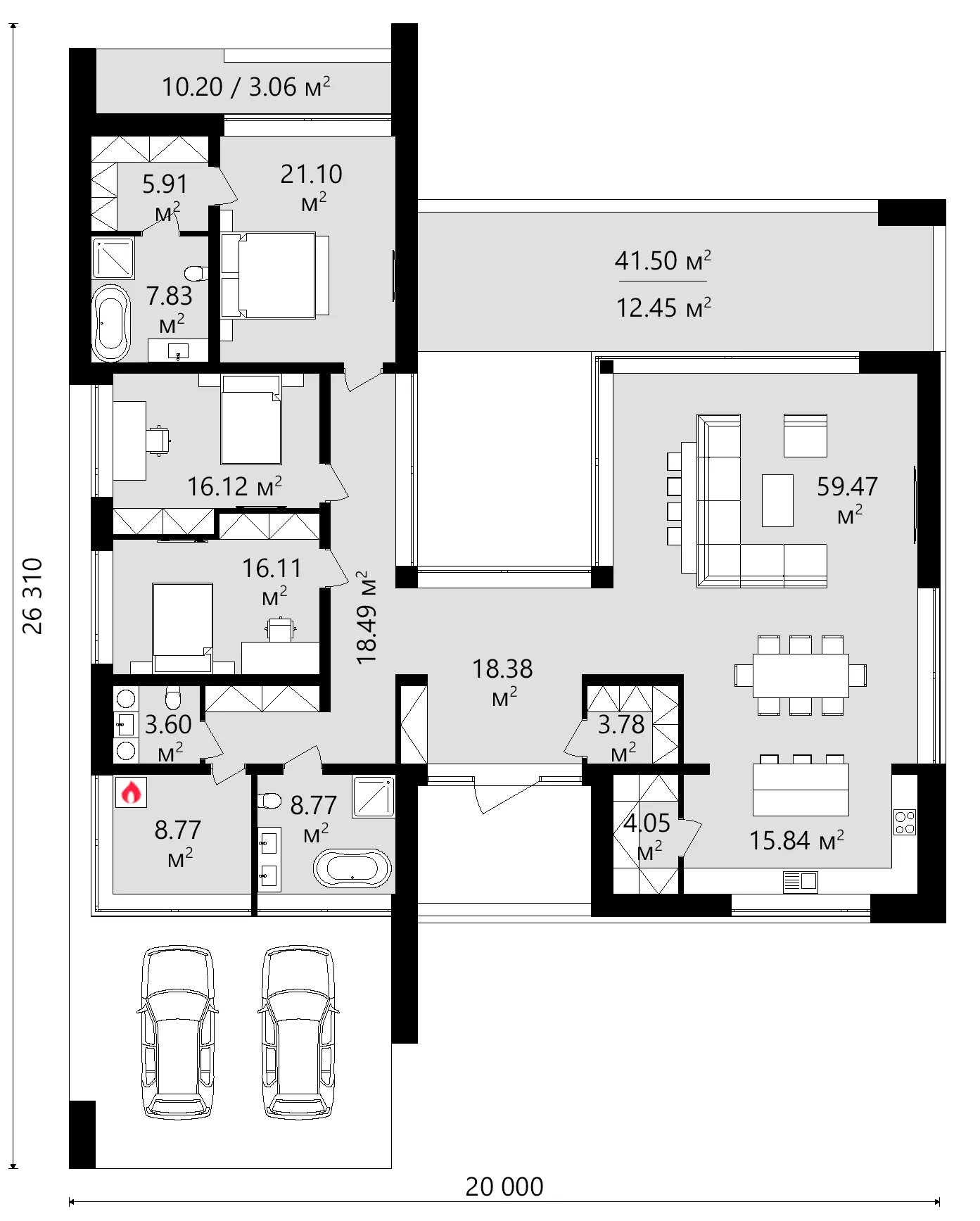

Floor Plans
Main Floor
Main Floor 7 – 2,409 Sq Ft Modern Single-Story House Plan with 3 Bedrooms and 3 Bathrooms – 65455C
Full Specs & Features
Area
Total Heated: 2408.53 ft²
Dimensions
Depth: 80'2" ft
Width: 61'0" ft
Height: 13'8" ft
Garage
Cars: 2
Carport
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Wood
Stucco
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast Nook
Island
Interior Features
Main Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Rear Porch
Corner Window
Panoramic Windows
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
Modern
Roof
Roof Area: 3421.74 ft²
Flat

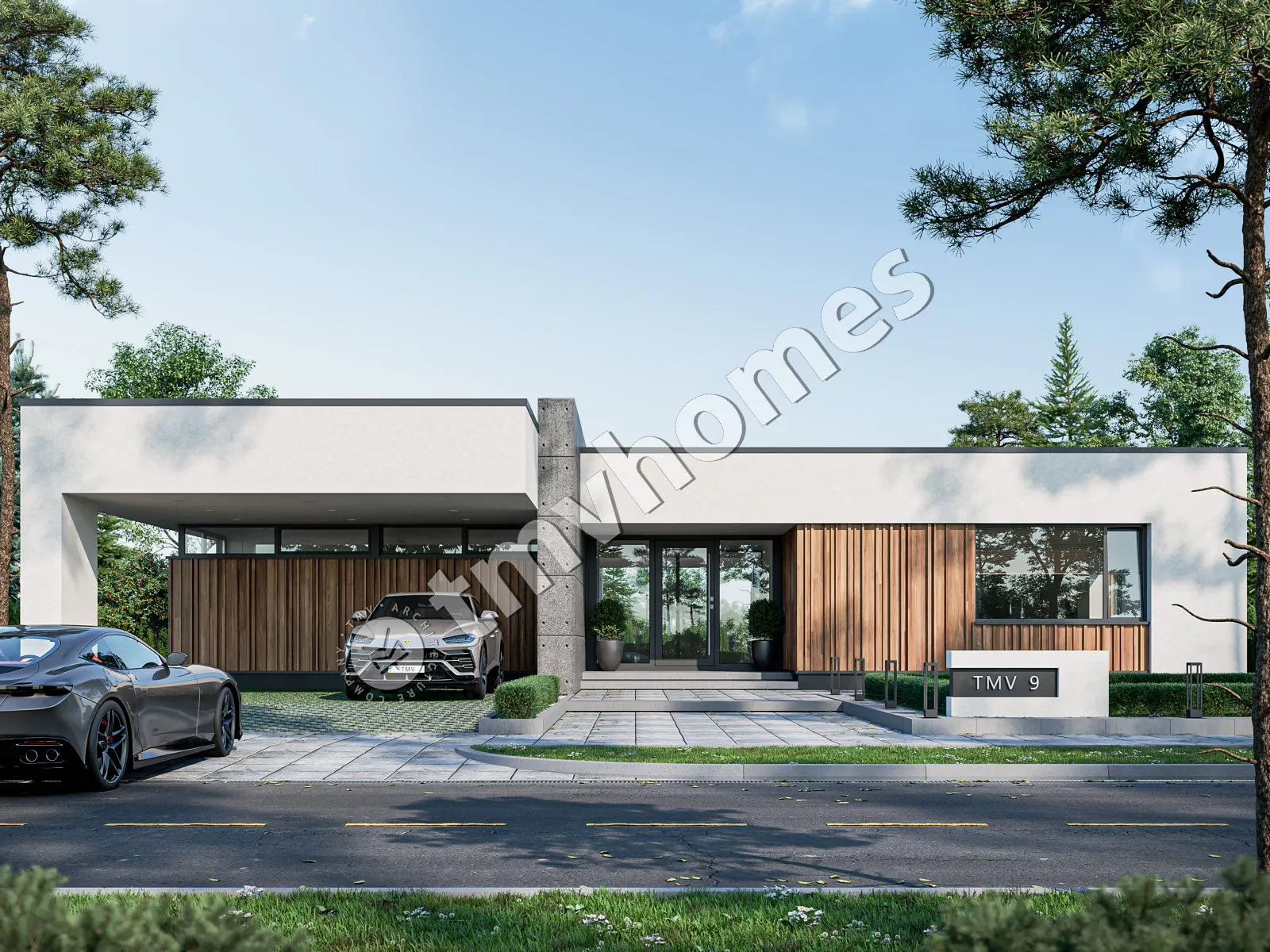

House design concept 65455C is a modern single-story, single-family home with a U-shaped layout, 3 bedrooms, 3 bathrooms, a carport and a flat roof. With Total Heated 2,409 Sq Ft, the house suits a household of 3-4 people. Wood and stucco on the exterior walls give the facades a warm, natural contrast.

The open floor plan joins the large great room with the large kitchen, so cooking and family time share one space. An island gives room for meal prep, the breakfast nook serves everyday meals, and the walk-in pantry keeps supplies out of sight. Floor-to-ceiling, panoramic and corner windows bring daylight deep into the living area and open the view to the covered rear porch.

The bedrooms are clustered on one level, which keeps the night zone quiet. The main floor primary suite has a walk-in closet, and the 3 bathrooms shorten the morning rush. A utility room keeps household equipment apart from the living spaces.

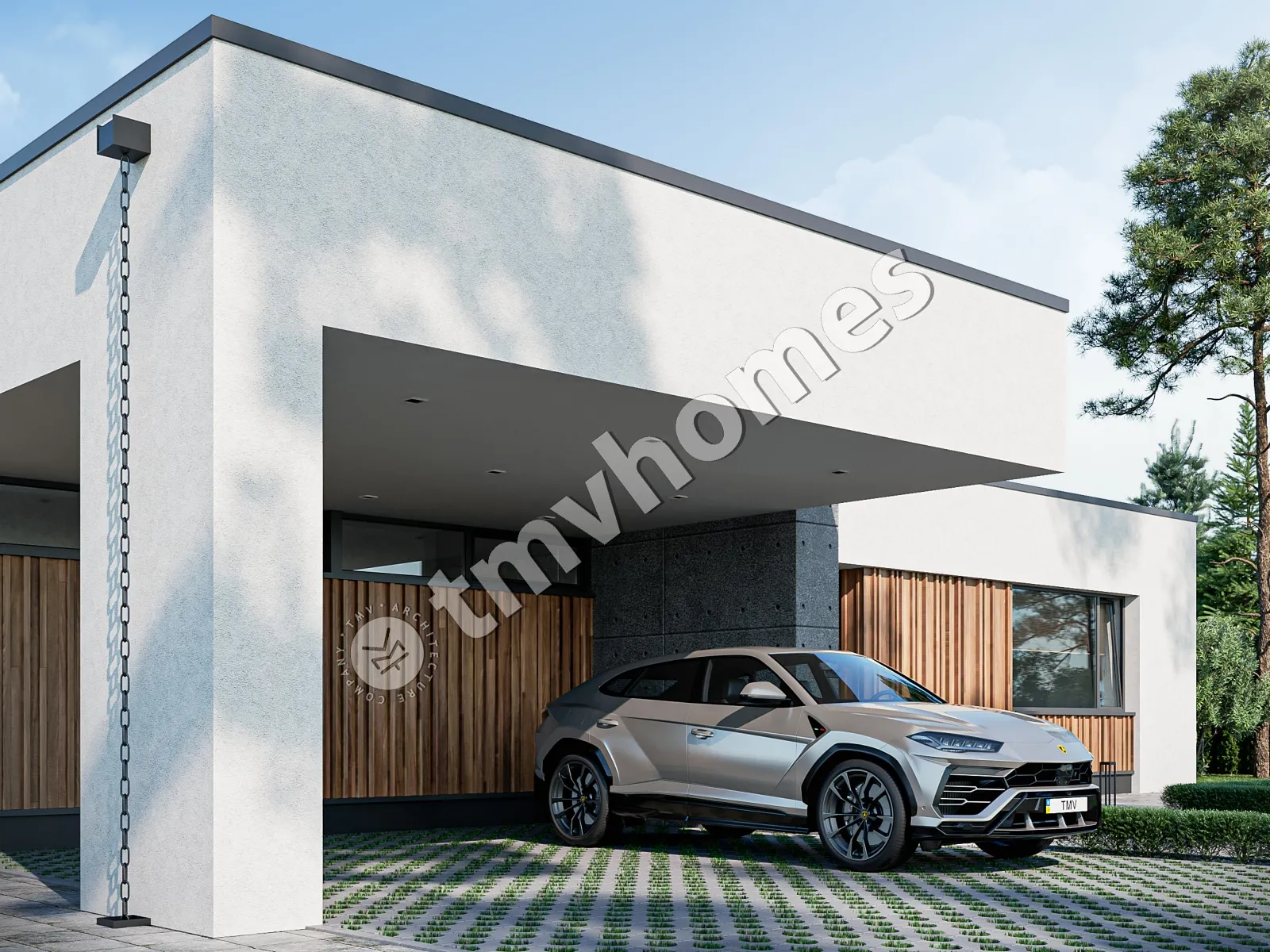

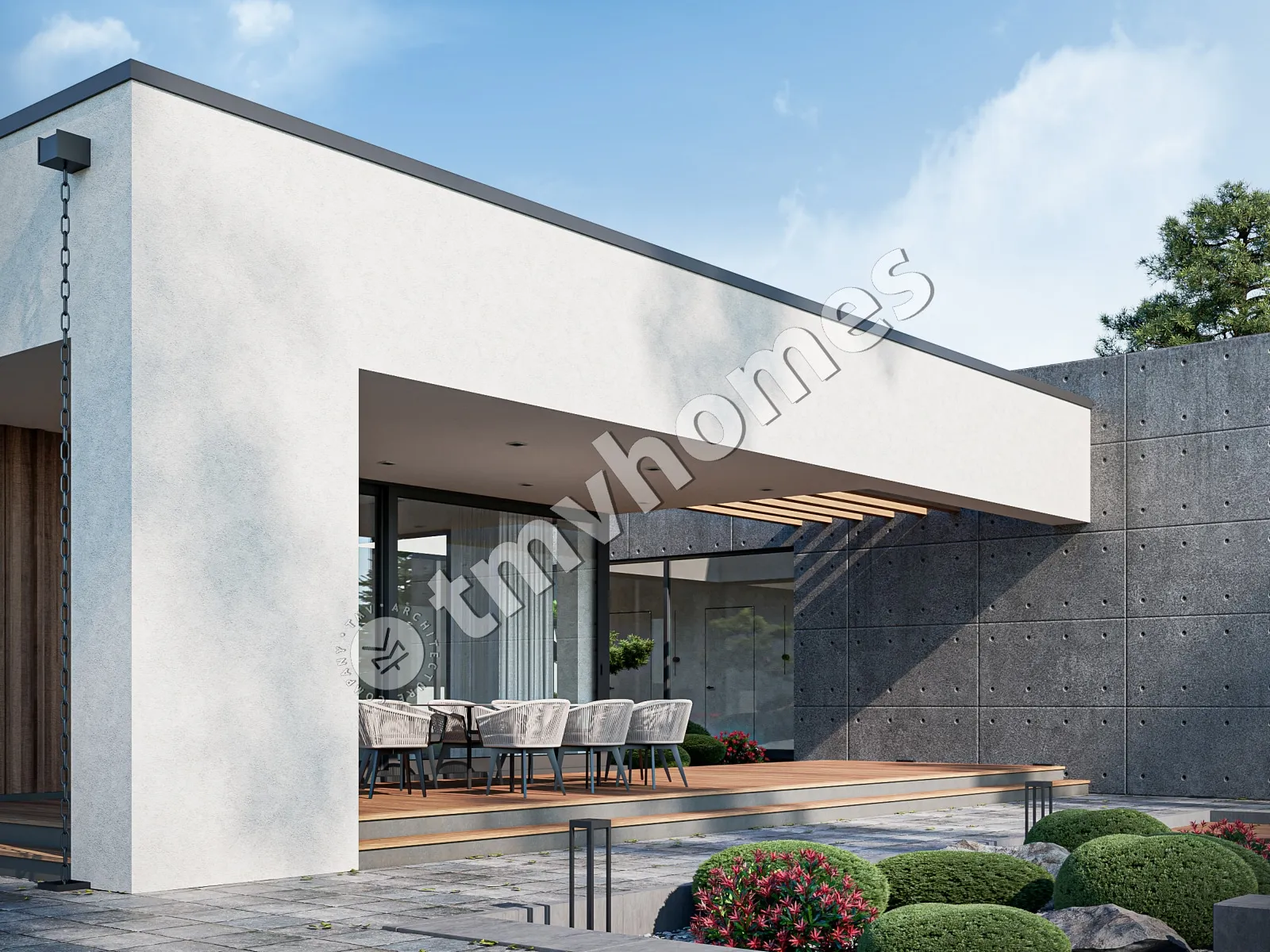

The covered rear porch extends daily life outdoors in any weather. A carport for two cars shelters the vehicles from rain and snow. The house rests on strip footings, with a slab or block foundation as options, and the exterior walls are built of aerated concrete, with clay hollow block or sand-lime block as alternatives. The footprint measures 61'0" wide and 80'2" deep. In figures: Total Heated 2,409 Sq Ft, 3 bedrooms, 3 bathrooms and a 2-car carport.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
