1,970 Sq Ft Modern 2-Story House Plan with 3 Bedrooms, 2.5 Bathrooms and 1-Car Garage
Opis techniczny
Rzuty kondygnacji
Rzut więźby dachowej
Rzut dachu
Przekroje
Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.
House design concept 72907C is a Modern 2-story single-family home with Total Heated 1,970 Sq Ft, 3 bedrooms, 2.5 bathrooms and an attached 1-car garage. Planned for 3-4 people, the house measures 42'7" wide and 37'9" deep. A flat roof and a facade of stucco, wood and flexible ceramic give it clean lines. The project is available for purchase as a digital house design concept.
The entry keeps outdoor clutter away from the living space. An open floor plan joins the large great room, the kitchen and the breakfast nook, so cooking and casual meals stay connected. Floor-to-ceiling windows bring daylight deep into the great room and open it to the deck.

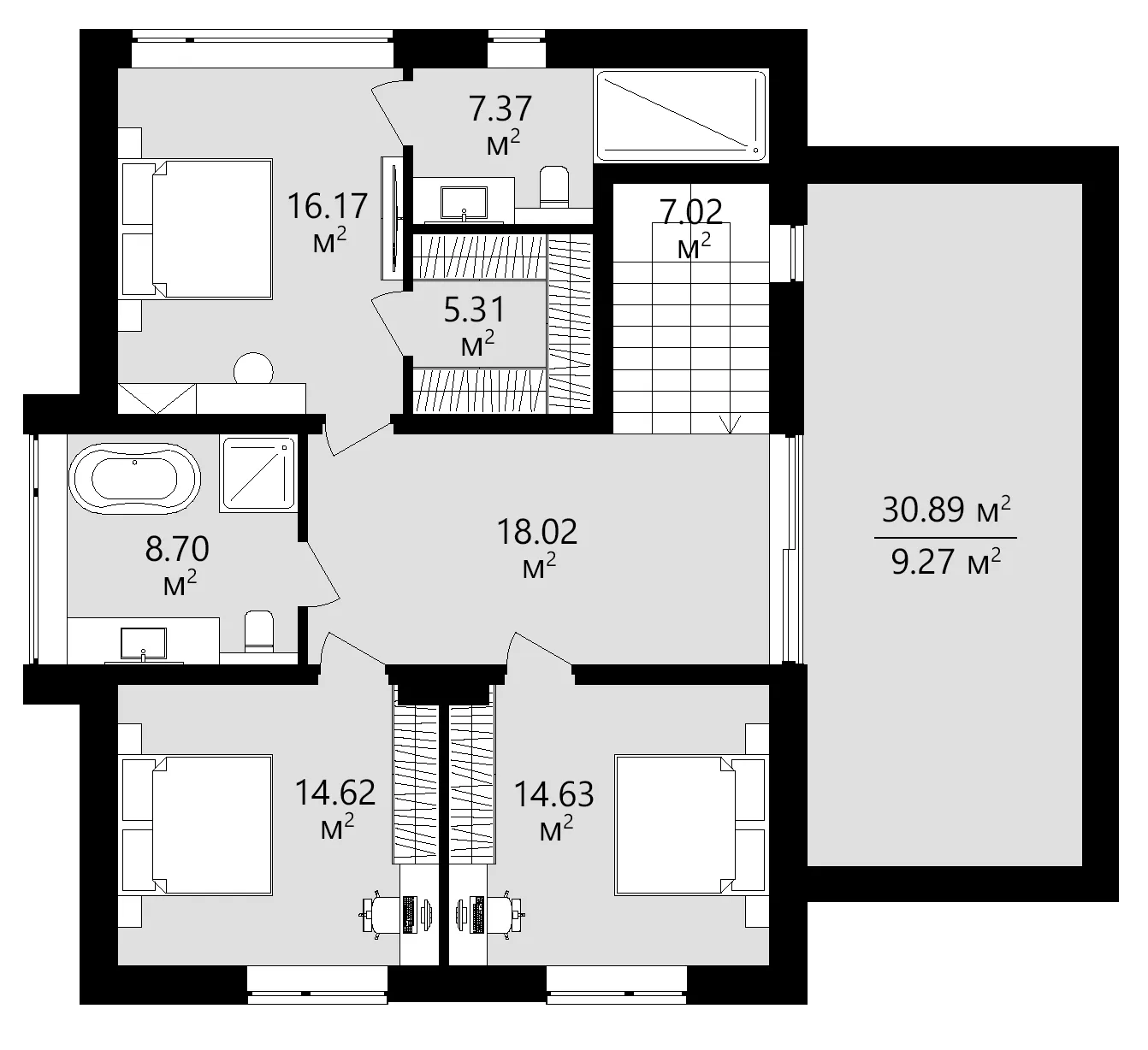

All three bedrooms are clustered upstairs, which keeps the sleeping area quiet. The second-floor primary suite has a walk-in closet and its own bathroom, and a second full bathroom serves the other bedrooms. A balcony adds a private outdoor spot, while the utility room and storage keep household items out of sight.
The attached front-entry garage keeps the driveway short, and its roof becomes a rooftop deck. Strip footings form the base foundation, with slab or block options; exterior walls are aerated concrete, with clay hollow block or silicate block as alternatives. In figures: Total Heated 1,970 Sq Ft, 3 bedrooms, 2.5 bathrooms and a 1-car garage.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
