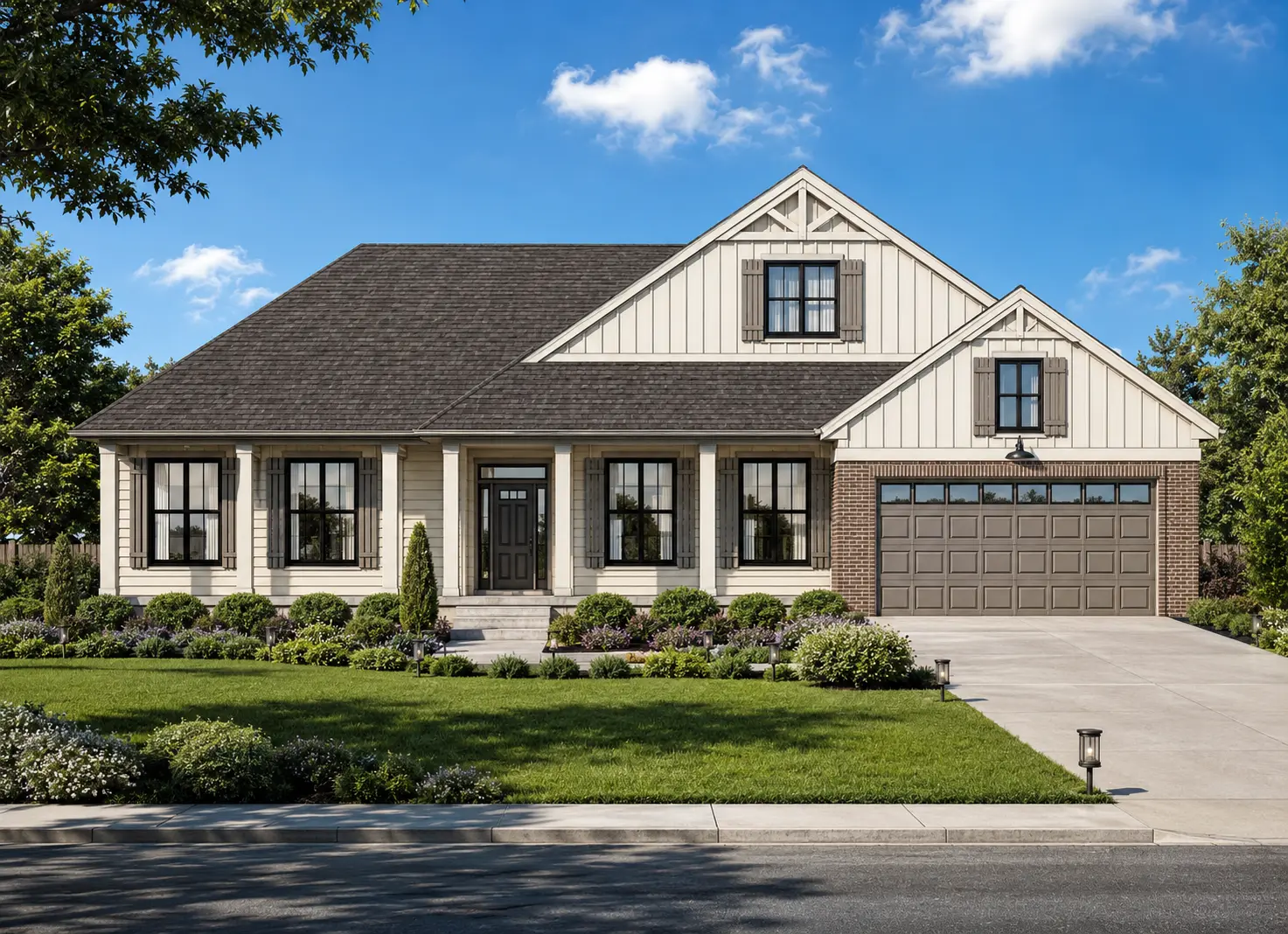

1-Story House Plan 2701 ft²: 3 Beds, Home Office, 3.5 Baths, Open Floor Plan, 2-Car Garage
1-Story House Plan 2701 ft²: 3 Beds, Home Office, 3.5 Baths, Open Floor Plan, 2-Car Garage 1-Story House Plan 2701 ft²: 3 Beds, Home Office, 3.5 Baths, Open Floor Plan, 2-Car Garage
4
Construction documents are prepared for the following countries:

1-Story House Plan 2701 ft²: 3 Beds, Home Office, 3.5 Baths, Open Floor Plan, 2-Car Garage

Plan
78851R
Complete
Unsigned & Unsealed
DC Available
Key Specs
2701
Total Heated ft²
3 + 1
Baths + 1/2 Baths
3 + 1
Beds + Home Office
2
Cars
United States Canada
Plans include:

Cover Page

Plans include:

Cover Page

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

Floor Plans
Main Floor

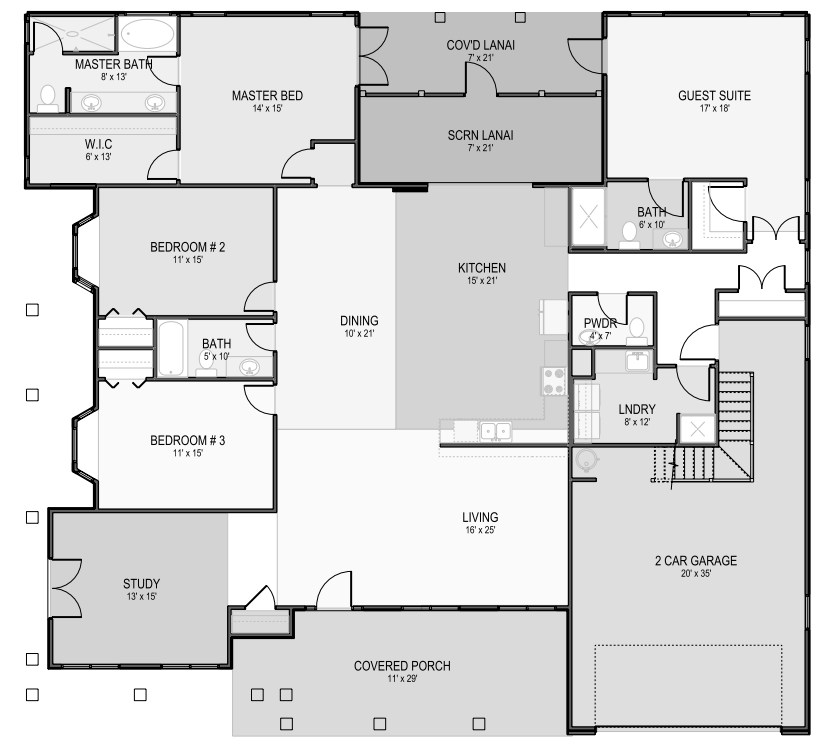

78851R - Main Floor
Full Specs & Features
Area
Main Floor: 2701 ft²
Porch: 646 ft²
Total Heated: 2701 ft²
Dimensions
Depth: 61'6" ft
Width: 67'1" ft
Height: 25'5" ft
Garage
Area: 594 ft²
Cars: 2
Attached
Front Entry
Foundation
Slab
Walkout Basement (Optional)
Crawl Space (Optional)
Exterior Wall Framing
Wood 2x6 (Optional)
Wood 2x4
Exterior Wall Materials
Siding
Stone/Brick Veneer
Rooms
Full bathrooms: 3
Half bathrooms: 1
Bedrooms: 3
Laundry
Home Office
In-Law Suite
Walk In Closet
Kitchen and Dining
Breakfast Nook
Island
Interior Features
Laundry On Main Floor
Main Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Front Porch
Covered Rear Porch
Screened Porch
Architectural Style
Country
Farmhouse
Ranch
Traditional
American
Roof
Hip & Valley
Roof Pitch: 8/12 (34°)
Ceiling
Main Floor Ceiling Height: 9'0" ft
Architect
Advanced Drafting & Design Co. Advanced Drafting & Design Co. Architectural Designer country with code us United States
country with code us United States
North Carolina, Mooresville, NC 28117
+17046108070
https://advanceddrafting.net/
Plan Package

Digital Concept (Imperial system)
$400
Printed Plan Set
$1690
Digital Plan Set
$1000
$1380
$2710
$3000
$3300
Foundation
$0
$600
$475
Exterior Walls
$475
$0
Additional Options
$1000
$410
$65
$130
Subtotal
planSelect.safeCheckout.header: planSelect.safeCheckout.body
