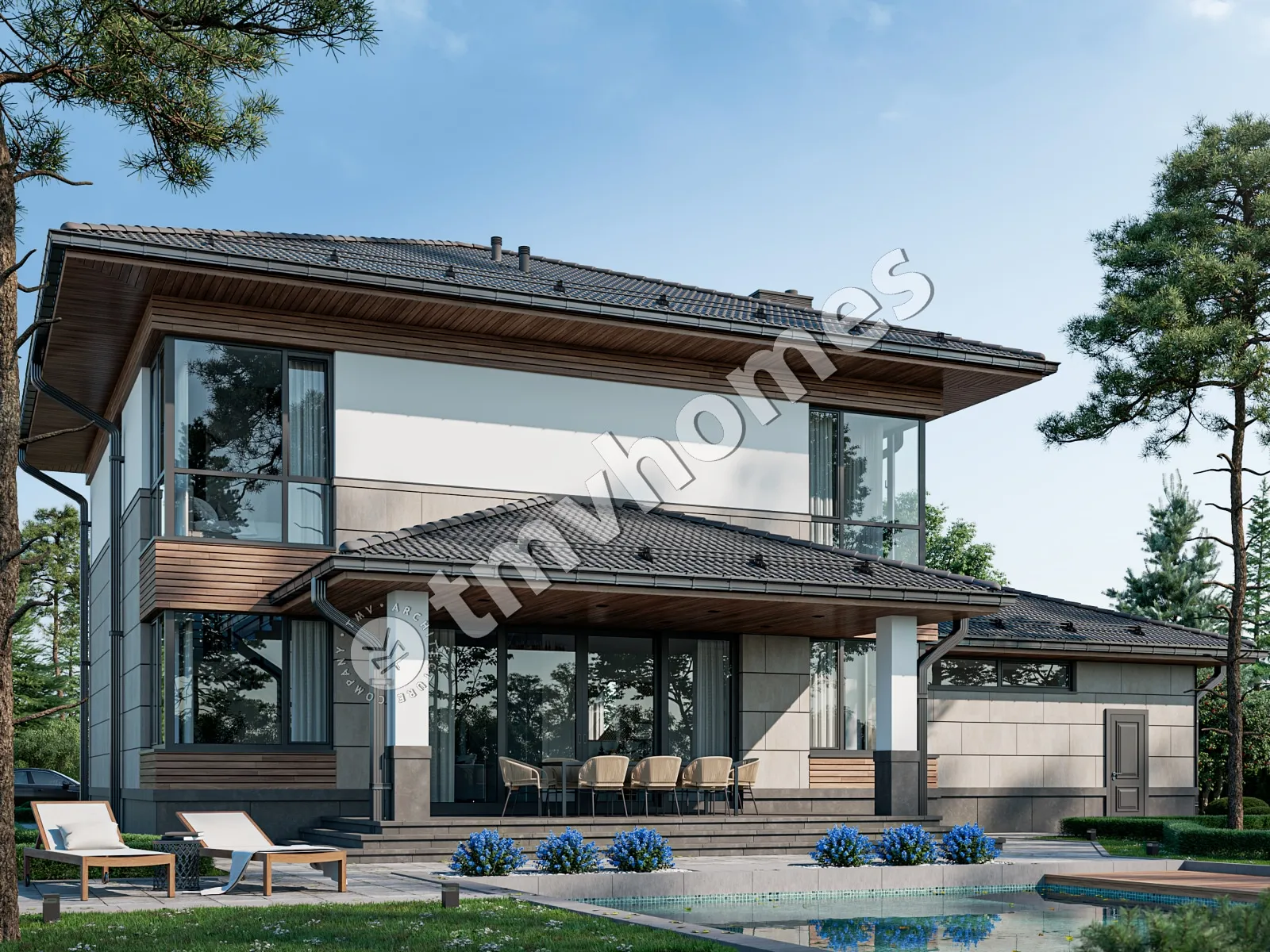

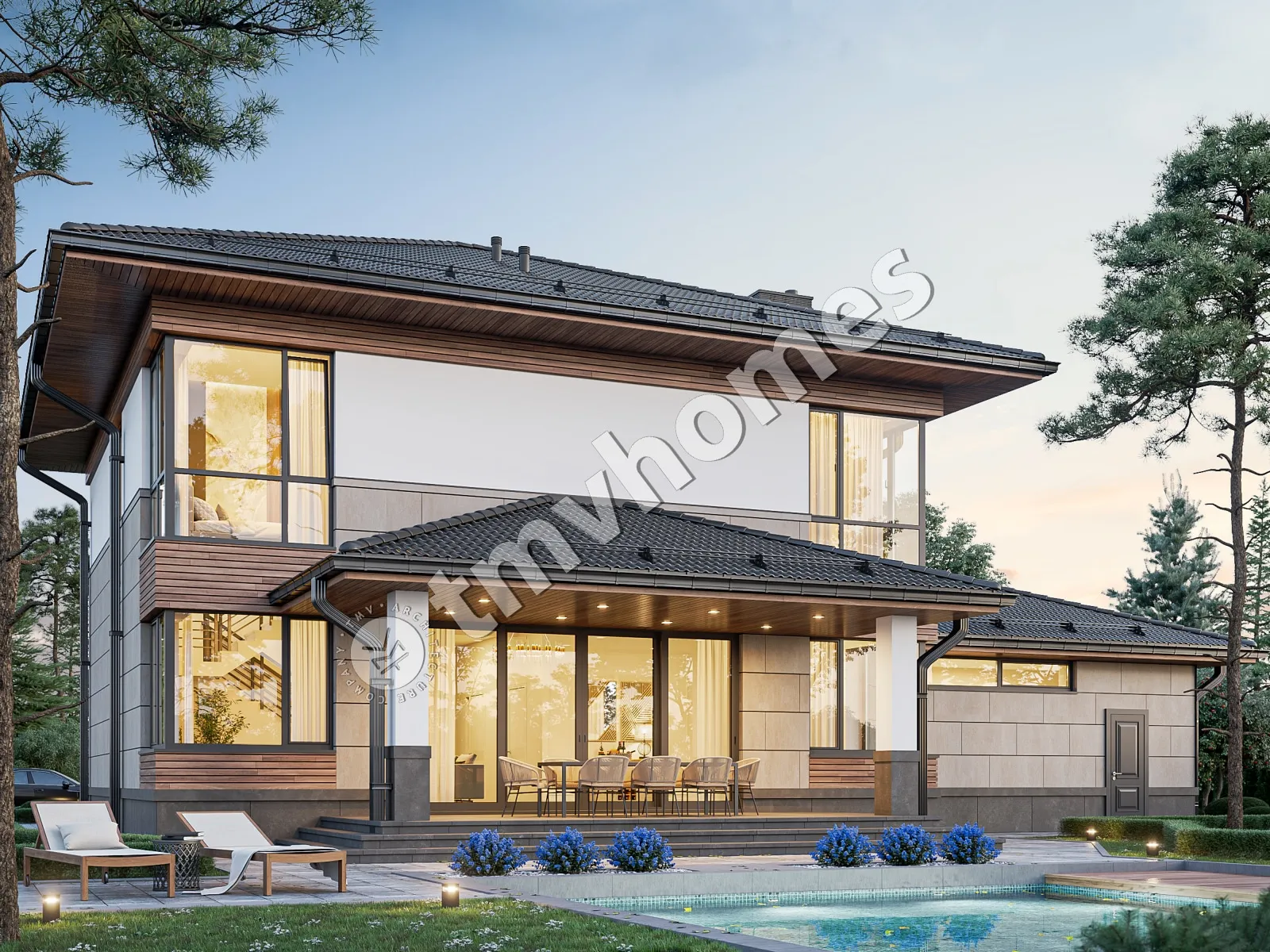

Renderings 2 – 2,695 Sq Ft Modern 2-Story House Plan with 3 Bedrooms and 2-Car Garage – 45195C

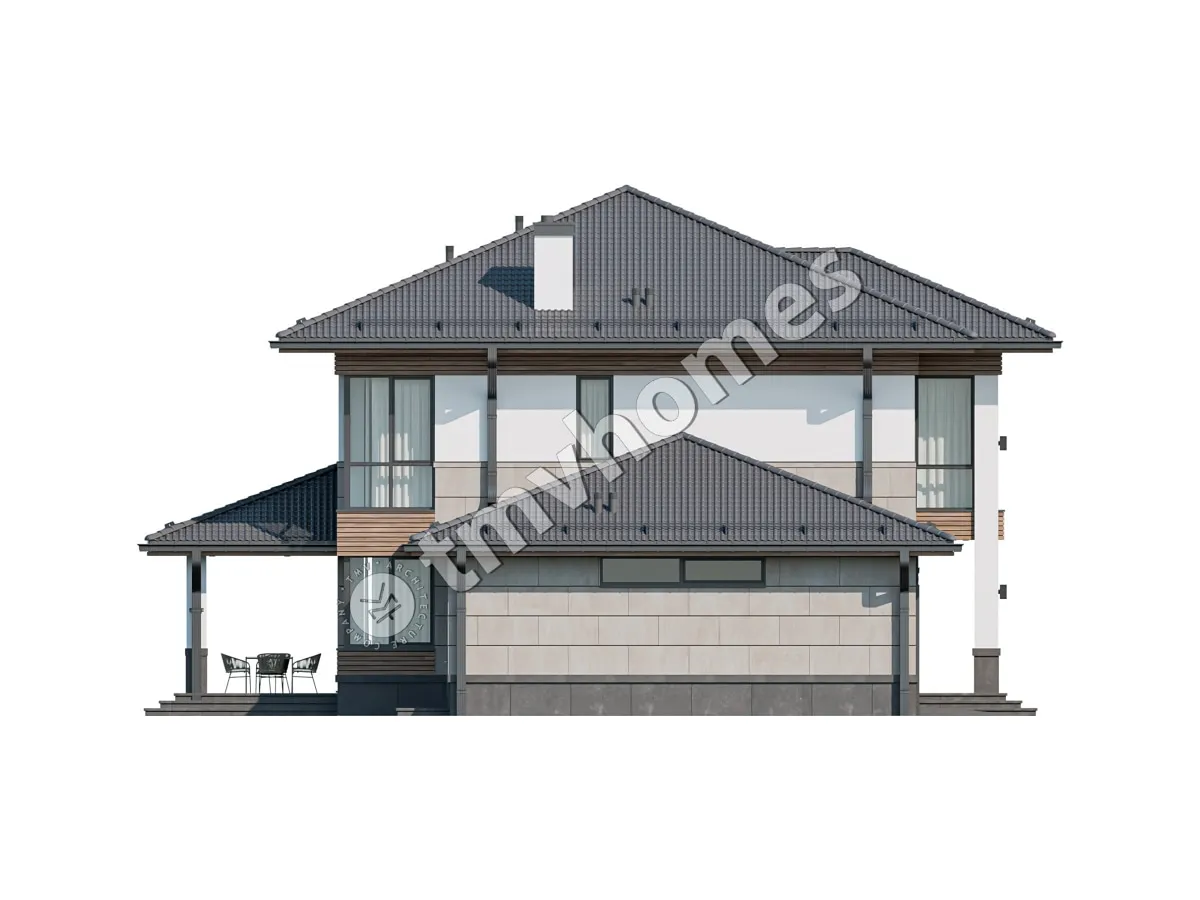

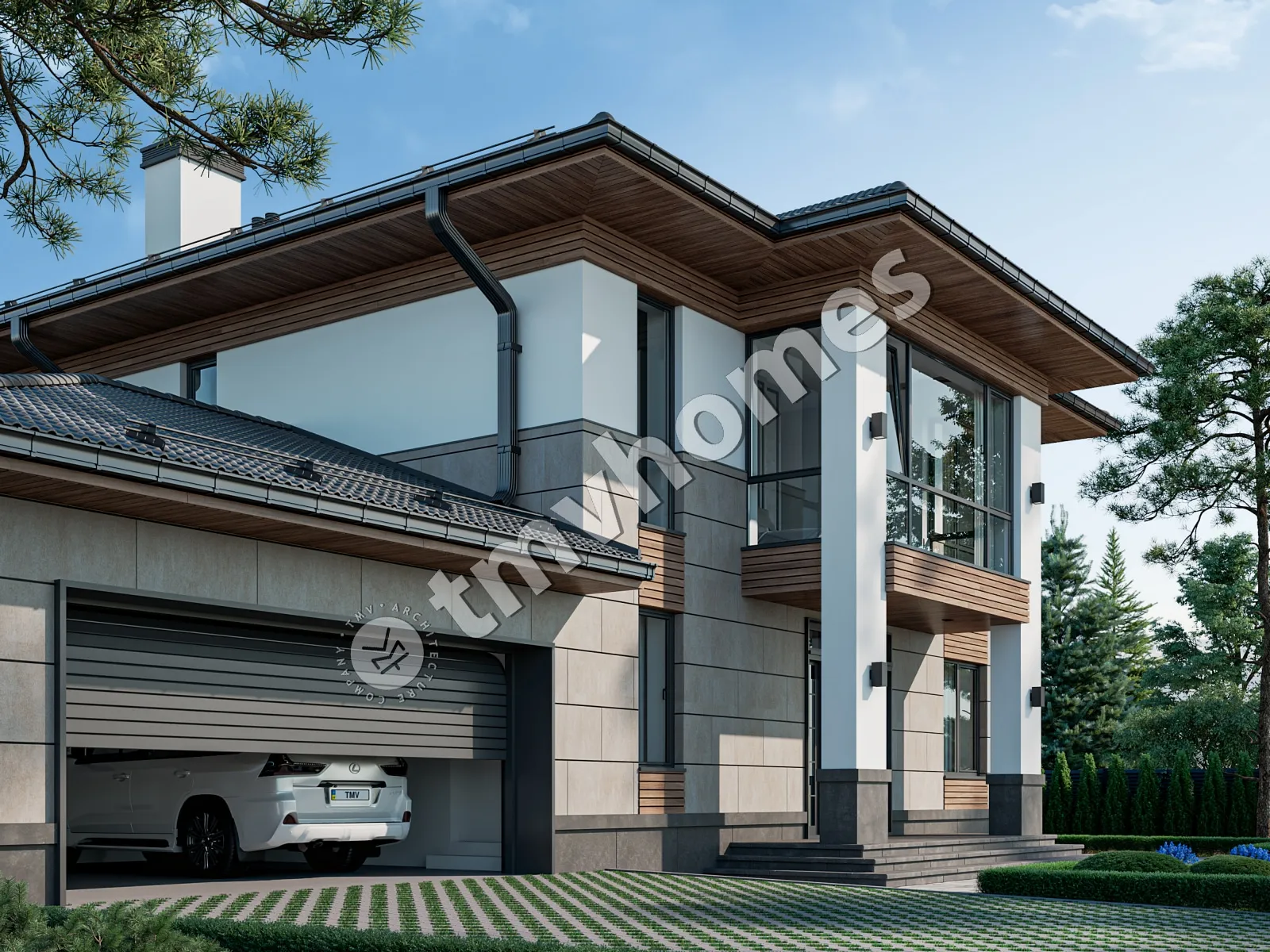

Renderings 3 – 2,695 Sq Ft Modern 2-Story House Plan with 3 Bedrooms and 2-Car Garage – 45195C Renderings 4 – 2,695 Sq Ft Modern 2-Story House Plan with 3 Bedrooms and 2-Car Garage – 45195C
7
Concept
Construction documents are prepared for the following countries:

2,695 Sq Ft Modern 2-Story House Plan with 3 Bedrooms, 3 Bathrooms and 2-Car Garage

Plan
45195C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2695
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 1
Beds + Home Office
2
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

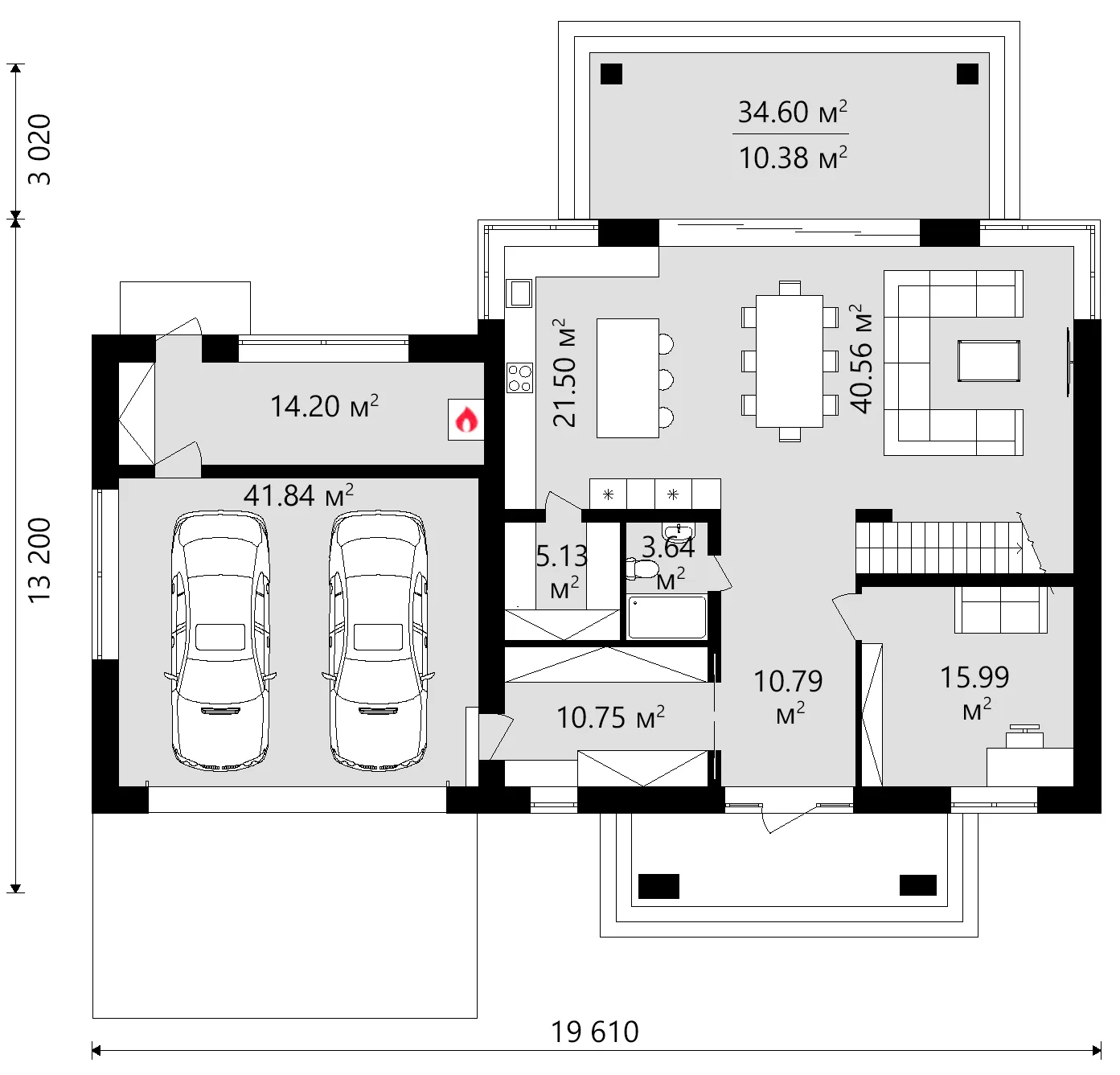

Main Floor
Main Floor 12 – 2,695 Sq Ft Modern 2-Story House Plan with 3 Bedrooms and 2-Car Garage – 45195C

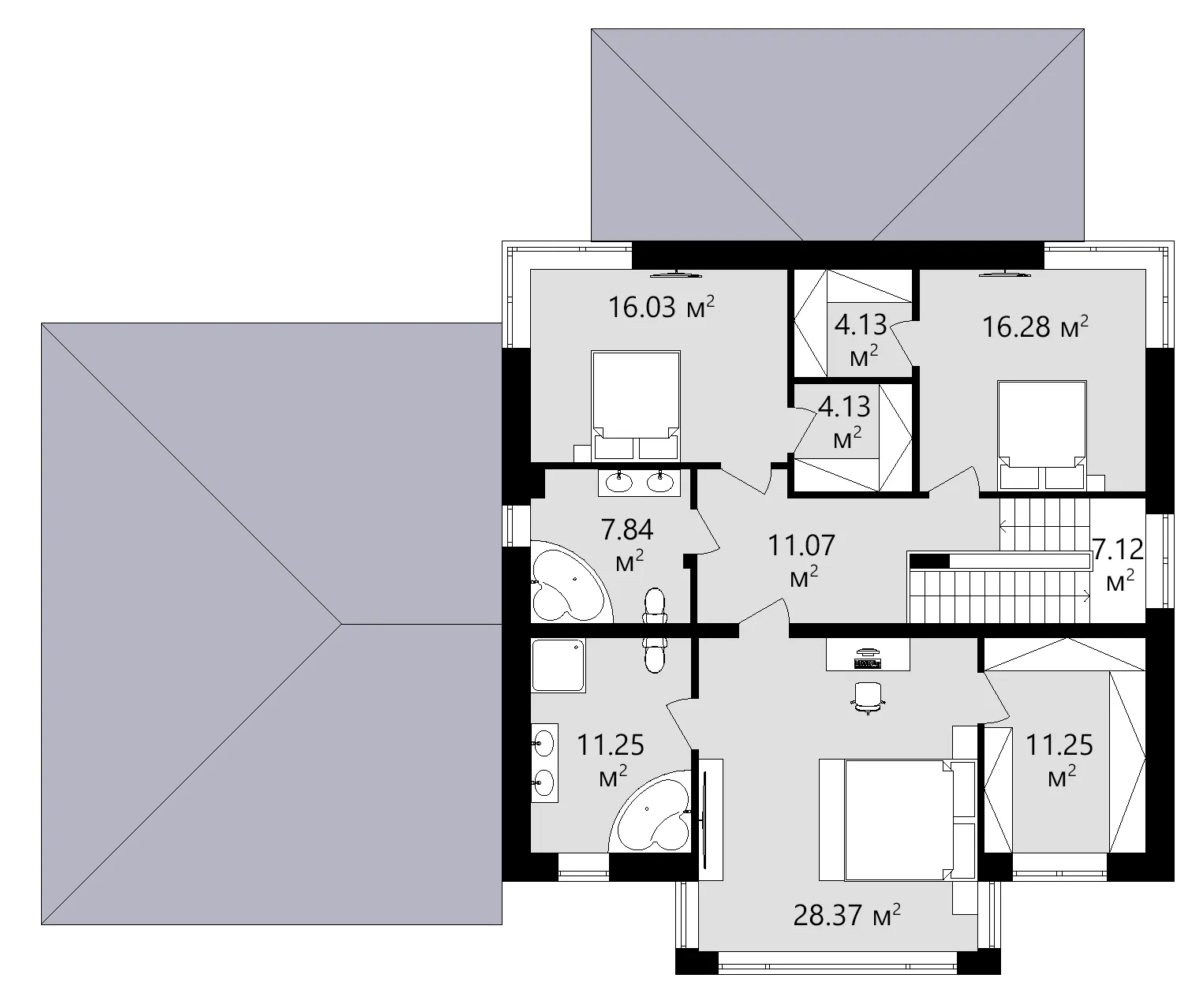

Second Floor
Second Floor 13 – 2,695 Sq Ft Modern 2-Story House Plan with 3 Bedrooms and 2-Car Garage – 45195C
Full Specs & Features
Area
Total Unheated: 450.36 ft²
Total Heated: 2695.39 ft²
Dimensions
Depth: 49'4" ft
Width: 59'8" ft
Height: 32'0" ft
Garage
Area: 450 ft²
Cars: 2
Attached
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Wood
Stucco
Flexible Ceramic
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Home Office
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
Island
Corner Window
Interior Features
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Front Porch
Covered Rear Porch
Bay Window
Portico
Corner Window
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
European
Modern
Roof
Roof Area: 2879.35 ft²
Hip & Valley
Roof Pitch: 5/12 (22°)

Modern house design concept 45195C is a 2-story single-family home with a Total Heated 2,695 Sq Ft, 3 bedrooms, 3 bathrooms and an attached 2-car garage, designed for a household of 3-4 people. A hip-and-valley roof covers a footprint 59'8" wide and 49'4" deep, and a portico with a covered front porch marks the entry.

The open floor plan joins the large great room with the kitchen, so the family stays together while someone cooks. The large kitchen has an island with a breakfast bar for quick meals, a breakfast nook with a corner window for bright mornings and a walk-in pantry that keeps supplies off the counters. Floor-to-ceiling windows, large windows and a bay window bring daylight deep into the living areas. A home office on the main floor gives a quiet place to work away from the bedrooms.

All three bedrooms are clustered on the second floor, which keeps parents close to the children at night. The primary bedroom has a walk-in closet that keeps clothing out of the sleeping area. Three full bathrooms shorten the morning rush, and a utility room keeps household tasks in one place.

A covered rear porch extends the living space outdoors for meals and evenings outside. The attached 2-car garage has a front entry, which keeps the driveway short. Stucco, wood and flexible ceramic give the facade a varied finish. The plan is drawn on strip footings, with a slab or a concrete block foundation as options; the exterior walls are aerated concrete block, with clay hollow block or sand-lime block as alternatives. In figures: Total Heated 2,695 Sq Ft, 3 bedrooms, 3 bathrooms and a 2-car garage.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
US$1305
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
Local Architects
Offers from your local architects who are ready to develop construction documents based on the digital concept.
