2,482 Sq Ft Modern 2-Story Family House Plan with Basement, 3 Bedrooms and 3 Bathrooms
Opis techniczny
Rzuty kondygnacji
Rzut więźby dachowej

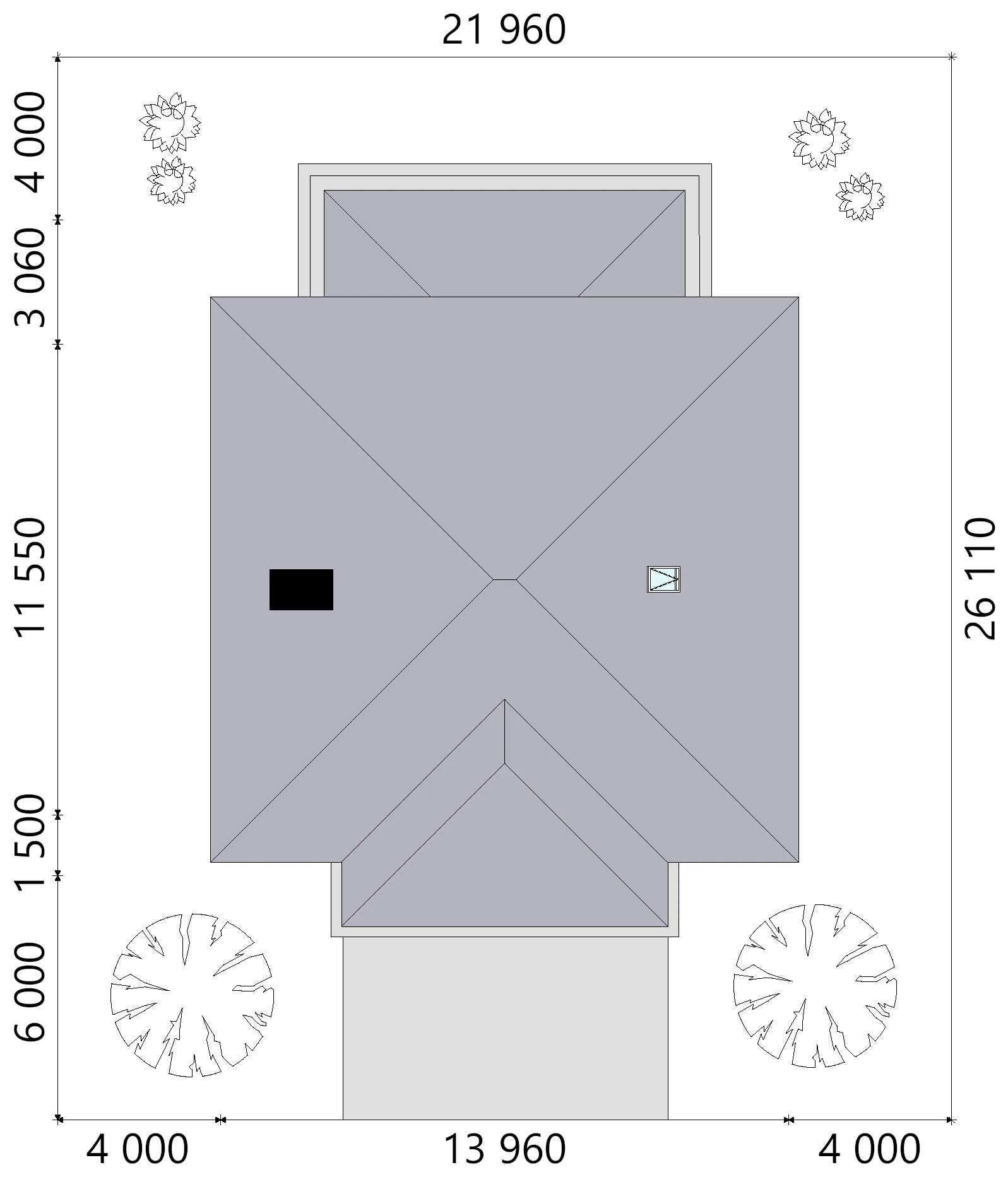

Rzut dachu
Przekroje
Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

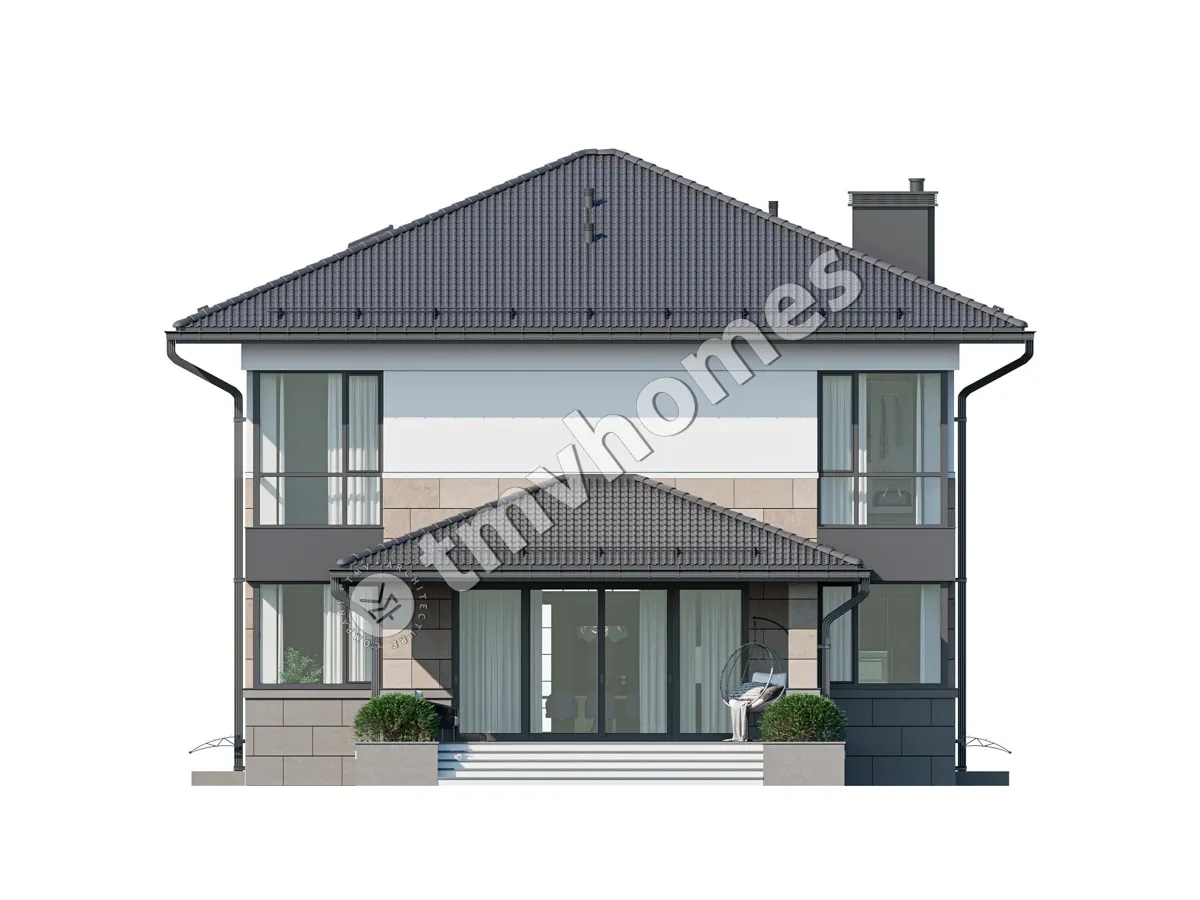

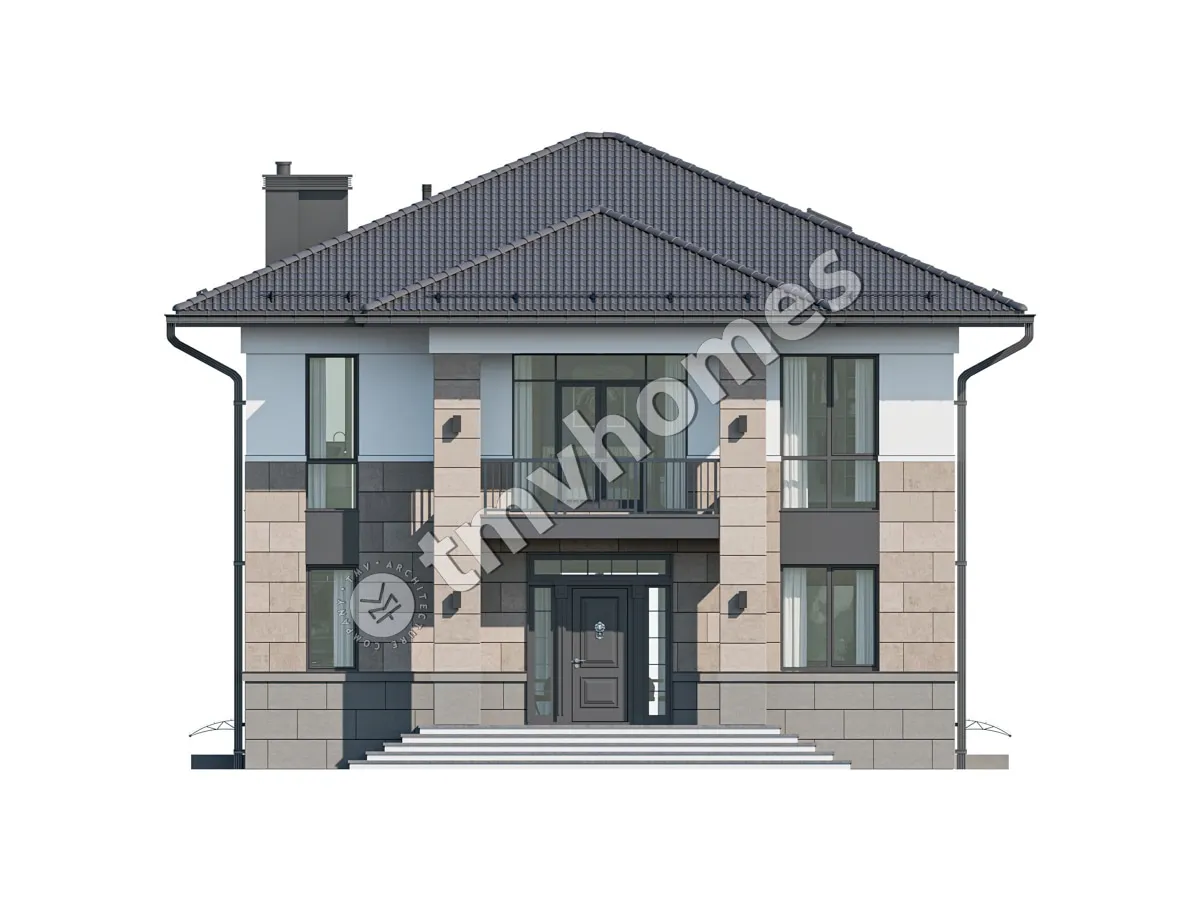

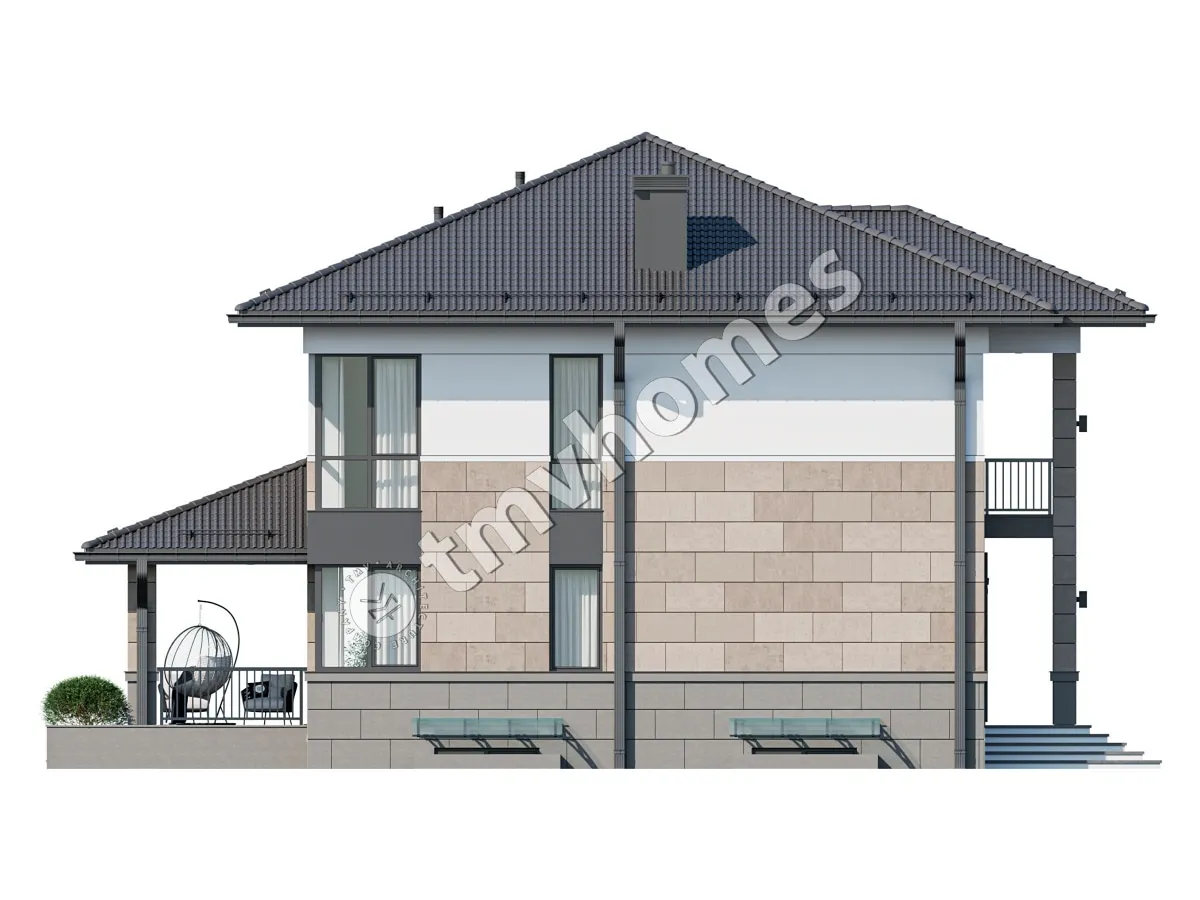

The 14977C digital house design concept is a Modern 2-story single-family home with a basement, Total Heated 2,482 Sq Ft, 3 bedrooms and 3 full bathrooms, designed for 3-4 people. The square footprint, 42'6" wide and 49'1" deep, keeps the volume compact and the rooms easy to arrange. A hip and valley roof tops walls finished in stucco and flexible ceramic, which give the facade a clean, durable look.
A portico shelters the front entry. The open floor plan joins a spacious great room with a large kitchen, so cooking and family time share one space. The kitchen offers an island, a breakfast bar, a breakfast nook lit by a corner window and a walk-in pantry for supplies. Large windows and floor-to-ceiling glazing bring plenty of daylight inside, and a home office gives you a quiet room for work or study.

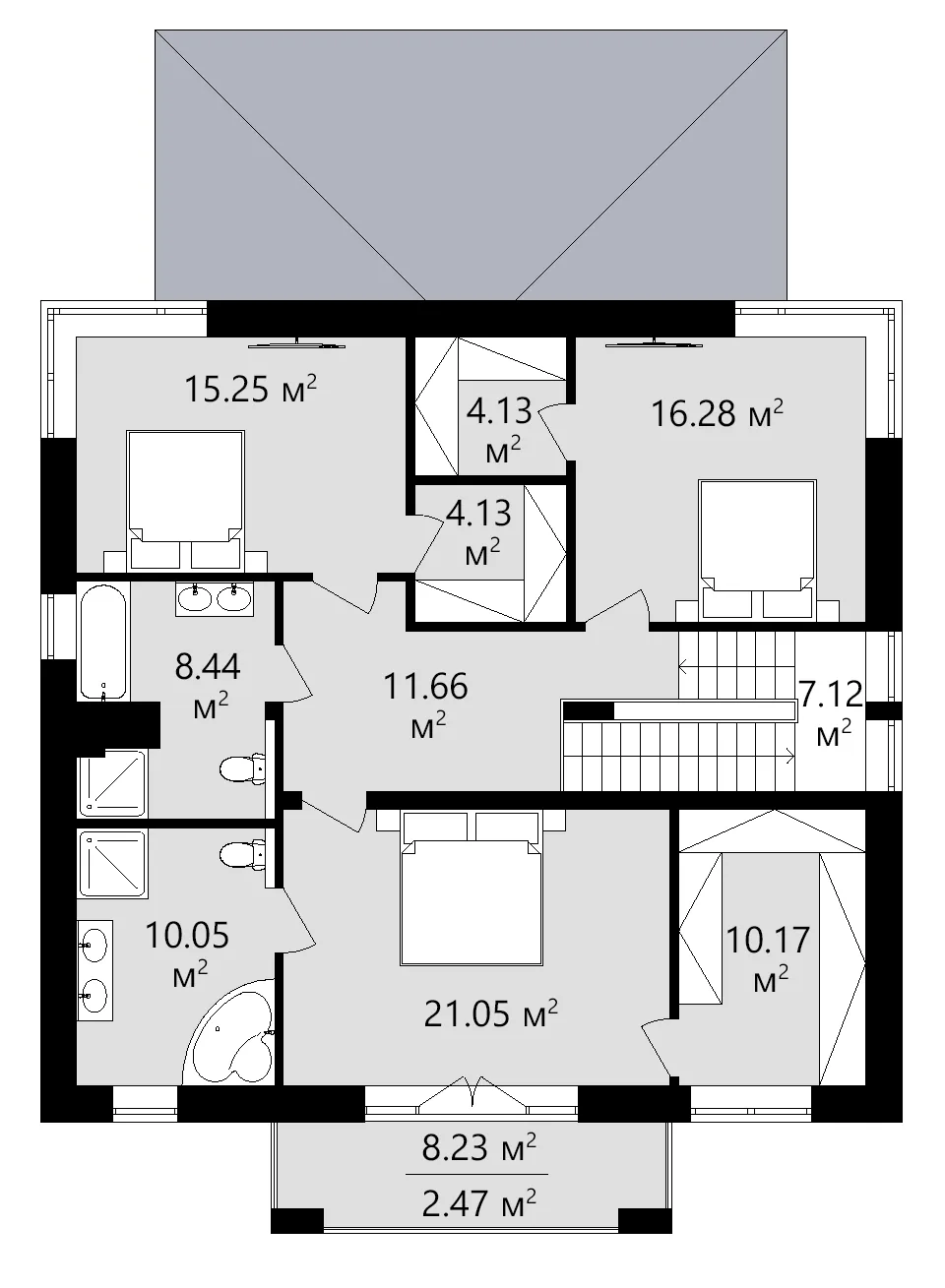

The bedrooms are clustered on the upper floor, keeping the night zone apart from daily activity. The second-floor primary suite includes a walk-in closet that keeps clothing in one place, and three full bathrooms ease the morning rush. The laundry sits on the lower level, away from the bedrooms, while a utility room and storage space hold equipment and household items.

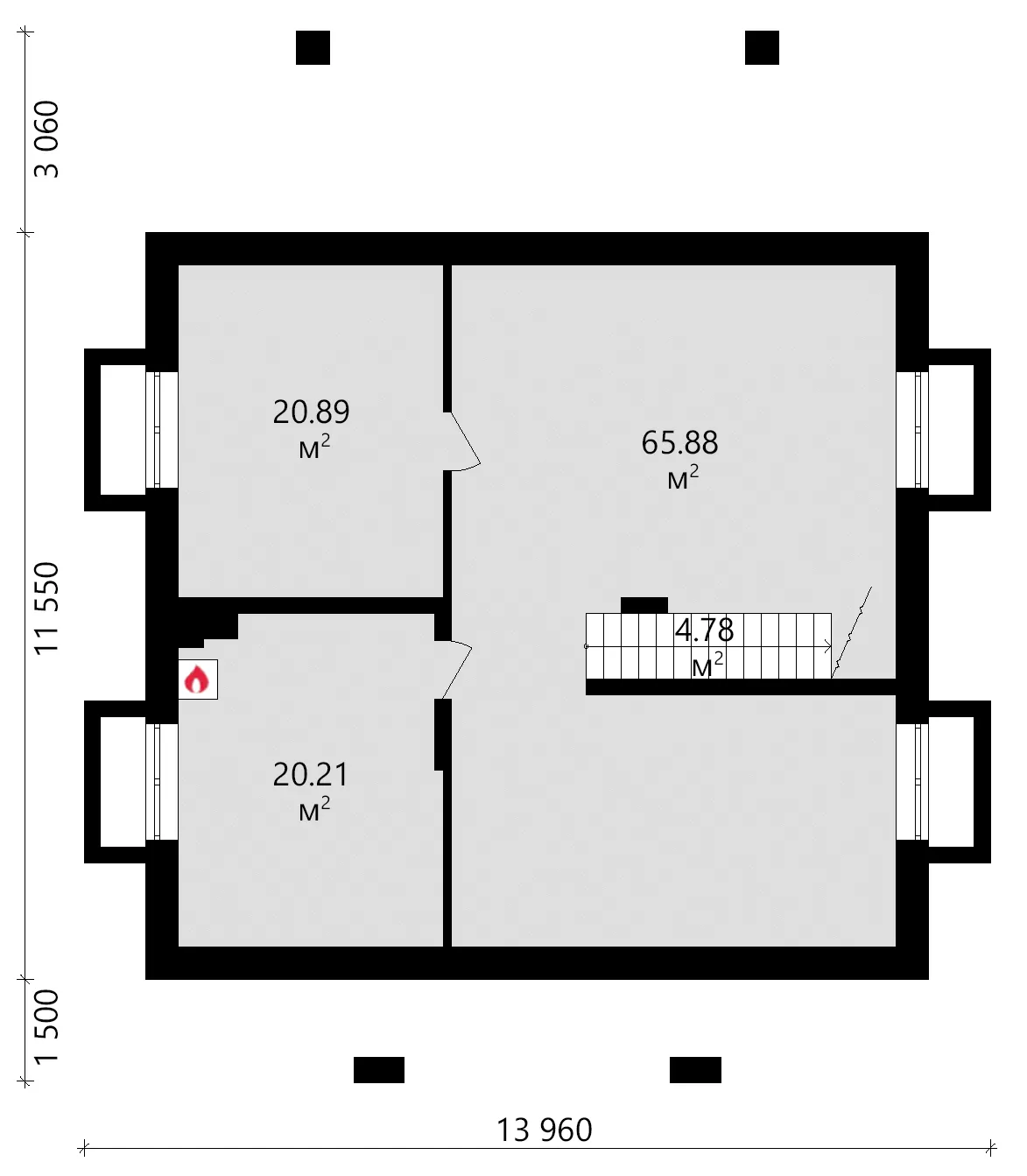

A covered rear porch lets you enjoy the outdoors in any weather, and a balcony adds private open-air space. The basement adds usable floor area; slab, concrete block or strip footing foundations are available as alternatives. The walls are designed in aerated concrete, with ceramic hollow block or sand-lime block as options. In figures: Total Heated 2,482 Sq Ft, 3 bedrooms and 3 full bathrooms.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
Advanced Drafting & Design Co. Mooresville US$ 12,411
My Home Floor Plans Rosemead US$ 1,600
Plan & Simple LLC Austin US$ 4,965
