1,117 Sq Ft Bungalow L-Shaped Single-Story House Plan with 3 Bedrooms, 1.5 Bathrooms and 2-Car Garage

Plan
87760C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
1117
Total Heated ft²
1 + 1
Baths + 1/2 Baths
3 + 0
Beds + Home Office
2
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

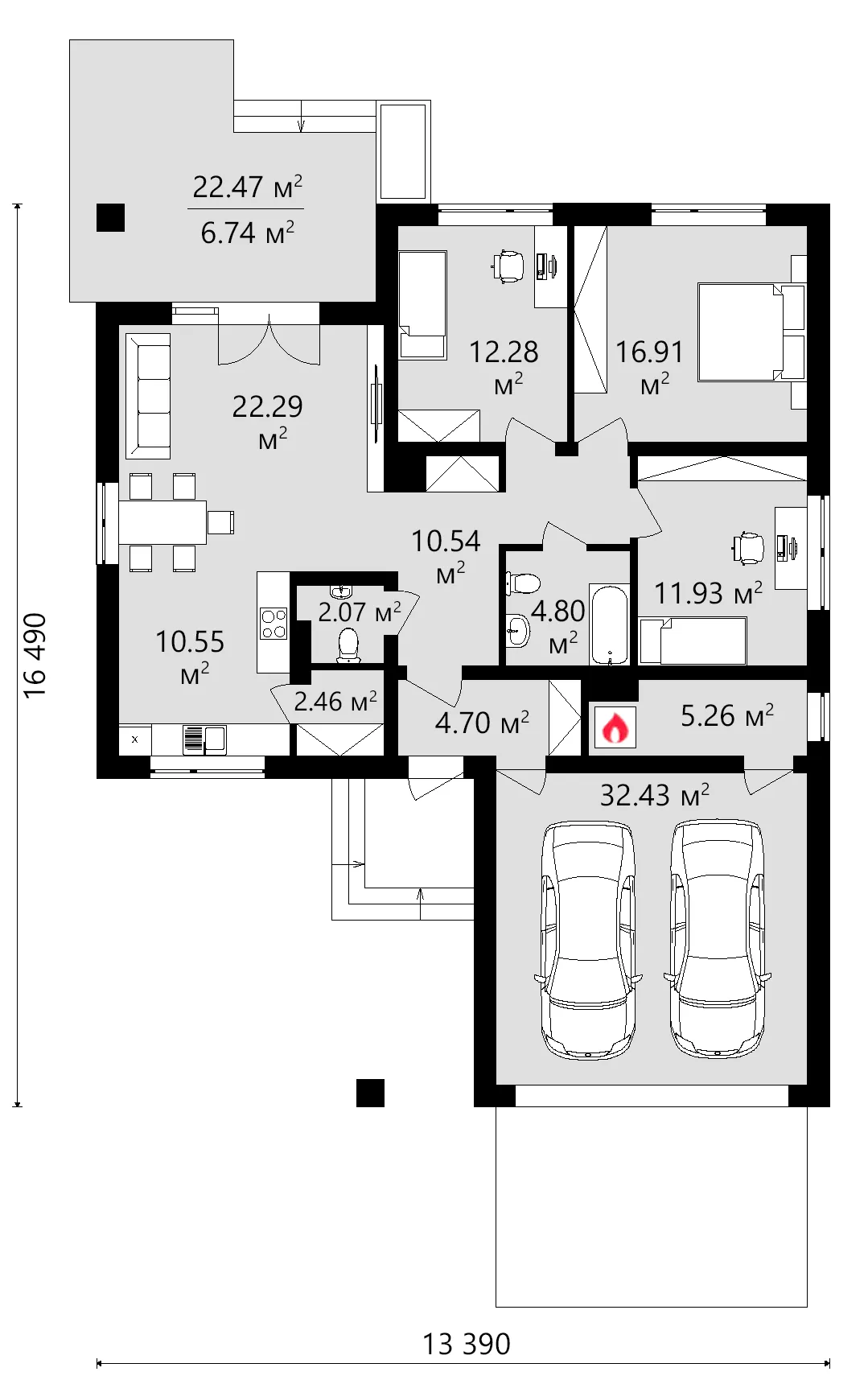

Main Floor
Main Floor 12 – 1,117 Sq Ft Bungalow Single-Story House Plan with 3 Bedrooms and 1.5 Bathrooms – 87760C
Full Specs & Features
Area
Total Unheated: 349.07 ft²
Total Heated: 1117.19 ft²
Dimensions
Depth: 50'3" ft
Width: 40'8" ft
Height: 19'4" ft
Garage
Area: 349 ft²
Cars: 2
Front Entry
Extension Forward
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stucco
Rooms
Full bathrooms: 1
Half bathrooms: 1
Bedrooms: 3
Utility room
Entry
Kitchen and Dining
Walk-in Pantry
Breakfast Nook
Interior Features
Main Floor Master
Clustered Bedrooms
Open Floor Plan
Exterior Features
Covered Rear Porch
Architectural Style
Bungalow
European
Traditional
Roof
Roof Area: 3261.46 ft²
Hip & Valley
Roof Pitch: 6/12 (26°)

Digital house design concept 87760C describes a single-story L-shaped Bungalow for a single family of 3-4 people, with a total heated area of 1,117 Sq Ft and 3 bedrooms. Stucco walls under a hip-and-valley roof with a 6/12 (26°) pitch shed weather on every side, and the 2-car garage extends forward to form the L.

Past the entry, an open floor plan joins the great room, kitchen and breakfast nook, so whoever cooks stays part of the conversation. A walk-in pantry keeps bulk groceries off the counters.

The bedrooms sit on one level and are clustered together, including the primary bedroom on the main floor, so parents stay a few steps from the children's rooms and nobody climbs stairs. A full bathroom and a half bath let family and guests use separate facilities, and the utility room keeps technical equipment apart from the living spaces.

The covered rear porch offers shaded space for outdoor meals away from the street. The front-entry 2-car garage projects ahead of the house, which keeps the driveway short. The house measures 40'8" wide and 50'3" deep. It rests on strip footings, with slab or concrete block foundations as options, and the exterior walls are aerated concrete block, with clay hollow block or sand-lime block as alternatives. In total, the project offers a total heated area of 1,117 Sq Ft, 3 bedrooms, 1.5 bathrooms and a 2-car garage.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
