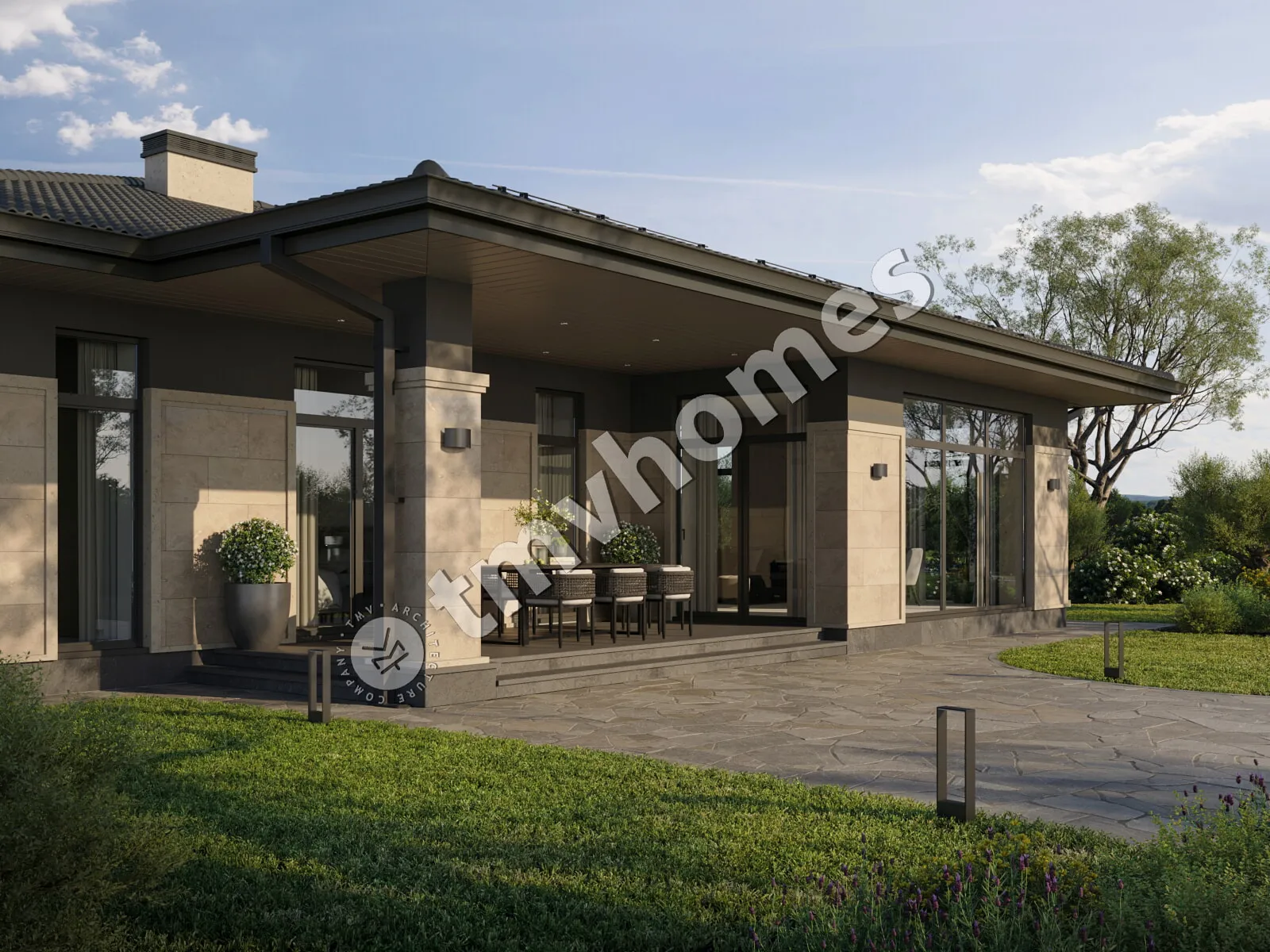

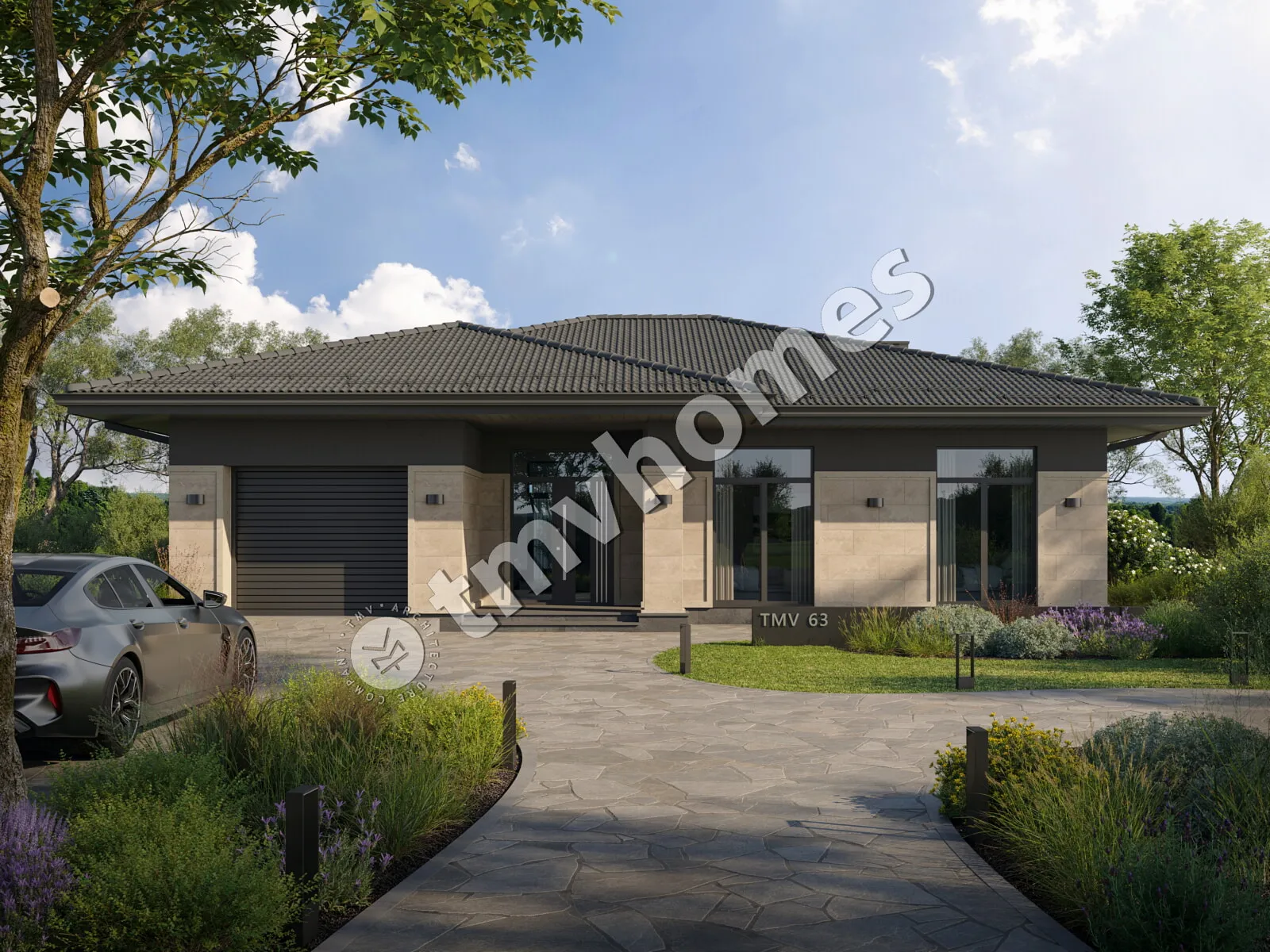

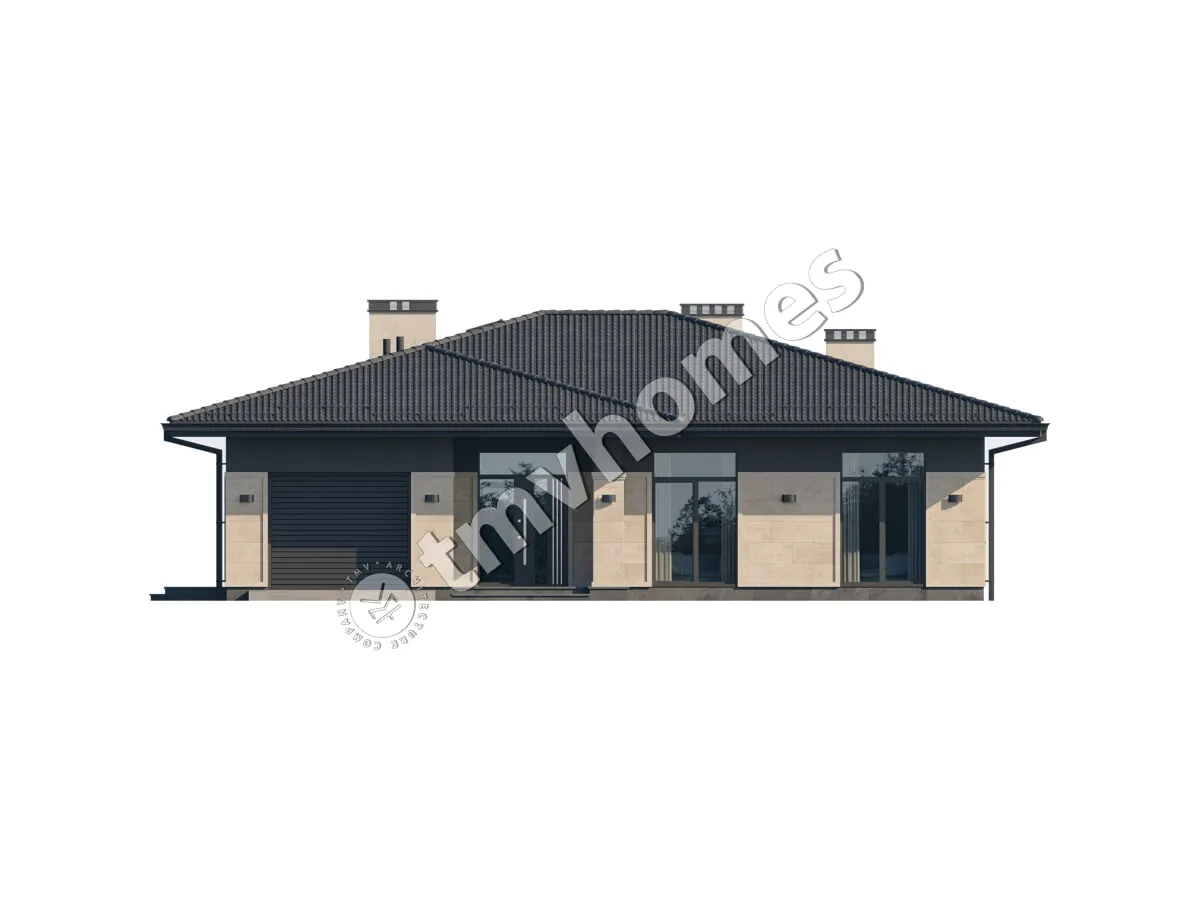

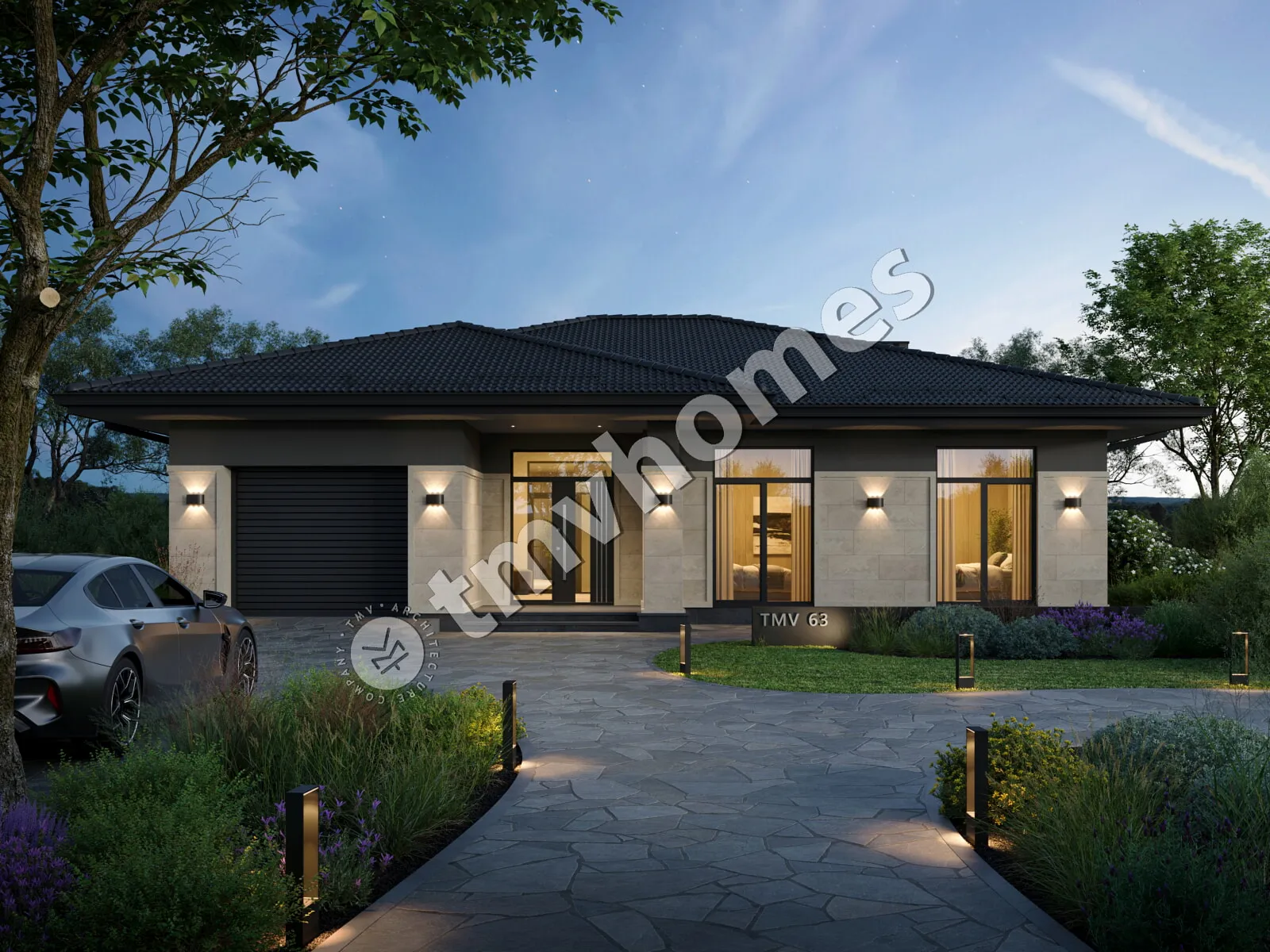

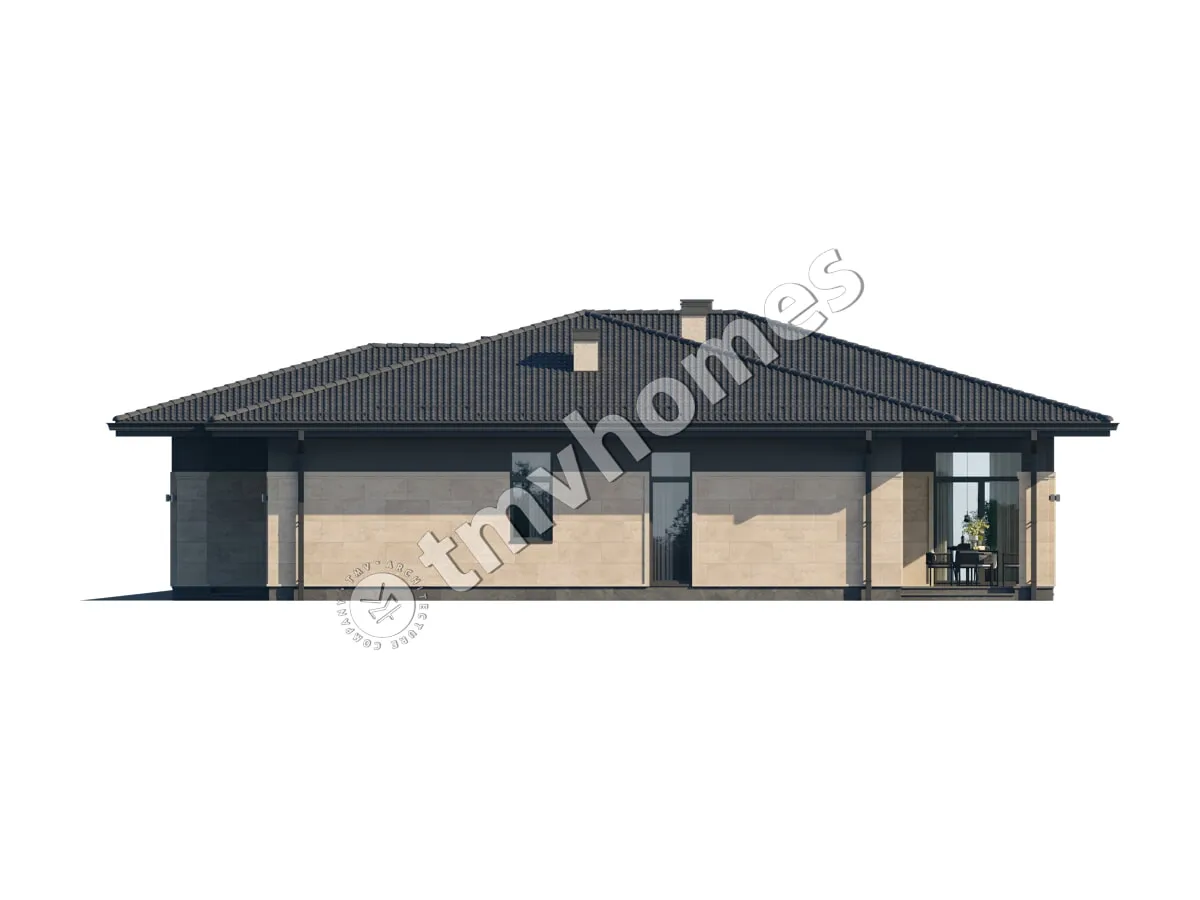

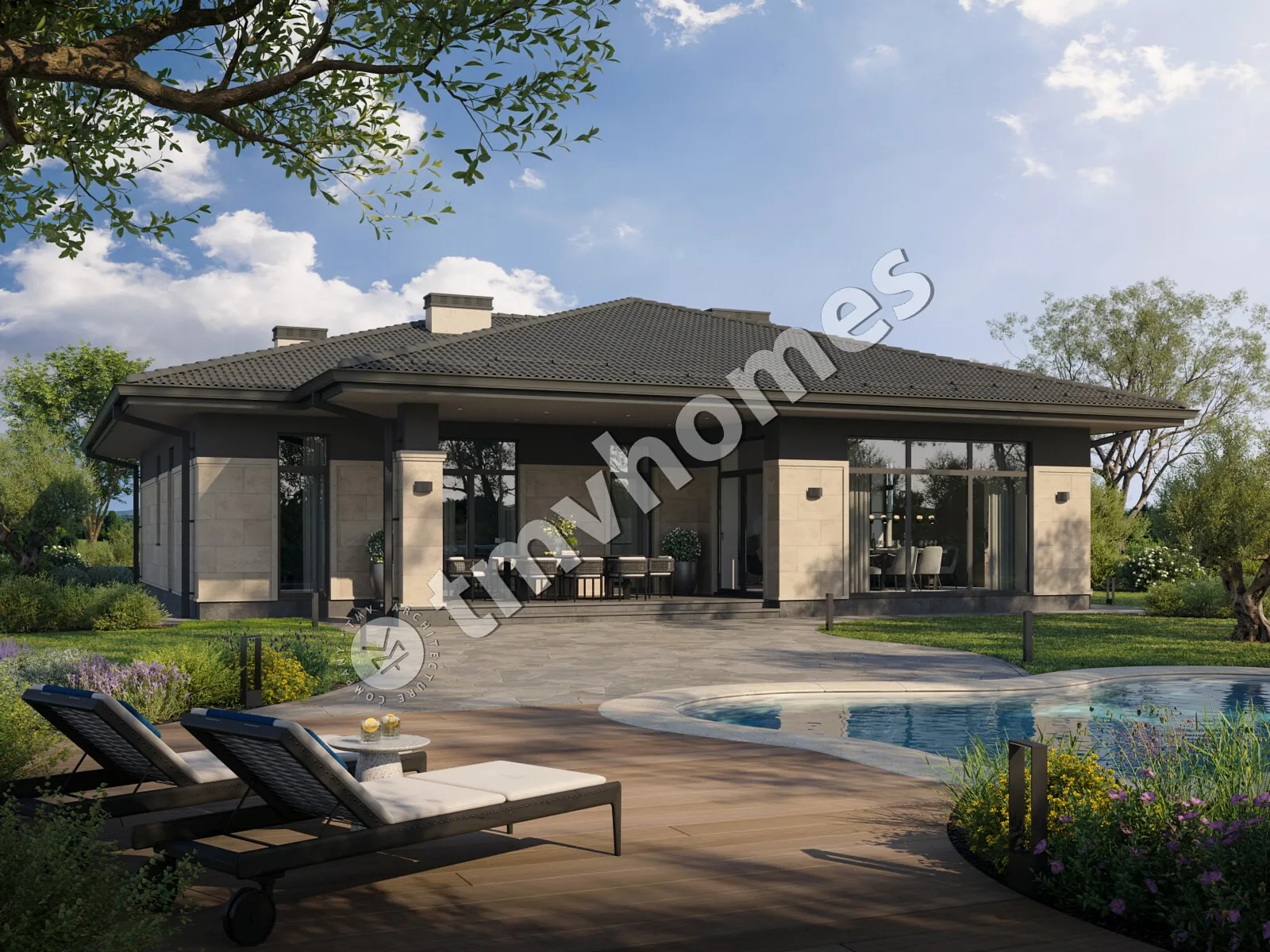

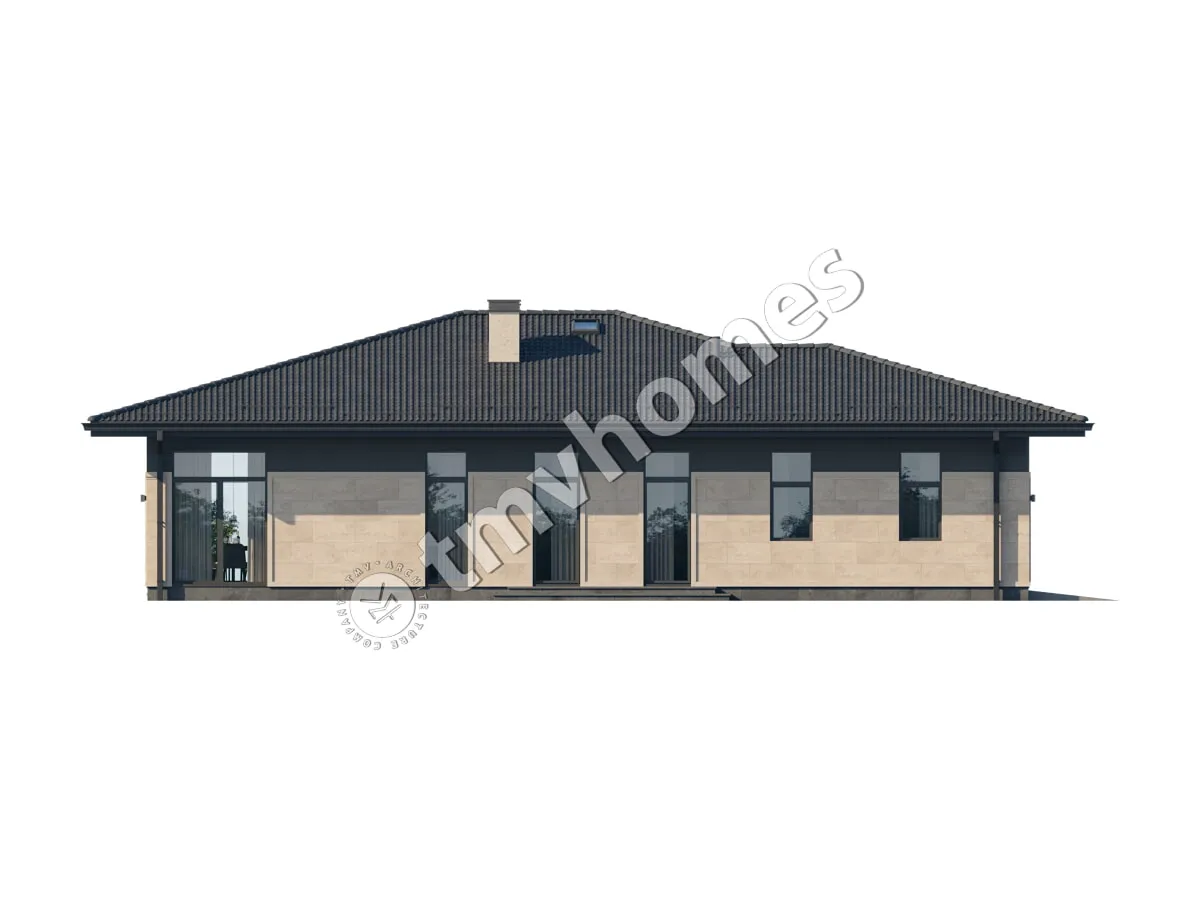

Renderings 2 – 1,800 Sq Ft Prairie Single-Story House Plan with 3 Bedrooms and 2 Bathrooms – 88347C

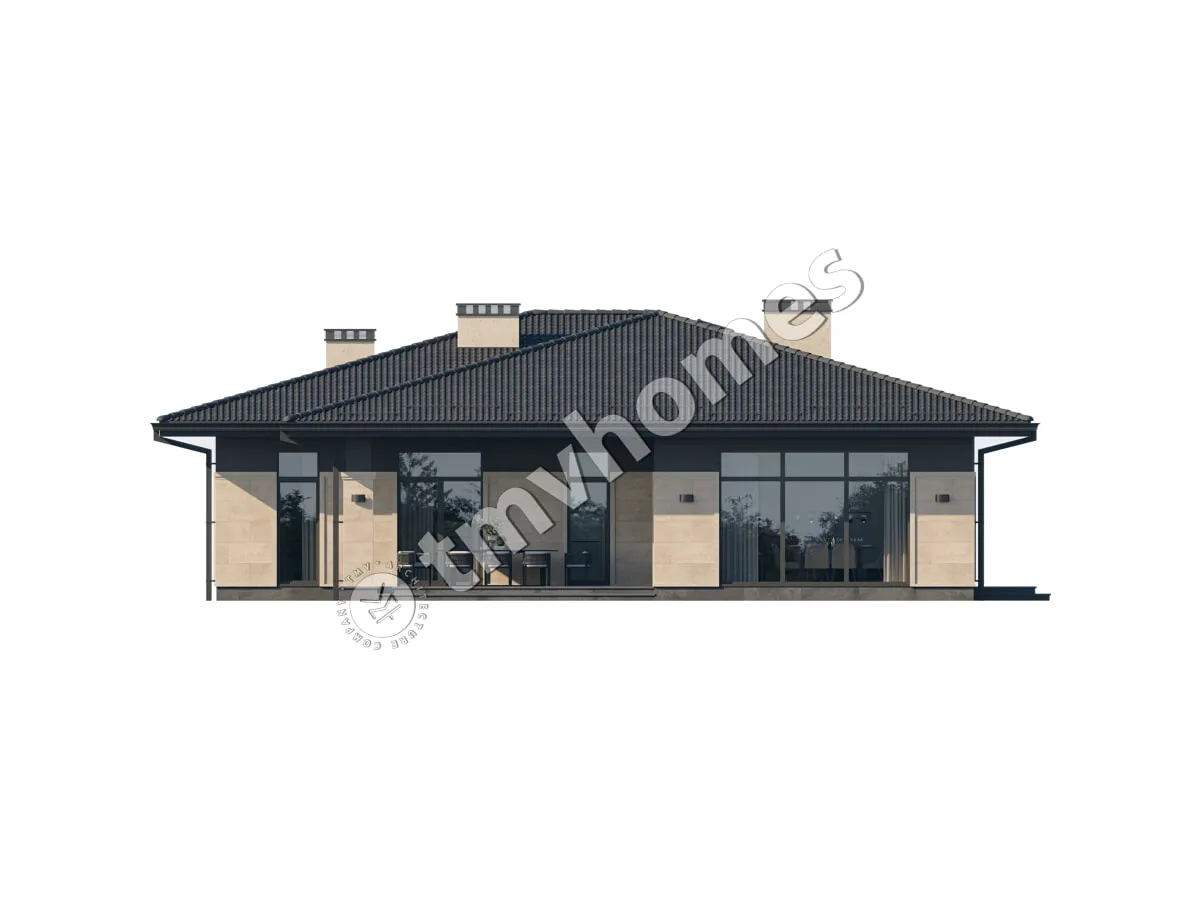

Renderings 3 – 1,800 Sq Ft Prairie Single-Story House Plan with 3 Bedrooms and 2 Bathrooms – 88347C Renderings 4 – 1,800 Sq Ft Prairie Single-Story House Plan with 3 Bedrooms and 2 Bathrooms – 88347C
6
Concept
Construction documents are prepared for the following countries:

1,800 Sq Ft Prairie T-Shaped Single-Story House Plan with 3 Bedrooms, 2 Bathrooms and 1-Car Garage

Plan
88347C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
1800
Total Heated ft²
2 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
1
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

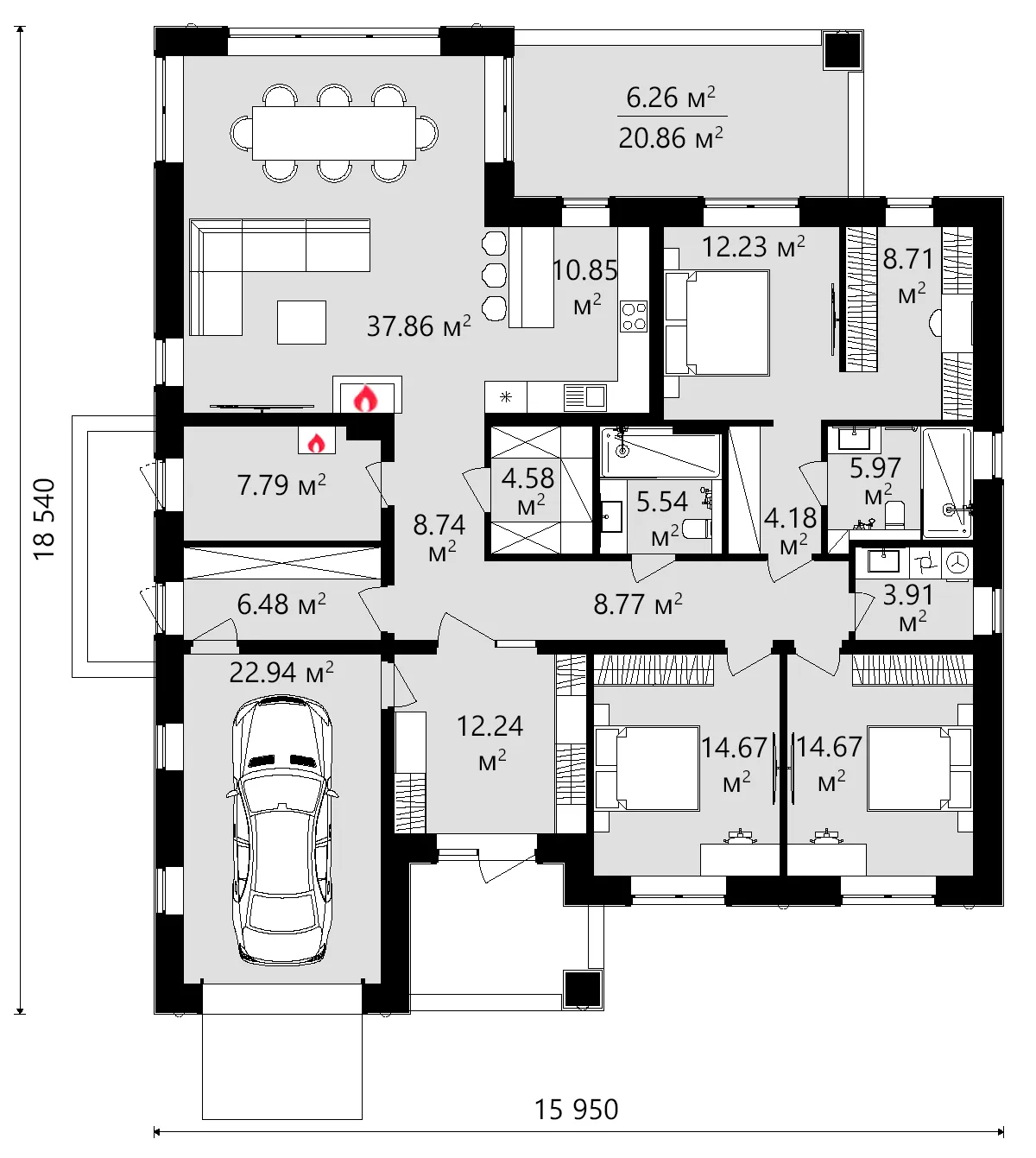

Floor Plans
Main Floor
Main Floor 11 – 1,800 Sq Ft Prairie Single-Story House Plan with 3 Bedrooms and 2 Bathrooms – 88347C
Full Specs & Features
Area
Total Unheated: 246.92 ft²
Total Heated: 1799.51 ft²
Dimensions
Depth: 56'5" ft
Width: 48'6" ft
Height: 18'4" ft
Garage
Area: 247 ft²
Cars: 1
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stucco
Tiles
Rooms
Full bathrooms: 2
Bedrooms: 3
Utility room
Laundry
Entry
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Interior Features
Laundry On Main Floor
Fireplace in Family Room
Main Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Exterior Features
Covered Front Porch
Covered Rear Porch
Large Windows
Floor-to-Ceiling Windows
Architectural Style
European
Prairie
Traditional
Roof

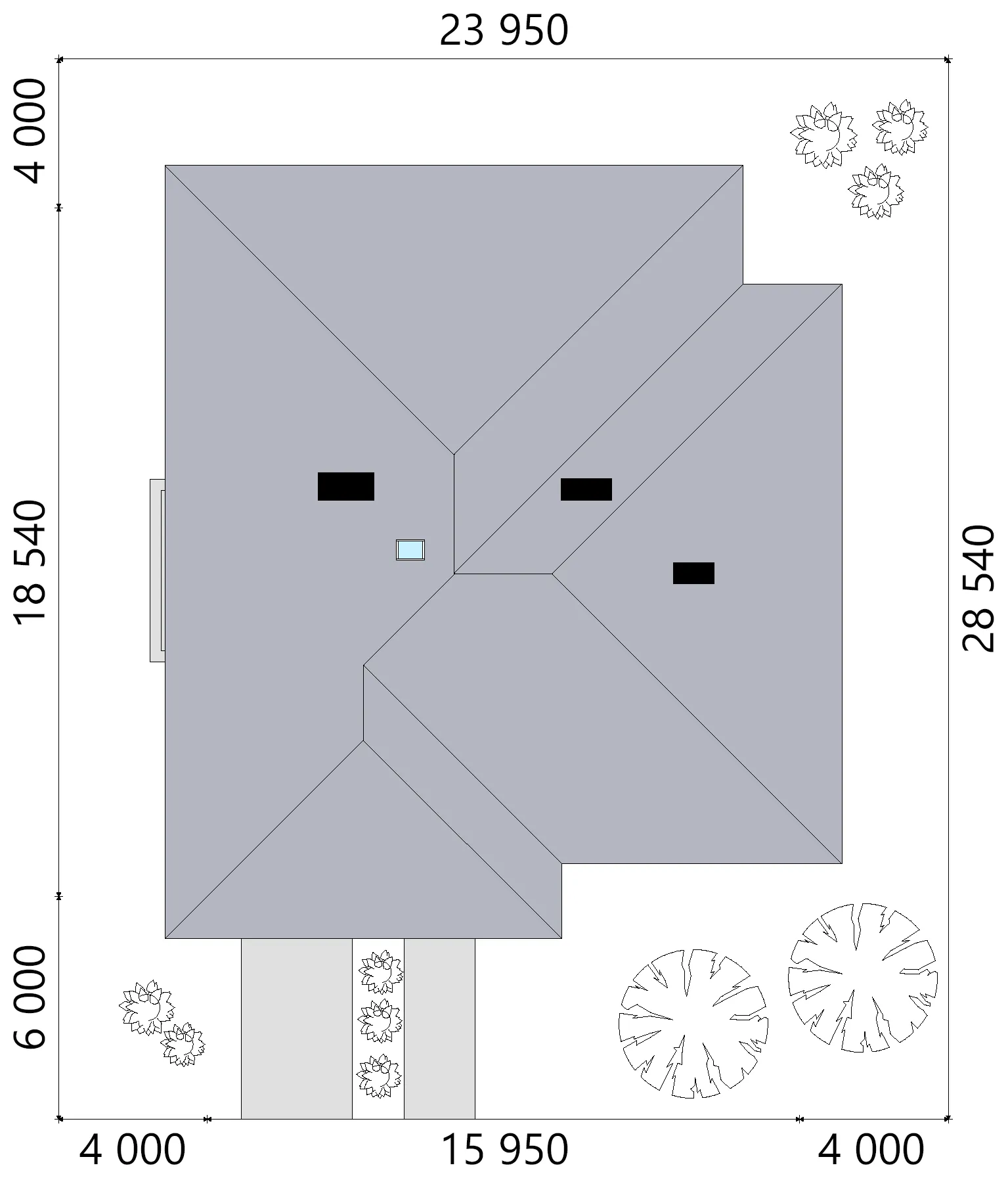

Roof Area: 3979.63 ft²
Hip & Valley
Roof Pitch: 4/12 (18°)

The digital house design concept 88347C presents a Prairie single-story, T-shaped single-family home with a total heated area of 1,800 Sq Ft, 3 bedrooms, 2 bathrooms and a 1-car garage, sized for a household of 3-4 people. A hip and valley roof with a 4/12 (18°) pitch tops walls finished in stucco and tiles, keeping the profile low and horizontal in line with the Prairie style.

The entry opens into an open floor plan where the family room and the kitchen share one space, so whoever is cooking stays part of the conversation. The large family room is centered on a fireplace, and floor-to-ceiling windows together with other large windows fill it with daylight. A breakfast bar handles quick meals, and the walk-in pantry keeps supplies off the counters.

The three bedrooms are clustered on one level, with the primary bedroom on the main floor and its walk-in closet holding a full wardrobe. Two full bathrooms shorten the morning queue. The laundry on the main floor keeps wash day on the same level as daily life, and a separate utility room keeps household equipment out of the living spaces.

A covered front porch shelters the entrance, and a covered rear porch extends living outdoors in any weather. The front-entry 1-car garage is reached directly from the street side. The footprint measures 48'6" wide by 56'5" deep. Strip footings are the base foundation, with a slab or a block foundation as options; the exterior walls are of aerated concrete, with ceramic hollow block or silicate block as alternatives. The figures: total heated area of 1,800 Sq Ft, 3 bedrooms, 2 bathrooms and a 1-car garage.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
US$1046
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
Local Architects
Offers from your local architects who are ready to develop construction documents based on the digital concept.
