2-Story House Plan 2179 ft²: 4 Beds, Home Office, 3 Baths, Open Floor Plan, 2-Car Garage
Opis techniczny
Rzuty kondygnacji
Rzut więźby dachowej
Rzut dachu
Przekroje

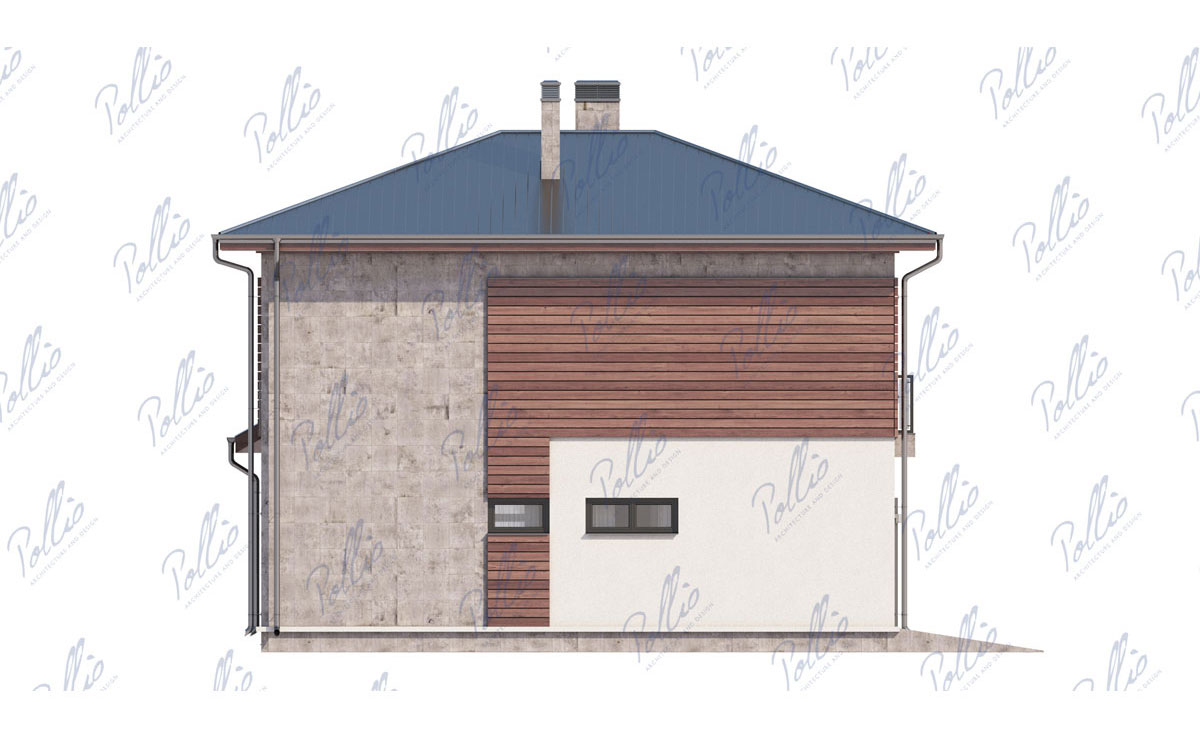

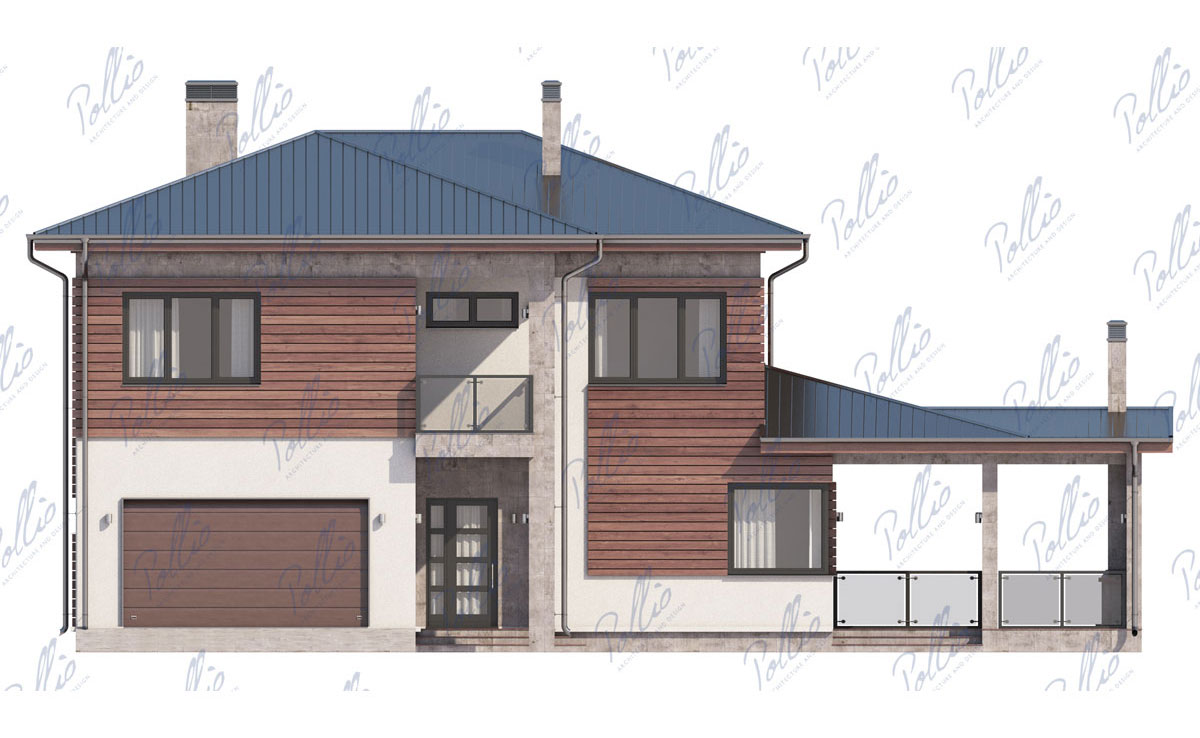

Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

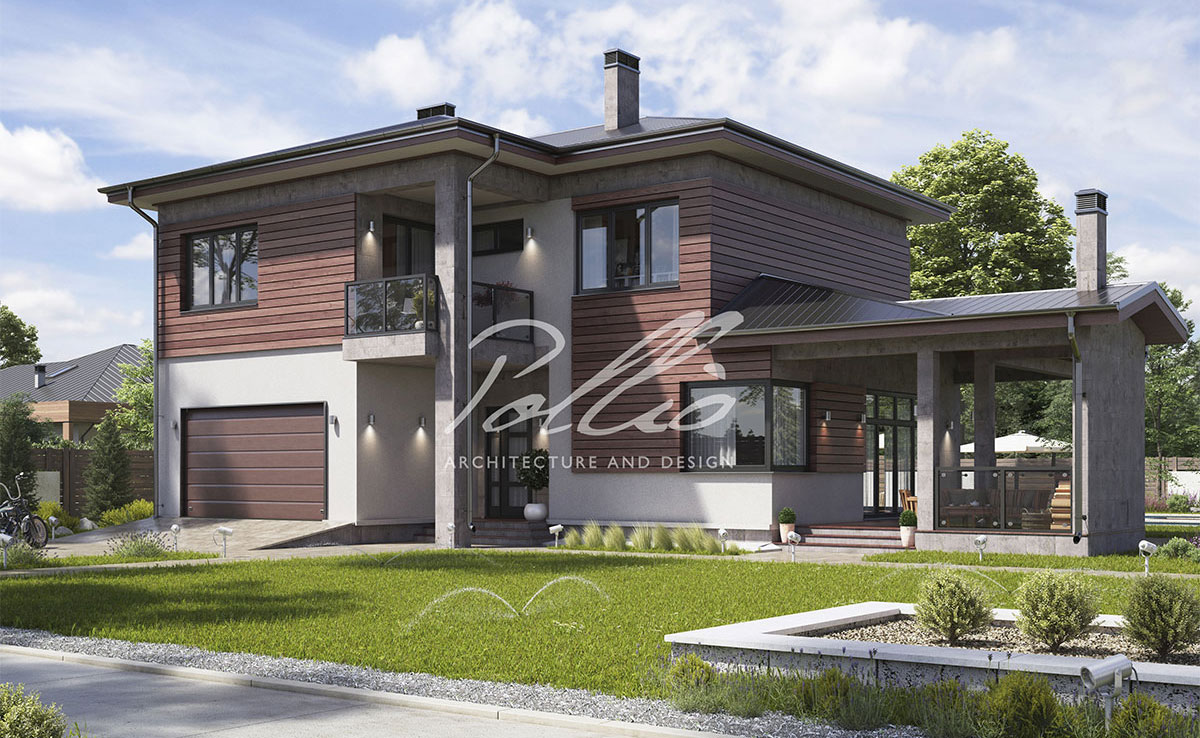

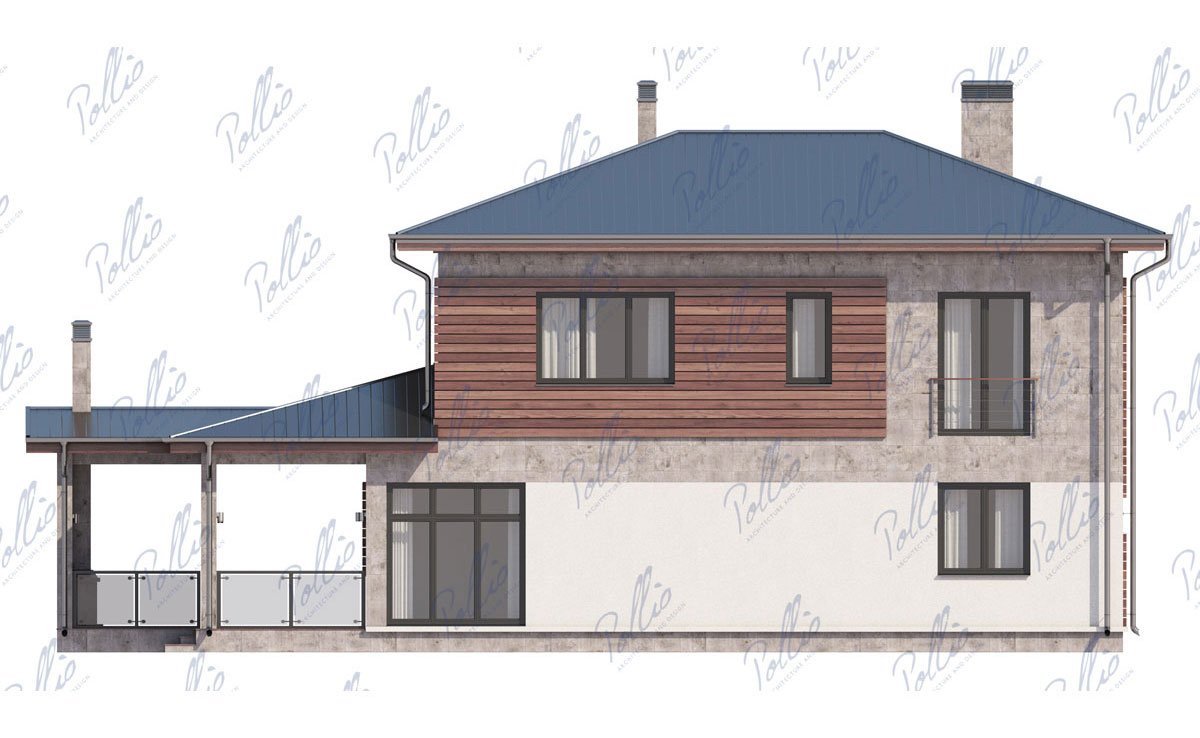

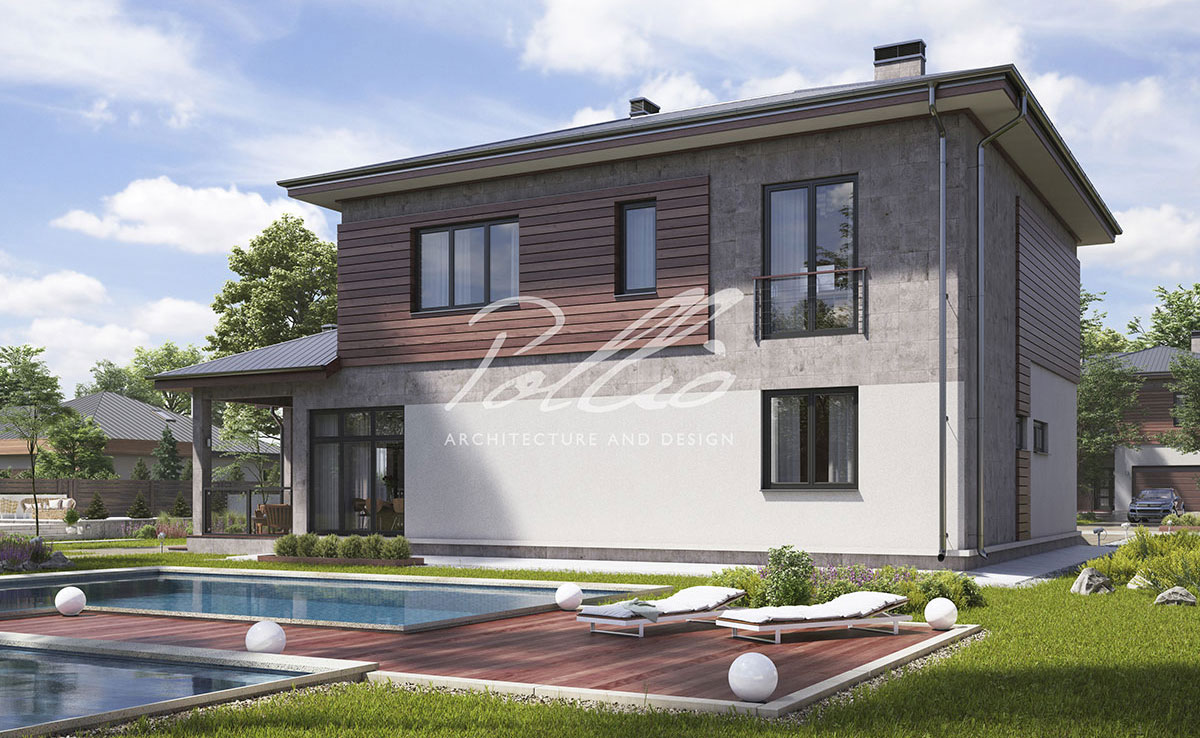

Plan 94225C is a 4-bedroom 3-story house plan with a contemporary European look, an L-shaped footprint and 2179 ft² of living space under a hip & valley roof with a 5/12 (22°) pitch. The modern lines are dressed in wood and stucco on the exterior walls, and the house measures 44'8" wide and 37'5" deep. Four bedrooms and three full bathrooms are spread over three stories, giving a single family plenty of room while the main rooms stay closely connected.

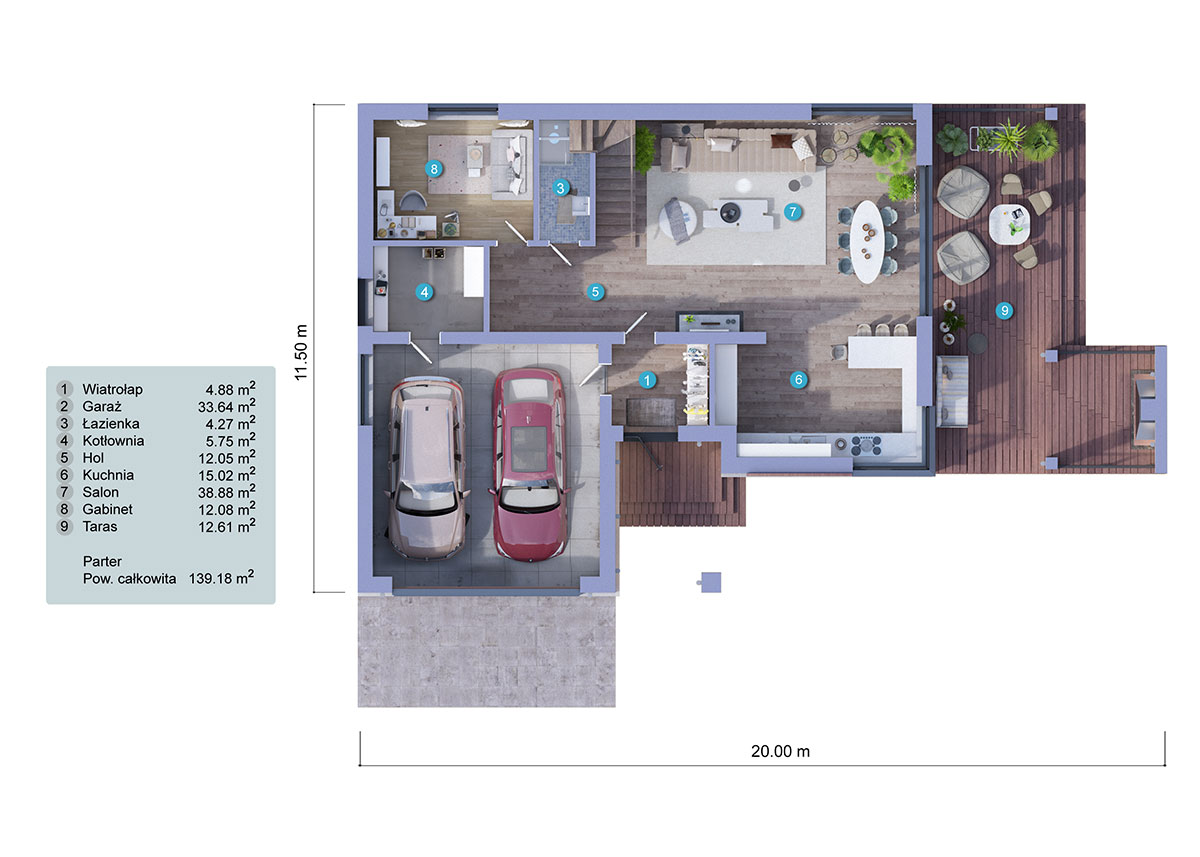

The heart of the home follows an open floor plan. A large family room flows straight into a large kitchen, so whoever is cooking stays part of the conversation. The kitchen has a breakfast bar for quick meals and homework at the counter, plus a breakfast nook set beside a corner window, a bright spot for slow weekend mornings. A dedicated entry receives guests and keeps coats and shoes away from the living area, and a home office offers a quiet room for remote work or paperwork, apart from the bustle of the family room.

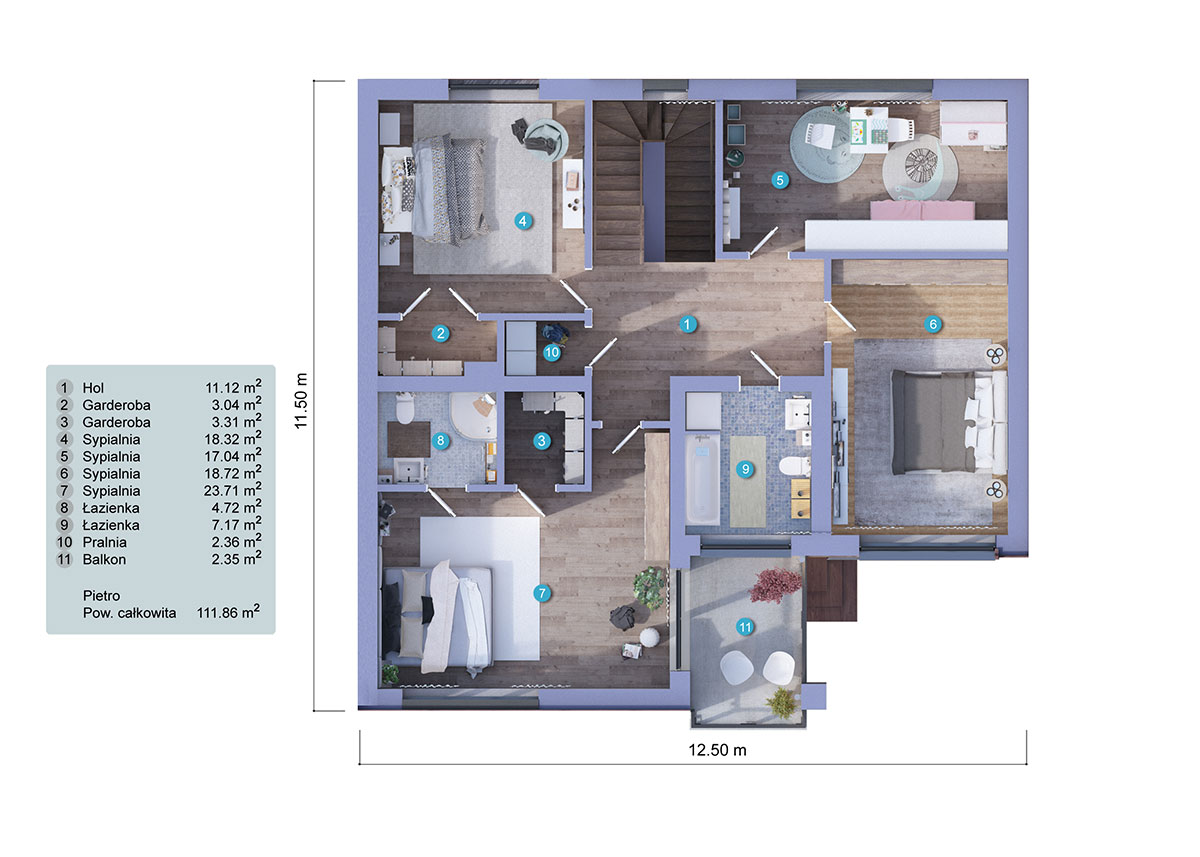

The master bedroom is on the second floor and comes with a walk-in closet. The bedrooms are clustered together, which keeps parents close to the children at night and makes the sleeping area feel like its own calm part of the house. Three full bathrooms mean no morning queue. The laundry is also on the second floor, right where the clothes and linens are, so there is no carrying baskets up and down the stairs. A separate utility room houses the mechanical equipment and keeps it out of sight.

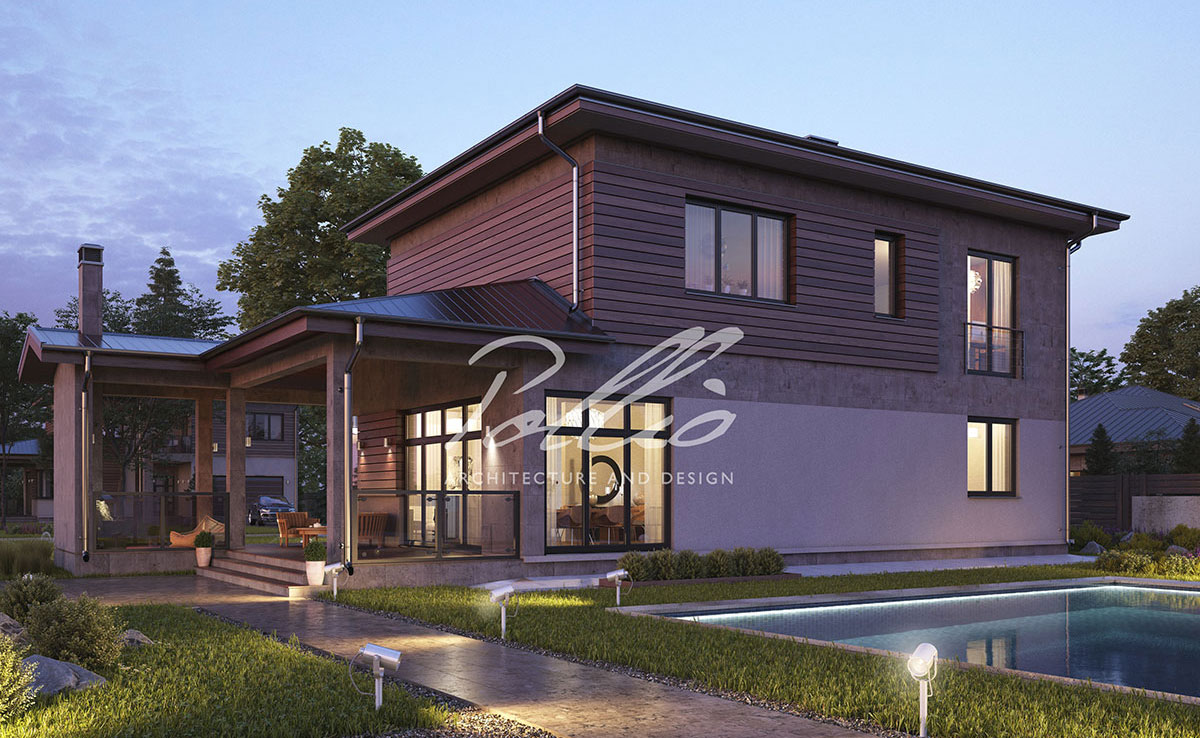

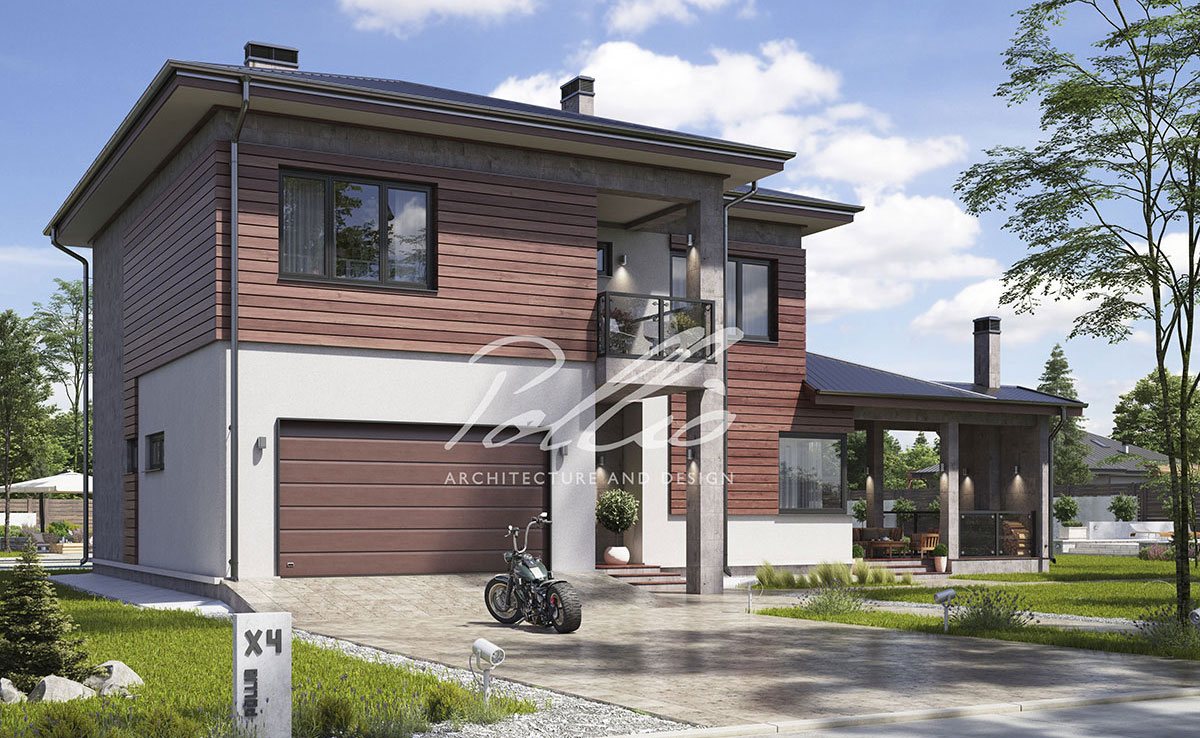

Outside, this modern house plan is made for time in the open air. A covered side porch shelters the way in, while the outdoor kitchen and outdoor fireplace turn summer dinners and cool autumn evenings into a regular habit. A balcony and corner windows on the exterior open the upper rooms to light and views. The attached 2-car garage has front entry and space upstairs. There is no basement: the house stands on strip footings, and it is also available with a slab or a concrete block foundation. The exterior walls are built of aerated concrete, with clay block, calcium silicate block and wood frame construction available as options.
