Renderings 2 – 1,764 Sq Ft Traditional Sloped Lot Single-Story House Plan with Walkout Basement, 3 Bedrooms and 2-Car Garage – 96189R
Renderings 3 – 1,764 Sq Ft Traditional Sloped Lot Single-Story House Plan with Walkout Basement, 3 Bedrooms and 2-Car Garage – 96189R Renderings 4 – 1,764 Sq Ft Traditional Sloped Lot Single-Story House Plan with Walkout Basement, 3 Bedrooms and 2-Car Garage – 96189R
5
Construction documents are prepared for the following countries:

1,764 Sq Ft Traditional Sloped Lot Single-Story House Plan with Walkout Basement, 3 Bedrooms, 3 Bathrooms and 2-Car Garage

Plan
96189R
Complete
Unsigned & Unsealed
DC Available
Key Specs
1764
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
2
Cars
United States Canada
Plans include:

Cover Page

Plans include:

Cover Page

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

Floor Plans

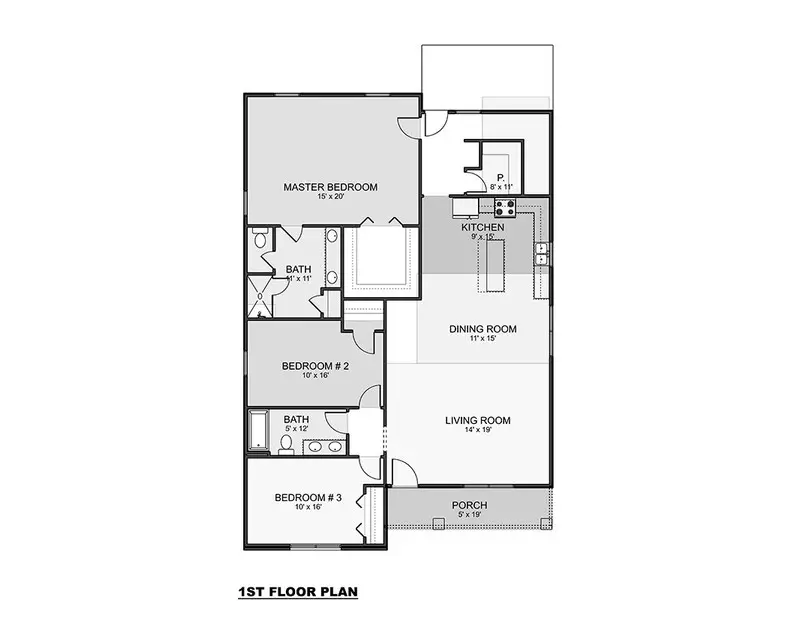

Main Floor
Main Floor 10 – 1,764 Sq Ft Traditional Sloped Lot Single-Story House Plan with Walkout Basement, 3 Bedrooms and 2-Car Garage – 96189R
Basement
Basement 9 – 1,764 Sq Ft Traditional Sloped Lot Single-Story House Plan with Walkout Basement, 3 Bedrooms and 2-Car Garage – 96189R
Full Specs & Features
Area
Main Floor: 1764 ft²
Basement: 1054 ft²
Porch: 229 ft²
Total Heated: 1764 ft²
Dimensions
Depth: 53'0" ft
Width: 36'0" ft
Height: 32'4" ft
Garage
Area: 564 ft²
Cars: 2
Room Above Garage
Drive Under
Rear Entry
Foundation
Slab (Optional)
Walkout Basement
Crawl Space (Optional)
Exterior Wall Framing
Wood 2x6 (Optional)
Wood 2x4
Exterior Wall Materials
Siding
Stone/Brick Veneer
Rooms
Full bathrooms: 3
Bedrooms: 3
Bonus/Flex Room
Laundry
Storage
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
Island
Interior Features
Laundry Lower Level
Main Floor Master
Clustered Bedrooms
Open Floor Plan
Large Kitchen (>130 ft²)
Exterior Features
Balcony
Covered Front Porch
Architectural Style
Craftsman
New American
Traditional

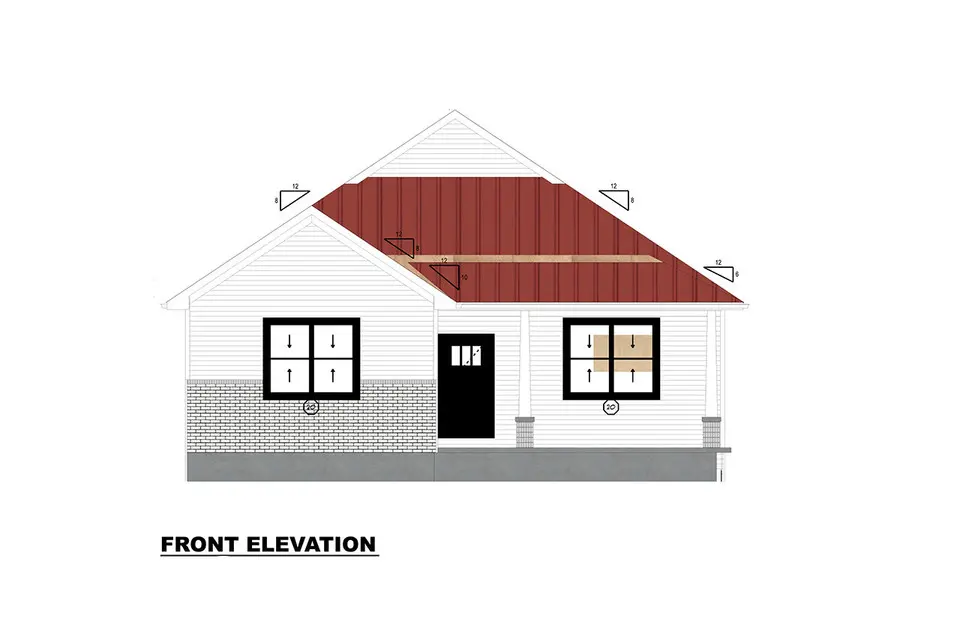

Roof
Hip & Valley
Roof Pitch: 8/12 (34°)
Ceiling
Main Floor Ceiling Height: 9'0" ft

House plan 96189R is a Traditional single-story home for a sloped lot, with a total heated area of 1,764 Sq Ft, three bedrooms, three full bathrooms and a walkout basement. The hip and valley roof with an 8/12 pitch sheds rain and snow quickly, and the footprint of 36'0" wide by 53'0" deep keeps the house compact on its lot. This single-family layout is sized for a household of 3-4 people.

A covered front porch shelters the entry from the weather. The open floor plan joins the kitchen and the breakfast nook with the living area, so whoever cooks stays part of the conversation. The large kitchen has an island for meal preparation, a breakfast bar for quick meals and a walk-in pantry that keeps supplies out of sight.

All bedrooms are on one level and clustered together, which keeps the walk between rooms short. The primary suite is on the main floor, and its walk-in closet frees the bedroom from bulky wardrobes. A bonus room adapts to a home office or a guest room, a storage room holds seasonal items, and the laundry on the lower level keeps noise away from the living spaces.

The walkout basement uses the slope of the lot and holds a drive-under 2-car garage with rear entry, so the front facade stays free of garage doors. A balcony adds a private spot outdoors. The exterior combines siding with stone or brick veneer, the walls are framed in 2x4 wood with 2x6 as an option, and slab or crawl space foundations are available for a level site. In short, the plan offers a total heated area of 1,764 Sq Ft, 3 bedrooms, 3 bathrooms and a 2-car garage.

Architect
Advanced Drafting & Design Co. Advanced Drafting & Design Co. Architectural Designer country with code us United States
country with code us United States
North Carolina, Mooresville, NC 28117
Plan Package

Printed Plan Set
US$1770
Digital Plan Set
US$1050
US$1450
US$2850
US$3150
US$3470
Foundation
US$415
US$0
US$415
Exterior Walls
US$415
US$0
Additional Options
US$1050
US$410
US$65
US$130
Subtotal
