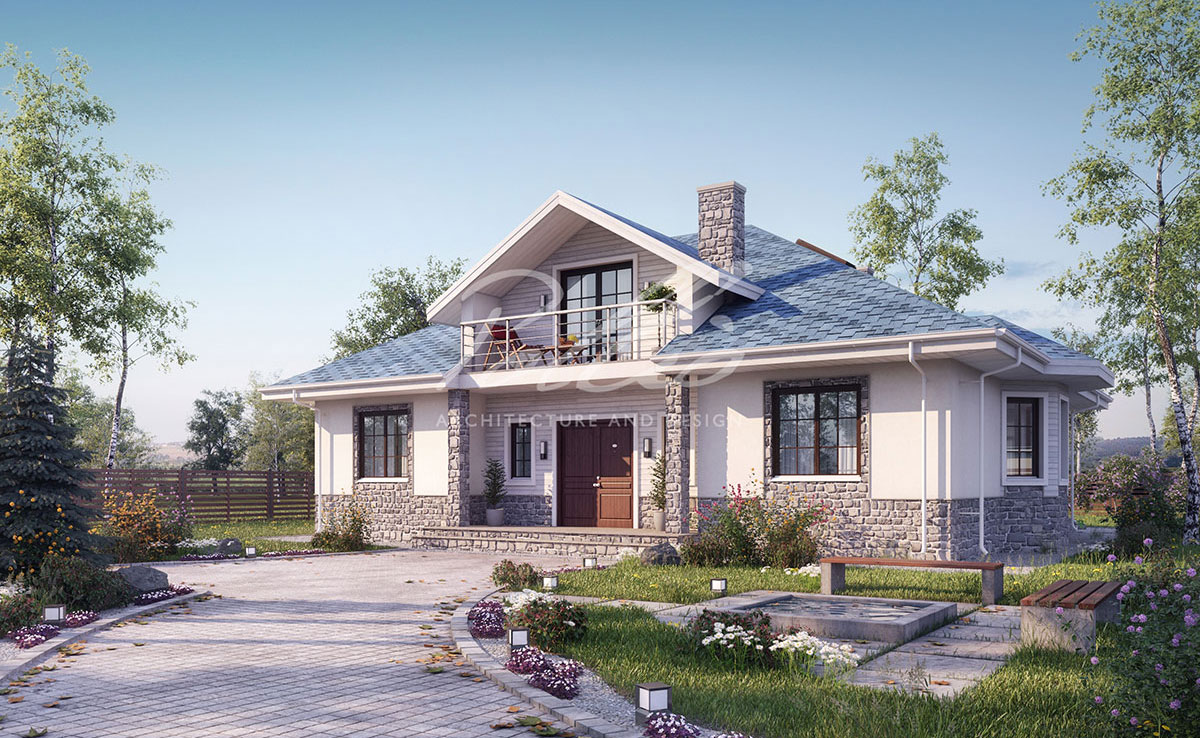

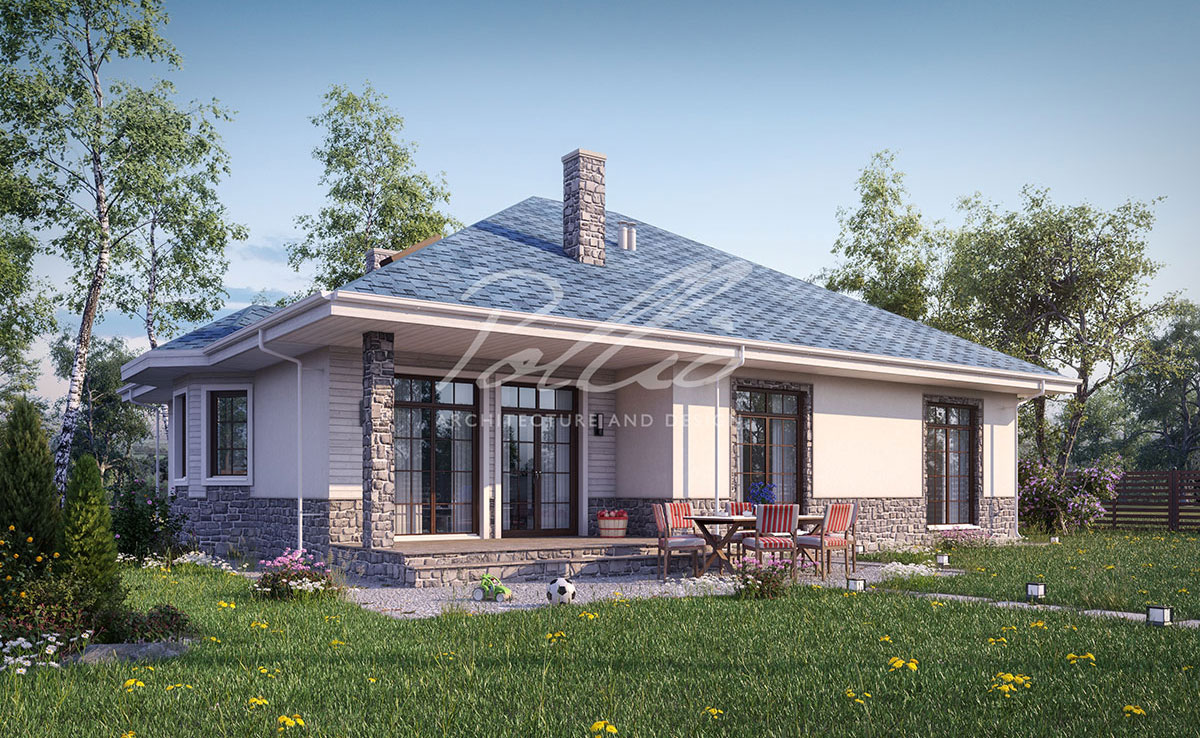

Main Images 1 – 1.5-Story House Plan 1766 ft², 4 Beds — 18104C
Main Images 2 – 1.5-Story House Plan 1766 ft², 4 Beds — 18104C Main Floor 1 – 1.5-Story House Plan 1766 ft², 4 Beds — 18104C
4
Concept
Construction documents are prepared for the following countries:

1.5-Story House Plan 1766 ft²: 4 Beds, Home Office, 3 Baths, Open Floor Plan, without Garage

Plan
18104C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
1766
Total Heated ft²
3 + 0
Baths + 1/2 Baths
4 + 1
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

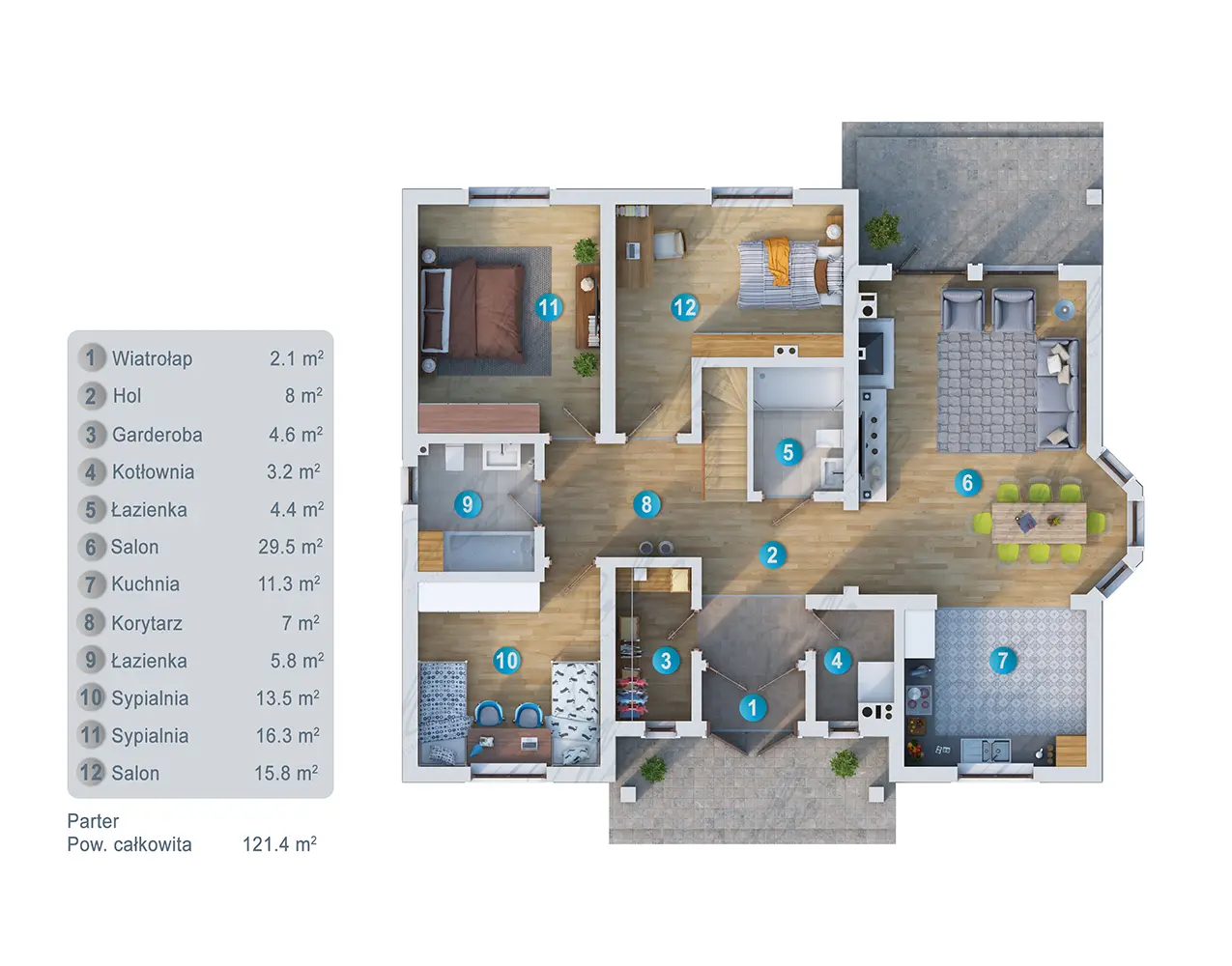

Main Floor
Main Floor 1 – 1.5-Story House Plan 1766 ft², 4 Beds — 18104C

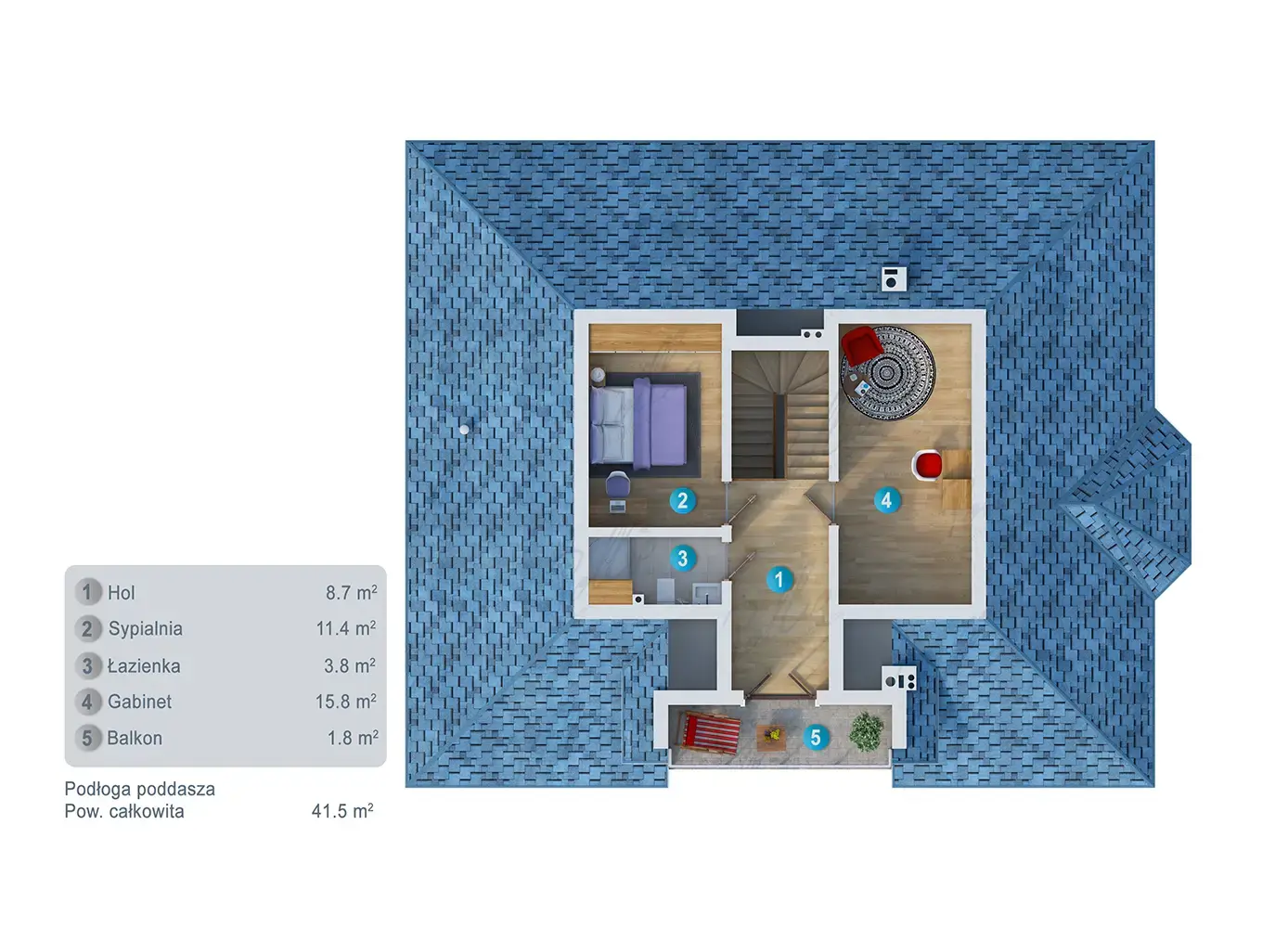

Second Floor
Second Floor 1 – 1.5-Story House Plan 1766 ft², 4 Beds — 18104C
Full Specs & Features
Area
Total Heated: 1765.71 ft²
Dimensions
Depth: 36'0" ft
Width: 45'1" ft
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Wood-framed (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Stucco
Rooms
Full bathrooms: 3
Bedrooms: 4
Utility room
Entry
Home Office
Kitchen and Dining
Breakfast Nook
Interior Features
Fireplace in Family Room
Main Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Exterior Features
Balcony
Covered Front Porch
Covered Rear Porch
Bay Window
Portico
Architectural Style
European
Traditional
Roof
Roof Area: 2660.09 ft²
Hip & Valley
Dormer
Roof Pitch: 7/12 (30°)

Plan 18104C is a 4-bedroom two-story house plan in the European and Traditional style, offering 1766 ft² beneath a hip and valley roof with dormers and a 7/12 (30°) pitch. Stone/brick veneer and stucco give the facade a refined, layered look, and a portico frames the entry. The house measures 45'1" wide and 36'0" deep, a well-proportioned single family home with four bedrooms and three full bathrooms.

The entry opens into an open floor plan where the large family room is the center of daily life. A fireplace anchors the family room and makes it the natural gathering place on cold evenings, which makes this an easy choice for anyone looking for a house plan with fireplace. The kitchen flows into a breakfast nook, so a quick morning coffee and a long weekend meal share the same bright corner. A bay window adds depth to the interior and draws in extra daylight, while a home office gives a quiet place to work away from the busy living area.

The master suite sits on the main floor, a main floor master layout that keeps the owners' bedroom close to the living spaces and convenient for the years ahead. The remaining bedrooms are clustered together, which keeps children or guests near one another, and three full bathrooms mean nobody waits in line in the morning. A utility room keeps laundry and household equipment out of sight and off the main living space.

Outside, a covered front porch welcomes visitors under the portico, and a covered rear porch extends the family room into the yard for summer dinners and relaxed afternoons. A balcony adds a private outdoor spot with a view. The home stands on strip footings with walls of aerated concrete block; the plan is also available with a slab or a concrete block foundation, and with ceramic hollow block, sand-lime block or frame walls on request. There is no garage and no basement, which keeps the build simple and the floor plan focused on the 1766 ft² of living space.

Architect
Pollio Pollio Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw, Smolna 13 lok 404
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.
