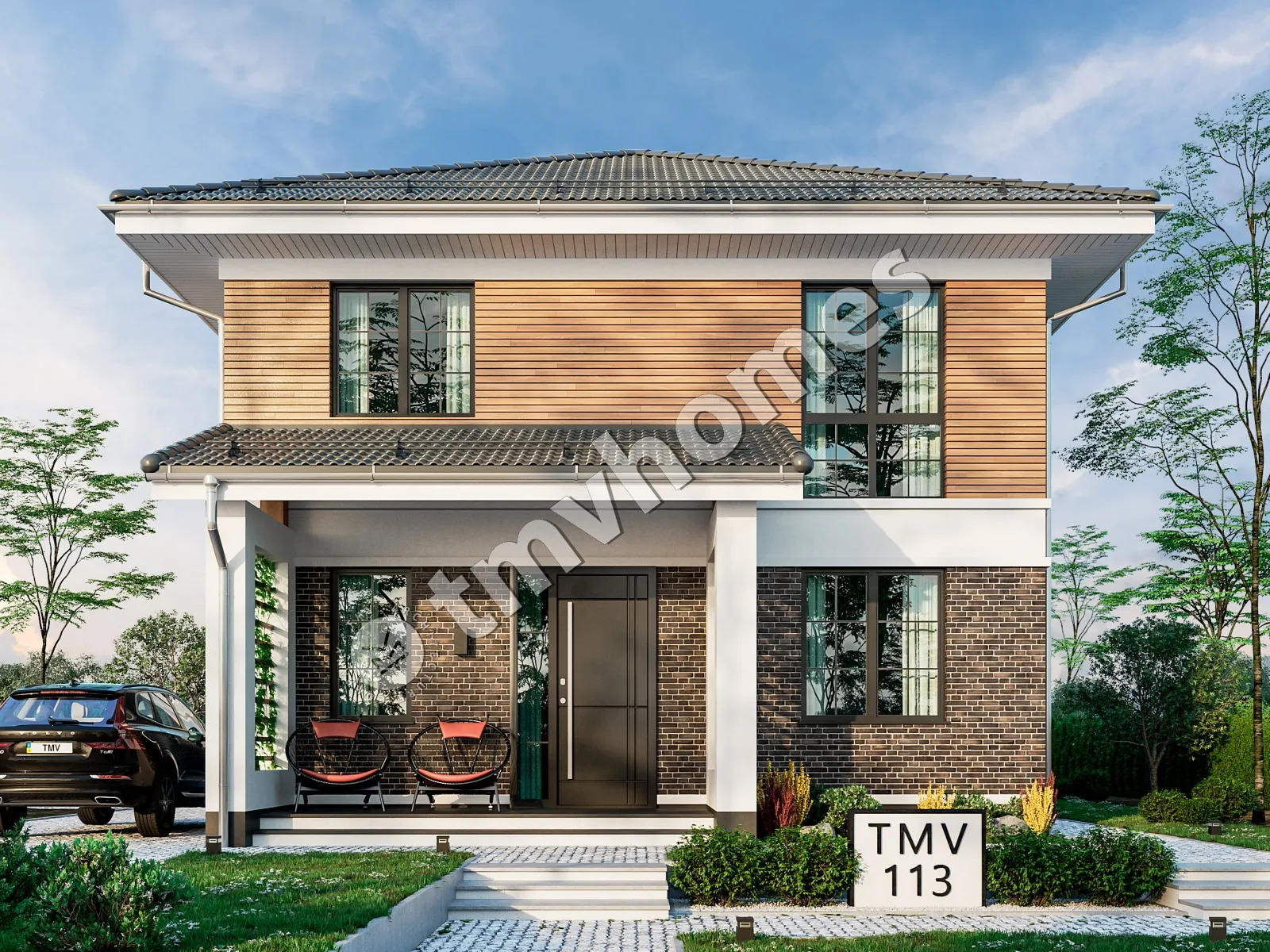

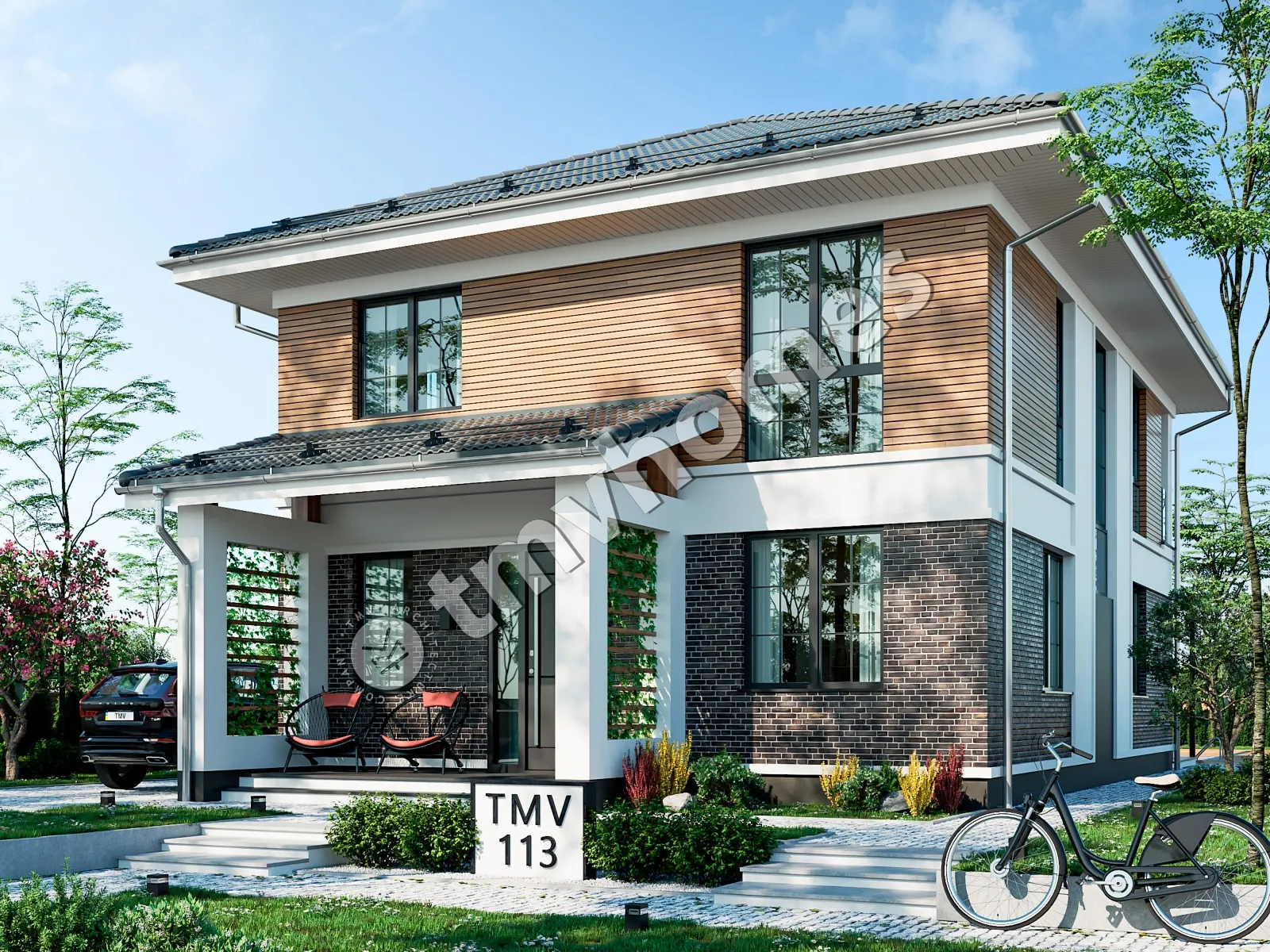

Renderings 2 – 1,958 Sq Ft Modern 2-Story House Plan with 5 Bedrooms and 2 Bathrooms – 89804C
Renderings 3 – 1,958 Sq Ft Modern 2-Story House Plan with 5 Bedrooms and 2 Bathrooms – 89804C Renderings 4 – 1,958 Sq Ft Modern 2-Story House Plan with 5 Bedrooms and 2 Bathrooms – 89804C
12
Concept
Construction documents are prepared for the following countries:

1,958 Sq Ft Modern 2-Story House Plan with 5 Bedrooms and 2 Bathrooms

Plan
89804C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
1958
Total Heated ft²
2 + 0
Baths + 1/2 Baths
5 + 0
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

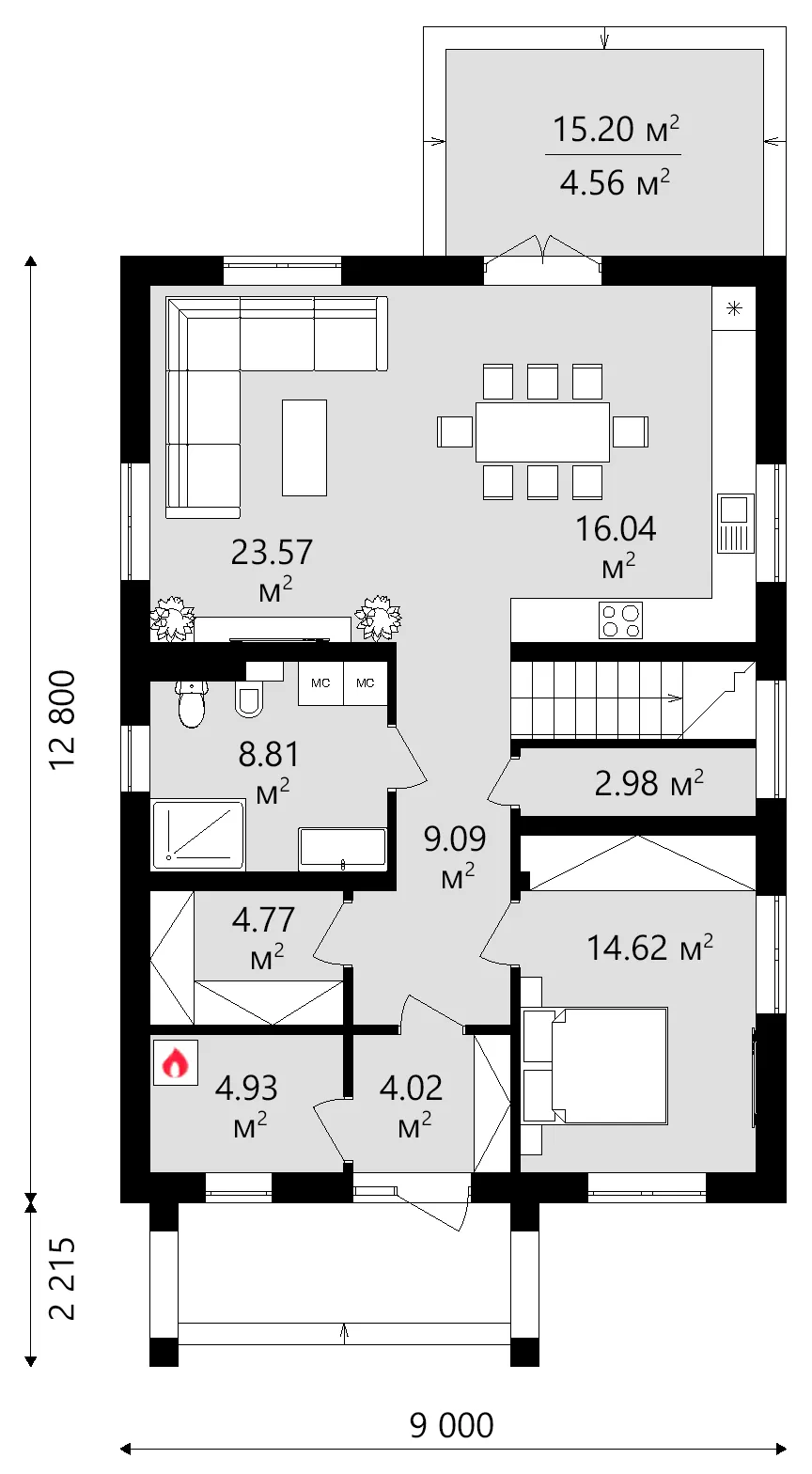

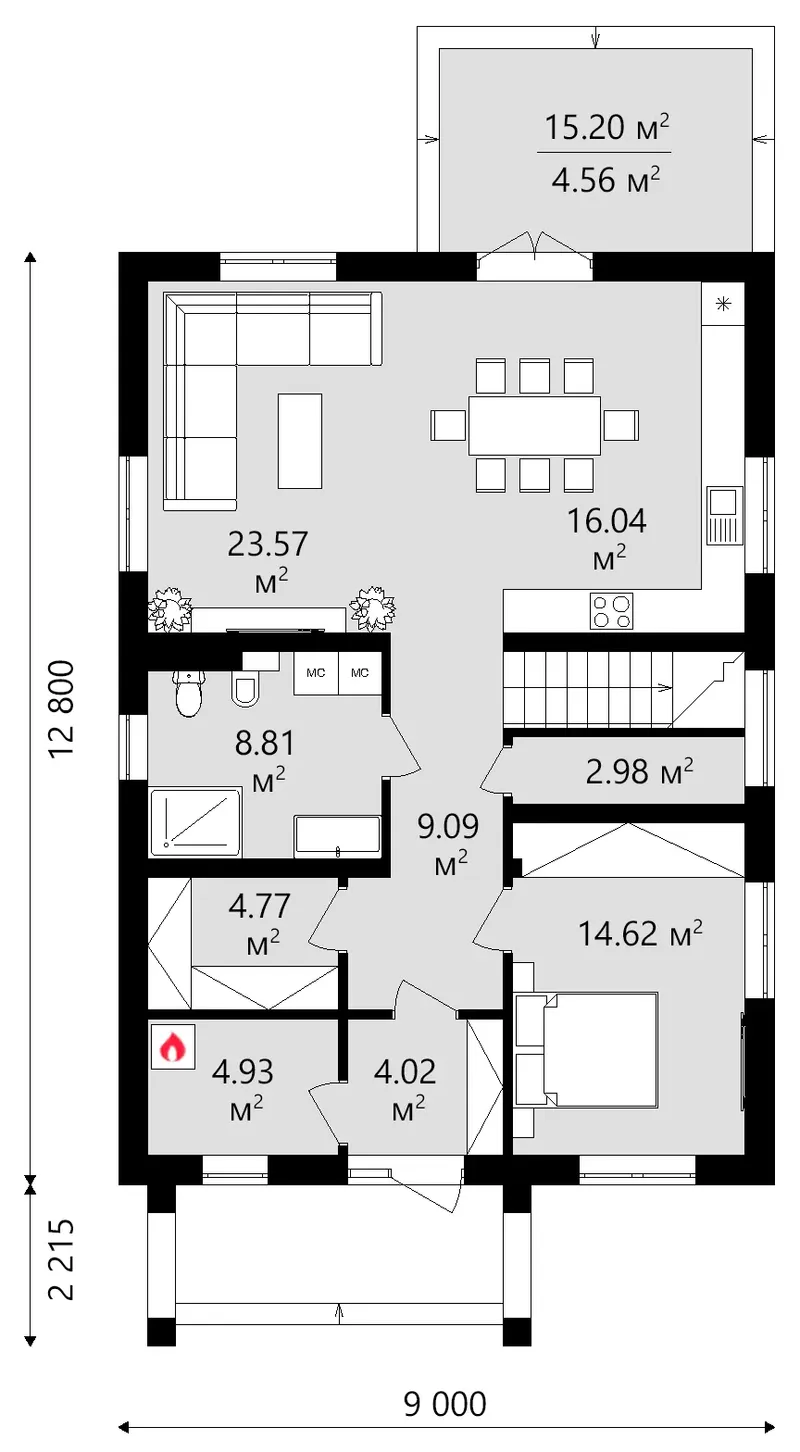

Main Floor
Main Floor 17 – 1,958 Sq Ft Modern 2-Story House Plan with 5 Bedrooms and 2 Bathrooms – 89804C

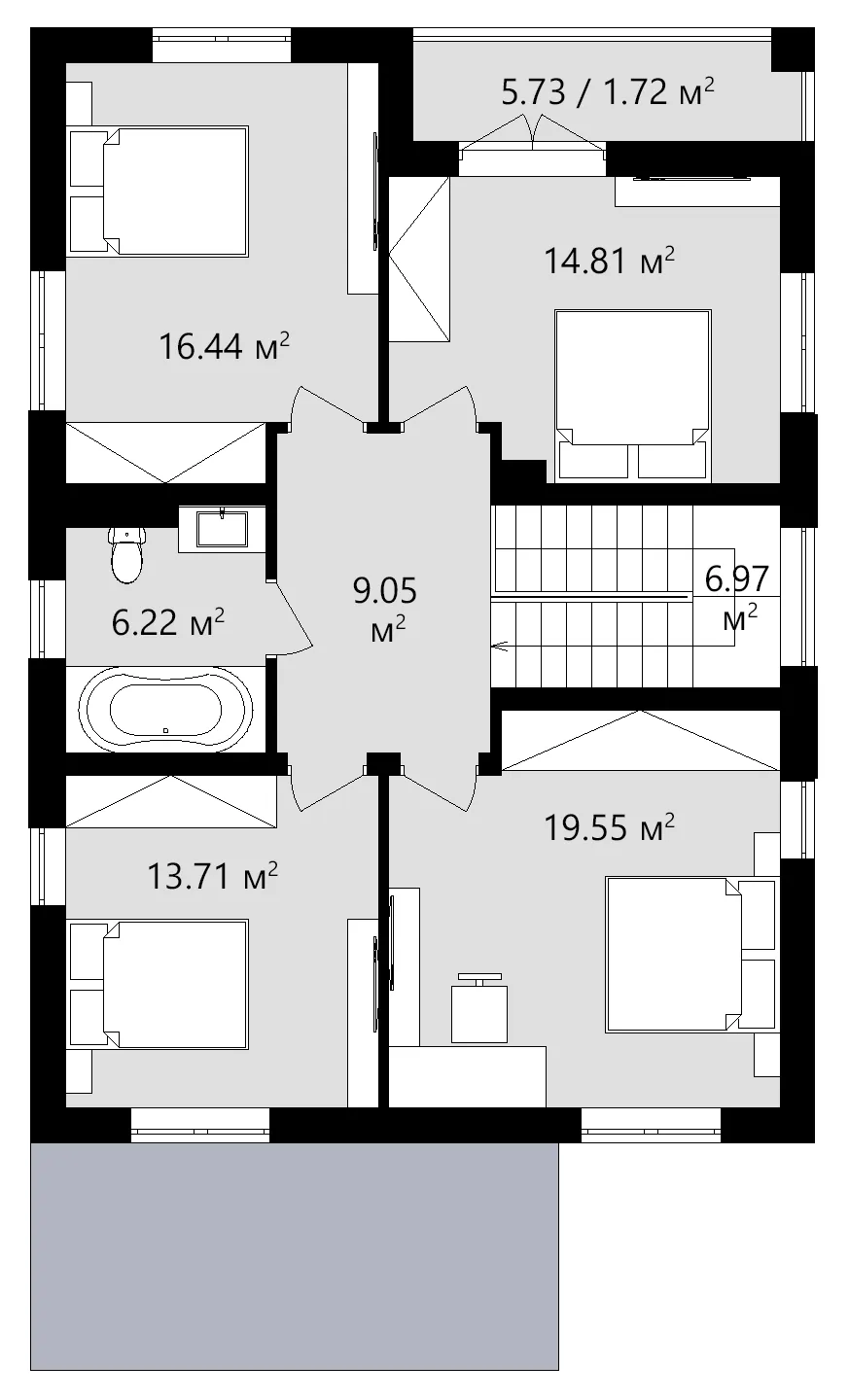

Second Floor
Second Floor 18 – 1,958 Sq Ft Modern 2-Story House Plan with 5 Bedrooms and 2 Bathrooms – 89804C
Full Specs & Features
Area
Total Heated: 1957.52 ft²
Dimensions
Depth: 45'8" ft
Width: 27'4" ft
Height: 28'0" ft
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Wood
Stucco
Rooms
Full bathrooms: 2
Bedrooms: 5
Utility room
Laundry
Entry
Storage
Kitchen and Dining
Breakfast Nook
Interior Features
Laundry On Main Floor
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Kitchen (>130 ft²)
Exterior Features
Balcony
Deck
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
European
Modern
Roof
Roof Area: 2046.33 ft²
Hip
Roof Pitch: 6/12 (26°)

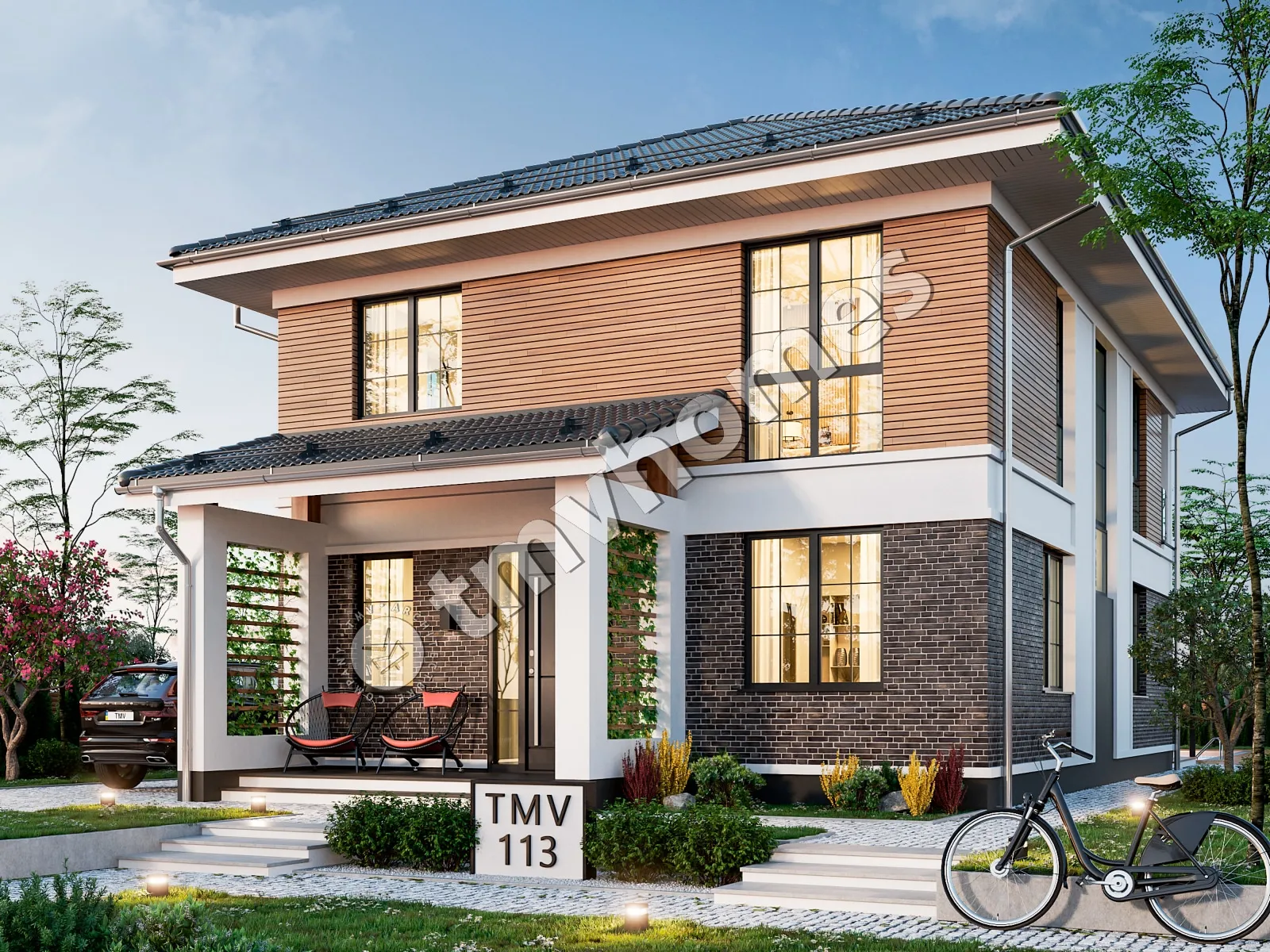

House design concept 89804C is a modern 2-story single-family home with Total Heated 1,958 Sq Ft, 5 bedrooms and 2 bathrooms. A hip roof with a 6/12 (26°) pitch shelters every side of the house, and the exterior combines stone/brick veneer, wood and stucco for a varied facade. With five bedrooms, the layout comfortably serves a family of 6-8 people.

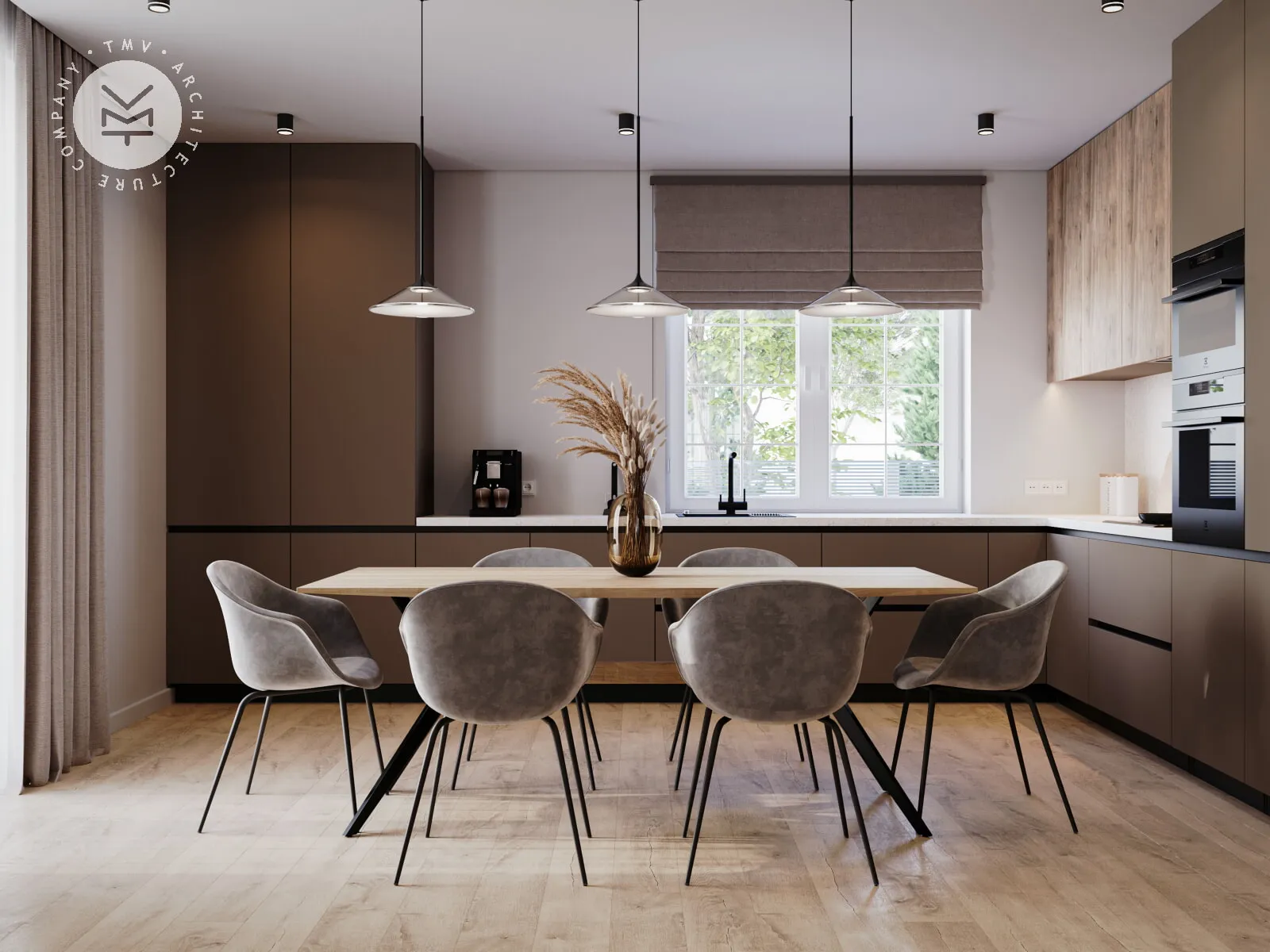

The entry leads into an open floor plan where the large kitchen and the living space share one volume, so the cook stays part of the conversation. A breakfast nook handles quick morning meals, while large windows and floor-to-ceiling windows bring daylight deep into the main floor. Laundry on the main floor and a separate utility room keep chores and machine noise away from the bedrooms.

The primary bedroom sits on the second floor, and the bedrooms are clustered together, so the family sleeps in one quiet part of the house. A storage room keeps seasonal items out of the living areas.

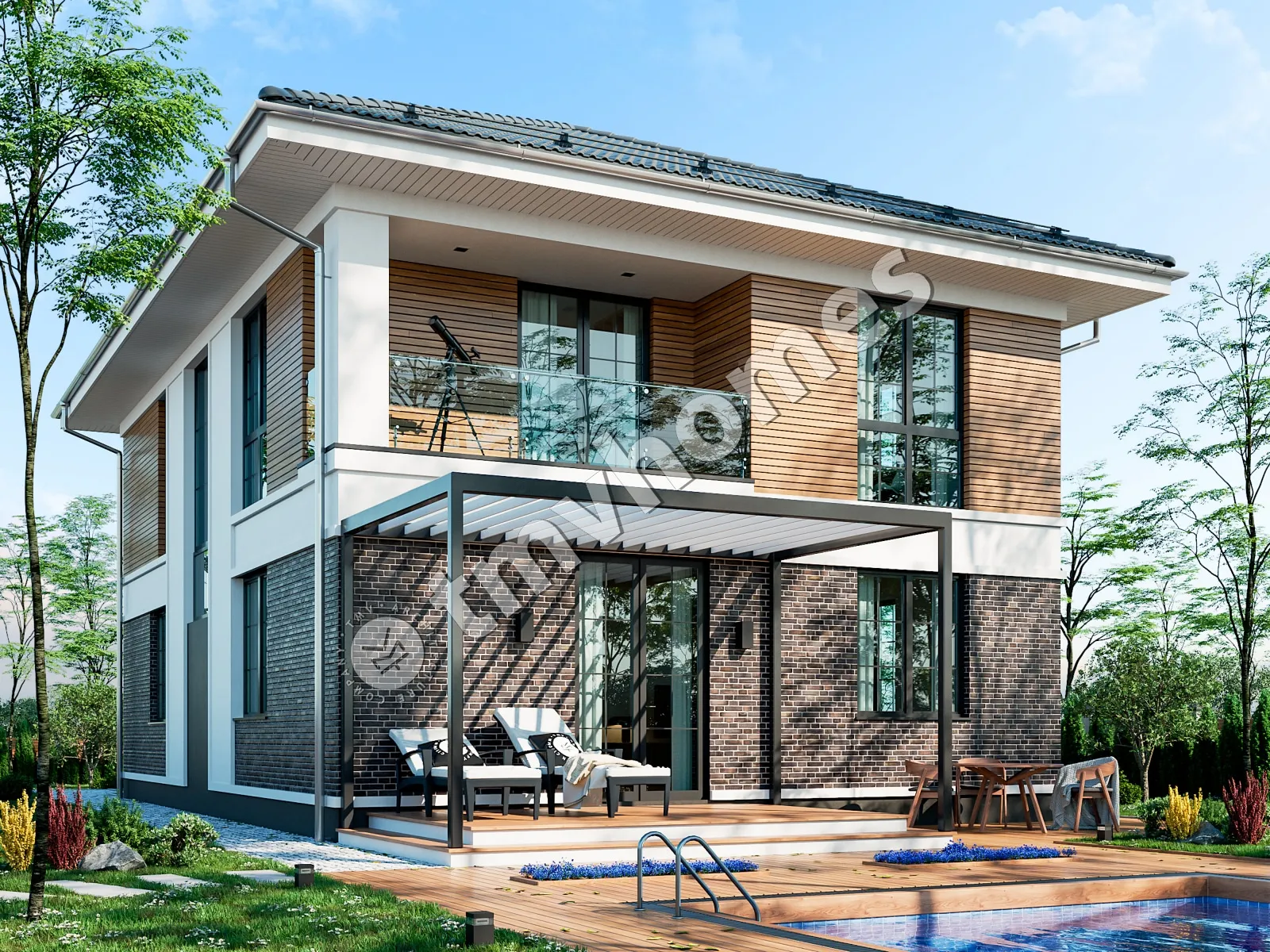

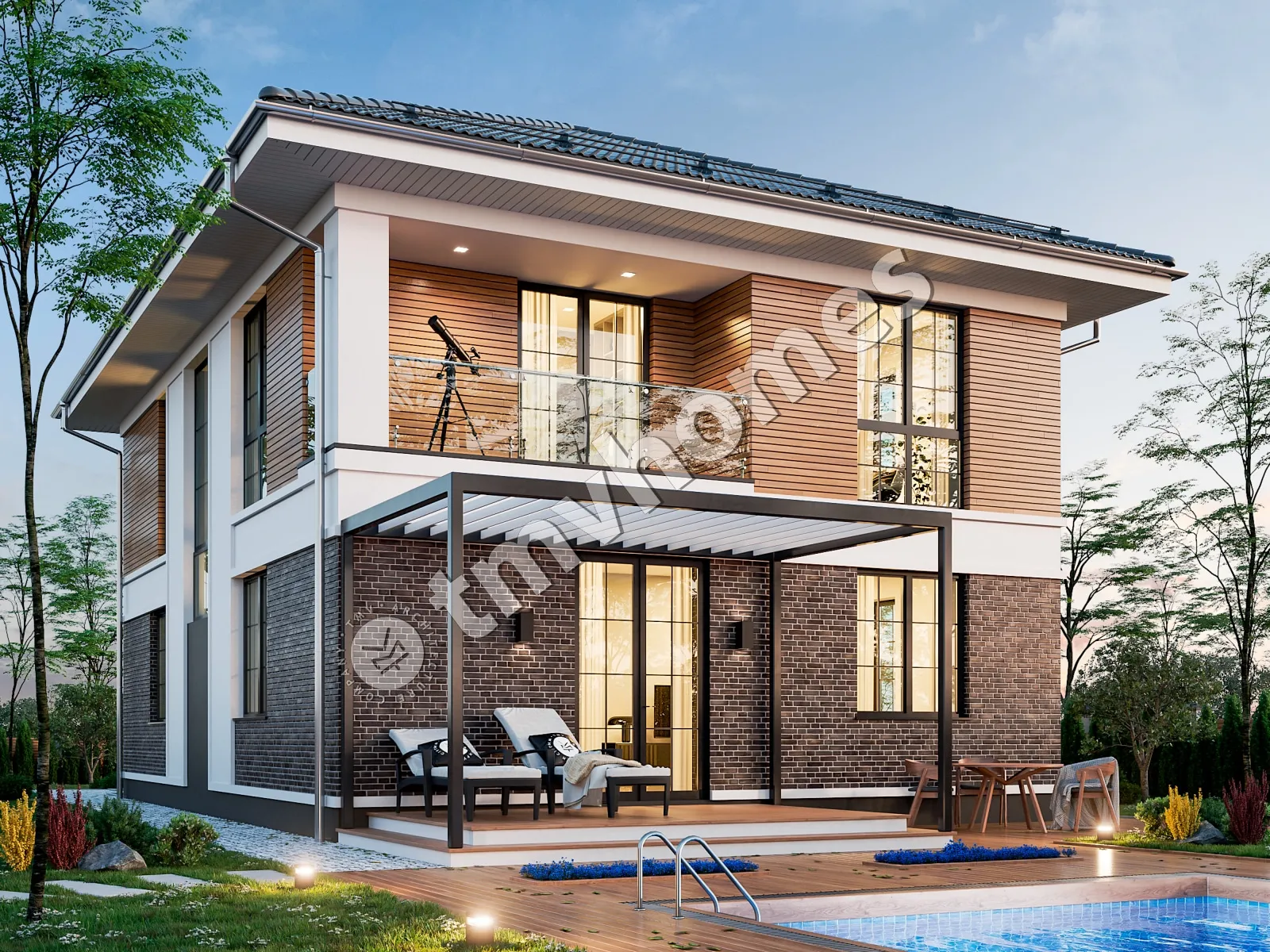

Outside, a deck extends the living space for outdoor meals, and a balcony gives the upper floor its own place to relax. The footprint measures 27'4" wide by 45'8" deep, which makes it easy to check the fit on a lot. The main foundation is strip footings, with a slab or a block foundation as options; the exterior walls are aerated concrete, with clay hollow block or sand-lime block as alternatives. In figures: Total Heated 1,958 Sq Ft, 5 bedrooms and 2 bathrooms.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
