2,137 Sq Ft Modern 2-Story House Plan with 4 Bedrooms, 3 Bathrooms and 1-Car Garage
Opis techniczny
Rzuty kondygnacji
Rzut więźby dachowej
Rzut dachu
Przekroje
Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

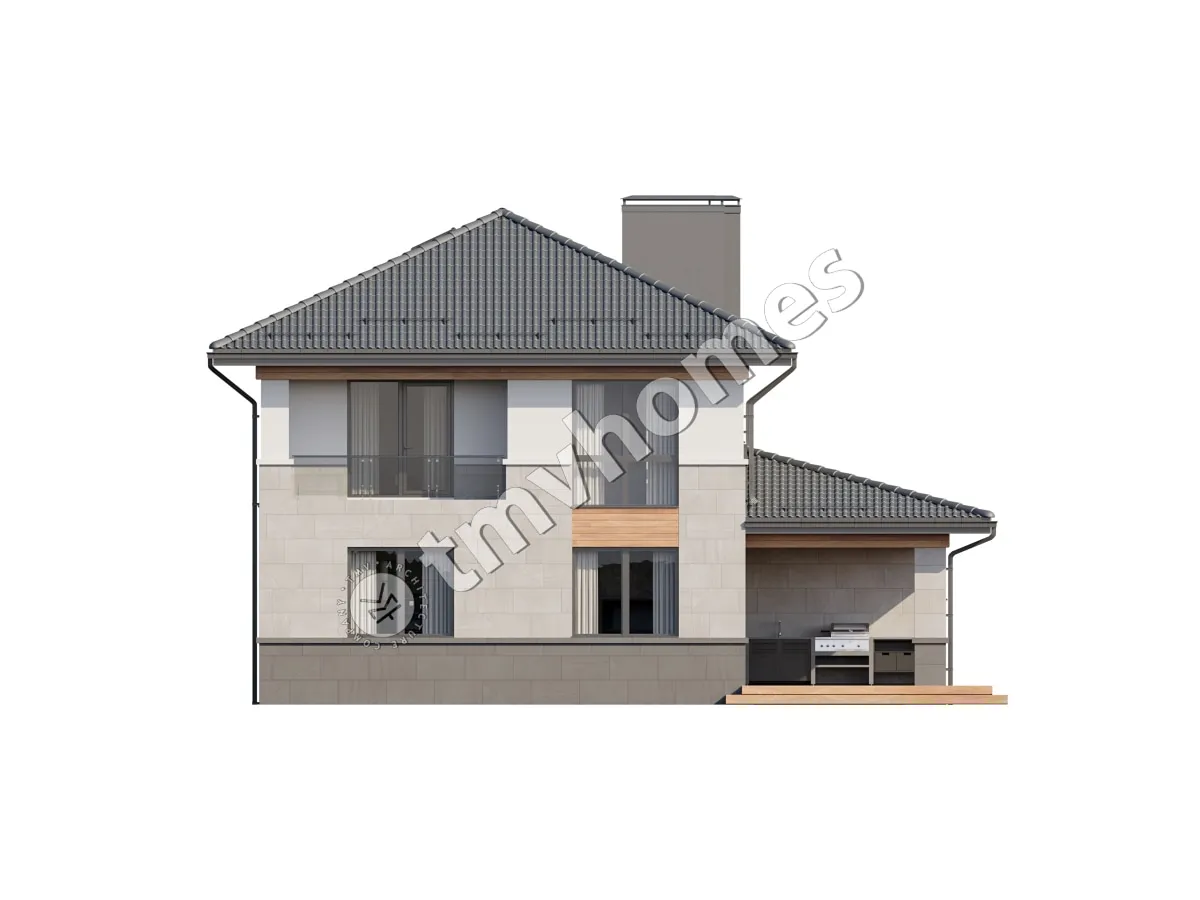

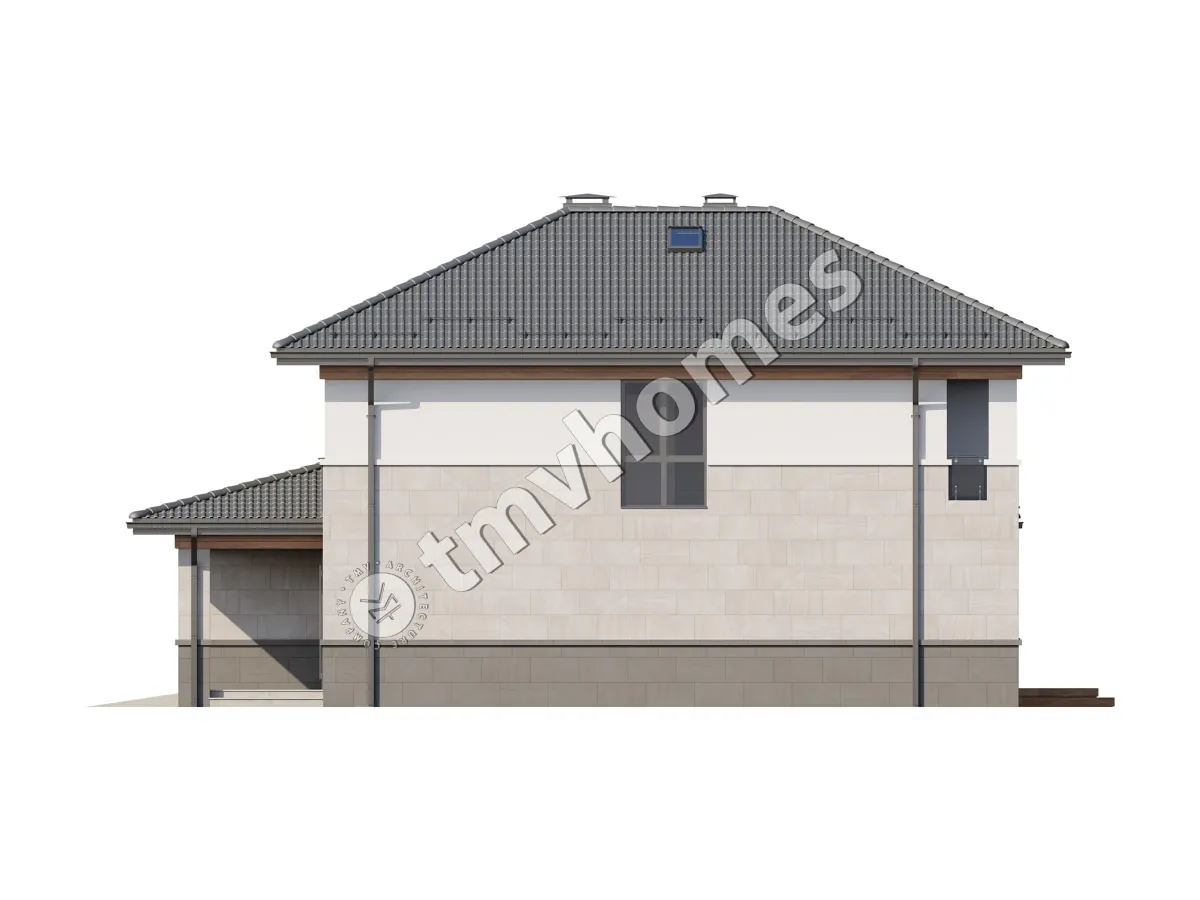

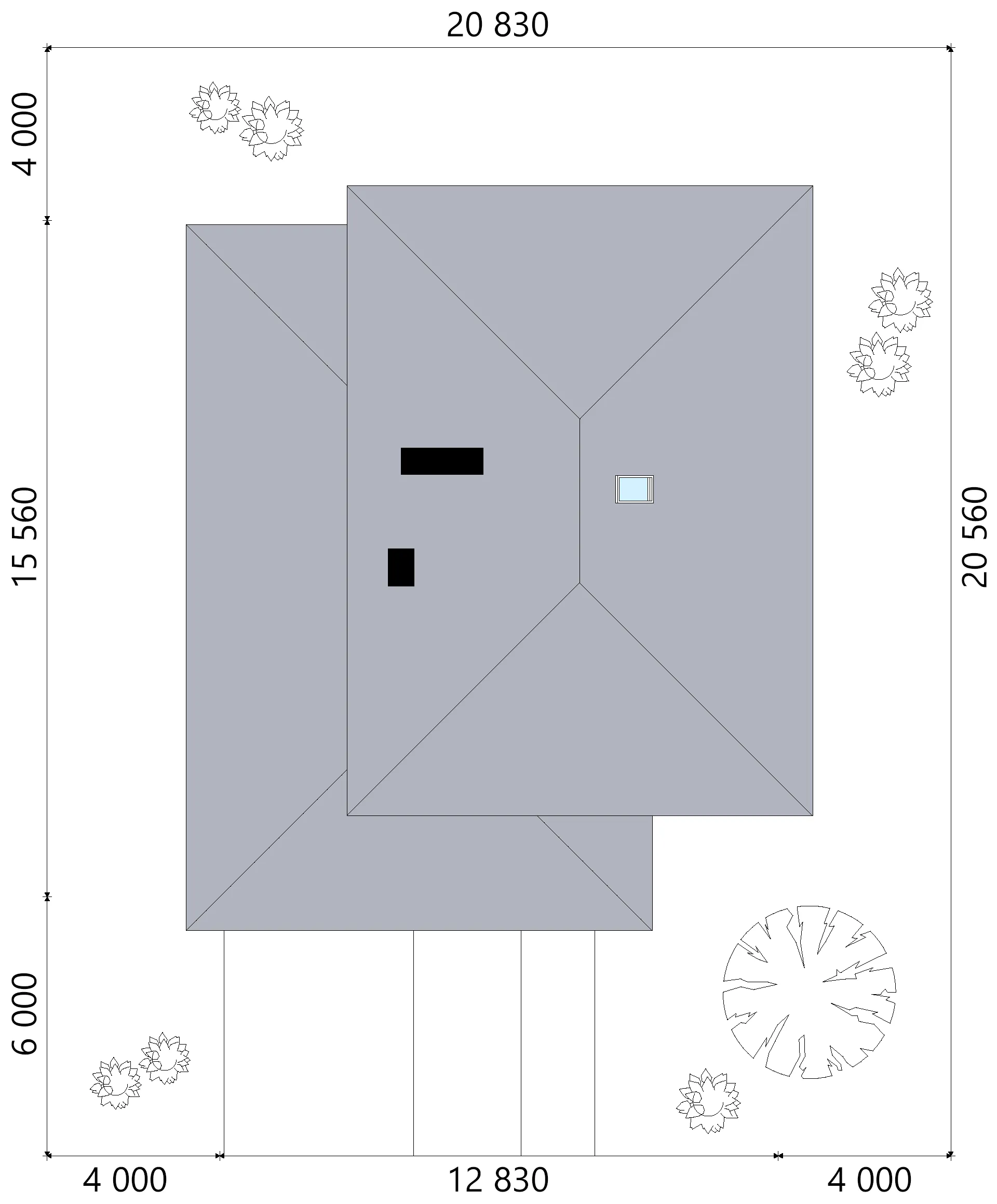

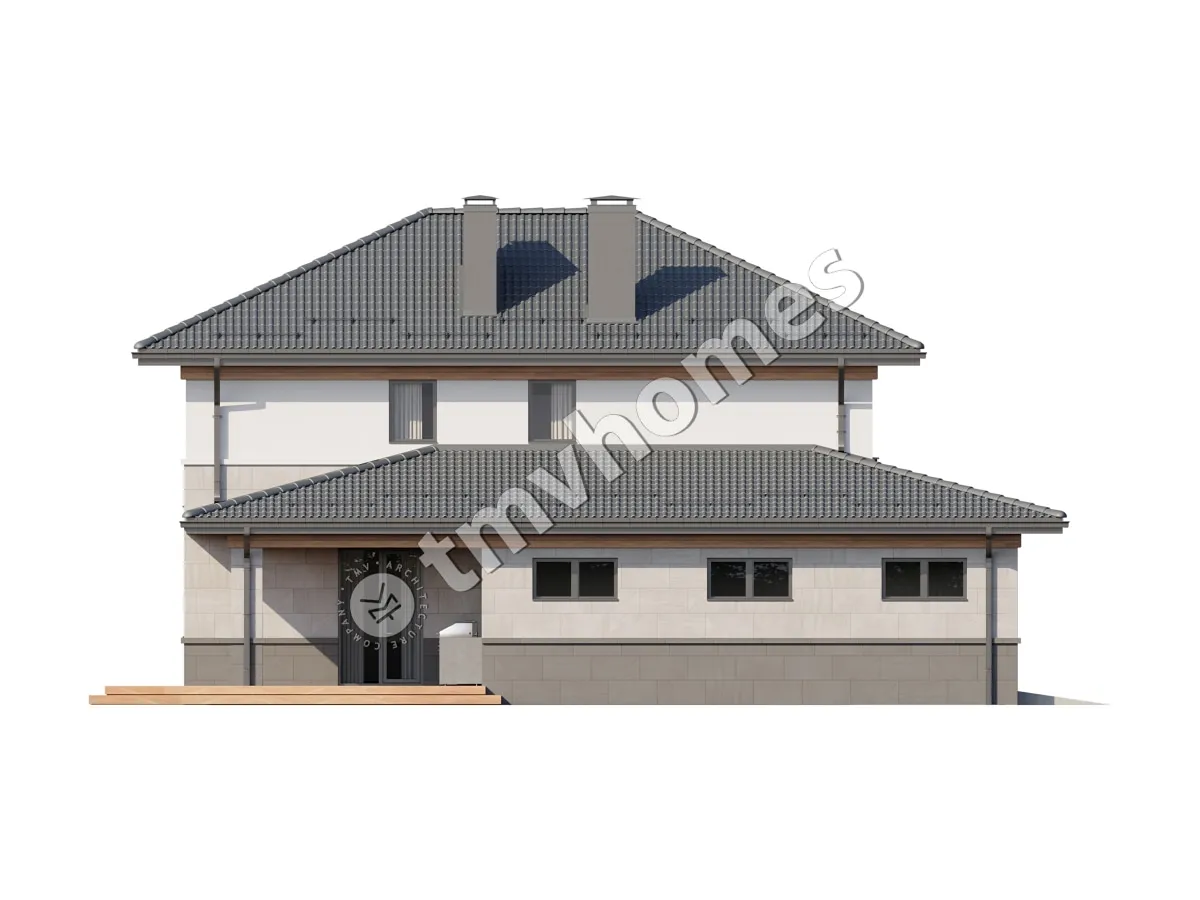

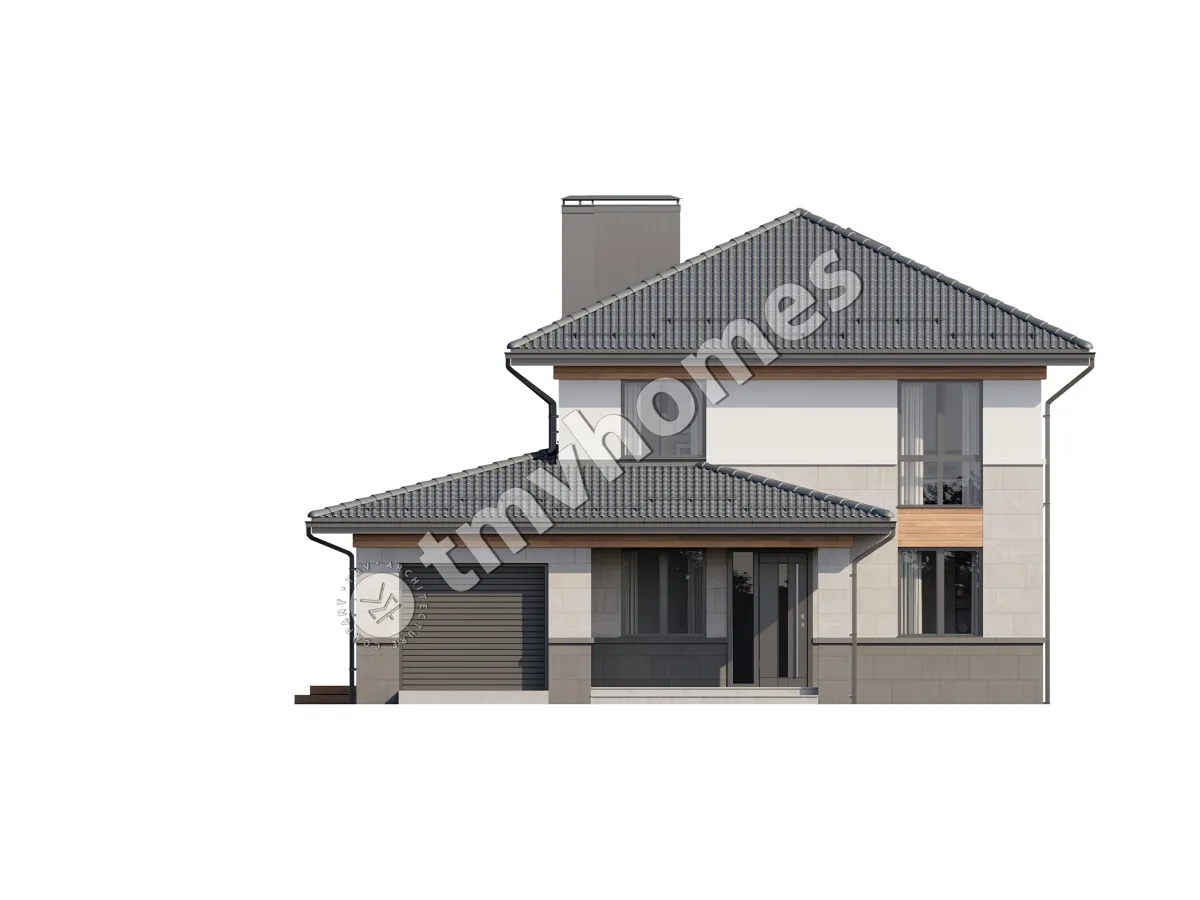

House design concept 78917C is a Modern 2-story single-family home with Total Heated 2,137 Sq Ft, 4 bedrooms, 3 bathrooms and a 1-car garage. A hip roof with stucco and flexible ceramic facades gives the house a clean outline, and the footprint of 39'1" wide by 47'4" deep fits a standard suburban lot. The layout is sized for 4-6 people.

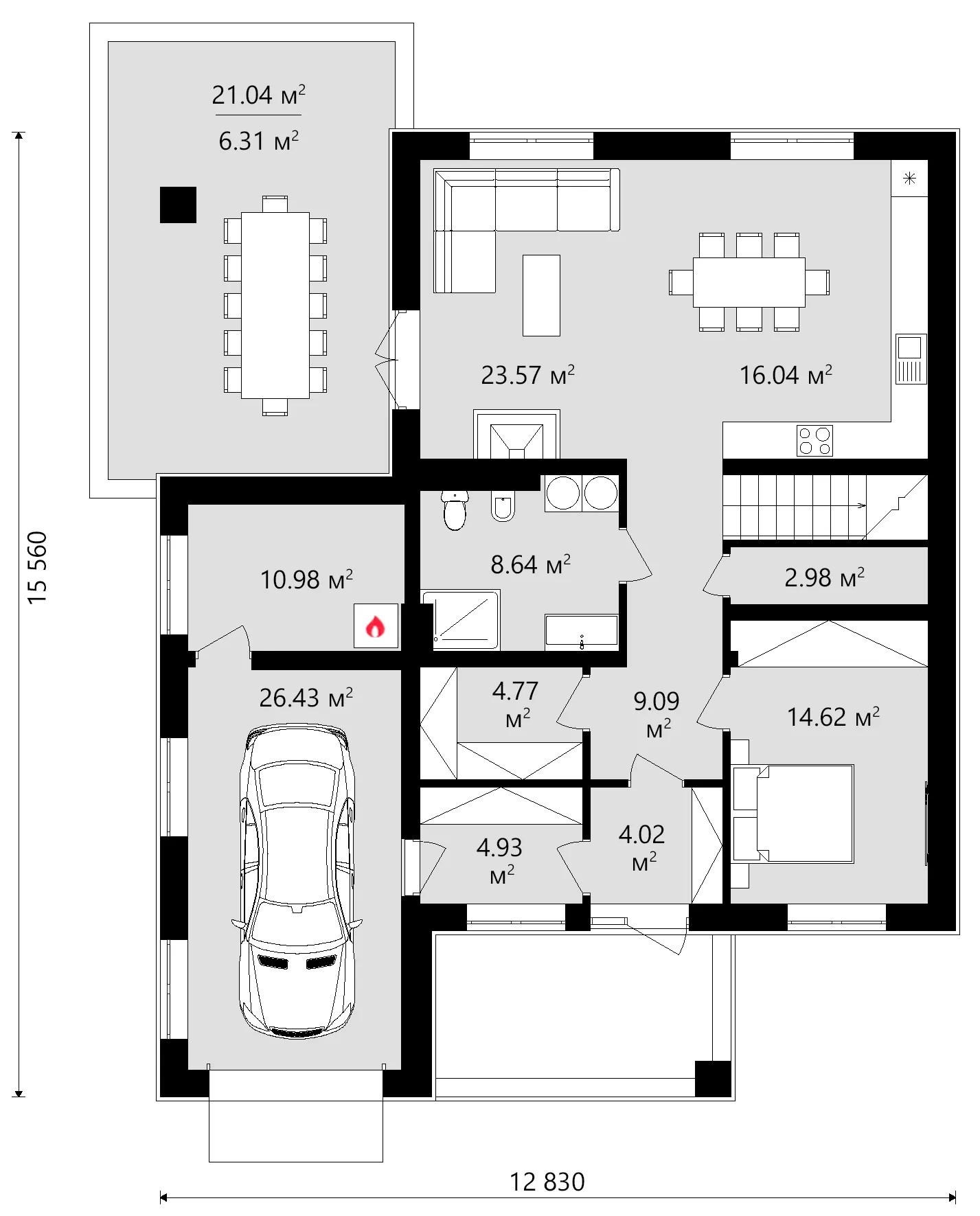

The entry leads into an open floor plan where the family room, kitchen and dining area share daylight from large windows. A fireplace anchors the family room for cozy evenings. The large kitchen leaves room to cook together, and the breakfast nook serves quick everyday meals.

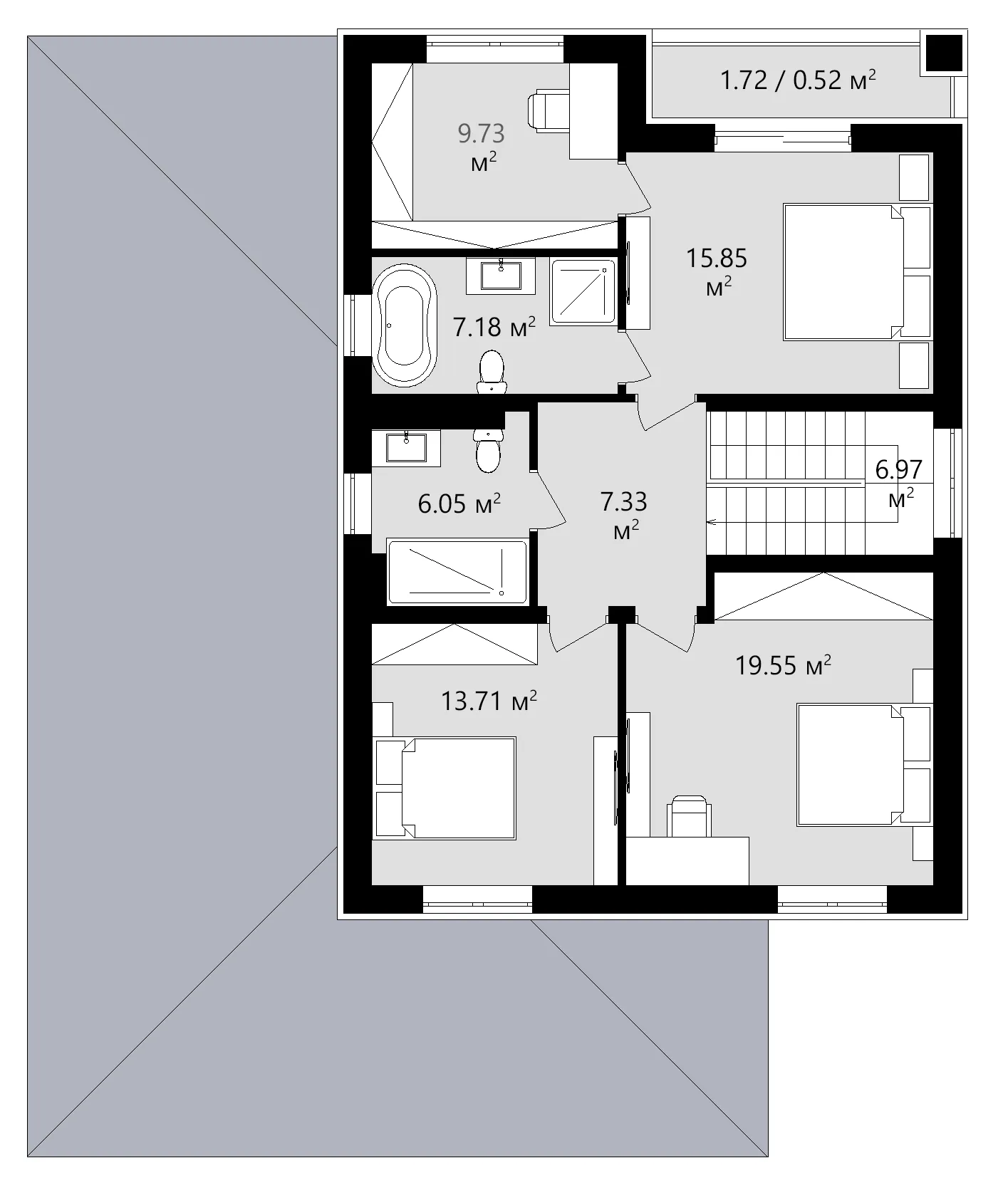

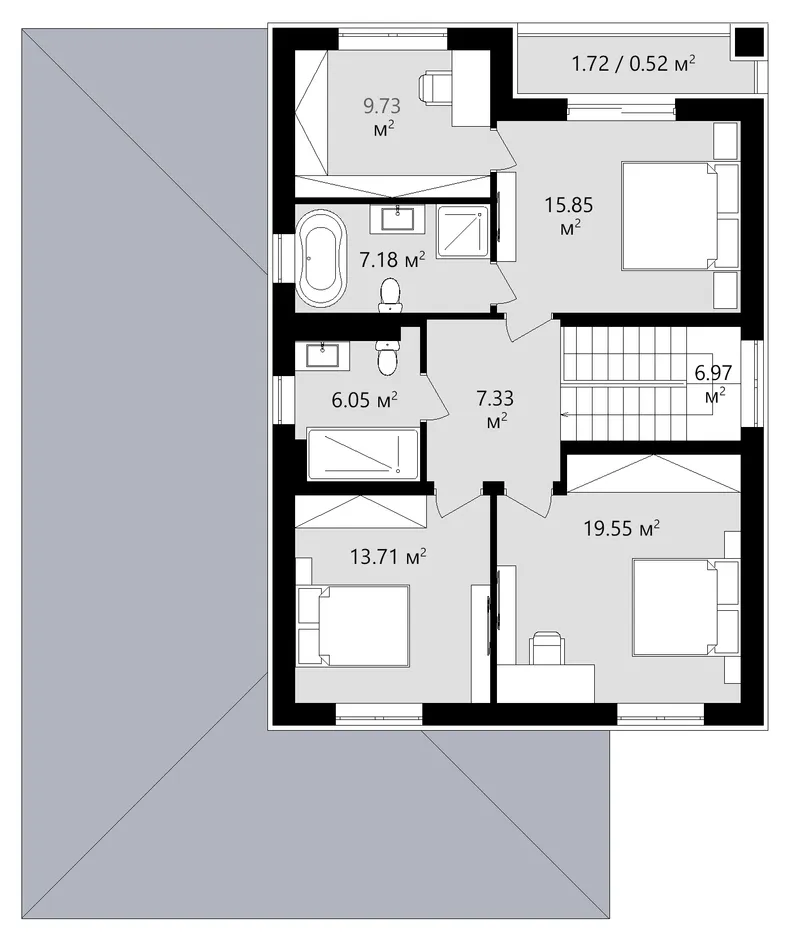

On the second floor, the primary suite includes a walk-in closet, while the clustered bedrooms keep the family close. Three full bathrooms shorten the morning rush. The laundry on the main floor, the utility room and the storage keep chores away from the sleeping area.
A covered front porch shelters the entrance, and the covered rear porch extends the living space outdoors. The attached front-entry garage holds one car with a direct approach from the street. Strip footings are standard, with slab or block foundation options, and the walls are planned in aerated concrete, with ceramic or sand-lime block as alternatives. In short: Total Heated 2,137 Sq Ft, 4 bedrooms, 3 bathrooms and a 1-car garage.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
