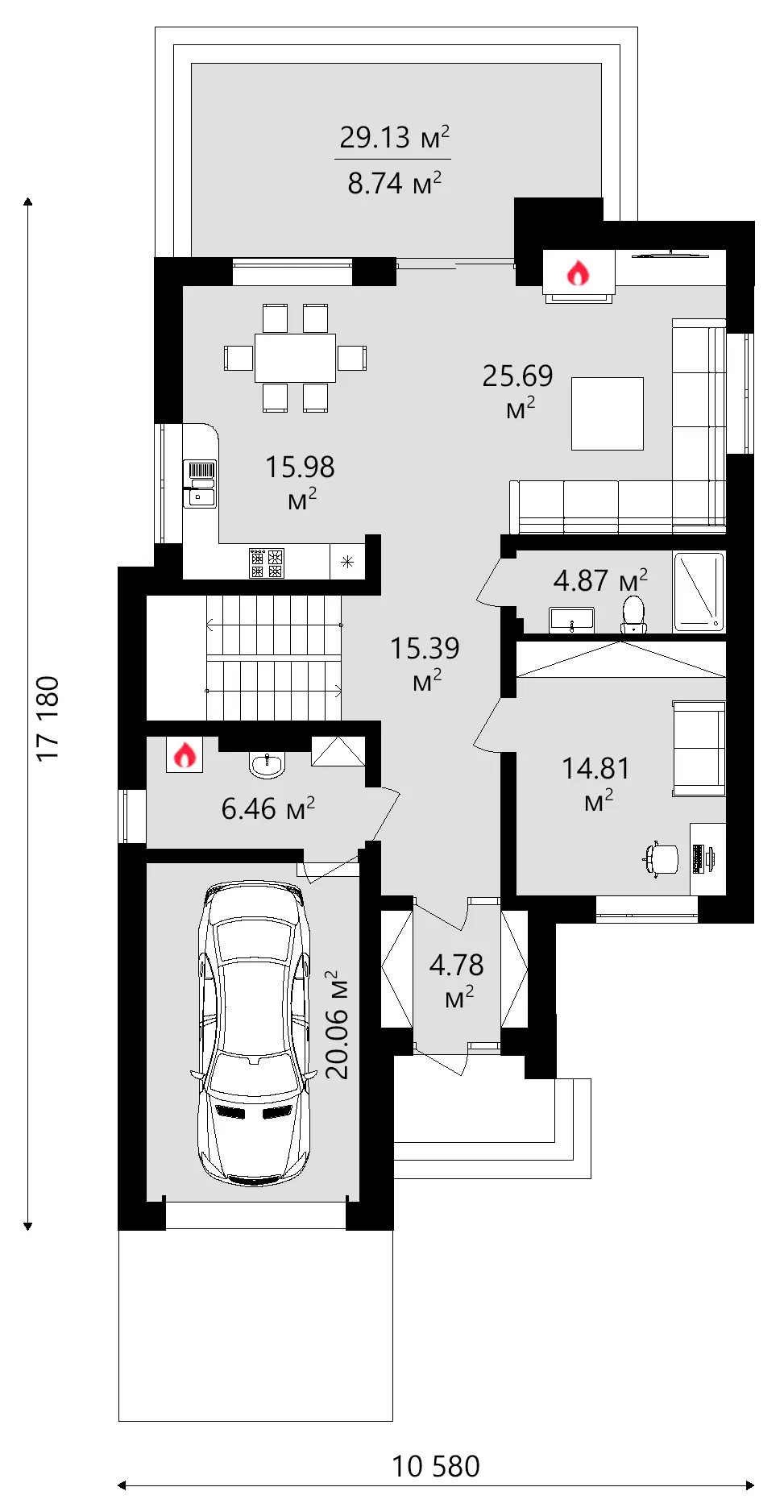

2,202 Sq Ft Transitional 1.5-Story House Plan with 3 Bedrooms, 3 Bathrooms and 1-Car Garage
Opis techniczny
Rzuty kondygnacji
Rzut więźby dachowej

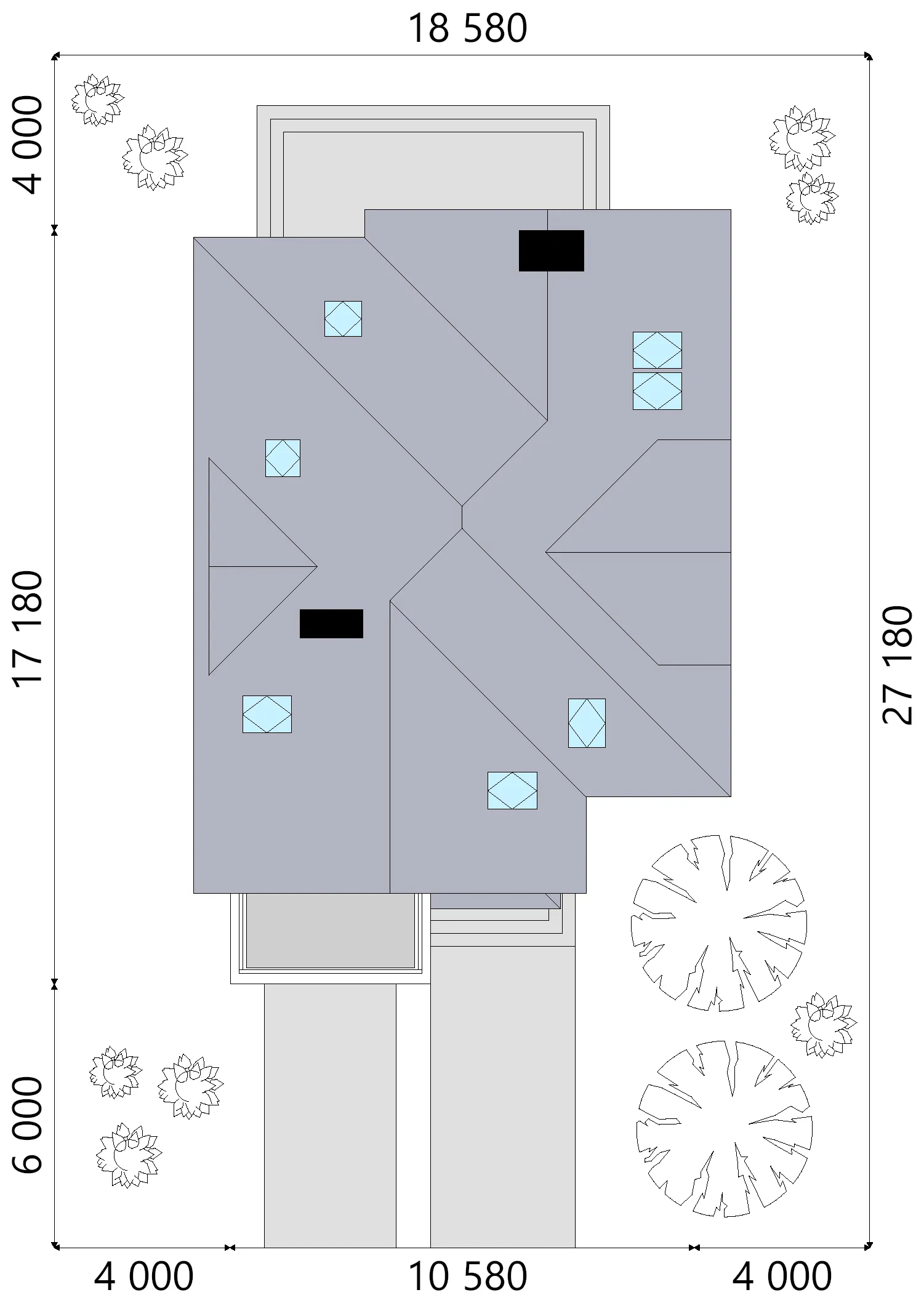

Rzut dachu
Przekroje

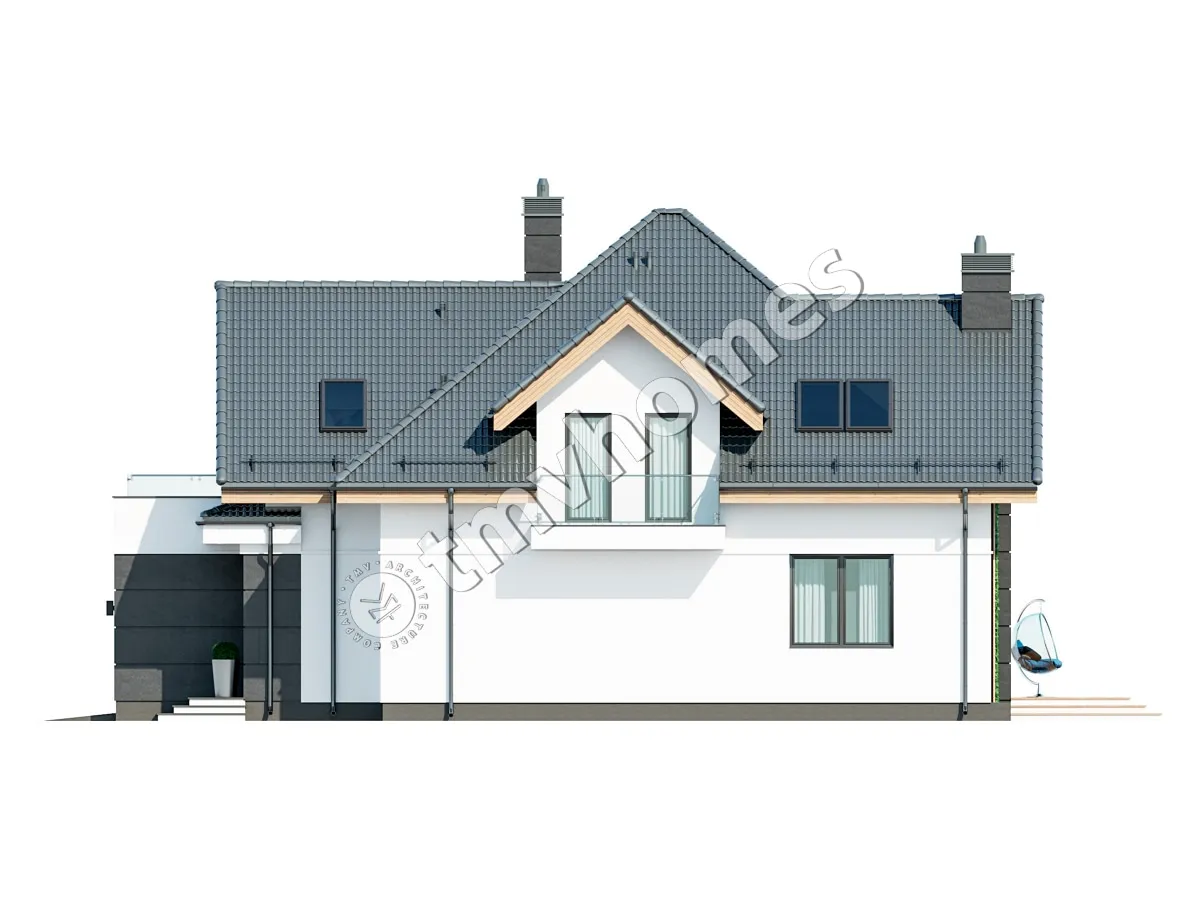

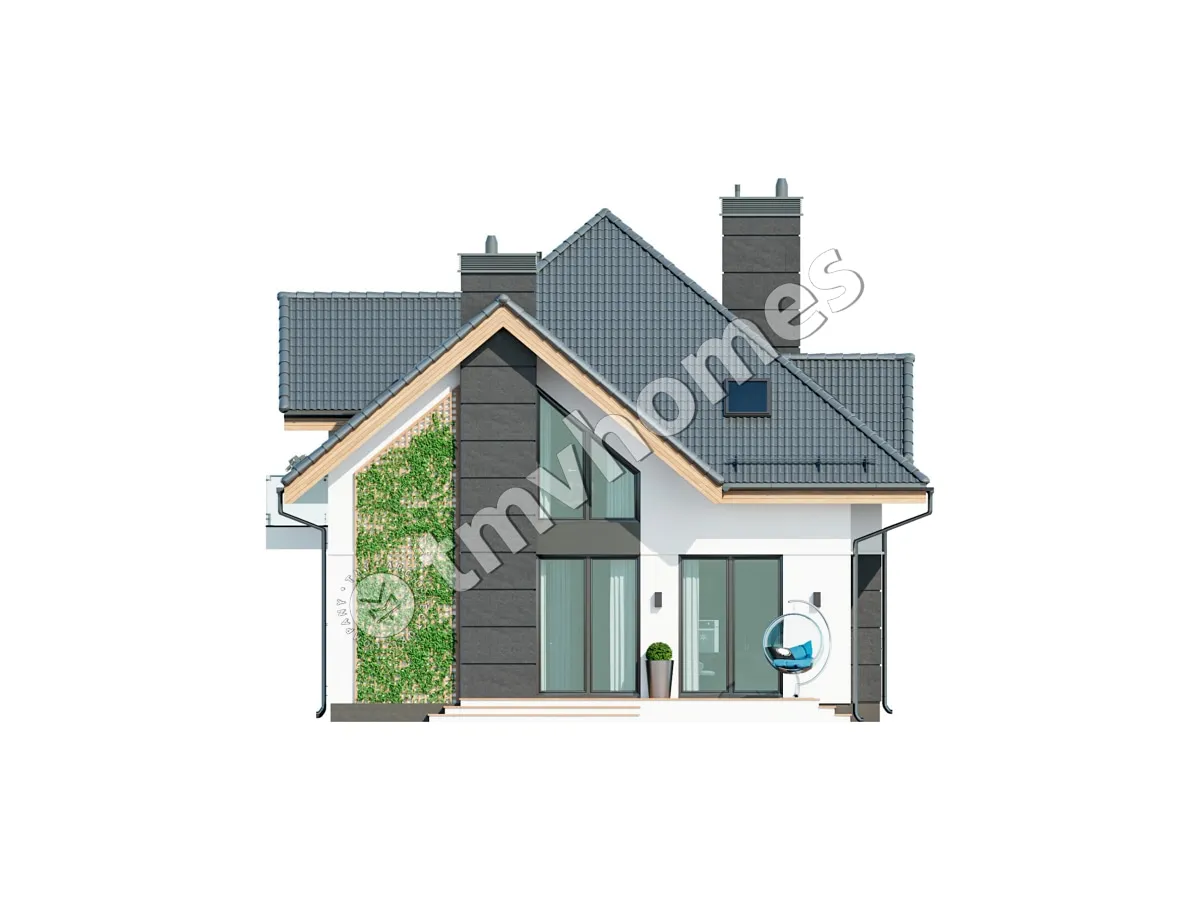

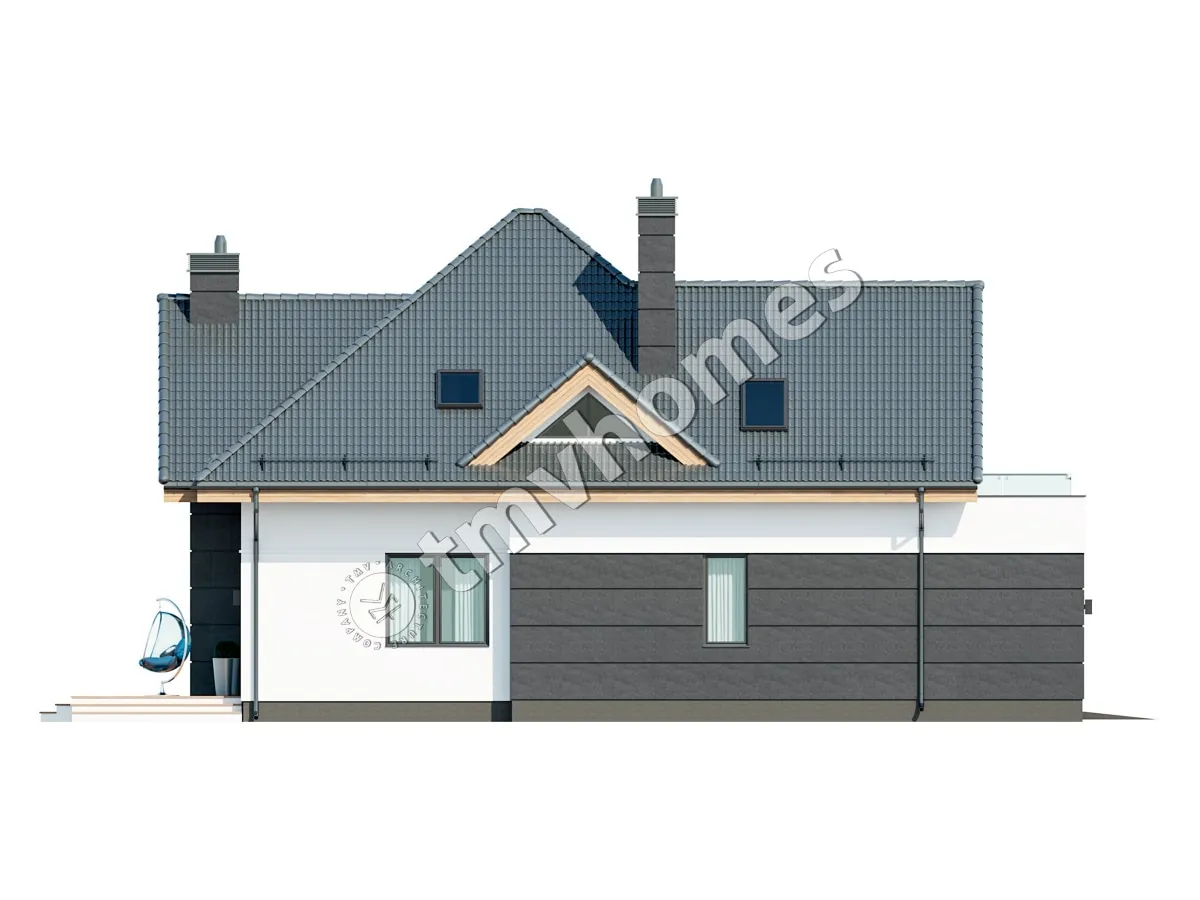

Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.
The 68057C house design concept is a Transitional 1.5-story single-family home with Total Heated 2,202 Sq Ft, 3 bedrooms, 3 bathrooms and a 1-car garage, available for purchase in digital form. Stucco and panel walls under a hip-and-valley roof with a 10/12 pitch give the house a crisp look, and the layout suits a household of 3-4 people.
The entry leads into an open floor plan where the large family room with a fireplace, the large kitchen and a breakfast nook form one shared space for daily life. Large windows and floor-to-ceiling glazing bring in daylight. A ground-floor home office keeps work apart from family time, and a bonus/flex room adapts to guests or hobbies.
Upstairs, the bedrooms are clustered together, with the primary suite and its walk-in closet keeping clothing organized. Three full bathrooms serve the household without morning queues, and a utility room gives chores a dedicated space.
A deck extends living outdoors, while a balcony and a rooftop deck over the garage add private outdoor spots upstairs. The front-entry garage extends forward and holds one car. At 32'2" wide and 61'0" deep, the house fits a narrower lot. Strip footings are standard, with slab or block foundations as options; the walls are aerated concrete, with ceramic or sand-lime block as alternatives. In figures: Total Heated 2,202 Sq Ft, 3 bedrooms, 3 bathrooms and a 1-car garage.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
Advanced Drafting & Design Co. Mooresville US$ 11,012
My Home Floor Plans Rosemead US$ 1,450
Plan & Simple LLC Austin US$ 4,405
