Renderings 2 – 2,017 Sq Ft Traditional 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 94373C
Renderings 3 – 2,017 Sq Ft Traditional 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 94373C Renderings 4 – 2,017 Sq Ft Traditional 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 94373C
7
Concept
Construction documents are prepared for the following countries:

2,017 Sq Ft Traditional 2-Story House Plan with 4 Bedrooms, 3 Bathrooms and 2-Car Garage

Plan
94373C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2017
Total Heated ft²
3 + 0
Baths + 1/2 Baths
4 + 0
Beds + Home Office
2
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

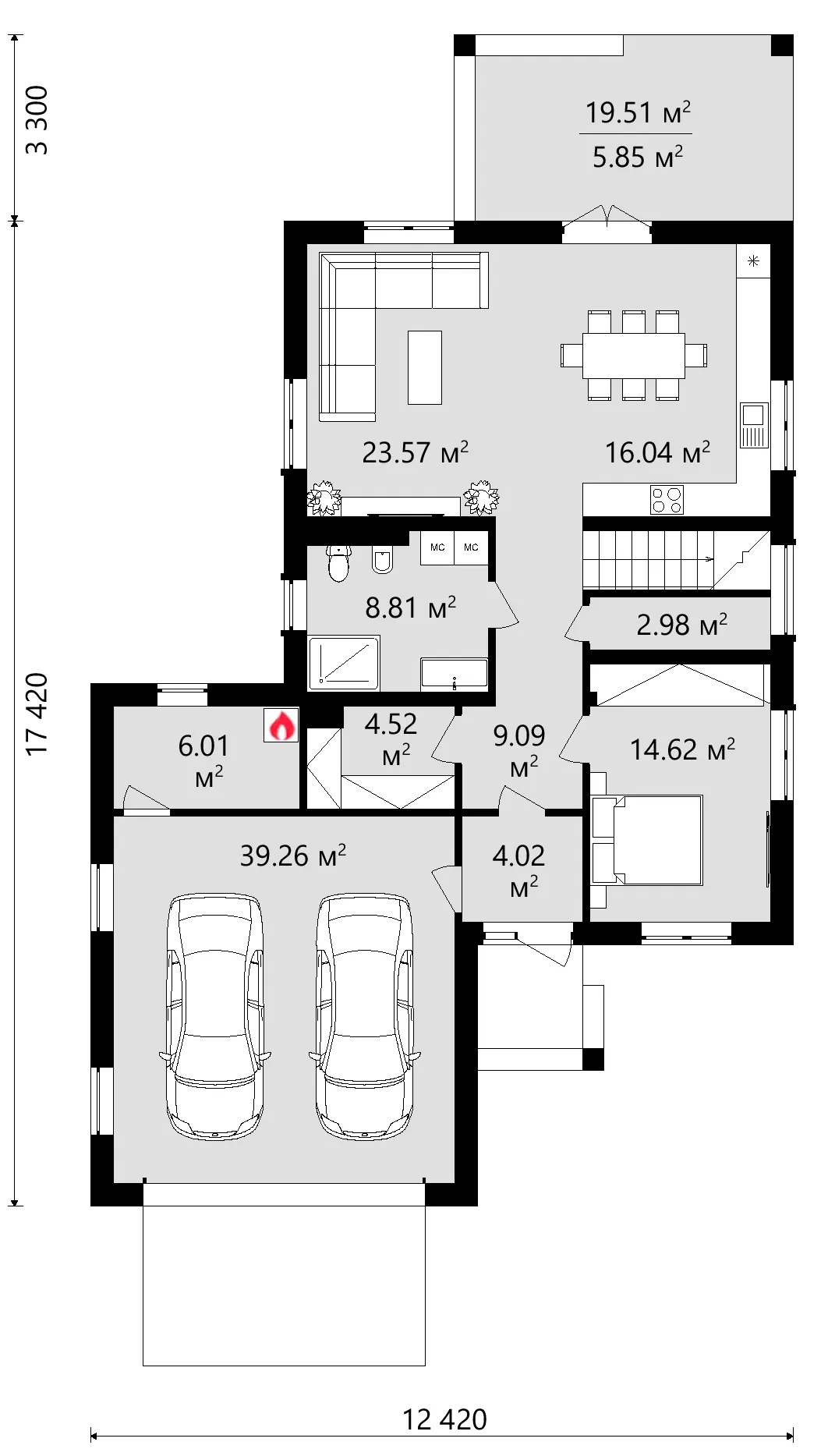

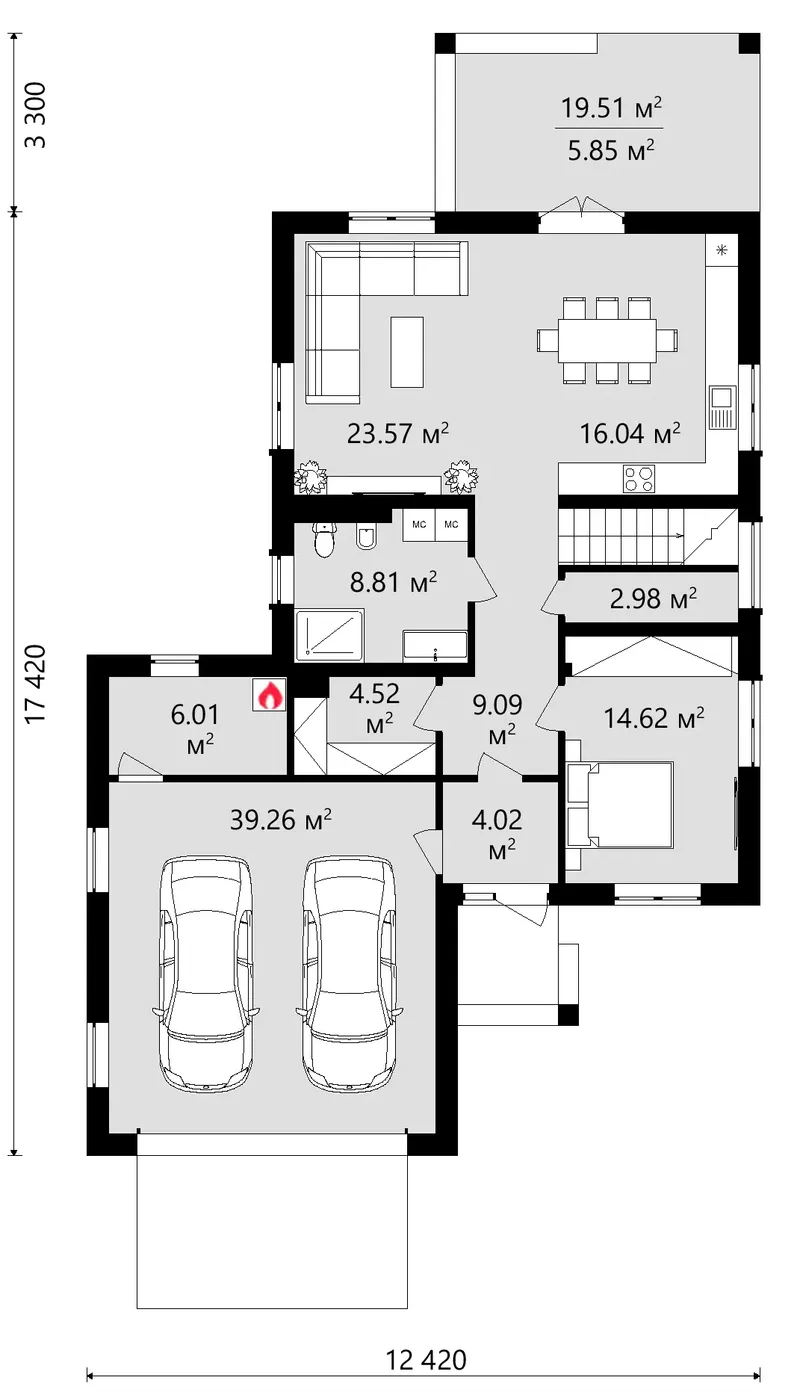

Main Floor
Main Floor 12 – 2,017 Sq Ft Traditional 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 94373C

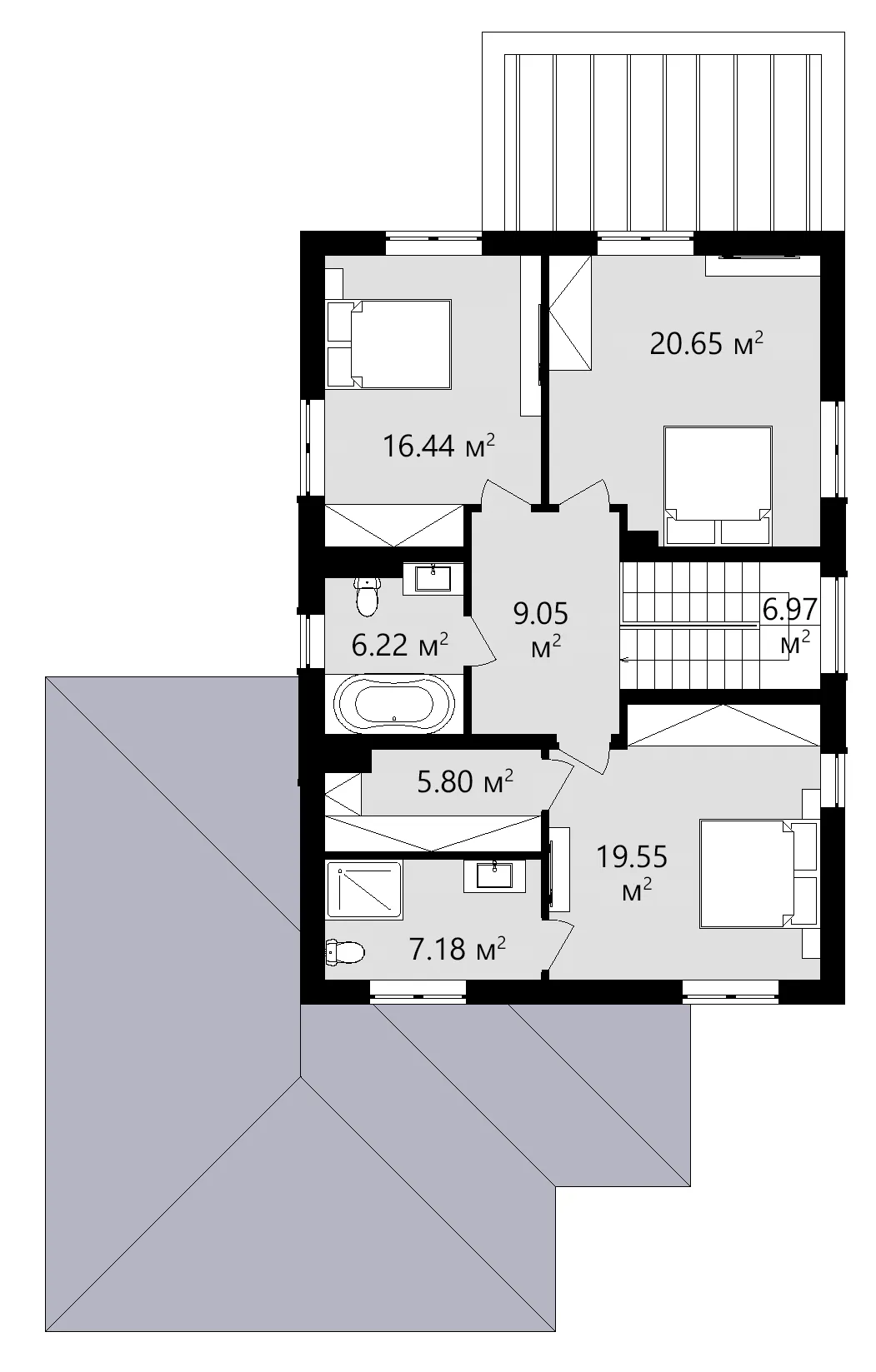

Second Floor
Second Floor 13 – 2,017 Sq Ft Traditional 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 94373C
Full Specs & Features
Area
Total Unheated: 422.59 ft²
Total Heated: 2016.83 ft²
Dimensions
Depth: 63'2" ft
Width: 37'9" ft
Height: 28'0" ft
Garage
Area: 423 ft²
Cars: 2
Front Entry
Extension Forward
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Wood
Rooms
Full bathrooms: 3
Bedrooms: 4
Utility room
Entry
Storage
Walk In Closet
Kitchen and Dining
Breakfast Nook
Interior Features
Laundry On Main Floor
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Kitchen (>130 ft²)
Exterior Features
Covered Rear Porch
Floor-to-Ceiling Windows
Architectural Style
European
Traditional
Transitional

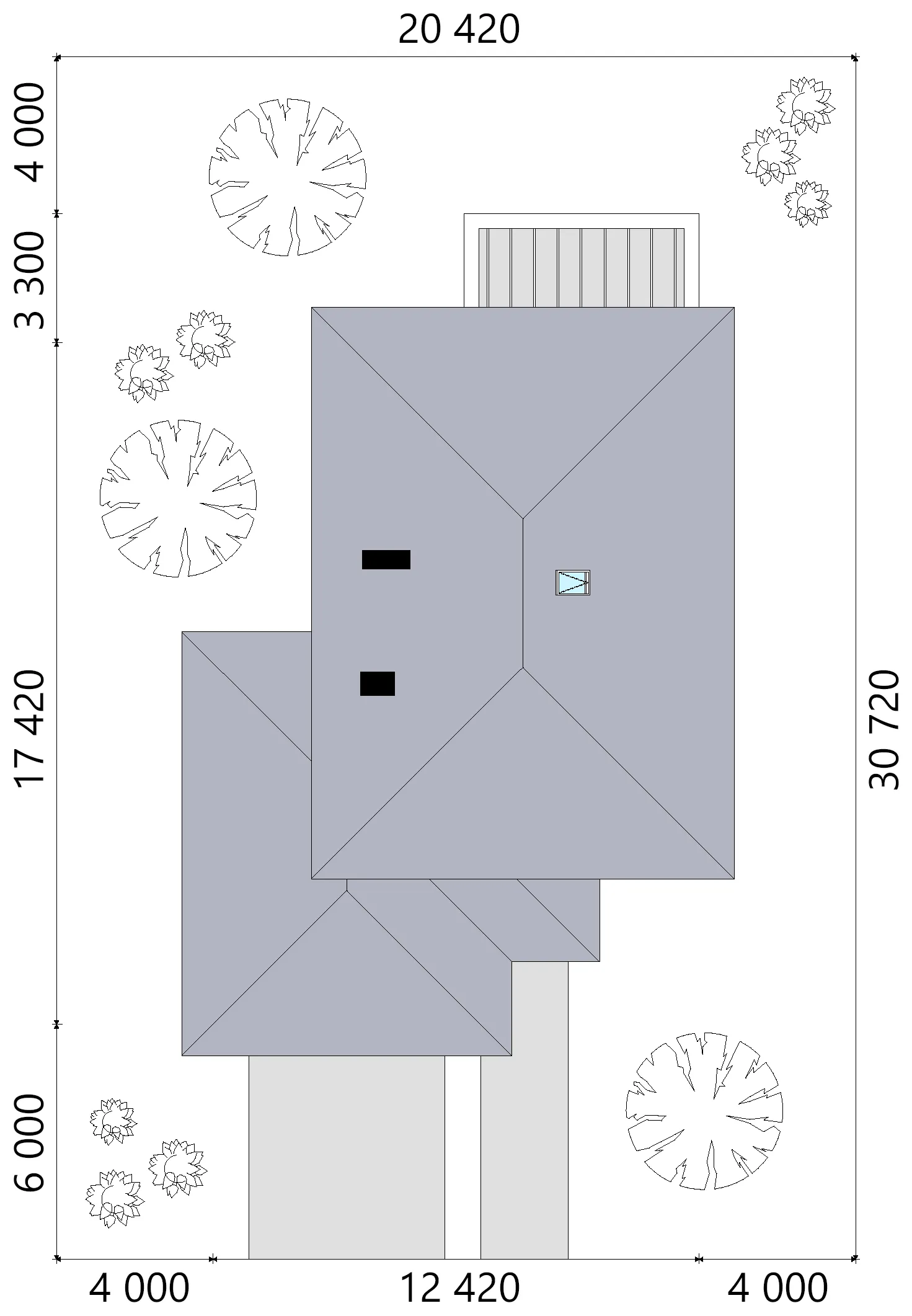

Roof
Roof Area: 2034.49 ft²
Hip
Roof Pitch: 6/12 (26°)

House design concept 94373C is a Traditional 2-story single-family home with a Total Heated 2,017 Sq Ft, 4 bedrooms, 3 bathrooms and a 2-car garage, available for purchase as a digital house design concept. A hip roof with a 6/12 pitch tops the house, and the exterior combines stone or brick veneer with wood. The layout suits a family of 4-6 people.

The entry opens into an open floor plan where the great room and the large kitchen share one space, so the family stays together while someone cooks. A breakfast nook gives a spot for everyday meals, and floor-to-ceiling windows bring daylight deep into the rooms. The laundry on the main floor keeps the noise of the washer away from the bedrooms.

The bedrooms are clustered together on the second floor, keeping parents close to younger children. The primary bedroom has a walk-in closet that frees the room from bulky wardrobes, and three bathrooms shorten the morning queue. A utility room and a storage room keep household equipment out of sight.

A covered rear porch lets the family spend time outdoors in any weather. The front-entry garage for two cars extends forward of the house, giving a direct drive in from the street. The house measures 37'9" wide and 63'2" deep. Strip footings are the base foundation, with a slab or a concrete block foundation as options; the exterior walls are built of aerated concrete, with clay block or calcium silicate block as alternatives. In figures: Total Heated 2,017 Sq Ft, 4 bedrooms, 3 bathrooms and a 2-car garage.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.
