1,952 Sq Ft Traditional Narrow Lot 2-Story House Plan with 4 Bedrooms and 3 Bathrooms
Opis techniczny

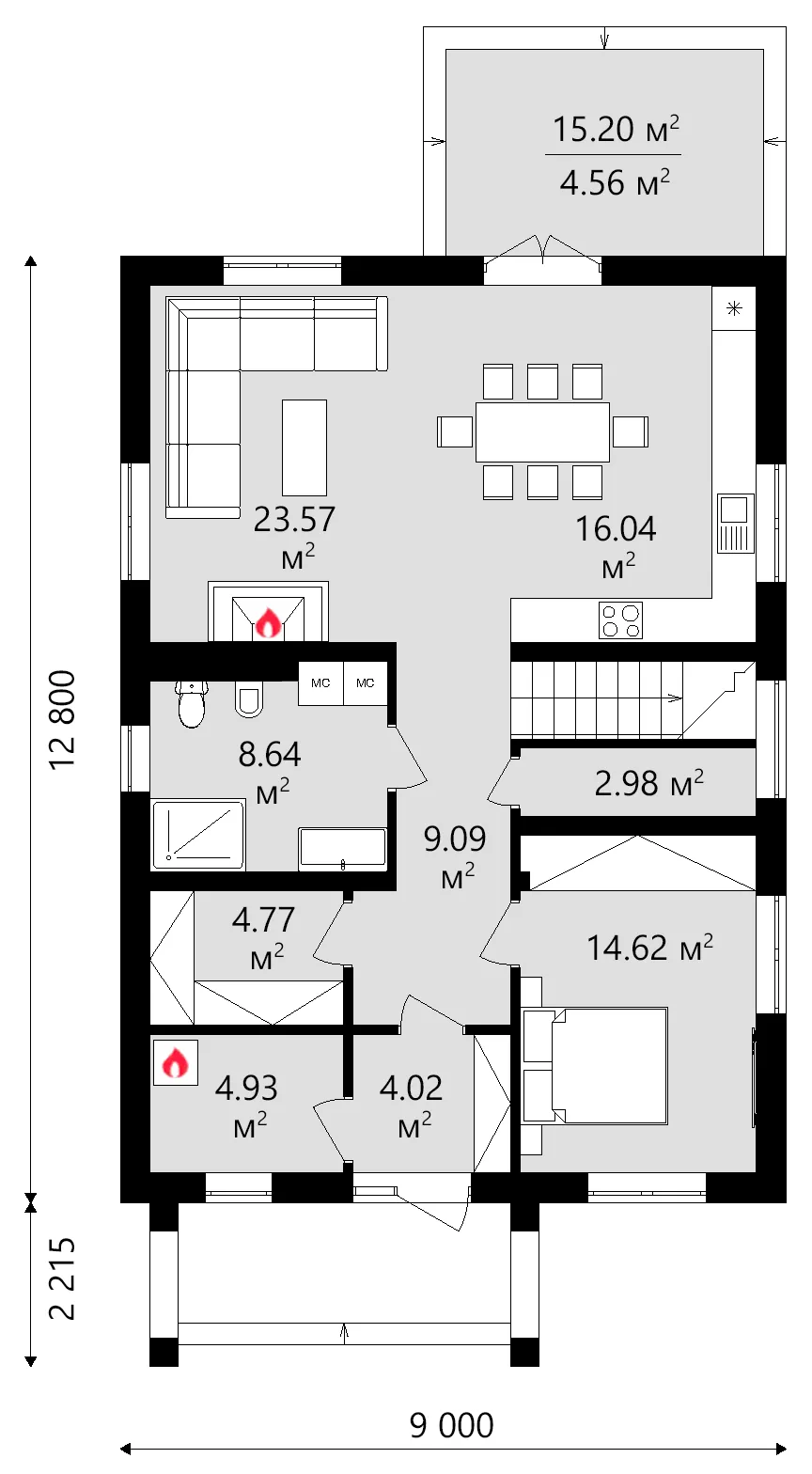

Rzuty kondygnacji
Rzut więźby dachowej
Rzut dachu
Przekroje

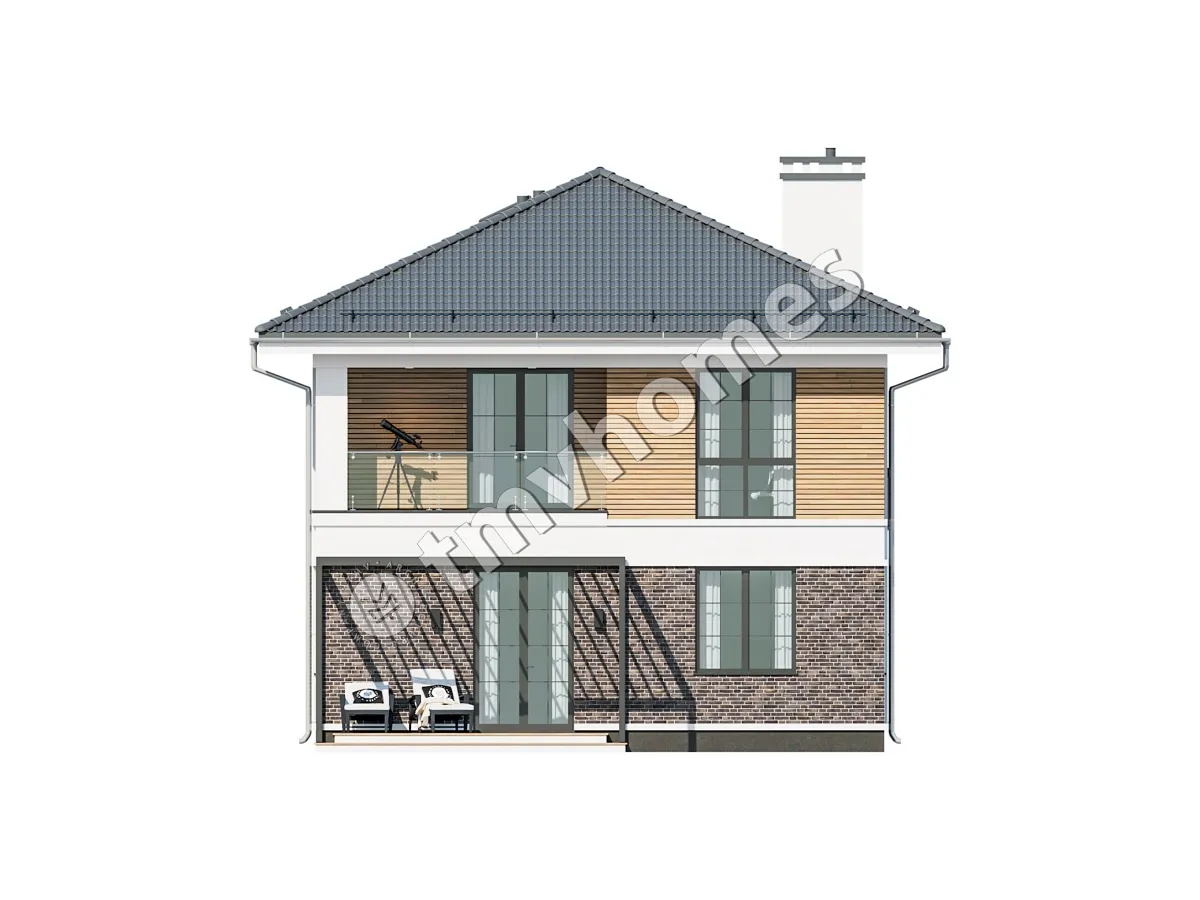

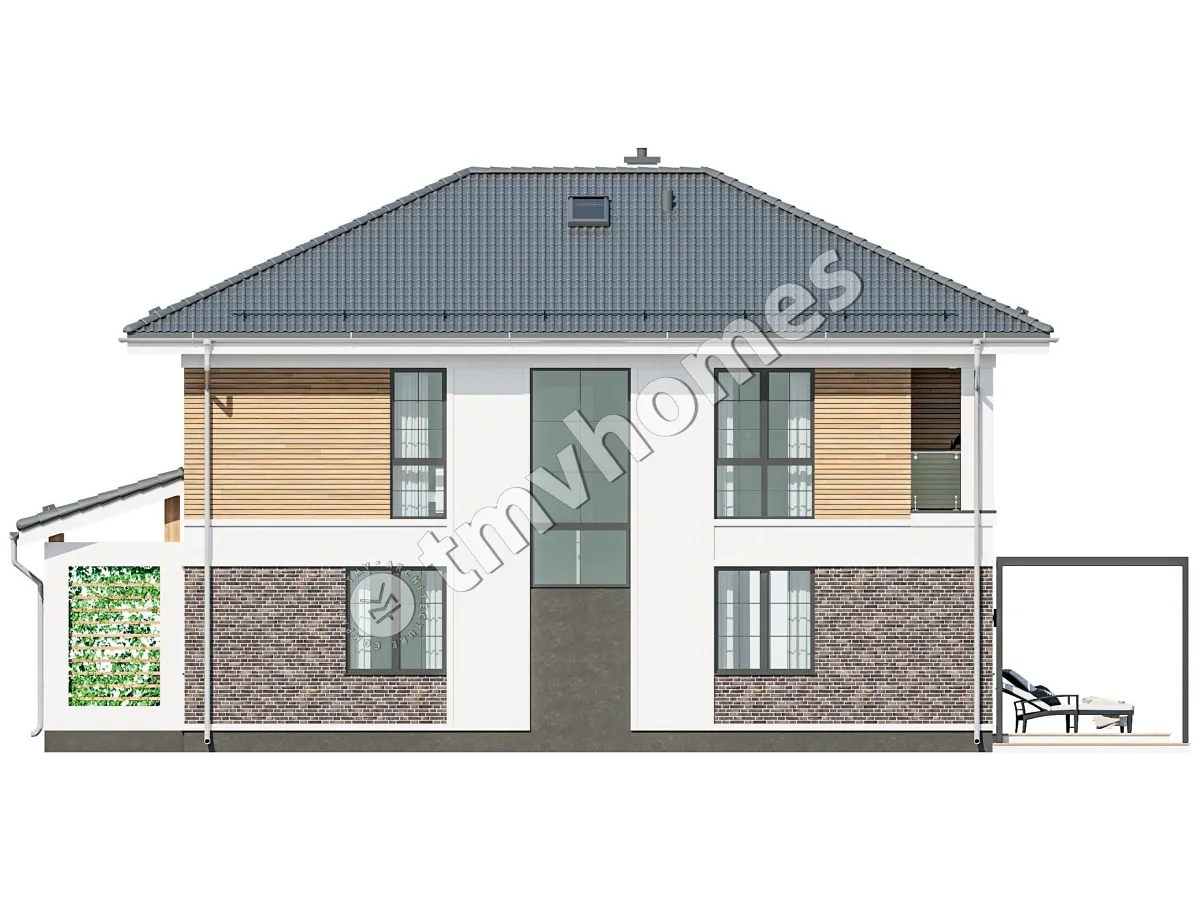

Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

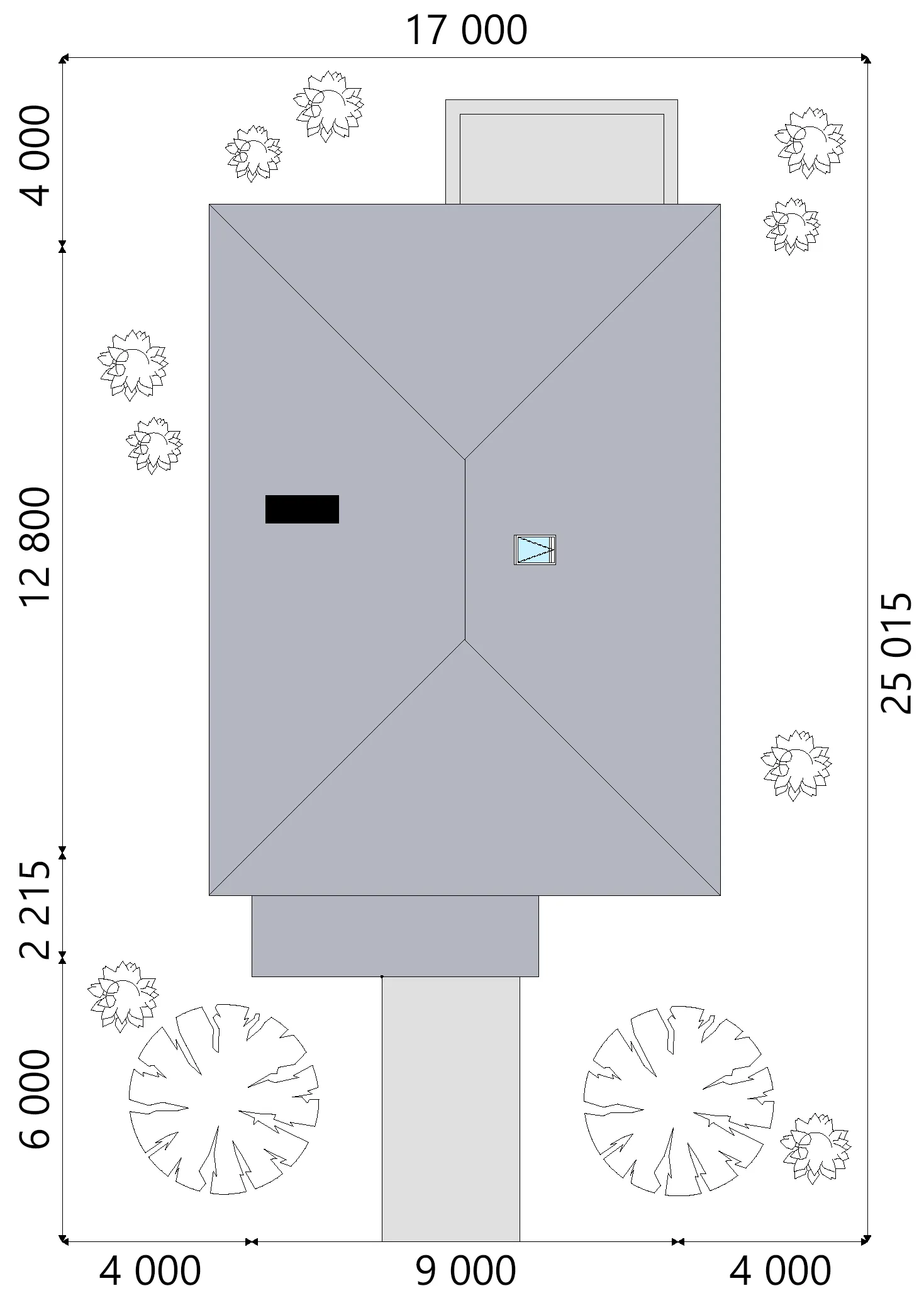

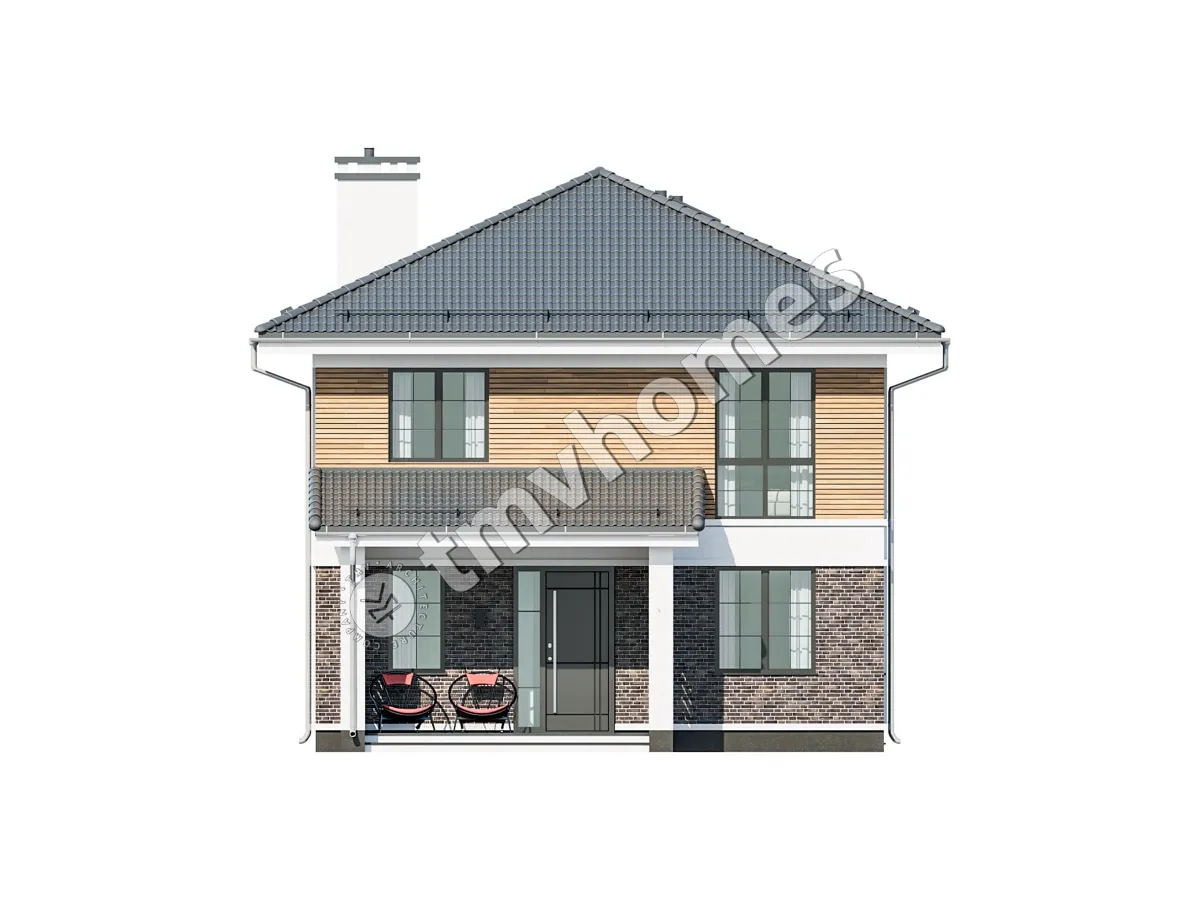

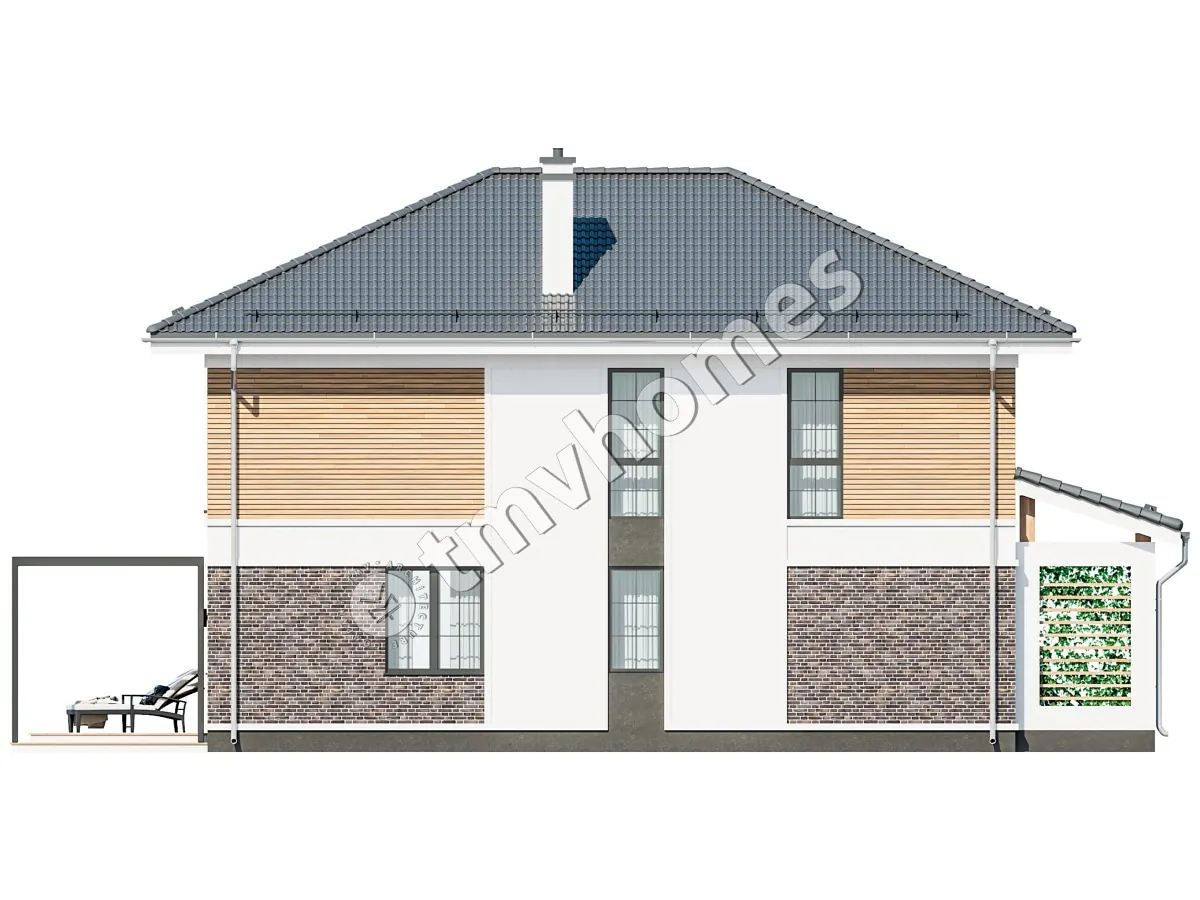

House design concept 29477C is a Traditional narrow lot 2-story single-family home with Total Heated 1,952 Sq Ft, 4 bedrooms and 3 bathrooms. Designed for 4-6 people, the house combines stone/brick veneer and wood siding with a hip roof at a 6/12 (26°) pitch and skylights. At 27'4" wide and 45'8" deep, it suits a narrow lot.
A covered front porch shelters the entry, which keeps coats and shoes out of the living space. The open floor plan joins the family room and the large kitchen, so cooking and conversation happen together. A fireplace warms the family room, the breakfast nook serves quick meals and the walk-in pantry keeps supplies close. Large and floor-to-ceiling windows fill the rooms with daylight.

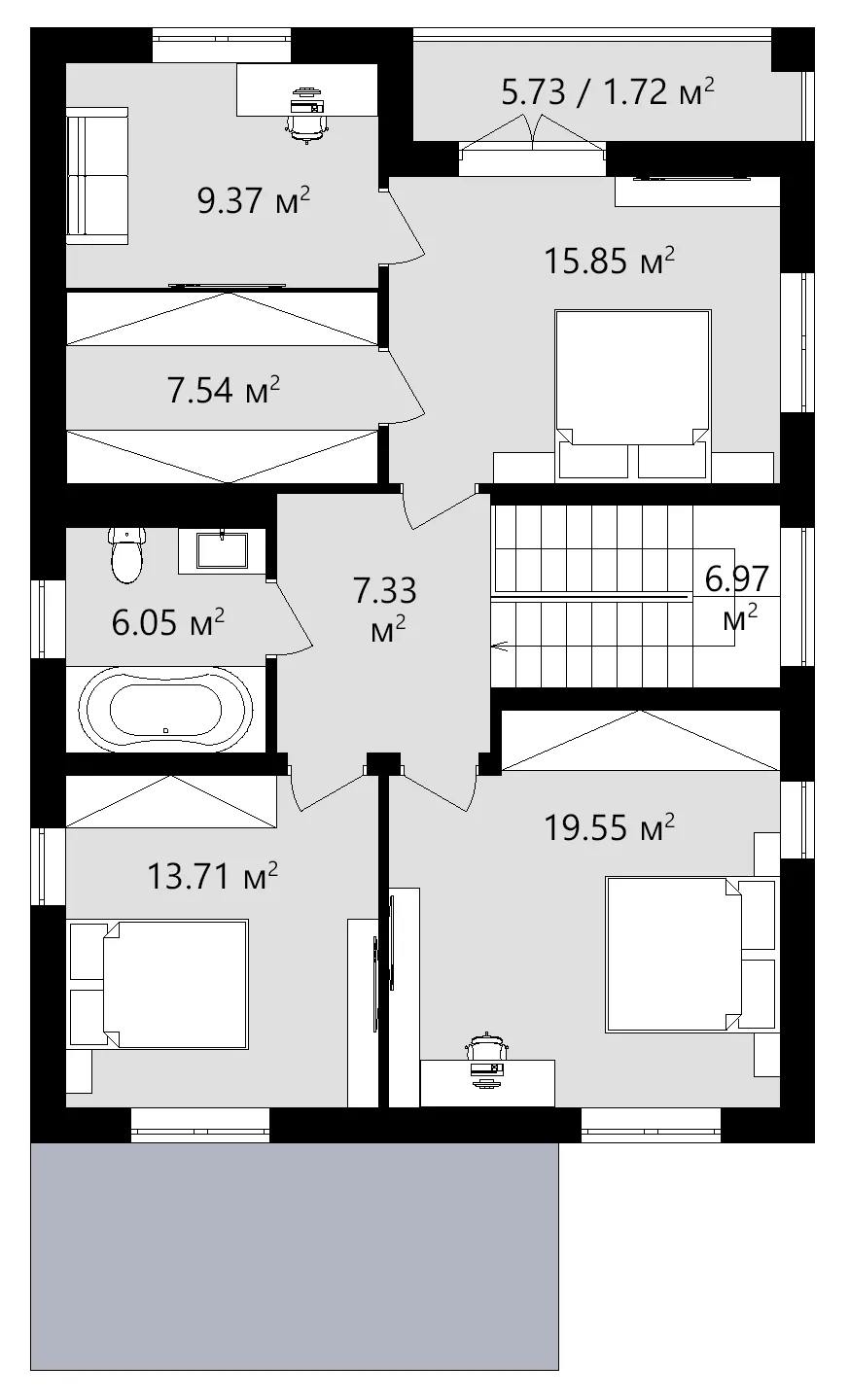

The bedrooms are clustered to keep parents and children close at night, and the primary suite on the second floor has a walk-in closet. Three full bathrooms ease the morning rush. The laundry and utility room on the main floor keep chores away from the bedrooms, and a storage room holds seasonal items.
Outside, the deck suits summer dining and the balcony offers a private spot for fresh air. The house is drawn on strip footings, with slab or concrete block foundations as options, and aerated concrete walls, with clay or calcium silicate block as alternatives. In figures: Total Heated 1,952 Sq Ft, 4 bedrooms and 3 bathrooms.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
Advanced Drafting & Design Co. Mooresville US$ 9,759
My Home Floor Plans Rosemead US$ 1,450
Plan & Simple LLC Austin US$ 3,904
