2300 Sq Ft Large House Plan with Bay Window and Rear Porch

Plan
23361R
Complete
Signed & Sealed
DC None
Key Specs
2337
Total Heated ft²
3 + 0
Baths + 1/2 Baths
5 + 0
Beds + Home Office
2
Cars
Projekt architektoniczno-budowlany zawiera

opis techniczny

rzuty wszystkich kondygnacji

rzut więźby dachowej

rzut dachu

przekroje

elewacje

Projekt techniczny zawiera

projekt konstrukcji

projekt instalacji sanitarnych

projekt instalacji elektrycznej

projekt instalacji wentylacji mechanicznej

Do projektu dodajemy bezpłatnie

teczka do przechowywania dokumentacji projektowej

dziennik budowy

tablicę informacyjną na budowę - po otrzymaniu projektu domu i wypełnieniu ankiety

zgodę na wprowadzenie zmian do projektu

dokumentację projektową w plikach pdf

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Video
Floor Plans

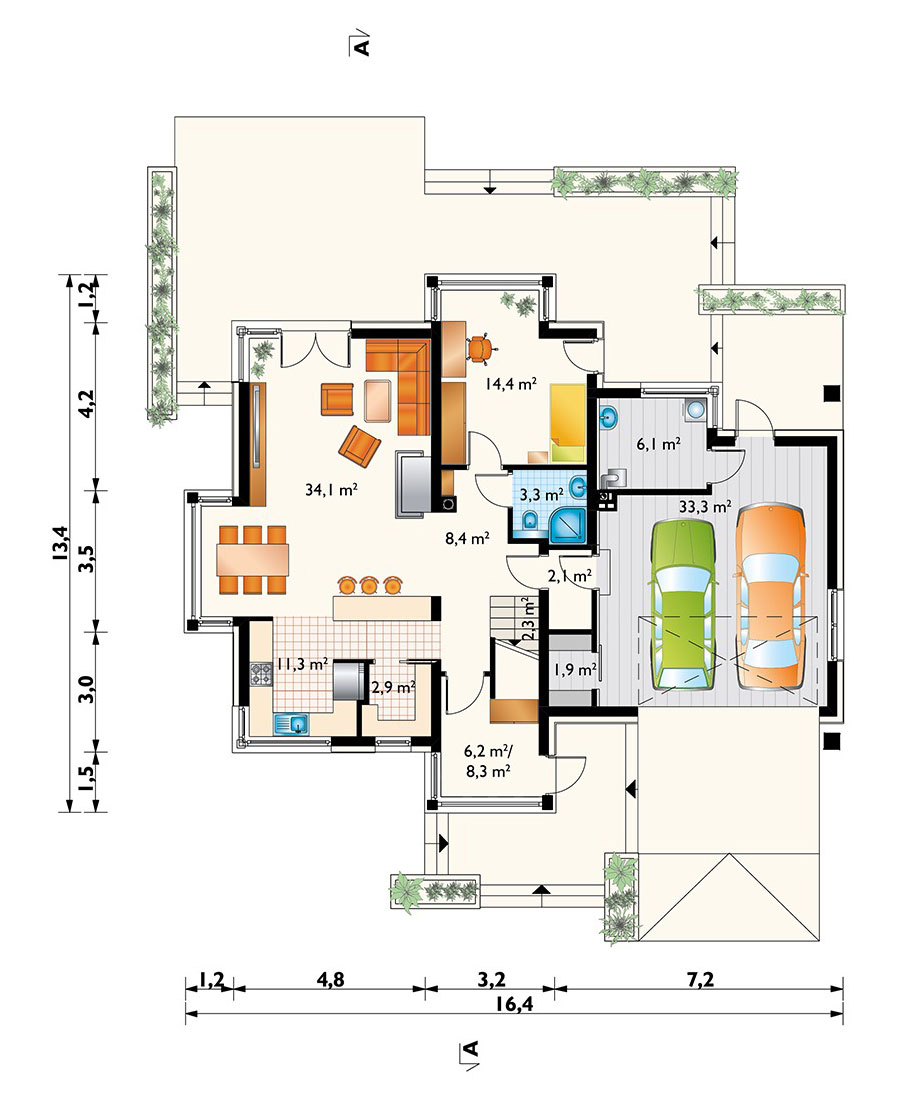

Main Floor
Main Floor 1 – 2300 Sq Ft House Plan with Bay Window and Porch

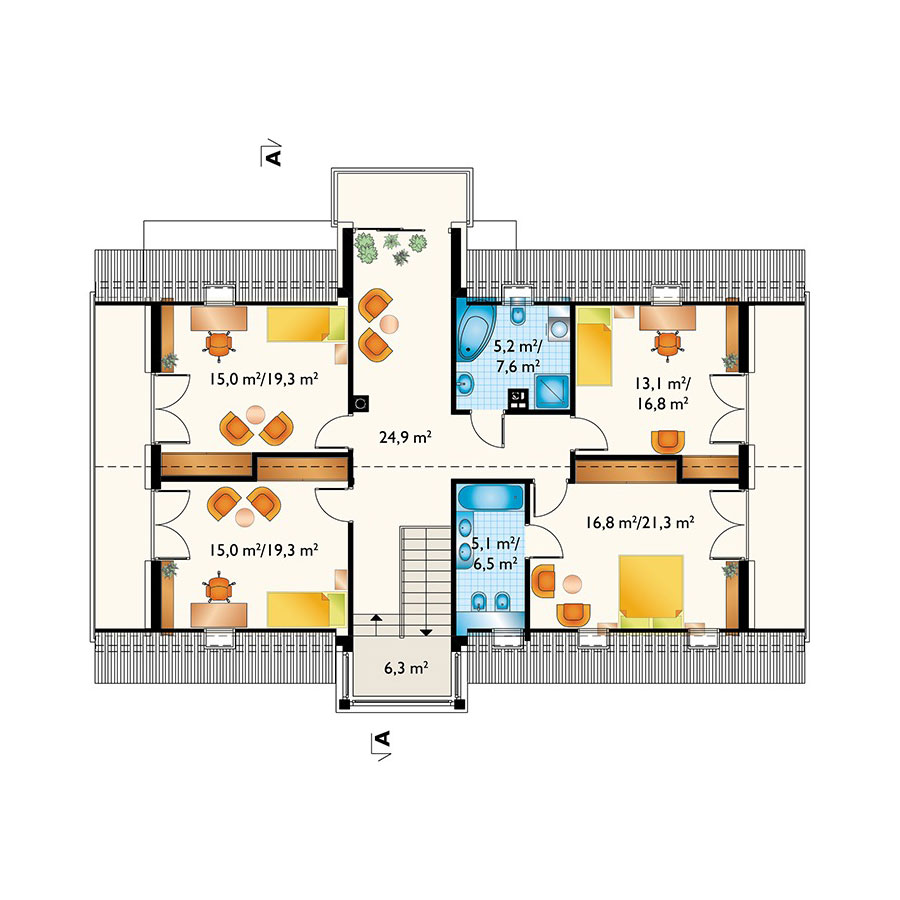

Second Floor

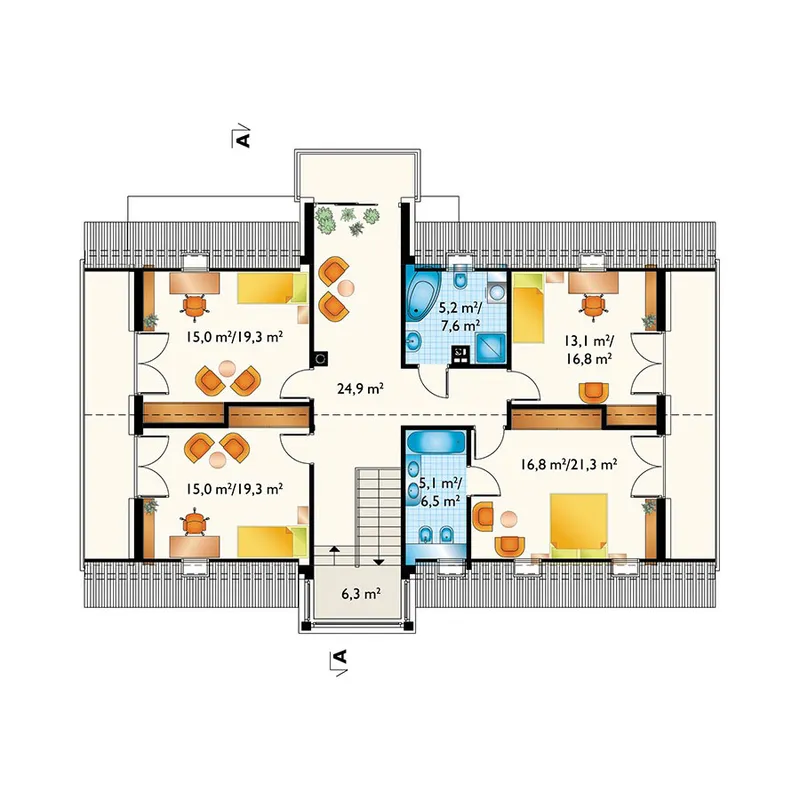

Second Floor 1 – 2300 Sq Ft House Plan with Bay Window and Porch
Full Specs & Features
Area
Total Unheated: 358.44 ft²
Total Heated: 2336.84 ft²
Dimensions
Depth: 41'1" ft
Width: 50'3" ft
Height: 26'8" ft
Garage
Area: 358 ft²
Cars: 2
Foundation
Concrete Stem Wall
Slab (Optional)
Exterior Wall Framing
Ceramic Block (Optional)
Aerated Concrete Block
Wood-framed (Optional)
Exterior Wall Materials
Wood
Stucco
Natural Stone
Rooms
Full bathrooms: 3
Bedrooms: 5
Utility room
Entry
Storage
Sunroom
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
Corner Window
Interior Features
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Exterior Features
Balcony
Deck
Bay Window
Corner Window
Large Windows
Floor-to-Ceiling Windows
Architectural Style
European
Lake
Traditional
Transitional
Roof
Roof Area: 2368.06 ft²
Gable
Skylight
Dormer
Roof Pitch: 11/12 (42°)

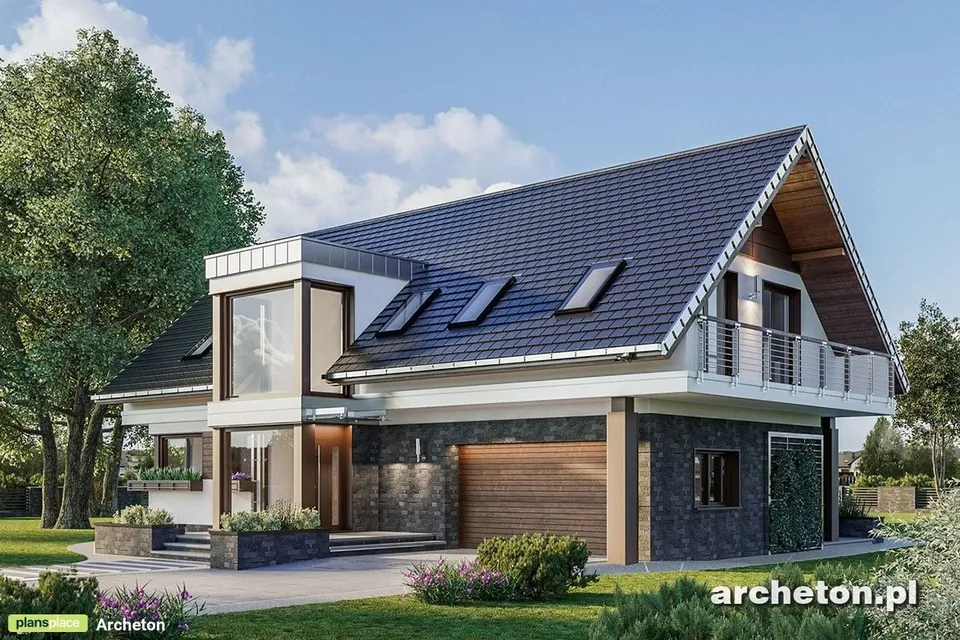

Plan 23361R is a 5-bedroom 2-story house plan of 2337 ft², shaped in a European and transitional style beneath a steep 11/12 (42°) gable roof with dormers and skylights. Wood, stucco and natural stone come together on the facades, blending traditional proportions with the relaxed spirit of a lake house plan. This single family home measures 50'3" wide and 41'1" deep, with a height of 26'8", and keeps every one of its five bedrooms within easy reach of the shared rooms.

An entry receives guests and opens onto an open floor plan where the family room, the dining area and the kitchen flow into one generous space. The large family room is anchored by a fireplace, so this is a true house plan with fireplace, made for long winter evenings together. The kitchen is built for daily use: a breakfast bar for quick meals and conversation with the cook, a breakfast nook brightened by a corner window, and a walk-in pantry that keeps supplies out of sight. A sunroom extends the living area toward the garden, while a bay window, large windows and floor-to-ceiling windows bring plenty of daylight into the home.

The master suite sits on the second floor, and the bedrooms are clustered, so parents and children stay close to one another at night. Three full bathrooms serve the five bedrooms comfortably, which means fewer morning queues even in a busy household. The practical side of the house is well covered as well, with a utility room for laundry and household equipment and dedicated storage that helps keep the main rooms uncluttered.

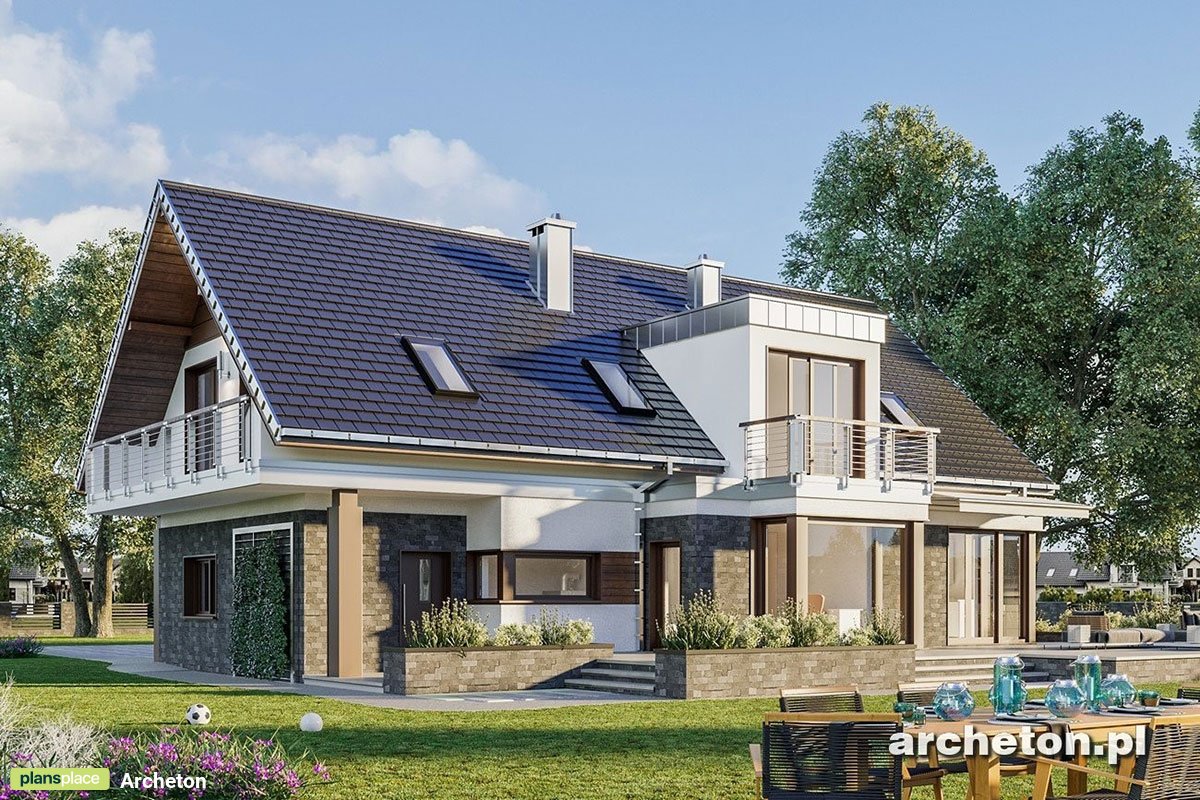

Outside, a deck offers space for outdoor dining and summer afternoons, and a balcony adds a private spot to enjoy the view from the upper floor. The house has a two-car garage for vehicles and gear. There is no basement: the home rests on strip footings, and it is also available with a slab foundation. The exterior walls are designed in aerated concrete block, with clay block or wood frame construction available on request.

Architect
Archeton Archeton Architecture Firm country with code pl Poland
country with code pl Poland
Lesser Poland Voivodeship, Kraków, ul. Cystersów 9
Plan Package

The house plan might not adhere to the building codes of your country.

The architect does not sell digital concept or construction documents for your country. You can check the “Building codes match” box and view the Plan Package for the architect’s home country.
