2,411 Sq Ft Narrow Lot 1.5-Story Barndominium Plan with 3 Bedrooms and 3 Bathrooms

Plan
27952C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2411
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 1
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans
Main Floor

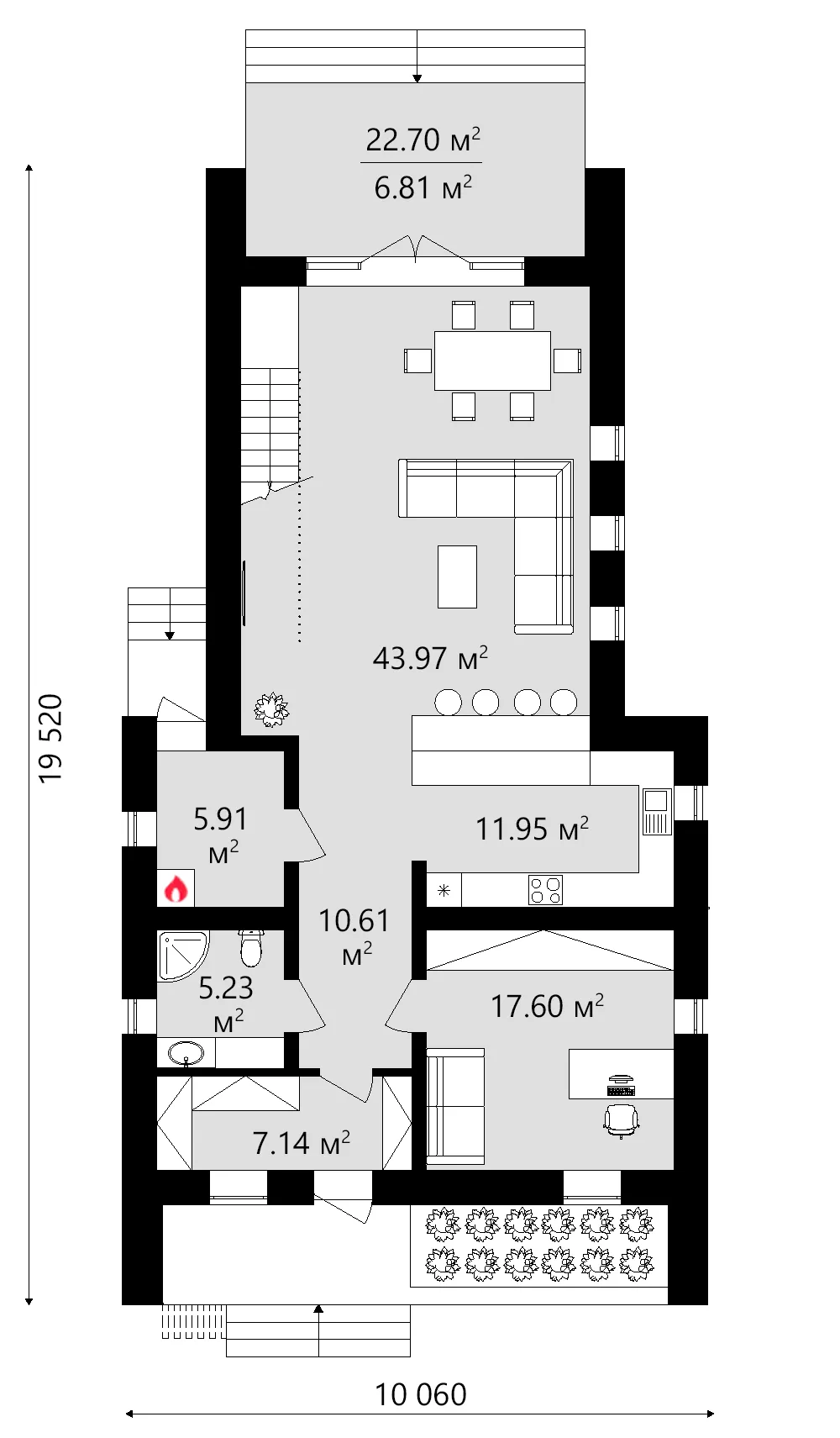

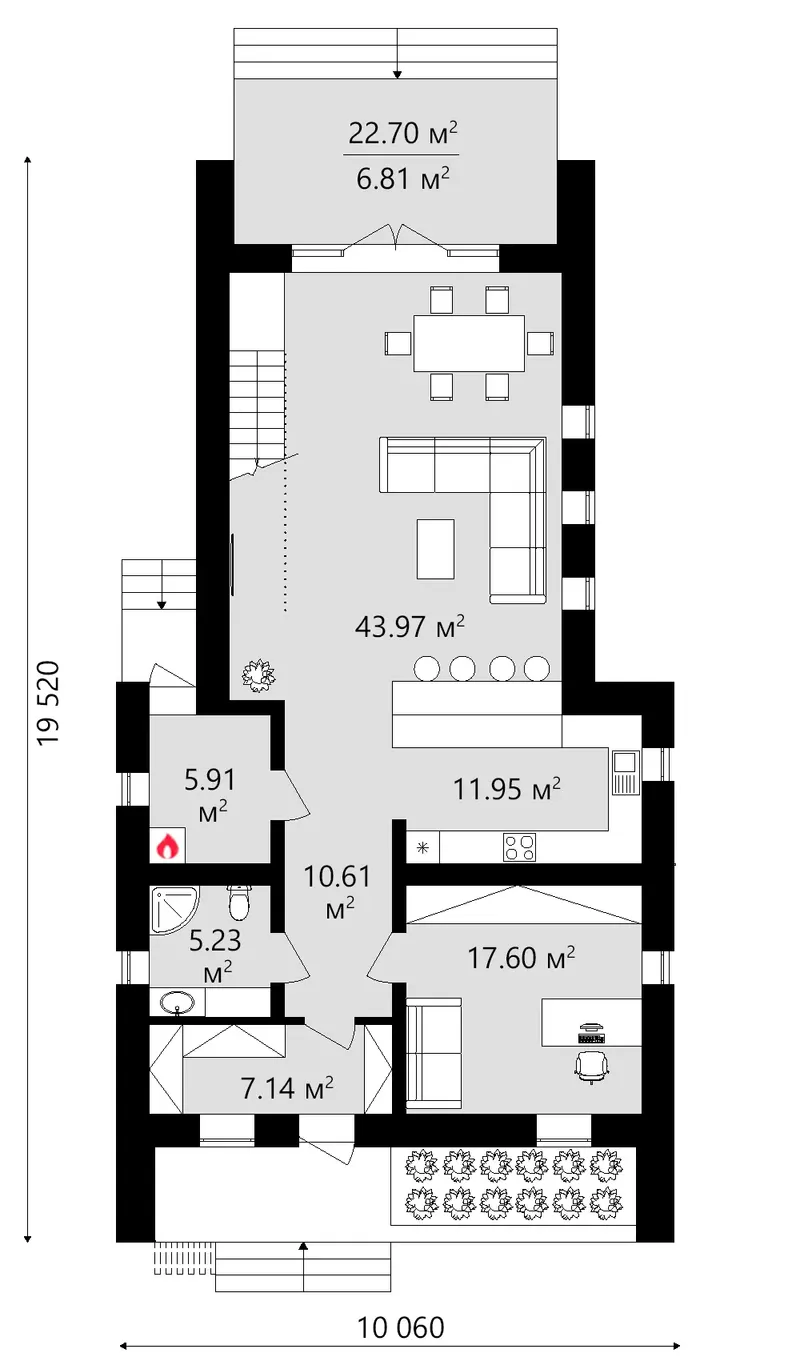

Main Floor 13 – 2,411 Sq Ft 1.5-Story Barndominium Plan with 3 Bedrooms and 3 Bathrooms – 27952C
Second Floor

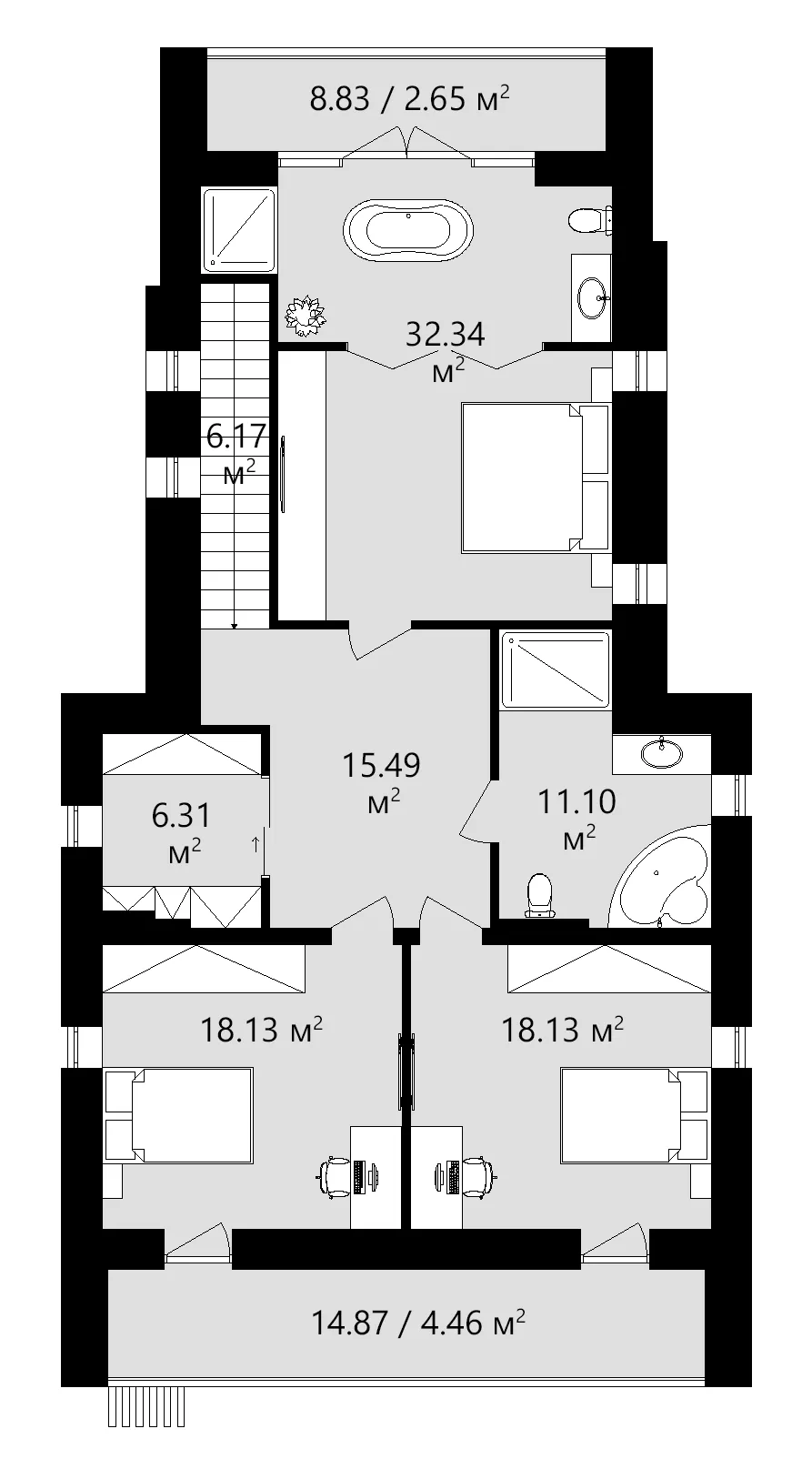

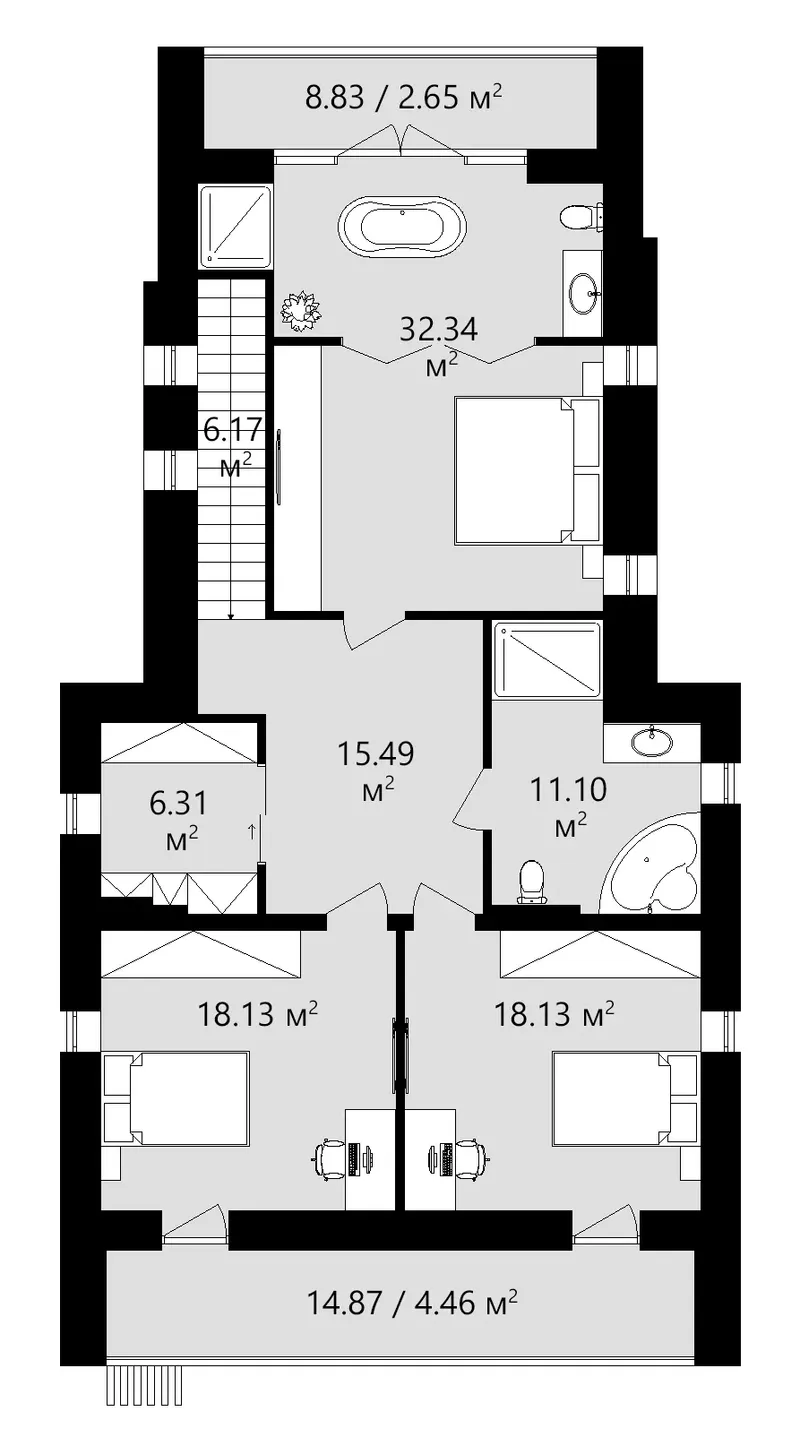

Second Floor 14 – 2,411 Sq Ft 1.5-Story Barndominium Plan with 3 Bedrooms and 3 Bathrooms – 27952C
Full Specs & Features
Area
Total Heated: 2411.22 ft²
Dimensions
Depth: 59'5" ft
Width: 30'7" ft
Height: 28'1" ft
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Wood
Metal Panels
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Entry
Home Office
Kitchen and Dining
Breakfast bar
Island
Interior Features
Second Floor Master
Split Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Vaulted ceilings
Exterior Features
Balcony
Stacked Porches
Deck
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Barn
Contemporary
European
Modern
Roof
Roof Area: 1979.27 ft²
Gable
Ridge perpendicular to street
Roof Pitch: 5/12 (22°)

Design 27952C is a narrow lot 1.5-story barndominium with 3 bedrooms and 3 bathrooms for a family of 3-4 people, available for purchase as a digital house design concept. The single-family home has a total heated area of 2,411 Sq Ft on a footprint 30'7" wide and 59'5" deep, so it fits a narrow lot. The gable roof with a 5/12 pitch runs its ridge perpendicular to the street, and wood siding paired with metal panels gives the facade its barn character.

A separate entry keeps coats and shoes out of the living space. The open floor plan joins a large great room and a large kitchen under vaulted ceilings, which add volume to the narrow layout. The kitchen island with a breakfast bar works for meal prep and quick breakfasts, while large and floor-to-ceiling windows bring daylight deep into the house. A home office on the main floor gives a separate place for remote work or study.

The primary suite sits upstairs under the roof, and the split bedroom layout keeps it apart from the two other bedrooms, giving parents and children more privacy. Three full bathrooms end the morning queue, and the utility room keeps household equipment out of the living areas.

Stacked porches with a balcony on the upper floor, together with a deck, add outdoor living space on both levels. The project uses strip footings, with a slab or concrete block foundation as options to suit the soil. The exterior walls are aerated concrete block, with clay block or sand-lime block as alternatives. In figures: a total heated area of 2,411 Sq Ft, 3 bedrooms and 3 bathrooms.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
