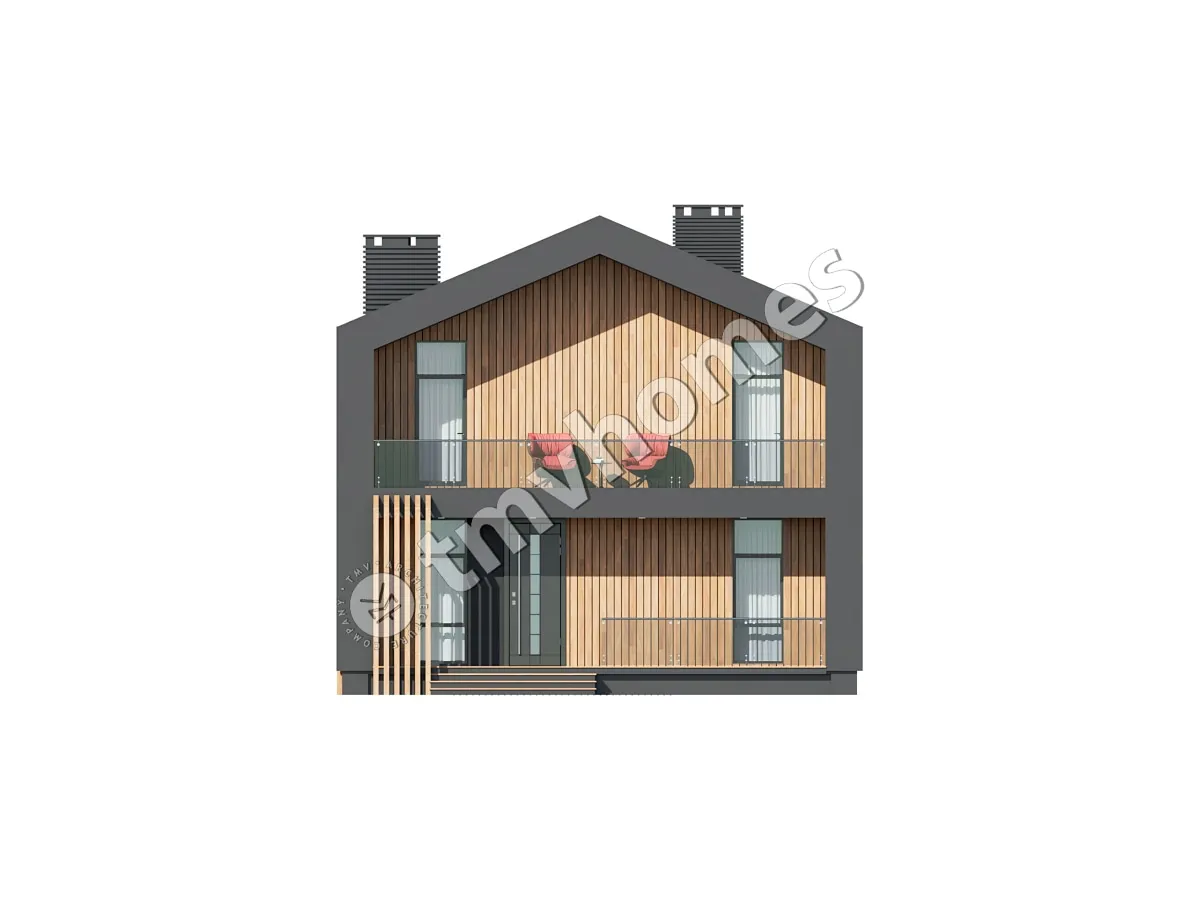

Renderings 3 – 2,230 Sq Ft Modern 1.5-Story House Plan with 2 Bedrooms and 2 Bathrooms – 72449C Renderings 4 – 2,230 Sq Ft Modern 1.5-Story House Plan with 2 Bedrooms and 2 Bathrooms – 72449C
7
Concept
Construction documents are prepared for the following countries:

2,230 Sq Ft Modern Narrow Lot 1.5-Story House Plan with 2 Bedrooms and 2 Bathrooms

Plan
72449C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2230
Total Heated ft²
2 + 0
Baths + 1/2 Baths
2 + 1
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans
Main Floor

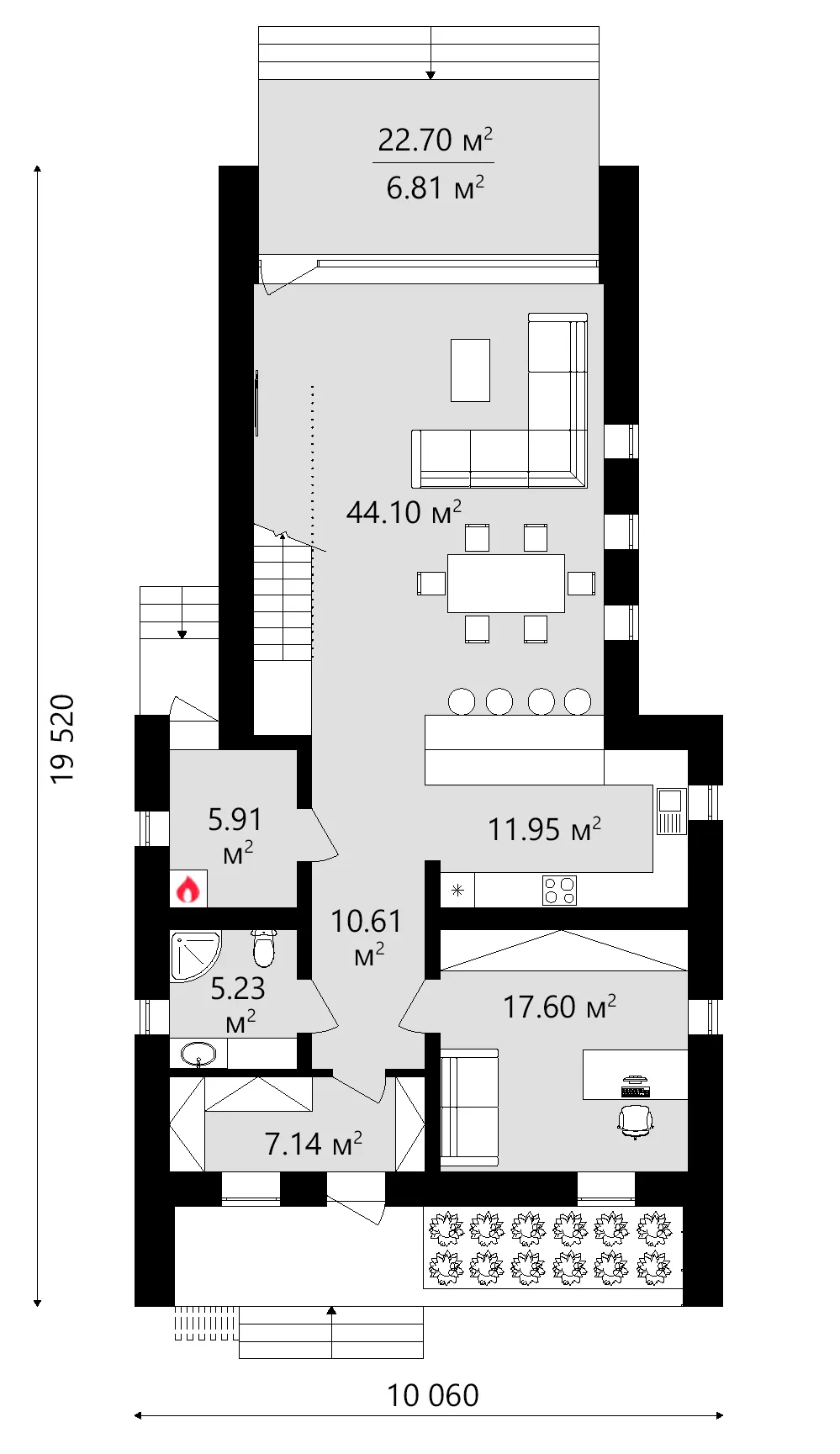

Main Floor 12 – 2,230 Sq Ft Modern 1.5-Story House Plan with 2 Bedrooms and 2 Bathrooms – 72449C

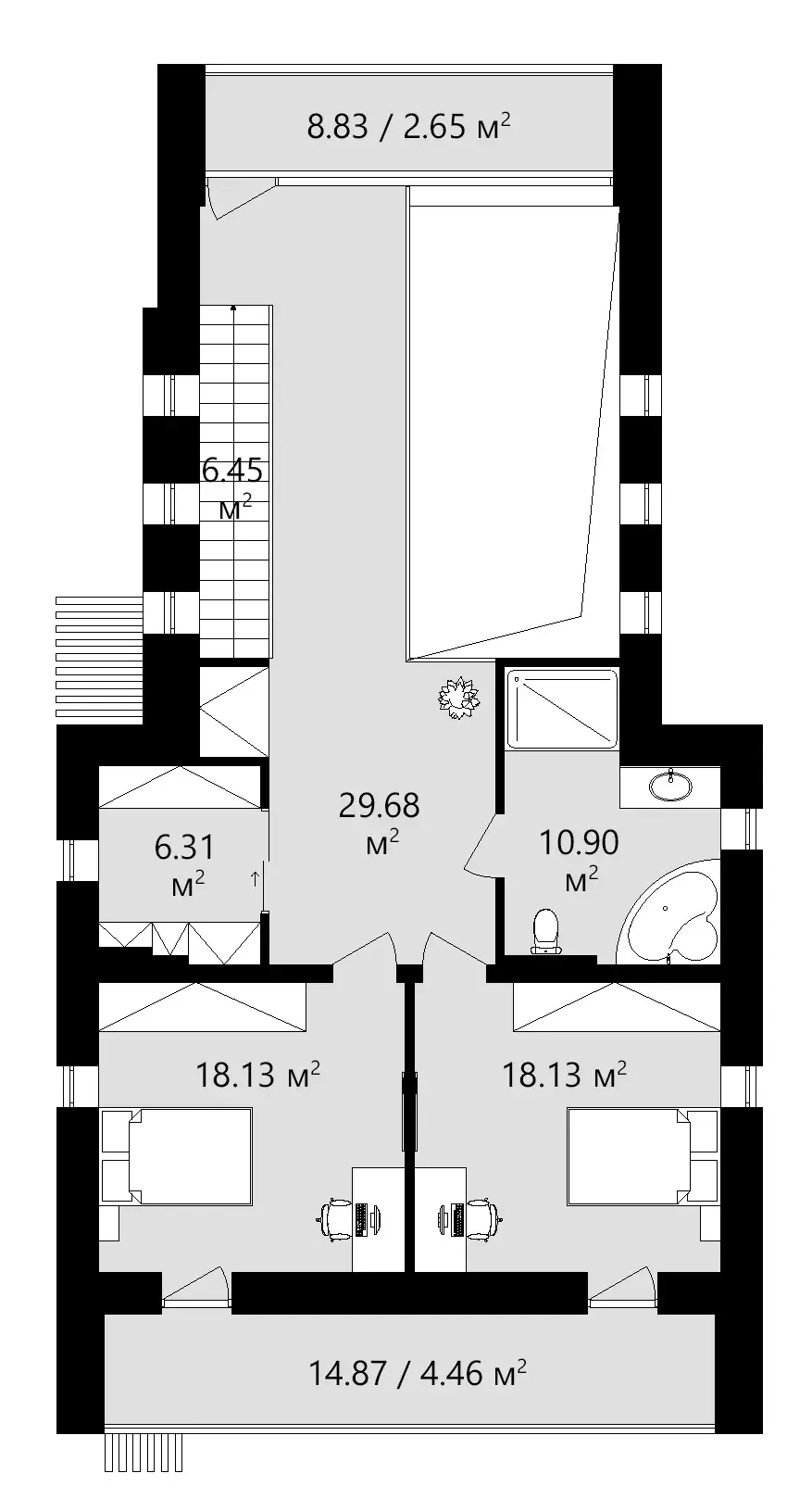

Second Floor
Second Floor 13 – 2,230 Sq Ft Modern 1.5-Story House Plan with 2 Bedrooms and 2 Bathrooms – 72449C
Full Specs & Features
Area
Total Heated: 2230.07 ft²
Dimensions
Depth: 59'5" ft
Width: 30'7" ft
Height: 28'1" ft
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Wood
Metal Panels
Rooms
Full bathrooms: 2
Bedrooms: 2
Utility room
Entry
Home Office
Kitchen and Dining
Breakfast bar
Breakfast Nook
Island
Interior Features
Clustered Bedrooms
Open to Below
Loft
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Balcony
Stacked Porches
Deck
Panoramic Windows
Window Walls
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Barn
Contemporary
European
Modern
Roof
Roof Area: 1979.27 ft²
Gable
Ridge perpendicular to street
Roof Pitch: 5/12 (22°)

House design concept 72449C, available for purchase as a digital house design concept, is a modern 1.5-story single-family home for a narrow lot with Total Heated 2,230 Sq Ft, 2 bedrooms and 2 bathrooms, sized for 2-3 people. The gable roof has a 5/12 (22°) pitch, and its ridge runs perpendicular to the street, so the house, 30'7" wide and 59'5" deep, fits a narrow lot.

An entry keeps coats and shoes out of the living area. The open floor plan joins a large great room with a large kitchen, so cooking and conversation share one space. The island adds work surface, the breakfast bar serves quick meals, and the breakfast nook holds everyday dining. Above the great room the space is open to below, and floor-to-ceiling windows, window walls, panoramic windows and large windows fill it with daylight. A home office on the main floor gives a quiet place to work.

Upstairs, the loft overlooks the great room and serves as a spot for reading or a second sitting area. The two bedrooms are clustered together for a compact night zone, and two full bathrooms shorten the morning wait. A utility room keeps the household equipment in one place.

Stacked porches and a balcony give outdoor space on both levels, while the deck extends the living area into the yard. The exterior of wood and metal panels pairs natural warmth with durability. The main foundation is strip footings, with a slab or a concrete block foundation as options; the exterior walls are aerated concrete block, with ceramic block or calcium silicate block as alternatives. In figures: Total Heated 2,230 Sq Ft, 2 bedrooms and 2 bathrooms.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
