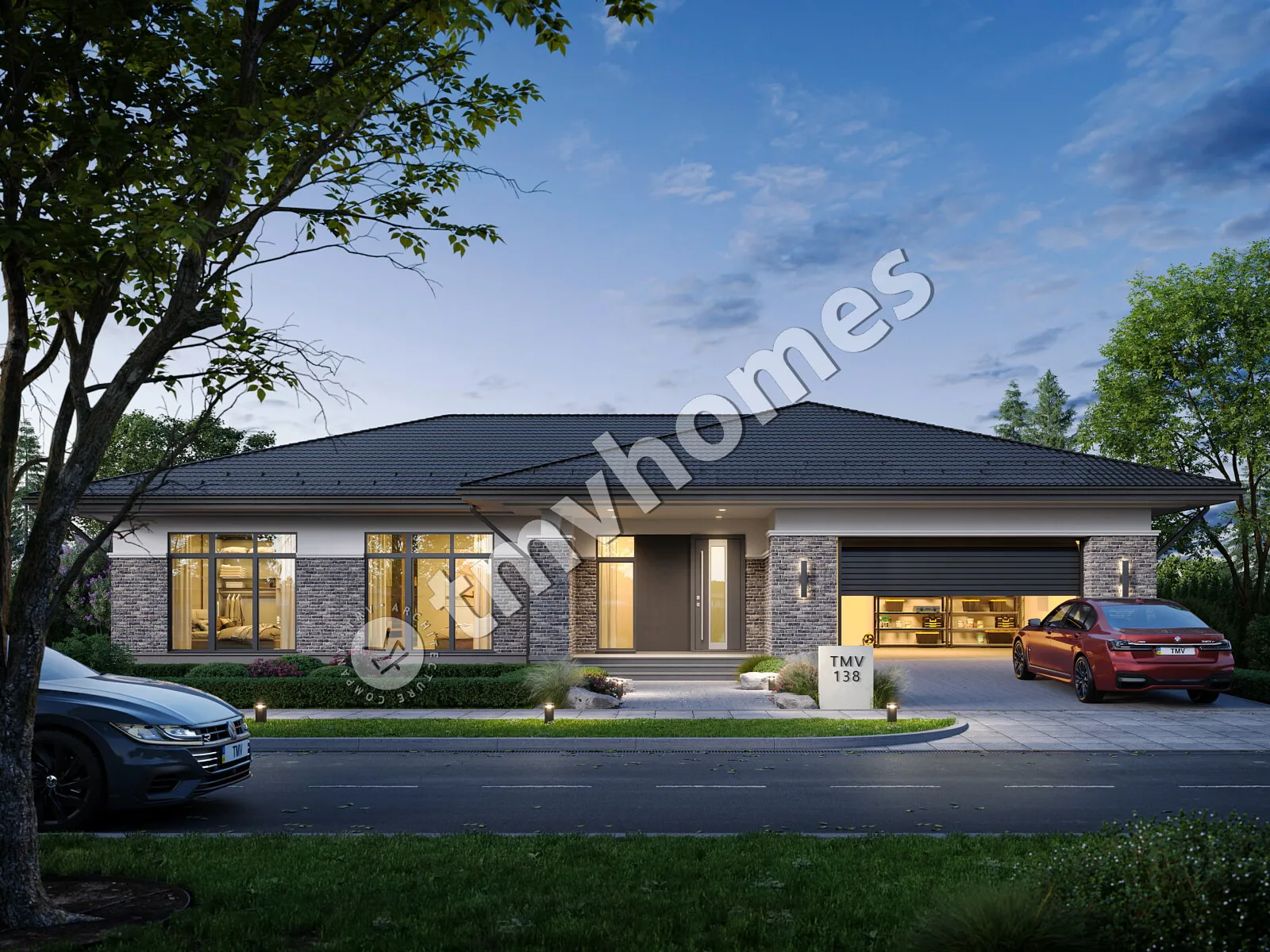

Renderings 2 – 2,299 Sq Ft Modern Single-Story House Plan with 3 Bedrooms and 3 Bathrooms – 31806C
Renderings 3 – 2,299 Sq Ft Modern Single-Story House Plan with 3 Bedrooms and 3 Bathrooms – 31806C Renderings 4 – 2,299 Sq Ft Modern Single-Story House Plan with 3 Bedrooms and 3 Bathrooms – 31806C
5
Concept
Construction documents are prepared for the following countries:

2,299 Sq Ft Modern Single-Story House Plan with 3 Bedrooms, 3 Bathrooms and 2-Car Garage

Plan
31806C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2299
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
2
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

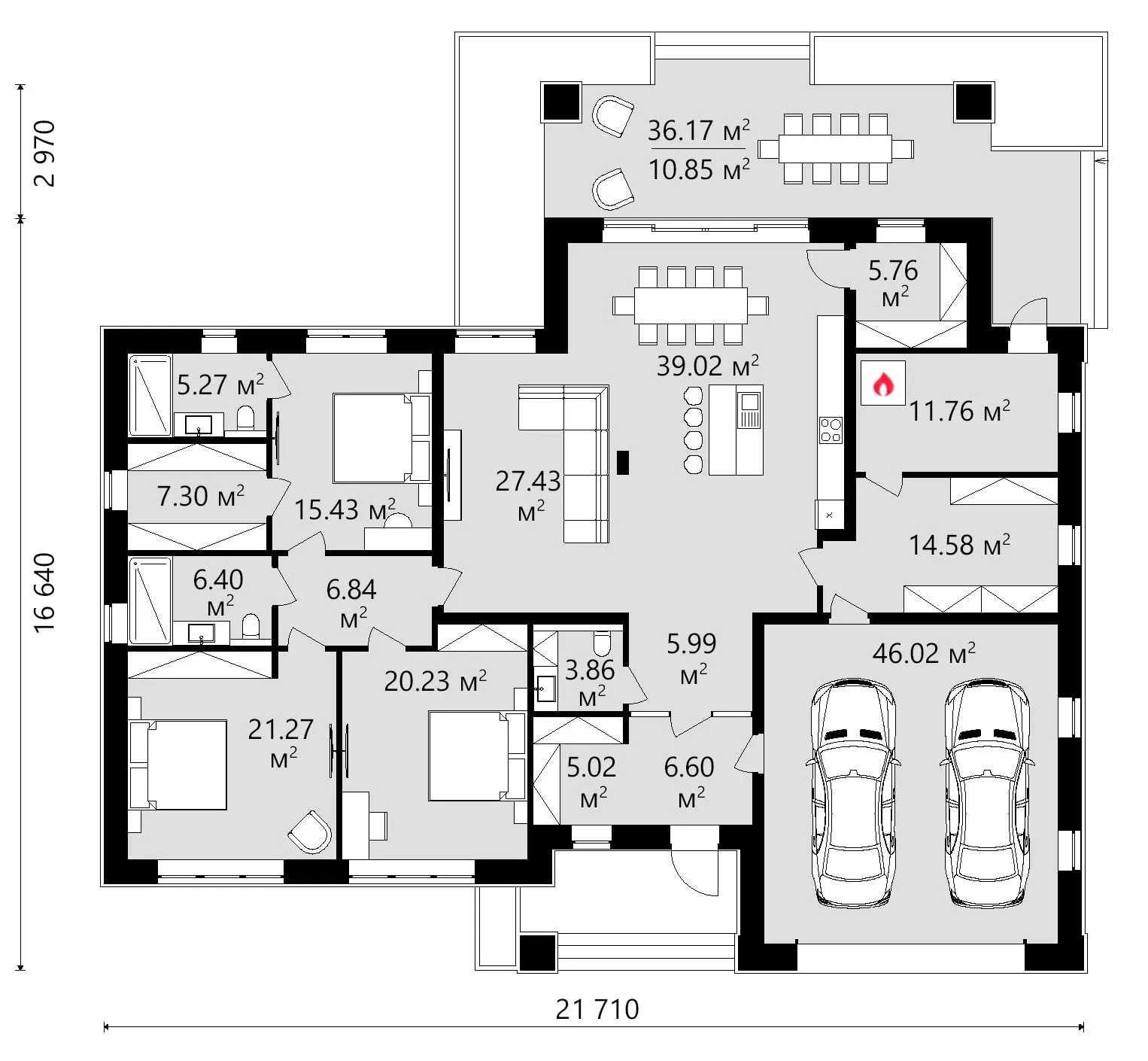

Floor Plans
Main Floor
Main Floor 11 – 2,299 Sq Ft Modern Single-Story House Plan with 3 Bedrooms and 3 Bathrooms – 31806C
Full Specs & Features
Area
Total Unheated: 495.36 ft²
Total Heated: 2299.28 ft²
Dimensions
Depth: 59'8" ft
Width: 66'2" ft
Height: 20'0" ft
Garage
Area: 495 ft²
Cars: 2
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Stucco
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Entry
Storage
Walk In Closet
Kitchen and Dining
Breakfast bar
Breakfast Nook
Island
Interior Features
Main Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Rear Porch
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
European
Modern
Transitional

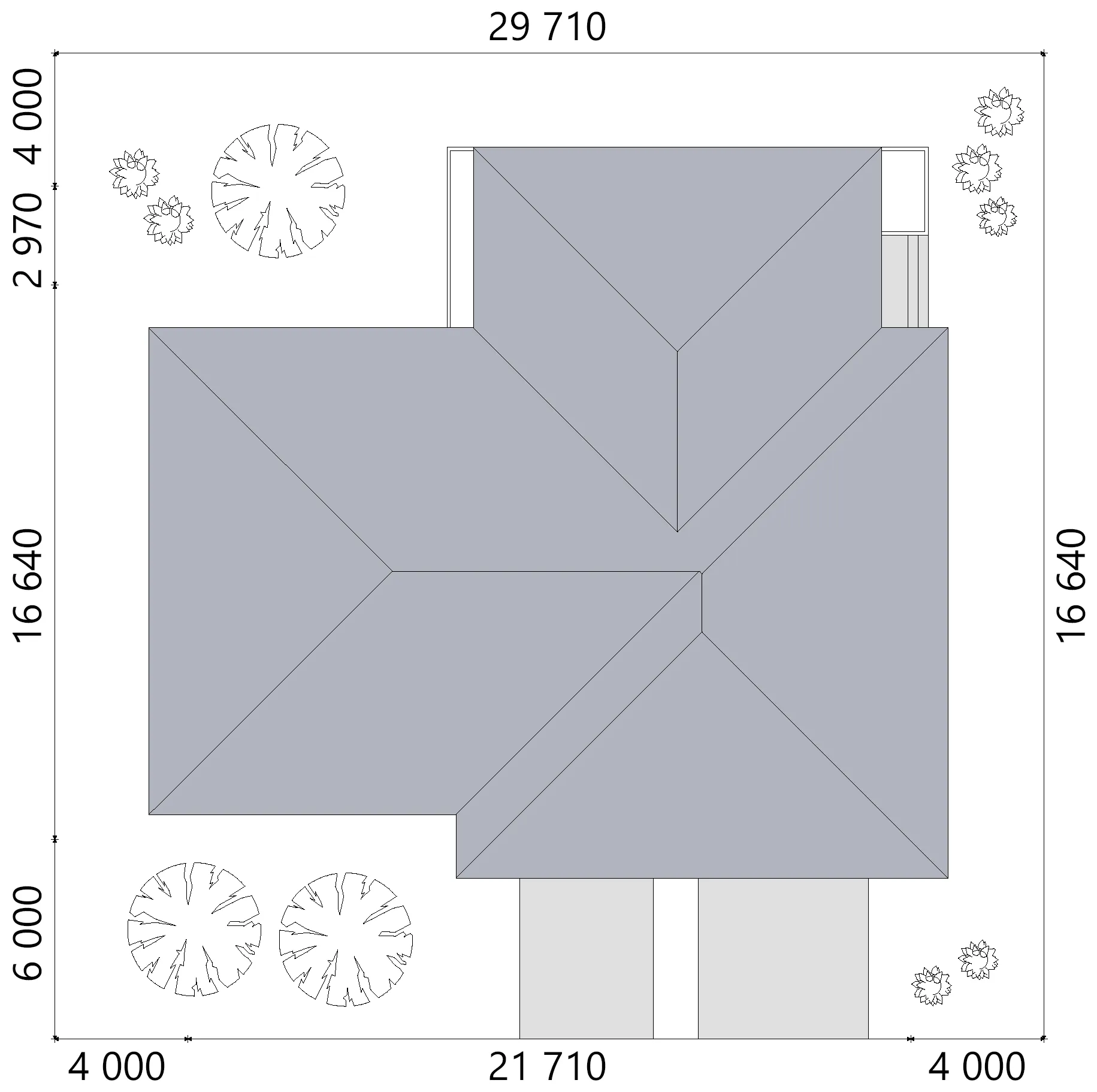

Roof
Roof Area: 5150.85 ft²
Hip & Valley
Roof Pitch: 5/12 (22°)

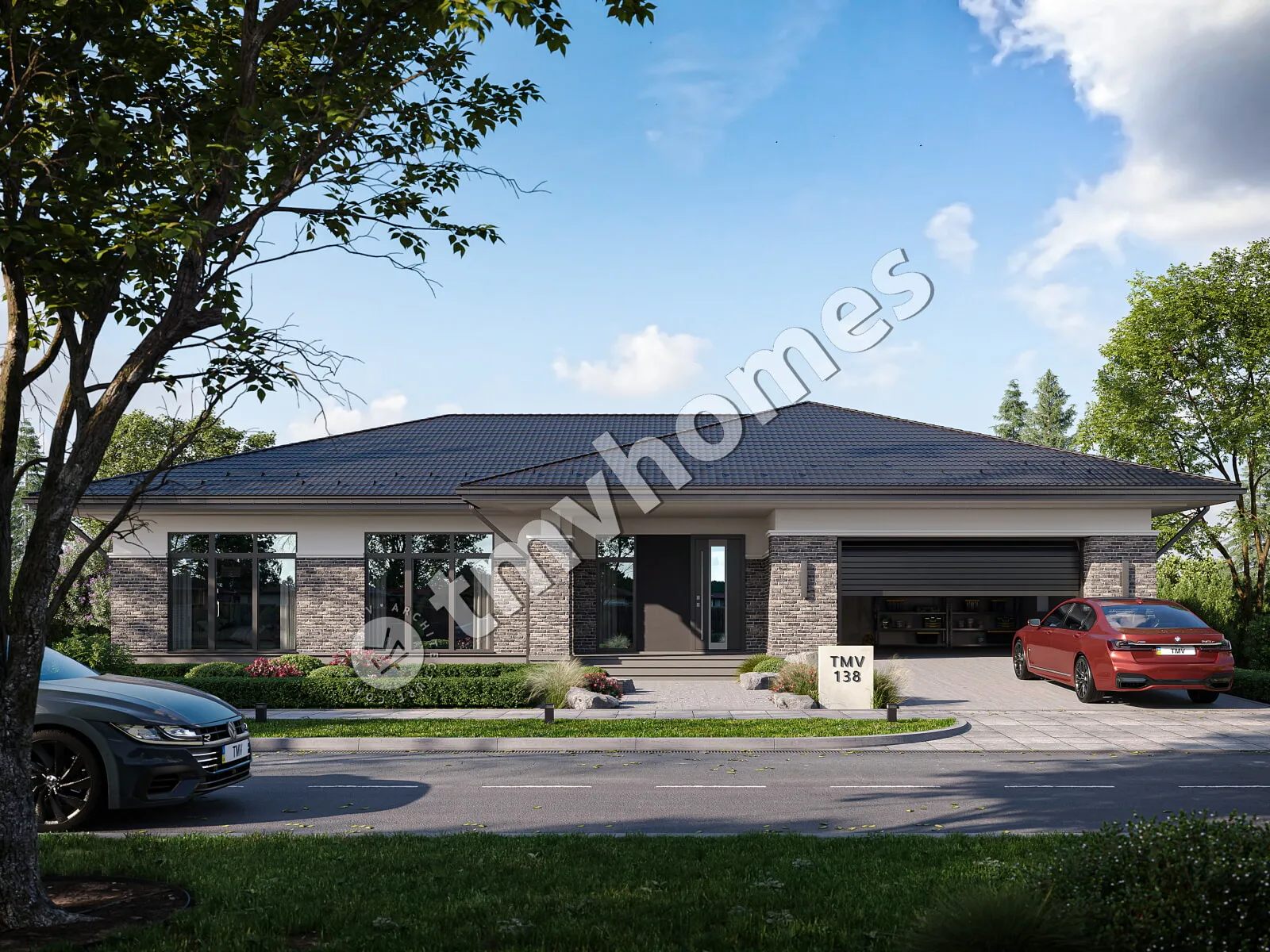

This modern single-story house design concept 31806C, available for purchase as a digital house design concept, offers Total Heated 2,299 Sq Ft, 3 bedrooms, 3 bathrooms and a 2-car garage. Designed as a single-family home for 3-4 people, the house keeps every room on one level, so daily life runs without stairs. The hip and valley roof gives it a balanced silhouette from every side.

A defined entry leads into an open floor plan where the great room and the kitchen share one space, so whoever cooks stays part of the conversation. The large kitchen has an island and a breakfast bar for quick meals, while the breakfast nook handles everyday dinners. Large windows and floor-to-ceiling windows bring daylight deep into the living area.

The bedrooms are clustered together, keeping the whole family close at night. The main floor primary suite includes a walk-in closet that keeps clothing out of the sleeping area, and three full bathrooms mean no morning lines. A utility room takes household chores away from the living spaces, and a storage room keeps seasonal items out of sight.

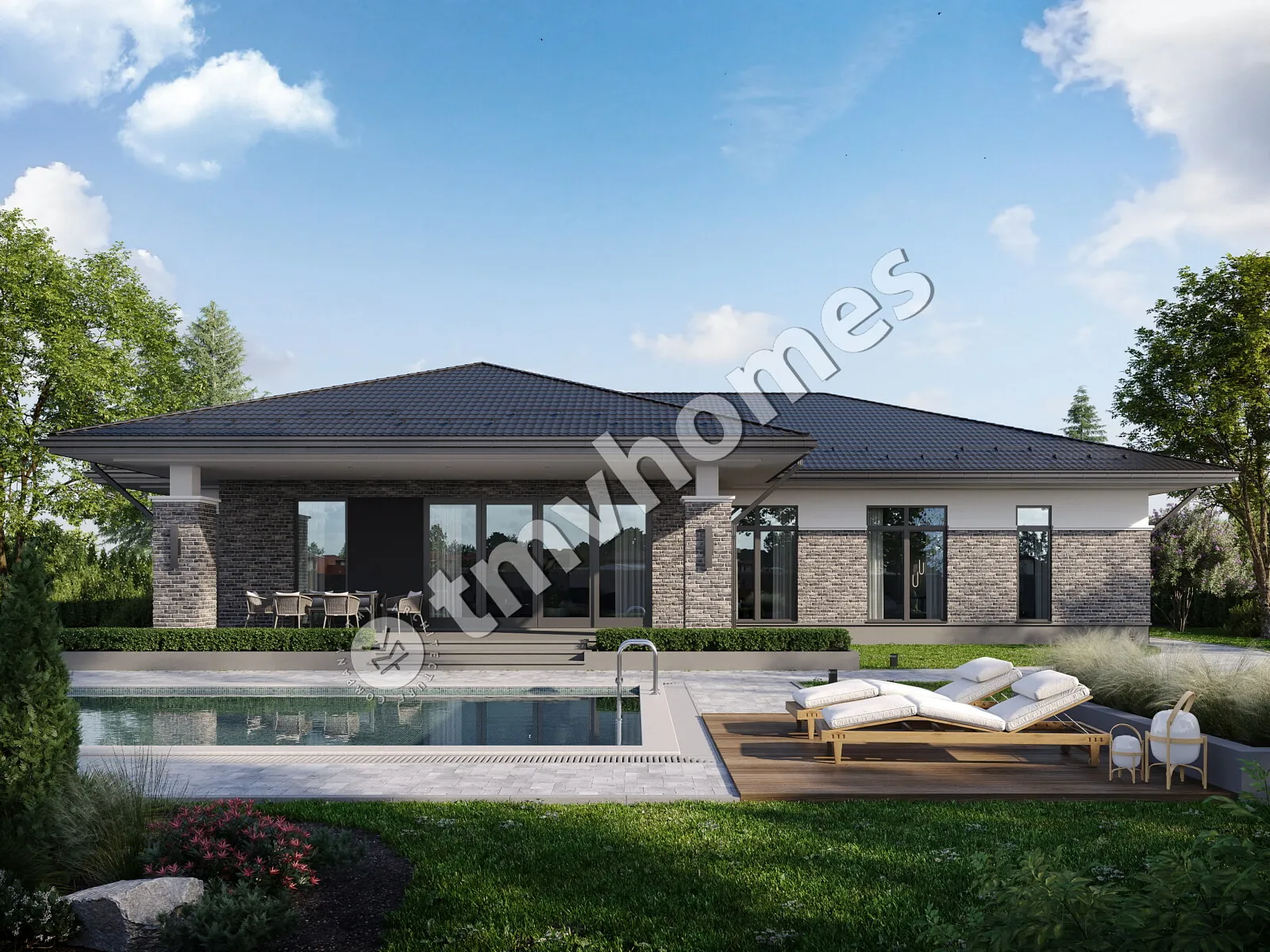

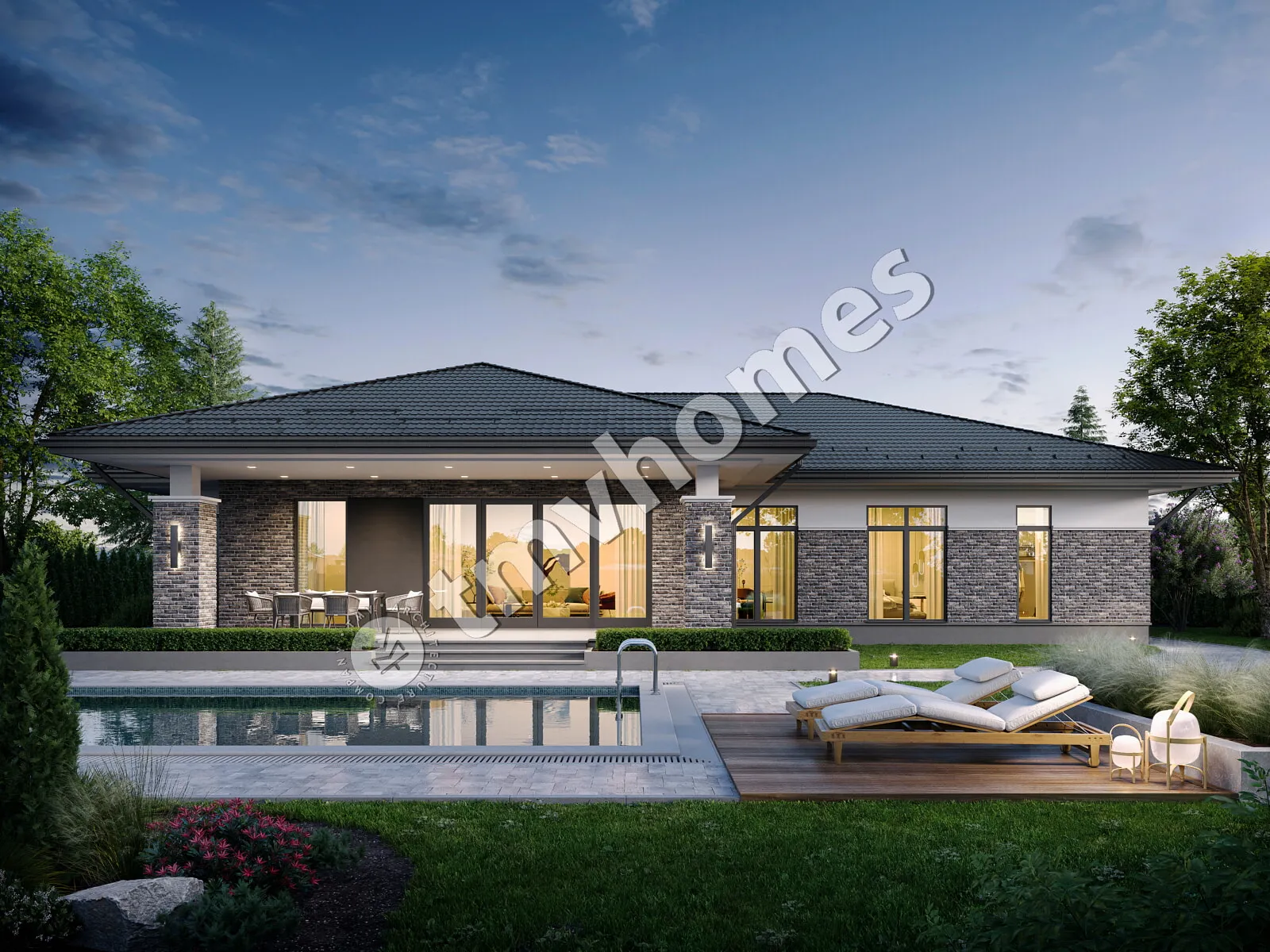

The covered rear porch extends living outdoors in any weather. The front-entry 2-car garage gives a short, direct route from the street. Exterior walls are built of aerated concrete block, with ceramic hollow block or sand-lime block as alternatives, and finished in stone/brick veneer and stucco. The house stands on strip footings, with a slab or a concrete block foundation as options. The layout measures 66'2" wide and 59'8" deep. In short: Total Heated 2,299 Sq Ft, 3 bedrooms, 3 bathrooms and a 2-car garage.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
