3-Story Modern Duplex House Plan with 3-Bed, 3-Bath Units and Carports – 1,354 Sq Ft per Unit

Plan
36570C
Lead time 30 days
Signed & Sealed
DC Available
Key specs of one unit
1354
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
1
Cars (Carport)
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans
Main Floor

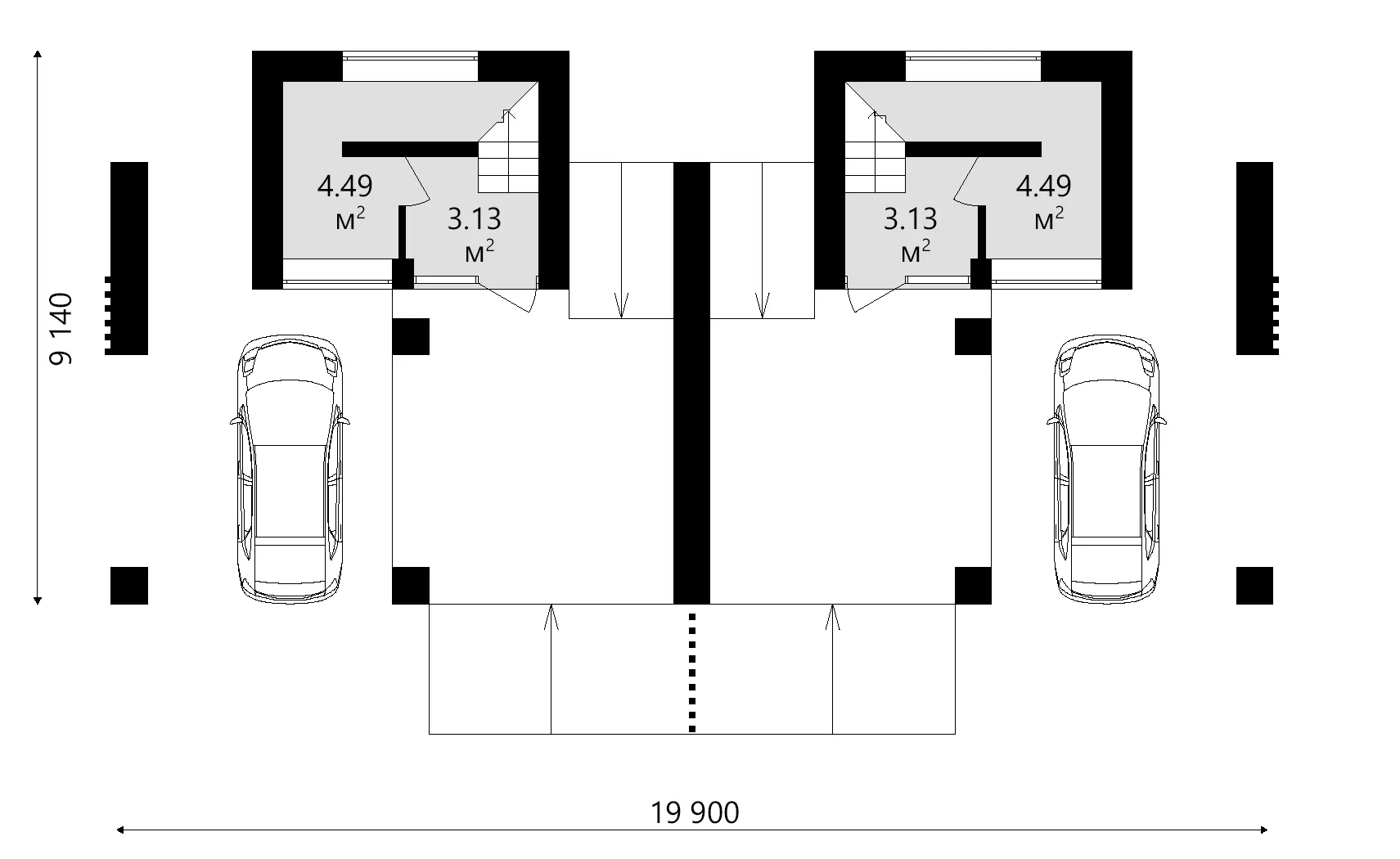

Main Floor 17 – 3-Story Modern Duplex House Plan with 3-Bed, 3-Bath Units and Carports – 1,354 Sq Ft per Unit – 36570C
Second Floor

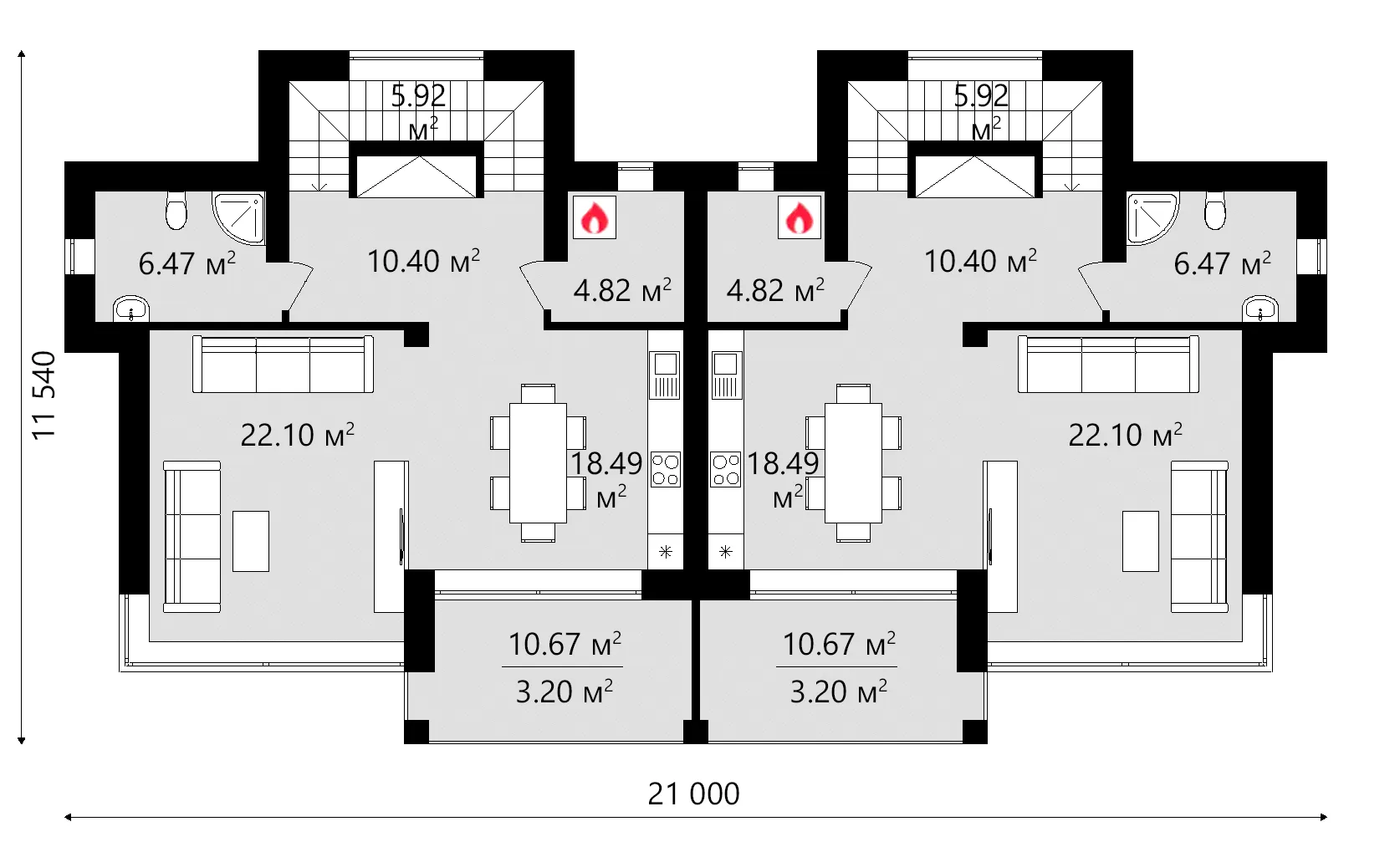

Second Floor 1 – 3-Story Modern Duplex House Plan with 3-Bed, 3-Bath Units and Carports – 1,354 Sq Ft per Unit – 36570C
Third Floor

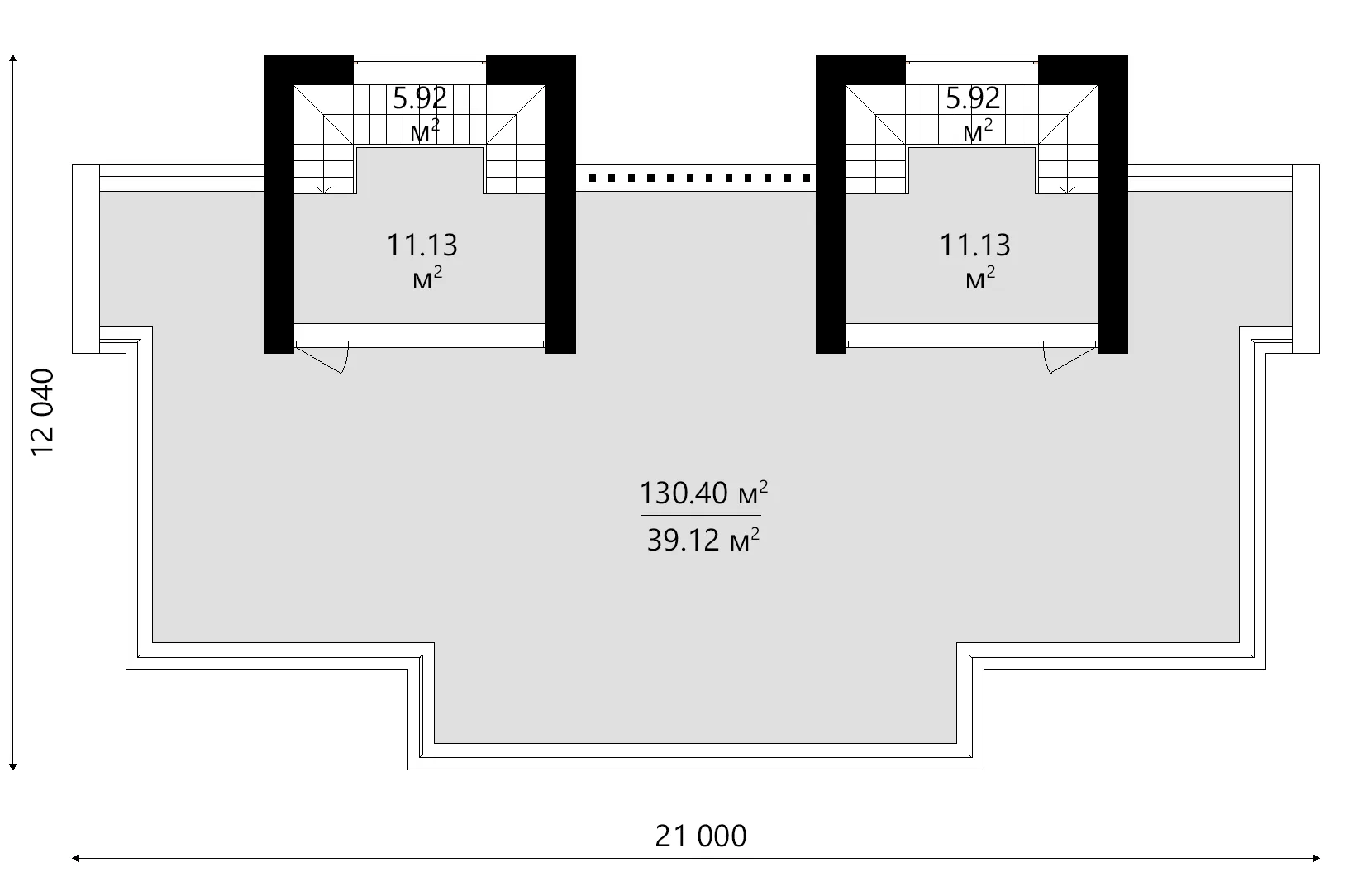

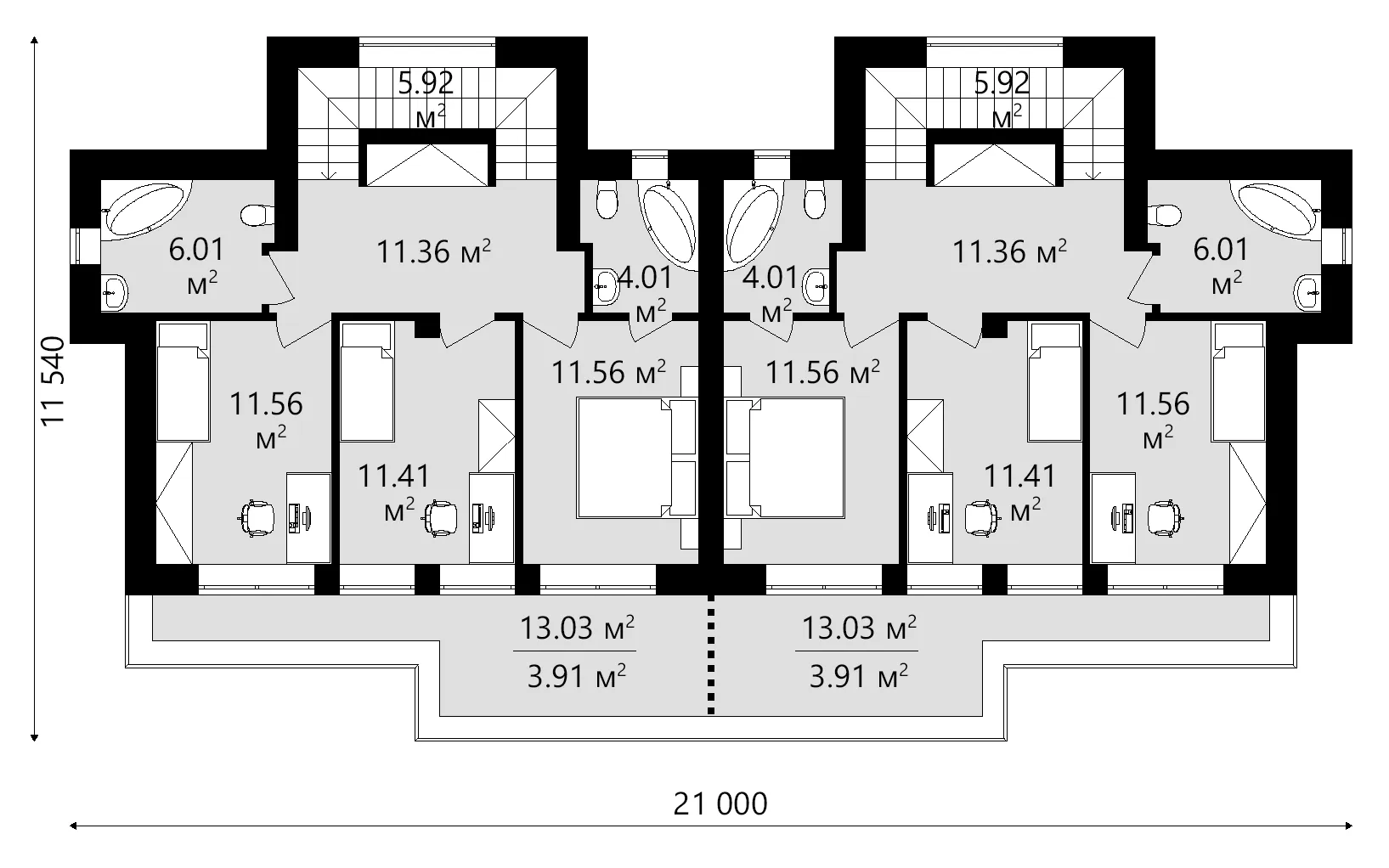

Third Floor 1 – 3-Story Modern Duplex House Plan with 3-Bed, 3-Bath Units and Carports – 1,354 Sq Ft per Unit – 36570C
Third Floor 2 – 3-Story Modern Duplex House Plan with 3-Bed, 3-Bath Units and Carports – 1,354 Sq Ft per Unit – 36570C
Full Specs & Features
Area
Total Heated: 1354.21 ft²
Dimensions
Depth: 35'2" ft
Width: 64'0" ft
Height: 41'1" ft
Garage
Cars: 1
Carport
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Wood
Stucco
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Kitchen and Dining
Breakfast Nook
Corner Window
Interior Features
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Kitchen (>130 ft²)
Exterior Features
Balcony
Stacked Porches
Rooftop Deck
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
Modern
Roof
Roof Area: 1999.93 ft²
Flat

Digital house design concept 36570C is a 3-story modern duplex with 3-bed, 3-bath units and carports, offering Total Heated 1,354 Sq Ft per unit. Each unit is designed for 3-4 people, and the flat roof gives the building a clean, horizontal profile.

The day zone follows an open floor plan, so the great room and the kitchen share one continuous space for everyday life and entertaining. The large kitchen has room for a breakfast nook, and a corner window brings light from two directions to the spot where the family eats. Large windows and floor-to-ceiling windows fill the rooms with daylight and connect the interiors with the outdoors.

The bedrooms are clustered together, which keeps the private rooms apart from the shared living space. The primary suite is on the second floor, and 3 full bathrooms in each unit spare the household a morning queue. A utility room keeps household equipment and chores out of the living areas.

Stacked porches, a balcony and a rooftop deck give each unit outdoor space on several levels, with the rooftop deck serving as a private open-air retreat on top of the house. Each unit has a carport for one car, which provides covered parking next to the entry. The exterior combines stone/brick veneer, wood and stucco for a textured façade. The main foundation is strip footings, with a slab or a block foundation as options; the walls are designed in aerated concrete, with ceramic block or silicate block as alternatives. The building is 64'0" wide and 35'2" deep. In figures: Total Heated 1,354 Sq Ft per unit, 3 bedrooms, 3 bathrooms and a 1-car carport per unit.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
