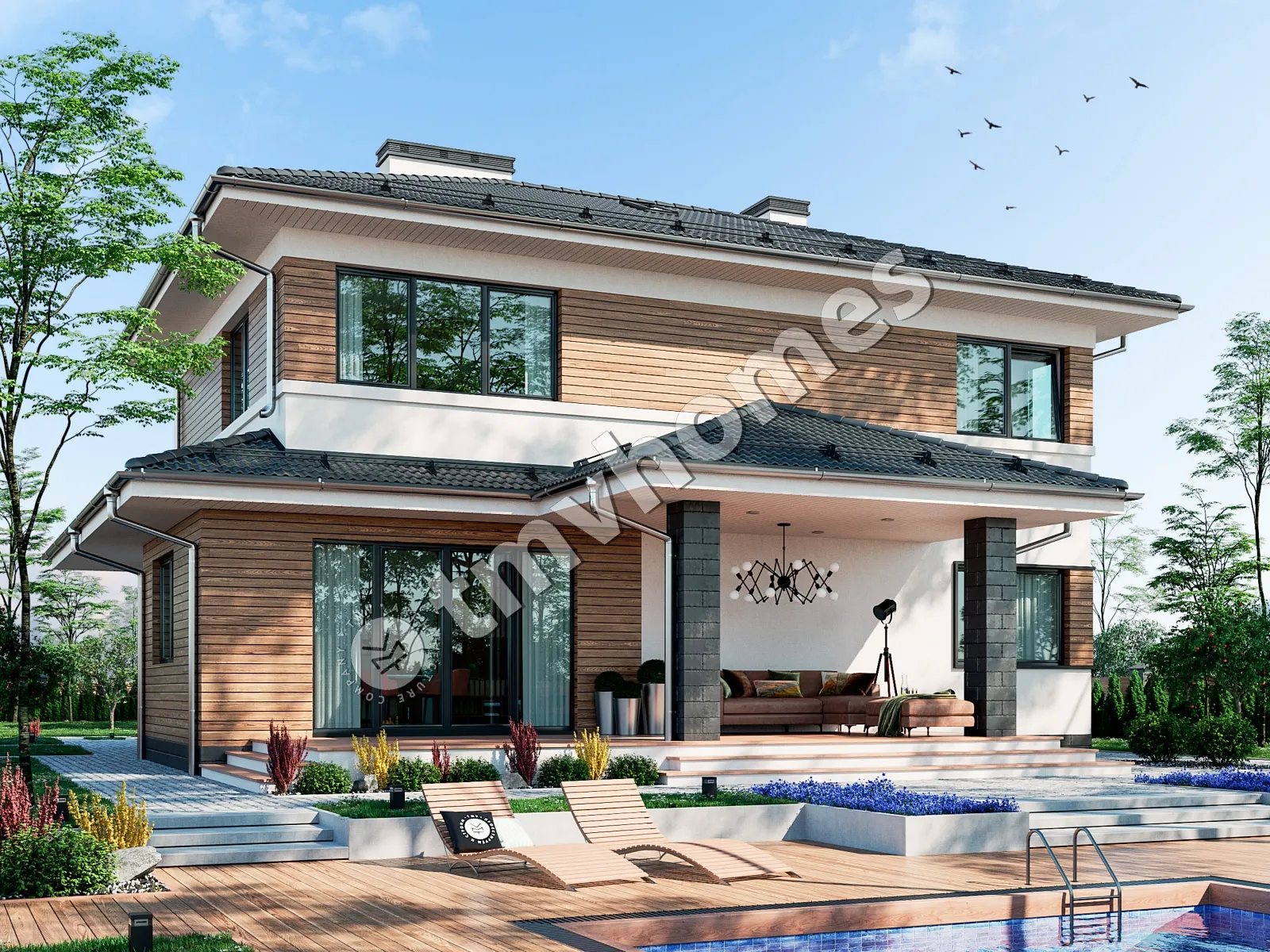

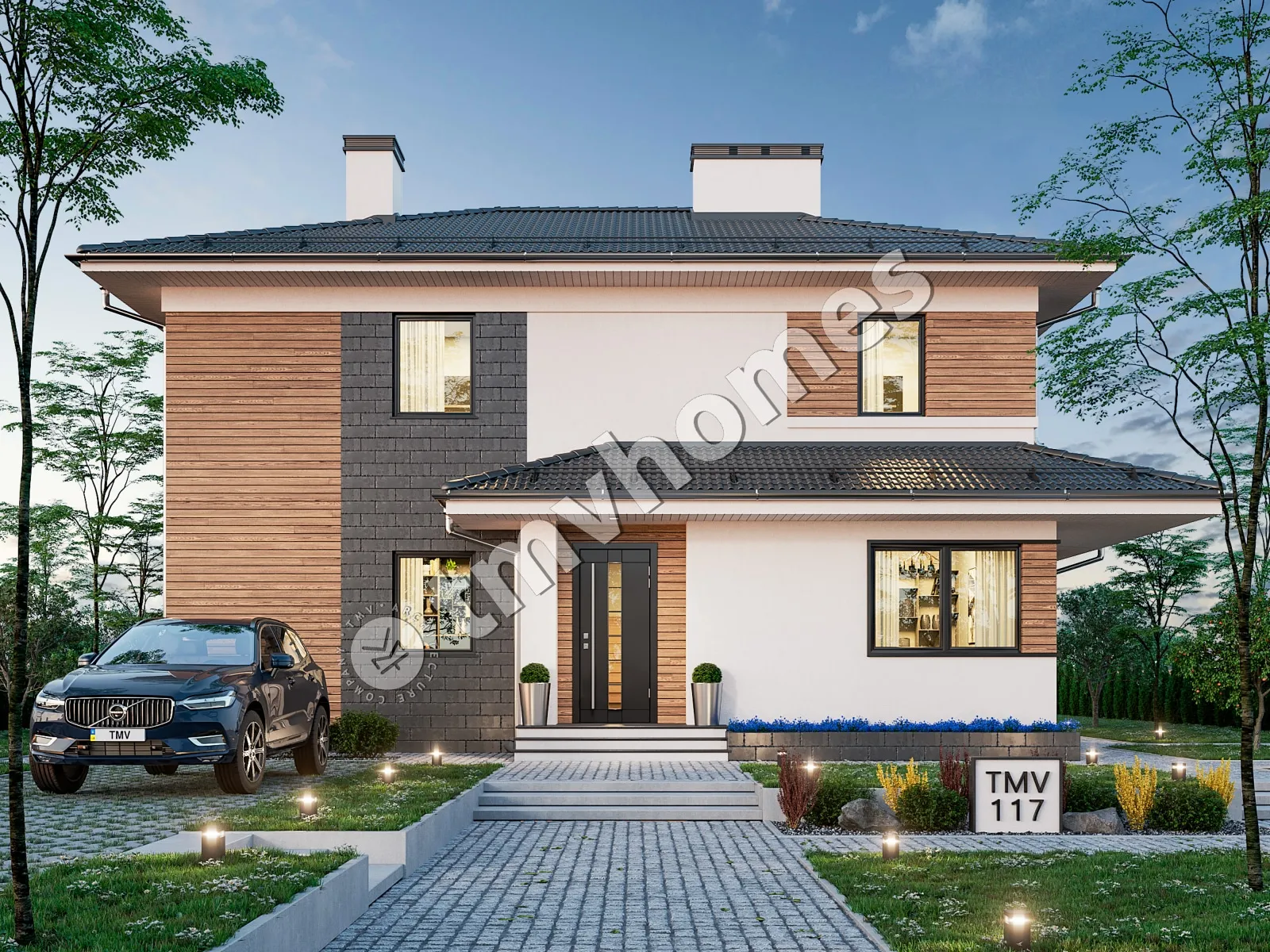

Renderings 2 – 1,995 Sq Ft Modern 2-Story Family House Plan with 3 Bedrooms and 3 Bathrooms – 42242R

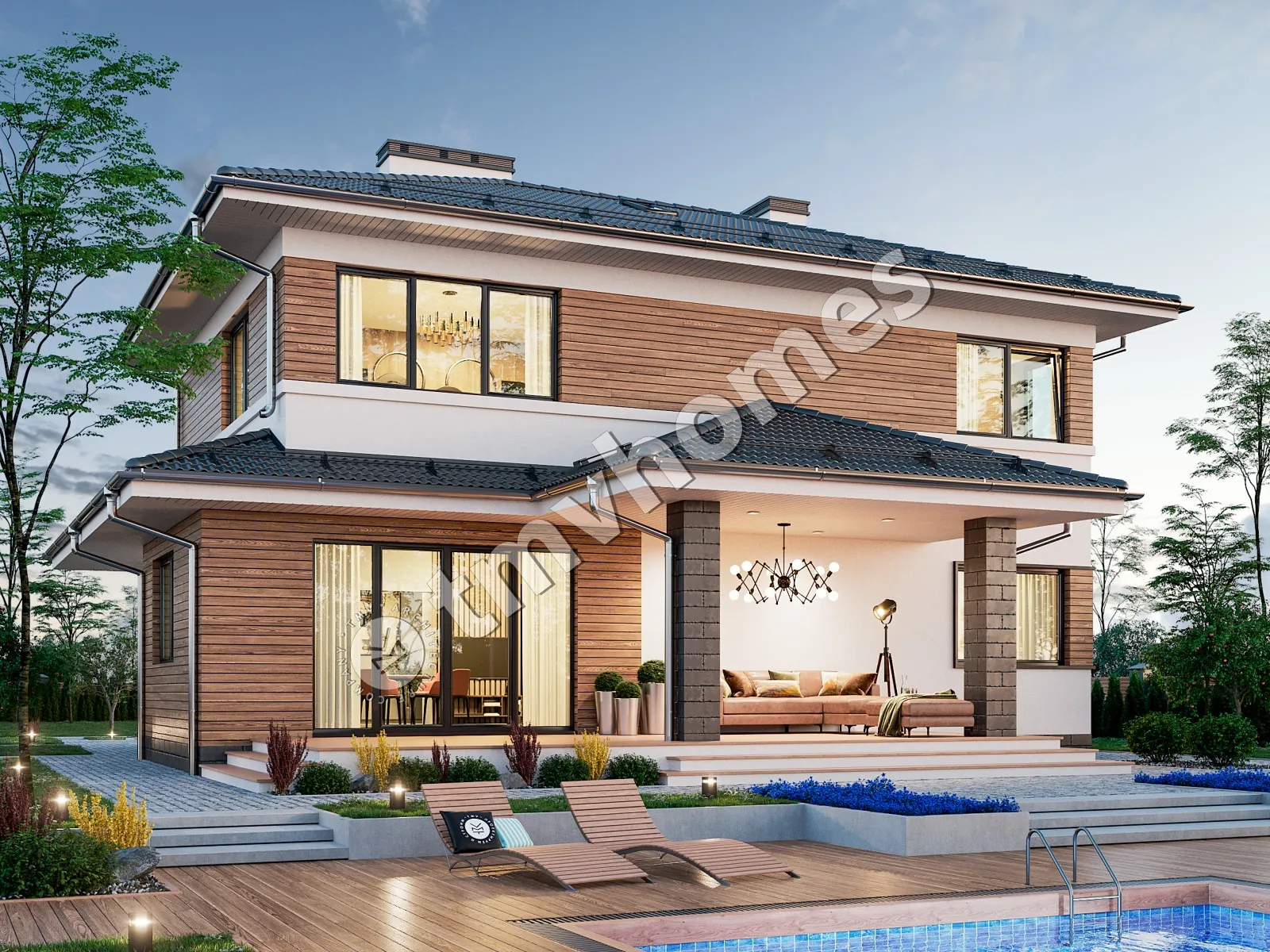

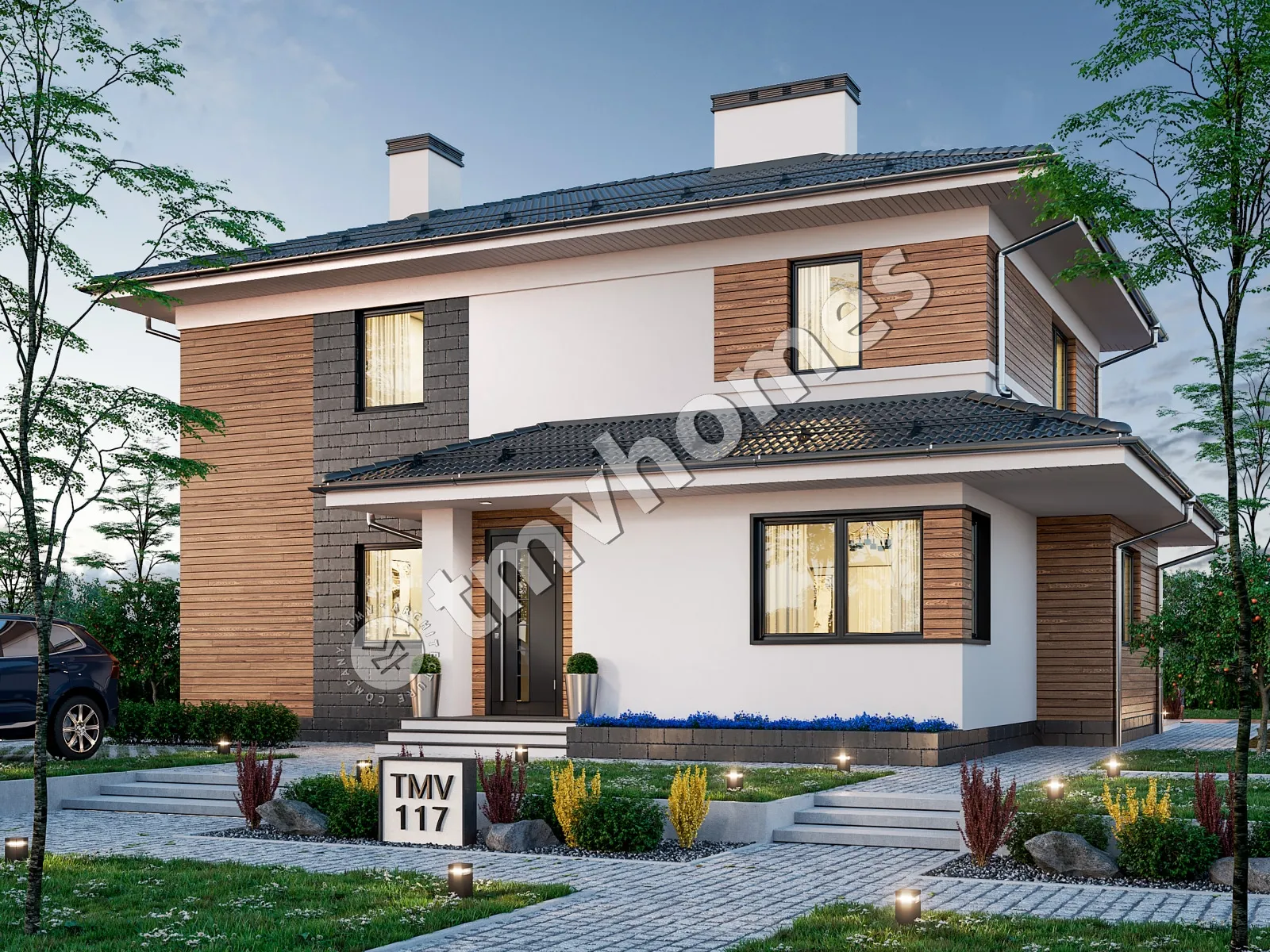

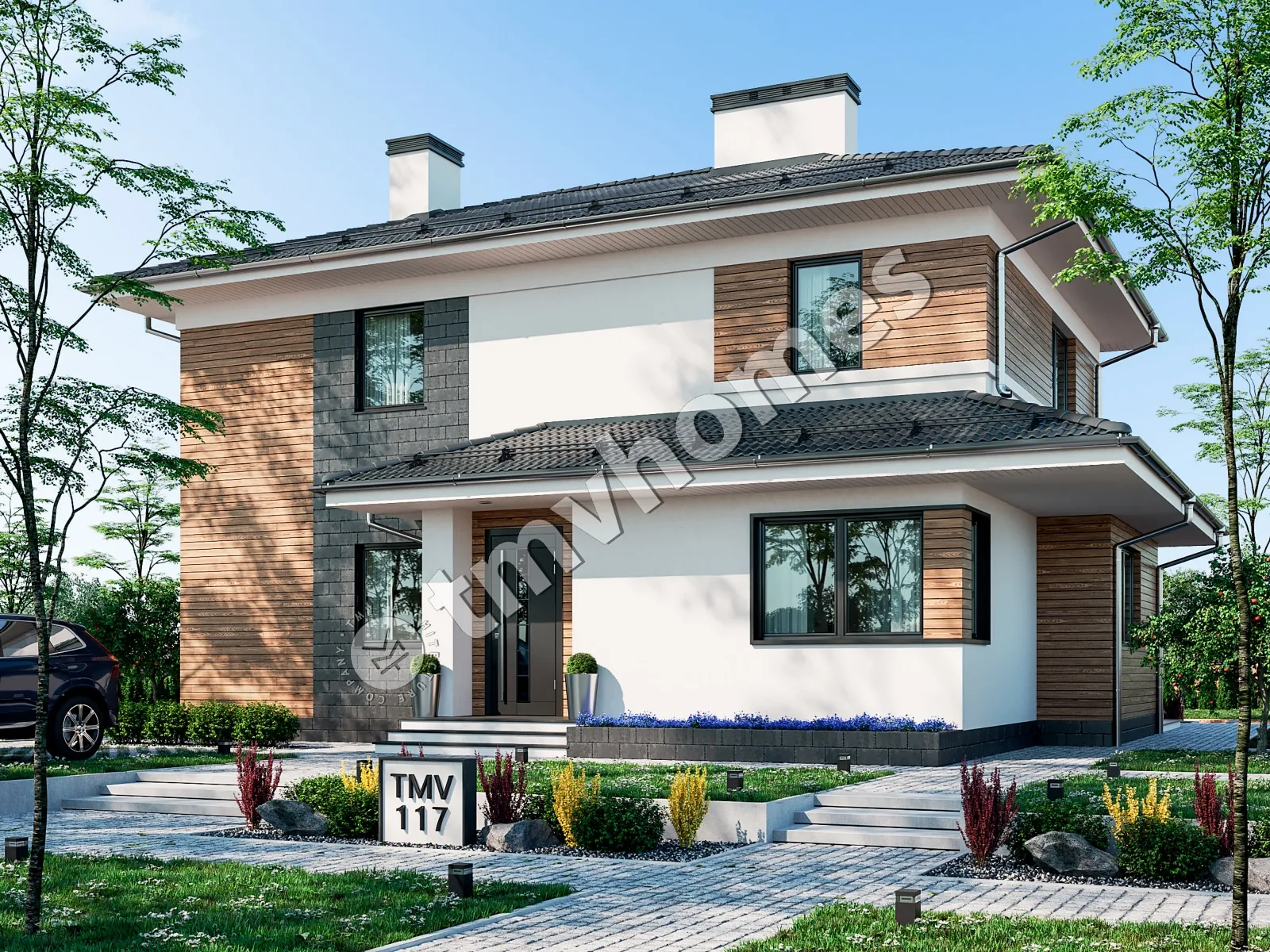

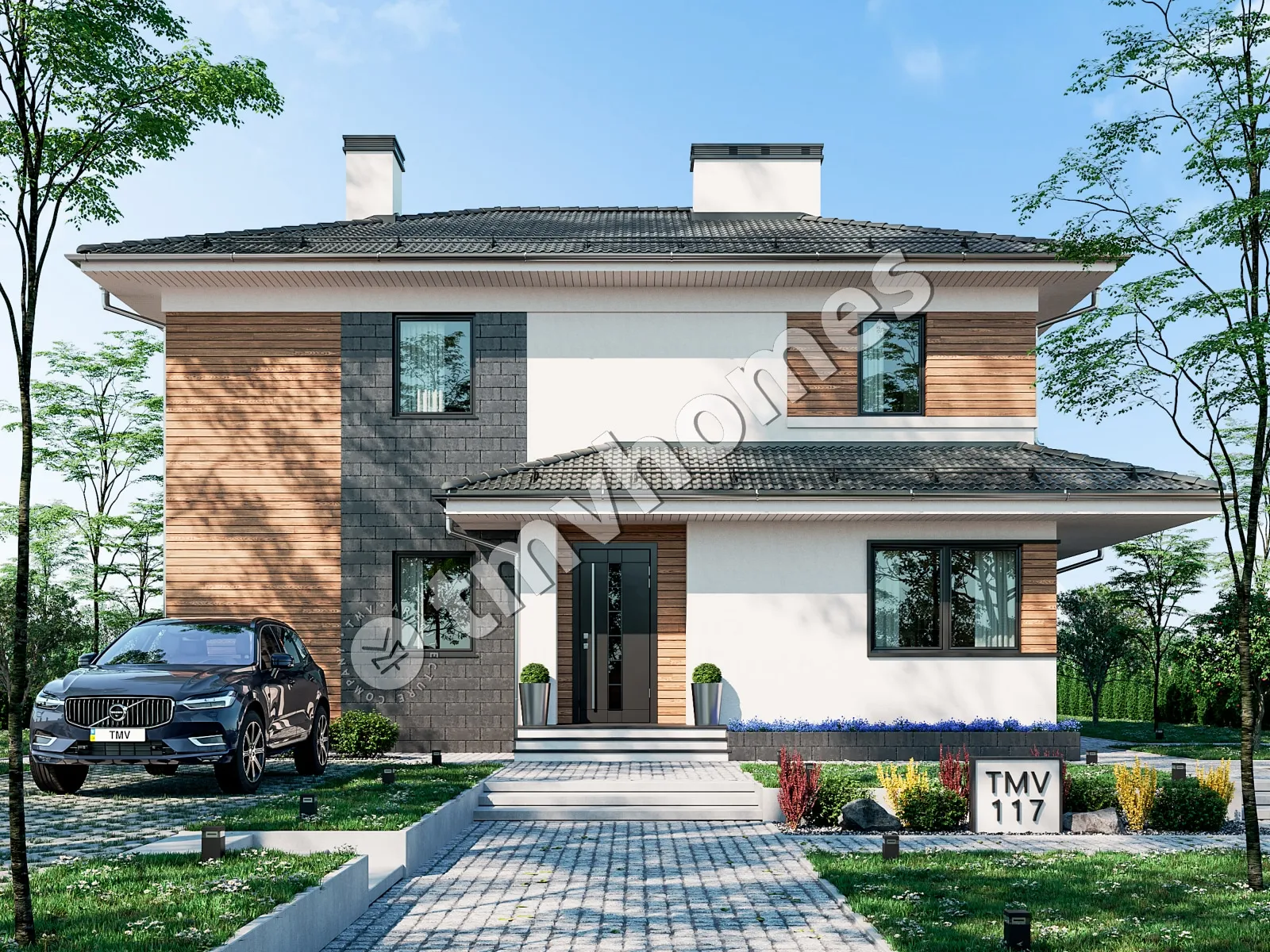

Renderings 3 – 1,995 Sq Ft Modern 2-Story Family House Plan with 3 Bedrooms and 3 Bathrooms – 42242R Renderings 4 – 1,995 Sq Ft Modern 2-Story Family House Plan with 3 Bedrooms and 3 Bathrooms – 42242R
8
Construction documents are prepared for the following countries:

1,995 Sq Ft Modern 2-Story Family House Plan with 3 Bedrooms and 3 Bathrooms

Plan
42242R
Complete
Signed & Sealed
DC Available
Key Specs
1995
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

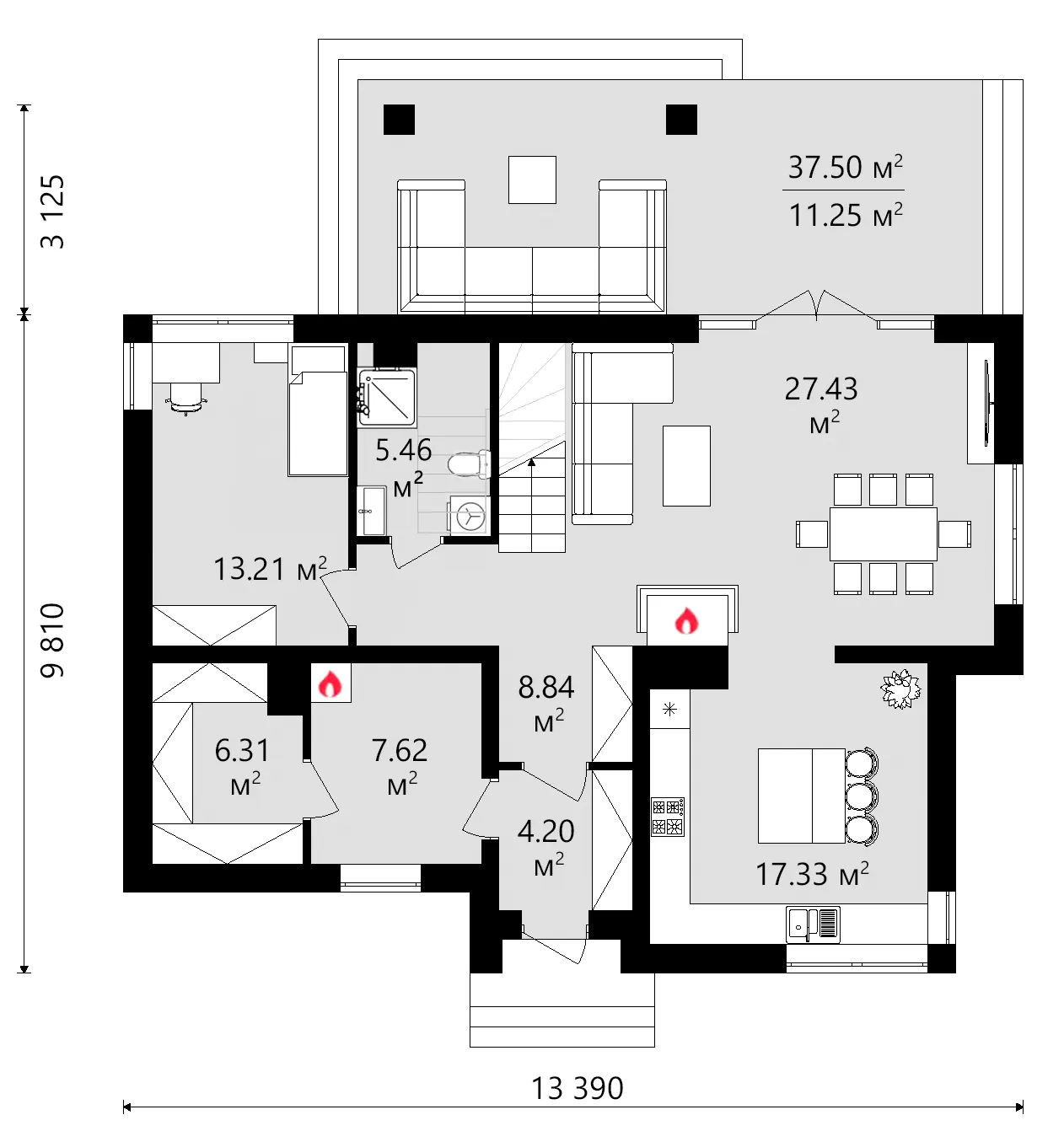

Main Floor
Main Floor 13 – 1,995 Sq Ft Modern 2-Story Family House Plan with 3 Bedrooms and 3 Bathrooms – 42242R

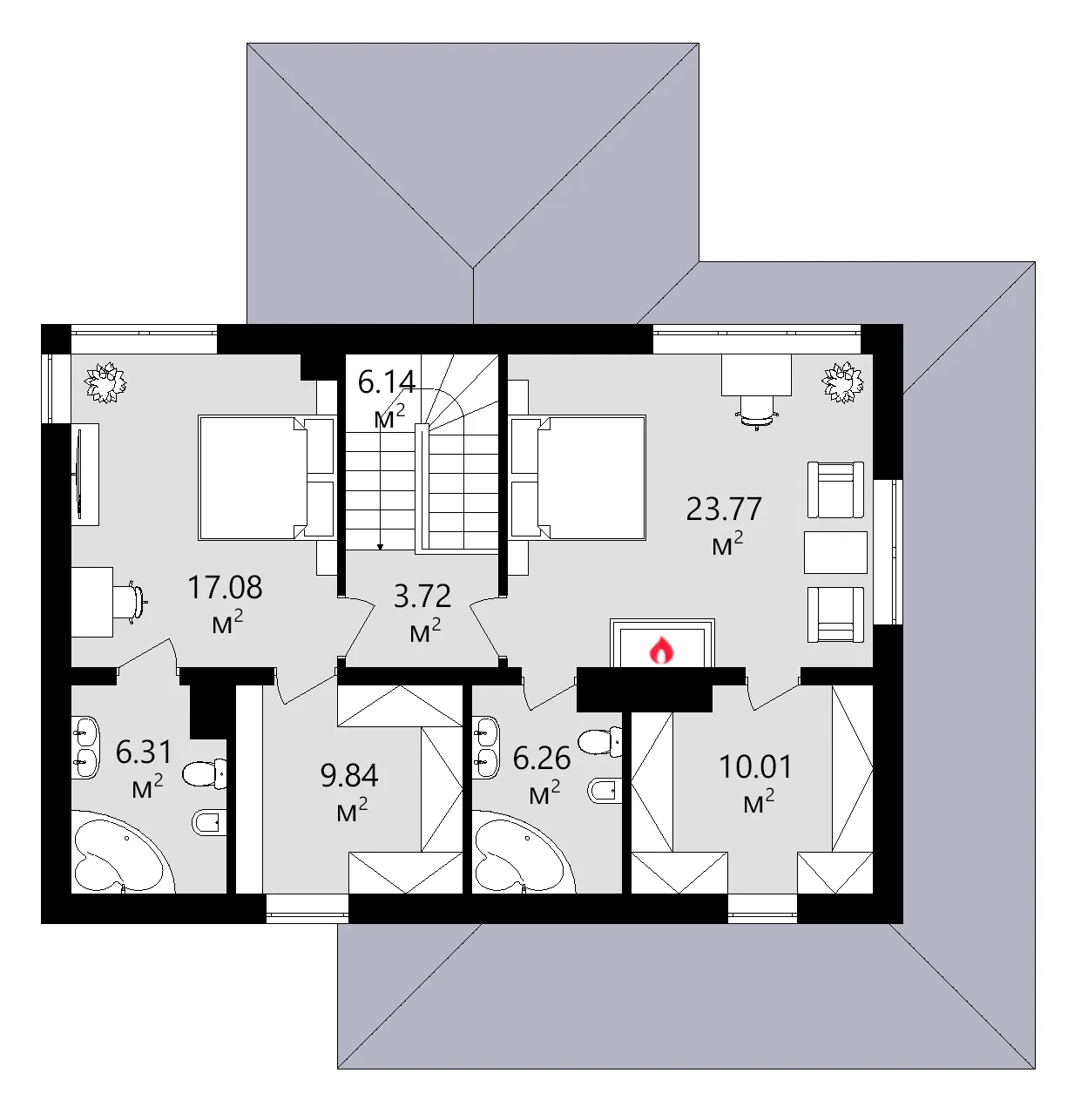

Second Floor
Second Floor 14 – 1,995 Sq Ft Modern 2-Story Family House Plan with 3 Bedrooms and 3 Bathrooms – 42242R
Full Specs & Features
Area
Total Heated: 1994.66 ft²
Dimensions
Depth: 39'4" ft
Width: 40'8" ft
Height: 27'5" ft
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Wood
Stucco
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Entry
Storage
Walk In Closet
Kitchen and Dining
Breakfast bar
Island
Corner Window
Interior Features
Fireplace in Family Room
Fireplace in Master Suite
Second Floor Master
2 Master Suites
Clustered Bedrooms
Closed Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Rear Porch
Corner Window
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
European
Modern
Roof
Roof Area: 2499.27 ft²
Hip
Roof Pitch: 5/12 (22°)

Modern 2-story family house design concept 42242R with Total Heated 1,995 Sq Ft, 3 bedrooms and 3 bathrooms is available for purchase as a digital house design concept. The hip roof with a 5/12 (22°) pitch and the wood and stucco exterior give the house a calm, compact silhouette. The layout suits a family of 3-4 people.

The entry keeps coats, shoes and cold air out of the living spaces. The large family room with a fireplace becomes the natural gathering point for family evenings. The closed kitchen keeps cooking smells and noise away from the family room, and its generous size holds an island and a breakfast bar for quick meals, while a corner window brings daylight onto the work surfaces. Large windows and floor-to-ceiling windows fill the rooms with natural light.

The primary suite is on the second floor, away from the day zone, with a walk-in closet for clothes and its own fireplace for quiet evenings. The project includes two primary suites, which gives guests or a grown child the same comfort as the parents. The clustered bedrooms keep parents close to the children, and three full bathrooms shorten the morning queue. A utility room and a storage room keep household equipment and seasonal things out of sight.

The covered rear porch offers a shaded place for meals outdoors. With a width of 40'8" and a depth of 39'4", the house keeps a compact footprint. The main foundation is strip footings, with a slab or a concrete block foundation as options for different soil conditions. The exterior walls are built of aerated concrete, with ceramic hollow block or sand-lime block as alternatives. In figures: Total Heated 1,995 Sq Ft, 3 bedrooms and 3 bathrooms.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.
