Concept
Construction documents are prepared for the following countries:

2-Story House Plan 3335 ft²: 4 Beds, Home Office, 3 Baths, without Garage

Plan
50112C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
3335
Total Heated ft²
3 + 0
Baths + 1/2 Baths
4 + 1
Beds + Home Office
2
Cars (Carport)
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

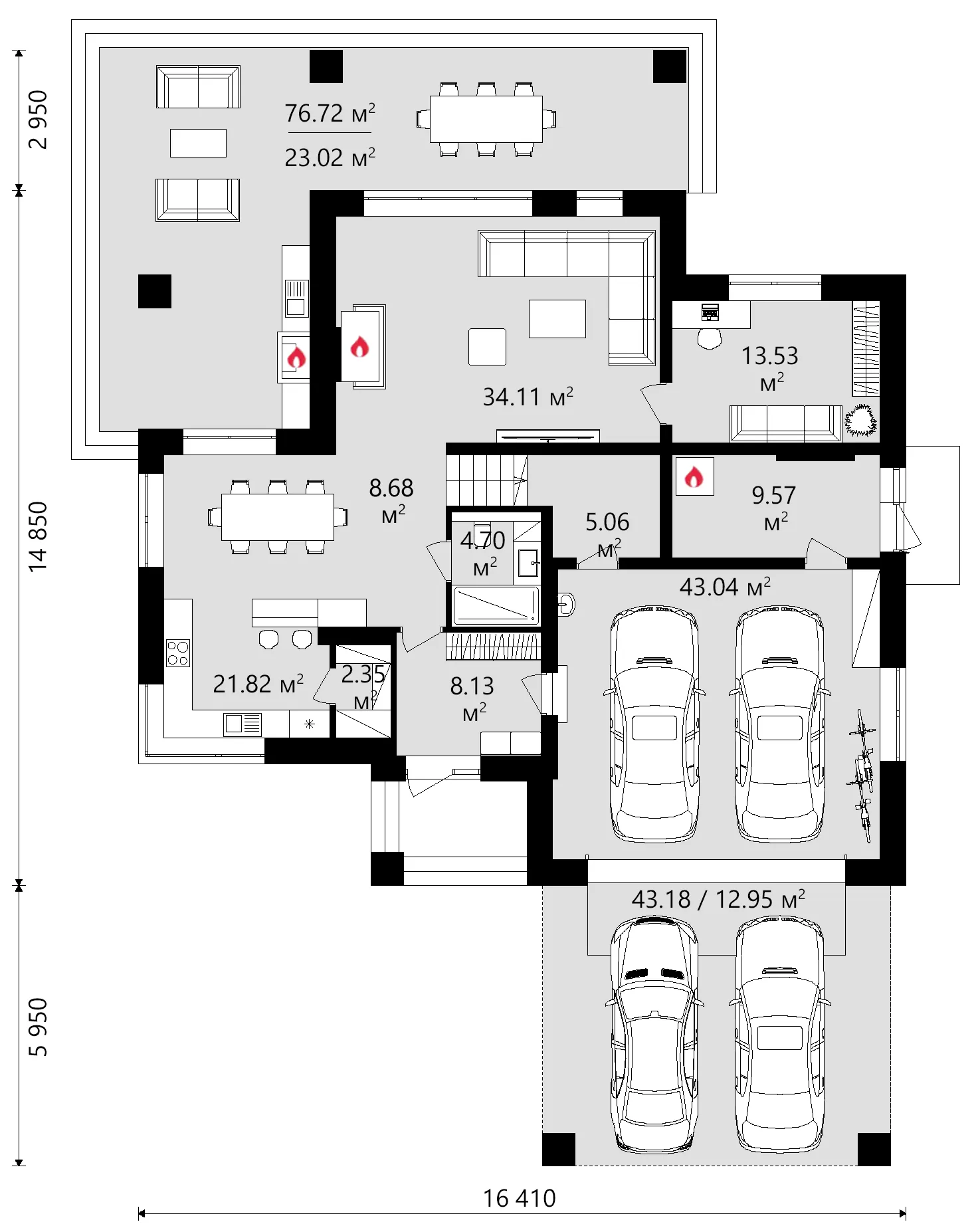

Main Floor
Main Floor 7 – 2-Story House Plan 3335 ft², 4 Beds — 50112C

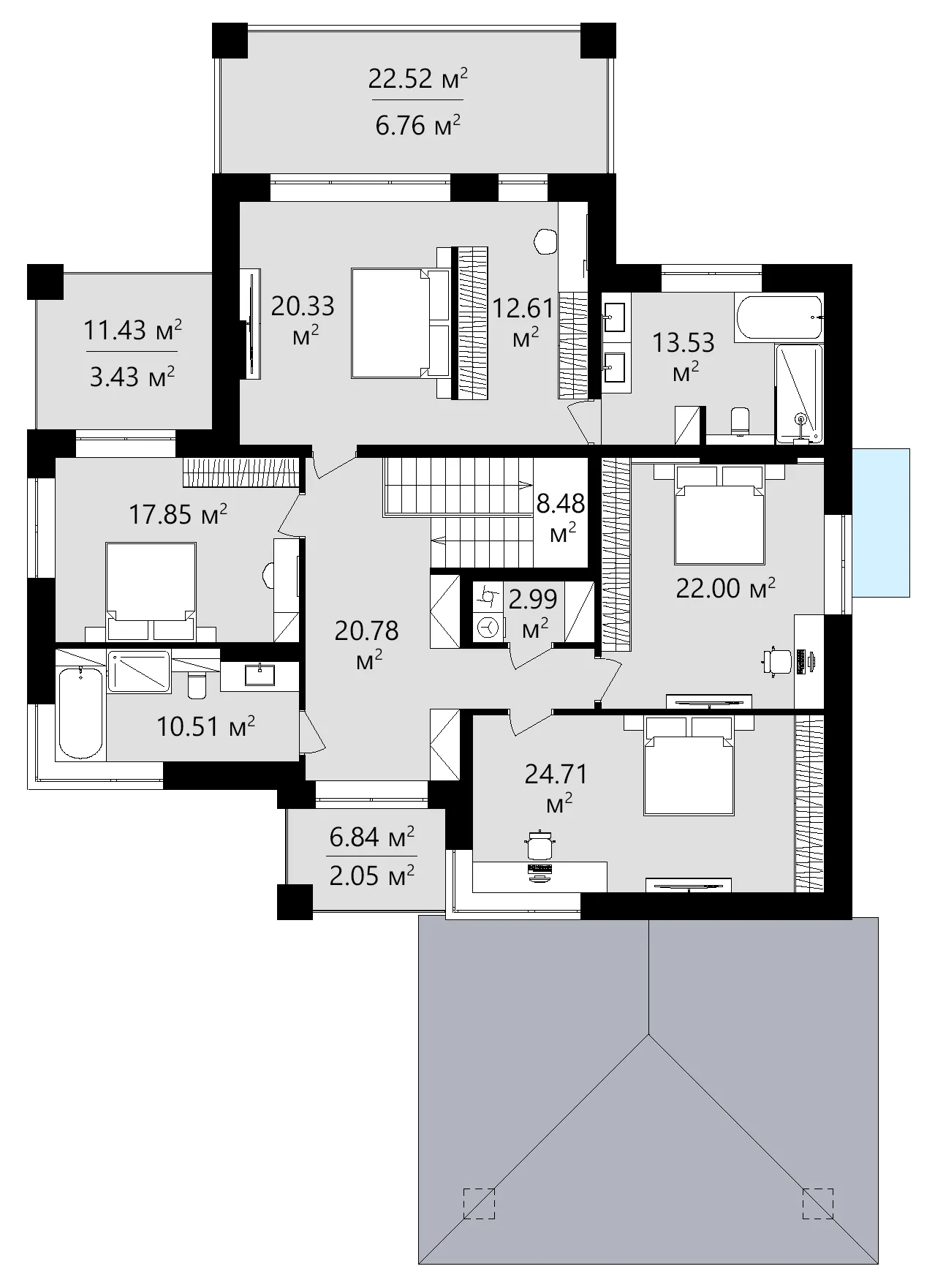

Second Floor
Second Floor 9 – 2-Story House Plan 3335 ft², 4 Beds — 50112C
Full Specs & Features
Area
Total Unheated: 463.28 ft²
Total Heated: 3335.2 ft²
Dimensions
Depth: 72'4" ft
Width: 49'7" ft
Height: 31'5" ft
Garage
Area: 463 ft²
Cars: 2
Carport
Front Entry
Foundation
Ławy
Płyta (Optional)
Z bloczków (Optional)
Exterior Wall Framing
Beton komórkowy
Pustak ceramiczny (Optional)
Bloczek silikatowy (Optional)
Exterior Wall Materials
Brick
Rooms
Full bathrooms: 3
Bedrooms: 4
Utility room
Laundry
Entry
Home Office
Storage
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
Corner Window
Interior Features
Laundry Second Floor
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Closed Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Balcony
Outdoor Fireplace
Outdoor Kitchen
Stacked Porches
Covered Rear Porch
Corner Window
Large Windows
Floor-to-Ceiling Windows
Architectural Style
European
Prairie
Traditional

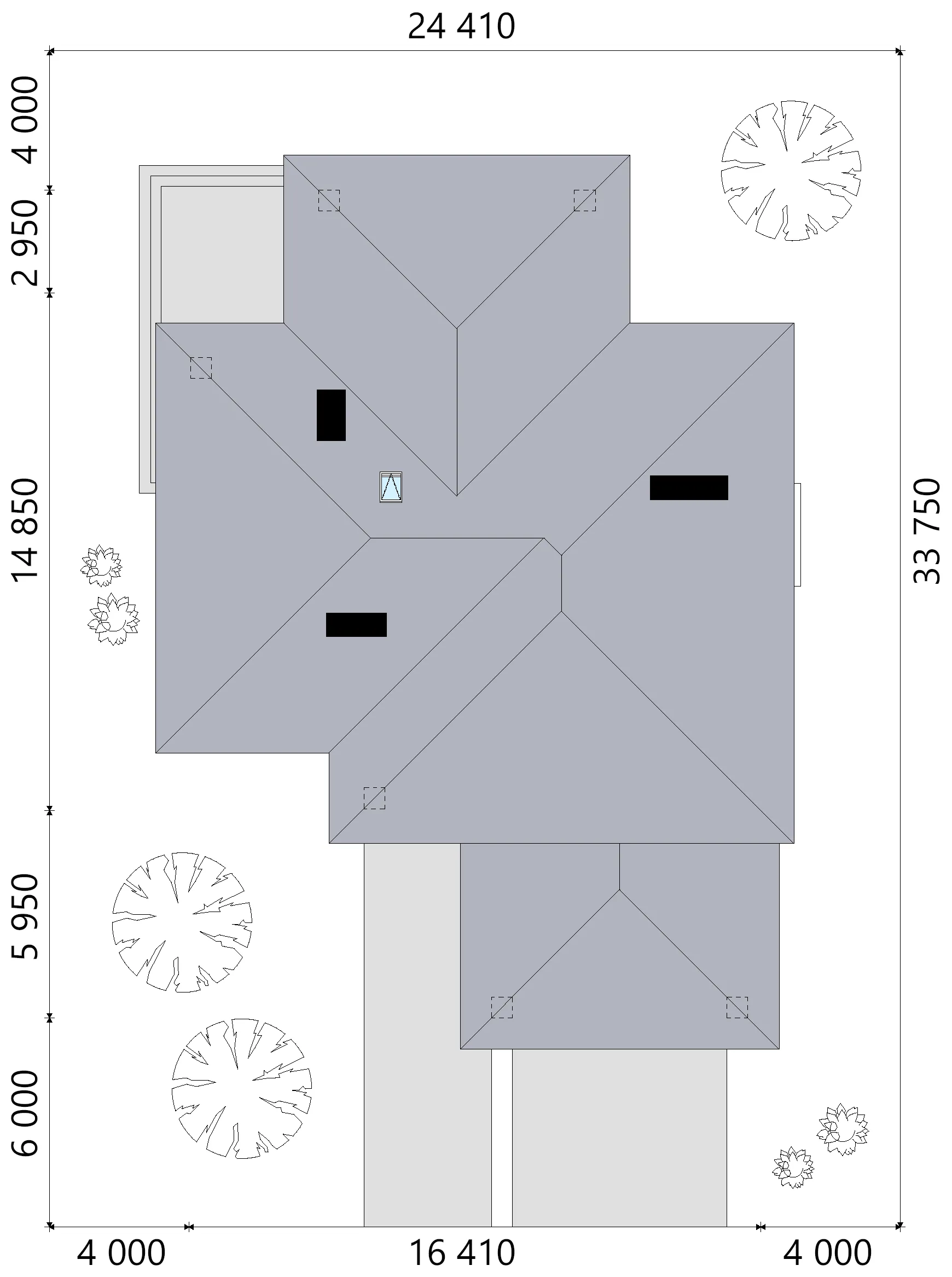

Roof
Roof Area: 4372.30 ft²
Hip & Valley
Roof Pitch: 6/12 (26°)

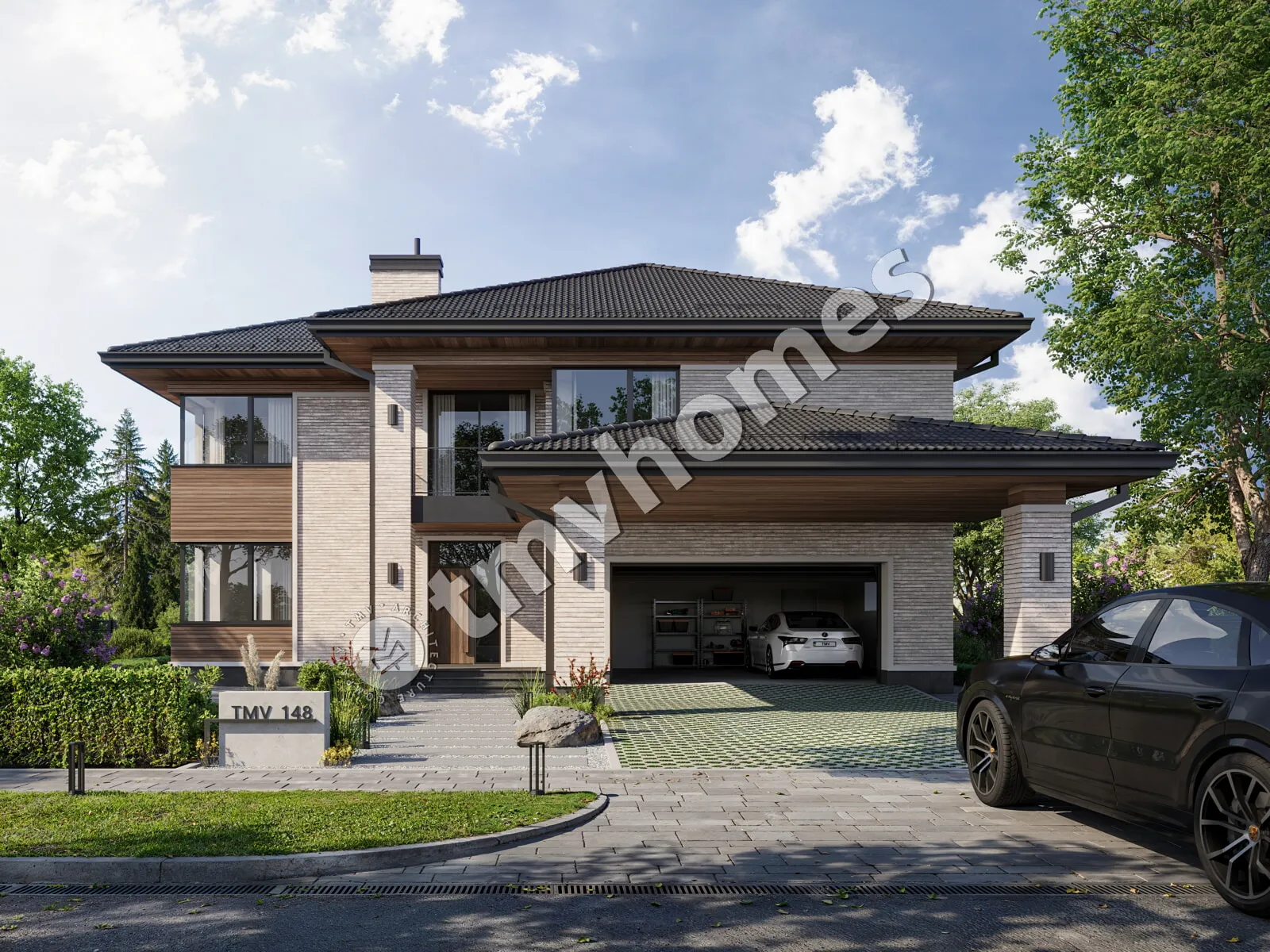

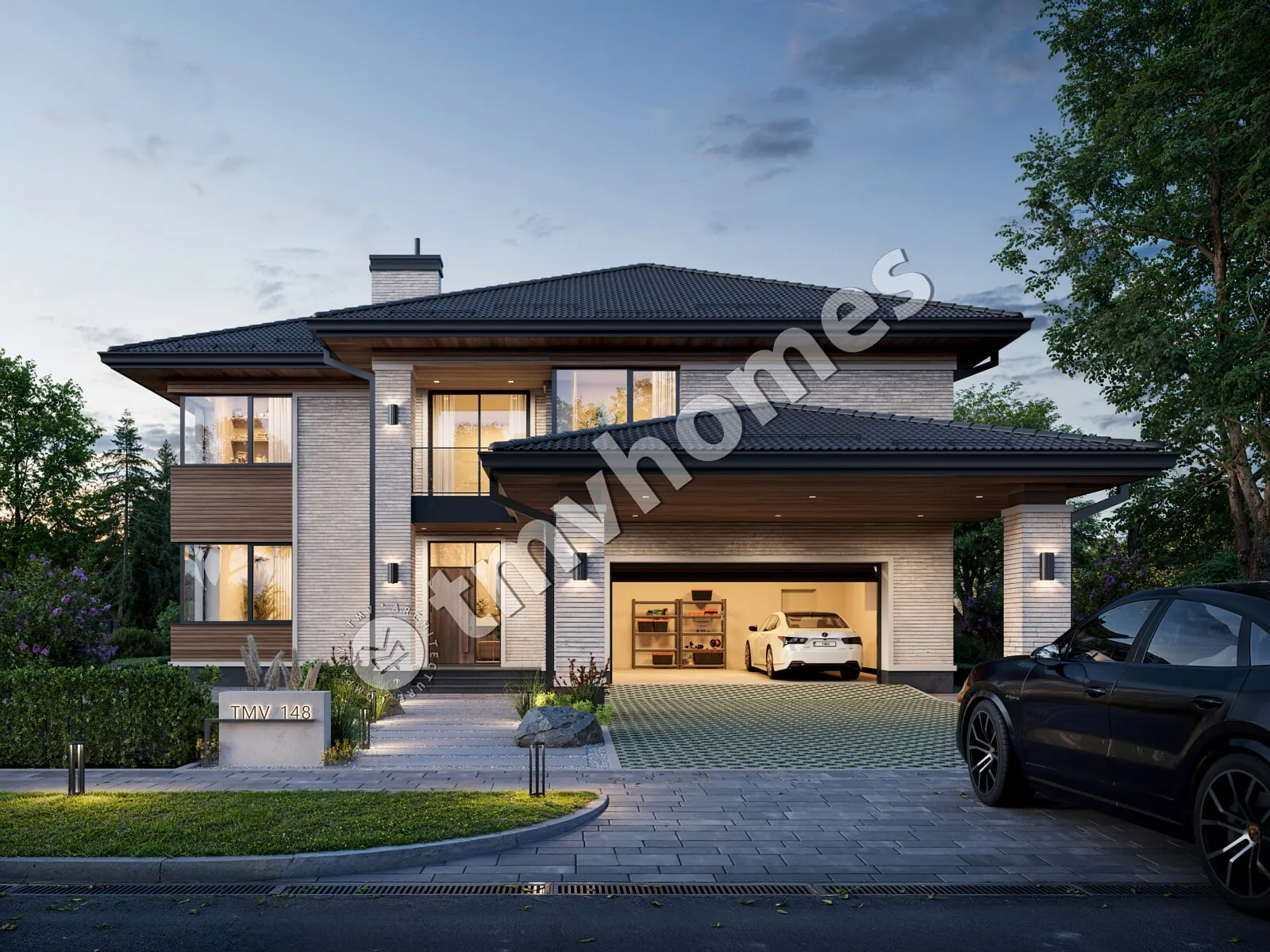

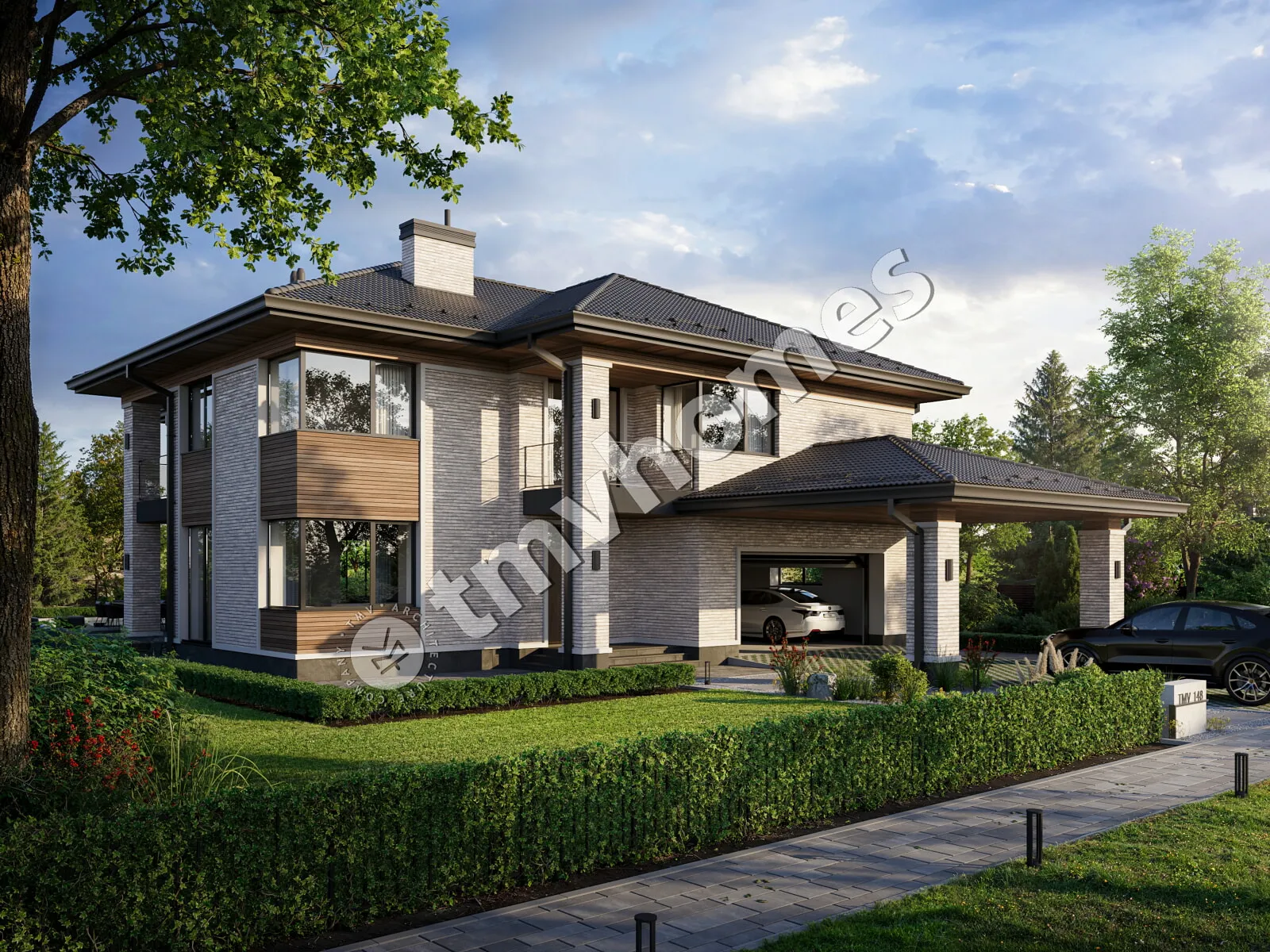

Plan 50112C is a 4-bedroom 3-story house plan that blends European, Prairie and Traditional influences under a hip and valley roof with a 6/12 pitch. Wrapped in brick and offering 3335 ft² of living space, this single-family home measures 49'7" wide, 72'4" deep and 31'5" high, with three full bathrooms spread across its three levels. Large windows, a corner window and floor-to-ceiling glass give the classic facade a lighter, more contemporary edge.

The main living spaces follow a closed floor plan, so each room keeps its own character and purpose. A proper entry receives guests and keeps the rest of the house calm, while the large family room becomes the center of daily life, anchored by a fireplace that sets the mood on winter evenings. The large kitchen is made for a family that cooks: a walk-in pantry keeps supplies in order, a breakfast bar handles quick meals and homework, and a breakfast nook with a corner window offers a bright place for slow mornings. A home office gives remote work or study a quiet, separate room.

The bedrooms are clustered together, which keeps the private side of the house compact and easy to live in. The master suite sits on the second floor, and the laundry is on the same level, so clean clothes never travel far from the closets. Three full bathrooms serve the four bedrooms comfortably, avoiding the morning queue. A utility room and dedicated storage handle the mechanical systems, seasonal gear and everything a busy household accumulates.

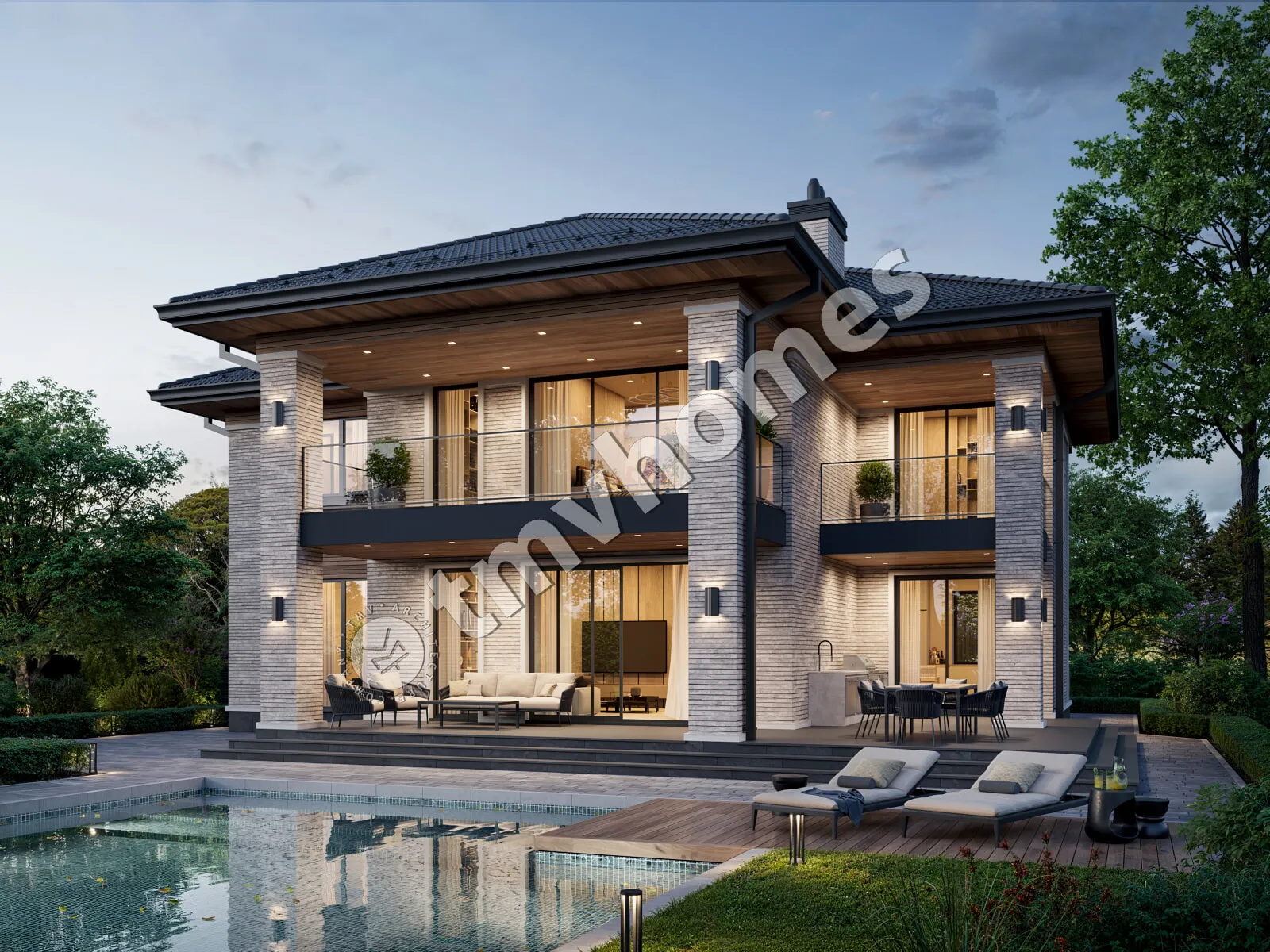

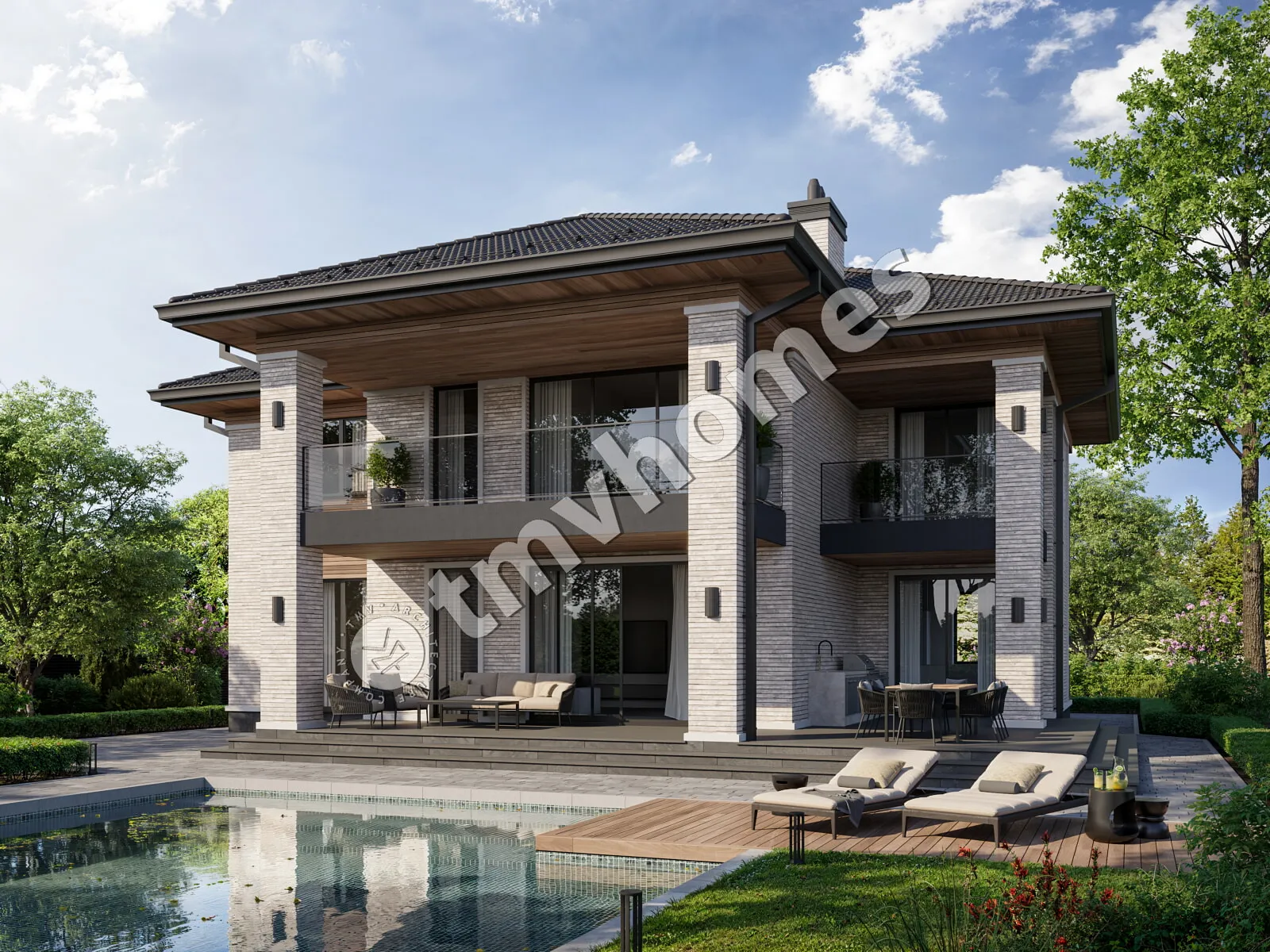

Outdoors, this house plan with fireplace carries its comforts beyond the walls. Stacked porches add covered outdoor space on more than one level, and the covered rear porch is fitted with an outdoor fireplace and an outdoor kitchen for long dinners with friends. A balcony opens the upper floor to fresh air. A front-entry carport shelters two cars. The house is designed without a basement and stands on strip footings, with the exterior walls framed in aerated concrete block; the plan is also available with a slab or a concrete block foundation, and with walls of clay block or sand-lime block on request.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
US$1697
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
Local Architects
Offers from your local architects who are ready to develop construction documents based on the digital concept.
