2,310 Sq Ft Modern U-Shaped Single-Story House Plan with 3 Bedrooms, 3 Bathrooms and Carport
Opis techniczny
Rzuty kondygnacji
Rzut więźby dachowej
Rzut dachu
Przekroje

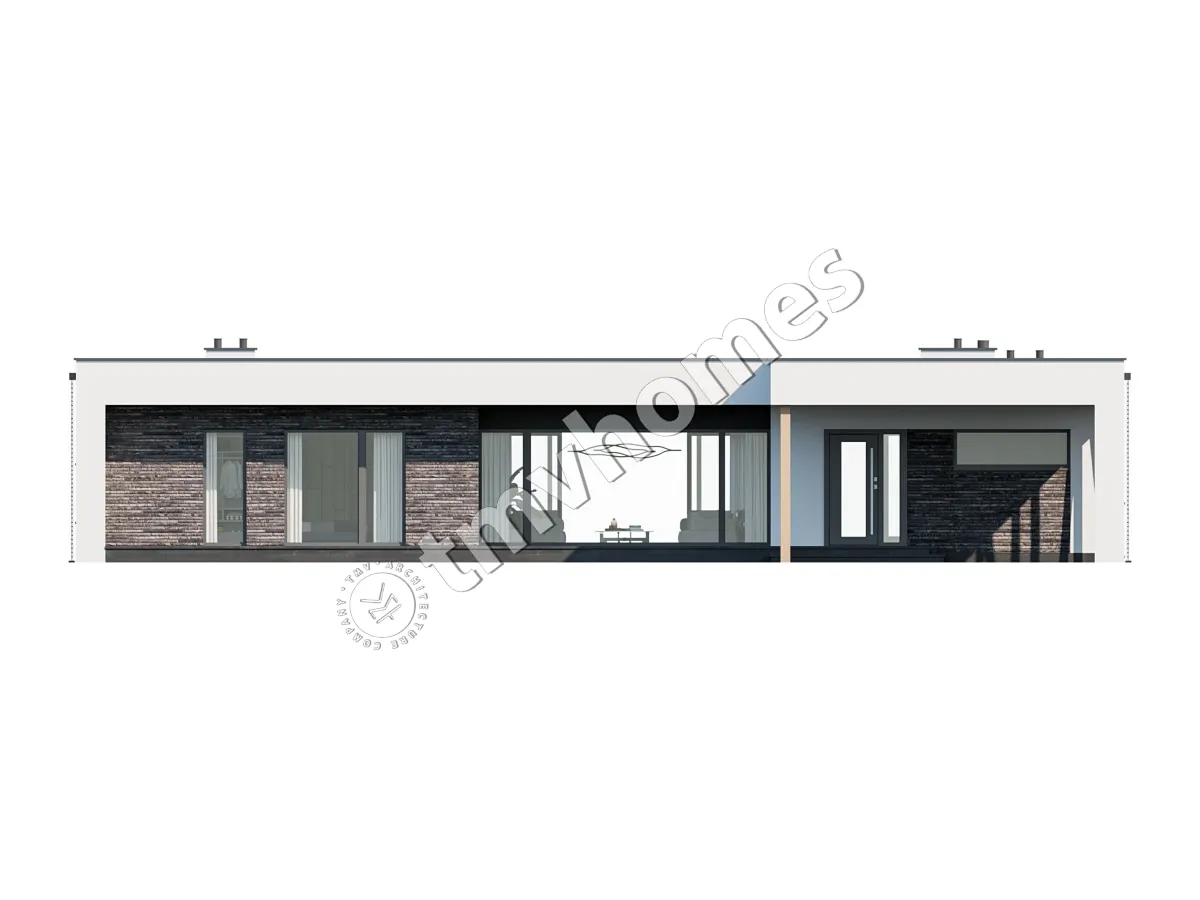

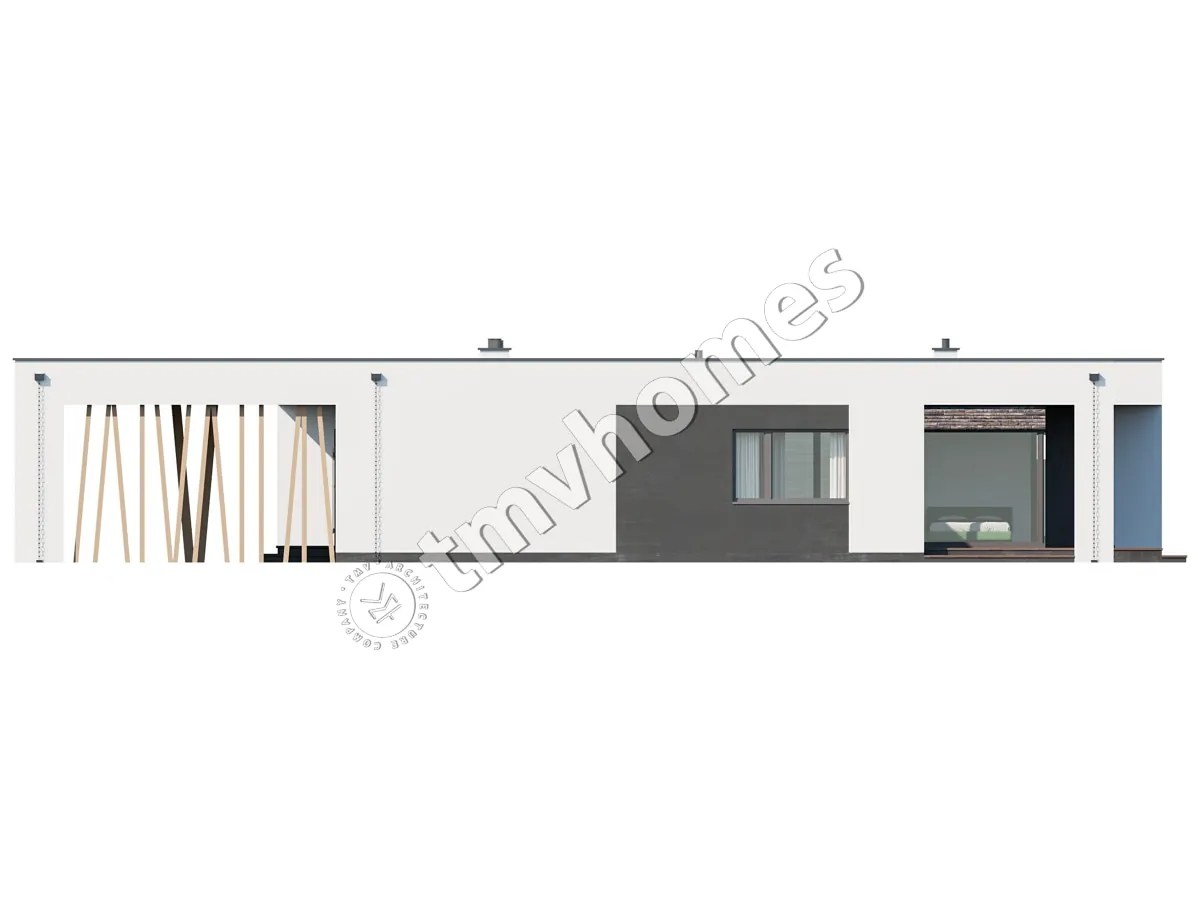

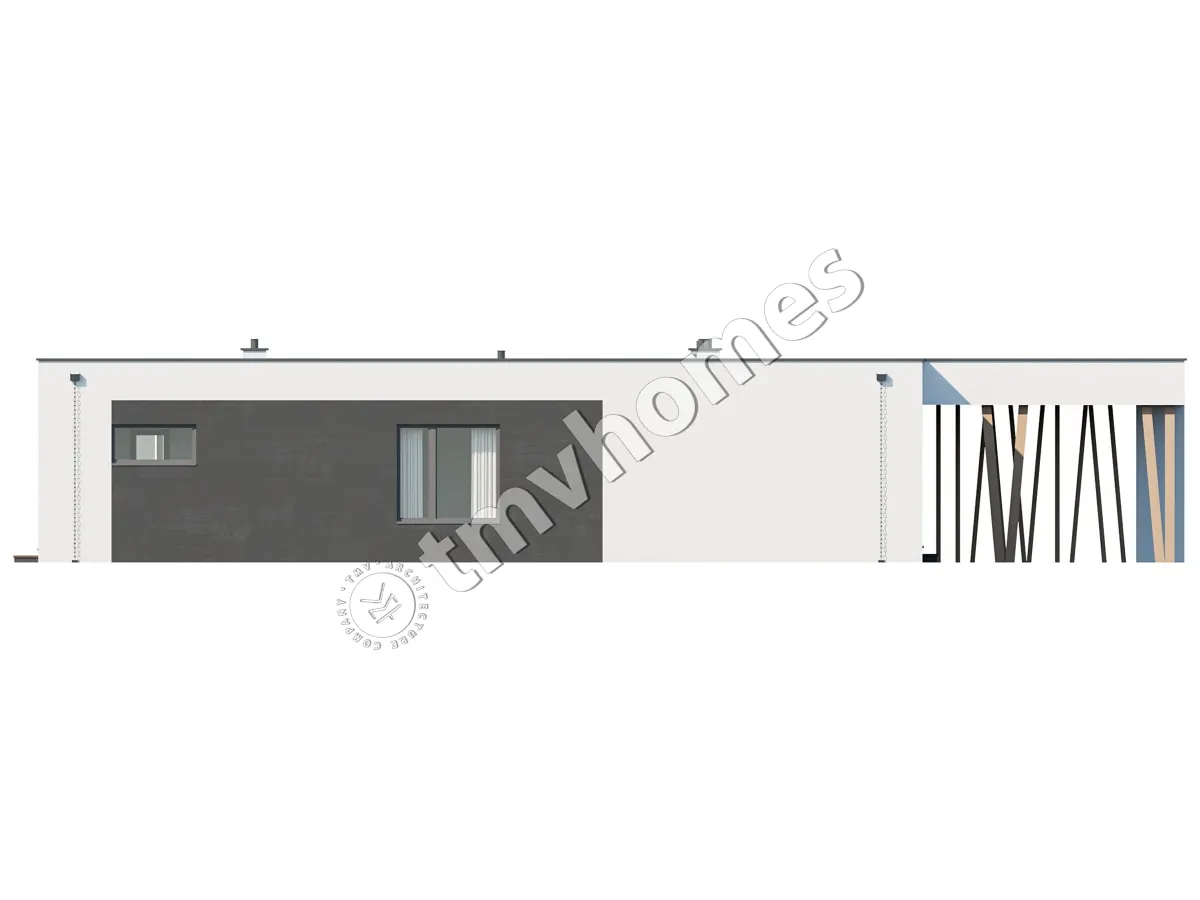

Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.
House design concept 50338C is a Modern single-story home with Total Heated 2,310 Sq Ft, a U-shaped layout, 3 bedrooms and 3 bathrooms. The flat roof and a façade of brick and stucco give the single-family home clean lines. Sized for 3-4 people, the house keeps all daily living on one level.

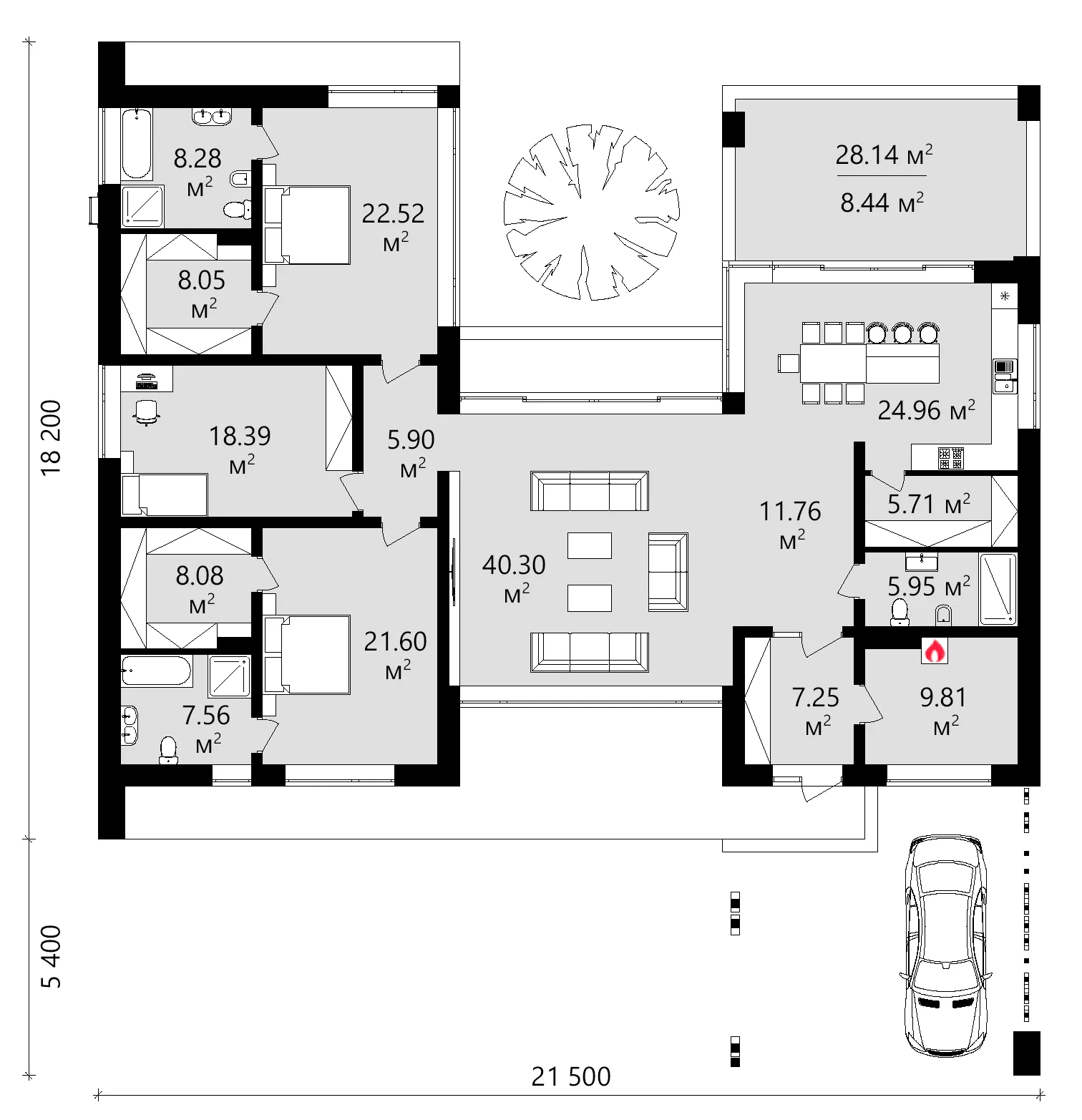

The entry leads into an open floor plan where the large family room, the kitchen and the breakfast nook share one space, so the cook stays part of the conversation. The large kitchen centers on an island with a breakfast bar for quick meals, a walk-in pantry keeps supplies out of sight, and a corner window brings daylight to the counters. Panoramic, large and floor-to-ceiling windows connect the living area with the courtyard.
The three bedrooms are clustered in one wing, which keeps the night side quiet. Two of them are primary suites with private bathrooms, so parents and guests each get their own retreat, and a walk-in closet adds wardrobe space. The third full bathroom serves the remaining bedroom, and a utility room keeps household chores out of the living area.
The covered rear porch offers shaded seating, and the courtyard between the wings of the house becomes a private outdoor room. The carport keeps one car under cover. The footprint measures 65'5" wide by 71'9" deep. Strip footings form the base, with a slab or a concrete block foundation as options to suit the soil; the walls are aerated concrete, with clay hollow block or calcium silicate block as alternatives. In figures: Total Heated 2,310 Sq Ft, 3 bedrooms, 3 bathrooms and a 1-car carport.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
