Main Images 1 – 4-Bedroom, 1700 Sq Ft Plan with Home Office
Main Images 1 – 4-Bedroom, 1700 Sq Ft Plan with Home Office Main Images 1 – 4-Bedroom, 1700 Sq Ft Plan with Home Office
8
Construction documents are prepared for the following countries:

4-Bedroom, 1700 Sq Ft House Plan with First Floor Home Office

Plan
60076R
Complete
Signed & Sealed
DC None
Key Specs
1727
Total Heated ft²
1 + 1
Baths + 1/2 Baths
4 + 1
Beds + Home Office
1
Cars
Projekt architektoniczno-budowlany zawiera

opis techniczny

rzuty wszystkich kondygnacji

rzut więźby dachowej

rzut dachu

przekroje

elewacje

Projekt techniczny zawiera

projekt konstrukcji

projekt instalacji sanitarnych

projekt instalacji elektrycznej

projekt instalacji wentylacji mechanicznej

Do projektu dodajemy bezpłatnie

teczka do przechowywania dokumentacji projektowej

dziennik budowy

tablicę informacyjną na budowę - po otrzymaniu projektu domu i wypełnieniu ankiety

zgodę na wprowadzenie zmian do projektu

dokumentację projektową w plikach pdf

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

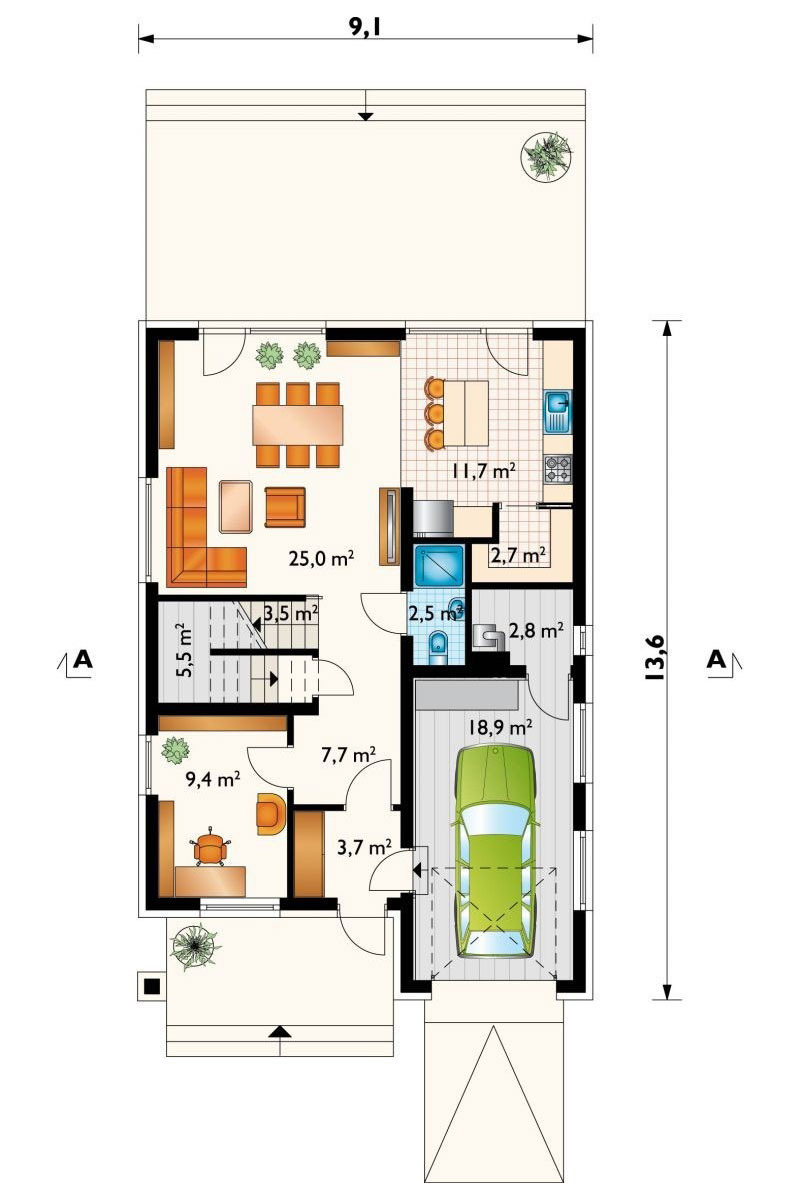

Main Floor
Main Floor 1 – 4-Bedroom, 1700 Sq Ft Plan with Home Office

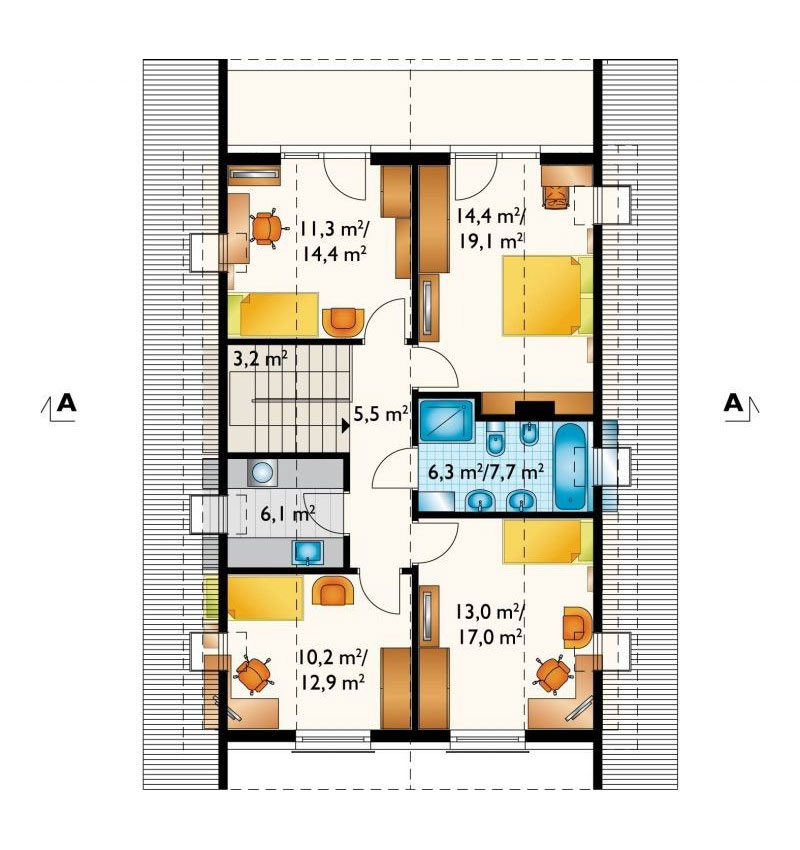

Second Floor
Second Floor 1 – 4-Bedroom, 1700 Sq Ft Plan with Home Office
Full Specs & Features
Area
Total Unheated: 203.44 ft²
Total Heated: 1726.53 ft²
Dimensions
Depth: 41'5" ft
Width: 27'7" ft
Height: 27'7" ft
Garage
Area: 203 ft²
Cars: 1
Garage with Upstairs
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Exterior Wall Framing
Ceramic Block (Optional)
Aerated Concrete Block
Wood-framed (Optional)
Exterior Wall Materials
Stucco
Rooms
Full bathrooms: 1
Half bathrooms: 1
Bedrooms: 4
Utility room
Laundry
Entry
Home Office
Kitchen and Dining
Walk-in Pantry
Breakfast Nook
Island
Interior Features
Laundry Second Floor
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Exterior Features
Balcony
Deck
Large Windows
Floor-to-Ceiling Windows
Architectural Style
European
Traditional
Transitional
Roof
Roof Area: 2292.71 ft²
Gable
Skylight
Ridge perpendicular to street
Roof Pitch: 12/12 (45°)

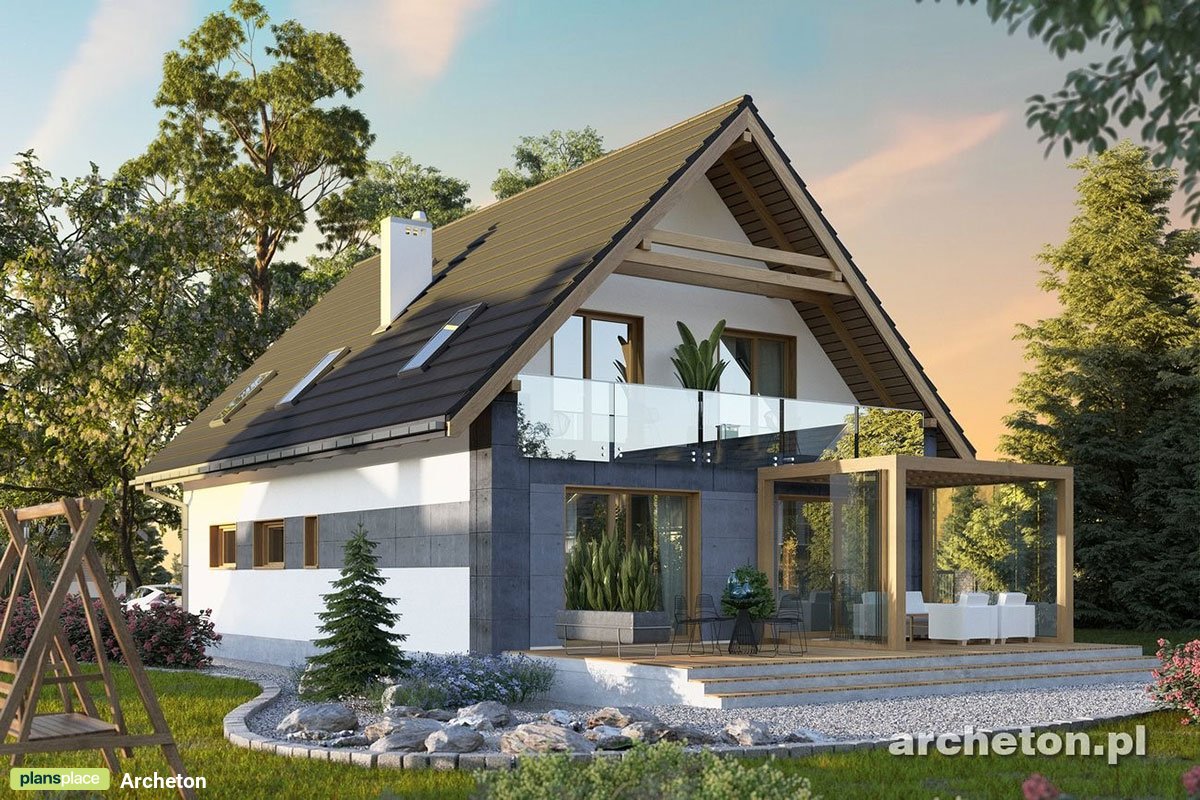

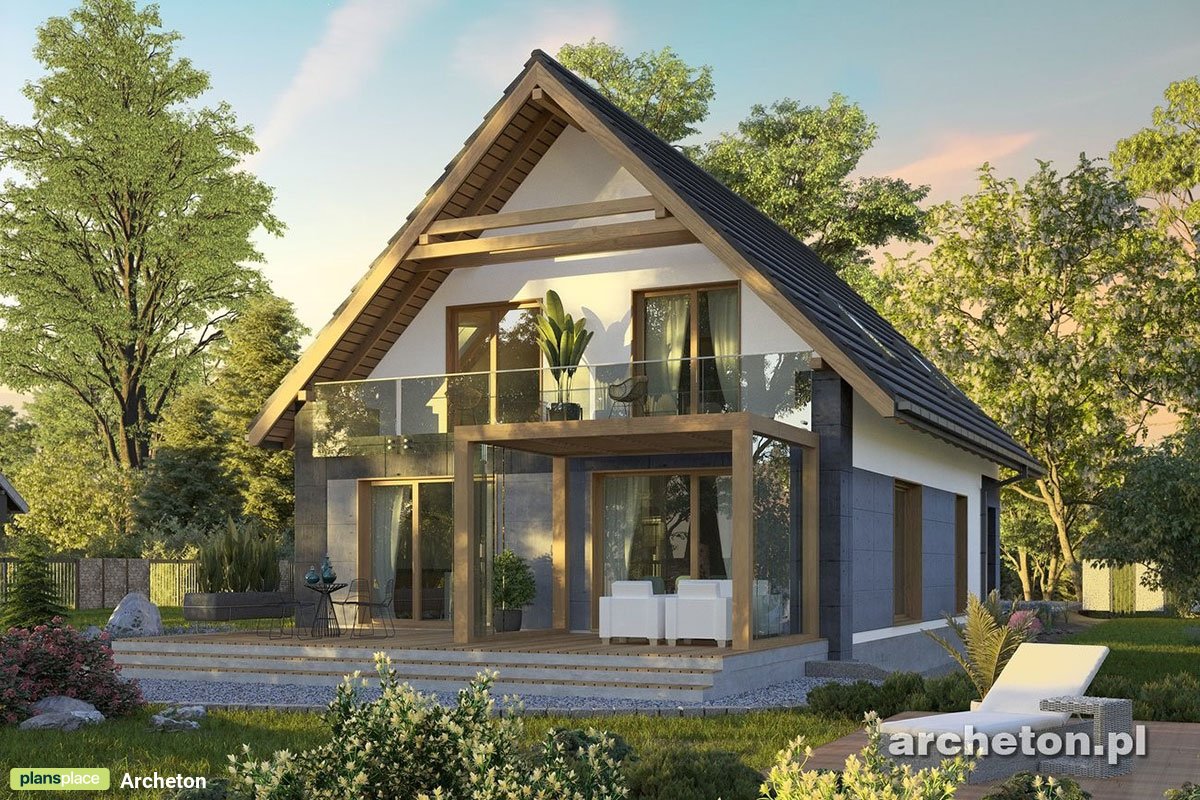

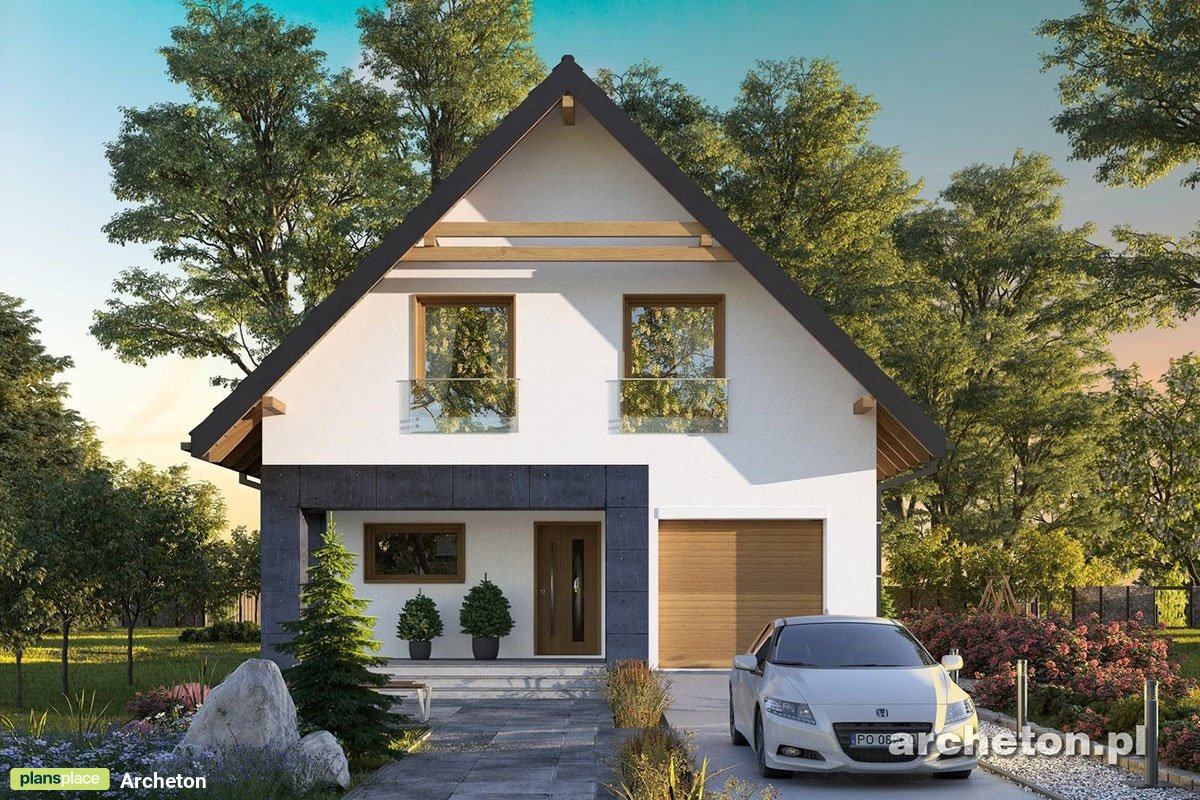

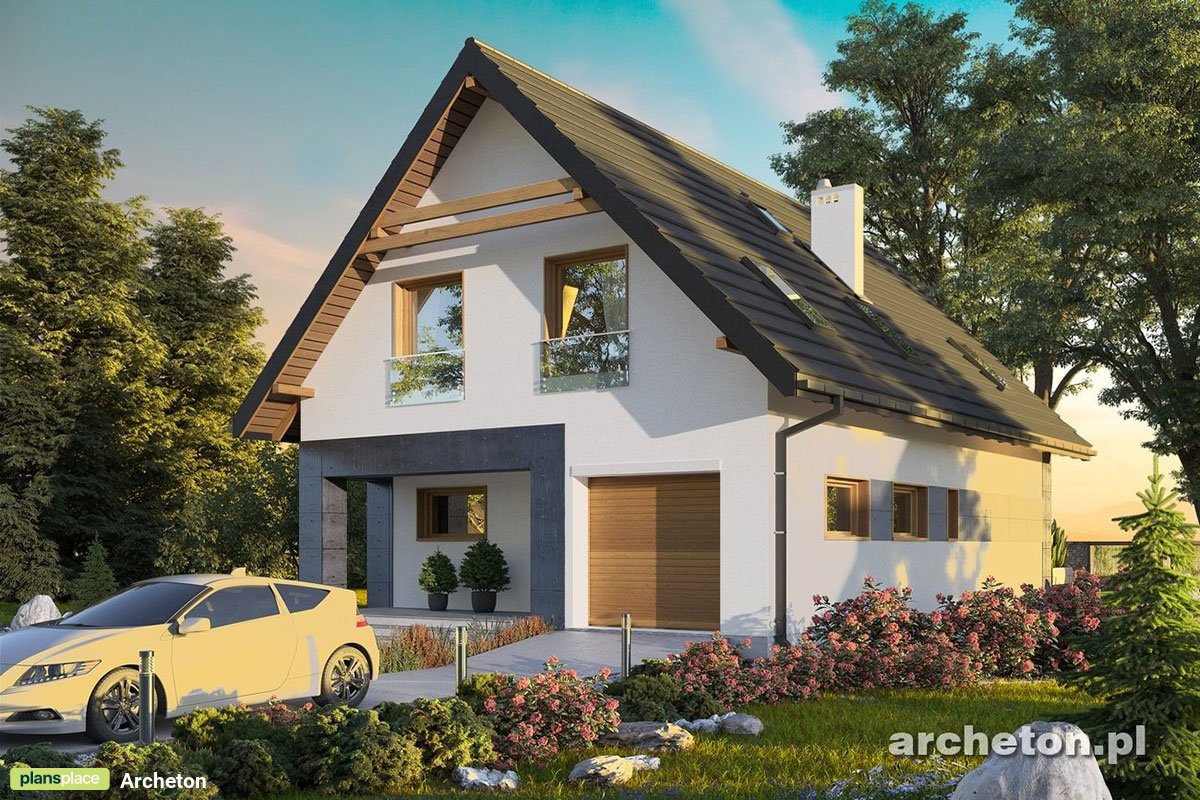

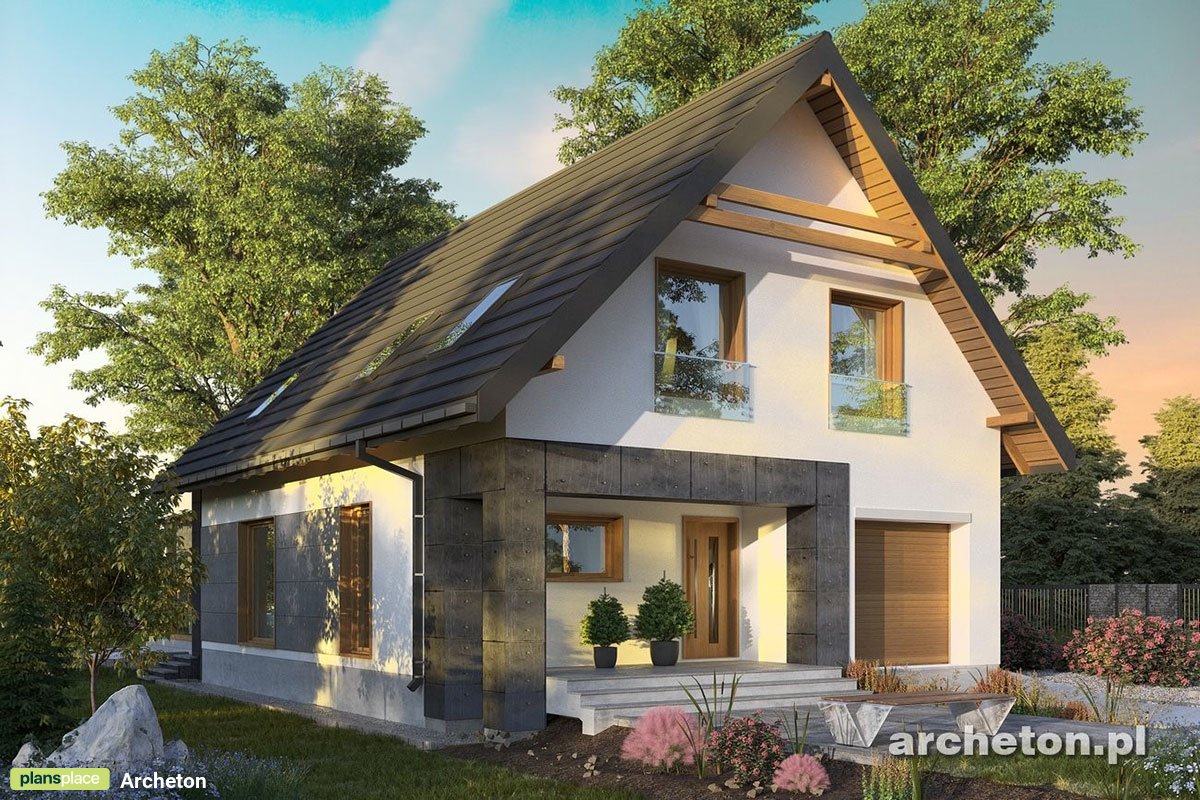

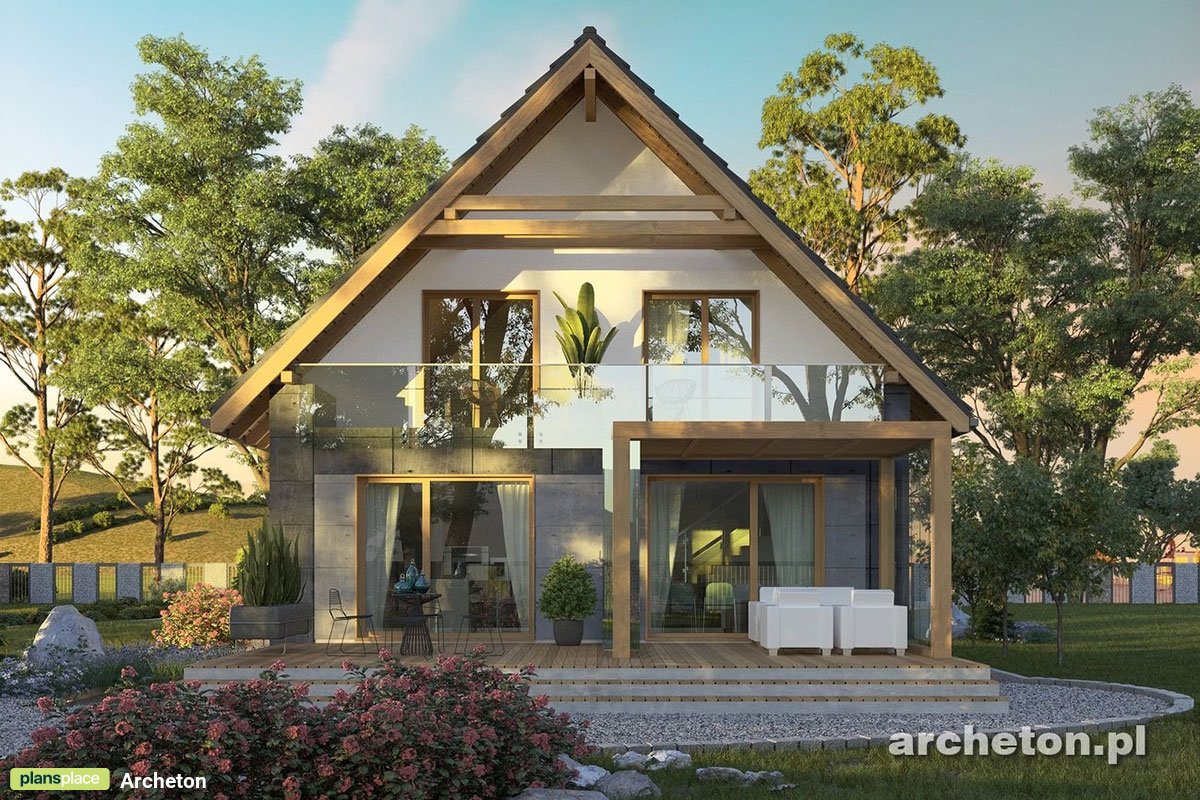

Plan 60076R is a 4-bedroom two-story house plan with 1727 ft² of living space, a European and Traditional character softened by Transitional lines, and a steep 12/12 gable roof with skylights. The stucco exterior wraps a slim, narrow form that measures 27'7" wide and 41'5" deep and rises 27'7" high, with the ridge set perpendicular to the street so the gable faces the front.

The ground floor follows an open floor plan. From the entry, the house opens into a large family room that flows into the dining area and the kitchen, so cooking, meals and conversation share one generous space. The kitchen is built around an island, with a breakfast nook for quick mornings and a walk-in pantry that keeps supplies out of sight. Large windows and floor-to-ceiling windows bring daylight deep into the rooms, and on a gray afternoon the family room still feels bright. A home office gives a quiet place to work away from the bedrooms.

The bedrooms are clustered together, and the master bedroom sits on the second floor, apart from the busy living spaces below. With four bedrooms, the plan suits a growing family or a household that wants a guest room. The house has one full bathroom and one half bathroom, so guests on the main level do not need to go upstairs. A second-floor laundry puts the washer right where the clothes are, and a separate utility room holds the mechanical equipment.

Outside, a balcony on the upper floor and a deck give the family two places to sit in the open air. The attached single-car garage has front entry and space above it, part of the upstairs, so no square foot of the compact footprint is wasted. The house stands on strip footings and has no basement; it is also available with a slab foundation. The exterior walls are framed in aerated concrete block, with ceramic block or wood frame construction available on request.

Architect
Archeton Archeton Architecture Firm country with code pl Poland
country with code pl Poland
Lesser Poland Voivodeship, Kraków, ul. Cystersów 9
Plan Package

The house plan might not adhere to the building codes of your country.

The architect does not sell digital concept or construction documents for your country. You can check the “Building codes match” box and view the Plan Package for the architect’s home country.

Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
