Main Images 2 – 2-Story House Plan 1886 ft², 3 Beds — 71796C
Main Images 5 – 2-Story House Plan 1886 ft², 3 Beds — 71796C Main Images 11 – 2-Story House Plan 1886 ft², 3 Beds — 71796C
6
Concept
Construction documents are prepared for the following countries:

2-Story House Plan 1886 ft²: 3 Beds, Home Office, 3 Baths, Open Floor Plan, without Garage

Plan
71796C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
1886
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 1
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

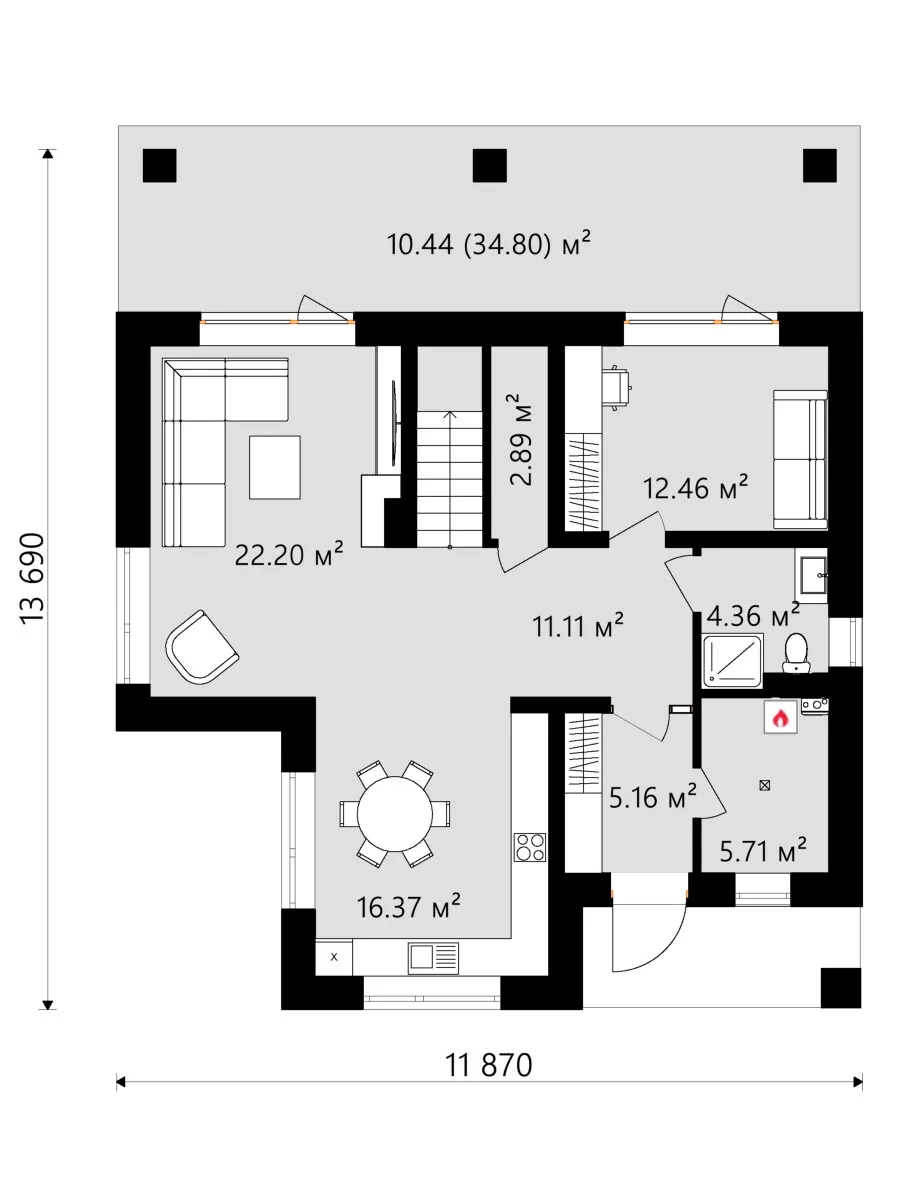

Main Floor
Main Floor 7 – 2-Story House Plan 1886 ft², 3 Beds — 71796C

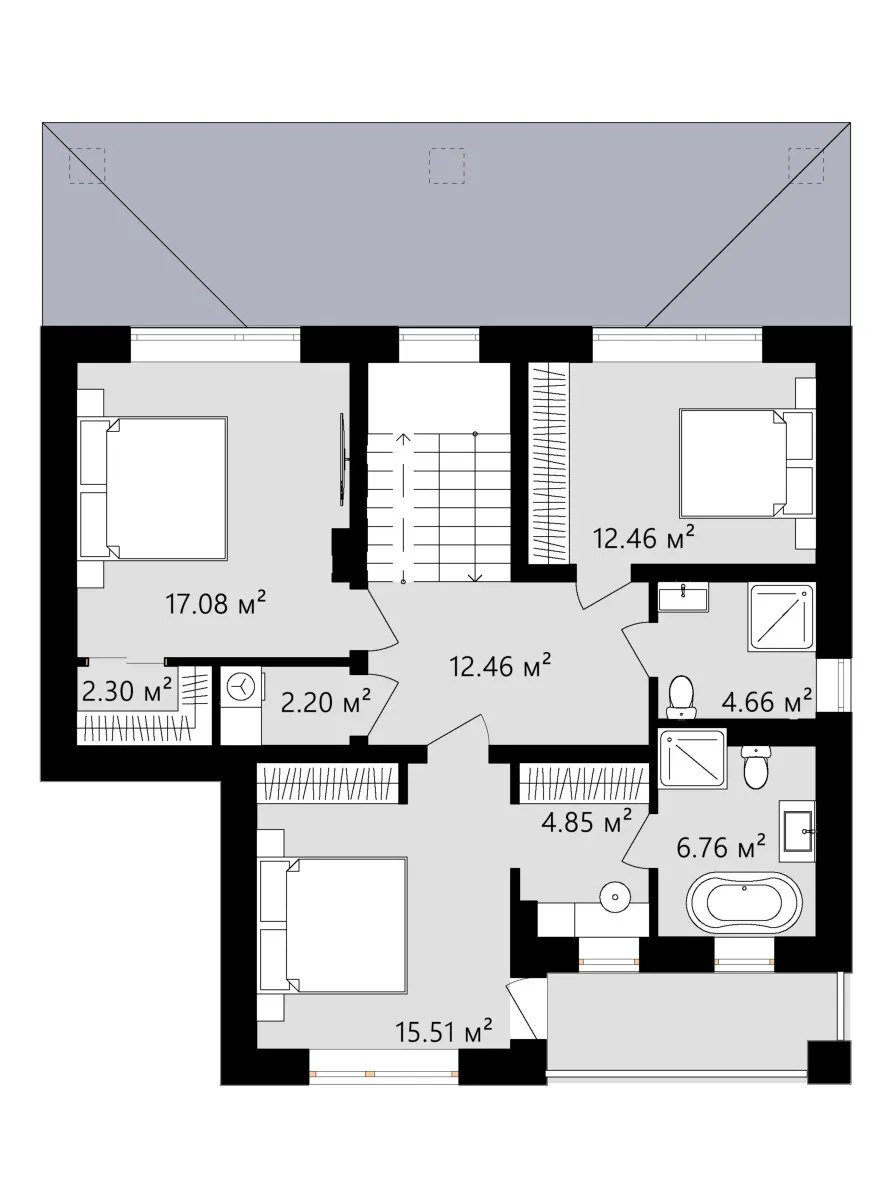

Second Floor
Second Floor 10 – 2-Story House Plan 1886 ft², 3 Beds — 71796C
Full Specs & Features
Area
Total Heated: 1885.73 ft²
Dimensions
Depth: 41'7" ft
Width: 36'2" ft
Height: 27'1" ft
Foundation
Ławy
Płyta (Optional)
Z bloczków (Optional)
Exterior Wall Framing
Beton komórkowy
Pustak ceramiczny (Optional)
Bloczek silikatowy (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Stucco
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Laundry
Entry
Home Office
Storage
Walk In Closet
Kitchen and Dining
Breakfast Nook
Interior Features
Laundry Second Floor
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Kitchen (>130 ft²)
Exterior Features
Balcony
Covered Rear Porch
Large Windows
Floor-to-Ceiling Windows
Architectural Style
European
Traditional

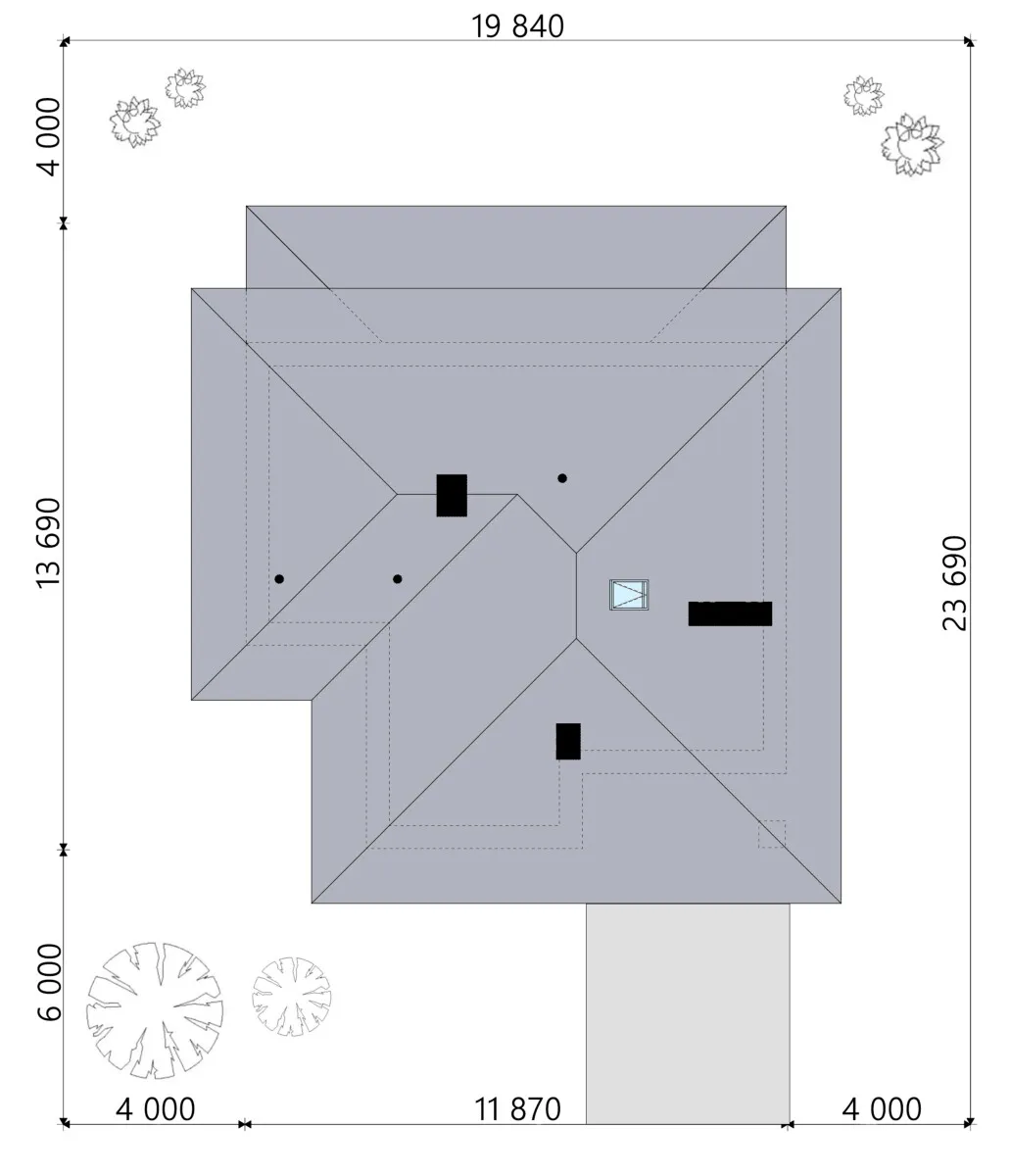

Roof
Roof Area: 2462.78 ft²
Hip & Valley
Roof Pitch: 5/12 (22°)

Plan 71796C is a 3-bedroom 3-story house plan with a European and Traditional character, offering 1886 ft² of living space beneath a hip and valley roof set at a 5/12 (22°) pitch. The single family home is clad in stone/brick veneer and stucco, a pairing that gives the facade both weight and refinement. Its outer walls are framed in aerated concrete, with clay hollow block or sand-lime block available on request. The house measures 36'2" wide and 41'7" deep, with a height of 27'1".

A proper entry receives guests and keeps coats and shoes away from the main rooms. Beyond it, an open floor plan joins the living and dining areas with the kitchen, so the person cooking stays part of the conversation. The large kitchen leaves room for generous counters and storage, and a breakfast nook offers a relaxed spot for quick meals and morning coffee. Large windows and floor-to-ceiling windows pull daylight deep into the plan and frame the garden. A separate home office gives a quiet place to work, study or manage household paperwork, away from the busy heart of the house.

The bedrooms are clustered together, and the master suite sits on the second floor, a classic second floor master arrangement that keeps the private rooms apart from daily traffic. A walk-in closet adds practical wardrobe space. Three full bathrooms mean nobody waits in line on busy mornings, and guests get their own comfortable facilities. The laundry is placed on the second floor as well, right where most clothes and linens are used, which saves carrying baskets up and down the stairs. A utility room and dedicated storage keep mechanical equipment, cleaning supplies and seasonal items neatly out of sight.

The house stands on strip footings and has no basement; a slab or a concrete block foundation is also available. This plan is designed without a garage, which keeps the footprint focused on living space. Outdoors, a covered rear porch extends the living area into the yard and stays usable in light rain, while a balcony gives the upper level its own place for fresh air and a view. With three stories, three bathrooms and a thoughtful balance of open and private rooms, this European house plan suits a family that wants traditional curb appeal and modern comfort in one well-organized home.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
US$919
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
Local Architects
Offers from your local architects who are ready to develop construction documents based on the digital concept.
