1,858 Sq Ft Modern 2-Story House Plan with 3 Bedrooms and 3 Bathrooms
Opis techniczny
Rzuty kondygnacji
Rzut więźby dachowej
Rzut dachu
Przekroje
Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.
House design concept 83853C, available for purchase in digital form, is a modern 2-story single-family home with a total heated area of 1,858 Sq Ft, 3 bedrooms and 3 bathrooms. Designed for 3-4 people, it has a compact footprint of 39'3" wide by 33'5" deep. Its hip and valley roof with a 5/12 pitch sheds rain and snow on every side.
An entry keeps coats and outdoor shoes away from the living spaces. The closed floor plan gives the large kitchen its own room, so cooking smells and noise stay out of the living room, and a breakfast bar serves quick meals without setting the table. A home office on the ground floor works as a flexible room for remote work or study. Large windows bring plenty of daylight into the rooms.

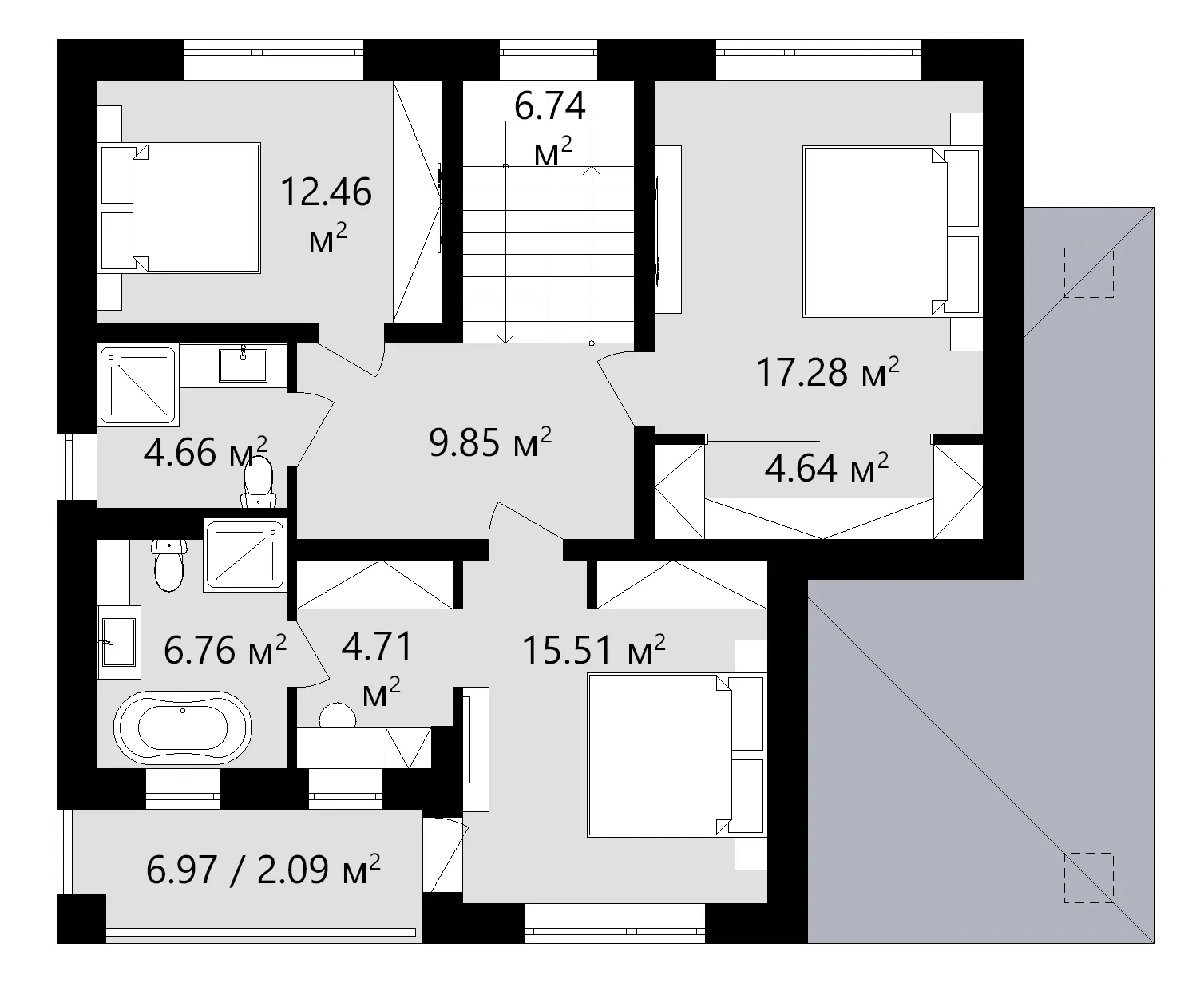

The night zone is on the second floor, where all three bedrooms are clustered away from the day zone. The primary bedroom has a walk-in closet, and three full bathrooms shorten the morning wait. A balcony gives the upper floor its own outdoor spot. A utility room and a storage room keep household equipment and supplies apart from the living areas.
A covered side porch offers a sheltered place to sit outdoors in sun or rain. The exterior combines wood, stucco and flexible ceramic. The walls are framed in aerated concrete, with clay block or sand-lime block as options; the main foundation is strip footings, with a slab or a concrete block foundation as alternatives. In figures: a total heated area of 1,858 Sq Ft, 3 bedrooms and 3 bathrooms.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
Advanced Drafting & Design Co. Mooresville US$ 9,291
My Home Floor Plans Rosemead US$ 1,300
Plan & Simple LLC Austin US$ 3,717
