2,078 Sq Ft Minimalism U-Shaped Single-Story House Plan with 3 Bedrooms, 3 Bathrooms and 2-Car Garage
Opis techniczny

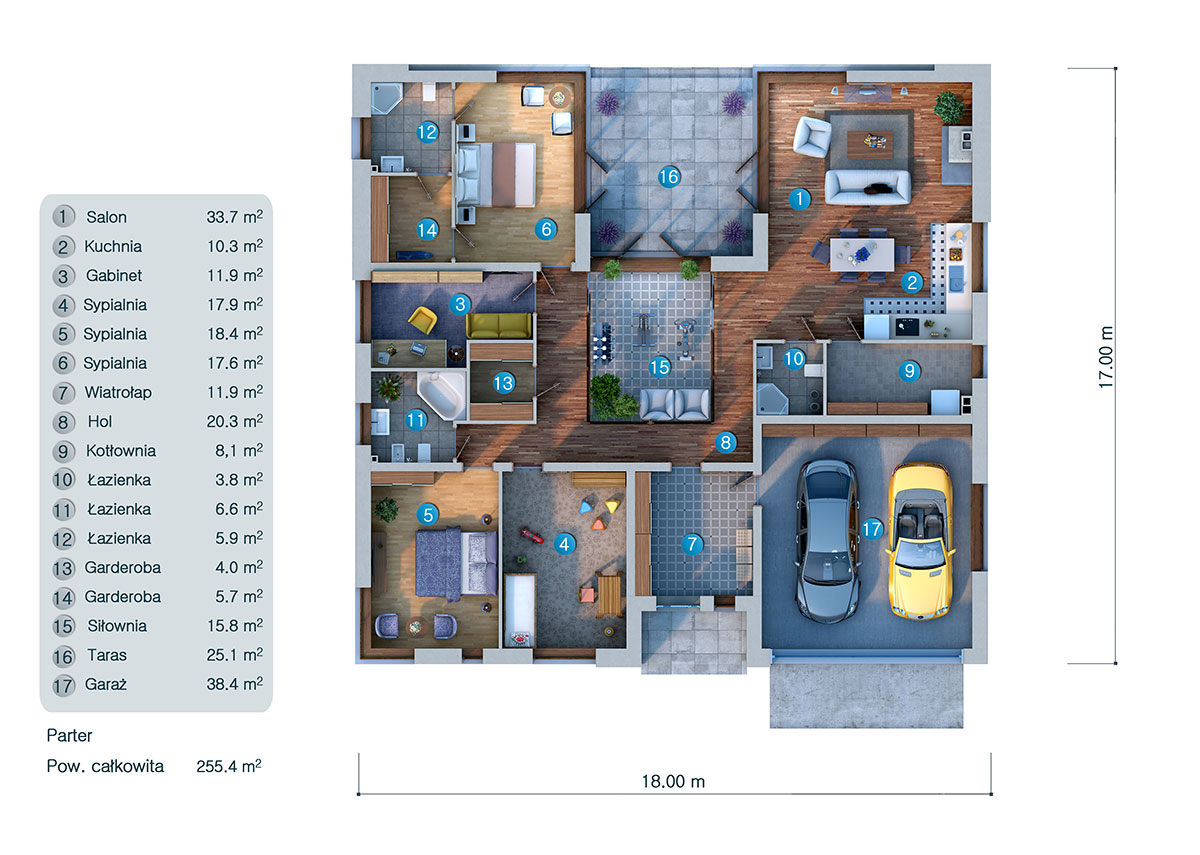

Rzuty kondygnacji
Rzut więźby dachowej
Rzut dachu
Przekroje
Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.
Plan 64921C is a 3-bedroom single-story house plan with a flat roof, a U-shaped footprint and 2,078 Sq Ft of living space on one level, shaped in a contemporary, minimalist idiom. Stucco and panels dress the exterior walls in clean, modern planes, and the house measures 54'9" wide and 51'8" deep. With three full bathrooms, a two-car garage and no basement, it is a one-story house plan that keeps every room, from the entry to the bedrooms, free of stairs.
The heart of the home is an open floor plan built around a large family room with a fireplace. On winter evenings the fire anchors the room, and the open layout lets the kitchen, the dining area and the seating area share one generous space. The kitchen is planned for real cooking and real storage: a walk-in pantry keeps supplies out of sight, and a breakfast nook gives the family a relaxed spot for morning coffee and weekday meals. Large windows, including floor-to-ceiling glass and a corner window, pull daylight deep into the interior and frame long views outside.
The bedrooms are clustered together, which keeps the sleeping quarters quiet and close-knit, and the main floor master suite means the primary bedroom sits on the same level as everything else. Each of the three full bathrooms adds comfort for family members and guests alike. Beyond the bedrooms, the plan answers the needs of modern life with a home office for remote work, an exercise room for daily training without leaving the house, and a utility room for laundry and household systems. A defined entry welcomes visitors and keeps coats and shoes in order.
The house stands on strip footings and is also available with a slab or a concrete block foundation. The exterior walls are built of aerated concrete blocks, and versions in clay hollow block, sand-lime block or wood framing are available on request. A front-entry two-car garage gives direct, convenient parking, while a deck extends the living space outdoors for summer dinners and quiet evenings. For a family looking for a modern house plan with a fireplace, a home office and a calm, functional layout, 64921C offers a refined balance of openness and privacy.
