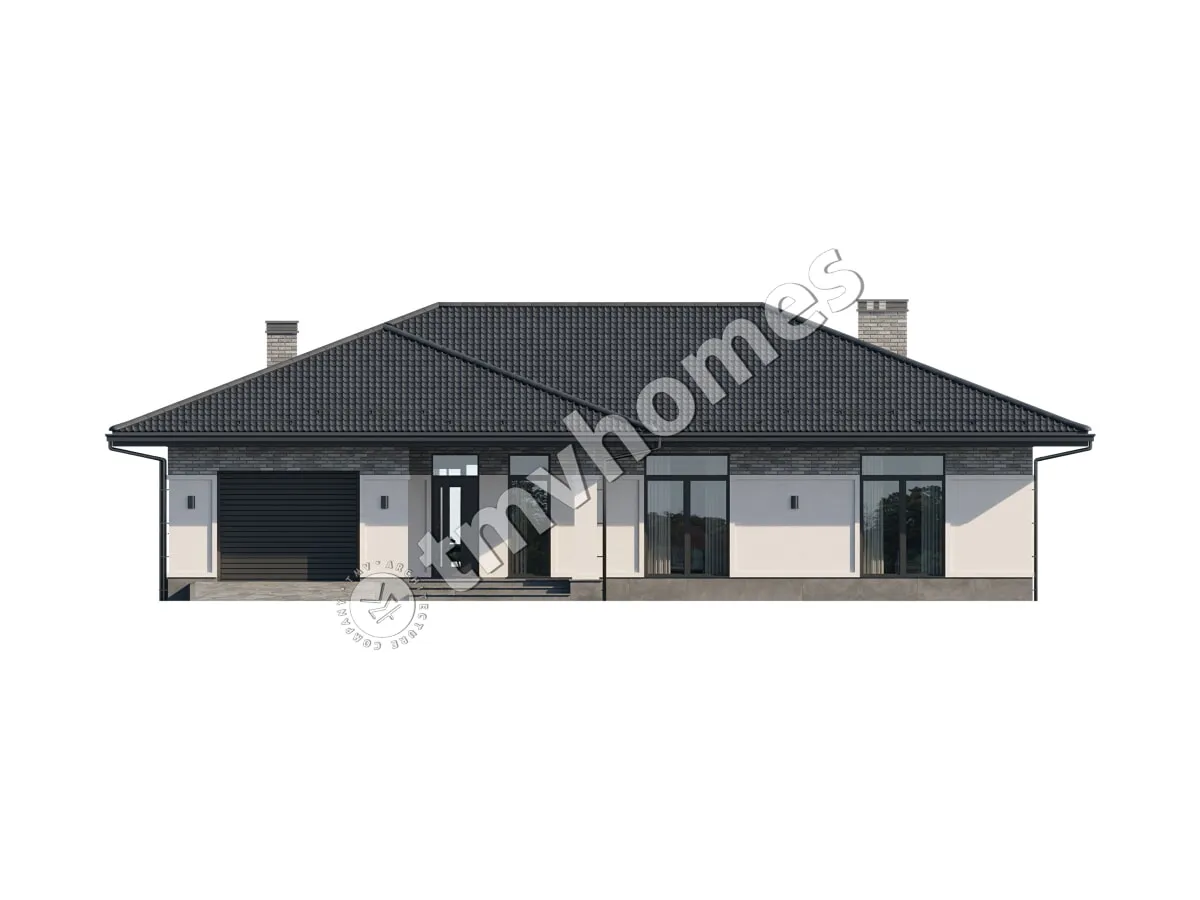

Renderings 2 – 1,569 Sq Ft Traditional Single-Story House Plan with 3 Bedrooms and 1-Car Garage – 76454C
Renderings 3 – 1,569 Sq Ft Traditional Single-Story House Plan with 3 Bedrooms and 1-Car Garage – 76454C Renderings 4 – 1,569 Sq Ft Traditional Single-Story House Plan with 3 Bedrooms and 1-Car Garage – 76454C
6
Concept
Construction documents are prepared for the following countries:

1,569 Sq Ft Traditional T-Shaped Single-Story House Plan with 3 Bedrooms, 3 Bathrooms and 1-Car Garage

Plan
76454C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
1569
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
1
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

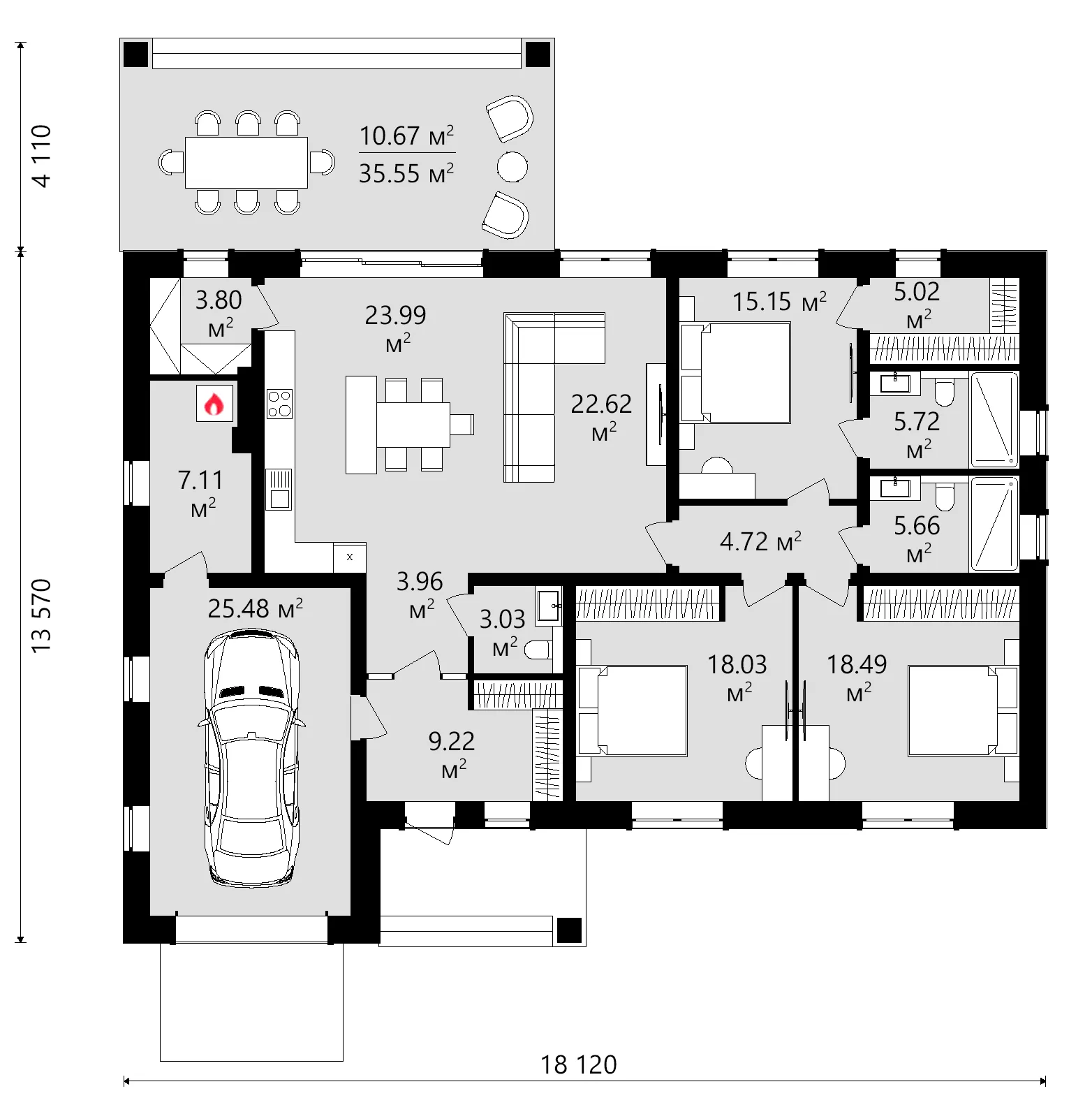

Main Floor

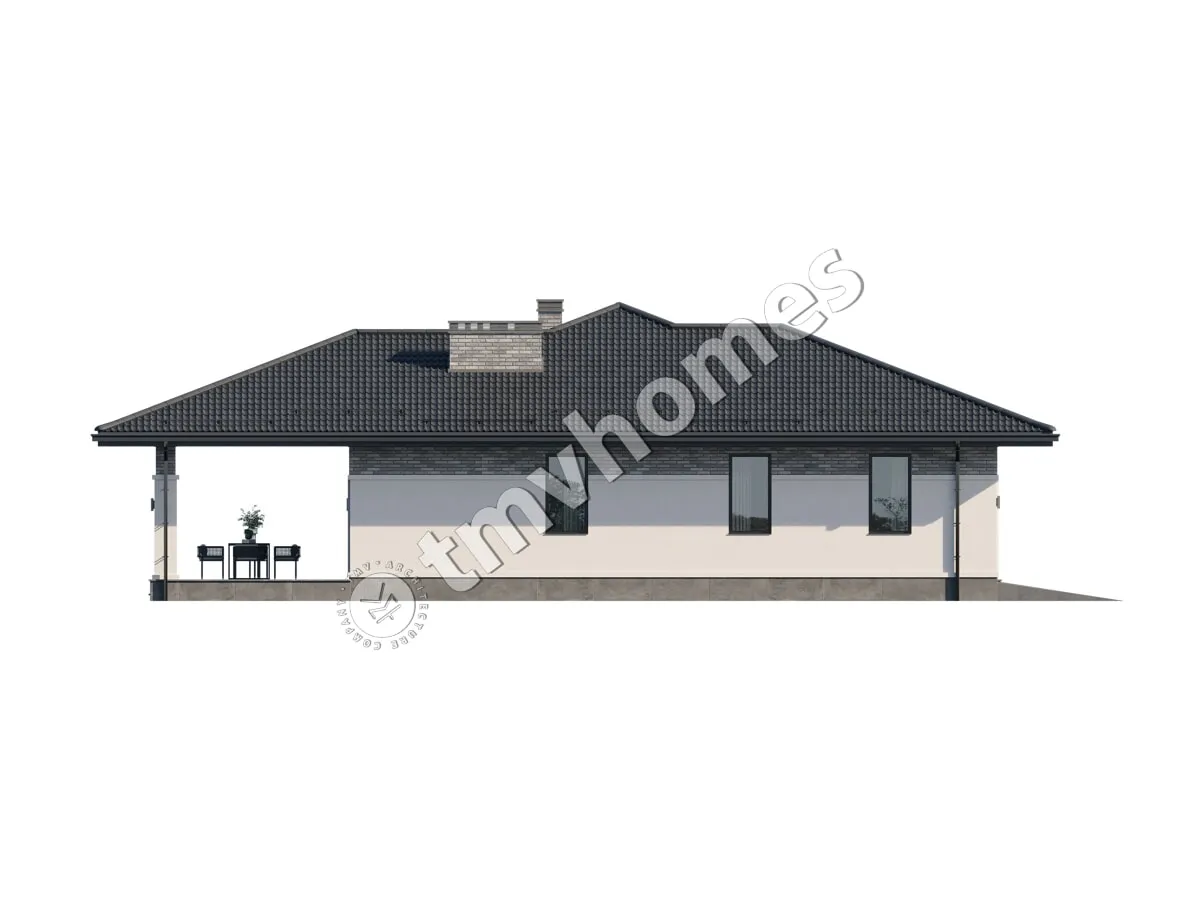

Main Floor 12 – 1,569 Sq Ft Traditional Single-Story House Plan with 3 Bedrooms and 1-Car Garage – 76454C
Full Specs & Features
Area
Total Unheated: 274.26 ft²
Total Heated: 1568.62 ft²
Dimensions
Depth: 53'8" ft
Width: 55'2" ft
Height: 18'9" ft
Garage
Area: 274 ft²
Cars: 1
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stucco
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Entry
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
Interior Features
Main Floor Master
Clustered Bedrooms
Open Floor Plan
Large Kitchen (>130 ft²)
Exterior Features
Covered Rear Porch
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Bungalow
European
Traditional
Roof
Roof Area: 4042.60 ft²
Hip & Valley
Roof Pitch: 5/12 (22°)

House design concept 76454C, available for purchase in digital form, is a Traditional T-shaped single-story single-family home with Total Heated 1,569 Sq Ft, 3 bedrooms, 3 bathrooms and a 1-car garage. The footprint measures 55'2" wide and 53'8" deep, and the hip and valley roof with a 5/12 (22°) pitch gives it a calm, low outline. The layout suits a household of 3-4 people who want every room on one level.

The entry leads into an open floor plan where the great room, dining area and kitchen share daylight from large and floor-to-ceiling windows. The large kitchen leaves space for cooking together, with a breakfast bar for quick meals and a breakfast nook for unhurried mornings. A walk-in pantry keeps supplies organized and out of sight.

The bedrooms are clustered on the main floor, so parents stay close to the children. The primary suite has a walk-in closet that keeps clothing in one place, and three full bathrooms shorten the morning rush. A utility room moves household equipment and chores away from the living spaces.

The covered rear porch, reached from the living area, extends daily life outdoors in any weather. The front-entry 1-car garage gives direct access from the street, and the stucco exterior keeps the facade clean and durable. The house stands on strip footings, with a slab or concrete block foundation as options, and the exterior walls are aerated concrete, with ceramic hollow block or calcium silicate block as alternatives. In figures: Total Heated 1,569 Sq Ft, 3 bedrooms, 3 bathrooms and a 1-car garage.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
