2-Story House Plan 2083 ft²: 3 Beds, Home Office, 3 Baths, without Garage
Opis techniczny

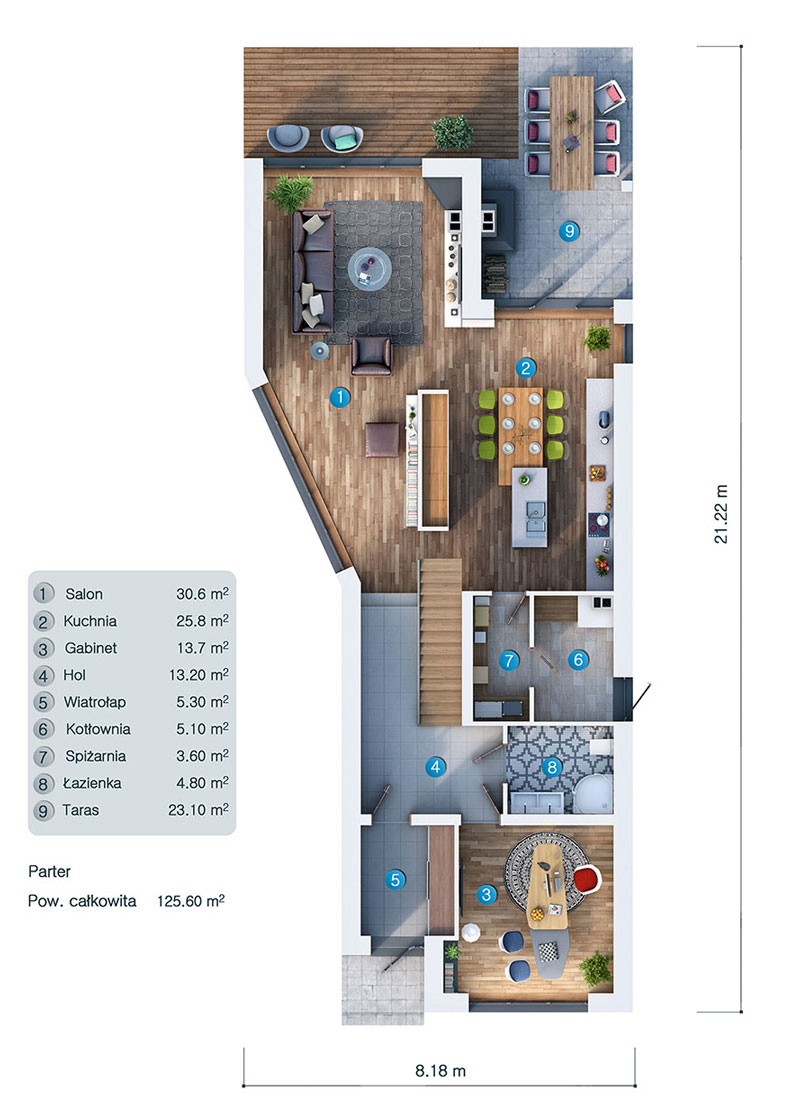

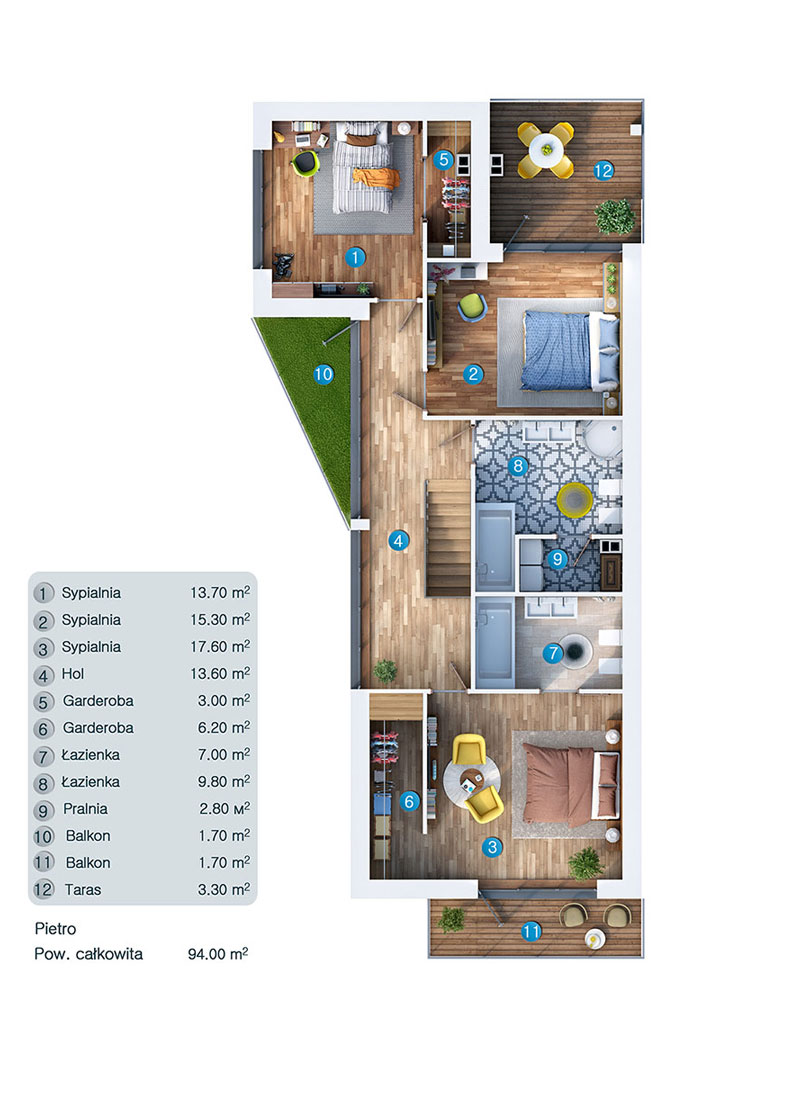

Rzuty kondygnacji
Rzut więźby dachowej
Rzut dachu
Przekroje
Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.
Plan 83714C is a 3-bedroom 3-story house plan with 2083 ft² of living space, a contemporary European design crowned by a low hip roof with a 3/12 (14°) pitch. The single-family home measures 27'0" wide and 59'0" deep, so its narrow, elongated footprint rises over three levels instead of spreading out. Wood and tiles dress the exterior walls, while large windows and floor-to-ceiling glass give the modern facade a clean, confident rhythm. With three bedrooms and three full bathrooms, it is a calm and well-ordered home for every season.
Inside, a closed floor plan gives each room its own purpose and quiet. You come in through a proper entry that keeps coats and boots away from the living areas. The large family room is built around a fireplace, the natural gathering point on winter evenings, and a two-sided fireplace adds a second source of warmth to the design. The large kitchen works hard and looks good doing it: an island for cooking and casual conversation, a walk-in pantry that keeps supplies out of sight, and a breakfast nook for slow mornings with coffee. A home office offers a separate, door-closing space for remote work or homework.
The bedrooms follow a split layout, which gives the owners and the rest of the family welcome privacy. The master suite sits on the second floor and includes a walk-in closet. Three full bathrooms mean no queues in the morning and comfortable accommodation for guests. Second-floor laundry puts the washer and dryer right where the clothes are, and a utility room holds the mechanical equipment out of the way of daily life.
Outdoors, stacked porches create covered space on more than one level, and a balcony and a deck extend the home toward fresh air. An outdoor fireplace makes the deck usable well into the cooler months, a fine place for evenings with friends. The house stands on strip footings and is also available with a slab or a concrete block foundation. The exterior walls are built of aerated concrete blocks, with clay hollow blocks, sand-lime blocks or wood framing available on request. This house plan with fireplace has no garage and no basement, keeping the focus on 2083 ft² of well-planned living space.
Advanced Drafting & Design Co. Mooresville US$ 10,415
My Home Floor Plans Rosemead US$ 6,249
Plan & Simple LLC Austin US$ 4,166
