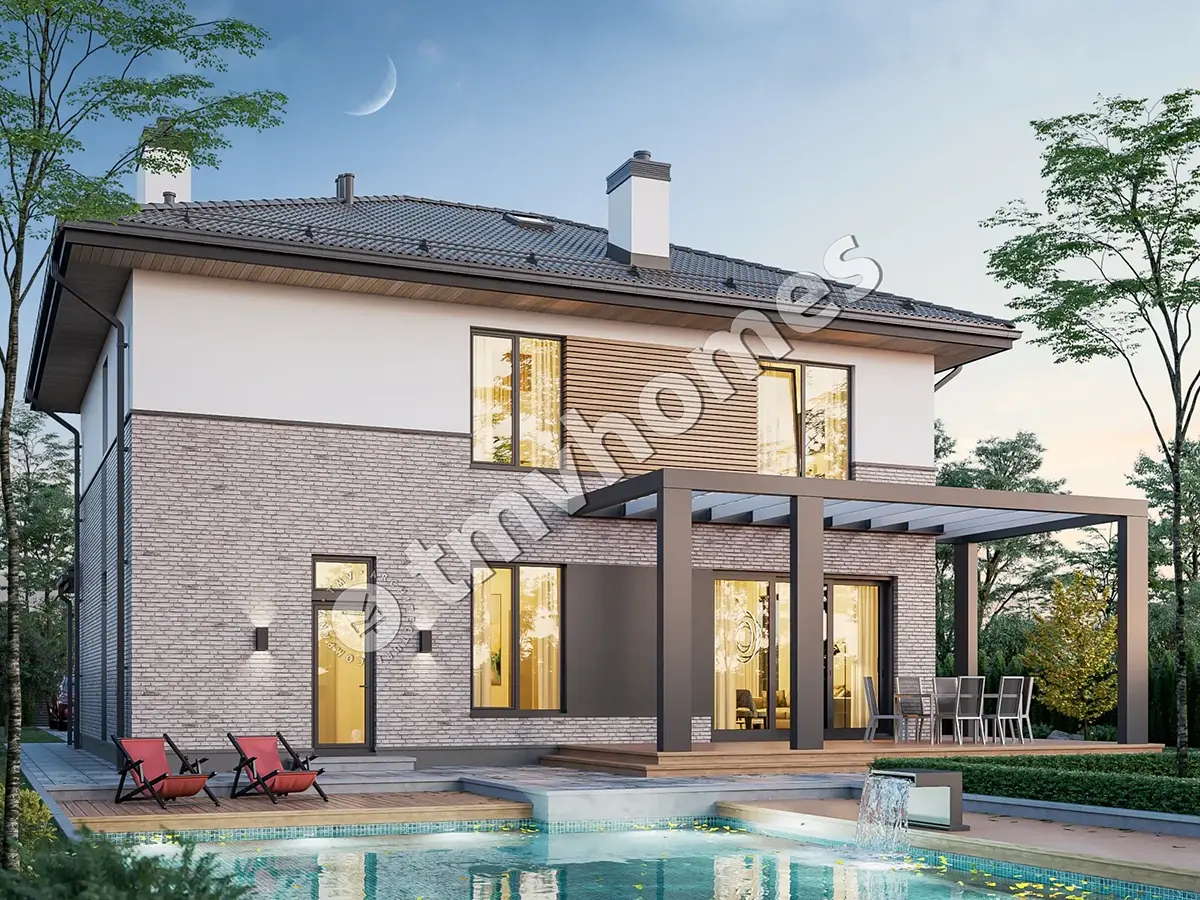

Main Images 2 – 2-Story House Plan 2244 ft², 3 Beds — 93116C
Main Images 3 – 2-Story House Plan 2244 ft², 3 Beds — 93116C Main Images 4 – 2-Story House Plan 2244 ft², 3 Beds — 93116C
7
Concept
Construction documents are prepared for the following countries:

2-Story House Plan 2244 ft²: 3 Beds, Home Office, 3 Baths, Open Floor Plan, 1-Car Garage

Plan
93116C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2244
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 1
Beds + Home Office
1
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

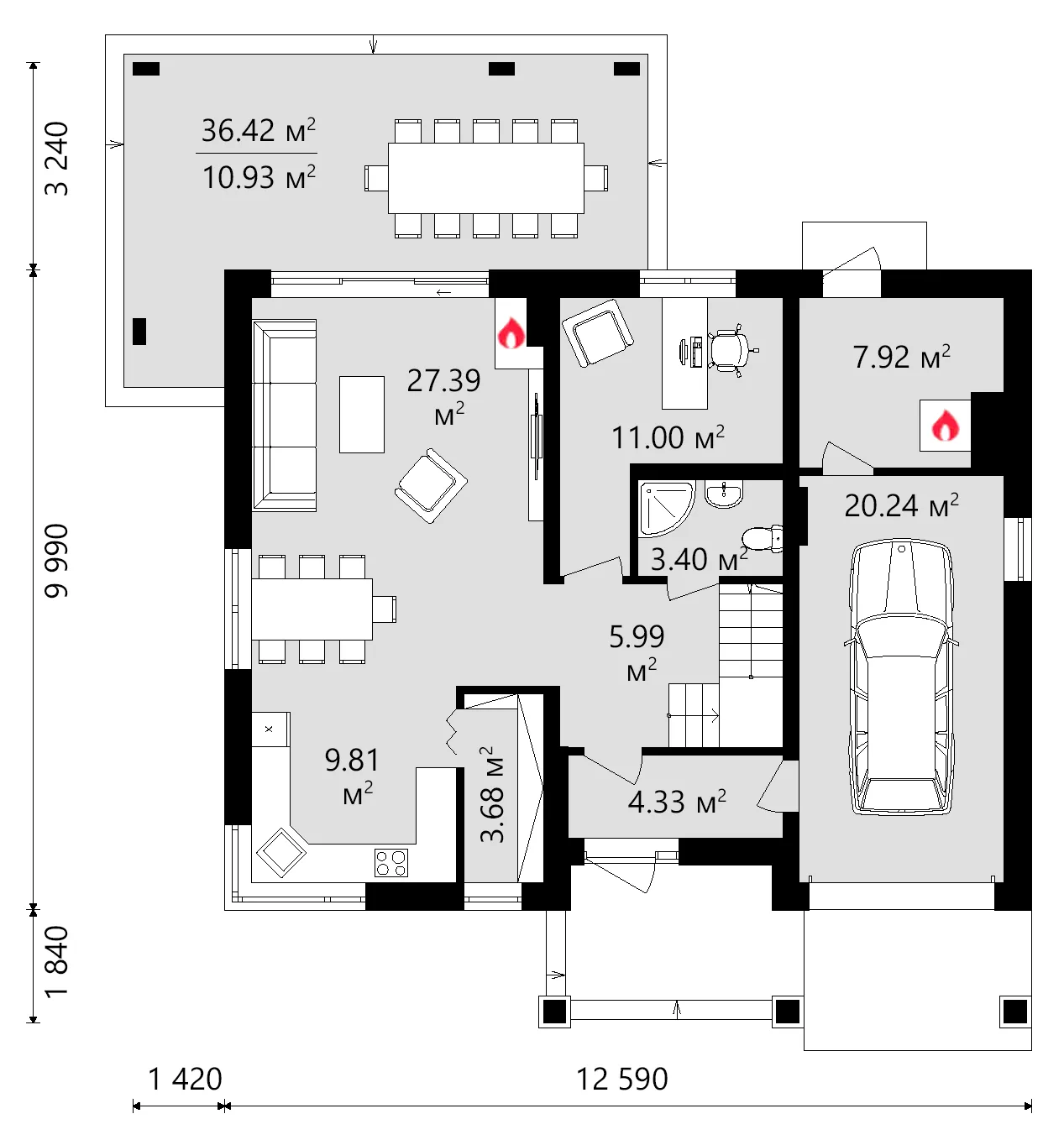

Main Floor
Main Floor 12 – 2-Story House Plan 2244 ft², 3 Beds — 93116C

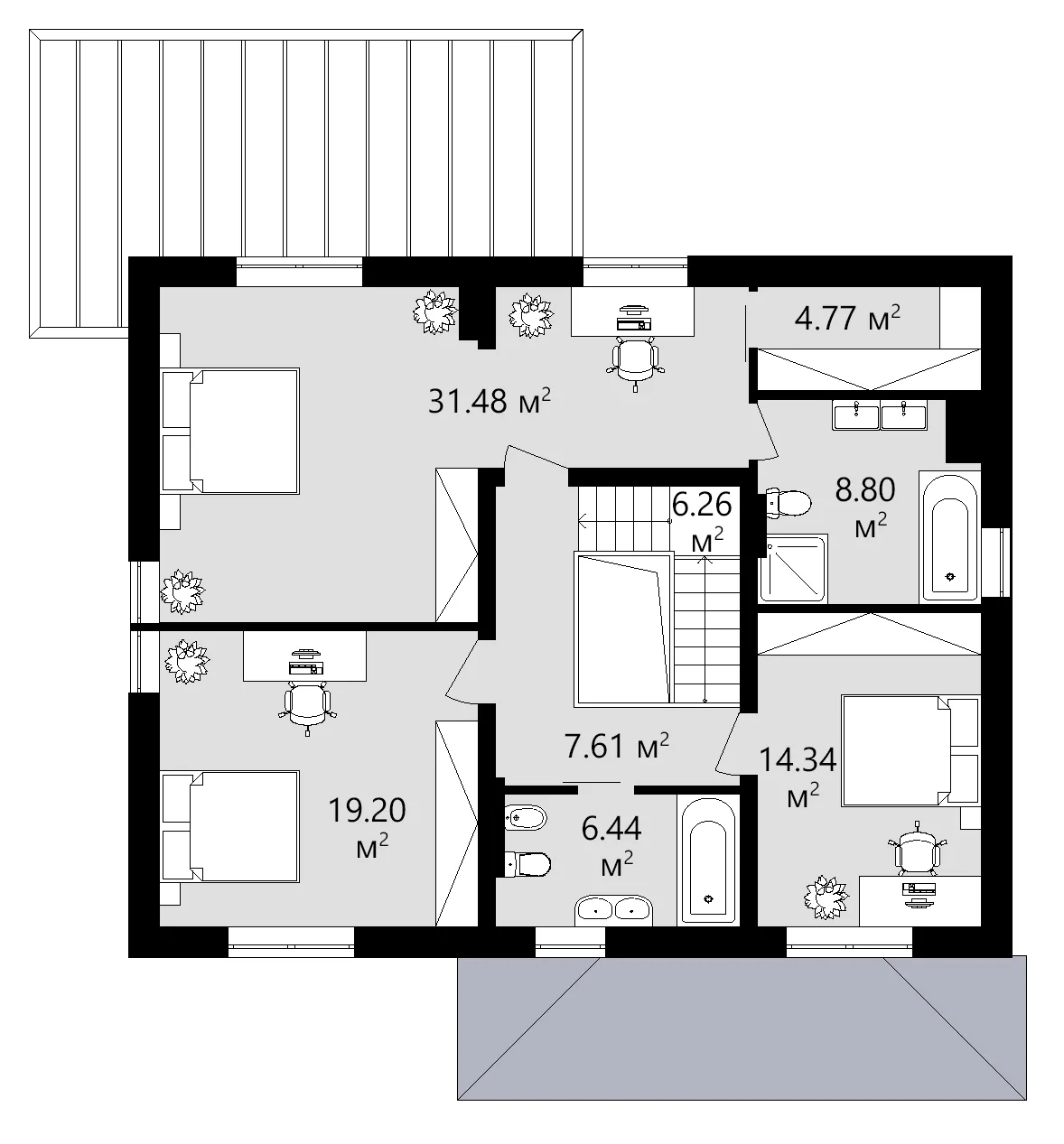

Second Floor
Second Floor 13 – 2-Story House Plan 2244 ft², 3 Beds — 93116C
Full Specs & Features
Area
Total Unheated: 217.86 ft²
Total Heated: 2243.63 ft²
Dimensions
Depth: 45'9" ft
Width: 42'7" ft
Height: 29'4" ft
Garage
Area: 218 ft²
Cars: 1
Garage with Upstairs
Front Entry
Foundation
Ławy
Płyta (Optional)
Z bloczków (Optional)
Exterior Wall Framing
Beton komórkowy
Pustak ceramiczny (Optional)
Bloczek silikatowy (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Wood
Stucco
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Entry
Home Office
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast Nook
Corner Window
Interior Features
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Open to Below
Open Floor Plan
Large Family Room (>270 ft²)
Exterior Features
Covered Front Porch
Covered Rear Porch
Architectural Style
European
Traditional
Roof
Roof Area: 2195.84 ft²
Hip
Roof Pitch: 6/12 (26°)

Plan 93116C is a 3-bedroom, three-story house plan with European and Traditional character, offering 2244 ft² of living space beneath a hip roof with a 6/12 pitch. Stone/brick veneer, wood and stucco share the facade, a combination that gives the house texture and a settled, timeless look. The home measures 42'7" wide and 45'9" deep, with a height of 29'4", and is designed as a single-family residence for living in all year round.

The entry opens onto an open floor plan built around a large family room. The space above it is left open to below, so the room rises through the house and feels generous and bright, while the fireplace in the family room gives it a natural center on cold evenings. For anyone looking for a house plan with fireplace and open concept living, this layout keeps the kitchen, the dining and the family room in easy contact. The kitchen has a walk-in pantry for supplies and a corner window that draws daylight across the counters, and the breakfast nook makes a relaxed spot for morning coffee and homework. A home office gives a quiet place to work or study apart from the everyday activity of the family.

The bedrooms are clustered together, which keeps the family close and the private rooms separate from the living area. The master suite sits on the second floor and includes a walk-in closet. With three full bathrooms, this 3 bedroom house plan gives every member of the household convenient access to a bathroom, and the utility room keeps laundry and household tasks out of sight.

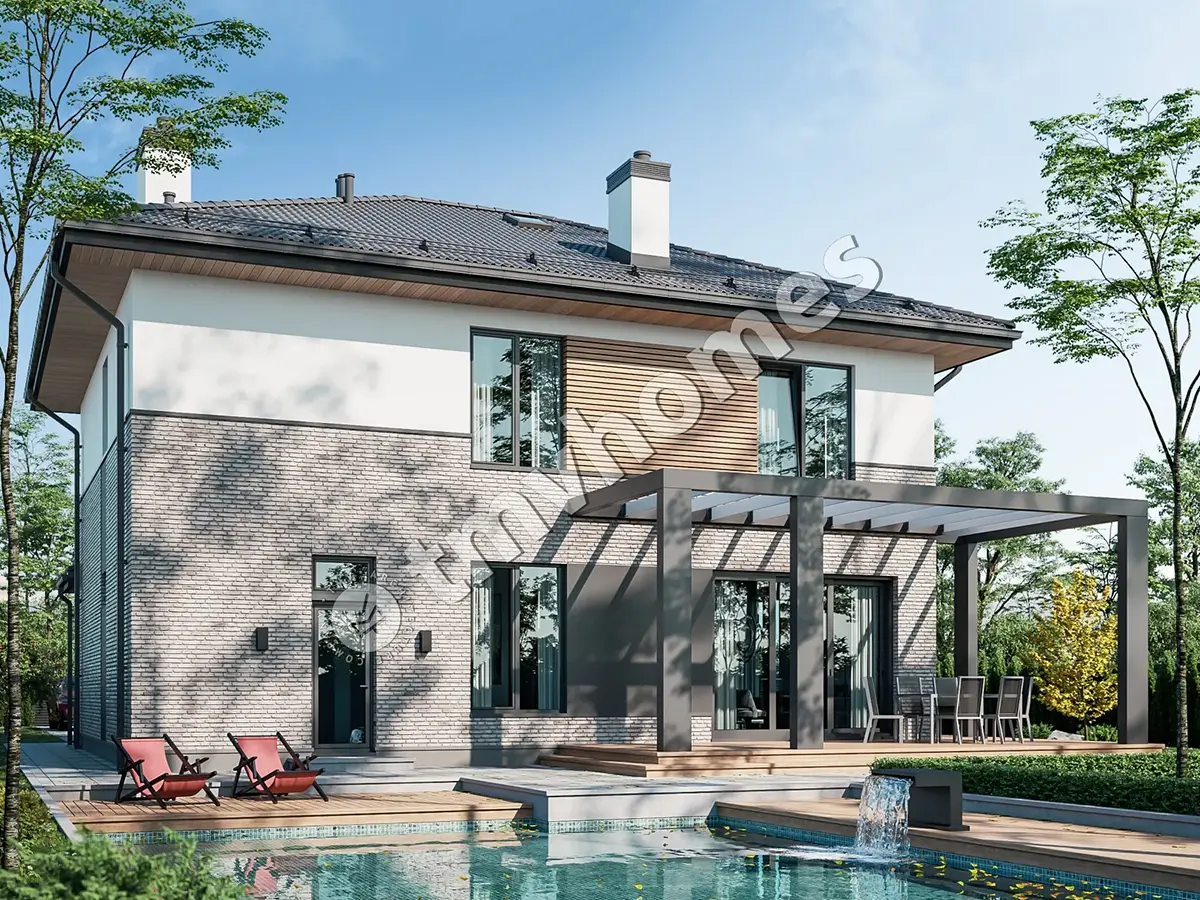

Outside, a covered front porch welcomes guests, and a covered rear porch extends the living space for quiet evenings outdoors. The one-car front entry garage has space upstairs, useful for storage or a future bonus area. The house has no basement and stands on strip footings, and it is also available with a slab or a concrete block foundation. The exterior walls are framed in aerated concrete blocks, with clay hollow blocks or sand-lime blocks also available on request.
