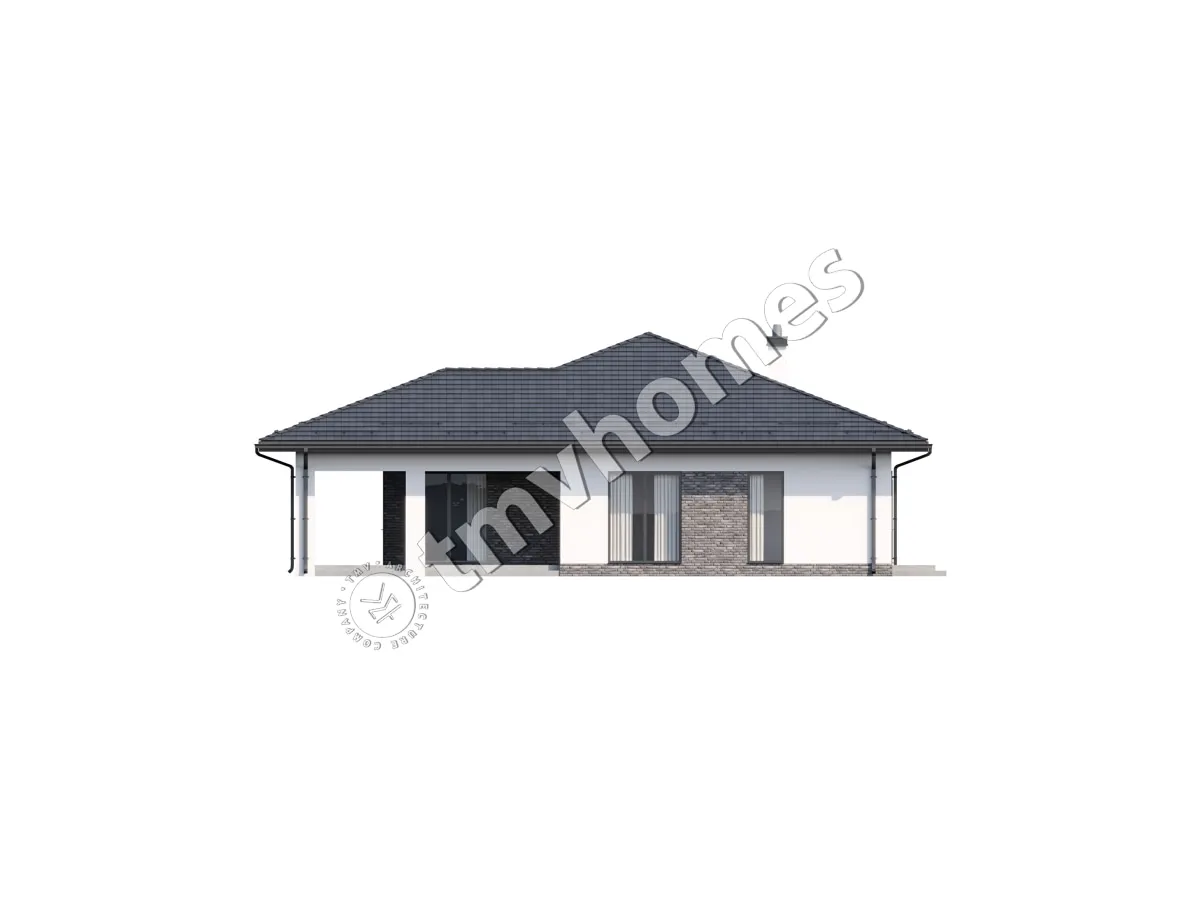

Main Images 2 – 1-Story House Plan 2139 ft², 4 Beds — 51087C
Main Images 3 – 1-Story House Plan 2139 ft², 4 Beds — 51087C Main Images 4 – 1-Story House Plan 2139 ft², 4 Beds — 51087C
6
Concept
Construction documents are prepared for the following countries:

1-Story House Plan with Basement 2139 ft²: 4 Beds, 3 Baths, Open Floor Plan, 2-Car Garage

Plan
51087C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2139
Total Heated ft²
3 + 0
Baths + 1/2 Baths
4 + 0
Beds + Home Office
2
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

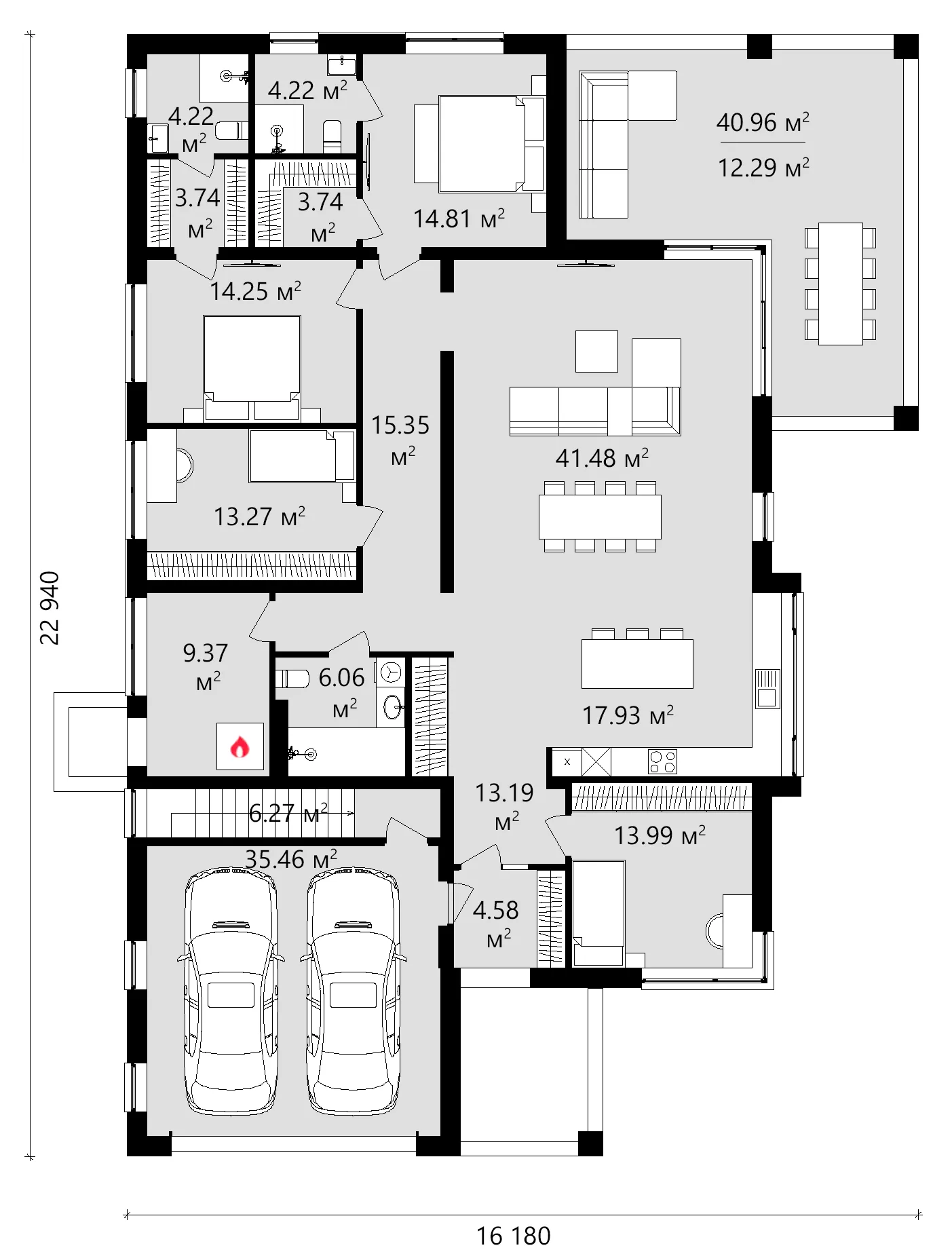

Main Floor
Main Floor 12 – 1-Story House Plan 2139 ft², 4 Beds — 51087C
Basement
Basement 11 – 1-Story House Plan 2139 ft², 4 Beds — 51087C
Full Specs & Features
Area
Total Unheated: 804.28 ft²
Basement: 422.59 ft²
Total Heated: 2139.43 ft²
Dimensions
Depth: 69'9" ft
Width: 49'3" ft
Height: 20'0" ft
Garage
Area: 382 ft²
Cars: 2
Front Entry
Extension Forward
Foundation
Ławy (Optional)
Płyta (Optional)
Z bloczków (Optional)
Piwnica
Exterior Wall Framing
Beton komórkowy
Pustak ceramiczny (Optional)
Bloczek silikatowy (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Stucco
Rooms
Full bathrooms: 3
Bedrooms: 4
Utility room
Entry
Storage
Walk In Closet
Kitchen and Dining
Island
Interior Features
Main Floor Master
2 Master Suites
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Rear Porch
Corner Window
Large Windows
Floor-to-Ceiling Windows
Architectural Style
European
Traditional

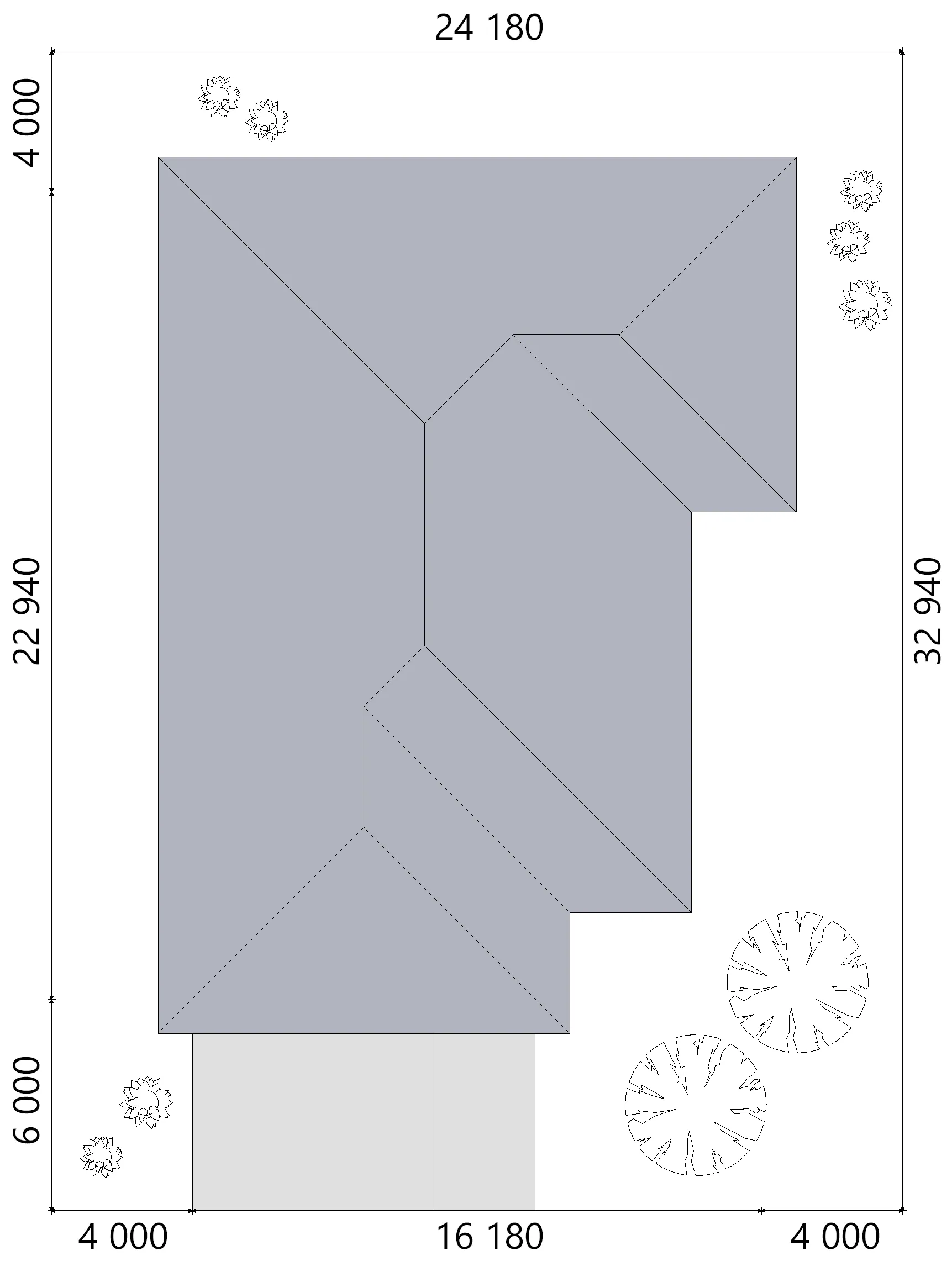

Roof
Roof Area: 4560.45 ft²
Hip & Valley
Roof Pitch: 5/12 (22°)

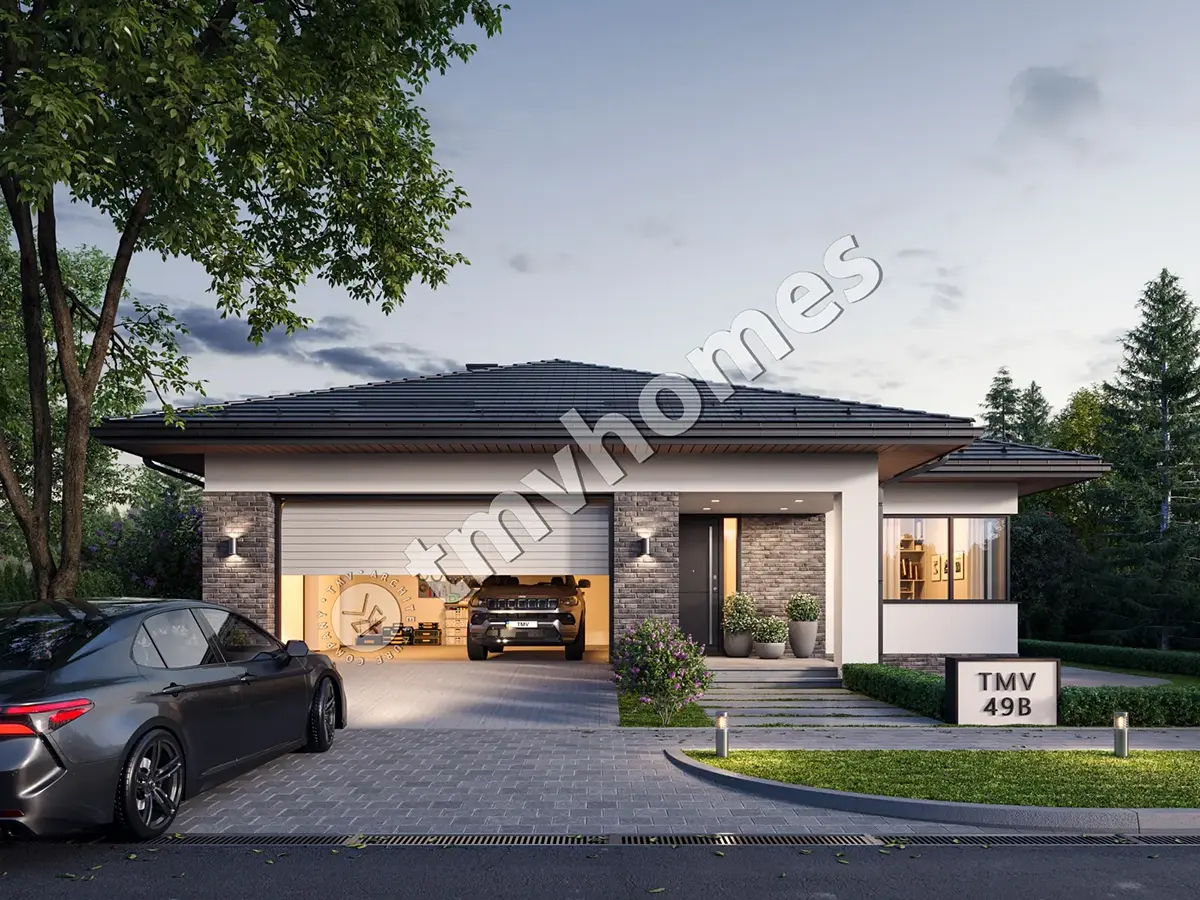

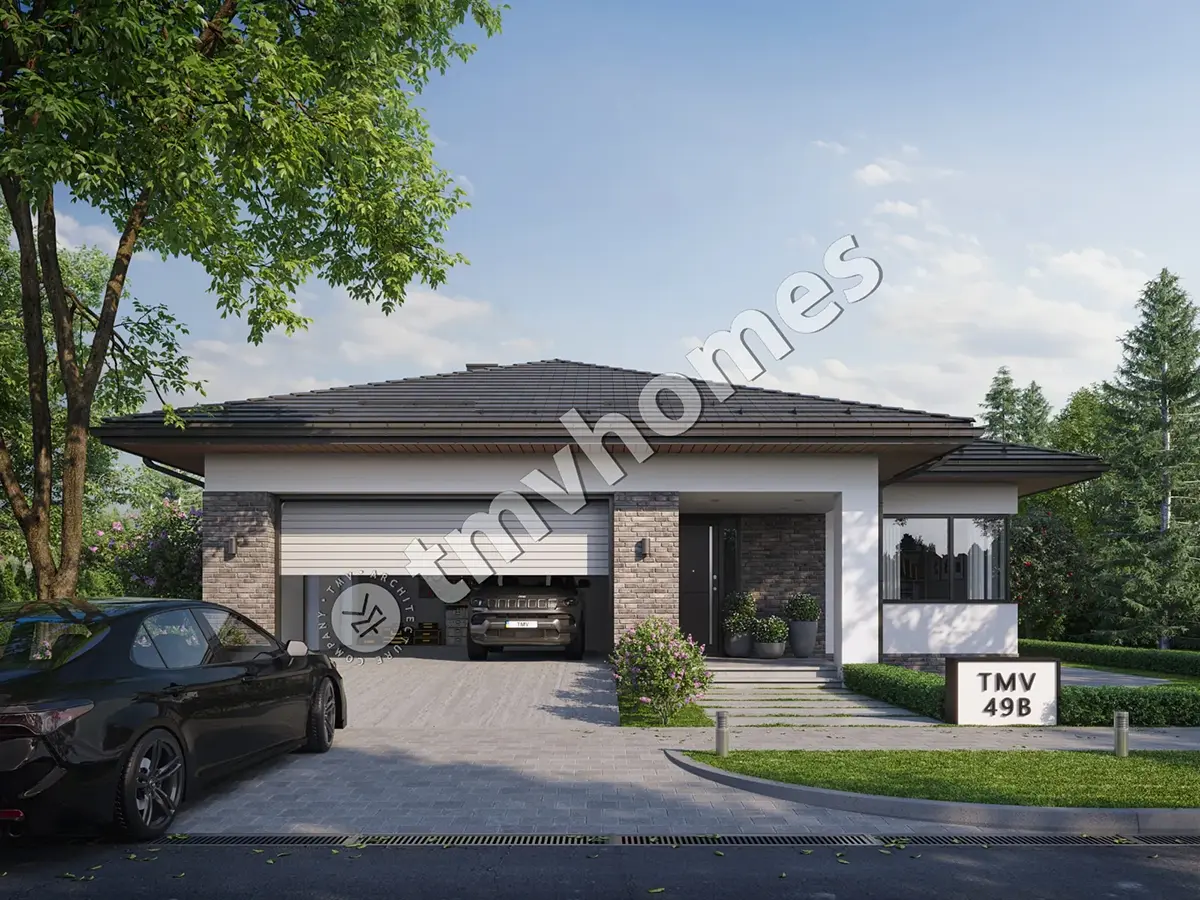

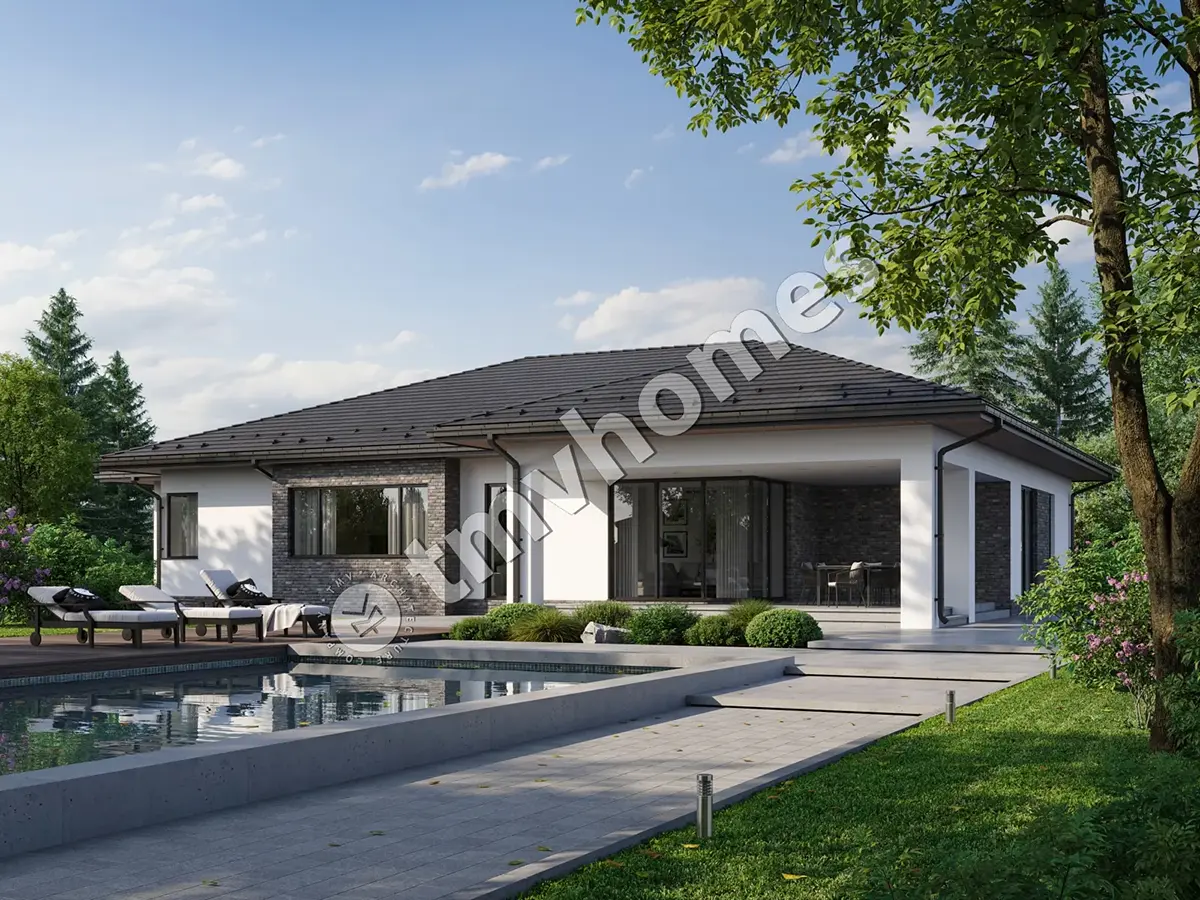

Plan 51087C is a 4-bedroom single-story house plan with a full basement, offering 2139 ft² of living space in a T-shaped footprint under a hip & valley roof. European and Traditional styling defines the exterior, where stone/brick veneer meets stucco and the roof rises at a 5/12 (22°) pitch. The house measures 49'3" wide and 69'9" deep, with a height of 20'0". Its exterior walls are framed in aerated concrete (AAC), and clay block or calcium silicate block framing is also available on request.

From the entry, the home opens into an open floor plan built around a large family room and a large kitchen. The kitchen is anchored by an island, a natural gathering point for breakfast, homework and conversation while dinner is under way, and the open layout keeps the cook part of everything happening in the family room. Large windows, floor-to-ceiling windows and a corner window draw generous daylight into the interior, so the main rooms feel bright from the first hours of the morning.

This 4 bedroom house plan is unusually flexible, with 2 master suites, an arrangement that suits multigenerational living, long-staying guests or older children who want their own space. The main-floor master comes with a walk-in closet, and the bedrooms are clustered together for easy family routines. Three full bathrooms mean no one waits in line on busy mornings. A utility room and dedicated storage keep laundry, supplies and seasonal items out of sight and the living areas uncluttered.

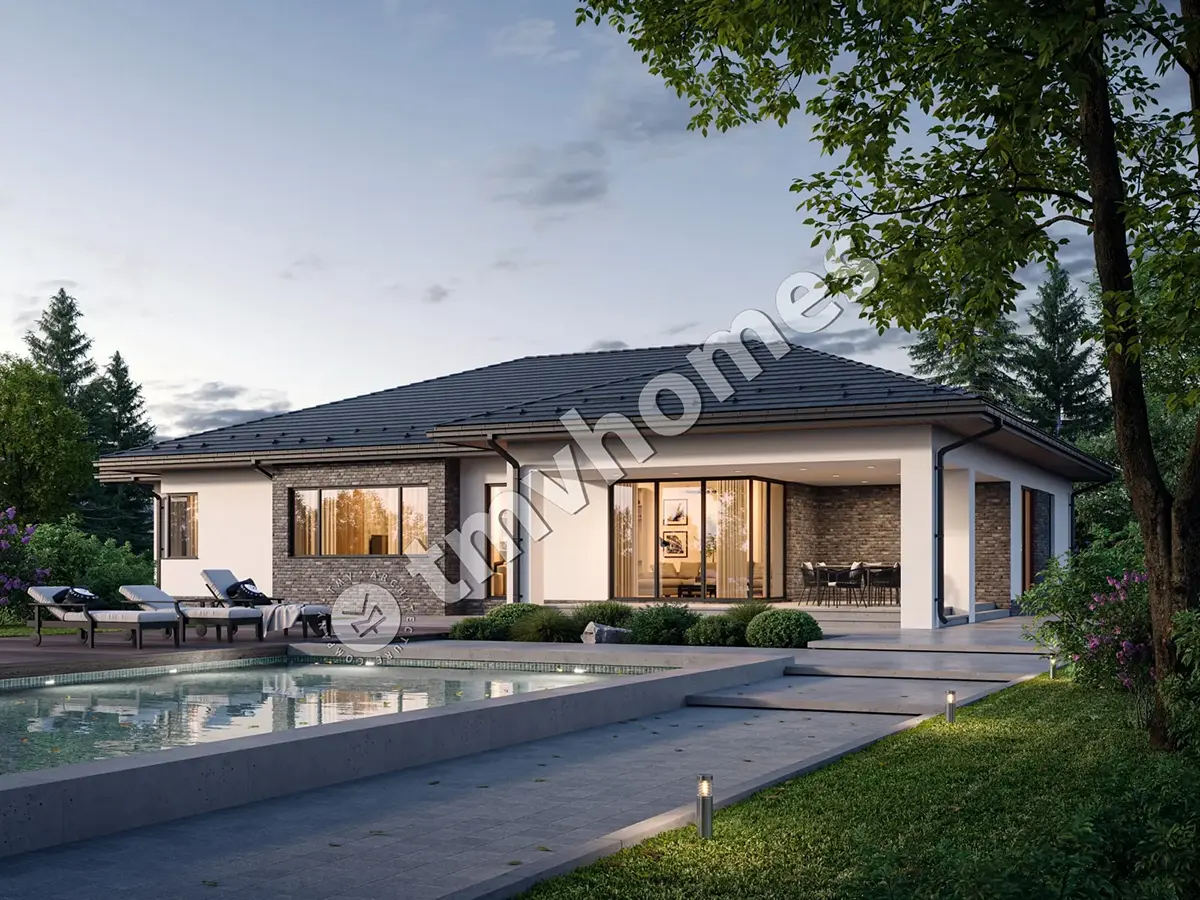

As a house plan with basement, the home stands on a full basement that adds room for storage, mechanical systems or future finished space; strip footings, a slab or a concrete block foundation are also available on request. The 2-car garage has a front entry and extends forward of the house, giving the facade depth and a clear arrival point. Out back, a covered rear porch offers a sheltered place for summer meals and quiet evenings outdoors, completing a single-story layout that is easy to live in for years to come.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
US$1190
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
Local Architects
Offers from your local architects who are ready to develop construction documents based on the digital concept.
