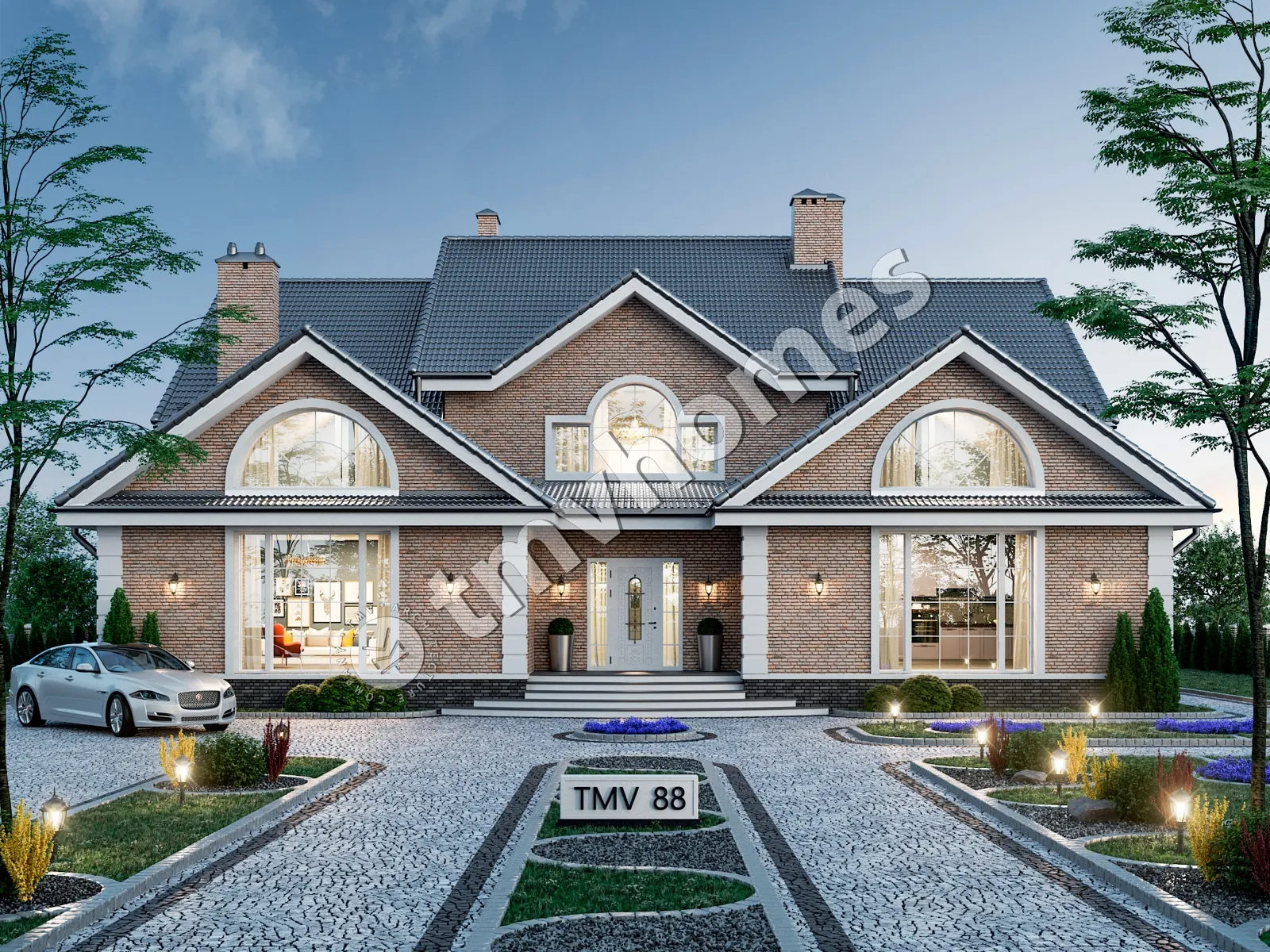

Main Images 2 – 1.5-Story House Plan 5202 ft², 6 Beds — 96371C
Main Images 3 – 1.5-Story House Plan 5202 ft², 6 Beds — 96371C Main Images 4 – 1.5-Story House Plan 5202 ft², 6 Beds — 96371C
8
Concept
Construction documents are prepared for the following countries:

1.5-Story House Plan 5202 ft²: 6 Beds, Home Office, 5 Baths, without Garage

Plan
96371C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
5202
Total Heated ft²
5 + 0
Baths + 1/2 Baths
6 + 1
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

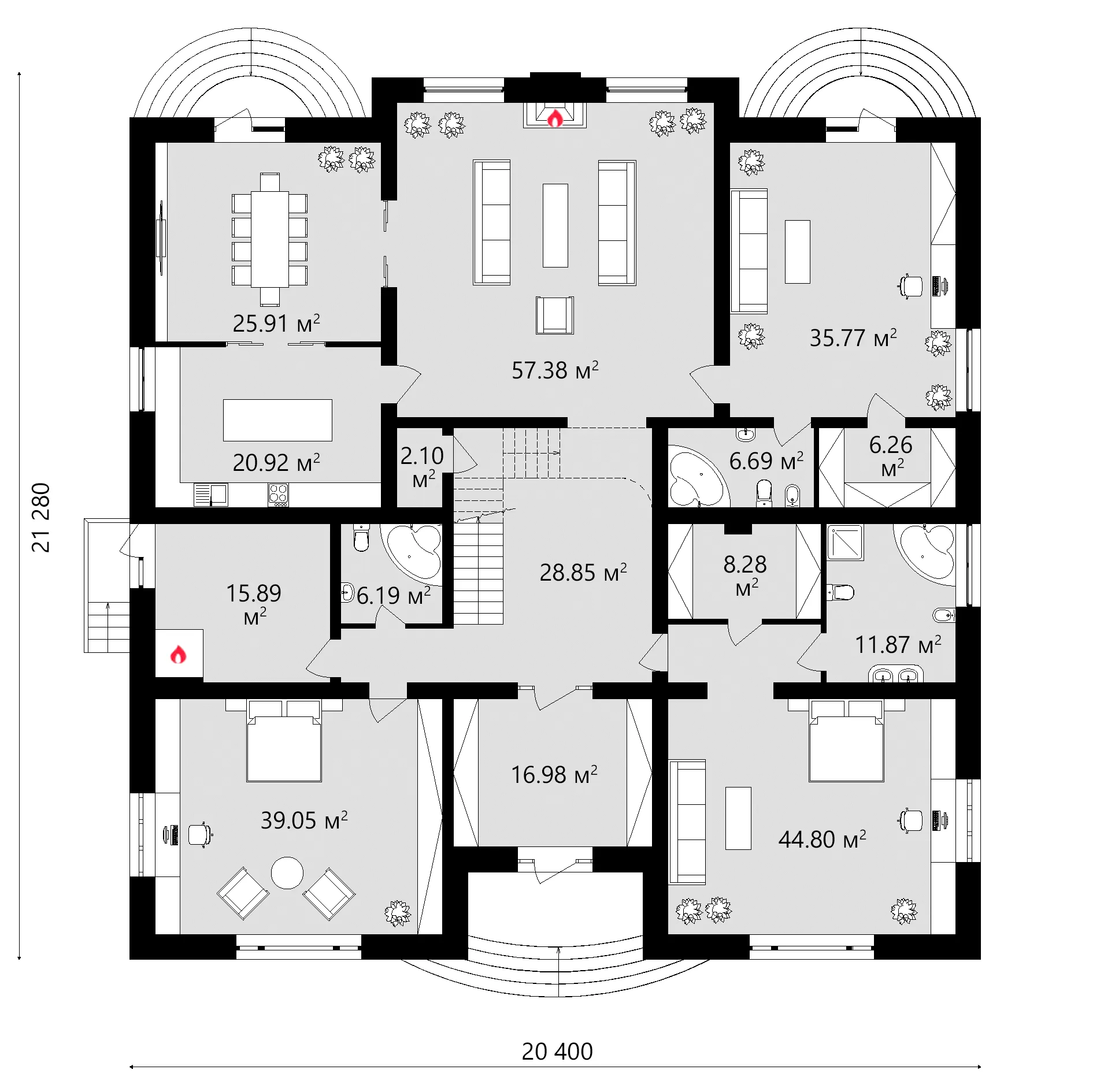

Main Floor
Main Floor 13 – 1.5-Story House Plan 5202 ft², 6 Beds — 96371C

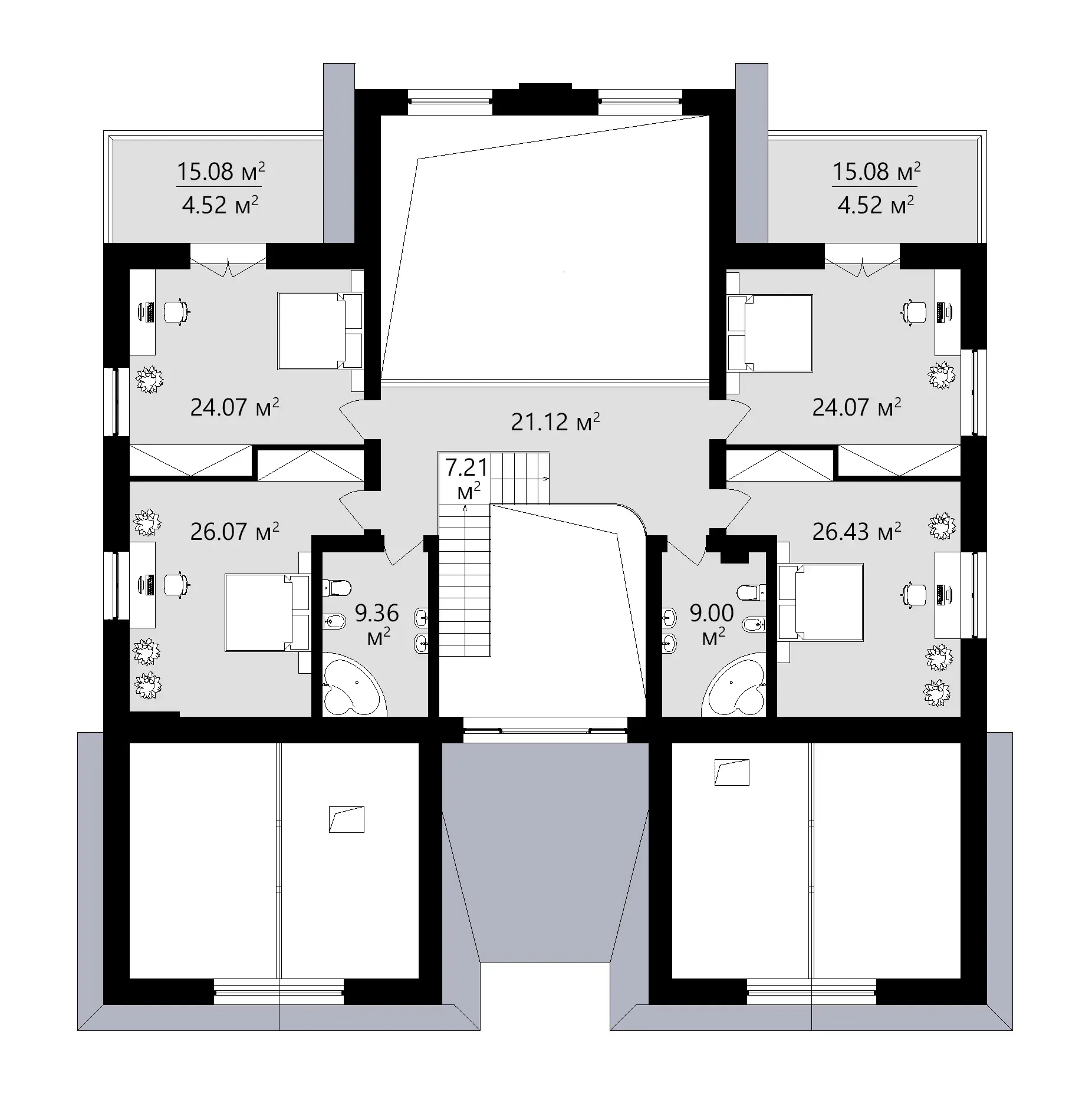

Second Floor
Second Floor 14 – 1.5-Story House Plan 5202 ft², 6 Beds — 96371C
Full Specs & Features
Area
Total Heated: 5202.31 ft²
Dimensions
Depth: 64'5" ft
Width: 62'2" ft
Height: 36'0" ft
Foundation
Ławy
Płyta (Optional)
Z bloczków (Optional)
Exterior Wall Framing
Beton komórkowy
Pustak ceramiczny (Optional)
Bloczek silikatowy (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Rooms
Full bathrooms: 5
Bedrooms: 6
Utility room
Entry
Home Office
Storage
Walk In Closet
Kitchen and Dining
Breakfast Nook
Island
Interior Features
Fireplace in Family Room
Main Floor Master
Split Bedrooms
Open to Below
Loft
Closed Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Balcony
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Classical
European
Traditional

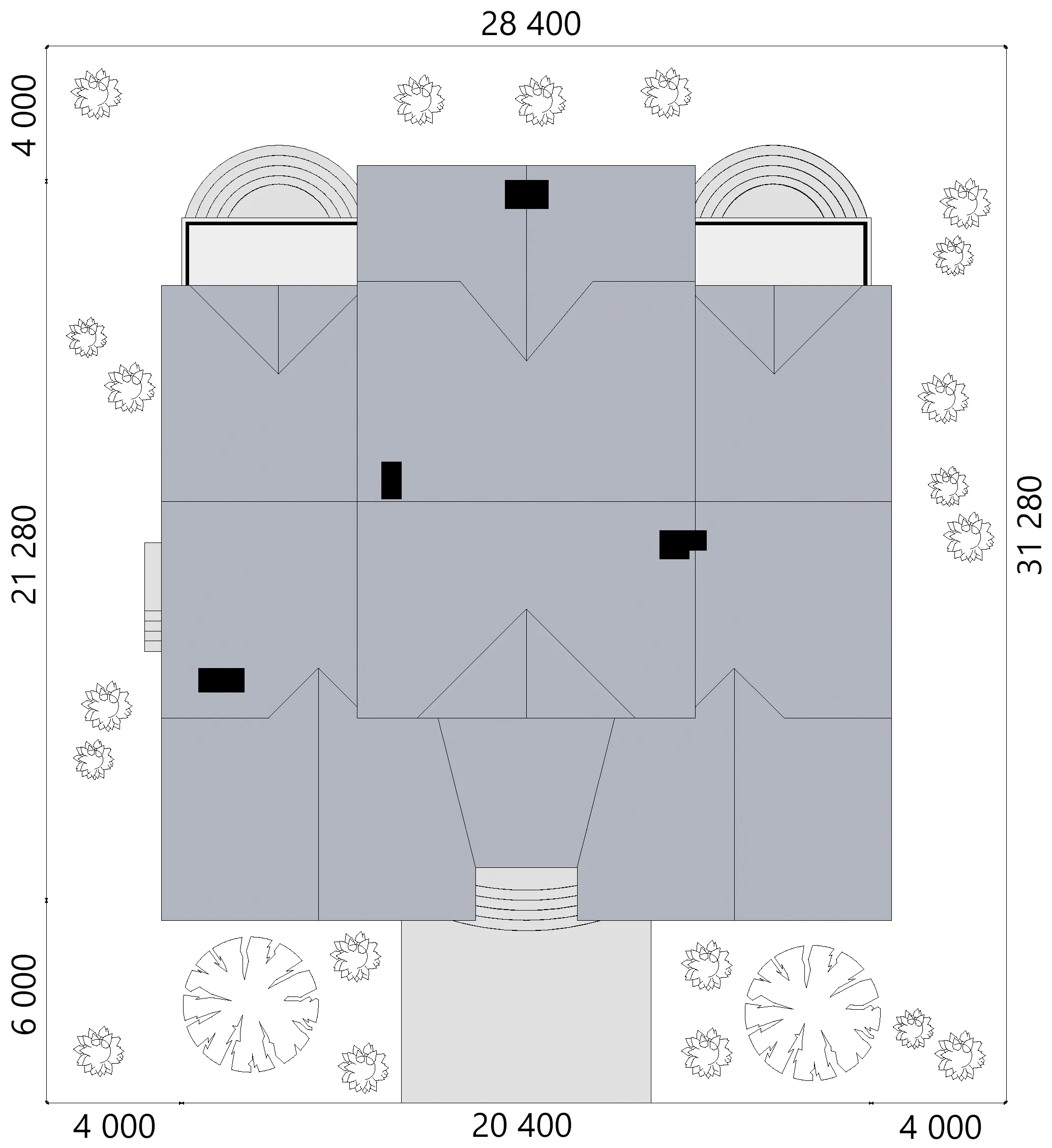

Roof
Roof Area: 6103.14 ft²
Hip & Valley
Ridge parallel to street
Roof Pitch: 8/12 (34°)

Plan 96371C is a 6-bedroom two-story house plan in a Classical, European and Traditional style, offering 5202 ft² of living space beneath a hip and valley roof with an 8/12 (34°) pitch. Stone/brick veneer wraps the exterior walls, and the ridge runs parallel to the street, which gives the facade a calm, balanced presence. This single family home measures 62'2" wide and 64'5" deep, with a height of 36'0", and includes five full bathrooms for a large household or frequent guests.

The interior follows a closed floor plan, so every room keeps its own character and quiet. From the entry, the way leads to a large family room where a fireplace anchors the seating area. The ceiling here is open to below, so the room rises the full two stories and connects visually with the loft above. Large windows and floor-to-ceiling windows bring daylight deep inside, a fine setting for winter evenings by the fire. The large kitchen is planned for real cooking, with an island for preparation and casual meals and a breakfast nook for unhurried mornings. A home office gives a separate place to work, away from the bustle of family life.

The six bedrooms are arranged as split bedrooms. The main floor master sits apart from the other rooms and comes with a walk-in closet, a layout that suits owners who want privacy and everything they need on the ground level. With five full bathrooms, children, relatives and guests all have easy access to a bath, while the loft upstairs works well as a reading corner or play area overlooking the family room. A utility room and dedicated storage keep laundry, equipment and seasonal items out of the living spaces.

Outside, a balcony extends the upper floor into the open air. The house stands on strip footings, and its exterior walls are framed in aerated concrete; the plan is also available with a slab or a concrete block foundation, and with wall framing in ceramic hollow block or silicate block on request. The design has no basement and no garage, so the whole of the 5202 ft² is devoted to the rooms the family lives in every day. It is a refined European house plan with fireplace, generous windows and a main floor master, made for comfortable living all year round.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.
