This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

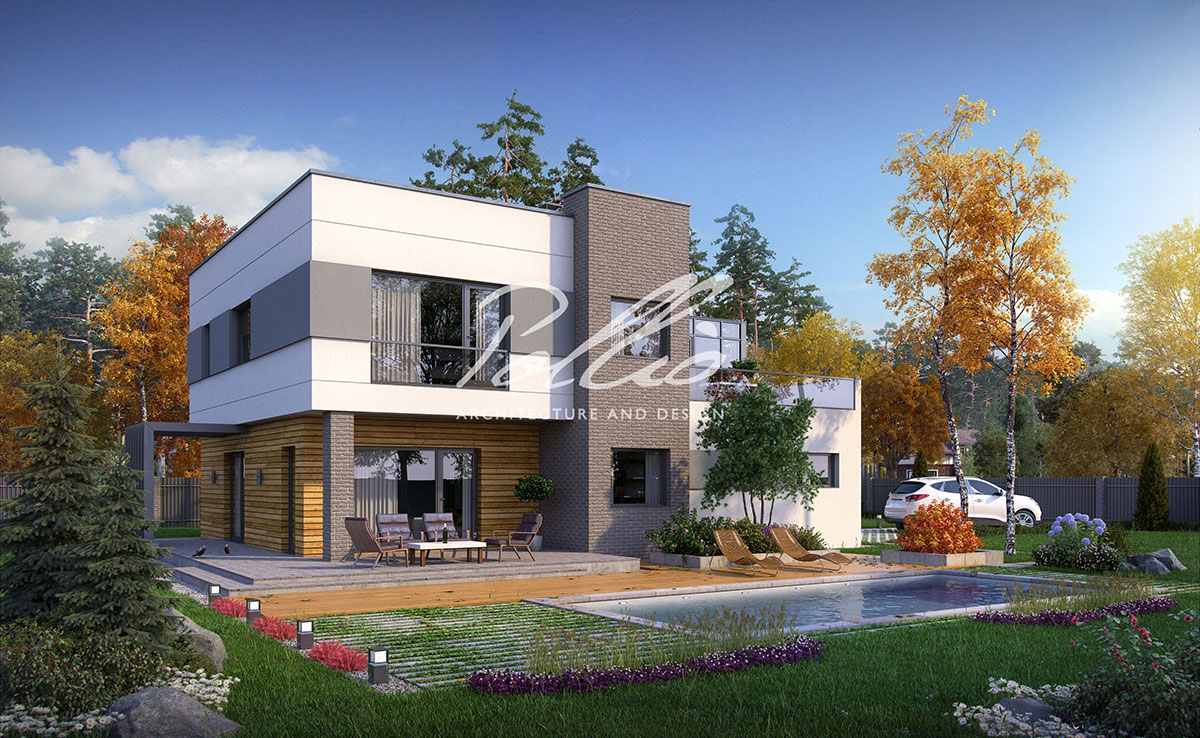

Plan 97117C is a 3-bedroom modern house plan spread over three stories, offering 1926 ft² of living space under a flat roof. Its clean contemporary lines, European character and high-tech accents give this single-family home a sharp, confident presence, and the facade pairs stone/brick veneer with wood and stucco. Large windows and panoramic windows open the volumes to the light, and the house measures 43'9" wide and 37'5" deep, with three full bathrooms and a side entry 2-car garage.
The entry leads into an open floor plan where the kitchen, the breakfast nook and the large family room flow together as one generous space. A fireplace anchors the family room, so anyone searching for a house plan with fireplace will find here a natural gathering point for winter evenings. The kitchen is organized around an island, with room for cooking and casual meals, while the walk-in pantry keeps supplies out of sight and the counters clear. A sunroom adds a bright, glass-wrapped corner for reading or morning coffee, and the home office gives a quiet place to work away from the daily bustle.

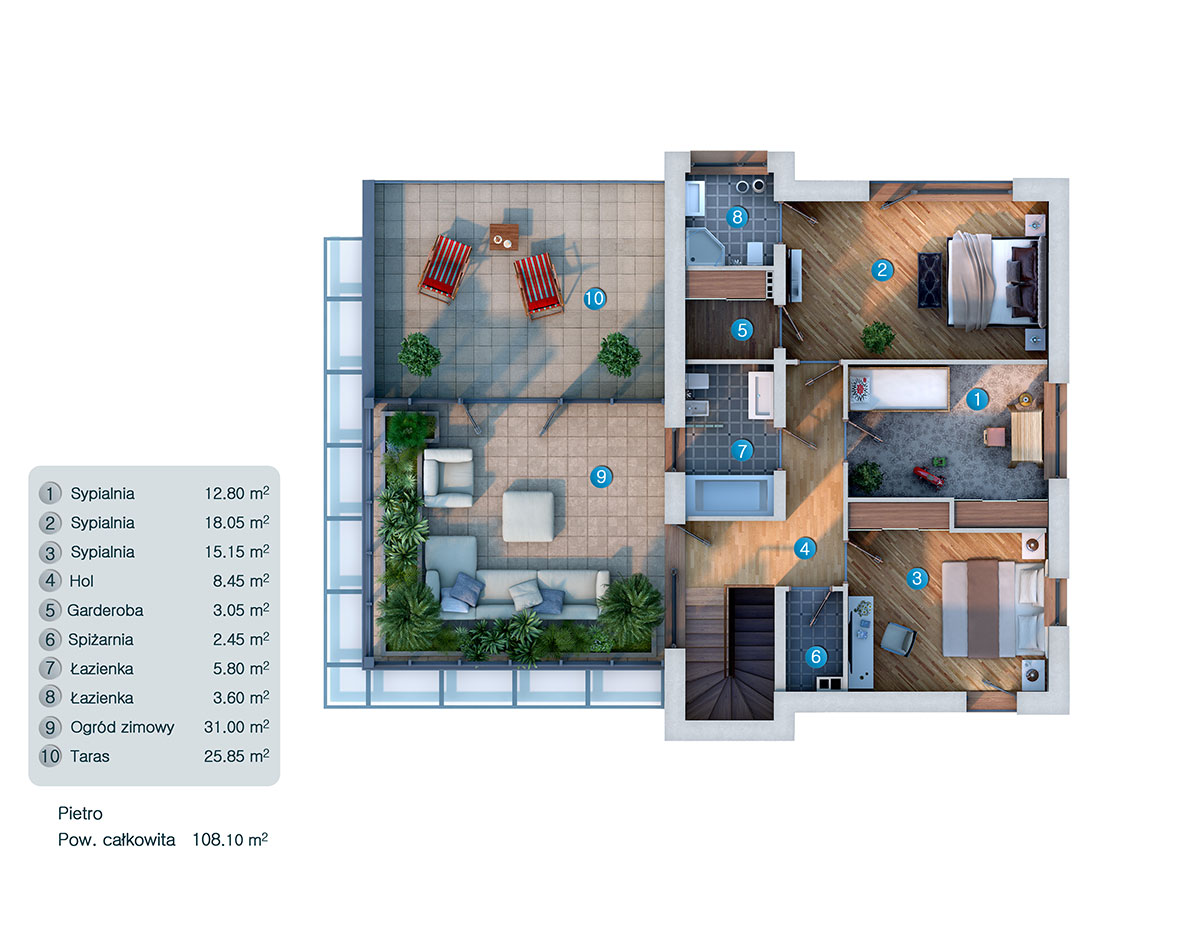

The bedrooms are clustered together, and the master is placed on the second floor, keeping the private rooms apart from the living areas. Three full bathrooms mean comfortable mornings for the whole family, and a walk-in closet adds generous wardrobe space. A balcony extends the upper level outdoors. Everyday logistics are covered by a utility room and dedicated storage, so the main rooms stay uncluttered.

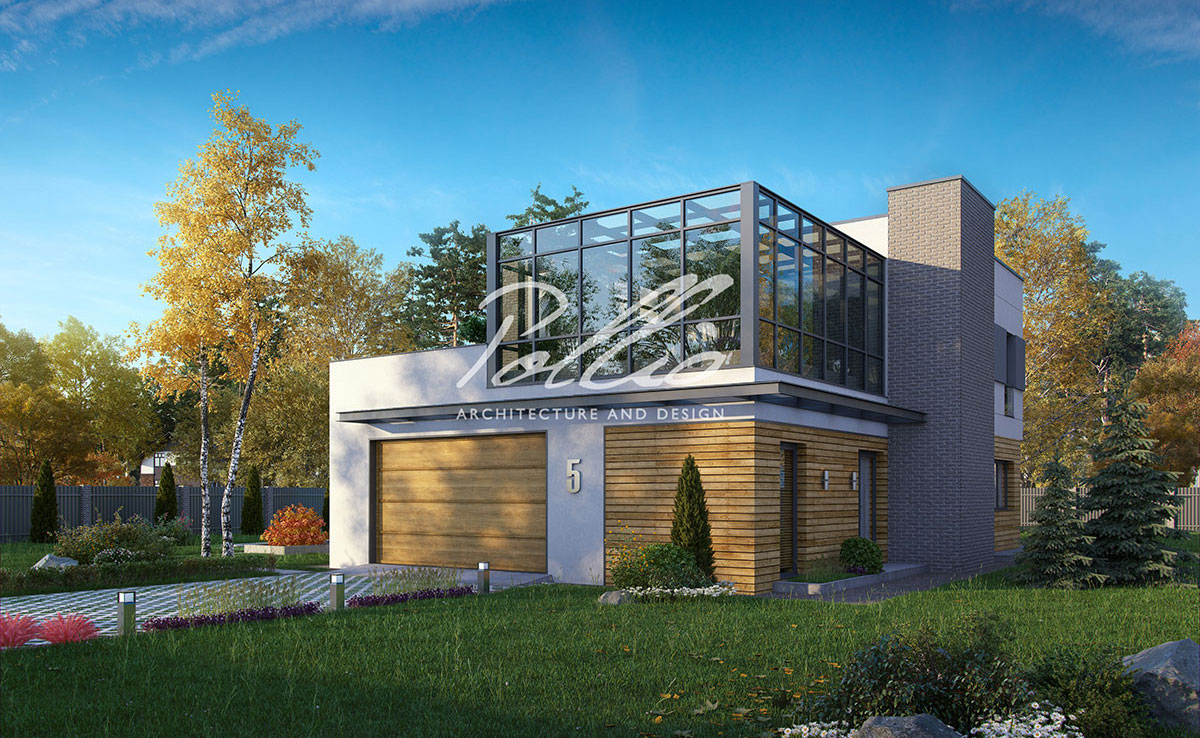

Outside, the attached 2-car garage with side entry keeps the front elevation tidy, and the garage with upstairs space is crowned by a rooftop deck, an unusual outdoor room for a 3 story house plan. A covered rear porch offers a sheltered spot for meals and evenings in the open air. The house has no basement and stands on strip footings; it is also available with a slab or a block foundation. The exterior walls are framed in aerated concrete (AAC), with ceramic block, silicate block or wood frame construction available on request.
