Main Images 1 – 2-Story House Plan 2167 ft², 3 Beds — 19339C
Main Images 1 – 2-Story House Plan 2167 ft², 3 Beds — 19339C Main Images 1 – 2-Story House Plan 2167 ft², 3 Beds — 19339C
6
Concept
Construction documents are prepared for the following countries:

2-Story House Plan 2167 ft²: 3 Beds, Home Office, 3 Baths, Open Floor Plan, 2-Car Garage

Plan
19339C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2167
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 1
Beds + Home Office
2
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

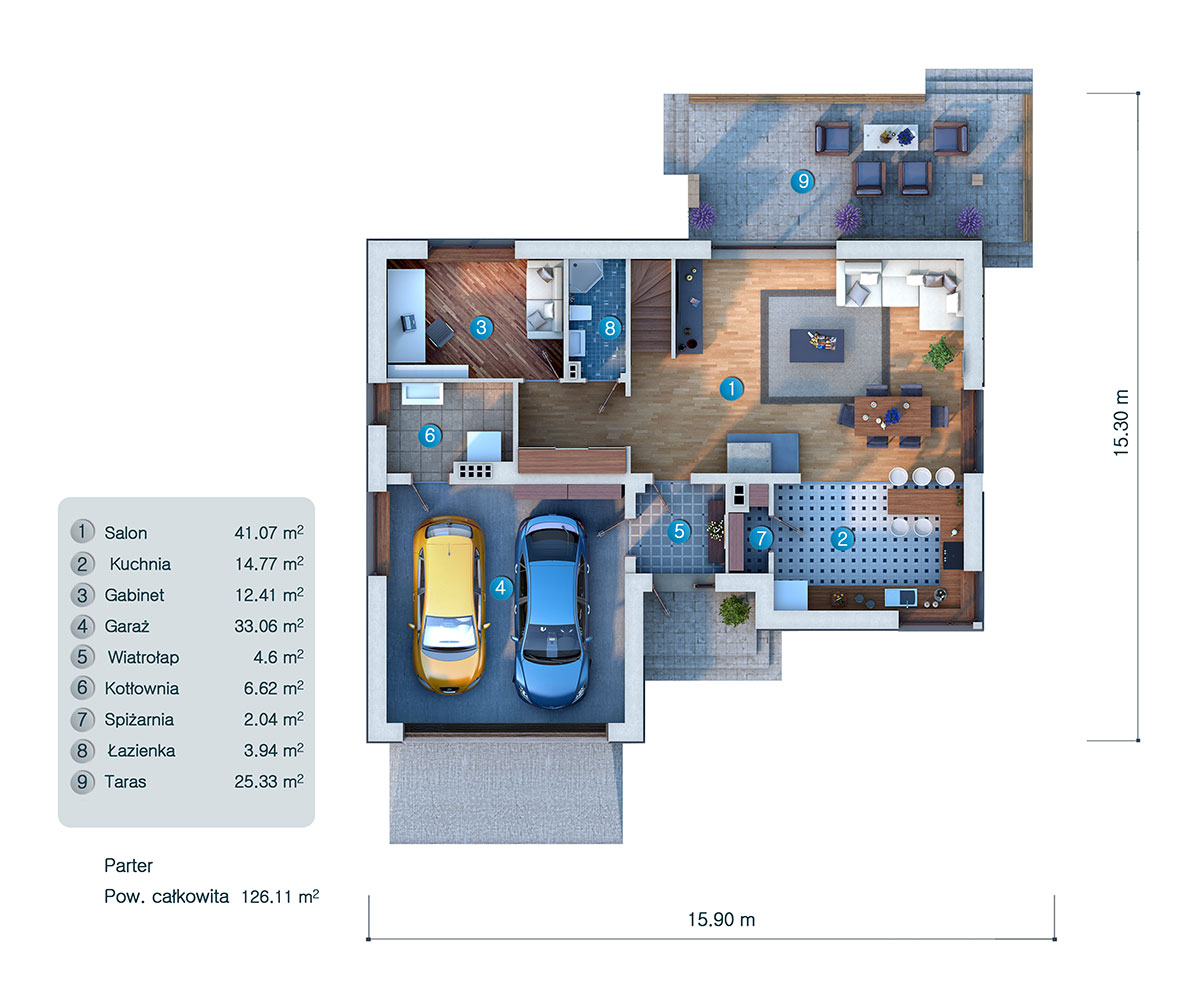

Main Floor
Main Floor 1 – 2-Story House Plan 2167 ft², 3 Beds — 19339C

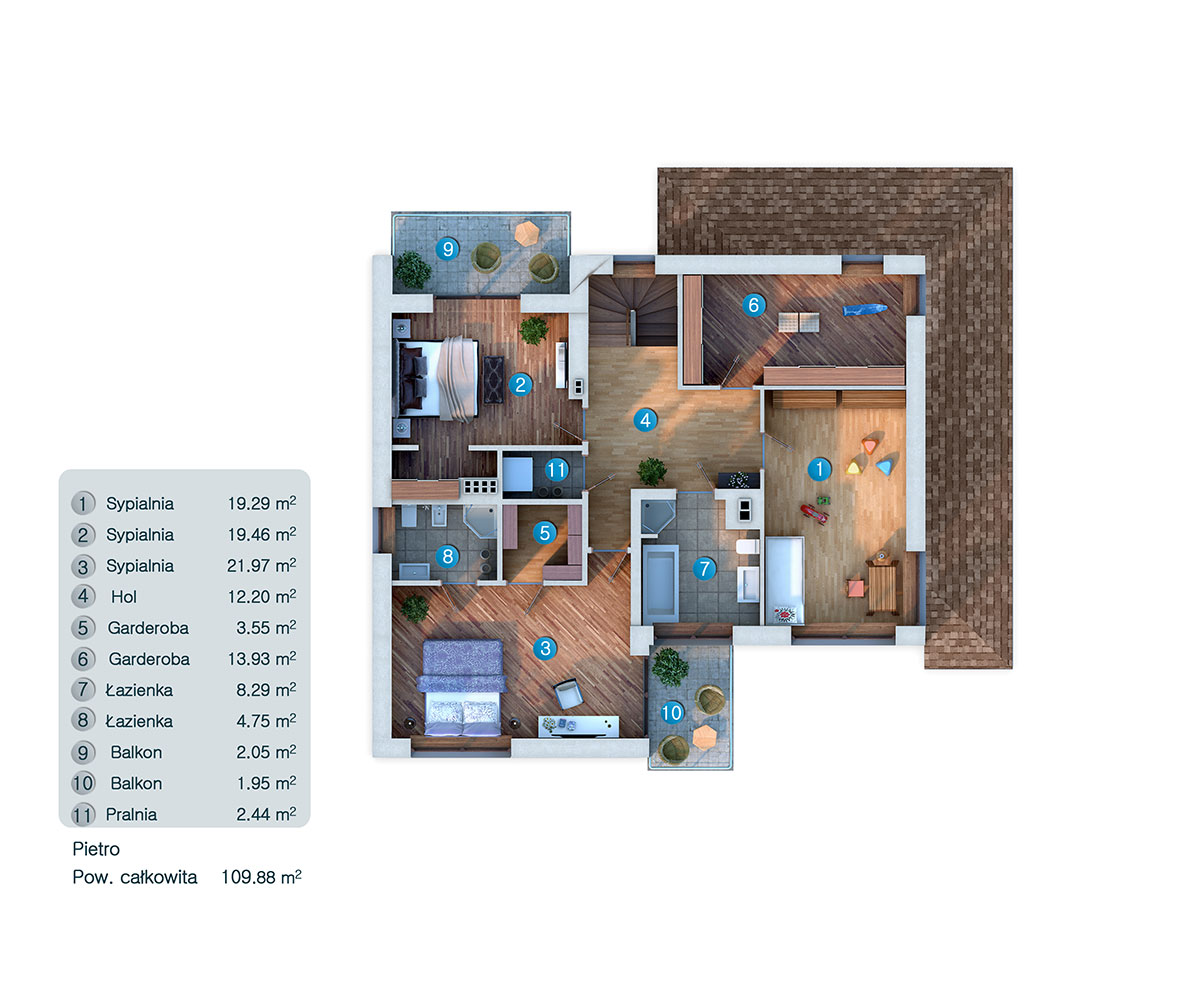

Second Floor
Second Floor 1 – 2-Story House Plan 2167 ft², 3 Beds — 19339C
Full Specs & Features
Area
Total Unheated: 355.85 ft²
Total Heated: 2167.42 ft²
Dimensions
Depth: 36'6" ft
Width: 44'8" ft
Garage
Area: 356 ft²
Cars: 2
Garage with Upstairs
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Wood-framed (Optional)
Exterior Wall Materials
Wood
Stucco
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Laundry
Entry
Home Office
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
Corner Window
Interior Features
Laundry Second Floor
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Balcony
Covered Rear Porch
Architectural Style
European
Traditional
Roof
Roof Area: 2609.93 ft²
Hip
Roof Pitch: 5/12 (22°)

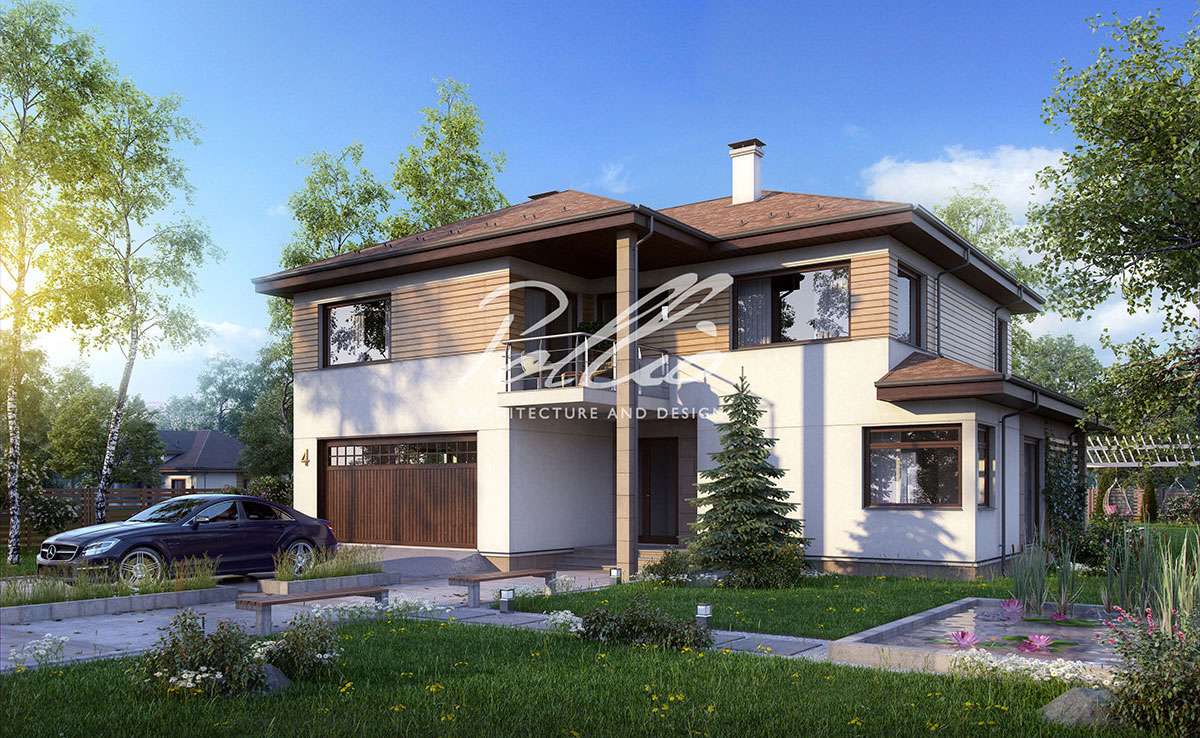

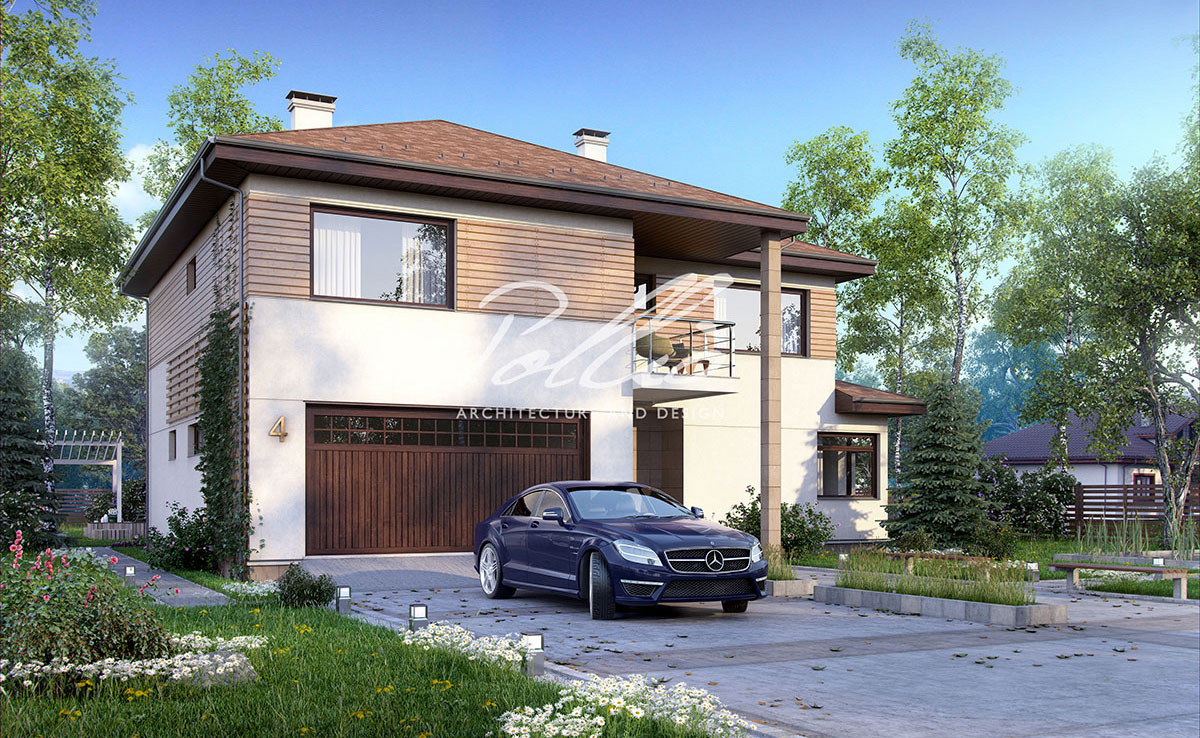

Plan 19339C is a 3-bedroom, three-story house plan that offers 2167 ft² of living space behind a European and Traditional facade, crowned by a hip roof with a 5/12 (22°) pitch. Exterior walls in wood and stucco give the house a refined, settled presence, and the footprint measures 44'8" wide and 36'6" deep. This single family home combines three full bathrooms, a two-car garage and generous shared rooms with a private, quiet level for the bedrooms.

A proper entry receives guests and leads into an open floor plan built around the large family room. Its fireplace anchors the room on winter evenings and makes this a true house plan with fireplace, where the space stays connected to the kitchen rather than closed off. The kitchen is one of the largest rooms in the home, with a breakfast bar for quick meals and conversation, a breakfast nook brightened by a corner window, and a walk-in pantry that keeps supplies out of sight and the counters clear. A separate home office gives remote work or homework a room with a door of its own.

The master suite is on the second floor, finished with a walk-in closet, and the bedrooms are clustered together, so parents stay close to the children without crossing the whole house. With three full bathrooms, no one waits in line in the morning. The laundry is also on the second floor, right where clothes and linens are used, which saves carrying baskets up and down the stairs. A utility room keeps the mechanical equipment in a dedicated space, away from the living areas.

Outside, a covered rear porch offers a sheltered place for outdoor meals and quiet afternoons, while a balcony adds a private spot to step out from the upper floor. The 2 car garage is front entry and attached, with space upstairs above it for storage or future use. The house has no basement and stands on strip footings, and it is also available with a slab or a concrete block foundation. The main wall framing is aerated concrete (AAC), with ceramic hollow block, calcium silicate block or wood frame construction also available on request.

Architect
Pollio Pollio Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw, Smolna 13 lok 404
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
US$283
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
Local Architects
Offers from your local architects who are ready to develop construction documents based on the digital concept.
