Renderings 2 – 2,121 Sq Ft Modern 2-Story House Plan with 3 Bedrooms and 1-Car Garage – 26880C
Renderings 3 – 2,121 Sq Ft Modern 2-Story House Plan with 3 Bedrooms and 1-Car Garage – 26880C Renderings 6 – 2,121 Sq Ft Modern 2-Story House Plan with 3 Bedrooms and 1-Car Garage – 26880C
7
Concept
Construction documents are prepared for the following countries:

2,121 Sq Ft Modern 2-Story House Plan with 3 Bedrooms, 3 Bathrooms and 1-Car Garage

Plan
26880C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2121
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 1
Beds + Home Office
1
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

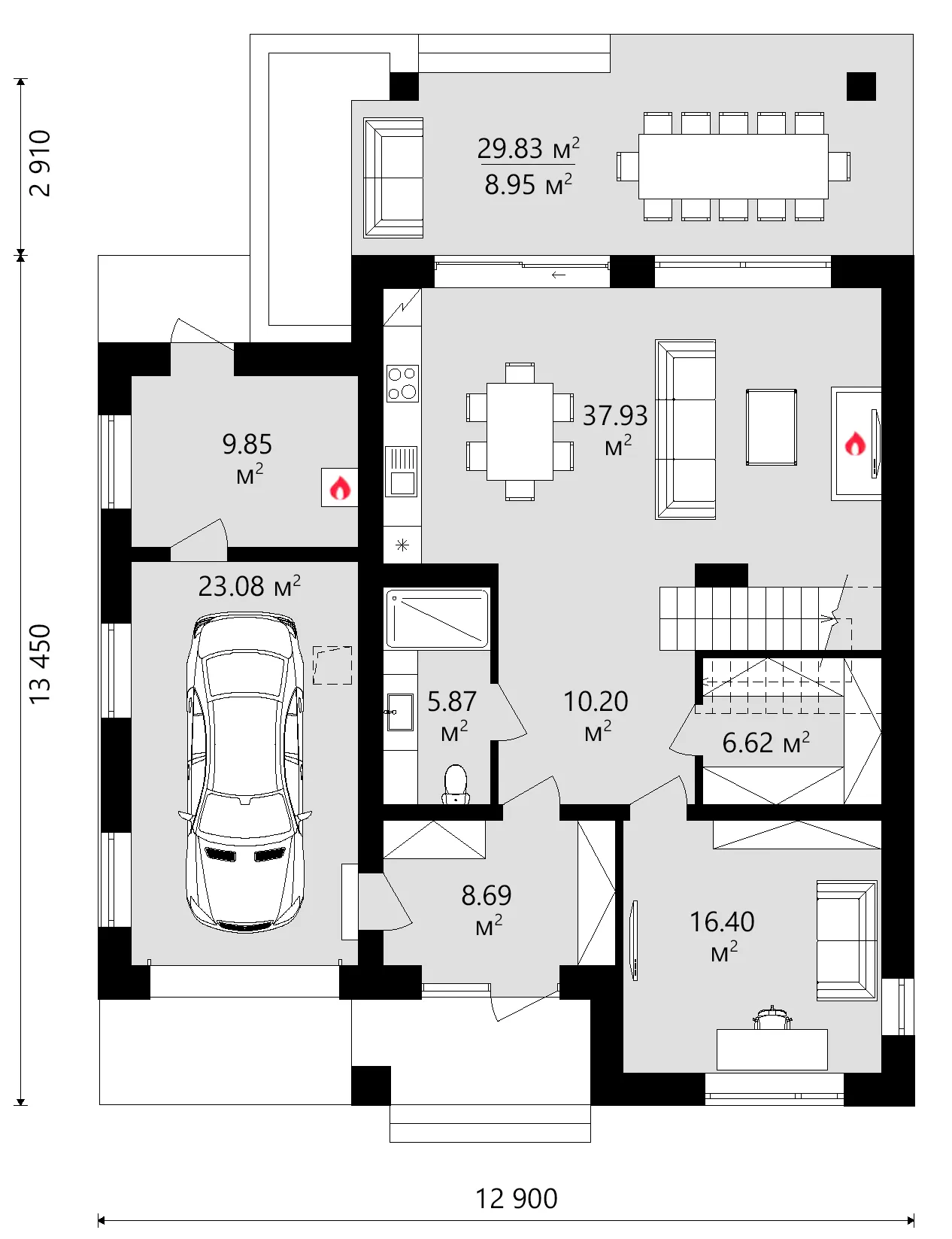

Main Floor
Main Floor 8 – 2,121 Sq Ft Modern 2-Story House Plan with 3 Bedrooms and 1-Car Garage – 26880C

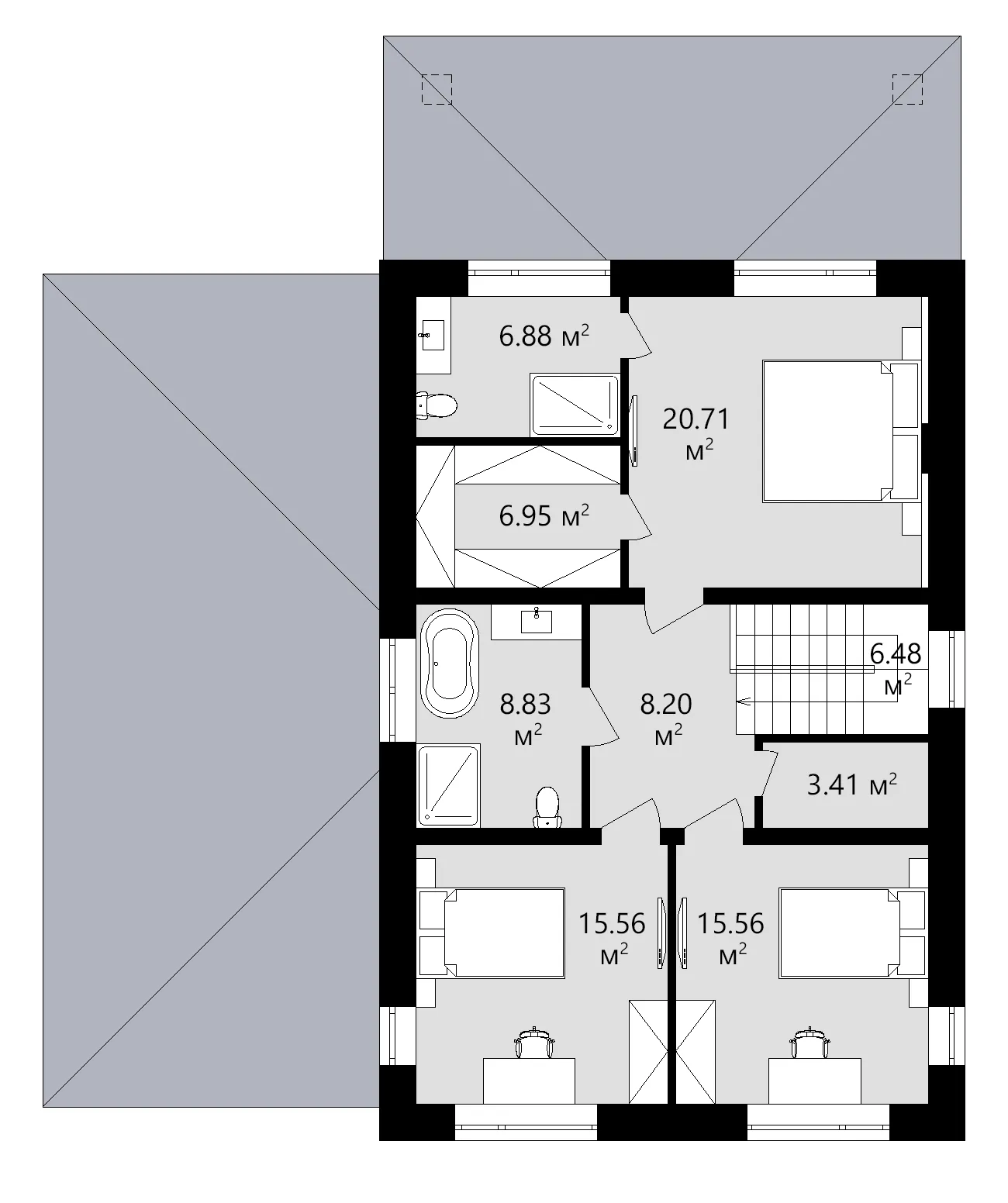

Second Floor
Second Floor 10 – 2,121 Sq Ft Modern 2-Story House Plan with 3 Bedrooms and 1-Car Garage – 26880C
Full Specs & Features
Area
Total Unheated: 248.43 ft²
Total Heated: 2121.46 ft²
Dimensions
Depth: 49'9" ft
Width: 39'3" ft
Height: 26'1" ft
Garage
Area: 248 ft²
Cars: 1
Attached
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Wood
Stucco
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Laundry
Entry
Home Office
Storage
Walk In Closet
Kitchen and Dining
Breakfast Nook
Interior Features
Laundry Second Floor
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Kitchen (>130 ft²)
Exterior Features
Covered Rear Porch
Large Windows
Architectural Style
Contemporary
European
Modern

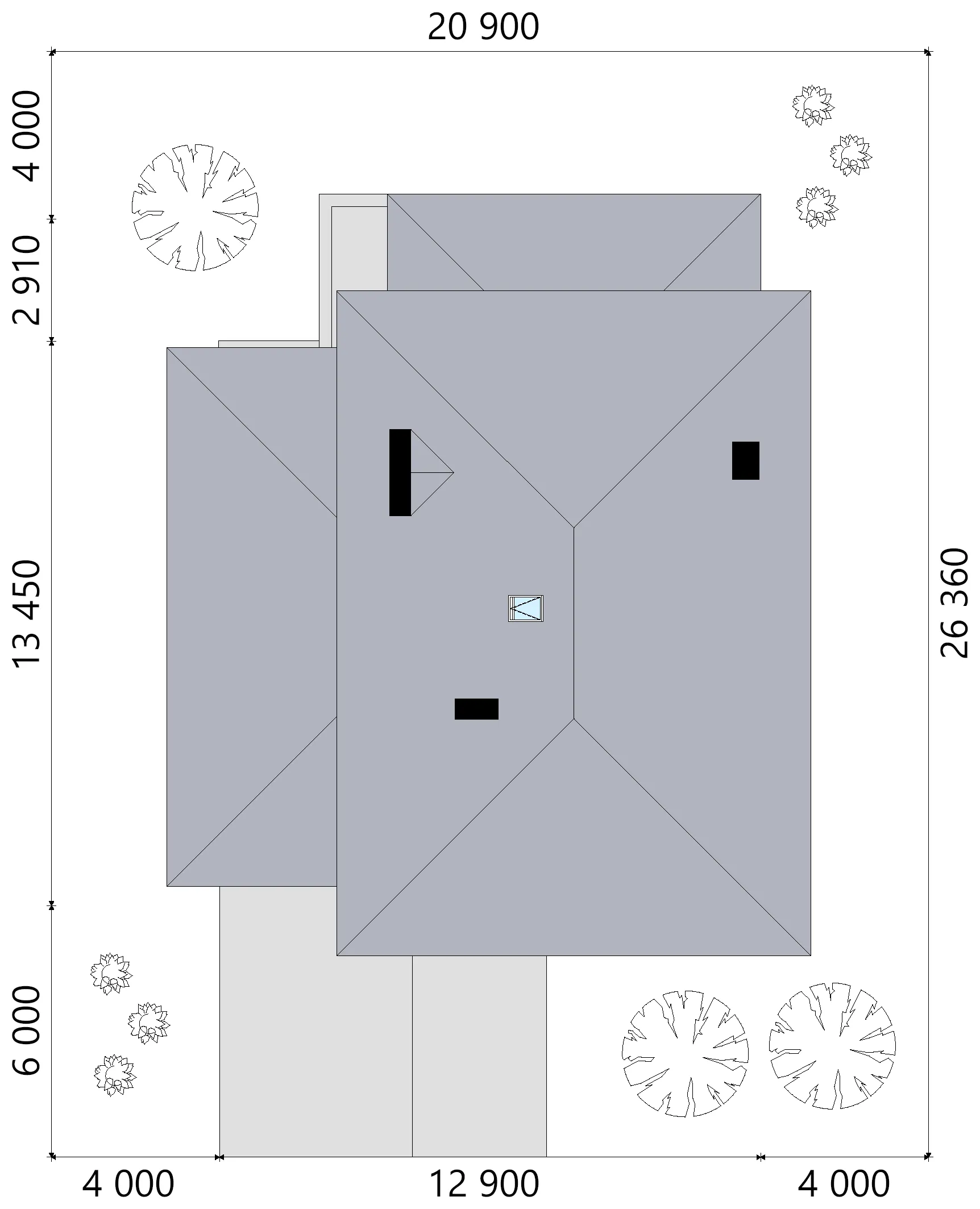

Roof
Roof Area: 3314.21 ft²
Hip
Roof Pitch: 4/12 (18°)

The 26880C is a modern 2-story single family house design concept with a total heated area of 2,121 Sq Ft, 3 bedrooms and 3 full bathrooms. The layout suits a family of 3–4 people, and the hip roof with stone or brick veneer, wood and stucco on the facade gives the modern lines a calm, solid look.

The entry opens to an open floor plan where the family room and kitchen share one space, so whoever cooks stays part of the conversation. The large kitchen leaves room for several people to work at once, and the breakfast nook handles quick everyday meals. A fireplace warms the family room, large windows bring daylight deep into the interior, and a home office gives a quiet place to work.

The primary suite is on the second floor with a walk-in closet that keeps clothes out of the bedroom, and the other bedrooms are clustered near it, so parents stay close to the children. Three full bathrooms end the morning wait. The second-floor laundry saves carrying baskets up and down the stairs, while the storage and utility room keep household items in order.

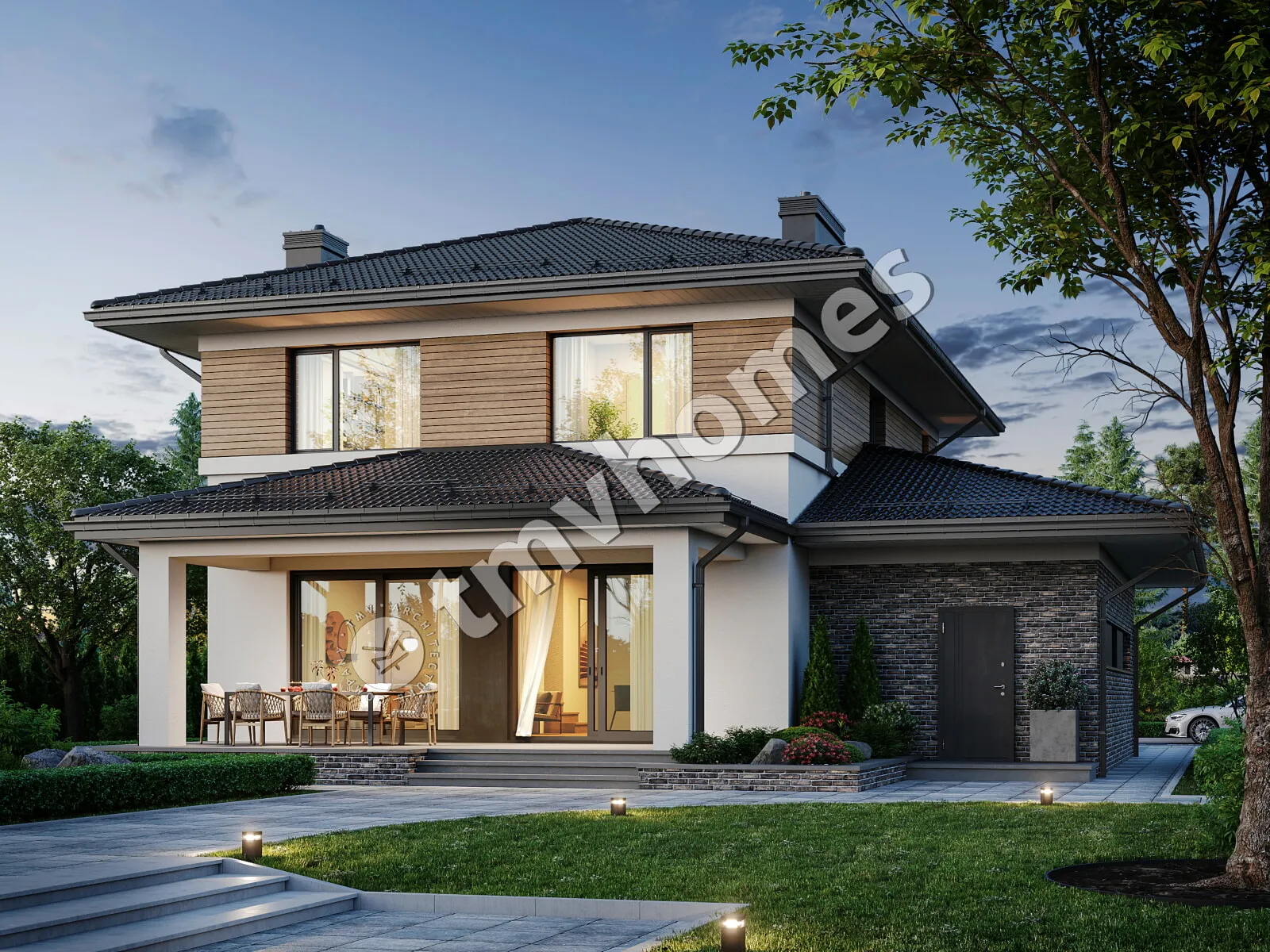

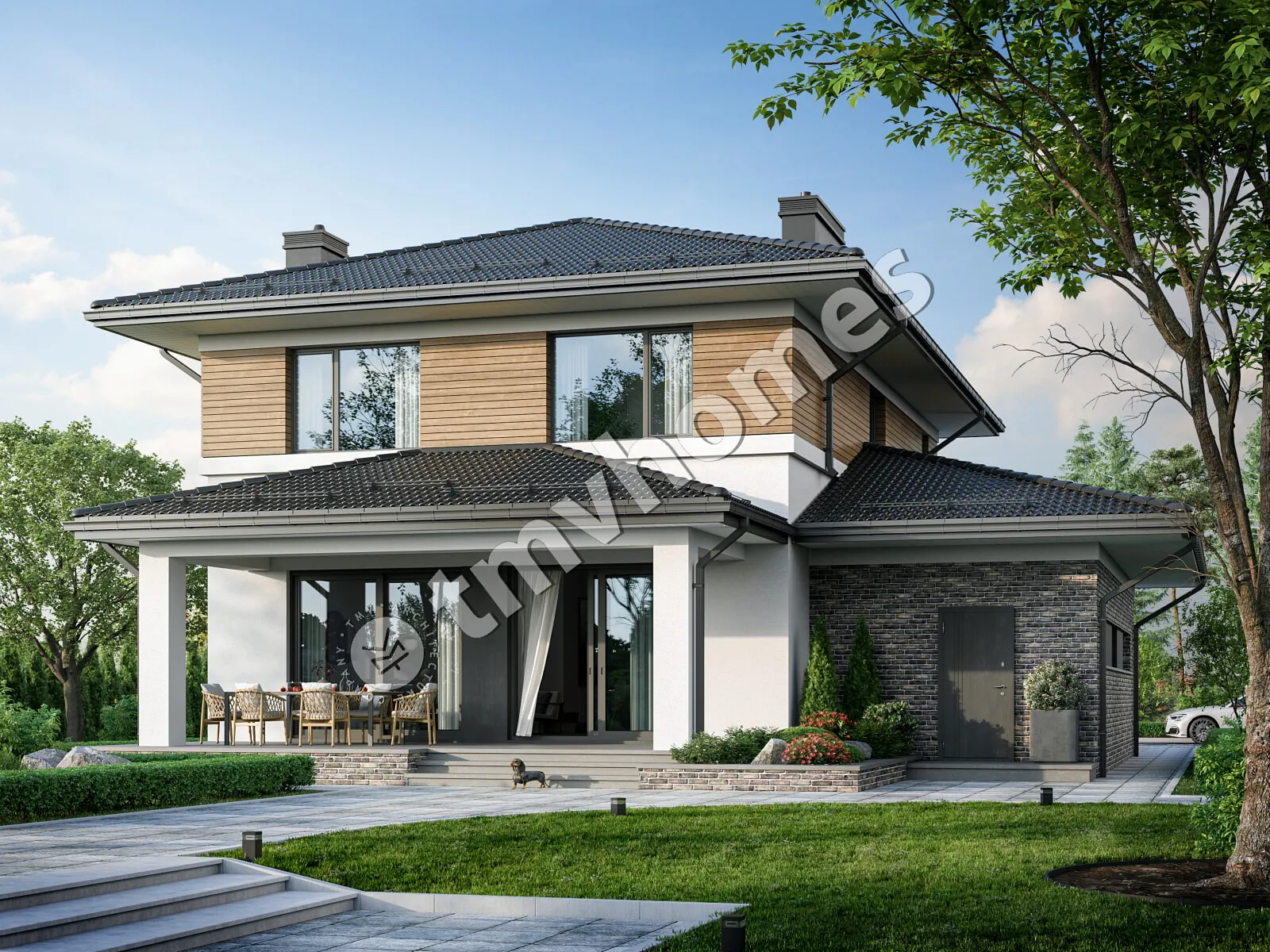

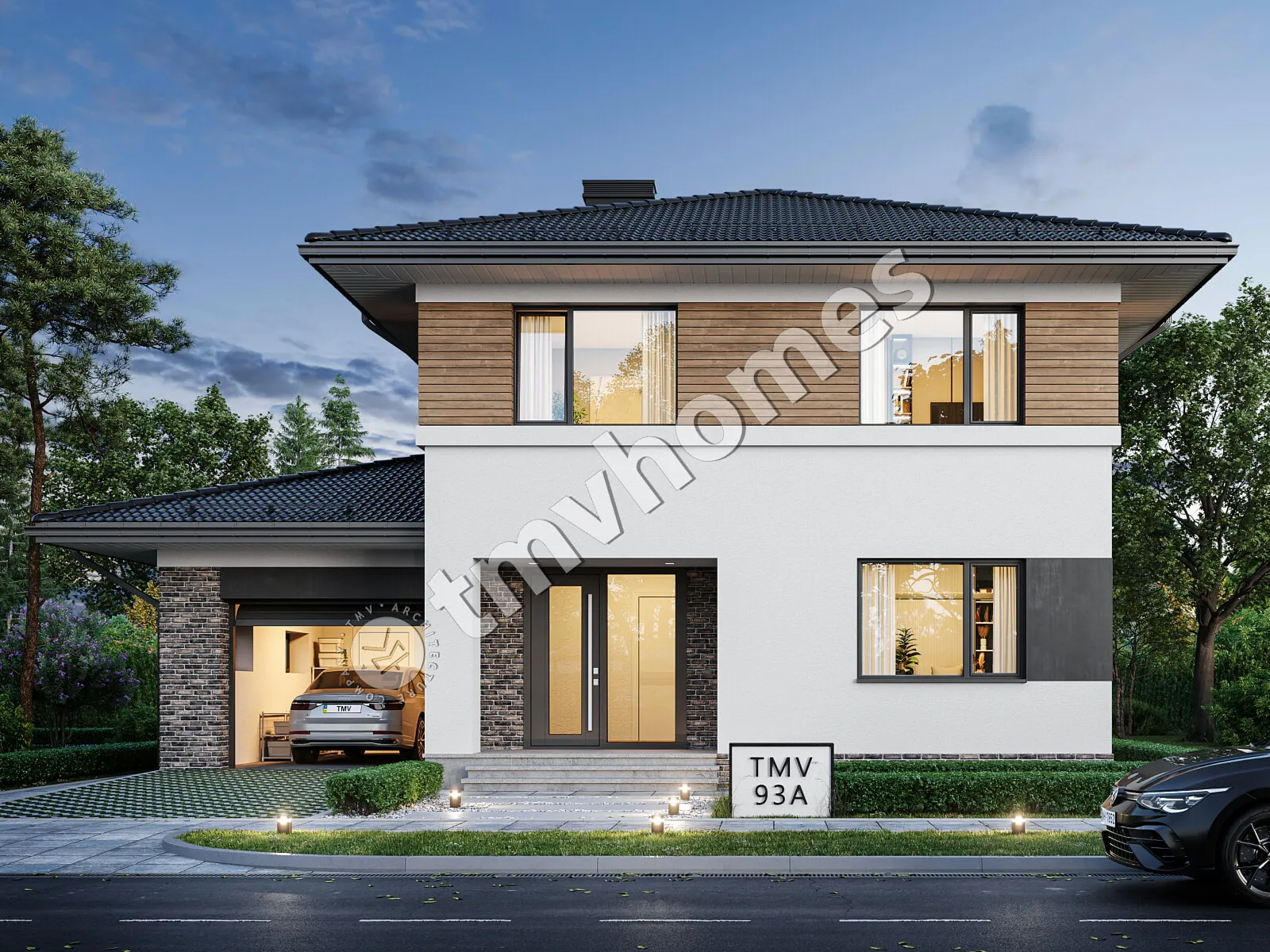

The covered rear porch offers a shaded place to sit outdoors. The attached 1-car garage has a front entry, which keeps the driveway simple. The house measures 39'3" wide and 49'9" deep. The base foundation is strip footing, with a slab or concrete block foundation as options; the exterior walls are designed in aerated concrete, with clay block or sand-lime block as alternatives. In figures: a total heated area of 2,121 Sq Ft, 3 bedrooms, 3 bathrooms and a 1-car garage.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
US$887
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
