The 34627C is a modern 2-story single-family house design concept, available for purchase in digital form, with a total heated area of 1,970 Sq Ft, 3 bedrooms, 2.5 bathrooms, a 1-car garage and a flat roof, designed for a household of 3-4 people. The footprint measures 42'7" wide by 37'9" deep, and the facade combines wood, stucco and flexible ceramic, which gives the clean volume a warm texture.
An entry separates the front door from the living space and keeps outdoor clothes out of the main rooms. The open floor plan joins the great room, dining area and kitchen, so whoever cooks stays part of the conversation, while a breakfast nook handles quick morning meals. Large windows, including floor-to-ceiling glazing, bring daylight deep into the day zone and connect it with the deck.

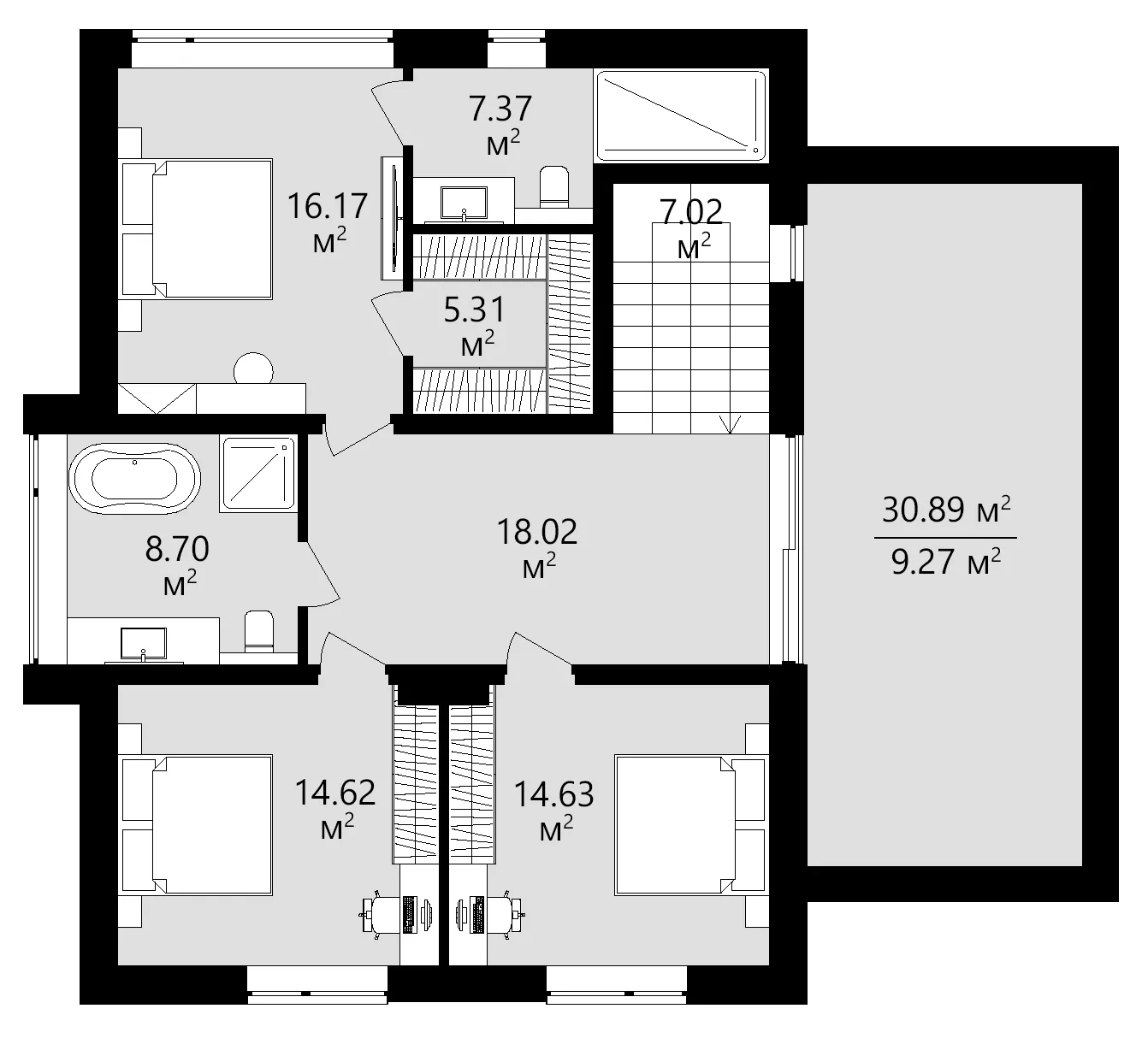

All three bedrooms are clustered on the second floor, keeping the night zone quiet and parents close to the children. The primary bedroom has a walk-in closet that keeps clothes out of the sleeping area. A storage room holds seasonal items, and a utility room keeps household equipment out of the living spaces.
The deck extends the great room outdoors, and a balcony gives the upper floor its own open-air spot. The roof of the attached front-entry garage serves as a rooftop deck, adding outdoor space without enlarging the footprint. The plan uses strip footings, with slab and block foundation options, and aerated concrete exterior walls, with clay hollow block or sand-lime block as alternatives. In figures: total heated area 1,970 Sq Ft, 3 bedrooms, 2.5 bathrooms and a 1-car garage.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
