Renderings 2 – 2,119 Sq Ft Modern 2-Story House Plan with 3 Bedrooms and 2.5 Bathrooms – 91457C
Renderings 3 – 2,119 Sq Ft Modern 2-Story House Plan with 3 Bedrooms and 2.5 Bathrooms – 91457C Renderings 4 – 2,119 Sq Ft Modern 2-Story House Plan with 3 Bedrooms and 2.5 Bathrooms – 91457C
7
Concept
Construction documents are prepared for the following countries:

2,119 Sq Ft Modern 2-Story House Plan with 3 Bedrooms, 2.5 Bathrooms and Carport

Plan
91457C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2119
Total Heated ft²
2 + 1
Baths + 1/2 Baths
3 + 0
Beds + Home Office
1
Cars (Carport)
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

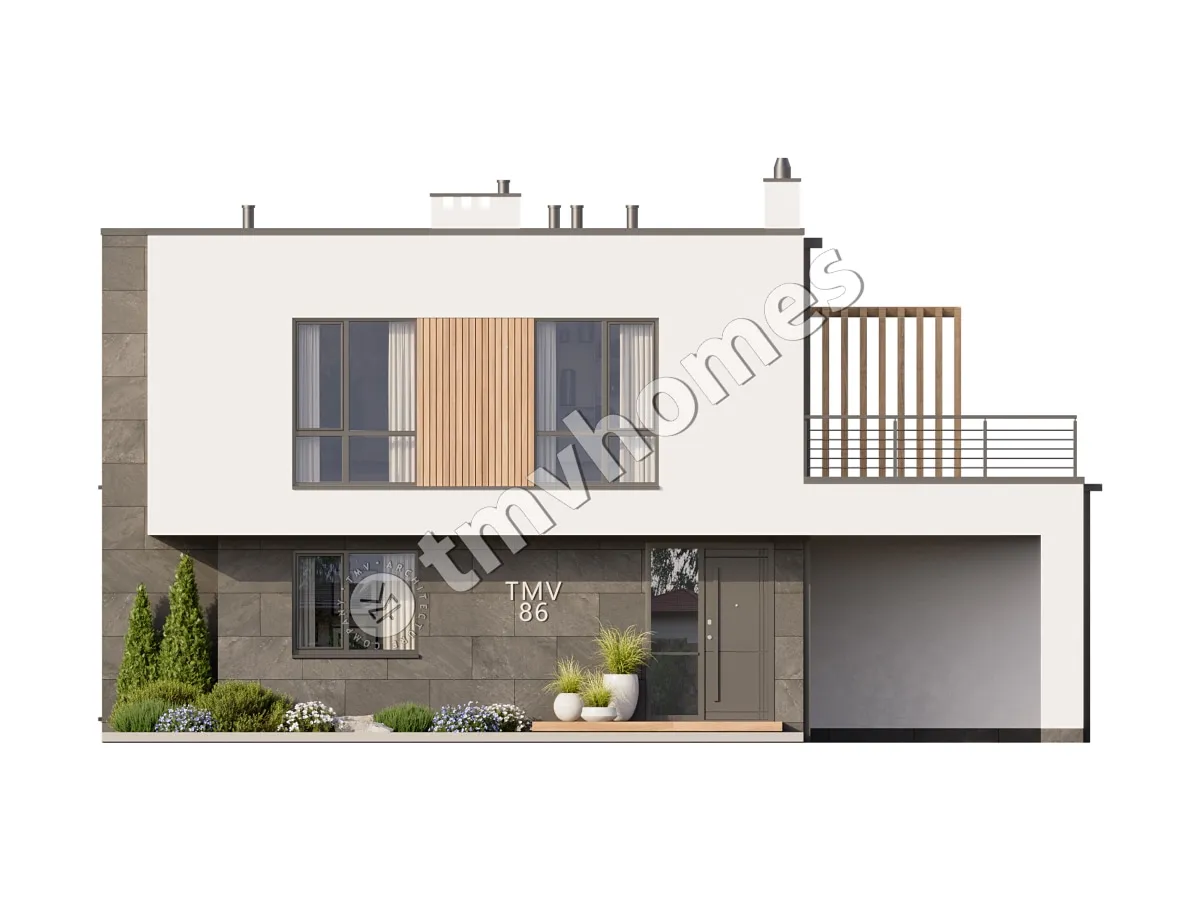

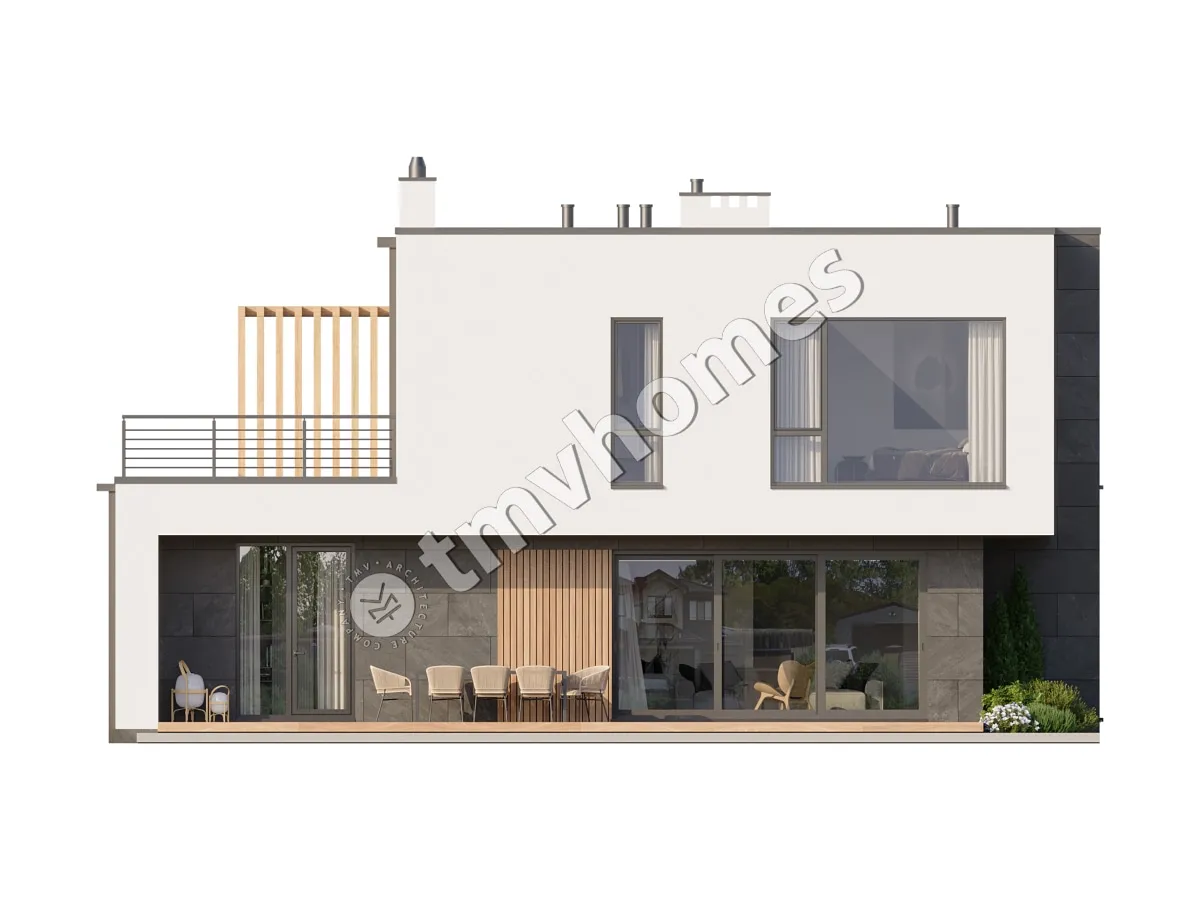

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

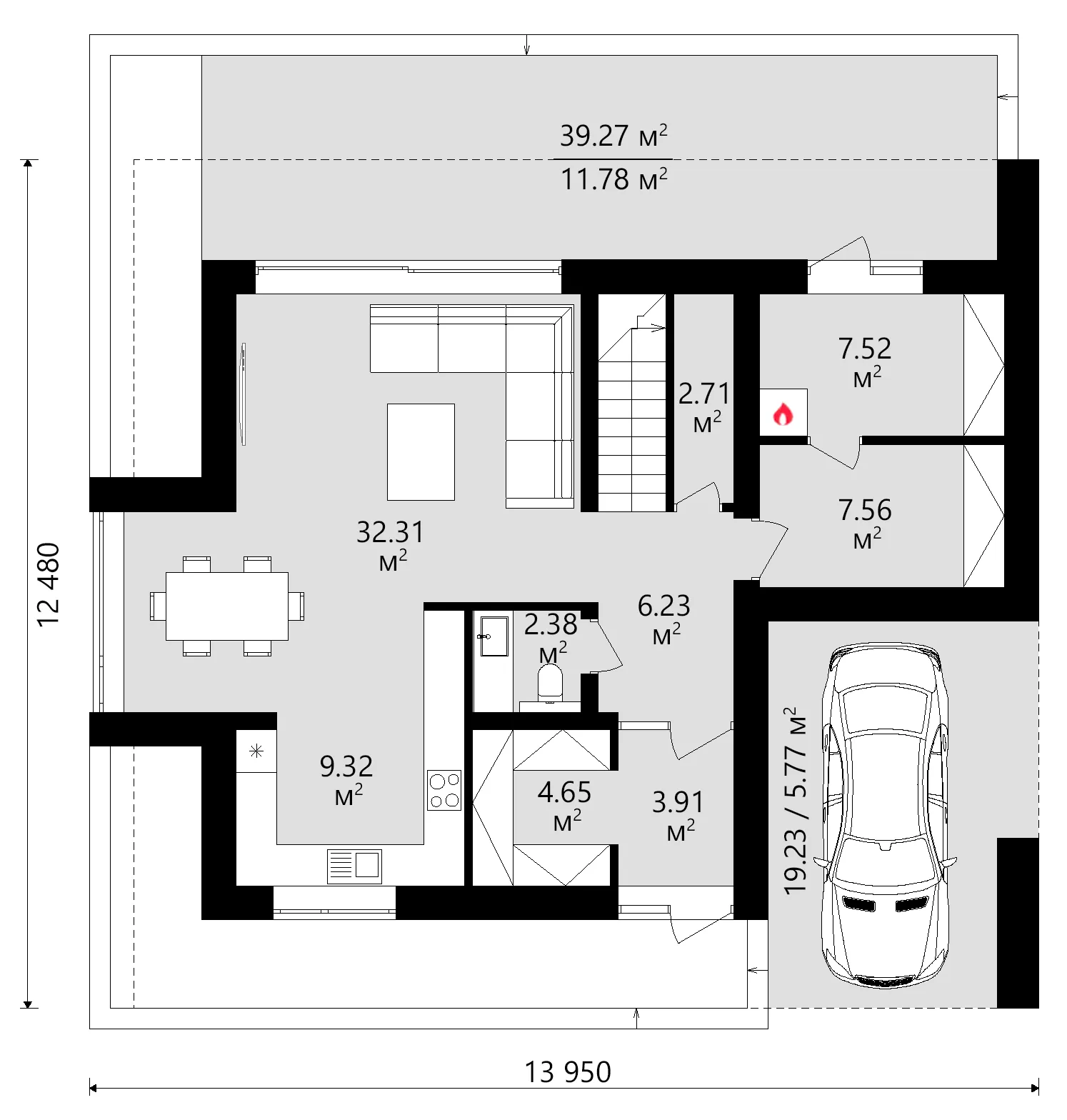

Main Floor
Main Floor 12 – 2,119 Sq Ft Modern 2-Story House Plan with 3 Bedrooms and 2.5 Bathrooms – 91457C

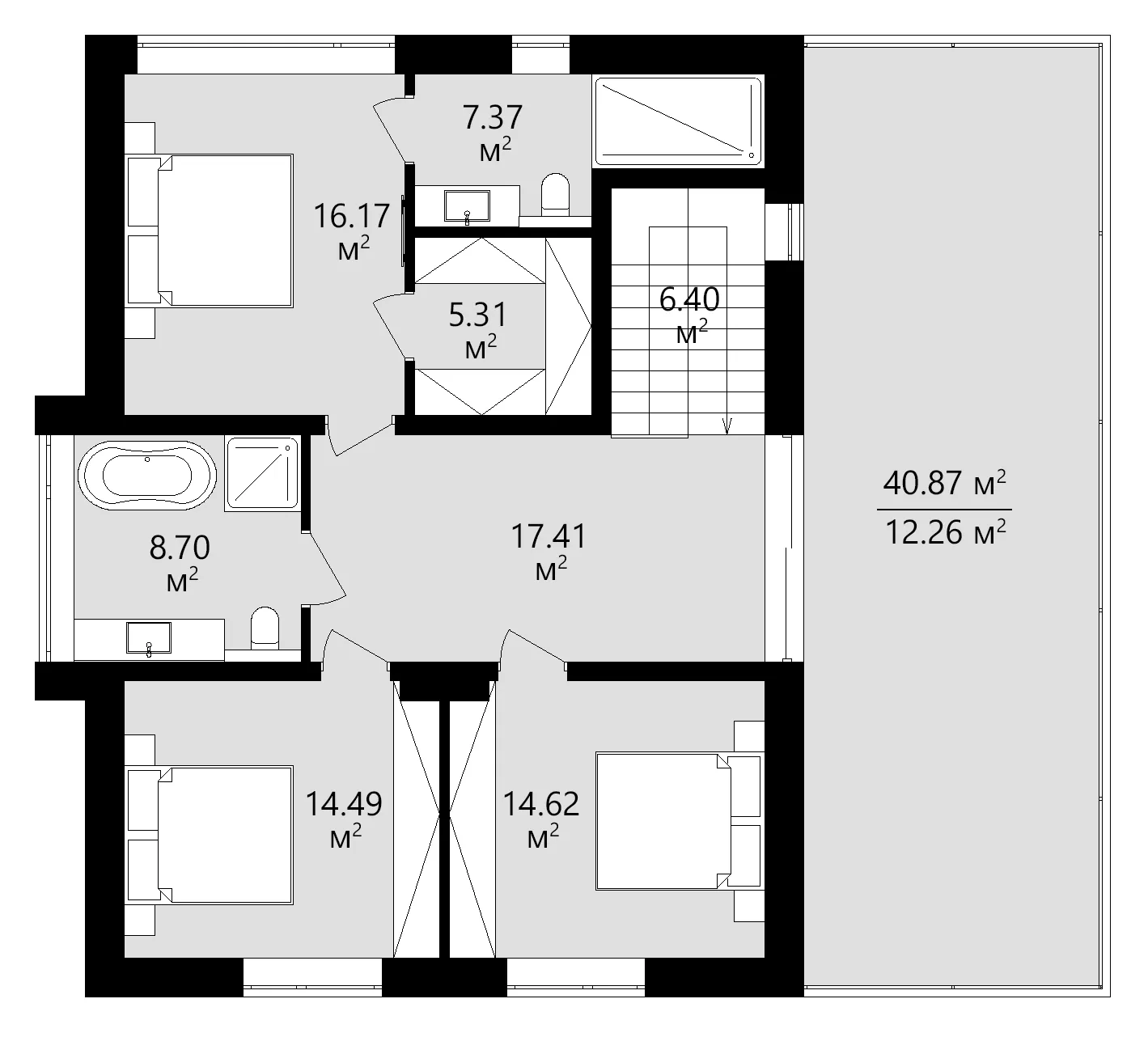

Second Floor
Second Floor 13 – 2,119 Sq Ft Modern 2-Story House Plan with 3 Bedrooms and 2.5 Bathrooms – 91457C
Full Specs & Features
Area
Total Heated: 2119.09 ft²
Dimensions
Depth: 38'0" ft
Width: 42'5" ft
Height: 24'3" ft
Garage
Cars: 1
Carport
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Stucco
Tiles
Rooms
Full bathrooms: 2
Half bathrooms: 1
Bedrooms: 3
Utility room
Laundry
Entry
Storage
Walk In Closet
Kitchen and Dining
Breakfast Nook
Interior Features
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Exterior Features
Balcony
Deck
Garage rooftop deck
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
Modern
Roof
Roof Area: 1054.86 ft²
Flat

Design 91457C is a modern 2-story single-family home available for purchase as a digital house design concept, with a total heated area of 2,119 Sq Ft, 3 bedrooms, 2.5 bathrooms and a carport for a household of 3-4 people. A flat roof gives the house a clean silhouette and carries the modern look from the street to the garden side.

On the ground floor, the entry leads into an open floor plan where the large great room, the kitchen and the breakfast nook share one space, so whoever cooks stays part of the conversation. The breakfast nook handles quick everyday meals without setting a full table, while large windows, including floor-to-ceiling glazing, bring daylight deep into the day zone and connect it with the deck.

The bedrooms are clustered on the second floor, which keeps the quiet zone apart from daily activity and puts parents close to the children. The primary suite has a walk-in closet that frees the bedroom from bulky furniture, and a balcony gives the upper floor its own outdoor spot. A laundry room, a utility room and storage space keep chores and household equipment organized.

Outside, a deck extends the living area for meals and gatherings, and the rooftop deck above the carport adds a second, elevated place to relax. The carport shelters one car from rain and snow. Stone or brick veneer, stucco and tile cladding give the exterior weather-resistant surfaces. The plan specifies strip footings, with a slab or block foundation as options, and aerated concrete walls, alternatively ceramic hollow block or calcium silicate block, to suit local building practice. The house is 42'5" wide and 38'0" deep. In figures: Total Heated 2,119 Sq Ft, 3 bedrooms, 2.5 bathrooms and a 1-car carport.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.
