Renderings 2 – 1,642 Sq Ft Modern 2-Story House Plan with 3 Bedrooms and 1-Car Garage – 46872C
Renderings 3 – 1,642 Sq Ft Modern 2-Story House Plan with 3 Bedrooms and 1-Car Garage – 46872C Renderings 4 – 1,642 Sq Ft Modern 2-Story House Plan with 3 Bedrooms and 1-Car Garage – 46872C
6
Concept
Construction documents are prepared for the following countries:

1,642 Sq Ft Modern 2-Story House Plan with 3 Bedrooms, 2.5 Bathrooms and 1-Car Garage

Plan
46872C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
1642
Total Heated ft²
2 + 1
Baths + 1/2 Baths
3 + 0
Beds + Home Office
1
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans
Main Floor

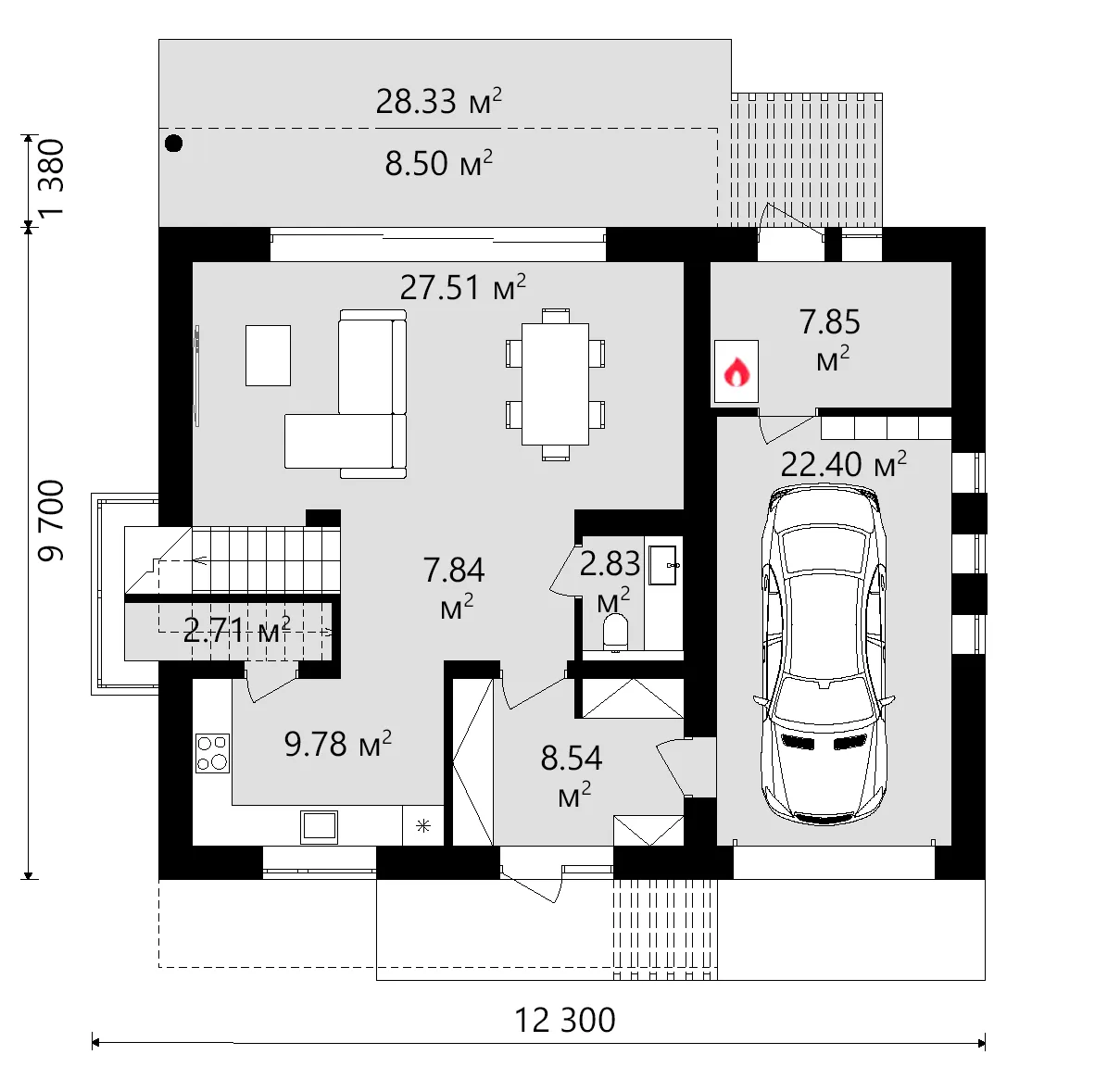

Main Floor 11 – 1,642 Sq Ft Modern 2-Story House Plan with 3 Bedrooms and 1-Car Garage – 46872C
Second Floor

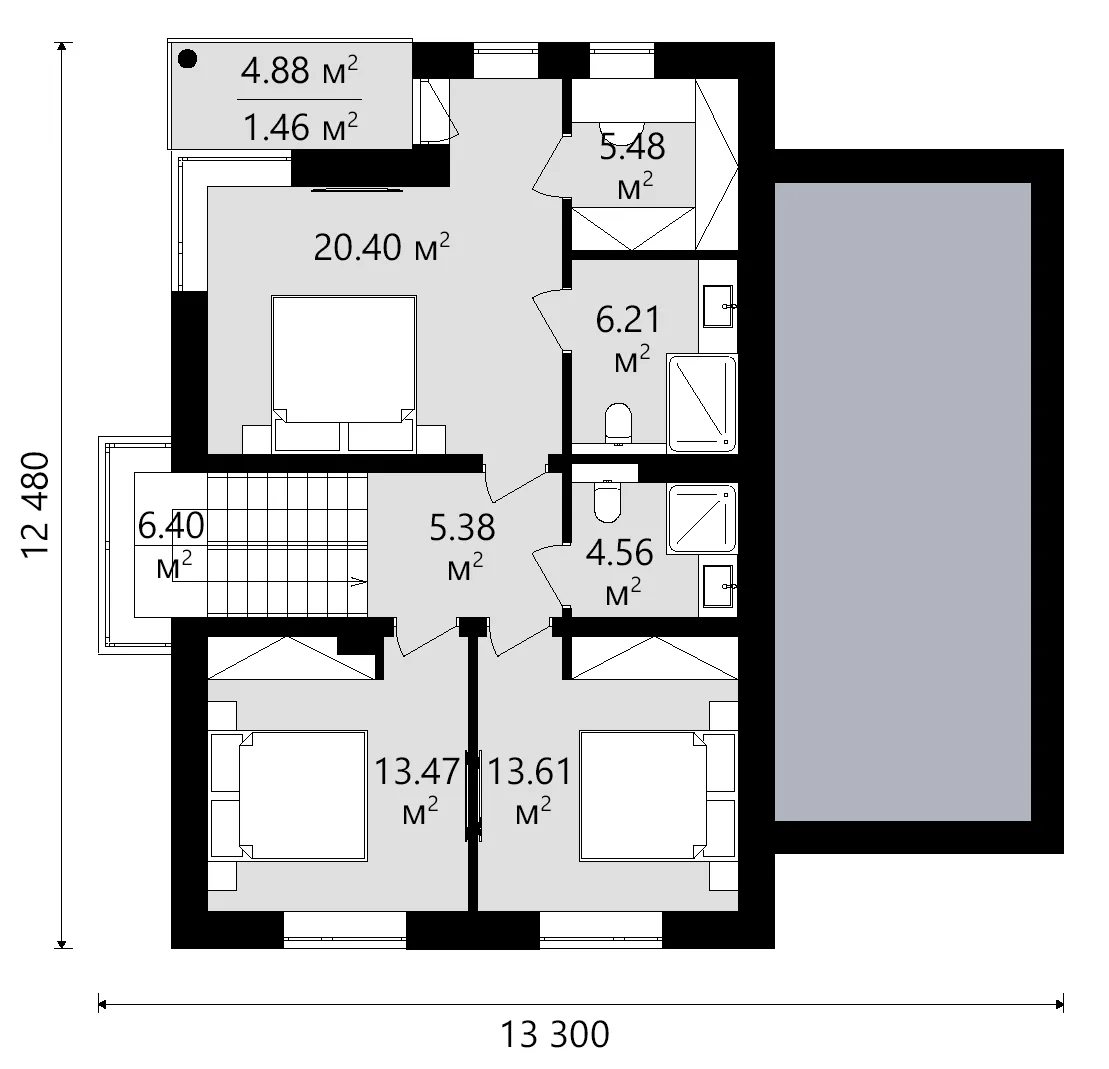

Second Floor 12 – 1,642 Sq Ft Modern 2-Story House Plan with 3 Bedrooms and 1-Car Garage – 46872C
Full Specs & Features
Area
Total Unheated: 241.11 ft²
Total Heated: 1641.82 ft²
Dimensions
Depth: 38'0" ft
Width: 40'5" ft
Height: 21'7" ft
Garage
Area: 241 ft²
Cars: 1
Attached
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Wood
Stucco
Flexible Ceramic
Rooms
Full bathrooms: 2
Half bathrooms: 1
Bedrooms: 3
Utility room
Entry
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Interior Features
Second Floor Master
Closed Floor Plan
Exterior Features
Balcony
Covered Rear Porch
Deck
Bay Window
Corner Window
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
Modern
Roof
Roof Area: 1264.76 ft²
Flat

Modern 2-story house design concept 46872C, available for purchase as a digital house design concept, offers a single-family home with Total Heated 1,642 Sq Ft, 3 bedrooms, 2.5 bathrooms and a 1-car garage. The flat roof gives the house a clean, cubic silhouette, and the footprint of 40'5" wide by 38'0" deep fits a standard lot. The layout is sized for 3-4 people.

The entry leads into a closed floor plan that gives the kitchen its own room, so cooking stays apart from the living spaces. A walk-in pantry keeps supplies out of sight, and a utility room takes household chores off the main rooms. Large windows, floor-to-ceiling windows, a bay window and a corner window bring daylight into the interior.

The primary suite is on the second floor, away from daytime activity, and its walk-in closet frees the bedroom from bulky furniture. Two more bedrooms complete the sleeping quarters, while two full bathrooms and a half bath serve both the family and guests.

A balcony adds private outdoor space, and the covered rear porch and the deck extend everyday living outside in any weather. The attached 1-car garage has a front entry for direct access from the street. The exterior combines wood, stucco and flexible ceramic; the walls are built of aerated concrete block, with ceramic block or sand-lime block as options, and the strip footings can be replaced with a slab or a block foundation. In figures: Total Heated 1,642 Sq Ft, 3 bedrooms, 2.5 bathrooms and a 1-car garage.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
US$1256
Subtotal
