2-Story House Plan 3902 ft²: 5 Beds, 4 Baths, Open Floor Plan, without Garage
Opis techniczny
Rzuty kondygnacji
Rzut więźby dachowej
Rzut dachu
Przekroje

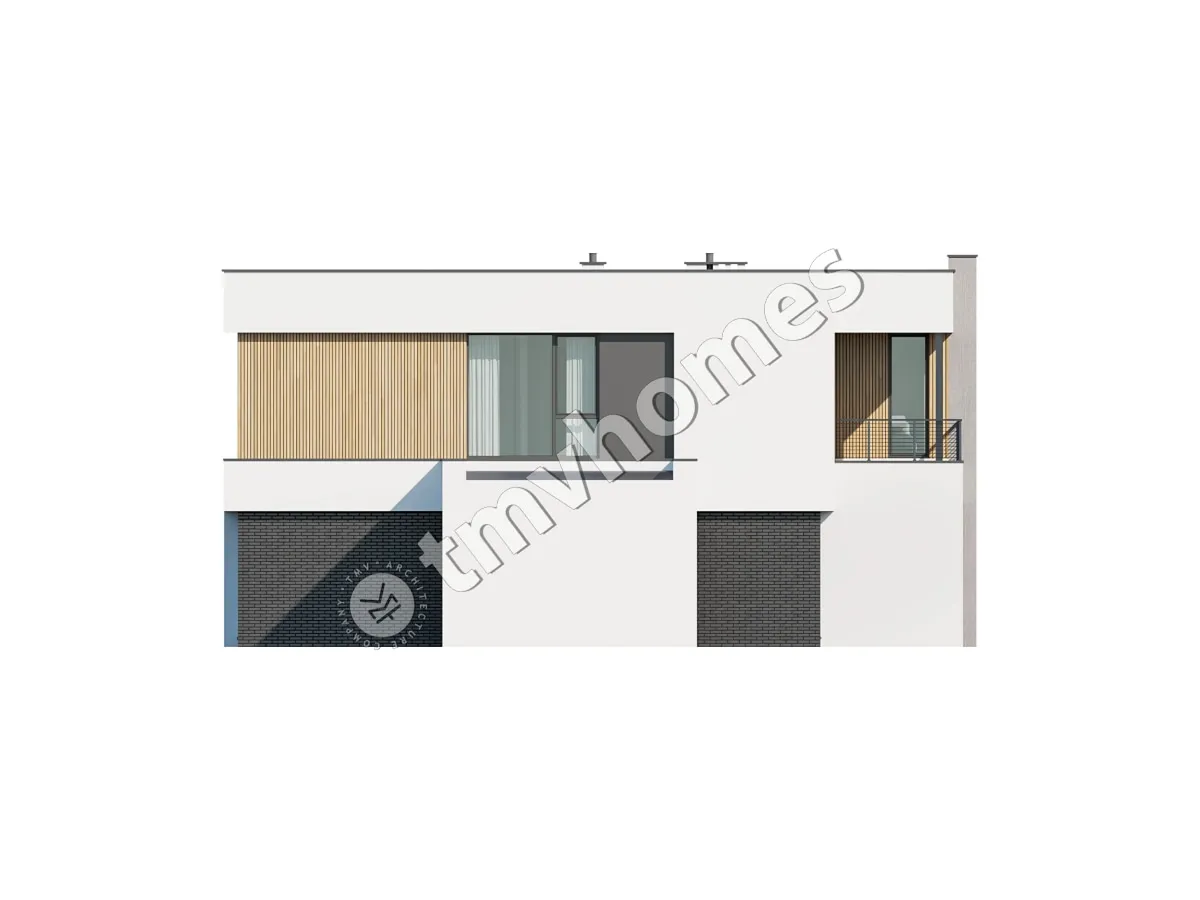

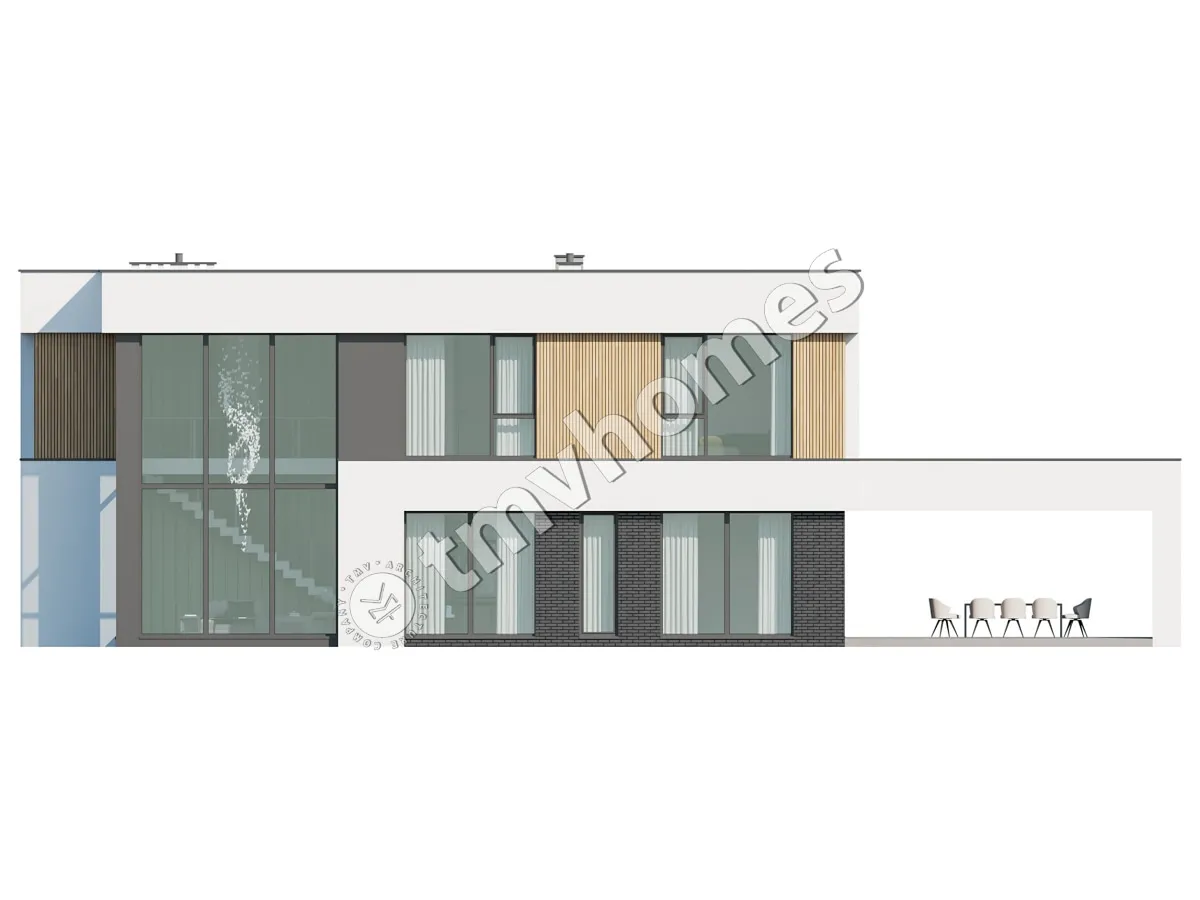

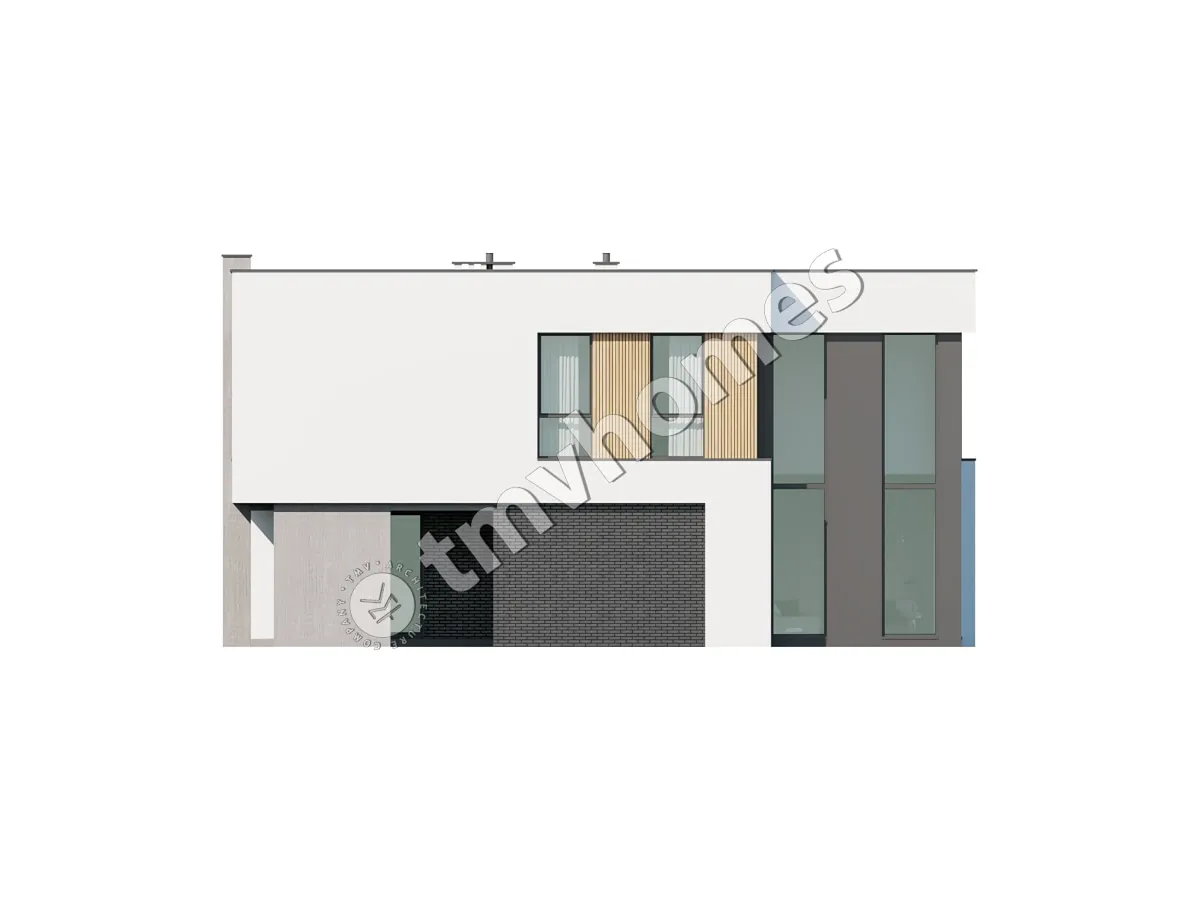

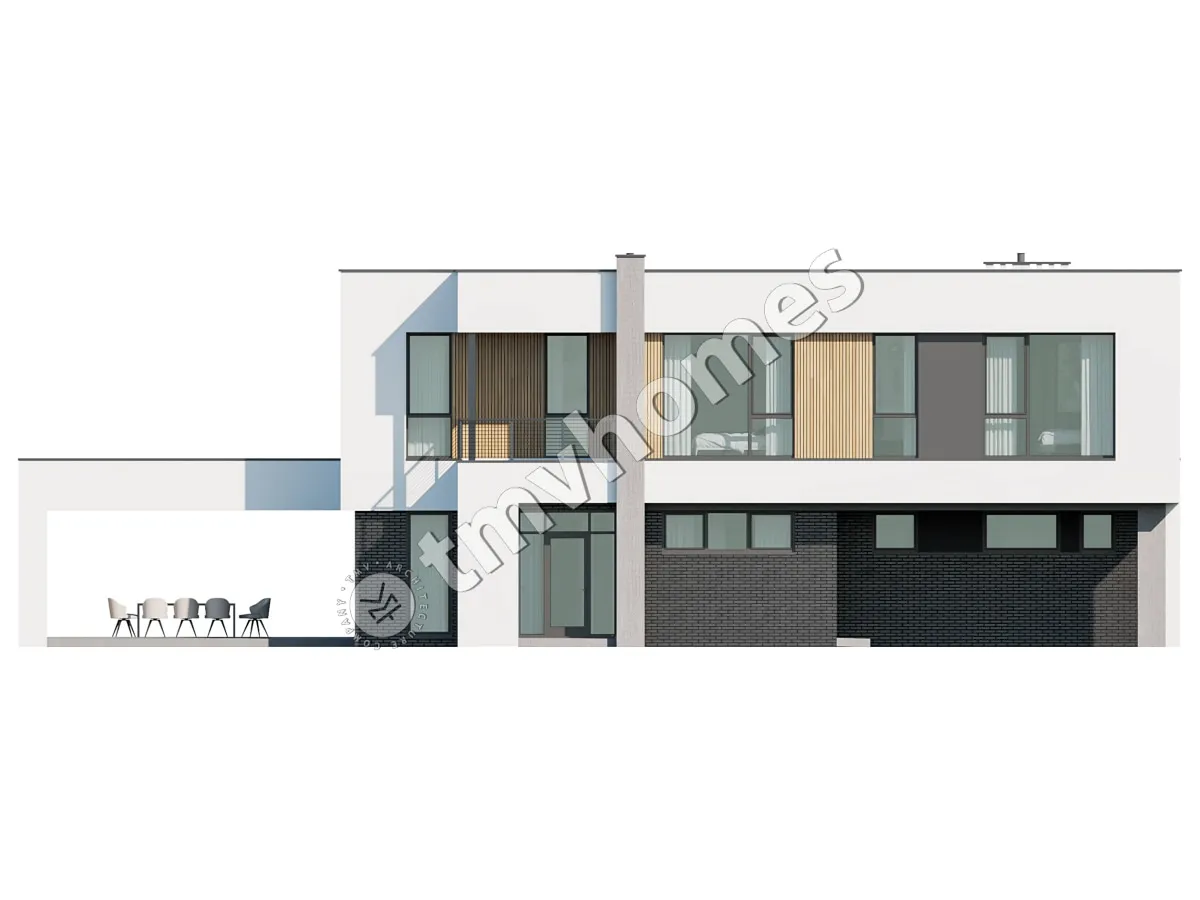

Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

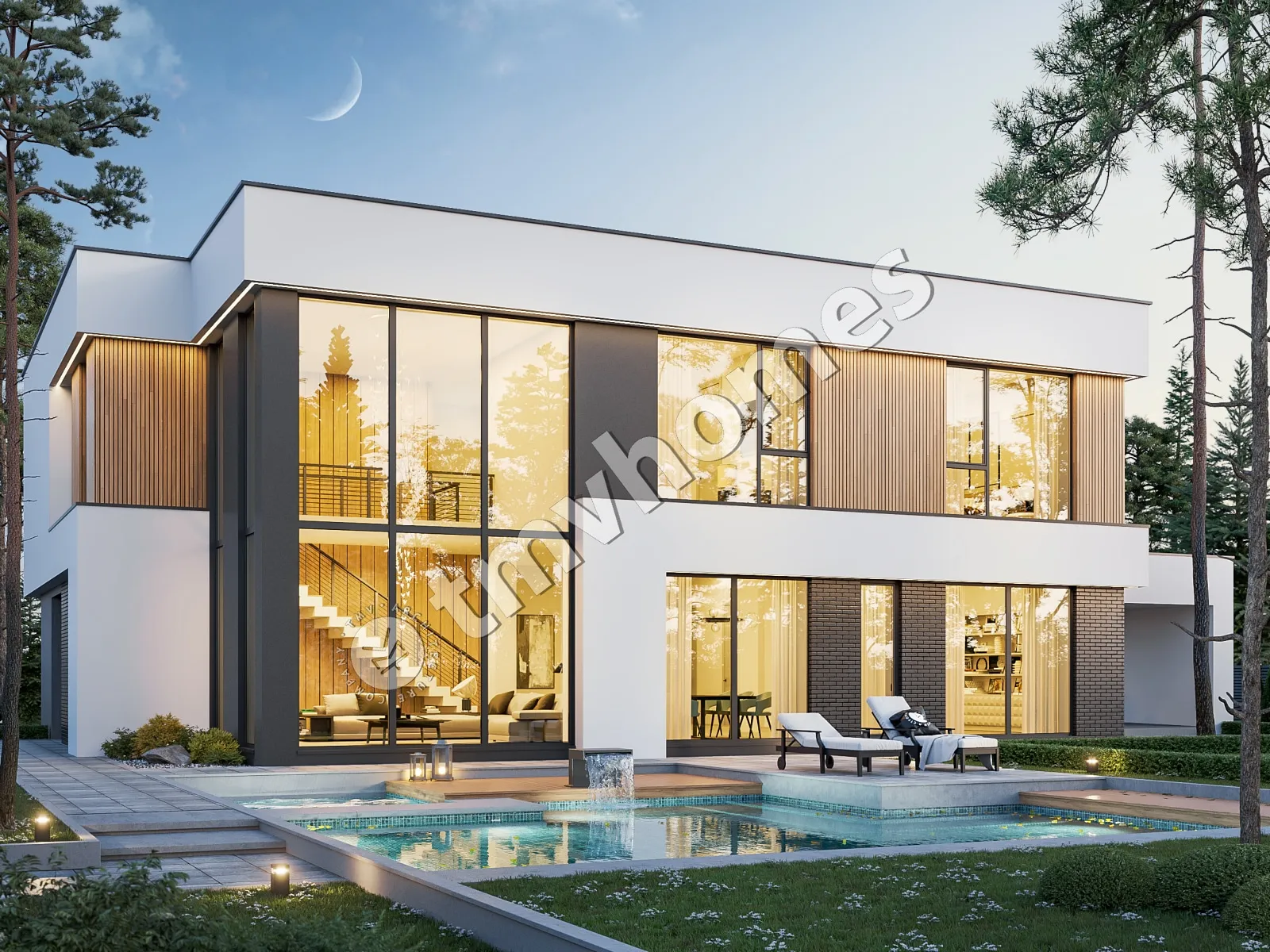

Plan 44222C is a 5-bedroom 3-story house plan in a contemporary, modern style, offering 3902 ft² of living space under a crisp flat roof. Its high-tech character shows in clean volumes finished in stone/brick veneer, wood and stucco, and in generous glazing: floor-to-ceiling windows, panoramic windows, window walls and a corner window bring daylight deep into the main rooms. This single-family home measures 74'9" wide and 47'9" deep, with a height of 25'5", and its four full bathrooms suit a large or multigenerational household.

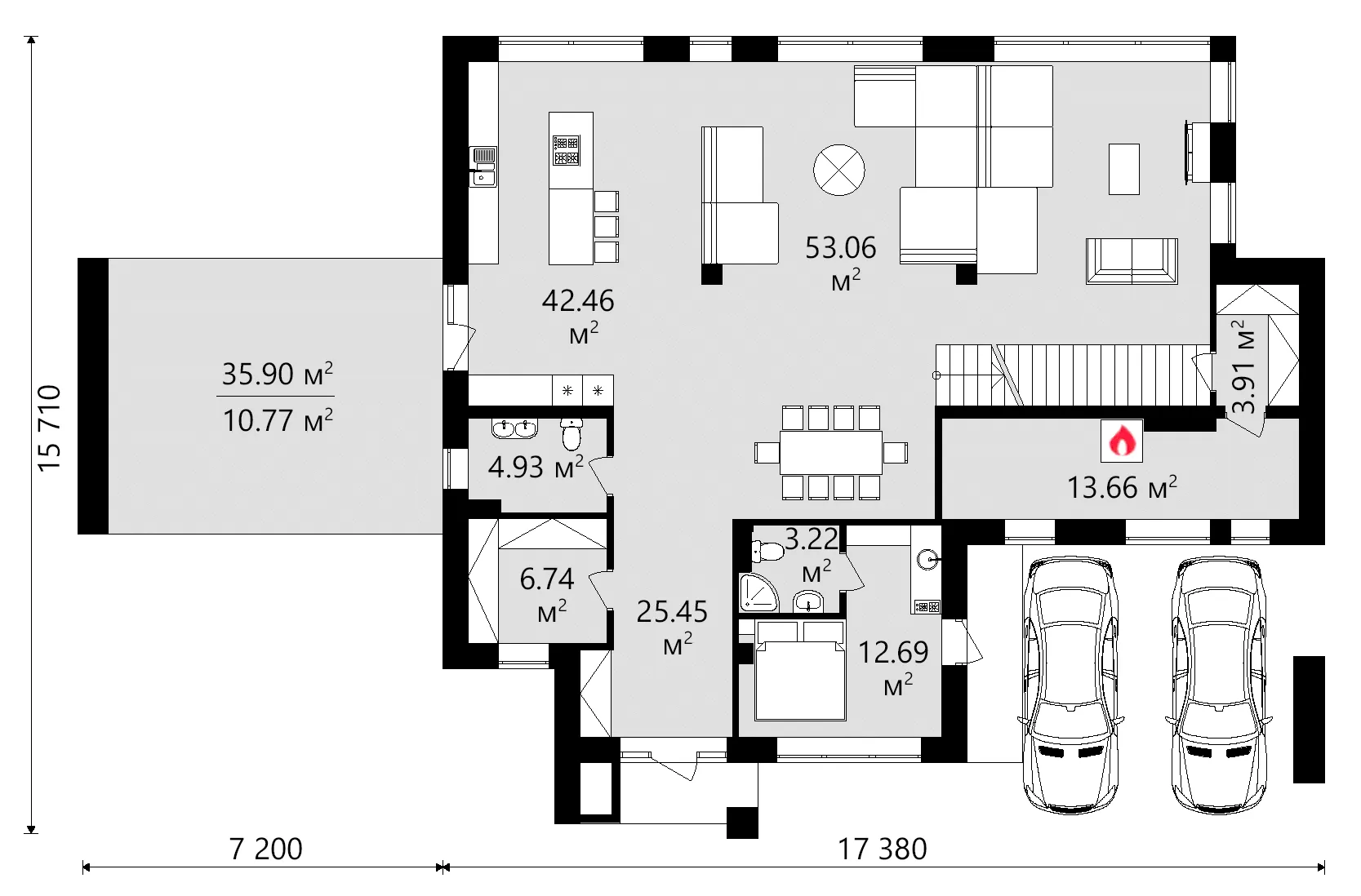

The heart of the house is an open floor plan that joins a large family room with a large kitchen. Above the family room, an open-to-below space lifts the ceiling and lets light from the tall glazing reach two levels at once, while a loft adds a flexible spot for a home office, a reading nook or a play area. The kitchen is built around an island and a breakfast bar, so quick breakfasts, homework and conversation with whoever is cooking all happen in one place. A separate sitting area offers a quieter corner for a book and a cup of tea on a winter evening.

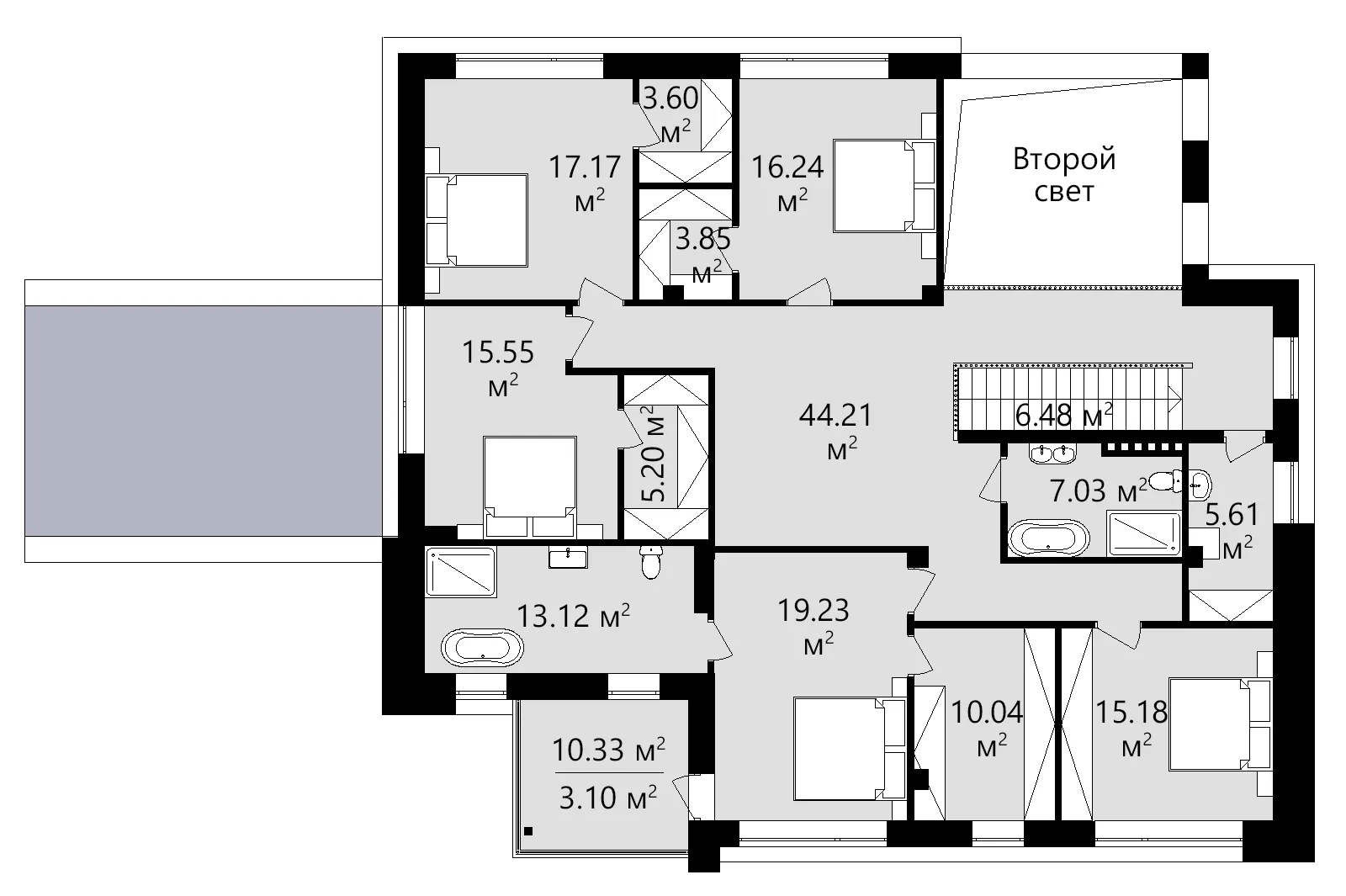

Five bedrooms are clustered for easy family living, and the plan includes two master suites, making it a practical house plan with an in-law suite for parents, guests or grown children returning home. One master suite sits on the second floor with a walk-in closet, and the second-floor laundry is right where the bedrooms are, so clean clothes never travel far. Four full bathrooms keep busy mornings calm. A utility room and dedicated storage hold the mechanical equipment, seasonal items and everyday gear, keeping the living spaces uncluttered.
Outside, a covered side porch gives a sheltered place to step out with morning coffee, and a balcony opens the upper level to fresh air and views. Instead of an enclosed garage, the home has a 2-car carport that keeps vehicles covered while preserving the light, open lines of the facade. The house has no basement and stands on strip footings; it is also available with a slab or a concrete block foundation. The exterior walls are framed in aerated concrete, with clay block or sand-lime block framing available on request, so this modern house plan with a flat roof can be adapted to the builder's preferred construction method.
