2,714 Sq Ft Modern 2-Story House Plan with 3 Bedrooms, 3 Bathrooms and Carport
Opis techniczny
Rzuty kondygnacji
Rzut więźby dachowej
Rzut dachu
Przekroje

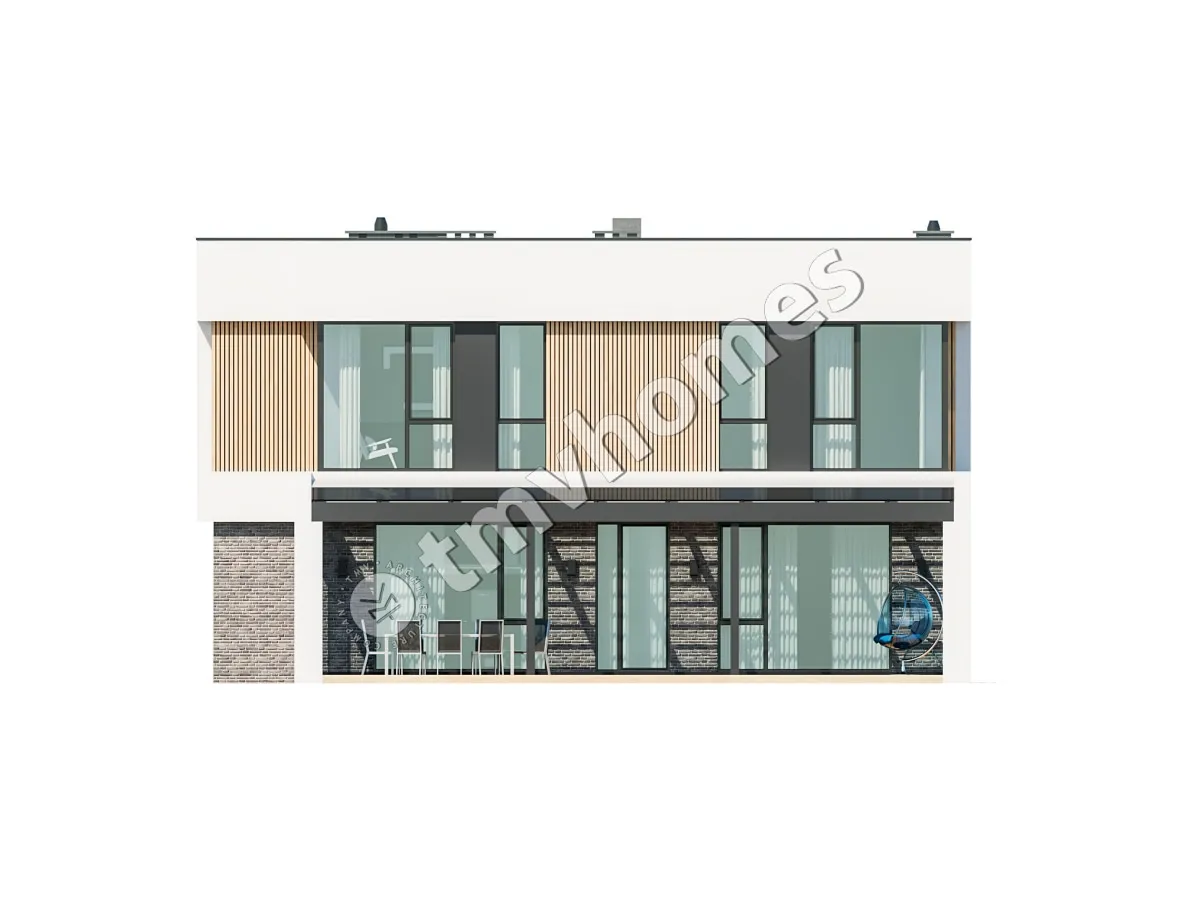

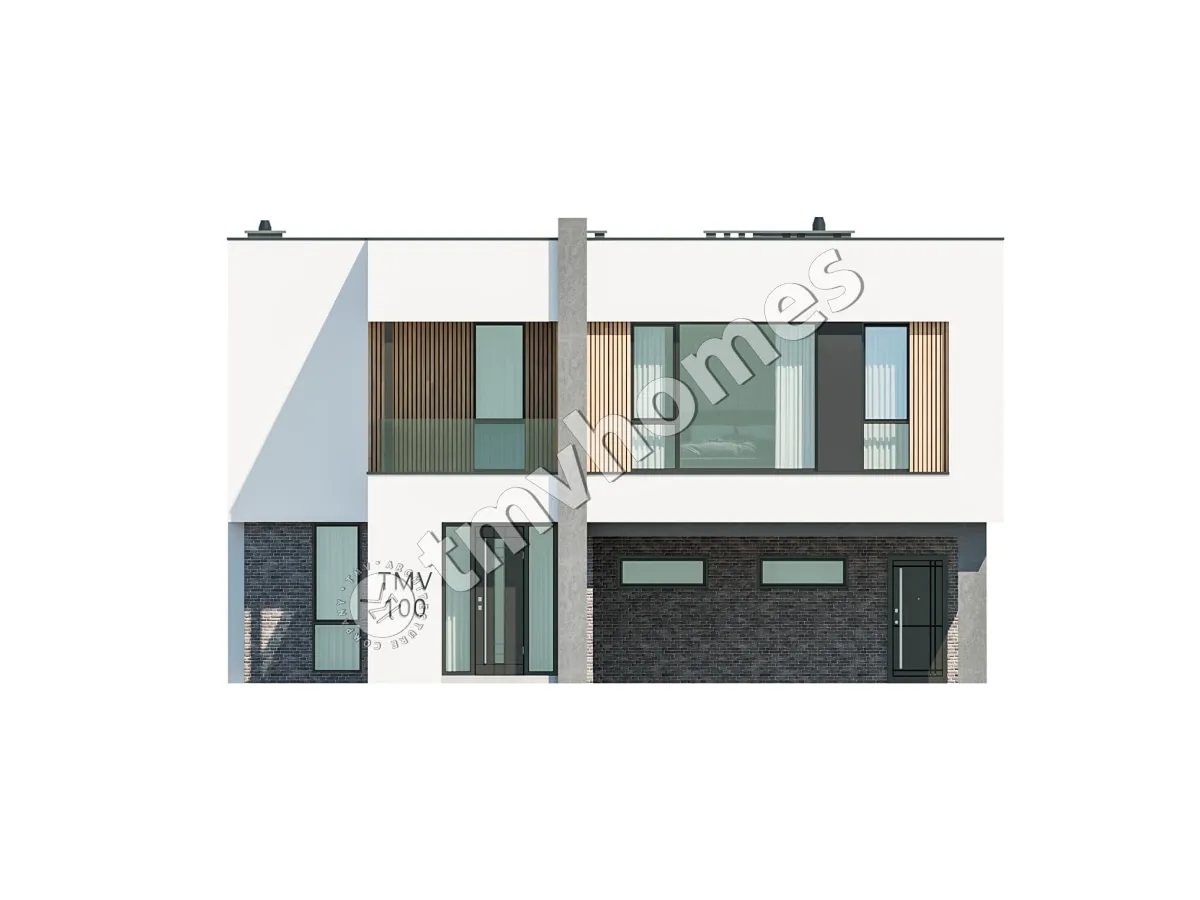

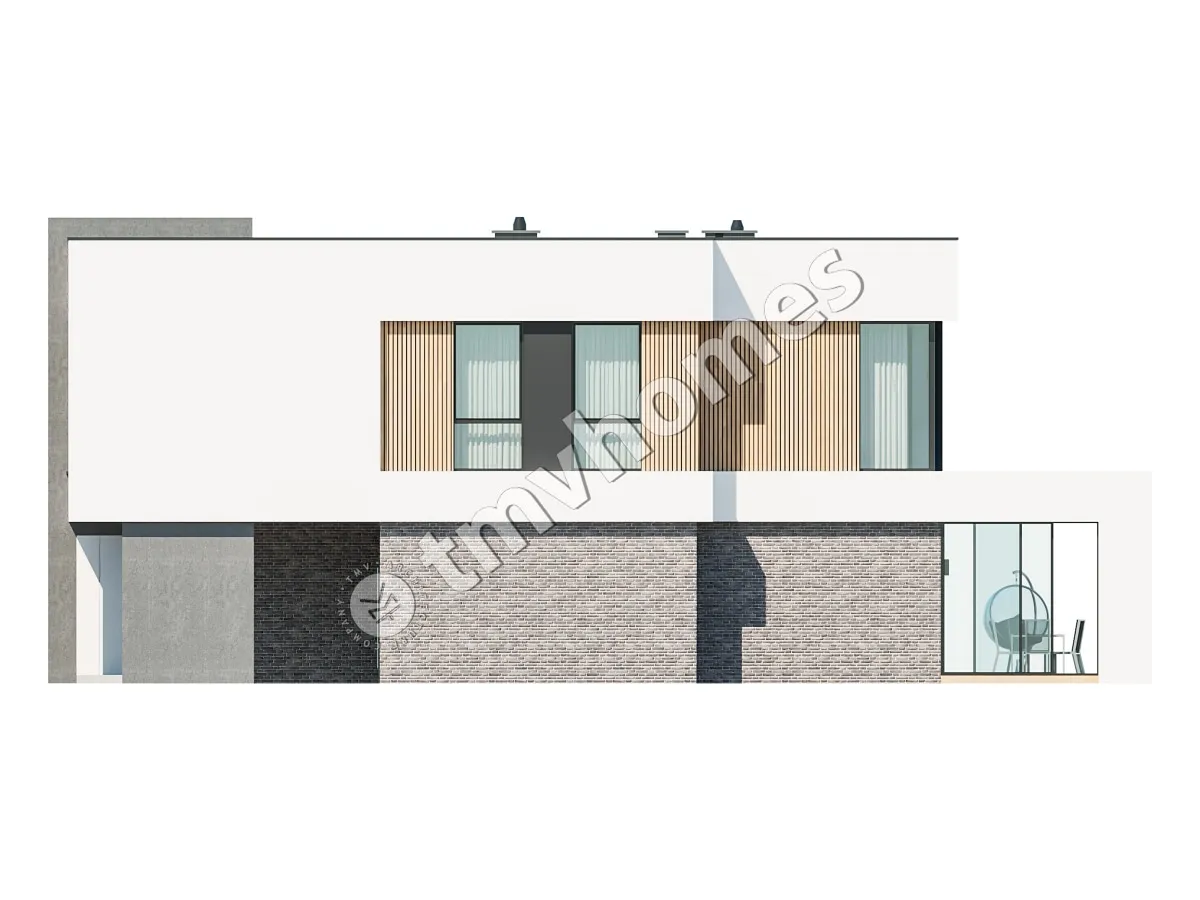

Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.
House design concept 32603C, available as a digital house design concept, is a Modern 2-story single-family home with a total heated area of 2,714 Sq Ft, 3 bedrooms, 3 bathrooms, a flat roof and a carport, sized for a household of 3-4 people. The exterior combines stone and brick veneer, wood and stucco, a mix that gives the flat-roofed volume texture and contrast.
The entry leads into an open floor plan that joins a large family room, the kitchen and the breakfast nook into one connected space, so whoever cooks stays part of family life. A fireplace anchors the family room on cooler evenings. The large kitchen works around an island, while a walk-in pantry keeps supplies out of sight. Large, panoramic, corner and floor-to-ceiling windows bring daylight deep into the living areas. A home office gives a quiet place to work without leaving the house.
The bedrooms are clustered on the second floor, keeping the night zone together and children close by. The primary suite includes a walk-in closet, and three full bathrooms shorten the morning queue. Second-floor laundry sits where the clothes are, saving trips on the stairs, and a utility room keeps technical space apart from the living rooms.
A covered rear porch offers a shaded spot for meals outdoors, and a balcony gives the upper floor its own open-air space. The 2-car carport shelters vehicles from rain and snow. The main foundation is strip footings, with a slab or a concrete block foundation as options; exterior walls are planned in aerated concrete, with clay hollow block or sand-lime block as alternatives. The footprint measures 41'4" wide by 60'3" deep. In total: a total heated area of 2,714 Sq Ft, 3 bedrooms, 3 bathrooms and a 2-car carport.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
Advanced Drafting & Design Co. Mooresville US$ 13,570
My Home Floor Plans Rosemead US$ 1,600
Plan & Simple LLC Austin US$ 5,428
