3,090 Sq Ft Modern 2-Story House Plan with 3 Bedrooms, 3 Bathrooms and 2-Car Garage
Opis techniczny
Rzuty kondygnacji
Rzut więźby dachowej
Rzut dachu
Przekroje

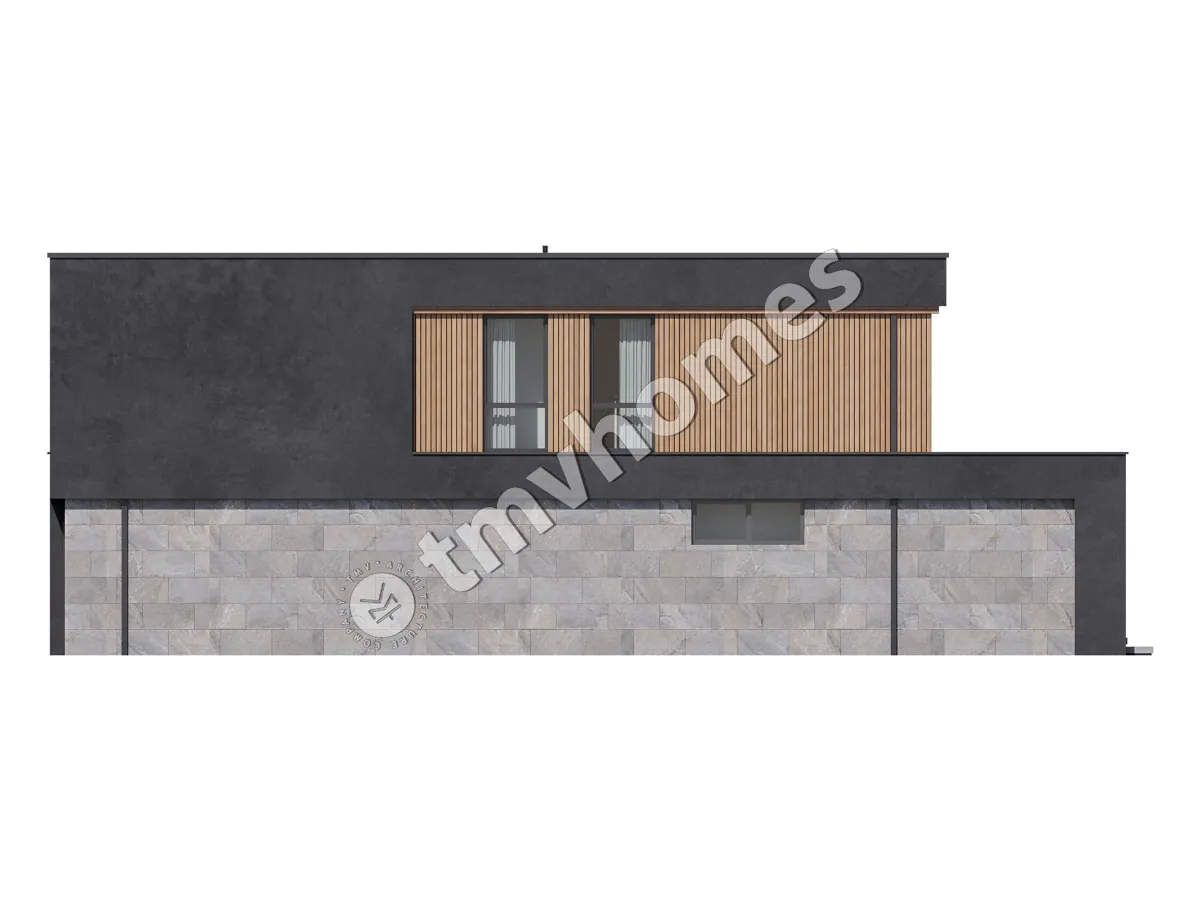

Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

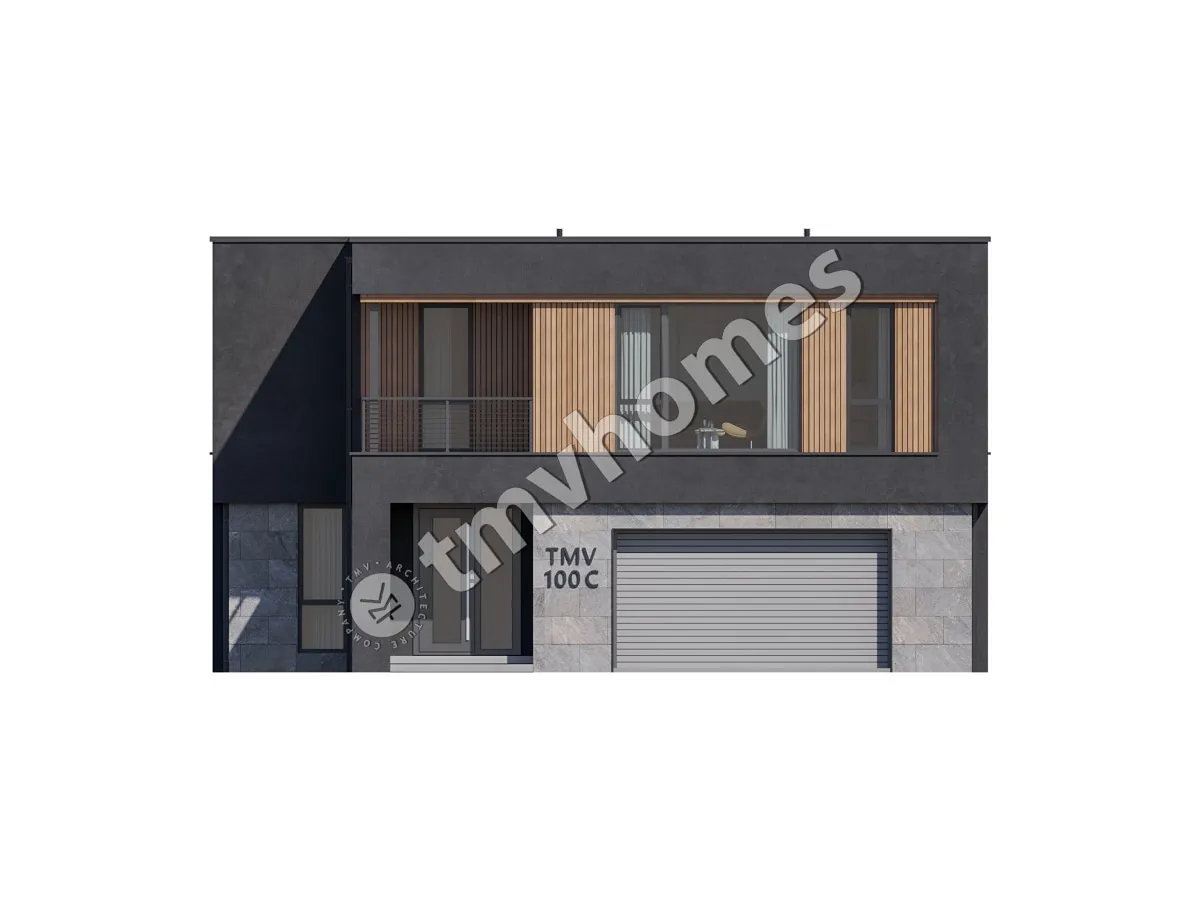

Plan 96518C is a 3-bedroom modern house plan on three stories, offering 3,090 Sq Ft of living space beneath a crisp flat roof. Contemporary and high-tech in character, this single-family home dresses its exterior walls in wood, stucco and flexible ceramic, a combination that gives the facade both warmth and precision. The house measures 42'4" wide and 63'5" deep, with an overall height of 23'8", and includes 3 full bathrooms and a 2-car garage.

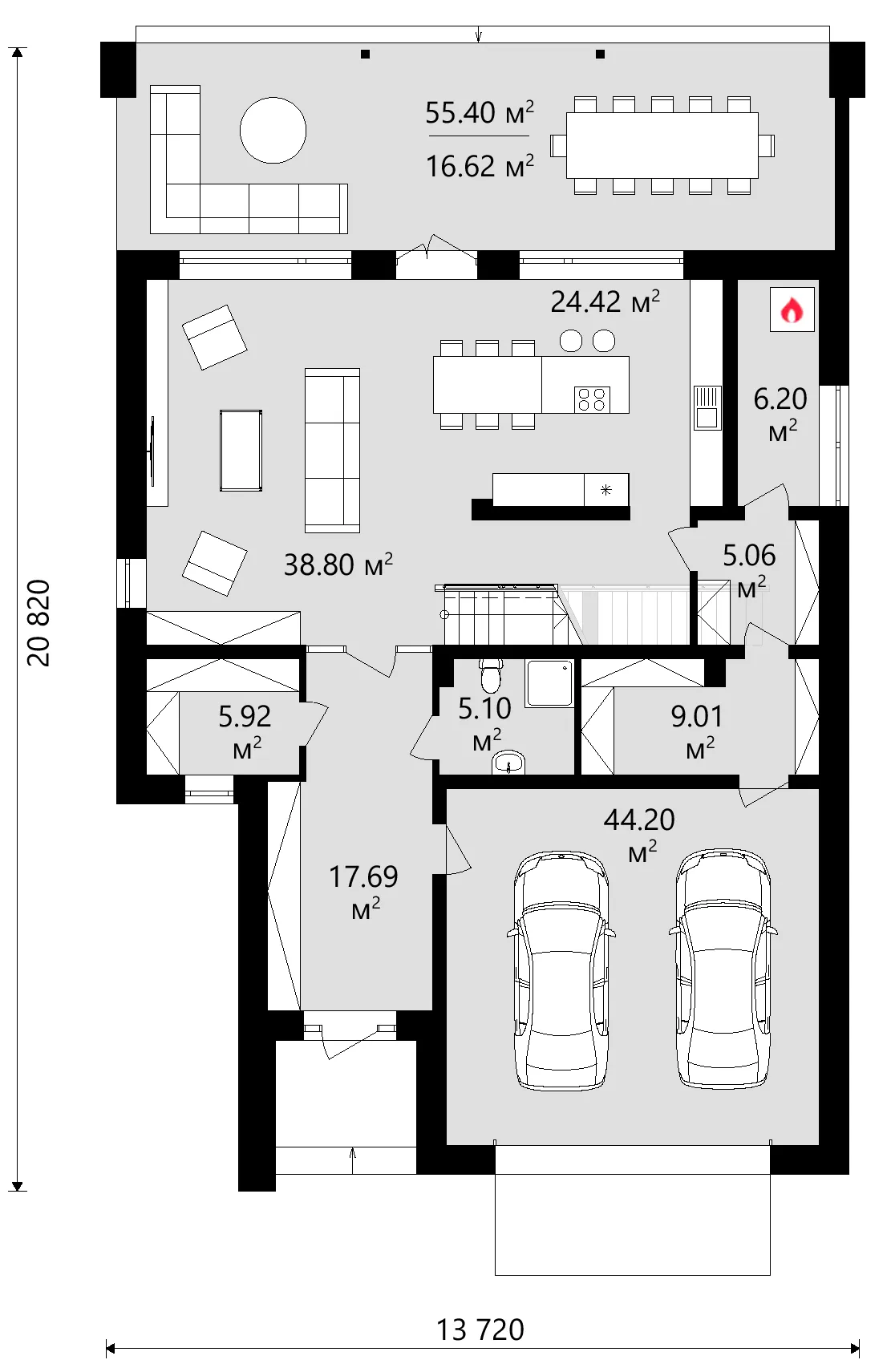

Inside, an open floor plan ties the large family room to an equally generous kitchen, so cooking, conversation and homework happen in one continuous space. The kitchen is organized around an island, with a breakfast nook for unhurried mornings and a walk-in pantry that keeps groceries and small appliances out of sight. Large windows and floor-to-ceiling glass bring daylight deep into the rooms and connect the interior with the outdoors. A defined entry welcomes guests and keeps coats and shoes away from the living area, while a home office gives remote work or study its own quiet room.

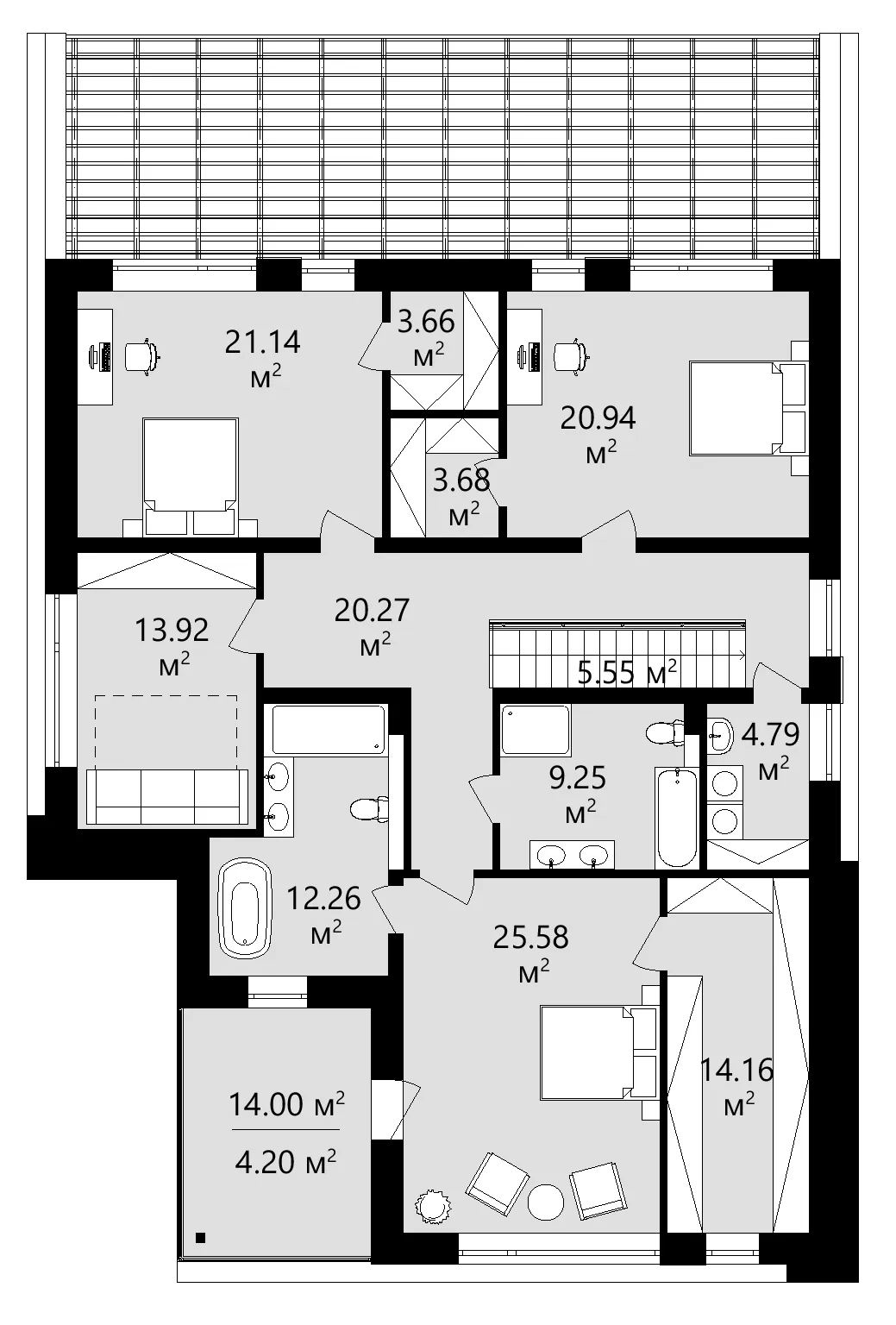

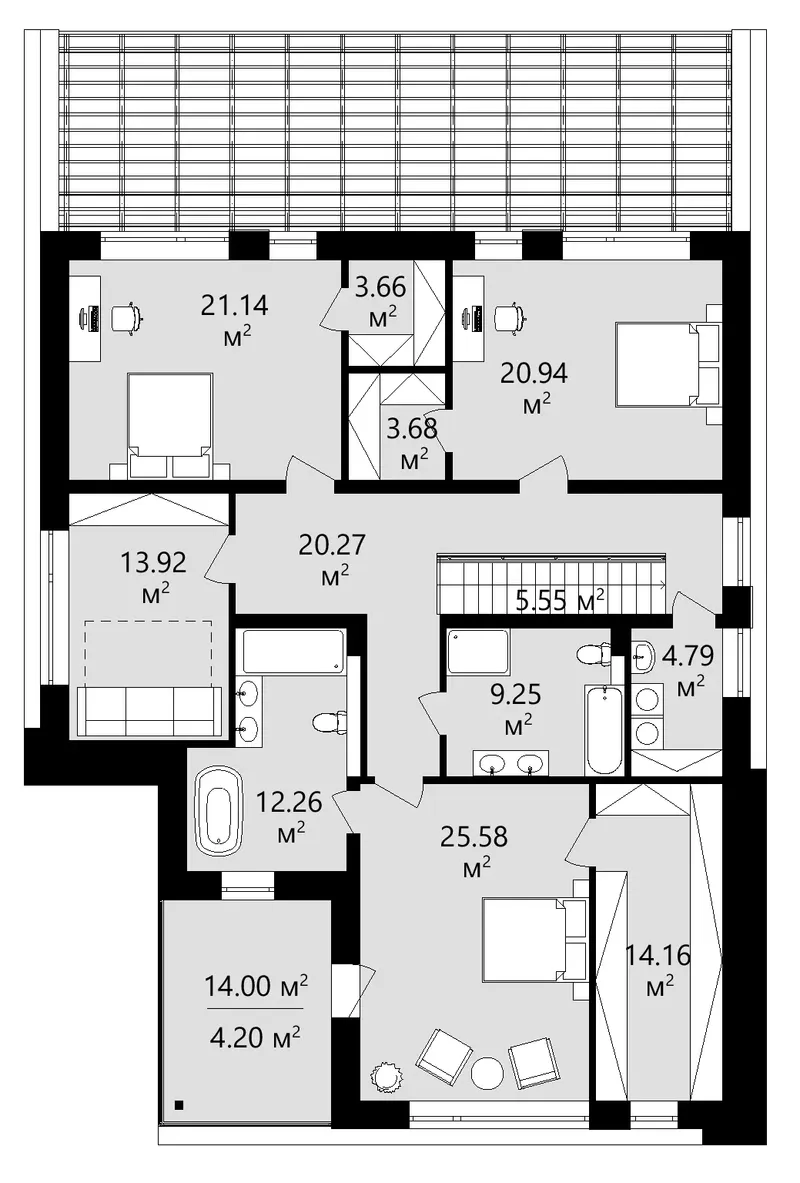

The sleeping quarters follow a split-bedroom layout, which gives the master suite real privacy from the two secondary bedrooms. The master suite sits on the second floor and comes with a walk-in closet, and with three full bathrooms in the house, busy mornings run smoothly. The laundry is on the second floor as well, right where the clothes are, so there are no baskets to carry up and down the stairs. A utility room holds the mechanical equipment, and dedicated storage keeps seasonal decor, sports gear and luggage neatly put away.

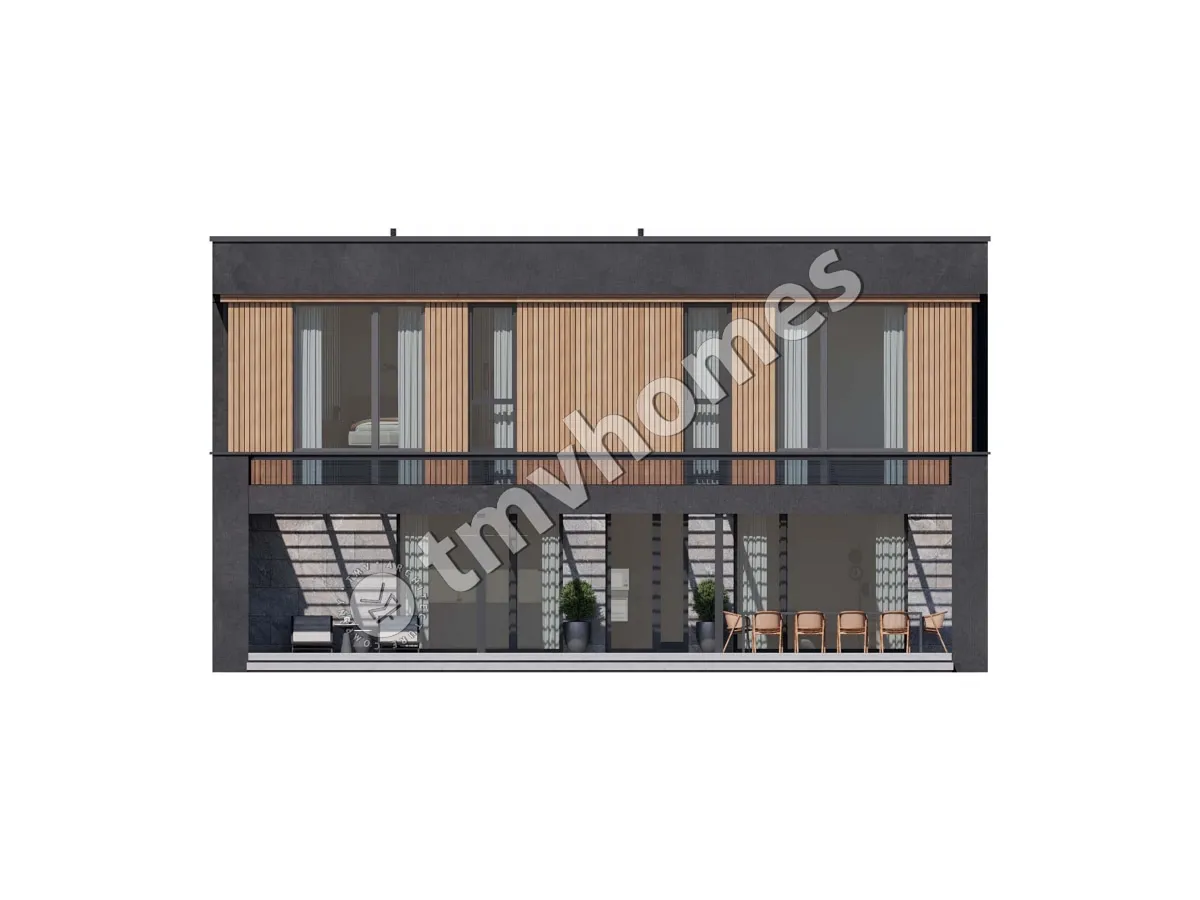

Outside, this 3 story house plan features a front-entry 2-car garage with space upstairs, ready for hobbies, storage or a flexible extra room. A balcony offers a private spot for fresh air on the upper level, and the covered rear porch extends family life outdoors on warm evenings. There is no basement: the house stands on strip footings, and a slab or concrete block foundation is also available on request. The exterior walls are framed in aerated concrete, with clay hollow block or calcium silicate block framing offered as options.
