2-Story House Plan 3133 ft²: 4 Beds, Home Office, 3 Baths, Open Floor Plan, 2-Car Garage
Opis techniczny
Rzuty kondygnacji
Rzut więźby dachowej
Rzut dachu
Przekroje
Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.
Plan 72952C is a 4-bedroom 3-story house plan in a crisp contemporary style, with 3133 ft² of living space under a flat roof and exterior walls finished in wood and stucco. Modern and high-tech influences shape the clean volumes, the corner window and the floor-to-ceiling glazing that connects the interior with the outdoors. This single family home measures 44'4" wide and 62'2" deep, with a height of 23'8", and brings together 4 bedrooms, 3 full bathrooms and a two-car garage.

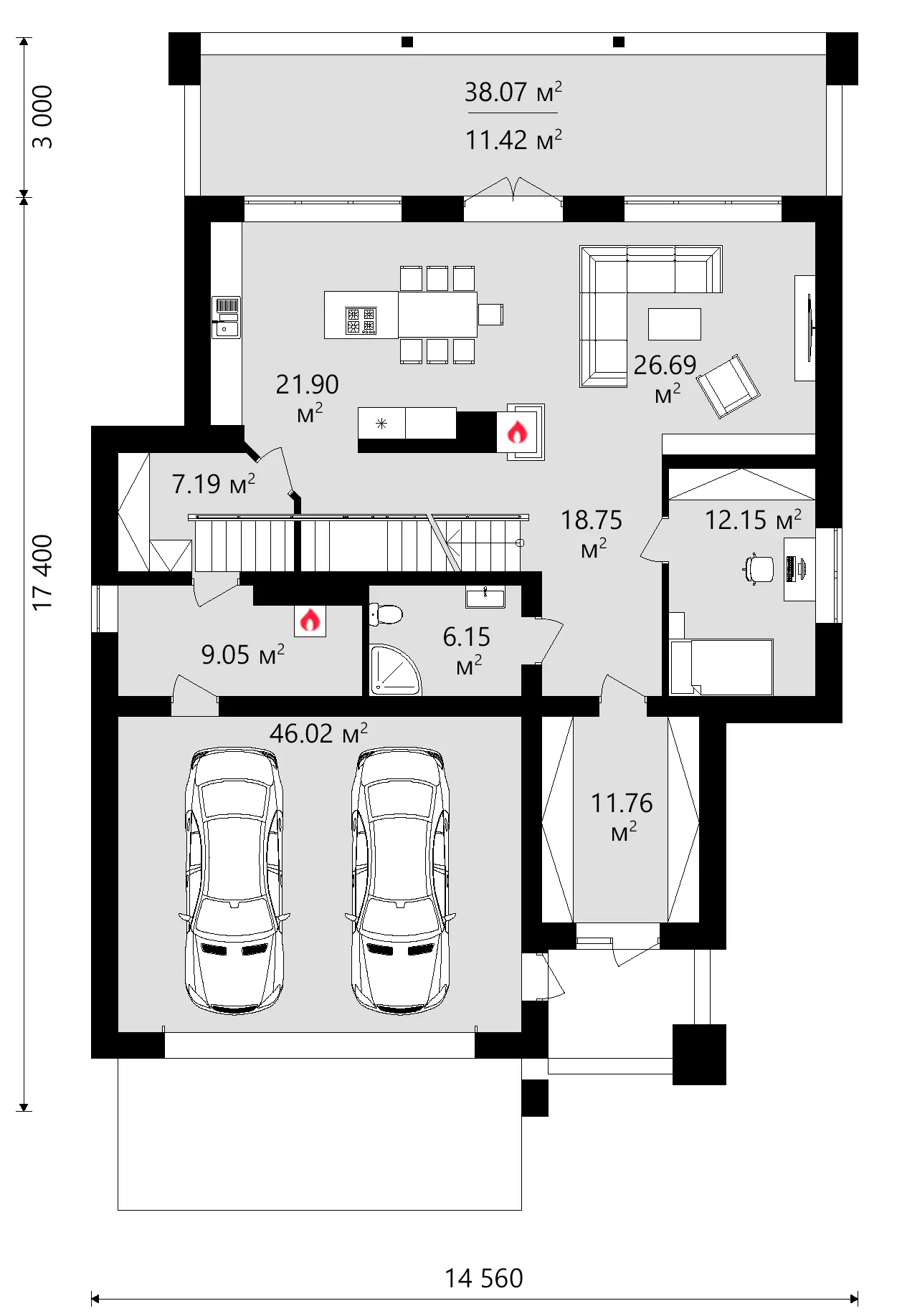

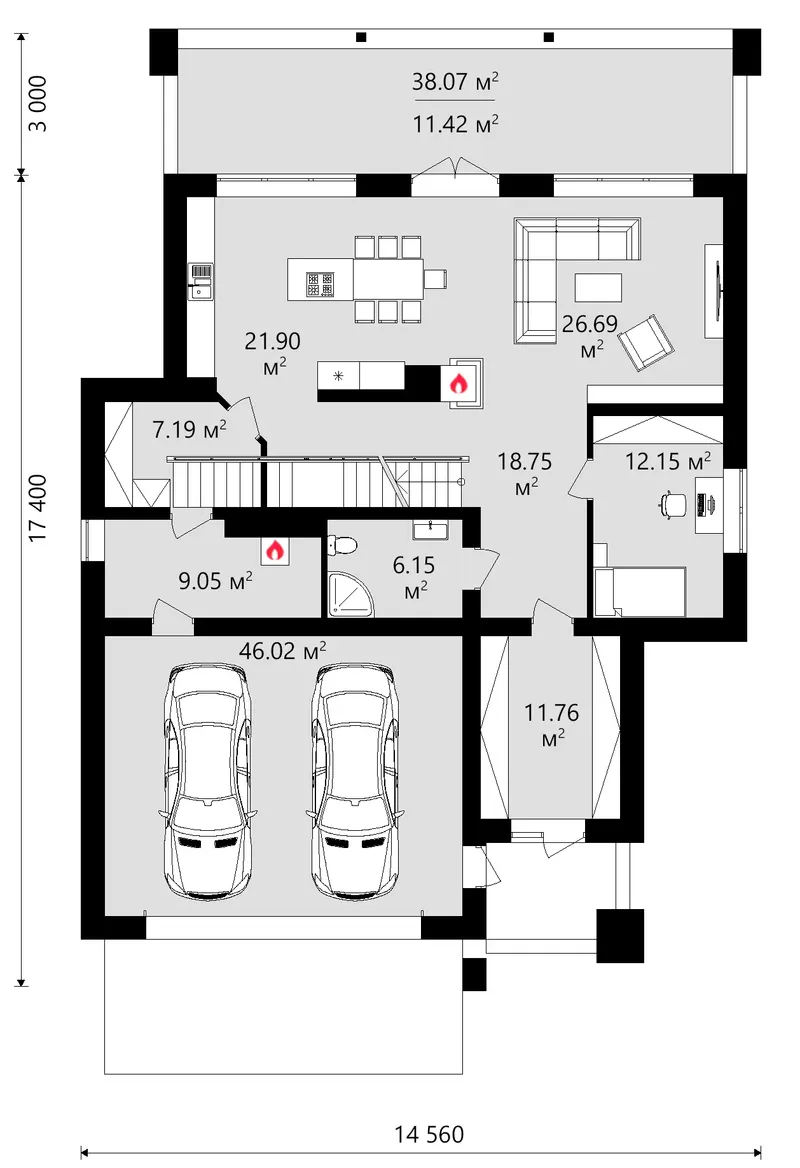

The open floor plan centers on a large family room with a fireplace, a natural place for the family to gather on winter evenings. The large kitchen is organized around an island, with a walk-in pantry that keeps supplies out of sight and a breakfast nook for unhurried mornings. Large windows bring daylight deep into the living spaces, so the kitchen and the family room read as one bright, connected area. A proper entry welcomes guests and gives the house a clear arrival point, and a dedicated home office offers a quiet room for remote work or study.

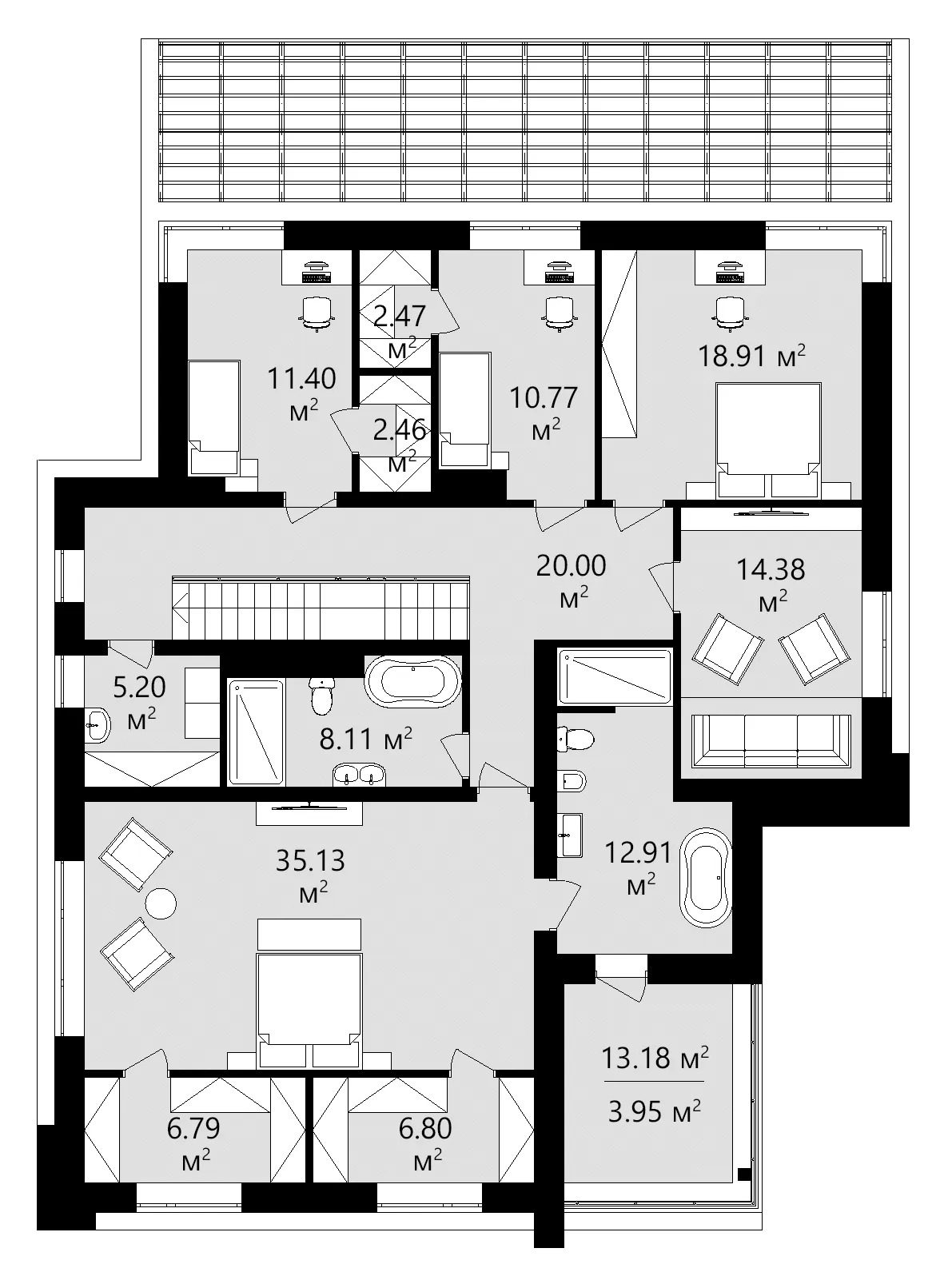

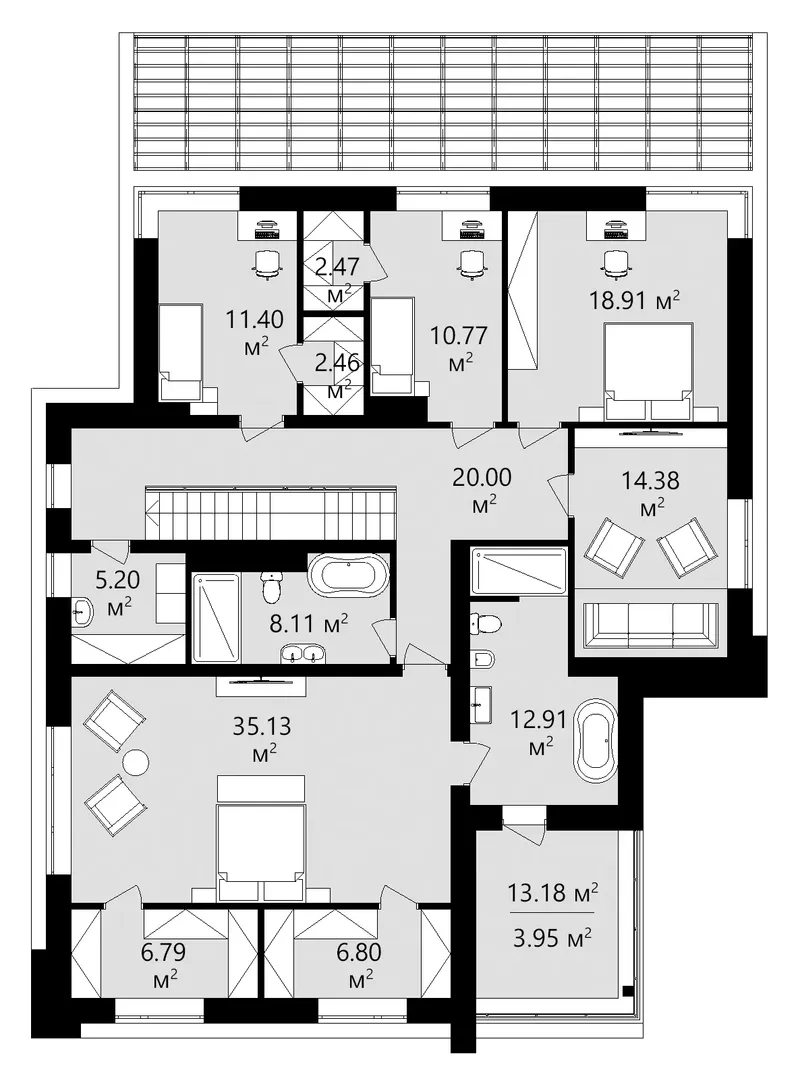

The bedrooms are clustered together, with the master suite on the second floor and a walk-in closet for generous storage. Three full bathrooms serve the four bedrooms, so mornings run smoothly even in a busy household. The laundry is on the second floor, close to the bedrooms, which saves carrying baskets up and down the stairs. A utility room handles the technical needs of the house, and a bonus/flex room adapts to whatever the family needs: a playroom, a home gym, a guest room or a hobby space.
Outside, a covered rear porch extends daily life outdoors for meals and relaxed afternoons, while a balcony adds a private outdoor spot. The front-entry two-car garage has an upstairs level above it, giving the plan extra flexible space. The house stands on a strip footing foundation and is also available with a slab or a concrete block foundation. The exterior walls are built of aerated concrete, with ceramic hollow block or sand-lime block available on request. With no basement, this modern house plan keeps construction straightforward while delivering a refined, light-filled home for year-round living.
