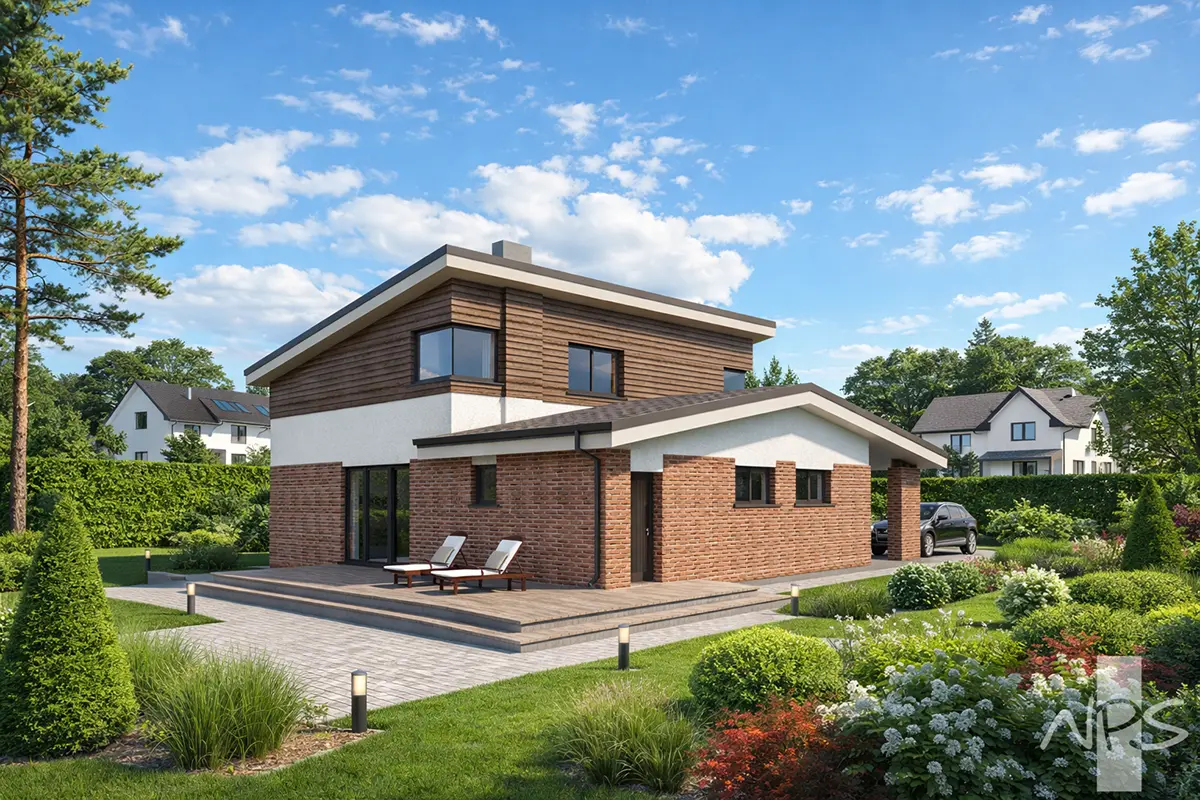

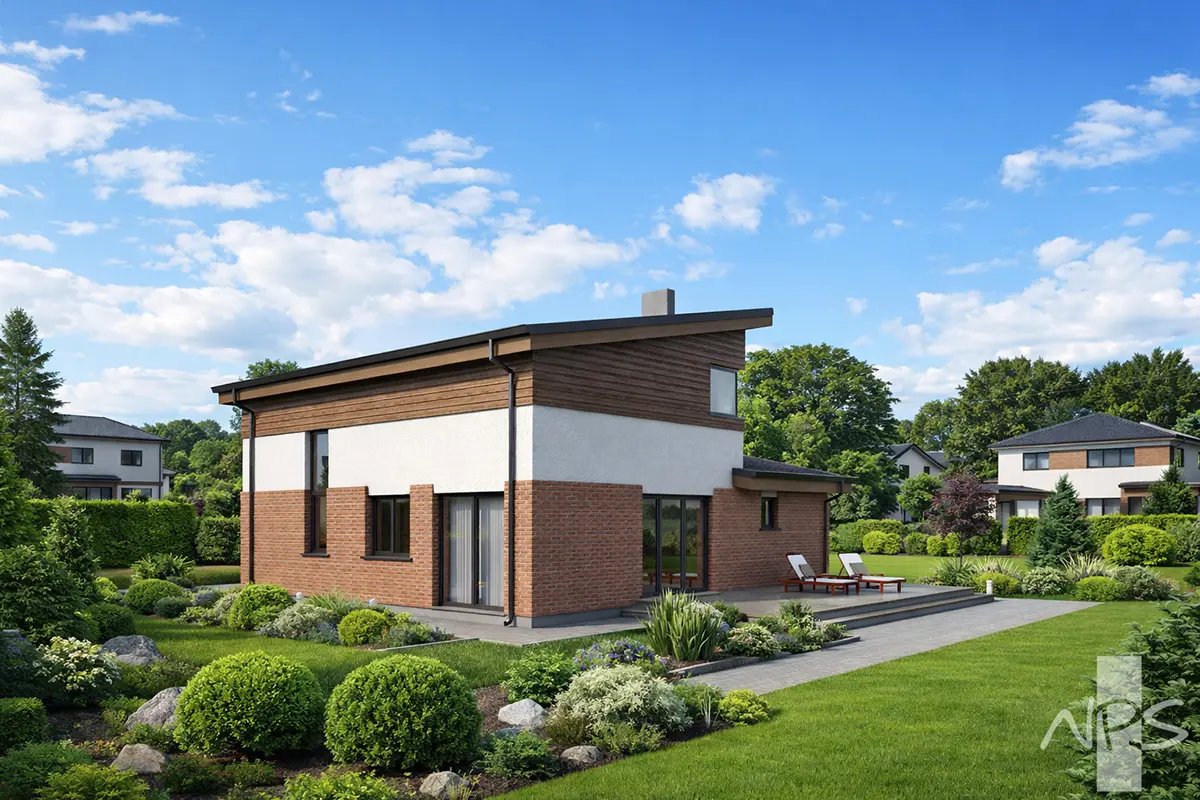

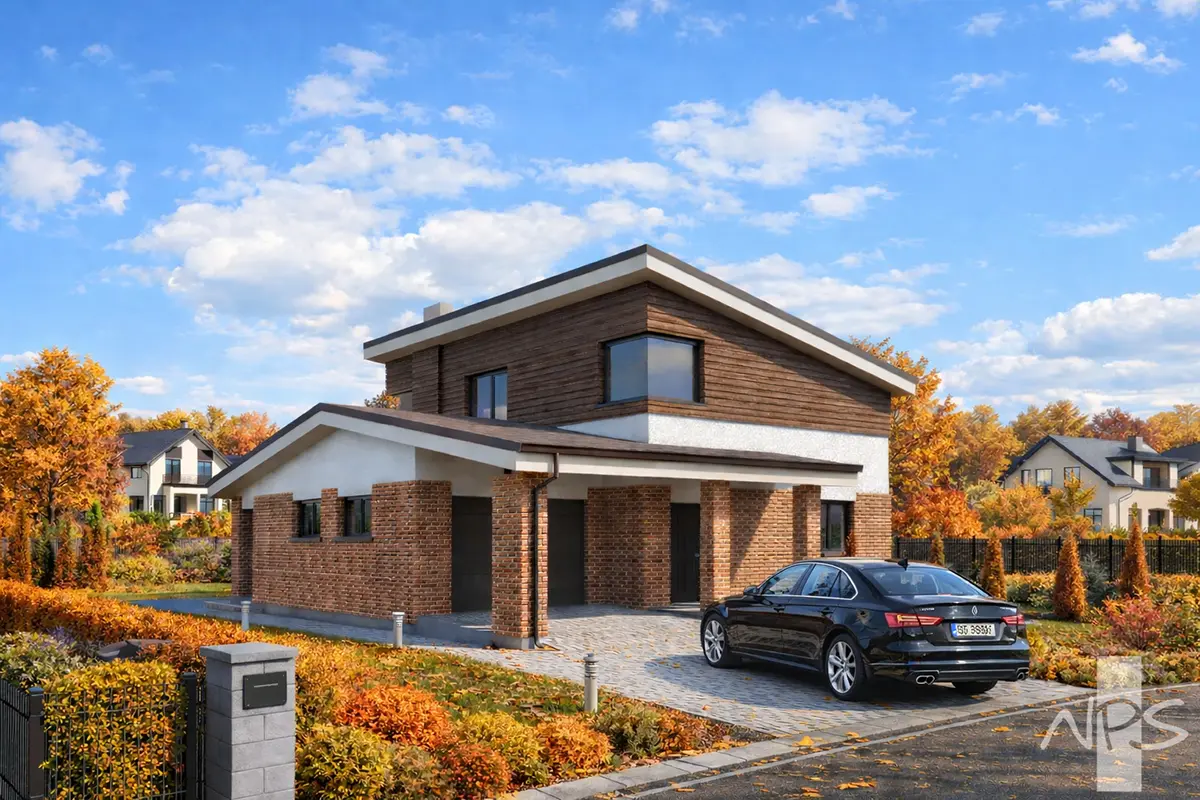

Renderings 1 – 1,423 Sq Ft Traditional 2-Story House Plan with 3 Bedrooms and 2 Bathrooms – 64824R
Renderings 2 – 1,423 Sq Ft Traditional 2-Story House Plan with 3 Bedrooms and 2 Bathrooms – 64824R Renderings 3 – 1,423 Sq Ft Traditional 2-Story House Plan with 3 Bedrooms and 2 Bathrooms – 64824R
5
Construction documents are prepared for the following countries:

1,423 Sq Ft Traditional 2-Story House Plan with 3 Bedrooms, 2 Bathrooms and 1-Car Garage

Plan
64824R
Complete
Signed & Sealed
DC Available
Key Specs
1423
Total Heated ft²
2 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
1
Cars
111

222

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

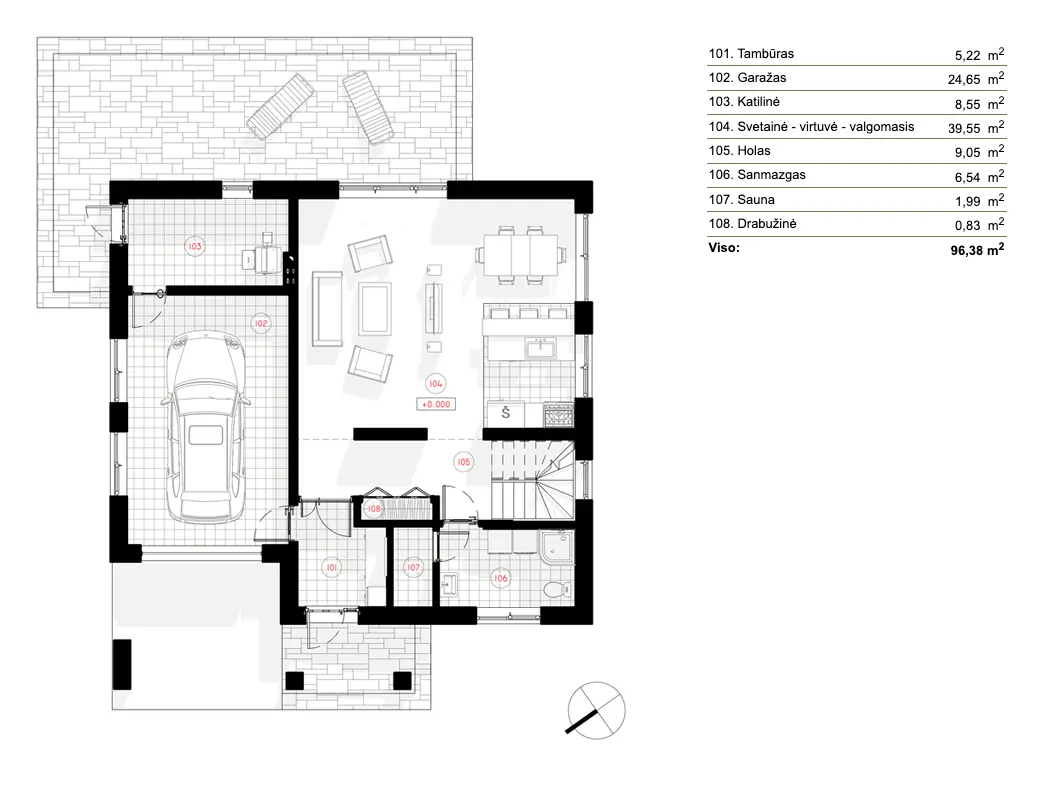

Main Floor
Main Floor 5 – 1,423 Sq Ft Traditional 2-Story House Plan with 3 Bedrooms and 2 Bathrooms – 64824R
Second Floor
Second Floor 6 – 1,423 Sq Ft Traditional 2-Story House Plan with 3 Bedrooms and 2 Bathrooms – 64824R
Full Specs & Features
Area
First Floor: 772.1 ft²
Second Floor: 651.11 ft²
Total Heated: 1423.2 ft²
Dimensions
Depth: 38'1" ft
Width: 36'1" ft
Height: 22'4" ft
Garage
Area: 265 ft²
Cars: 1
Attached
Front Entry
Foundation
Piling
Slab (Optional)
Concrete Stem Wall (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Calcium silicate block
Aerated Concrete Block (Optional)
Ceramic Block (Optional)
Wood-framed (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Wood
Stucco
Rooms
Full bathrooms: 2
Bedrooms: 3
Utility room
Laundry
Entry
Sauna
Walk In Closet
Kitchen and Dining
Breakfast bar
Breakfast Nook
Island
Interior Features
Laundry On Main Floor
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Exterior Features
Deck
Corner Window
Architectural Style
European
Traditional
Roof
Shed
Roof Pitch: 2/12 (9.5°)

House design concept 64824R is a Traditional 2-story single-family home with a total heated 1,423 Sq Ft, 3 bedrooms, 2 bathrooms and a 1-car garage. Sized for a household of 3-4 people, the house keeps the living spaces on the main floor and the bedrooms upstairs, while a low-slope shed roof gives it a clean profile.

The entry leads into an open floor plan where the large family room, the kitchen and the breakfast nook share one space, so whoever cooks stays part of the conversation. An island adds work surface for meal prep, and a breakfast bar handles quick meals. A corner window draws in daylight from two sides.

All three bedrooms are clustered on the second floor, keeping children close to their parents at night. The primary suite has a walk-in closet that keeps clothing out of the sleeping area. The house has two full bathrooms. The laundry on the main floor and a separate utility room keep chores away from the bedrooms, and a sauna offers a way to unwind without leaving home.

A deck extends living outdoors for meals and relaxing in fair weather. The attached front-entry garage holds one car and keeps the driveway short. Stone/brick veneer, wood and stucco give the exterior a layered texture. The walls are designed in calcium silicate block, with aerated concrete, ceramic block or wood framing as options, on a bored pile foundation with slab, strip or block foundations as alternatives. The footprint is 36'1" wide and 38'1" deep. The figures: total heated 1,423 Sq Ft, 3 bedrooms, 2 bathrooms and a 1-car garage.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
